Autool  |  SKU: SVB308

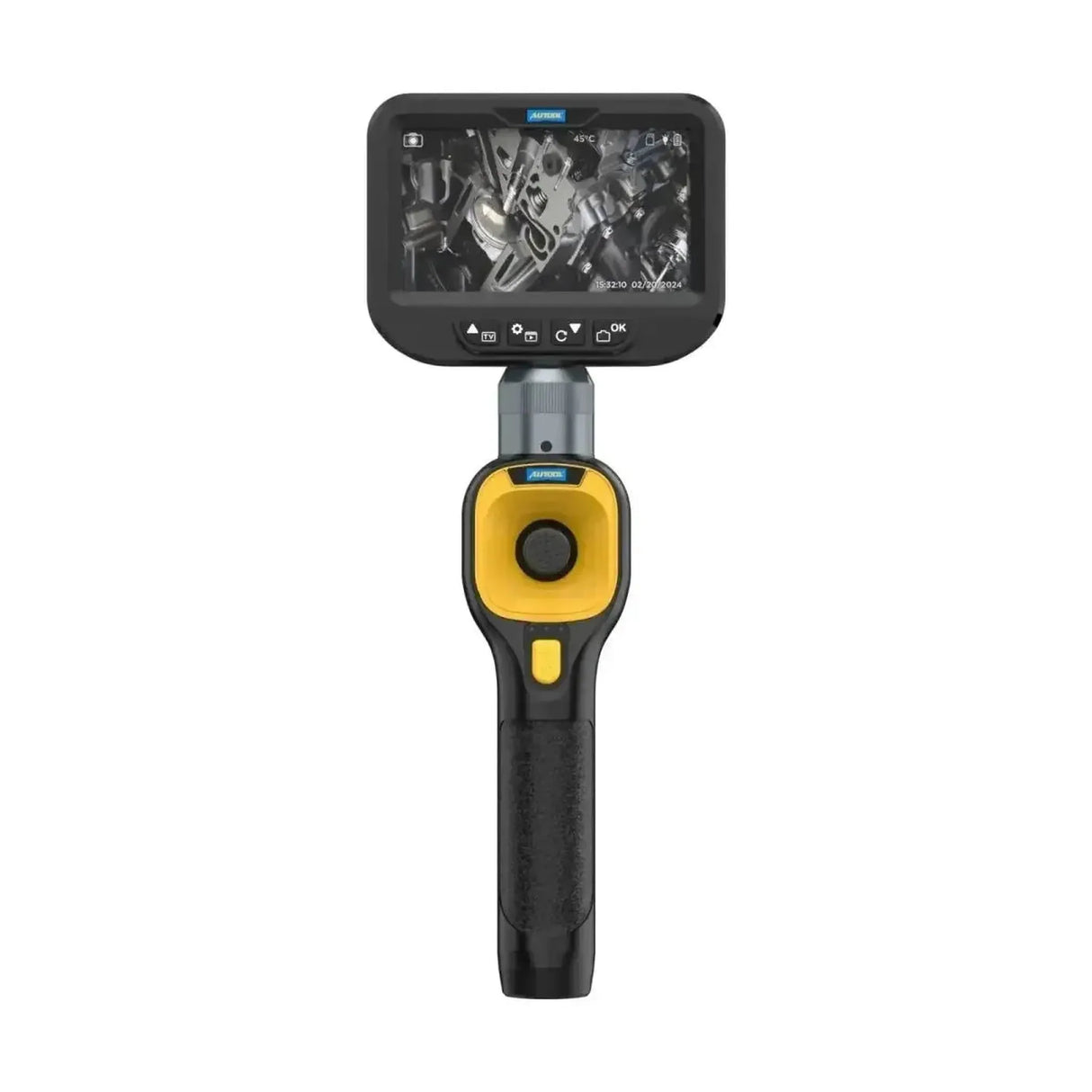

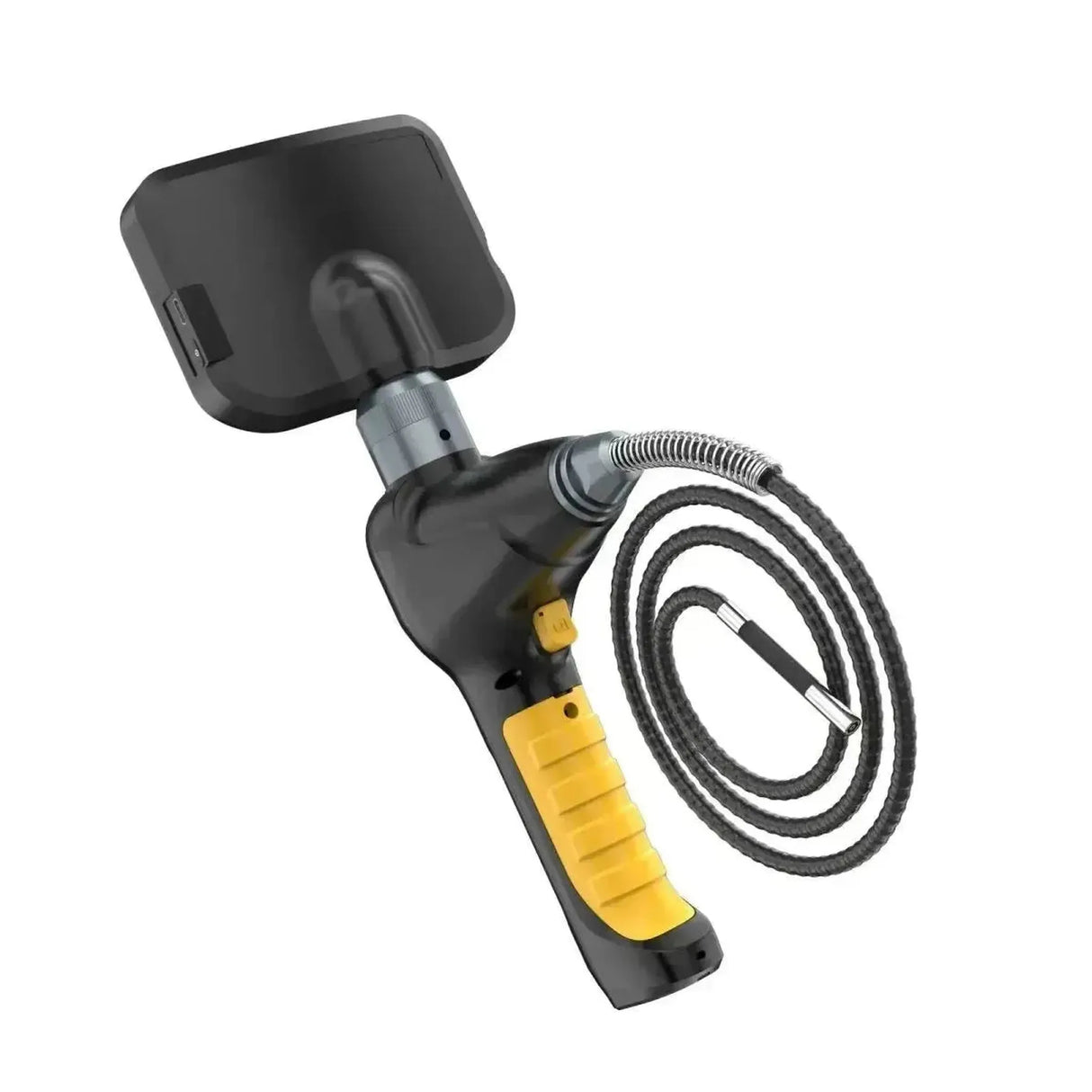

Autool SVB308 | Inspection Camera (6.2 mm)

1 review
€239,95 incl.
€198,31 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

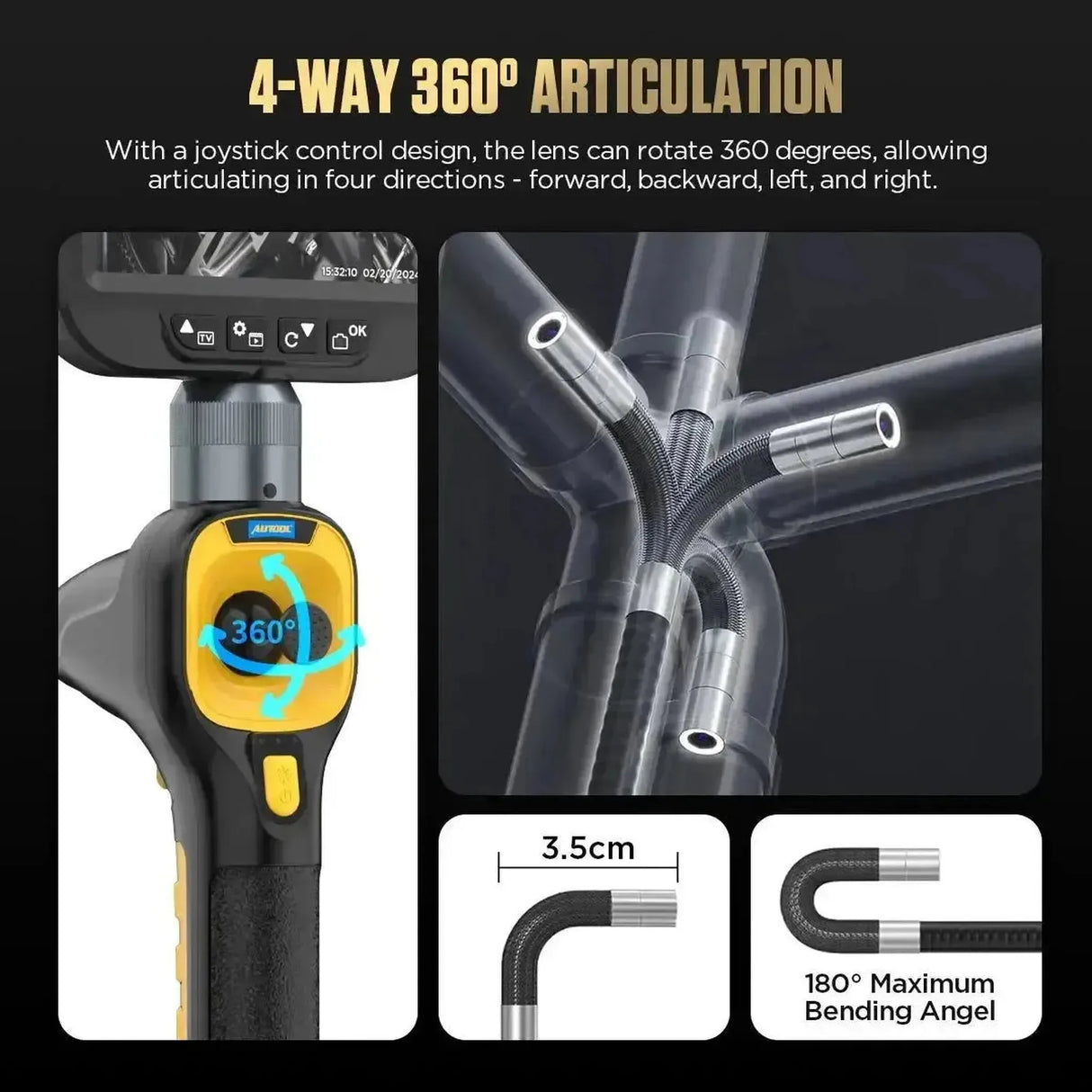

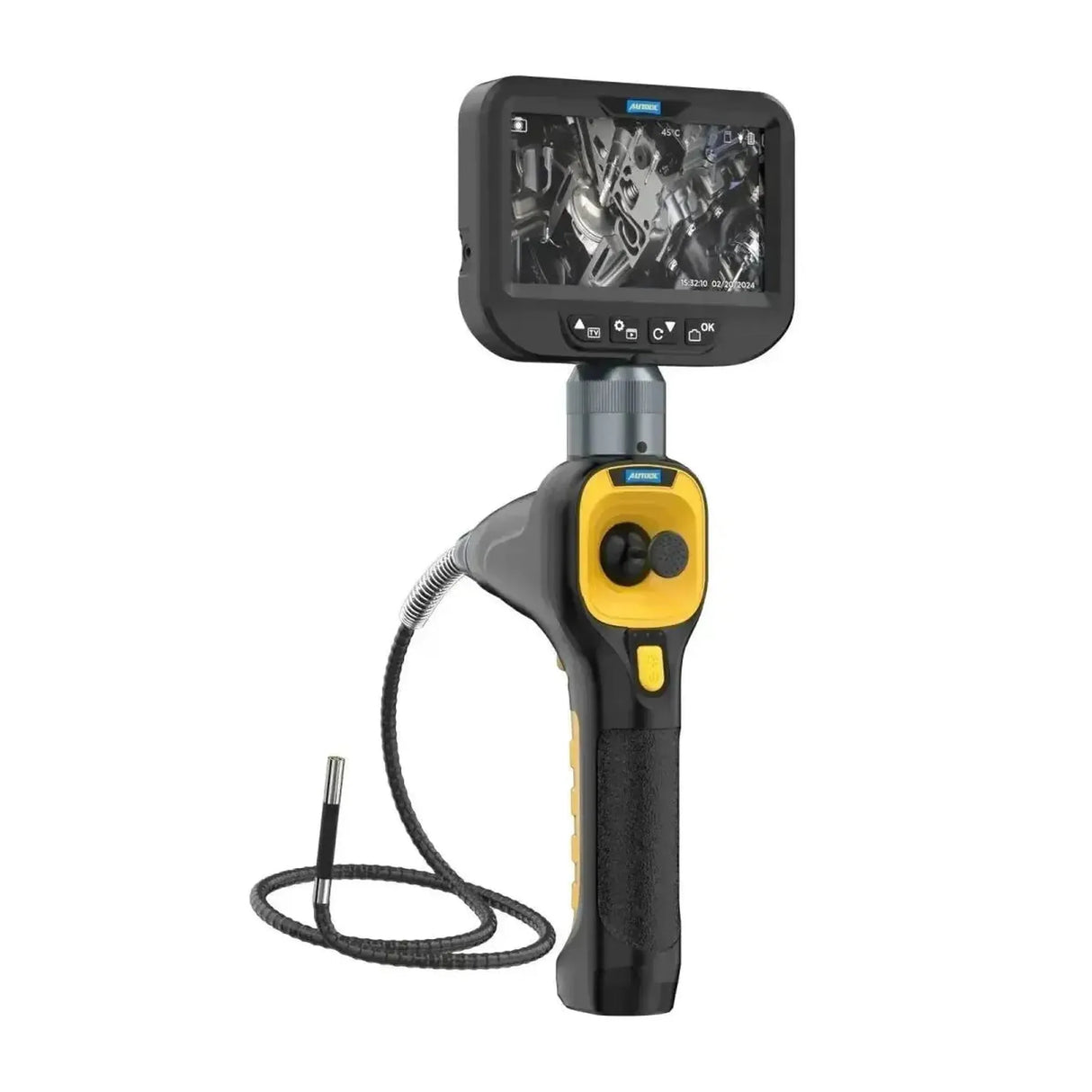

The Autool SVB308 is an inspection camera. It features a 6.2 mm camera head controlled by a joystick that steers four ways, 360 degrees around, with a bending radius of 35 mm. You insert the probe just once and then look around, rather than withdrawing it to change angle.

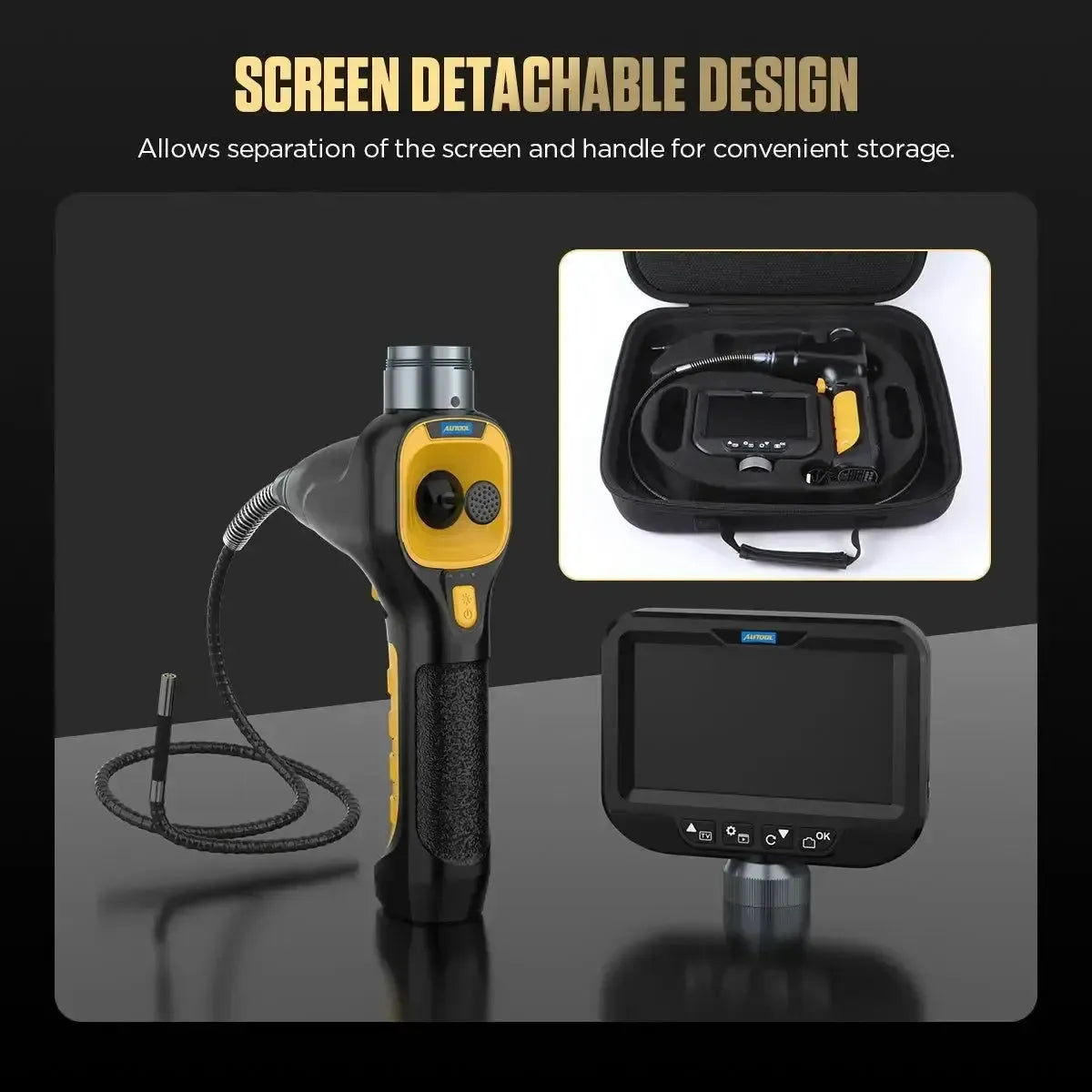

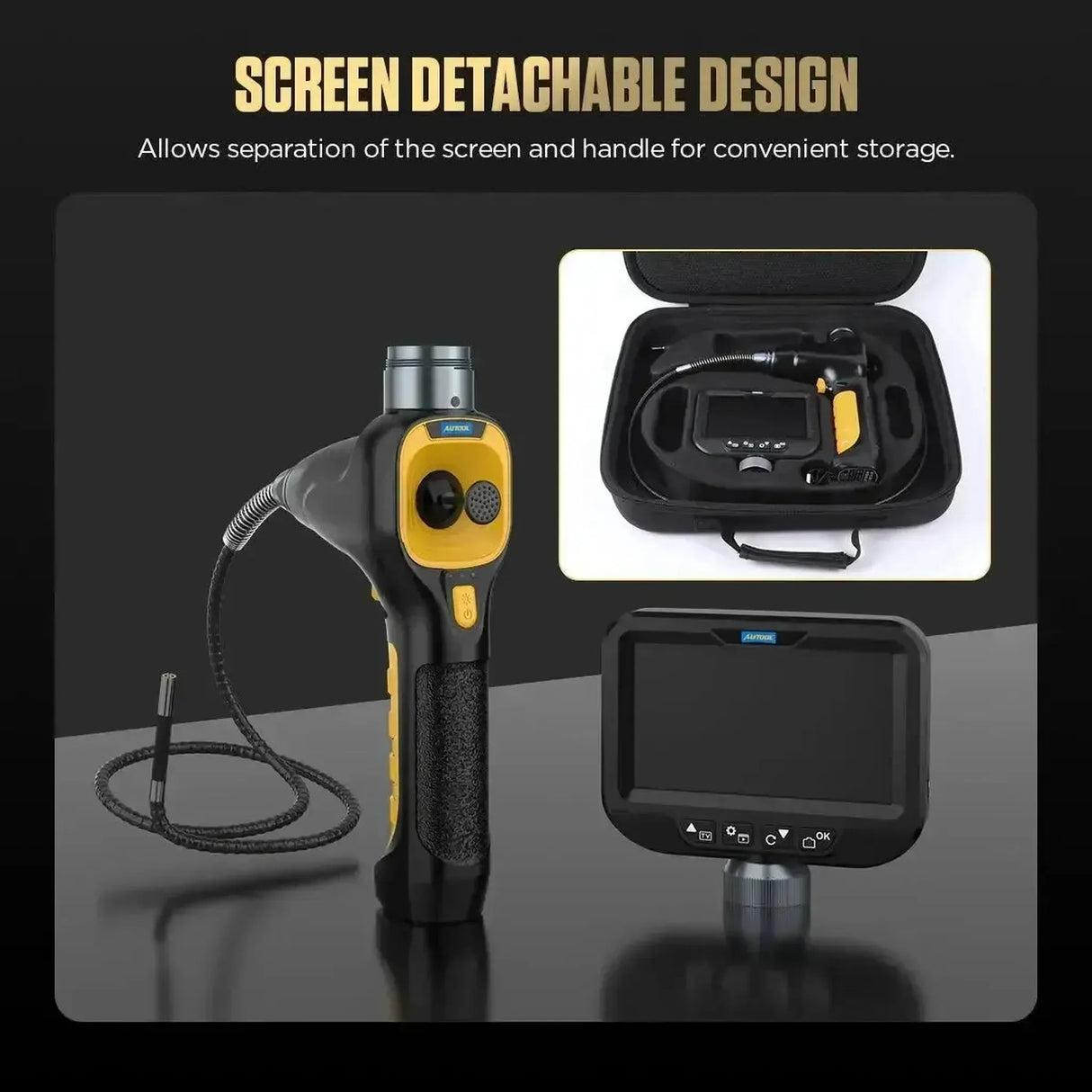

What sets this model apart is the detachable display: the 4.3 inch screen disconnects from the handset and sits on steel using a magnetic foot, so you can watch where you need to while keeping your hands on the probe. Recording available in 640 × 480, 1280 × 720 or 1920 × 1080, with date stamp.

KEY BENEFITS

✔Four-way steering, 360 degrees round with joystick control, bending radius 35 millimetres.
✔Detachable 4.3 inch display with magnetic foot, can be positioned independently from the handset.
✔Adjustable recording resolution up to 1920 by 1080, with date stamp.
✔IP67 probe, resistant to oil, coolant and moisture.

POINTS TO NOTE

✕The probe alone is waterproof. The handset with display is not.
✕The probe is 1 metre long. For long pipes or a deep hollow section, this may be too short.
✕No zoom and no measurement function. The crosshairs on screen are a reference line, not a measurement tool.
✕Do not use probe above 70 degrees. A hot engine must cool first.

Application and functionality

With a fixed head, the direction you insert the probe determines what you see; to change angle you must withdraw and reinsert it. A four-way steerable head eliminates that: once inside you direct the camera where you want. The detachable display solves the second problem, which is that viewing and working rarely happen in the same location.

The Autool SVB308 supports the following image and control functions:

  • Camera head steering: Four directions, 360 degrees round, via joystick; bending radius 35 millimetres.
  • Adjustable recording resolution: 640 by 480, 1280 by 720 or 1920 by 1080.
  • Photo and video: JPG for photos, AVI for video, with date stamp.

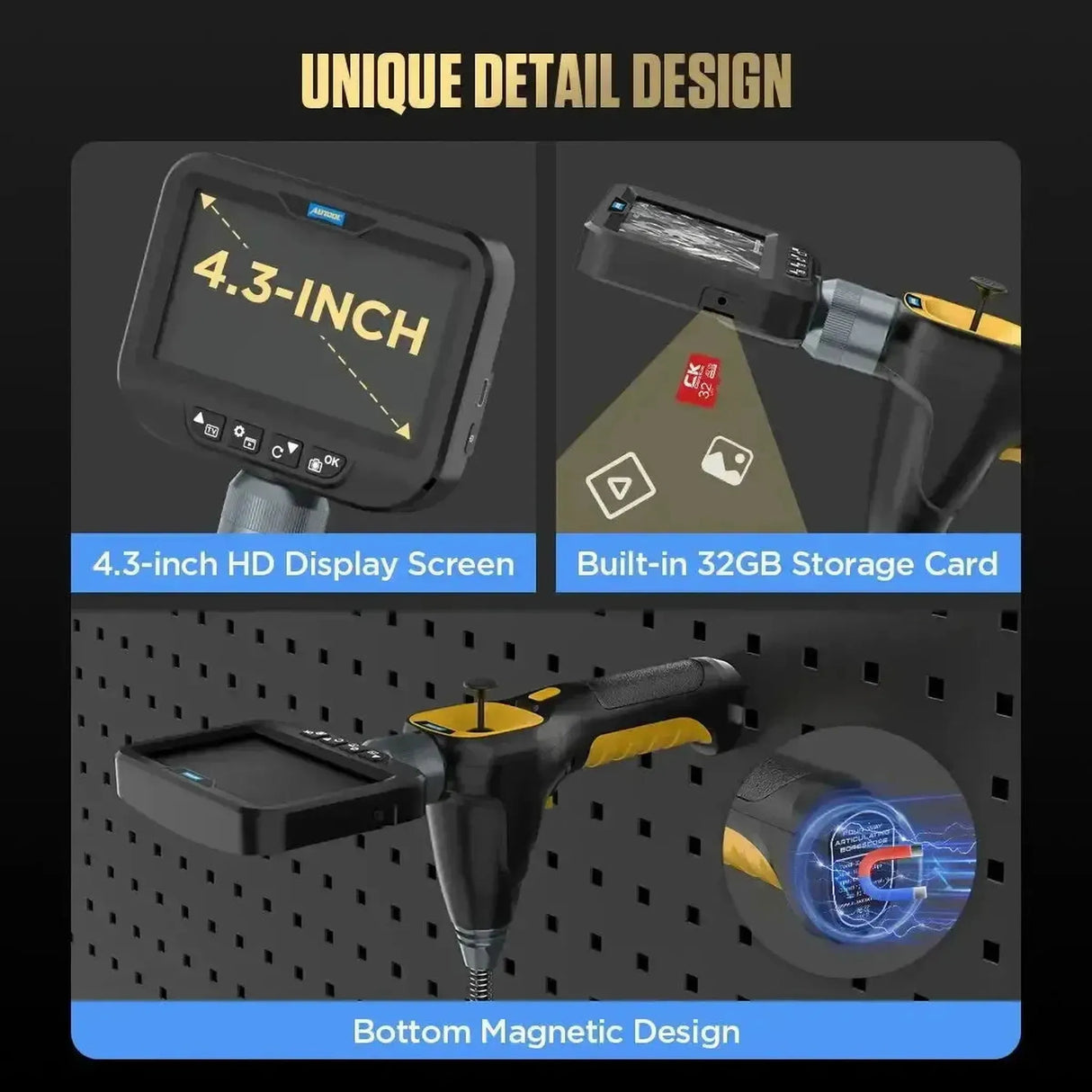

  • Detachable display: The 4.3 inch screen detaches from the handset and features a magnetic foot.

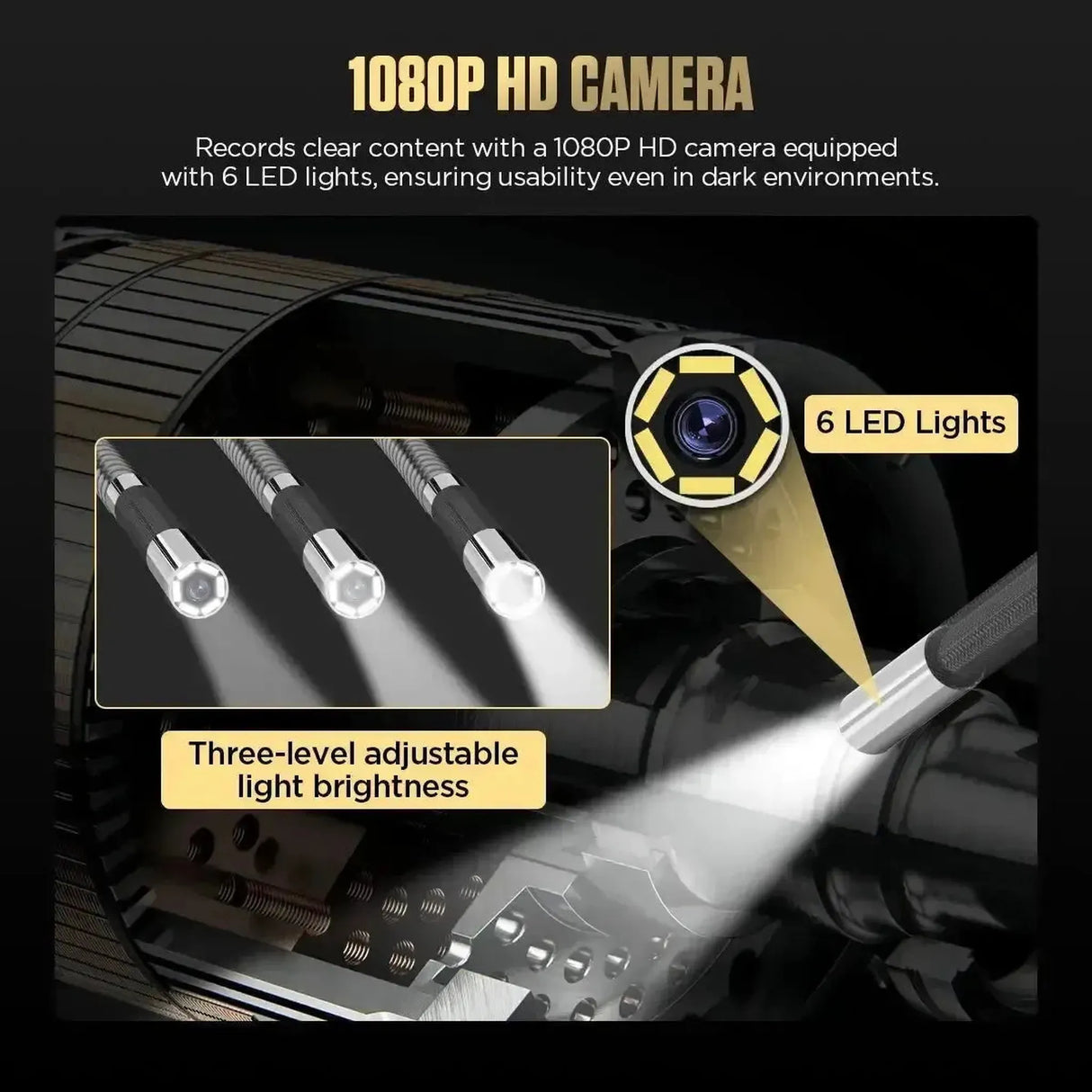

  • Lighting: Six LEDs in the head, three brightness levels plus off.
  • Adjustable auto-off: Can be disabled or set to three, five or ten minutes.
  • Memory card storage: A memory card is supplied.

How to use it

  1. Charge the unit: Via the USB-C port at 5 volts.
  2. Insert the memory card: In the slot on the handset.
  3. Switch on and detach the display: Set it down where you can see it; the magnetic foot keeps it secure on steel.
  4. Insert the probe and steer with the joystick: Four directions, 360 degrees round.
  5. Choose resolution and record: Photos as JPG, video as AVI, with date stamp.

Special features and capabilities

The separation between screen and handset is what distinguishes this model; beyond that, there are limits to what the unit does not do.

  • Display positioned independently: At eye level or where you need to see it, whilst your hands stay with the probe.
  • Magnetic foot: The screen sits on steel without requiring you to hold it.
  • Stream image to a PC: Via the data cable; the unit has no wireless connection.
  • Menu in ten languages: English, German, French, Spanish, Italian and Russian are included; Dutch is not.

Where to use it

The unit is designed for inspections where you look around rather than examine one point, and where viewing the screen does not coincide with where your hands are positioned.

  • Combustion chamber: Look around through the spark plug hole without withdrawing the probe.
  • Air conditioning evaporator: Behind the dashboard, with the screen positioned within reach.
  • Hollow beams and sills: Where you need to direct the head after insertion.
  • Work under the vehicle: The screen on the ramp, the handset in the wheel arch.

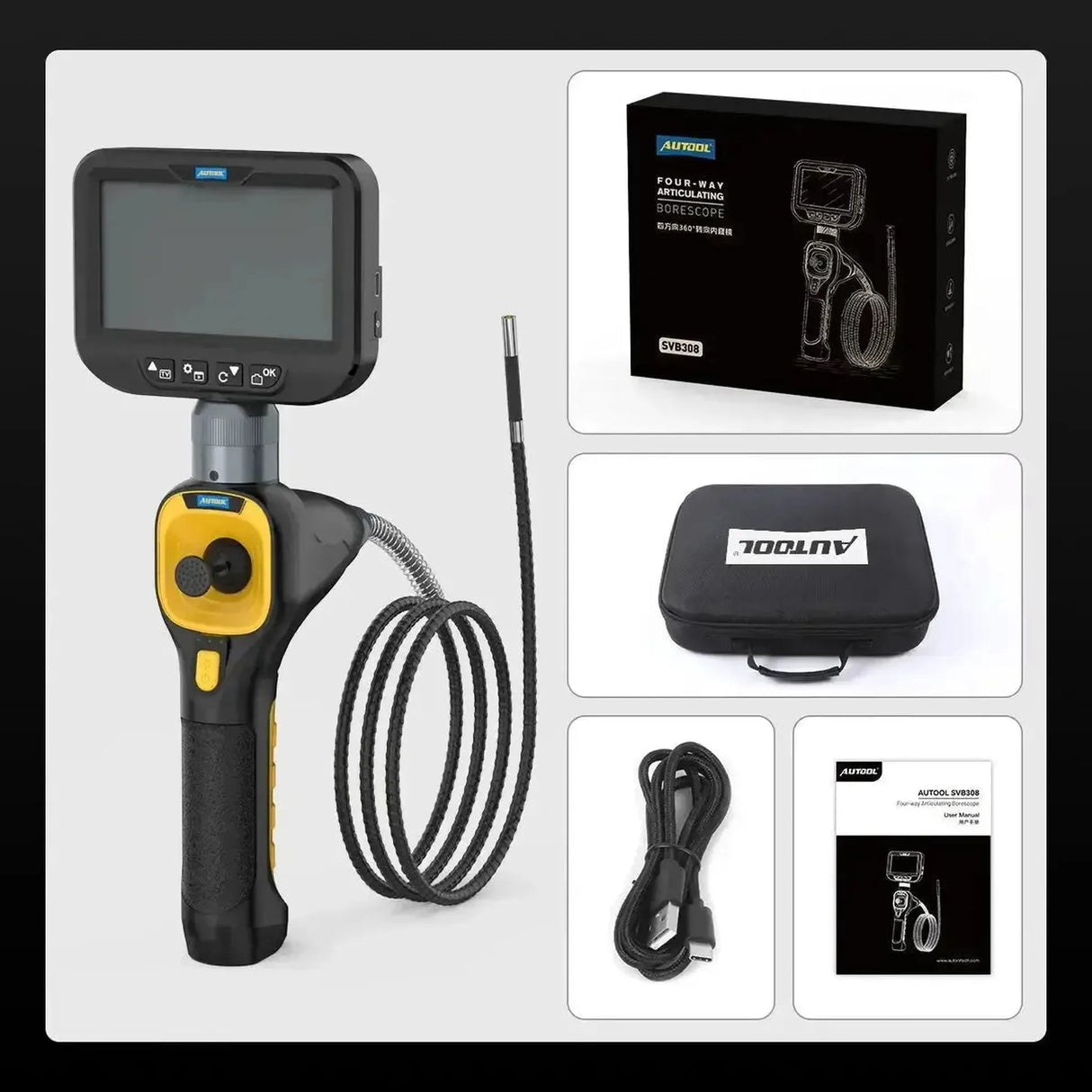

Package contents

  • 1x Autool SVB308 inspection camera with detachable 4.3 inch display
  • 1x Flexible metal probe 1 m, 6.2 mm
  • 1x Memory card
  • 1x USB-C charging cable

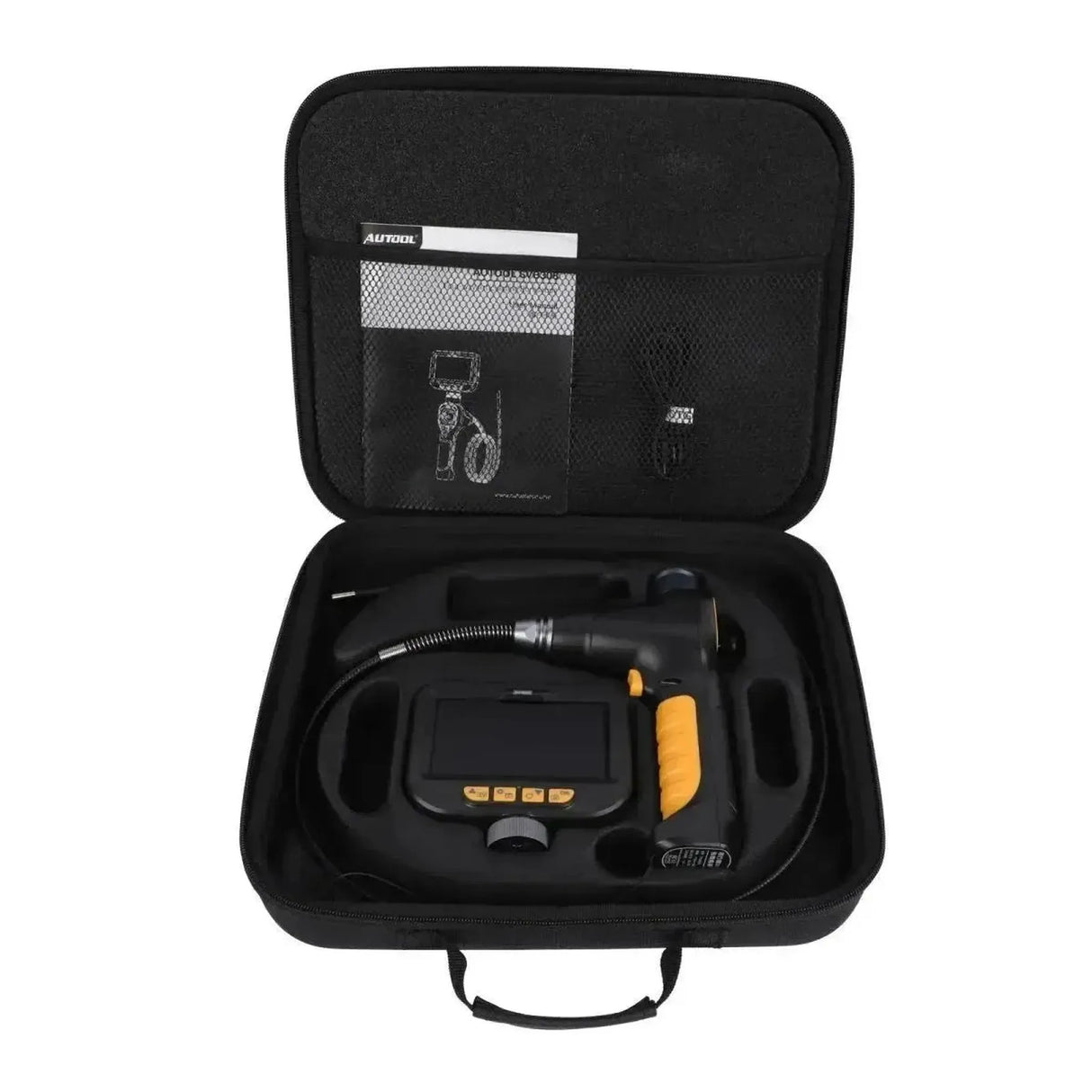

  • 1x Carry case
  • 1x User manual
💡
Worth knowing: Position the screen before you insert the probe and check where you have a good view. Detaching it halfway costs you the head position you just found.

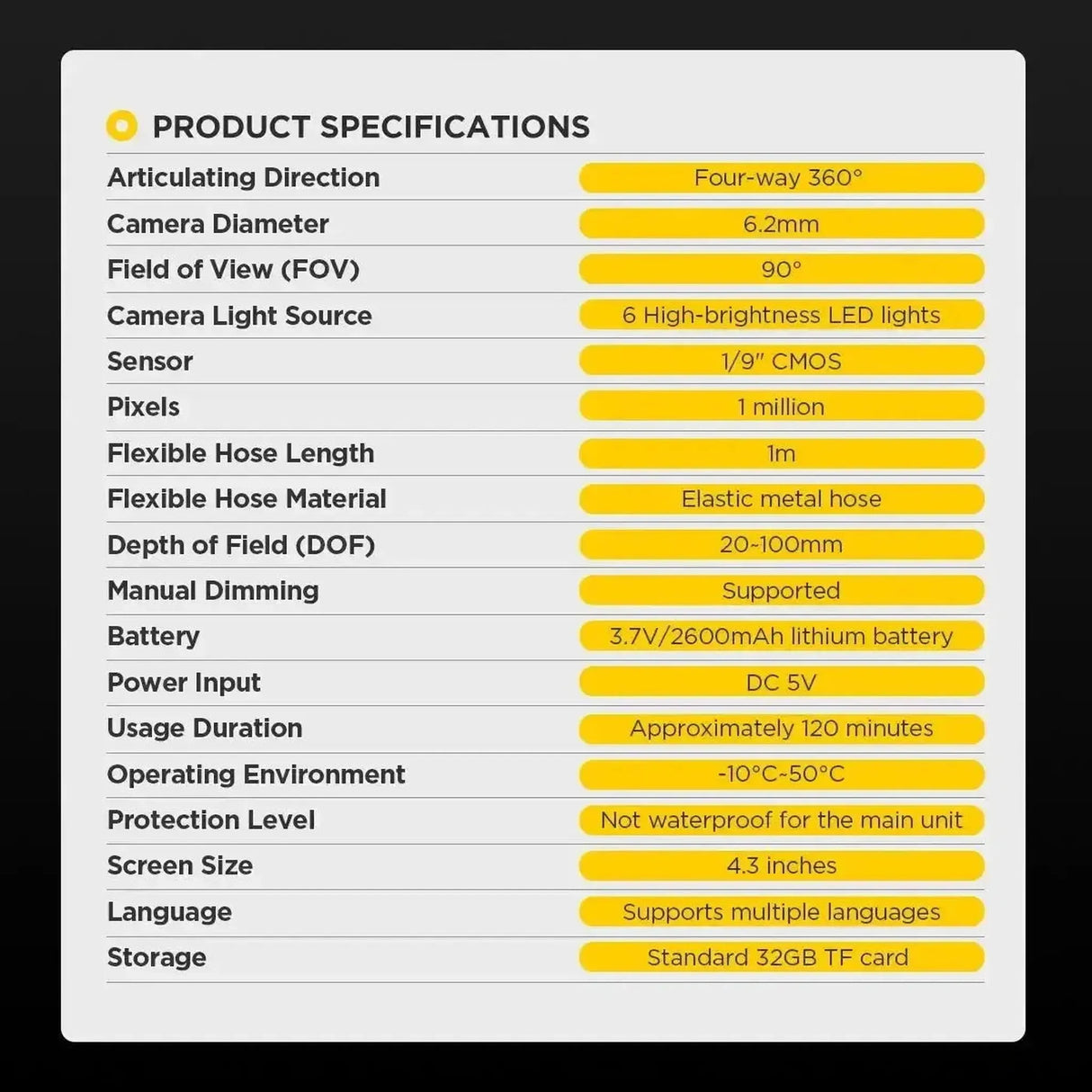

Technical specifications

General

The manufacturer of the inspection camera.Brand
Autool
Whether the camera has its own screen or displays the image on your phone, tablet, diagnostic tester or PC. This determines what else you will need.Type of camera
With own screen
The number of languages available for the camera's menu.Number of menu languages
10 languages

Camera

How many pixels the camera captures. The higher this is, the more clearly you see small cracks and dirt.Resolution
1920 x 1080 pixels
How wide the camera's view is in one shot. A larger angle shows more of the surrounding space.Viewing angle
90 °C
At what distance from the camera head the image is in focus.Depth of field
20 to 100 mm
The number of settings for the camera's lights, so the image is neither too dark nor overexposed.Number of light settings
3 settings
Whether you can zoom in on the screen to view a detail more closely.Digital zoom

Probe

How thick the camera head is. A thinner probe fits through smaller holes, such as a spark plug hole.Probe diameter
6.2 mm
How far you can insert the camera into a space.Cable length
1 m
In how many directions you can bend the camera head. This lets you look around corners without moving the cable.Steerable head
4 directions
How far the camera head can turn. A larger angle lets you see further around a bend.Steering angle
360 °C
How tightly the head can bend. A smaller radius helps in confined spaces.Bend radius
35 mm
The protection rating of the probe. With IP67, the probe can withstand water, oil and dust.Probe waterproofing
IP67
Up to which temperature you can use the probe, for example in a hot engine.Maximum probe temperature
70 °C

Screen

The size of the camera's own screen. A larger screen makes details easier to see.Screen diagonal
4.3 inch
You can detach the screen and set it down, leaving both hands free for the cable.Detachable screen
A magnet lets you fix the screen or holder to the car.Magnetic mount

Storage and connectivity

Where photos and videos are stored.Storage
Memory card
The ports on the camera, for charging, transferring data to a PC or displaying on an external screen.Connections
  • USB-C
The file types in which photos and videos are saved.File formats
  • JPG
  • AVI
Date and time appear on the photo or video, useful for recording your work.Date stamp

Battery

How much energy the battery stores. A larger battery usually lasts longer.Battery capacity
3.7 V lithium, 2600 mAh, approximately 120 minutes runtime
The ambient temperature range in which the device operates properly, for example in a cold workshop.Operating temperature
-10 to 50 °C

Other specifications

Image sensor
1/9-inch CMOS, 1 megapixel
Recording resolution
640 × 480, 1280 × 720 or 1920 × 1080, adjustable
File formats
JPG for photos, AVI for video, with date stamp overlay
Storage
Memory card included
Charging
USB-C, 5 V
Auto shut-off
Off, or after three, five or ten minutes
Connectivity
Stream footage to a PC via data cable; no wireless connection
