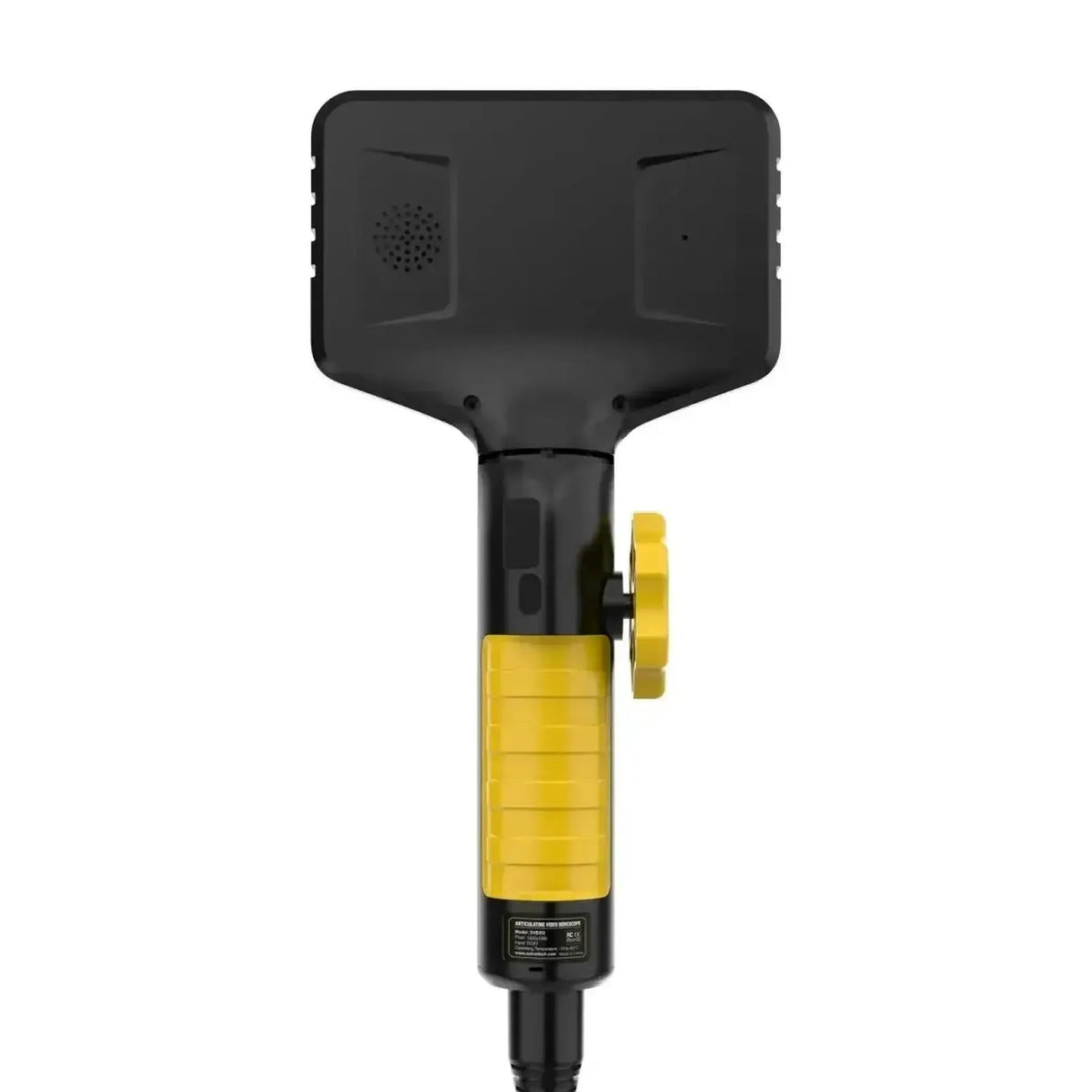

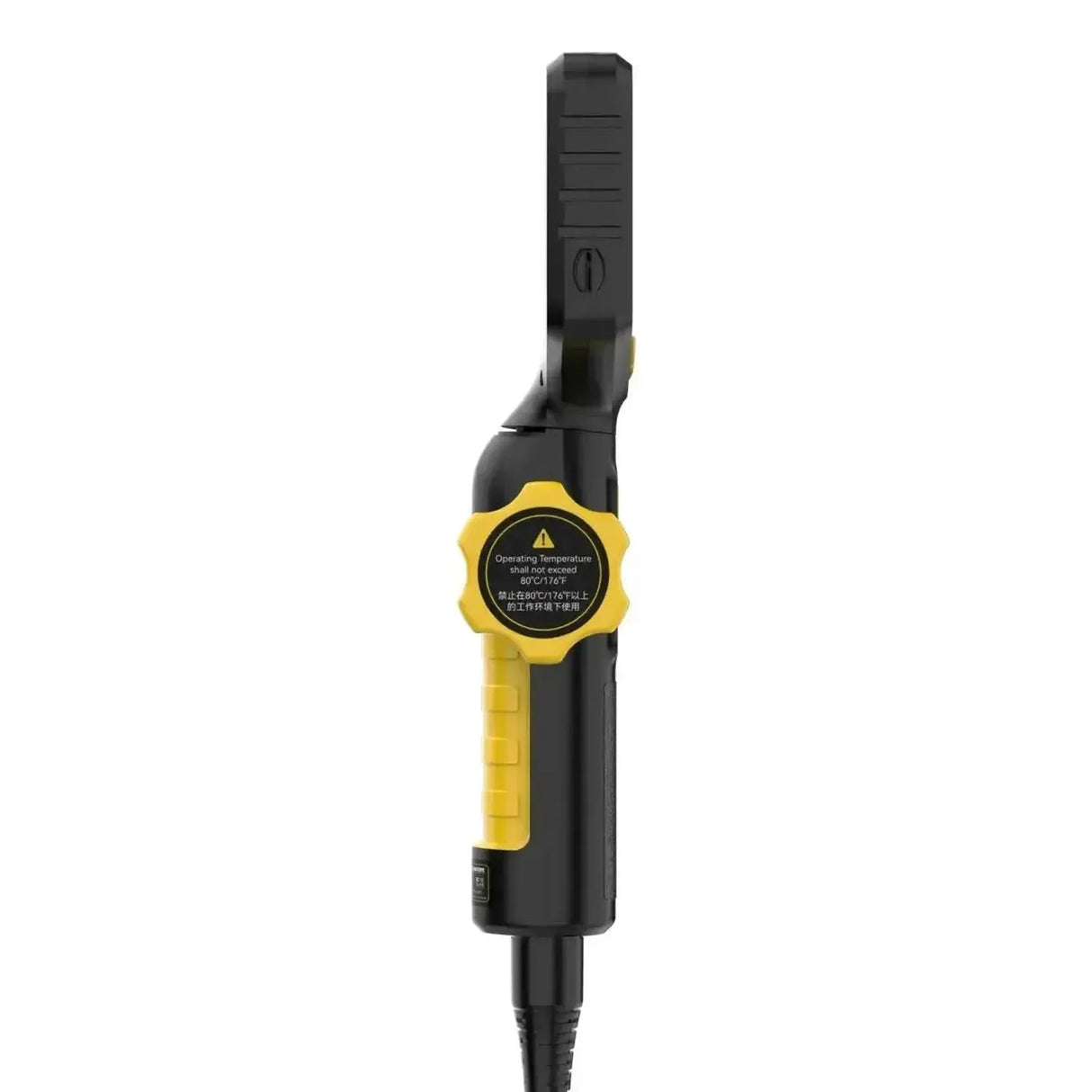

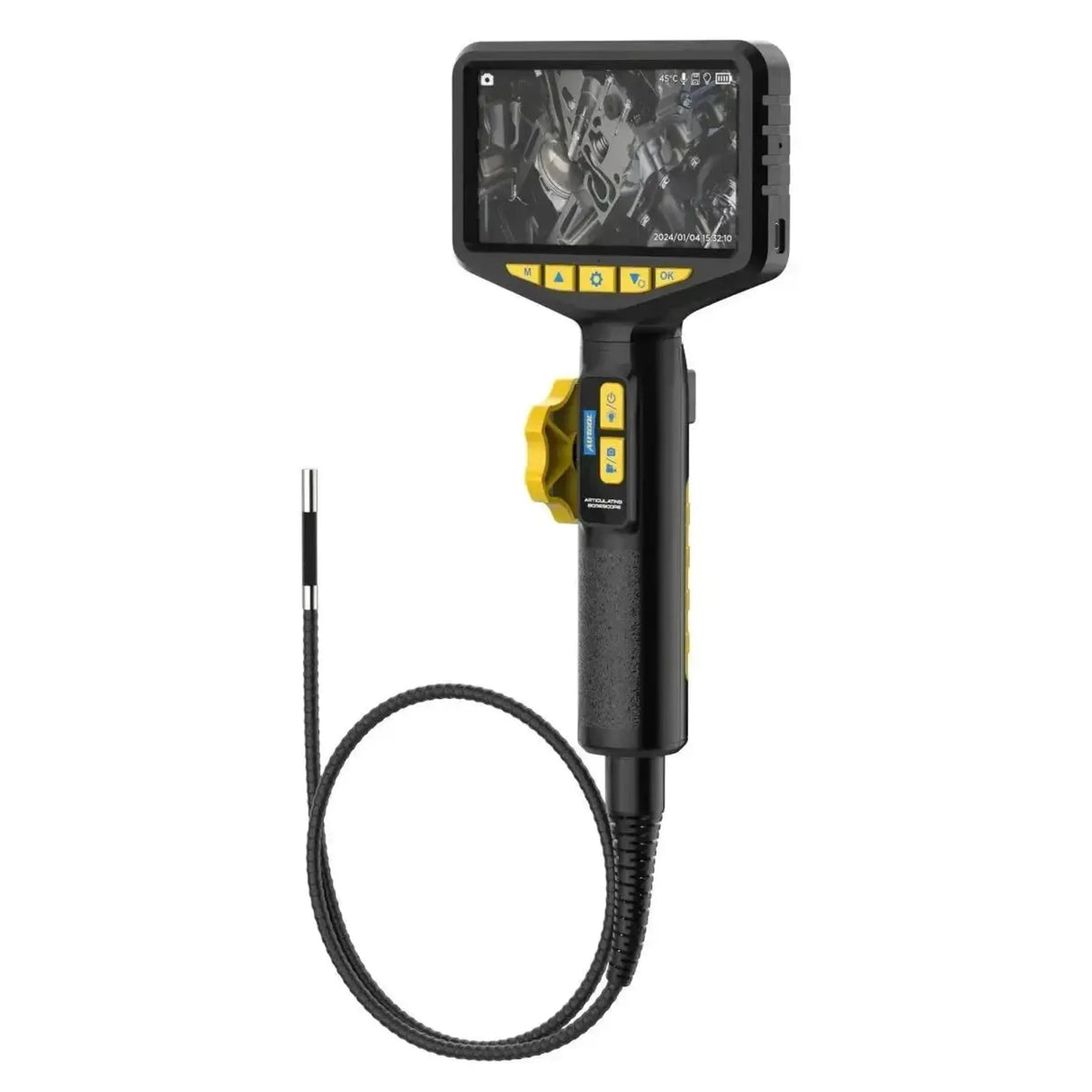

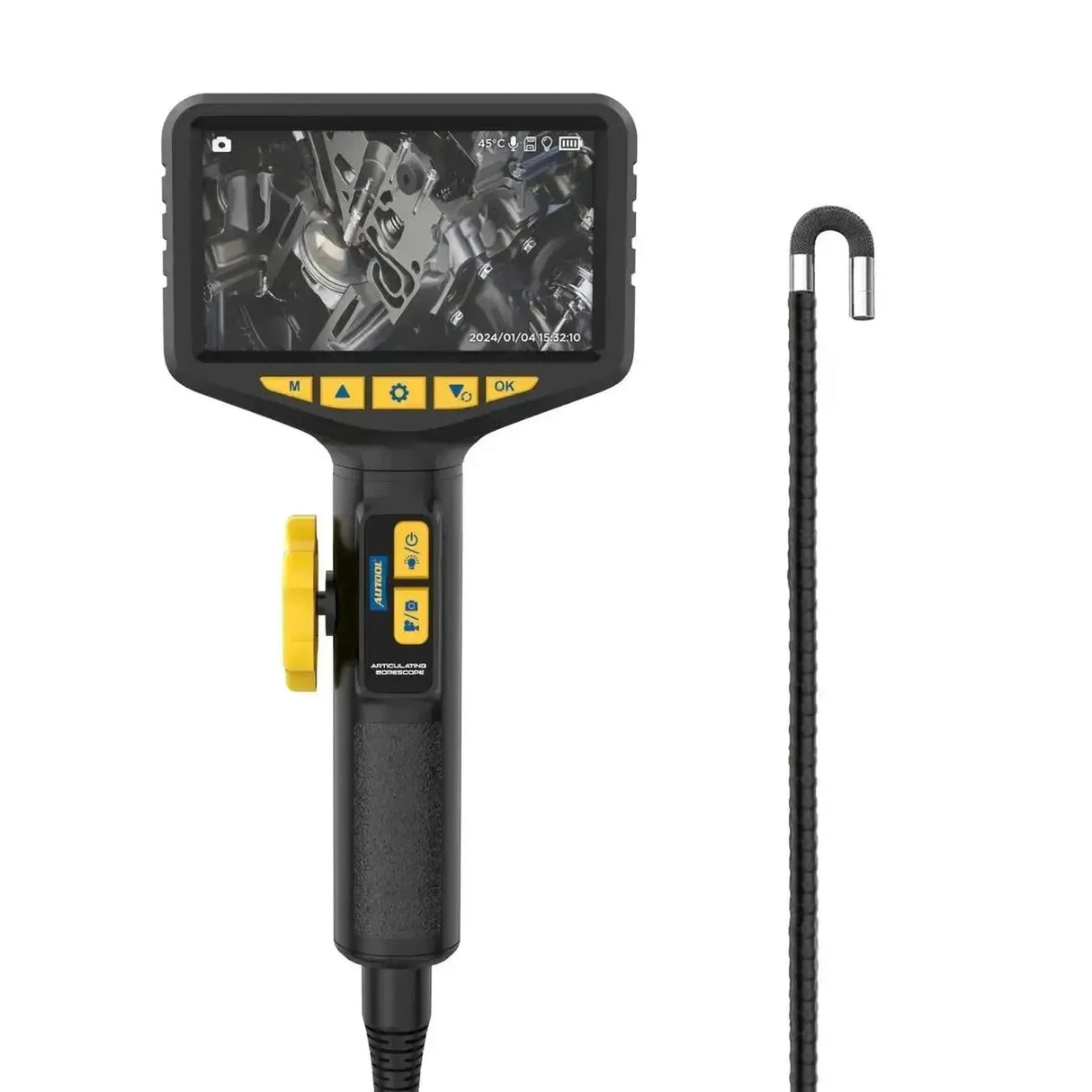

The Autool SVB305 is an inspection camera designed for visually examining hard-to-reach spaces. This model features a camera head with a diameter of 6.35 mm, attached to a flexible, shape-retaining cable with a length of 1 meter. Images are displayed directly on the built-in 4.3 inch HD IPS screen. Power is supplied by an internal battery charged via a USB connection.
The camera head is equipped with 6 adjustable LEDs to illuminate dark environments. A distinctive feature of this device is the two-way controllable camera head with a steering angle of 210°, enabling navigation in complex structures. The control buttons allow direct capture and storage of photos (JPG) and videos (AVI) on the included 32 GB memory card. The device is equipped with a 2000 mAh battery and comes in a sturdy carrying case.
Application and functionality:
The SVB305 offers a range of features for detailed visual inspections without disassembling parts.

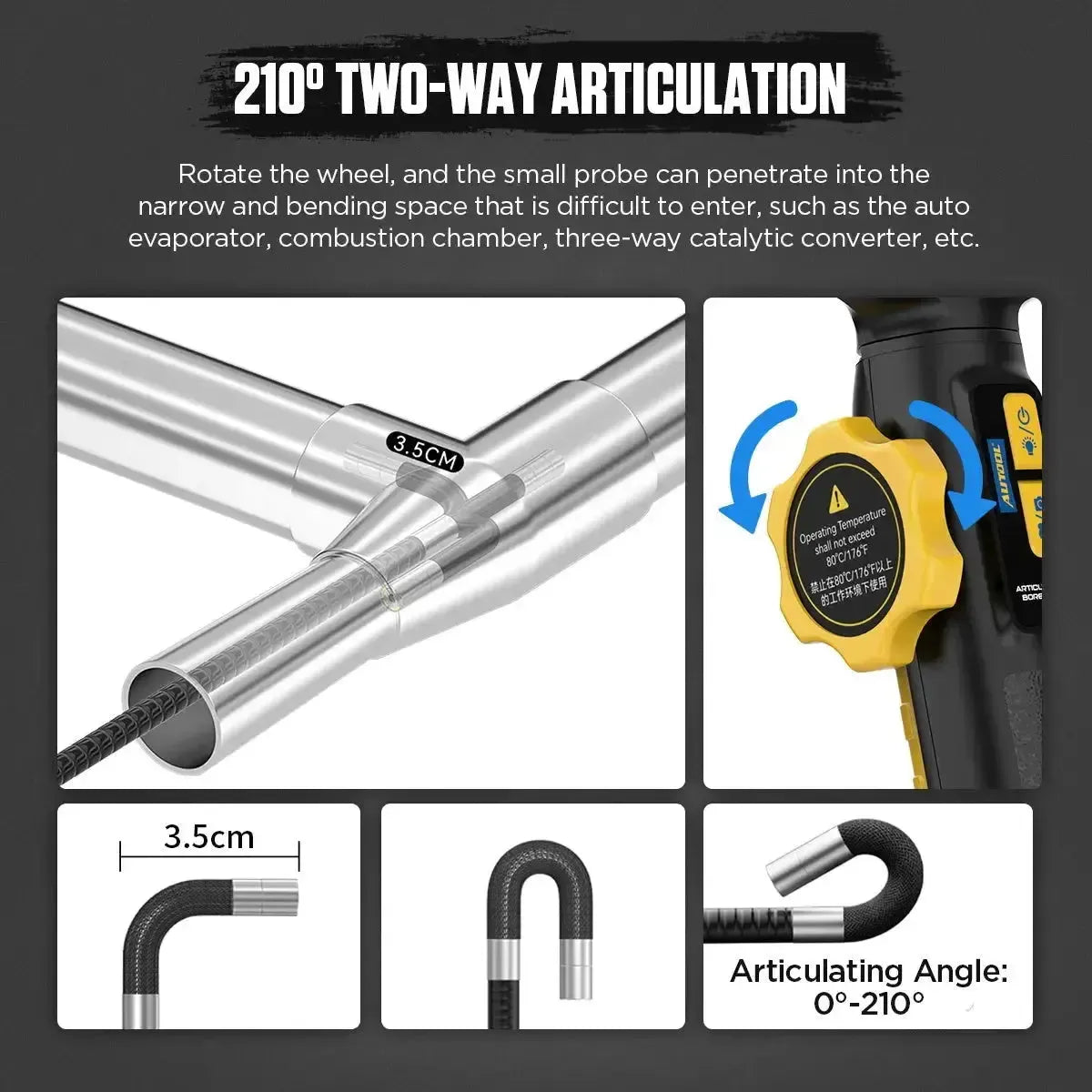

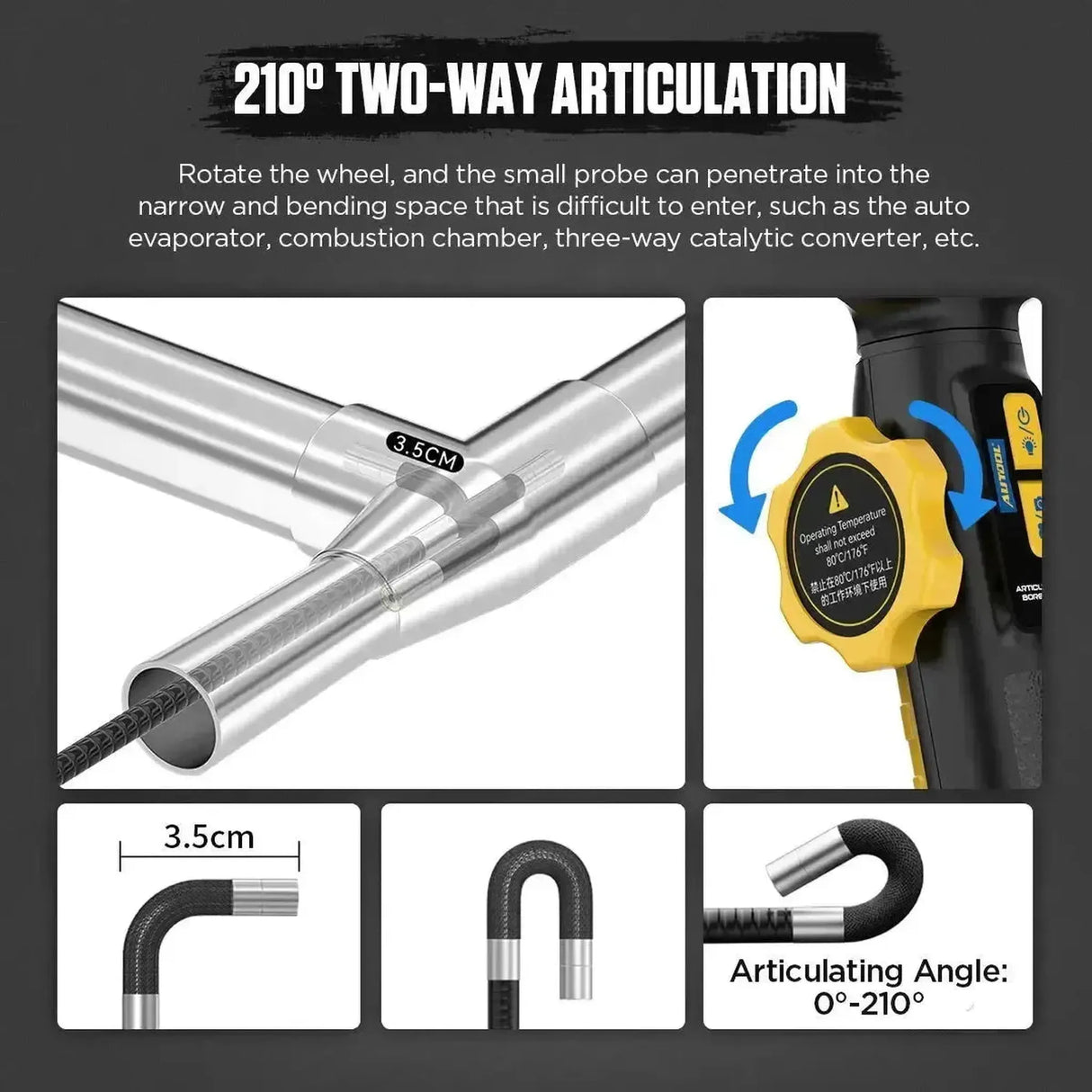

- Controllable camera head: The lens can be moved 210° in two directions, allowing the user to look around corners and obstacles for a complete view.

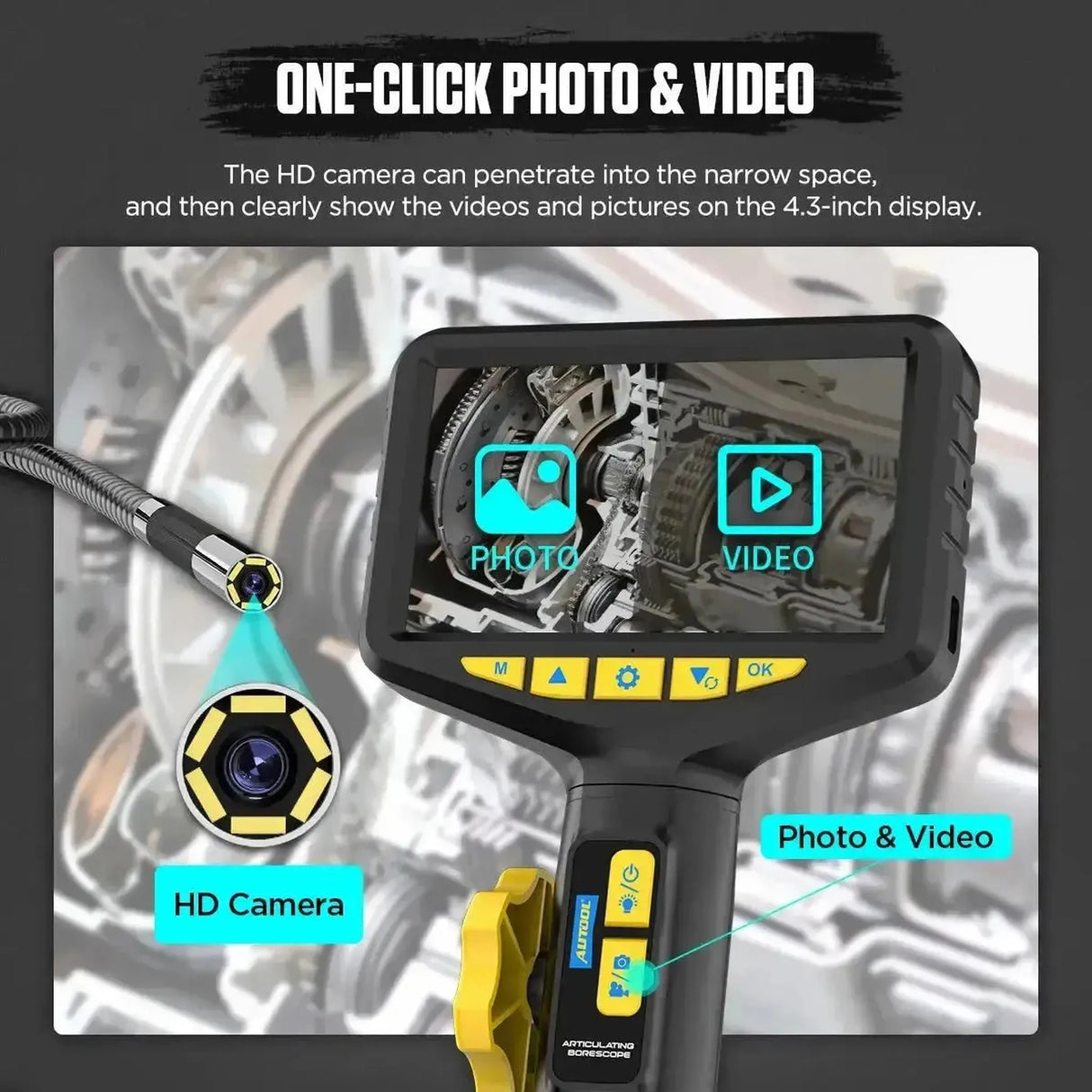

- Photo and video recording: Images can be captured as photos or videos with the press of a button. The files are saved on the internal memory card.

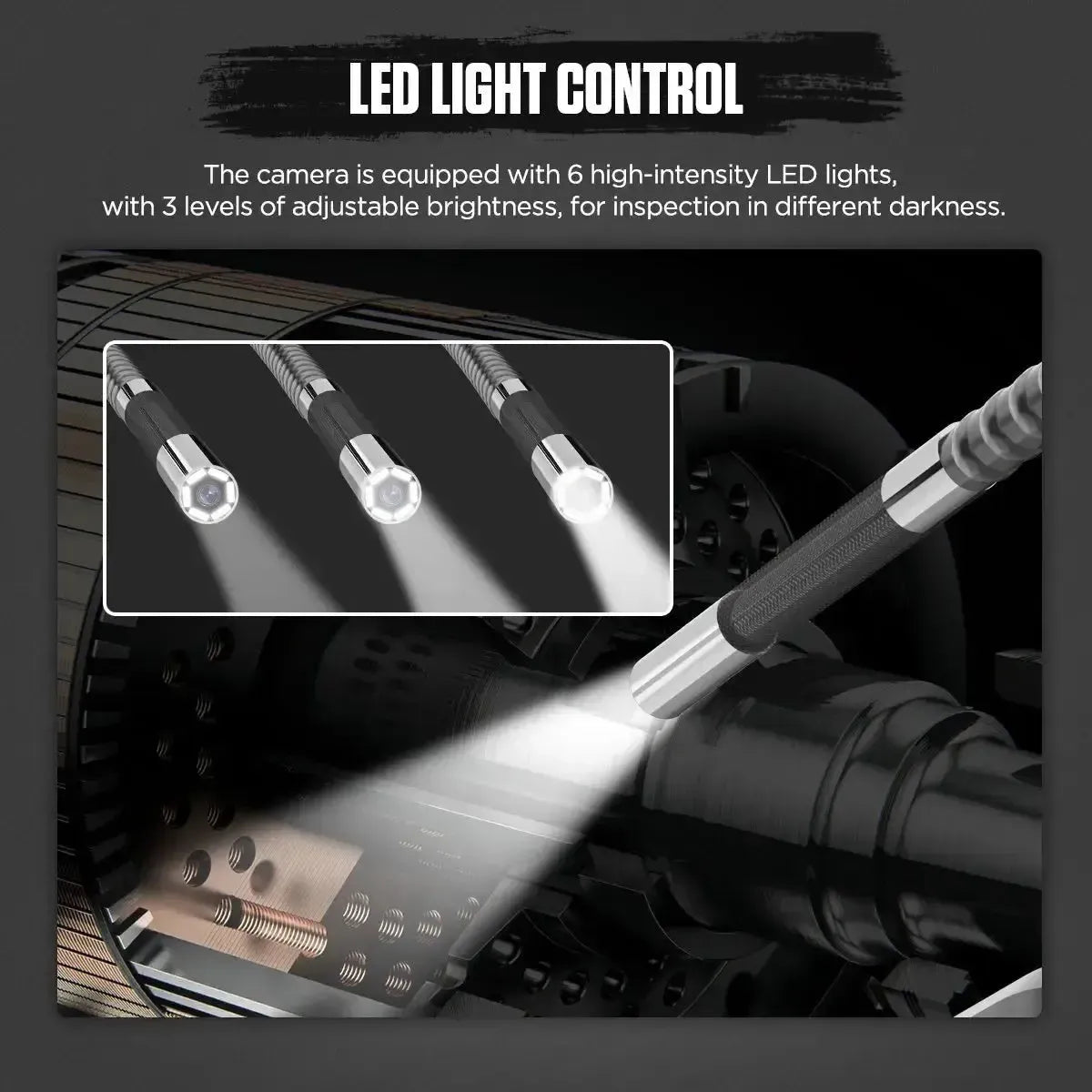

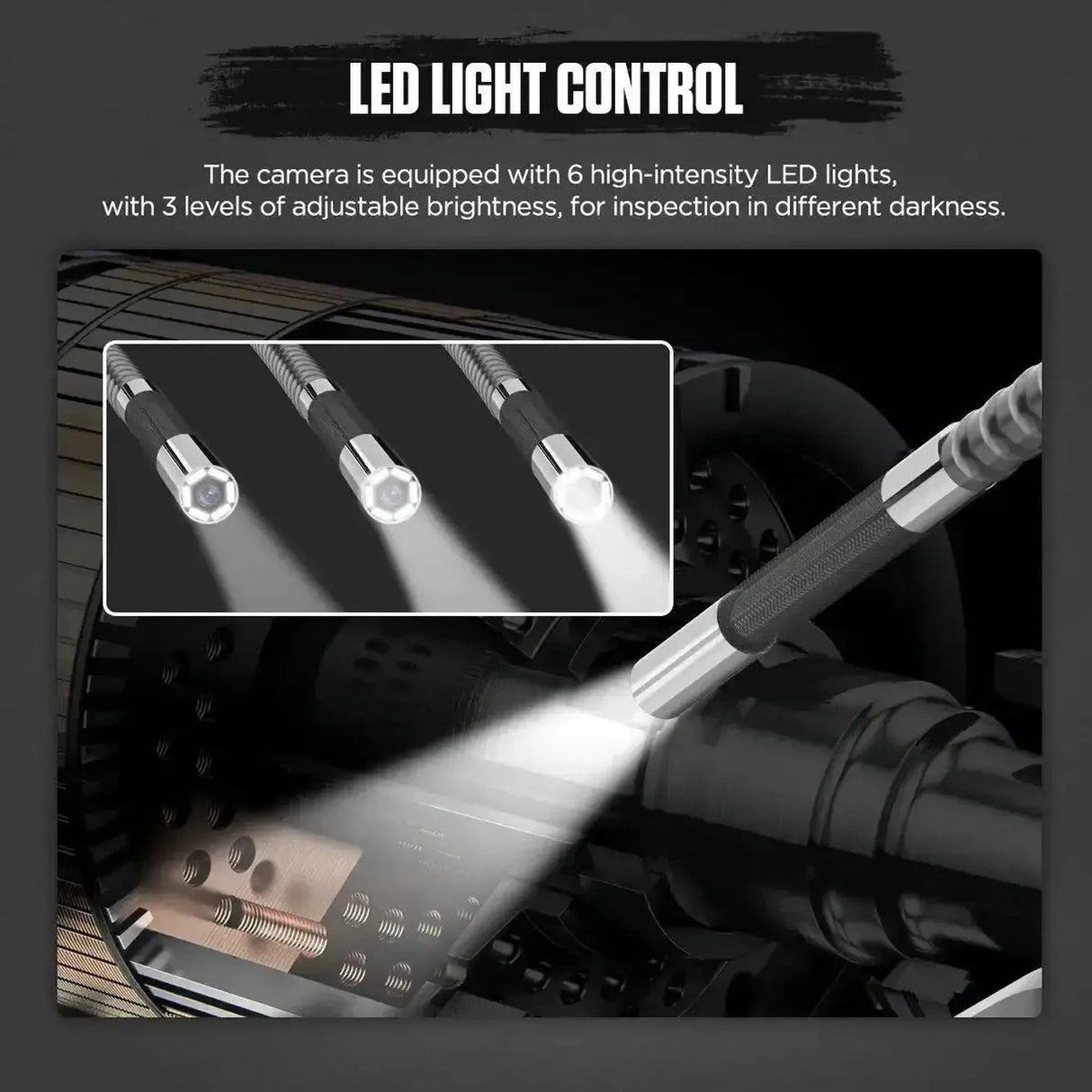

- Adjustable LED lighting: The light intensity of the 6 LEDs can be adjusted in 3 steps to prevent over- or underexposure in different inspection environments.
- High temperature protection: The device is equipped with an intelligent protection system that warns and shuts off at excessive temperatures to prevent damage to the lens.
Measurement and inspection capabilities:
Thanks to the slim, controllable probe, this instrument is suitable for various inspection applications in the automotive sector and beyond.
- Engine and cylinder inspection: Checking cylinder walls, pistons, valves, and spark plug holes for carbon deposits, scratches, or other damage.
- Inspection of pipes and hollow spaces: Examination of piping, HVAC systems, wall cavities, and other confined spaces for blockages or defects.
- Component inspection: Visual inspection of parts of gearboxes, catalytic converters, or other systems without fully disassembling them.
- General diagnosis: Locating leaks, corrosion, or wiring issues in hard-to-reach places.
Storage and connectivity:
The device is designed for direct recording and easy power supply.

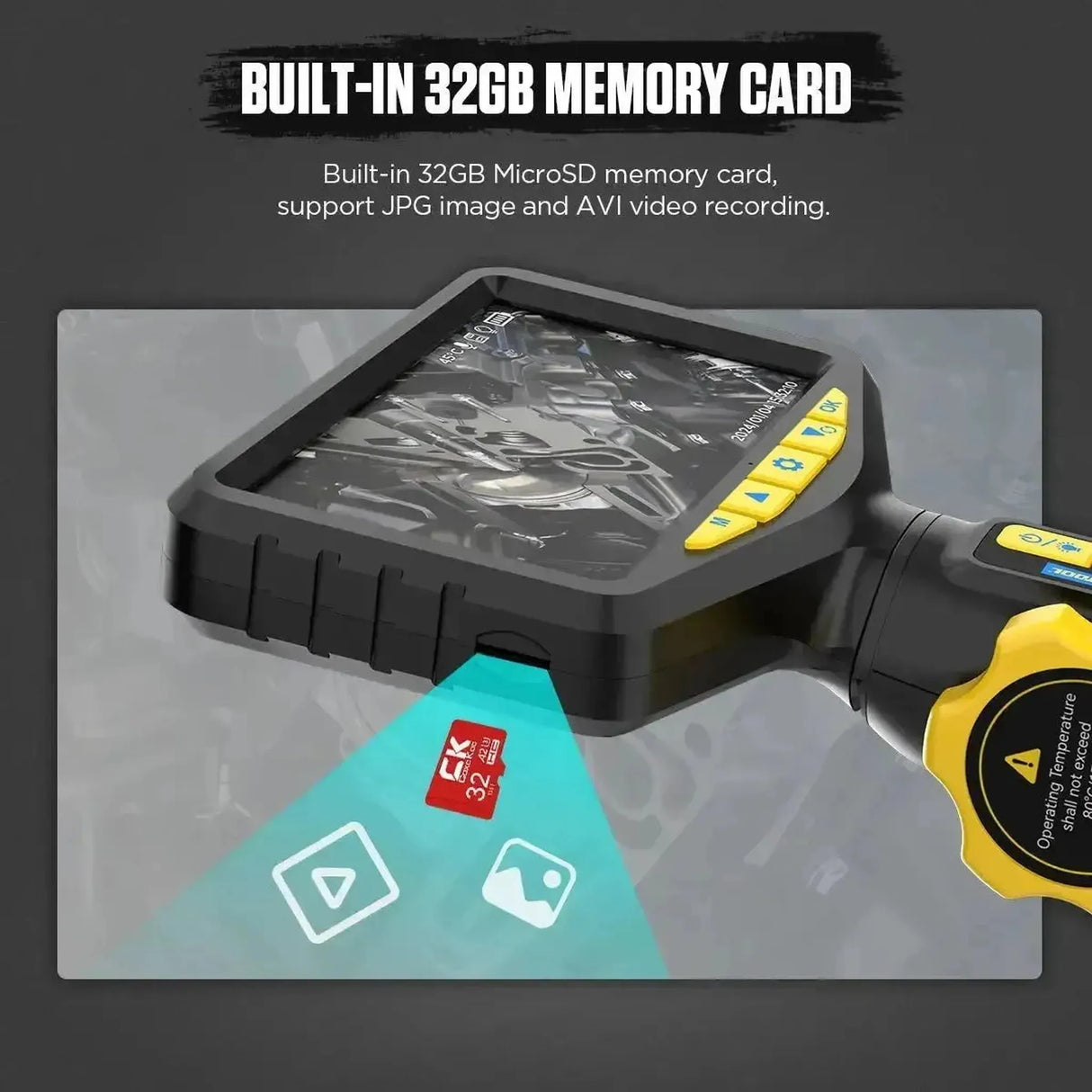

- Storage: Images are saved directly to the included 32 GB memory card. The camera supports photo storage in JPG format and video storage in AVI format.
- Connectivity: A USB port is available for charging the internal battery.

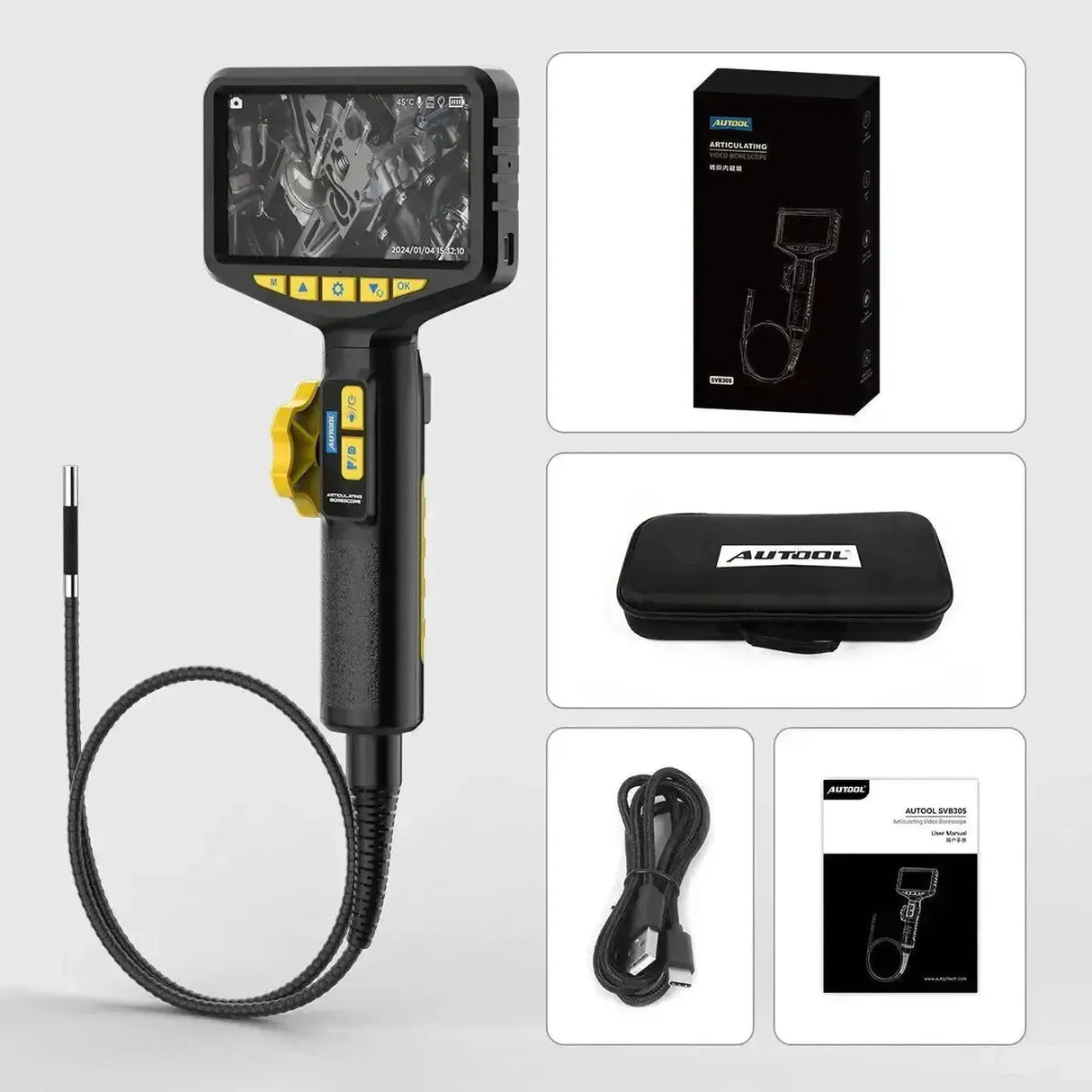

Package Contents:
- 1x Autool SVB305 inspection camera
- 1x Storage case
- 1x USB charging cable
- 1x Manual
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Autool |
| Product model | SVB305 |
| Camera head diameter | 6.35 mm |
| Resolution | 1 million pixels |
| Cable length | 1 m |
| Lighting | 6 adjustable LEDs |
| Viewing angle | 70° |
| Storage | Built-in 32 GB memory card |
| Connectivity | USB (for charging) |
| Power supply | 2000 mAh lithium-ion battery |
