Autel MaxiVideo MV480 | Inspection Camera (8.5 mm)

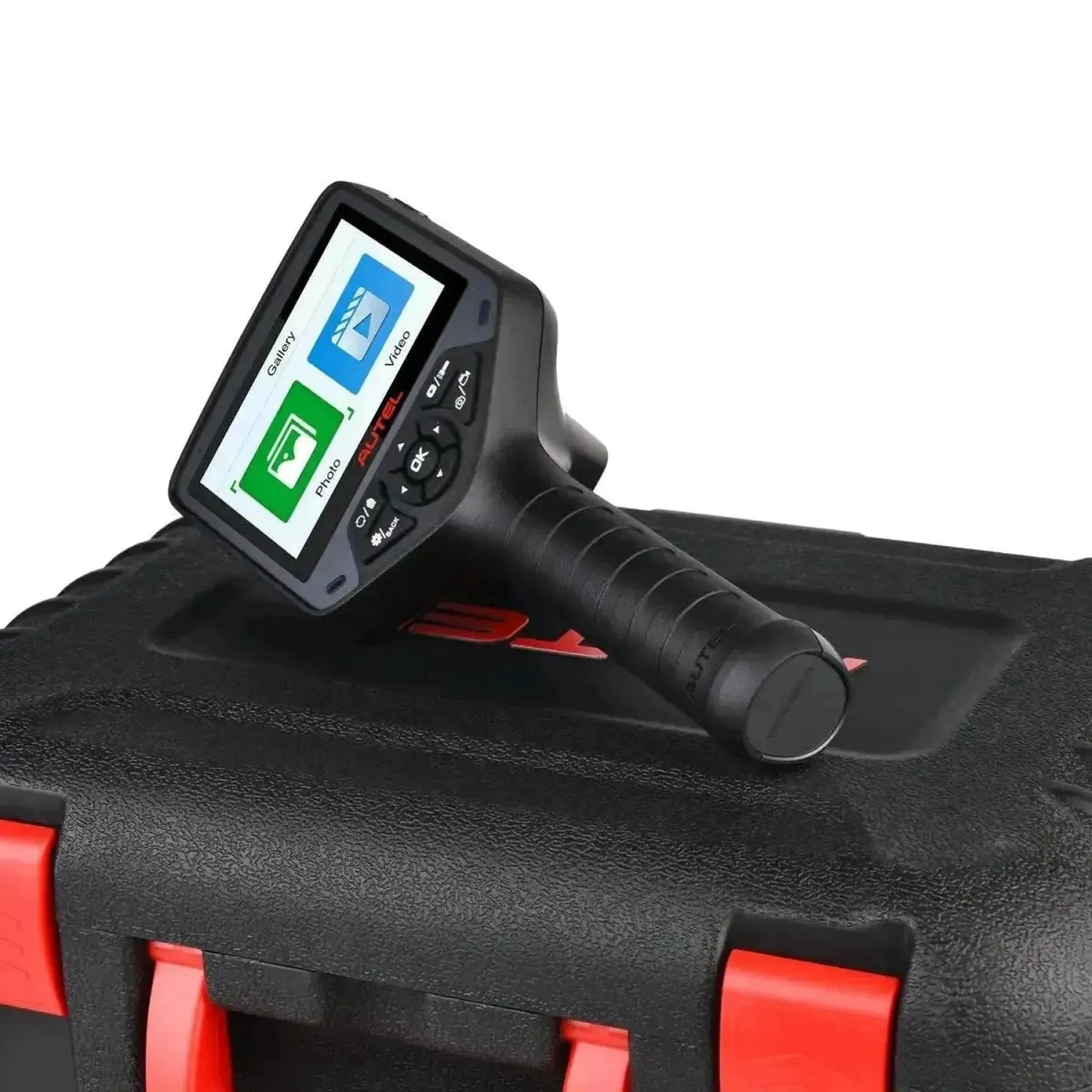

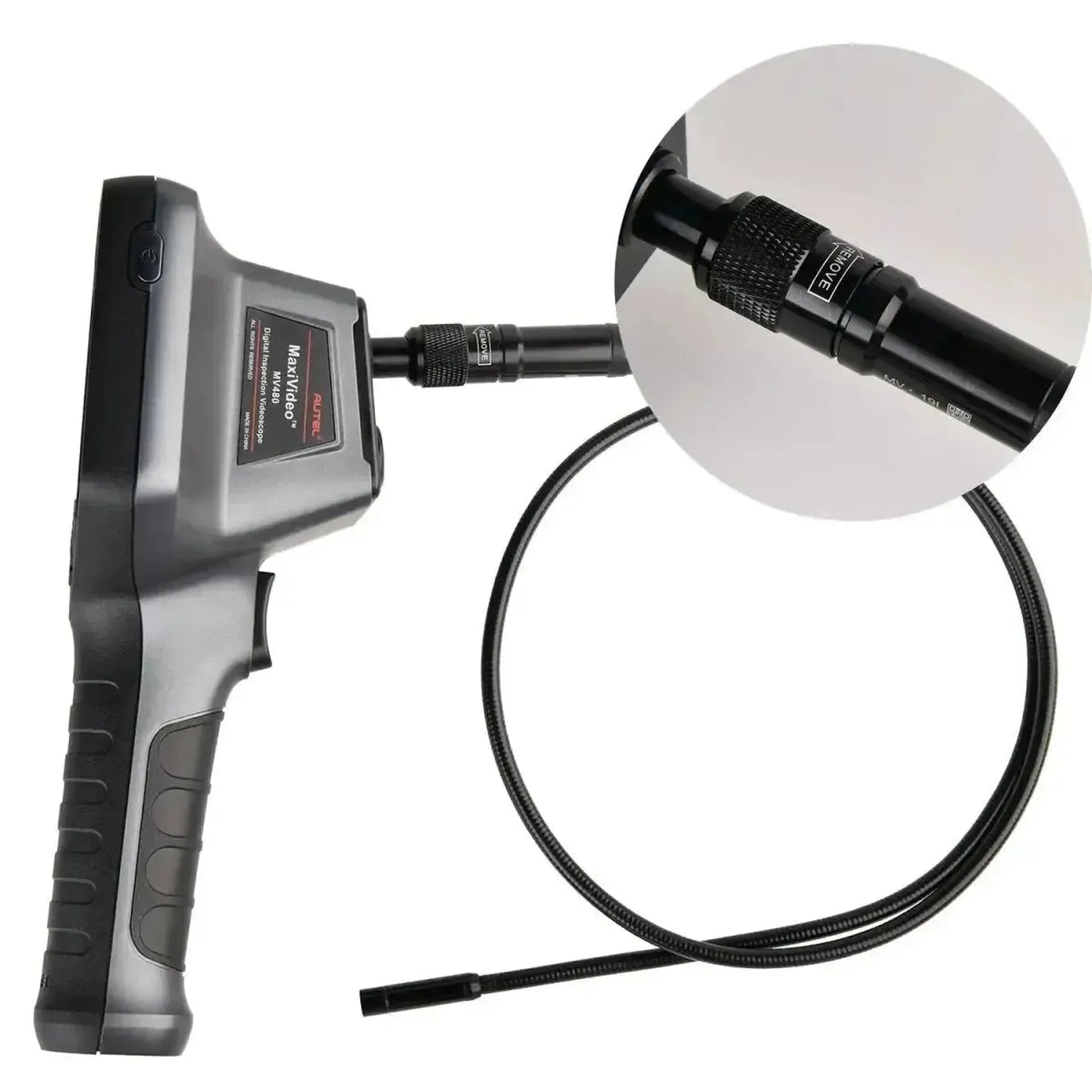

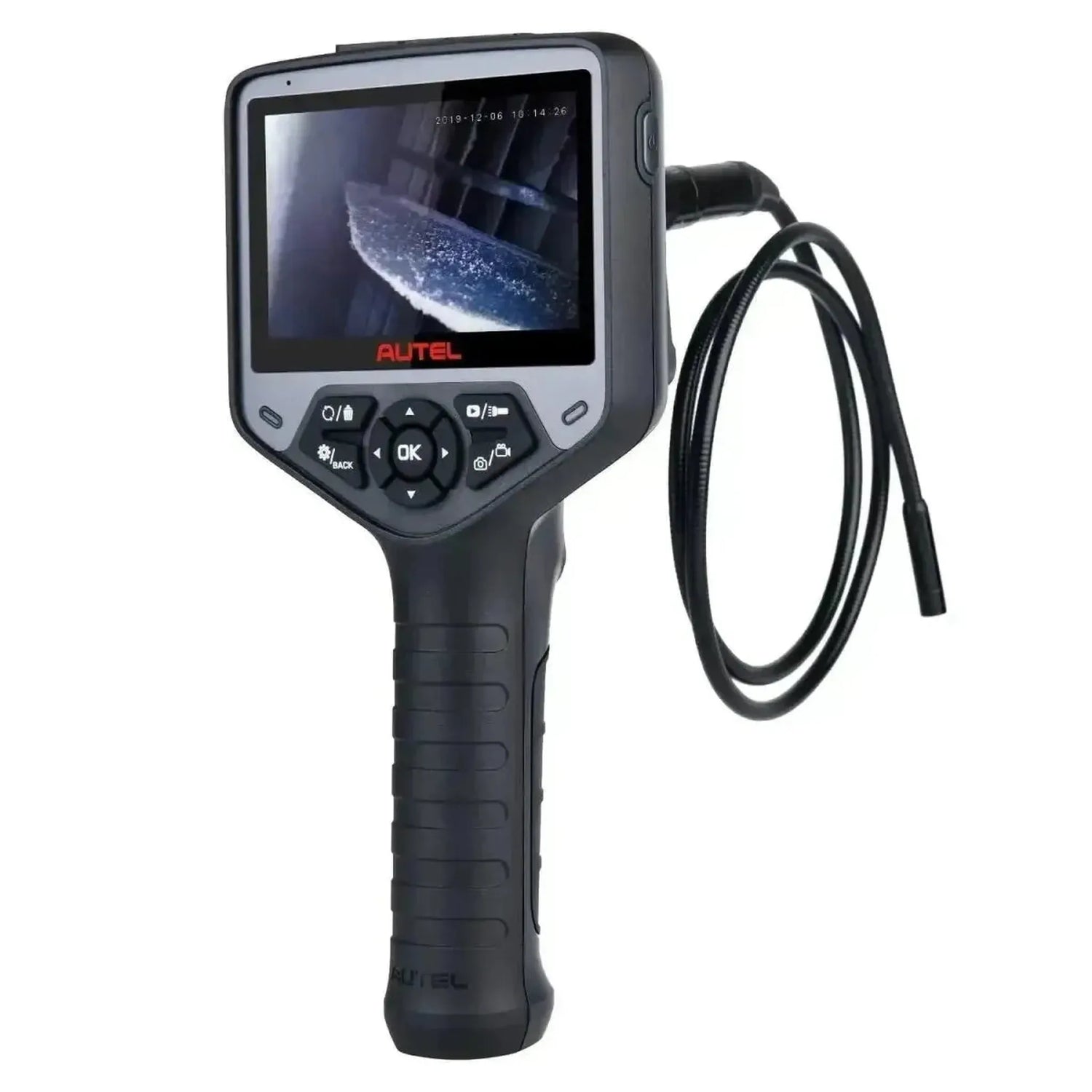

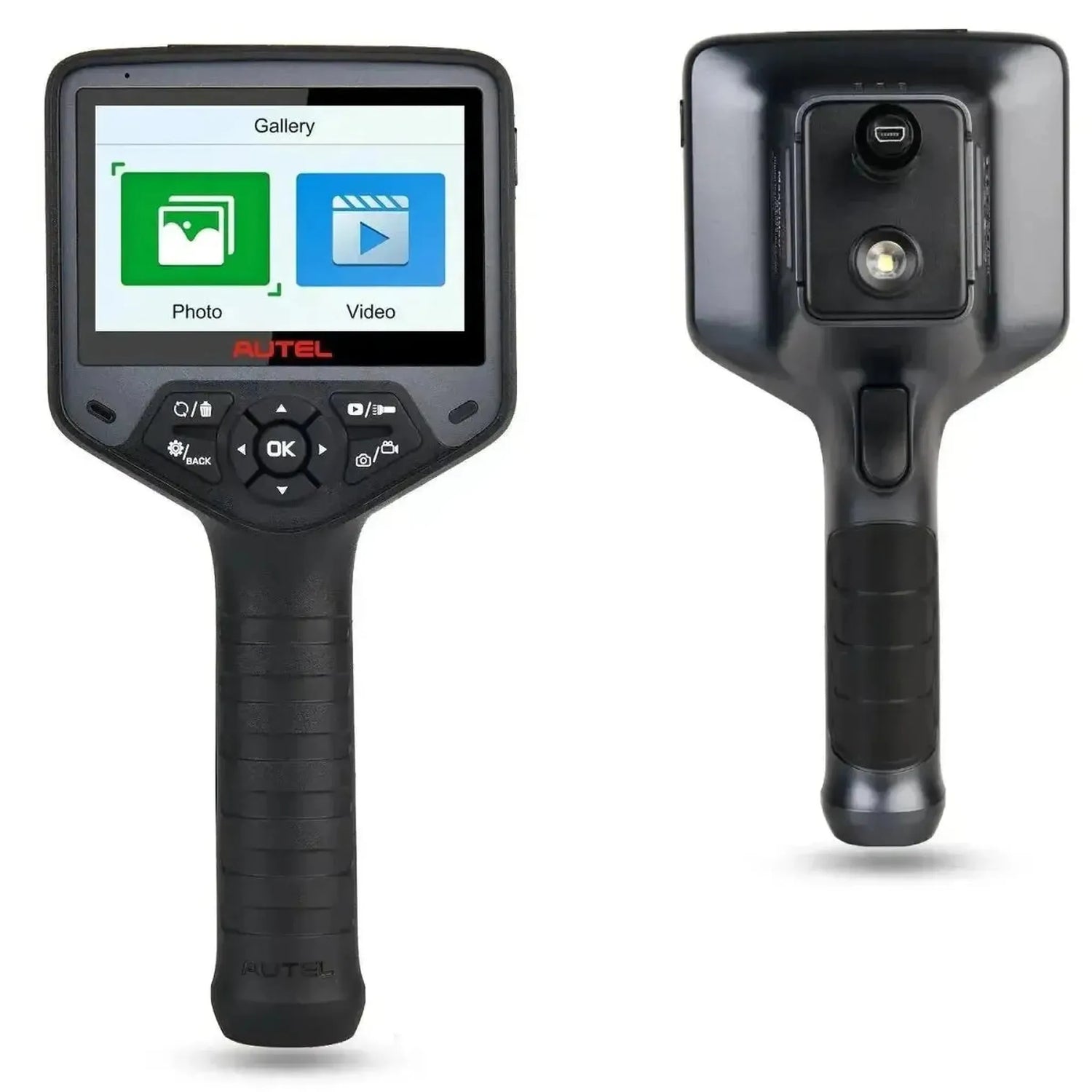

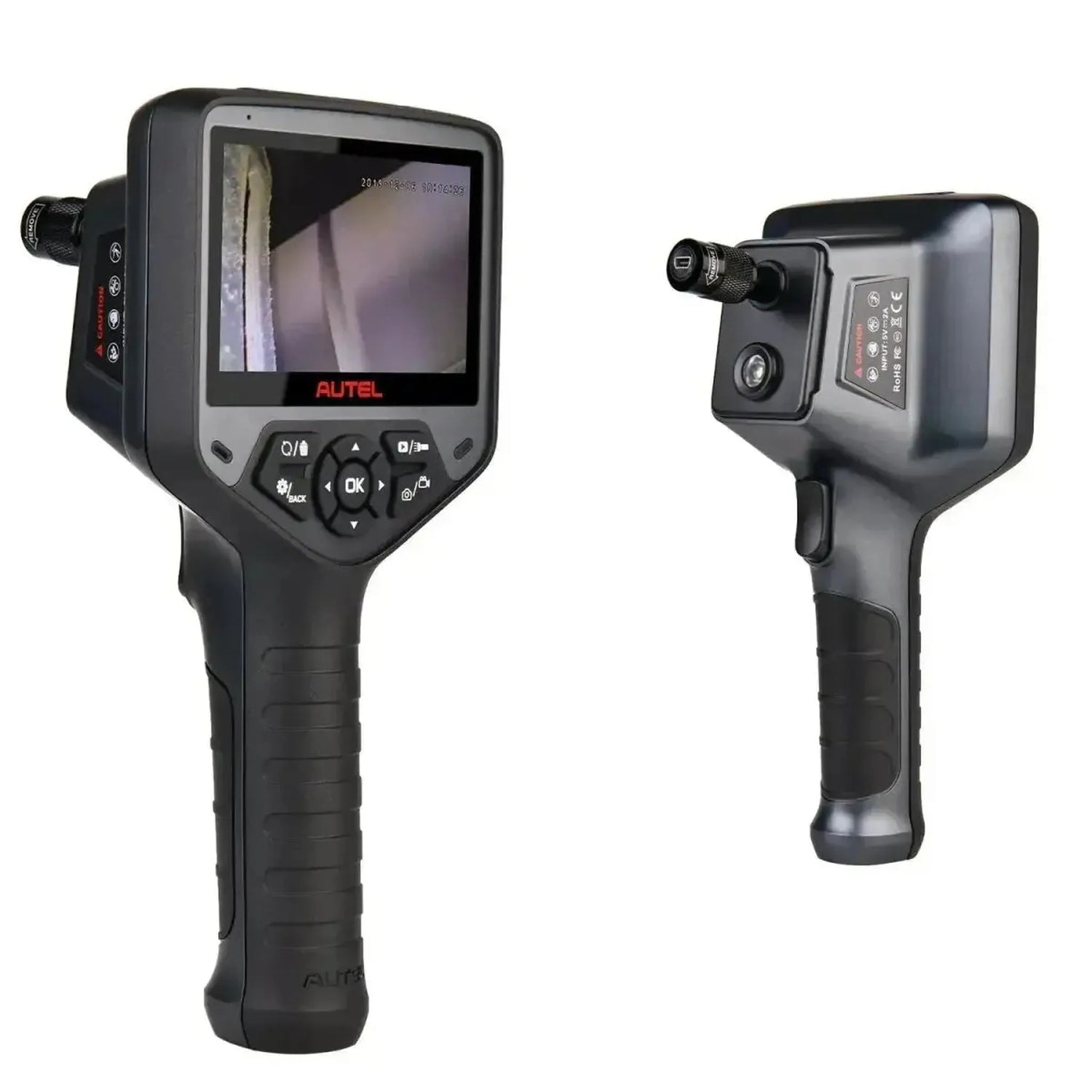

The Autel MaxiVideo MV480 is a digital inspection camera designed for visual inspections in hard-to-reach places. This model is equipped with a dual camera head of 8.5 mm, with cameras on both the front and side, for a wider field of view without needing to change the head. Images are displayed on a 4.1-inch LCD color screen with a resolution of 1280x720 pixels. The semi-rigid, waterproof cable is 1 meter long, and the system features a Mini USB and Micro HDMI port for data transfer and external display.

The camera features an adjustable LED lighting with 10 brightness levels and an additional flashlight on the handle. The MV480 can record both photos (JPG) and videos (MP4) with audio annotation at a resolution of 1920x1080. Recordings are stored on a Micro SD card, with an 8GB card included, supporting cards up to 128GB. The device is powered by a built-in, rechargeable 2600 mAh battery providing approximately 4 hours of use. Included accessories, such as a magnet and a hook, increase versatility.

Application and functionality:

The camera is designed for visual inspections in hard-to-reach places, with various functions supporting the inspection.

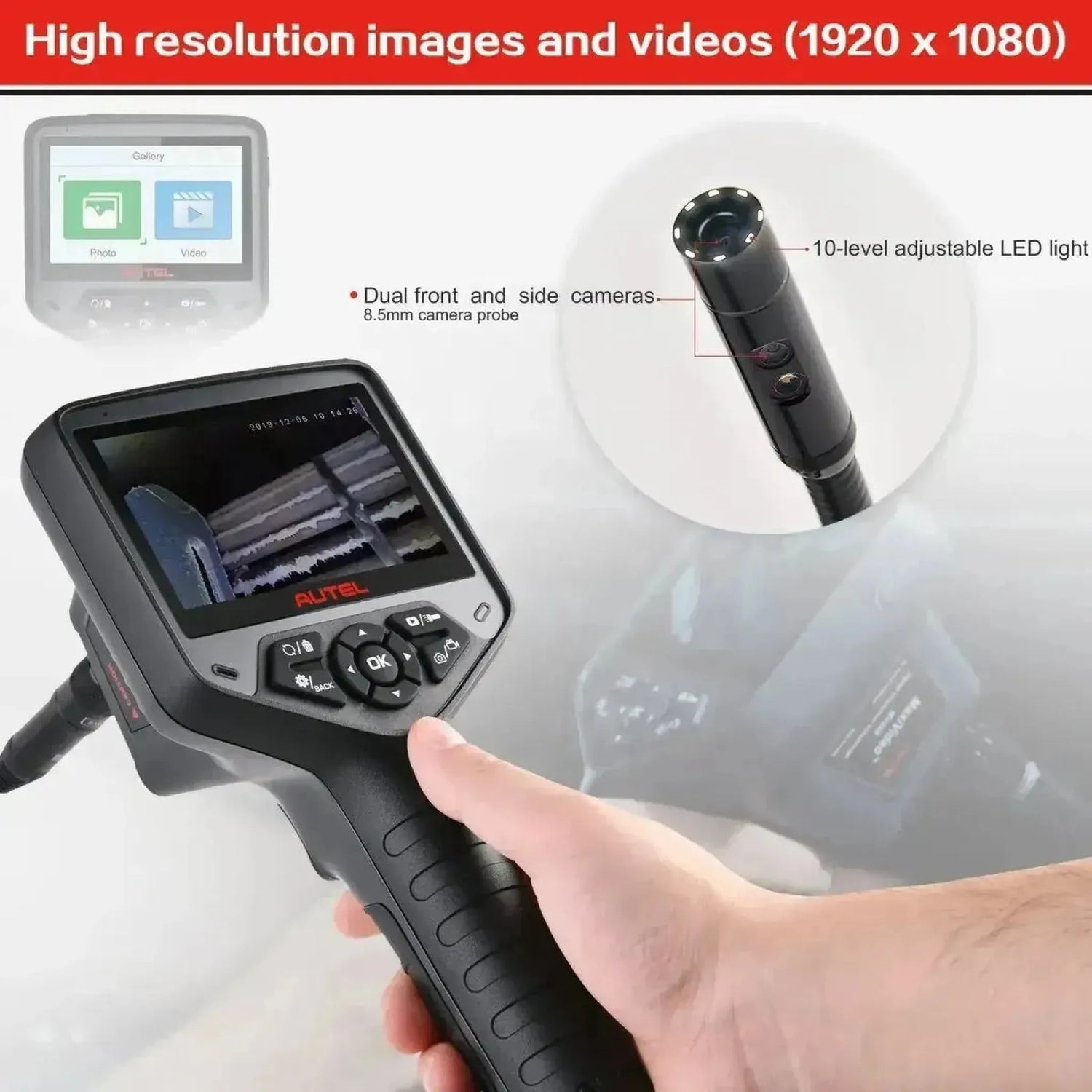

• Dual camera head: Equipped with a camera on the front and side, allowing switching between viewing angles without moving the cable.
• High resolution recording: Captures images and videos at a resolution of 1920x1080 pixels for detailed analysis.
• Image and video functions: Ability to zoom images 7x digitally, mirror horizontally or vertically, and record with audio annotation.
• Adjustable lighting: The camera head contains a 10-level adjustable LED light with an intensity of over 10,000 lux, supplemented by a flashlight on the unit.
• External display: Images can be displayed live on a larger screen or monitor via the Micro HDMI output.

Measurement and inspection capabilities:

Thanks to the 8.5 mm camera head and flexible cable, the MV480 is suitable for various inspection applications in, among others, the automotive sector and industry.

• Engine and component inspection: Examining cylinder walls, valves, and other parts in engines, transmissions, and differentials.
• HVAC systems: Inspecting pipes, ducts, and ventilation systems for blockages or damage.
• Pipe and drain inspection: Visually inspecting piping and drains.
• Construction inspection: Checking spaces in cavity walls, behind panels, under floors, and above ceilings.

Storage and connectivity:

The device offers options for data storage and file transfer to external devices.

• Storage: Images and videos are stored on a Micro SD card. An 8GB card is included and the camera supports cards up to 128GB.
• Connectivity: The Mini USB port is used for file transfer and battery charging. The Micro HDMI port allows live images to be streamed to an external screen.

Compatible software and platforms:

The inspection camera functions as a stand-alone device and does not require external software for basic functions. The stored files are compatible with standard operating systems.

• File transfer: Recorded JPG and MP4 files can be transferred via the USB cable and are compatible with standard image and video viewers on Windows, macOS, and other platforms.

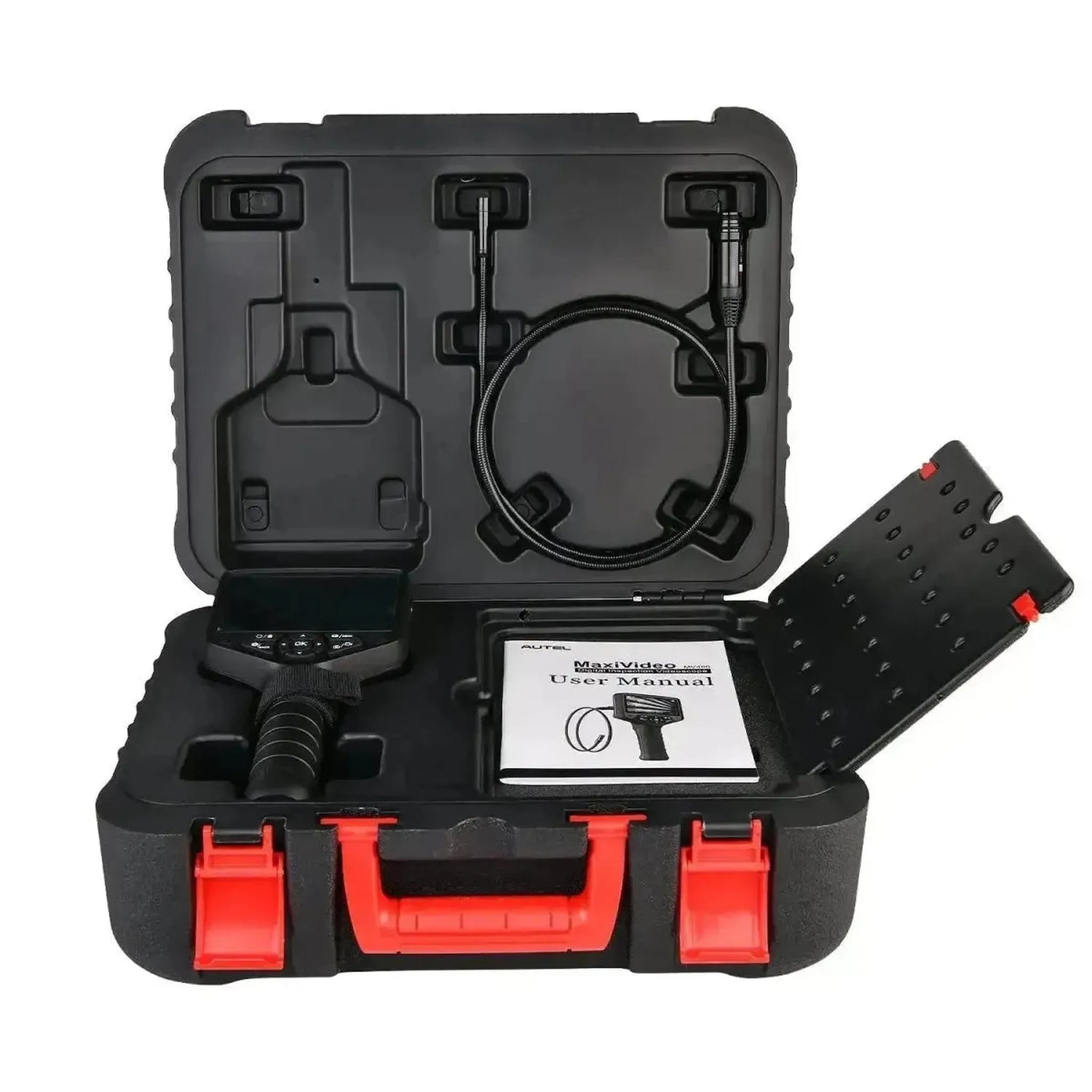

Package Contents:

• 1x MaxiVideo MV480 inspection camera
• 1x Camera head and cable (8.5 mm)

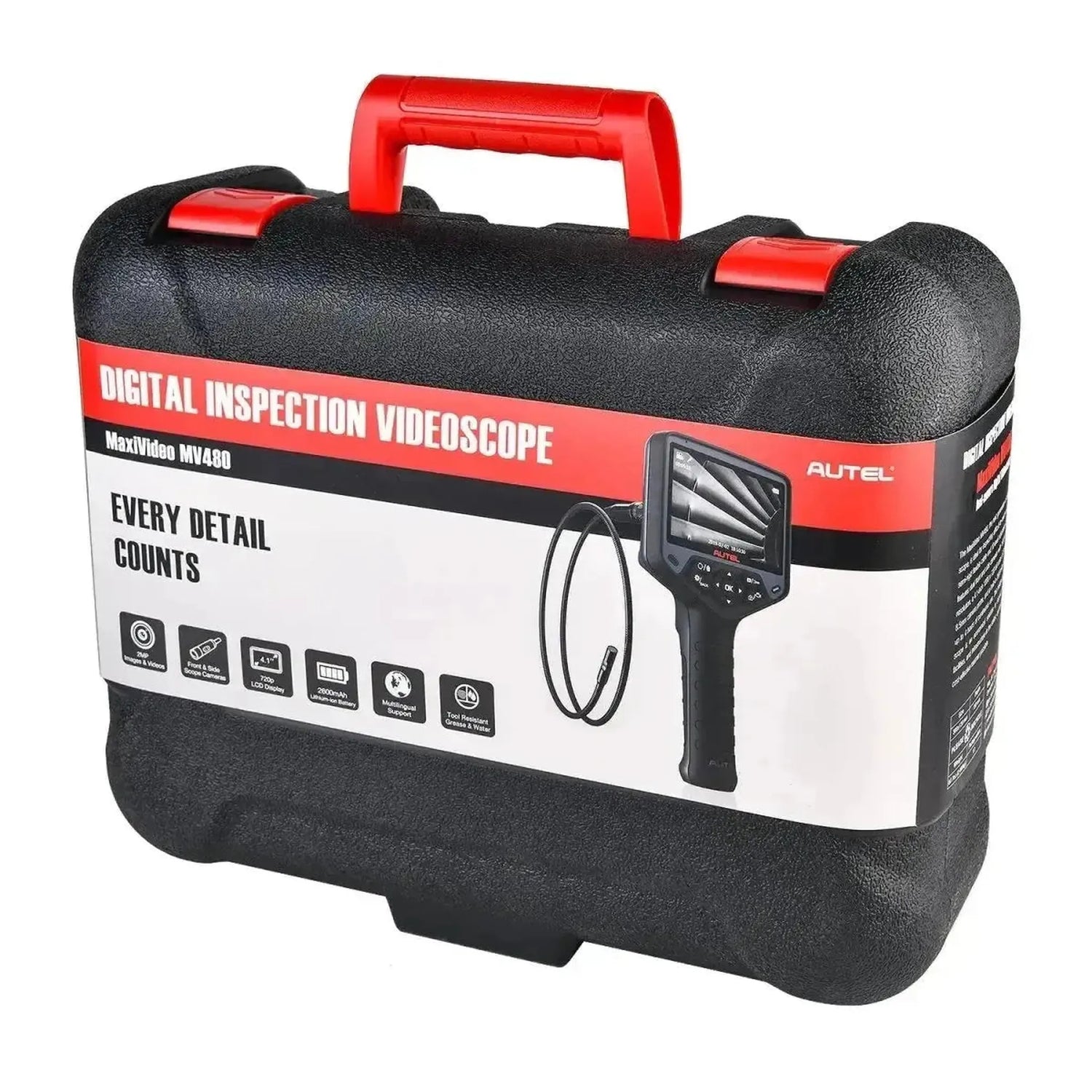

• 1x Carrying case
• 1x Micro SD card (8GB)
• 1x USB cable
• 1x Charger
• 1x Magnet and hook accessory
• 1x Manual

Technical specifications:
