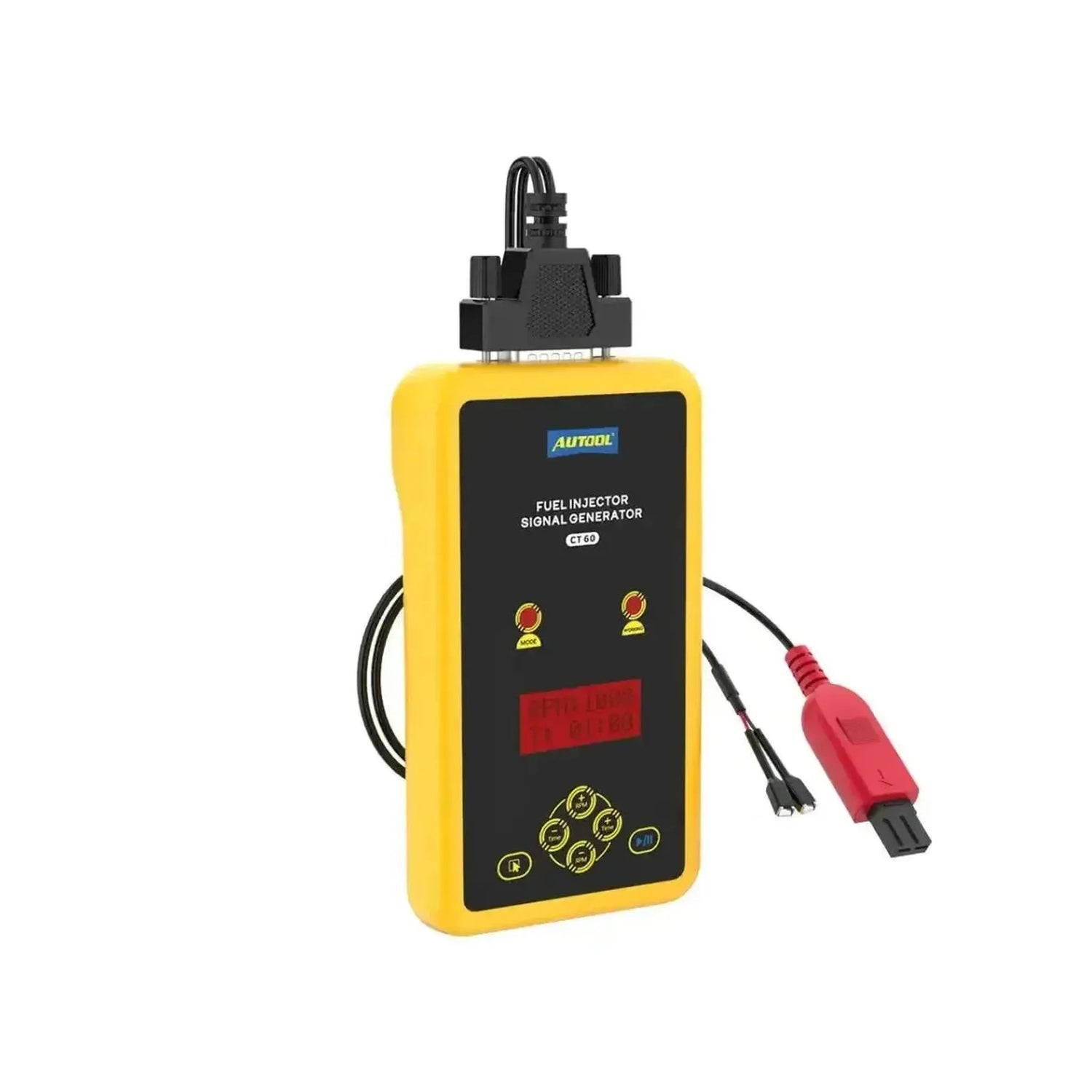

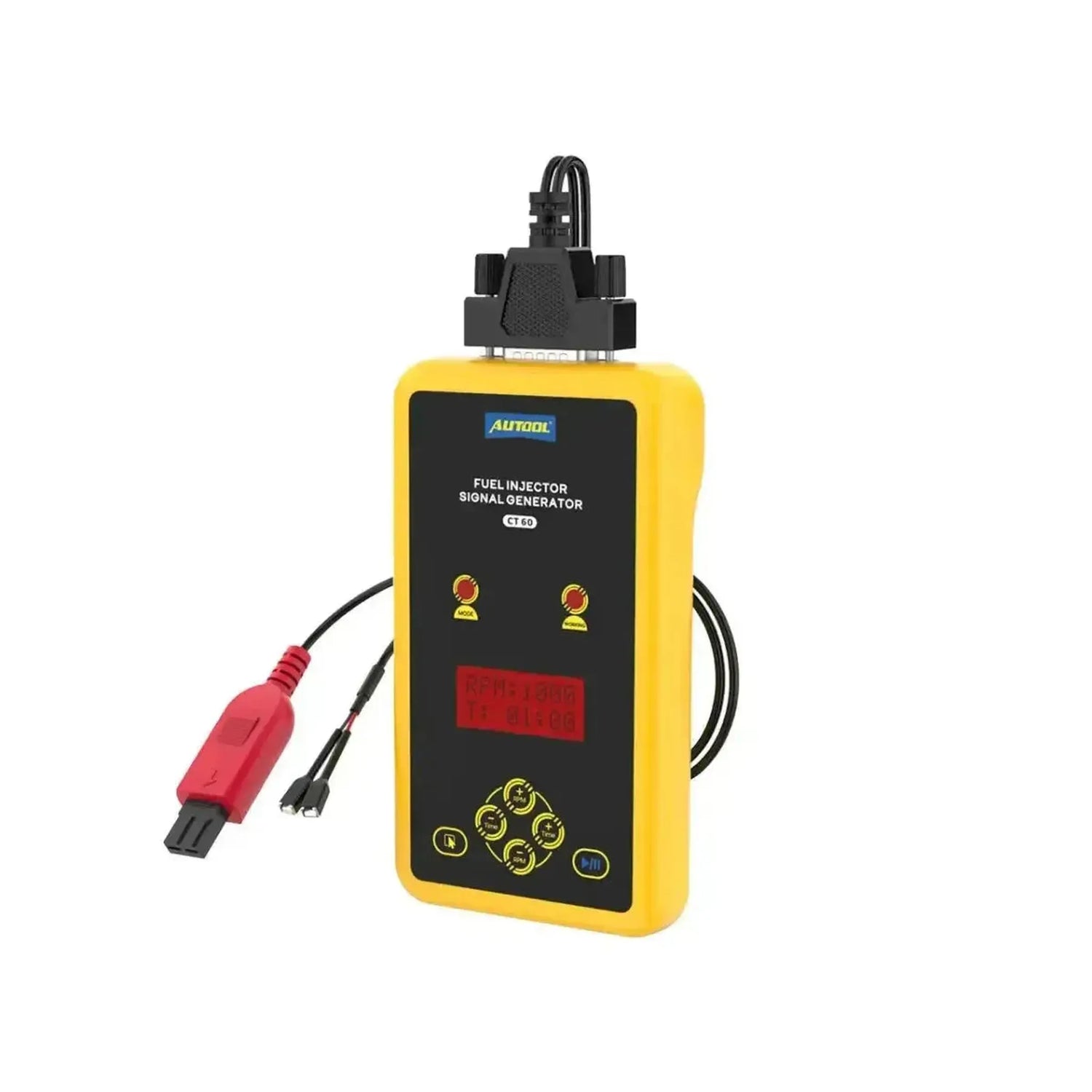

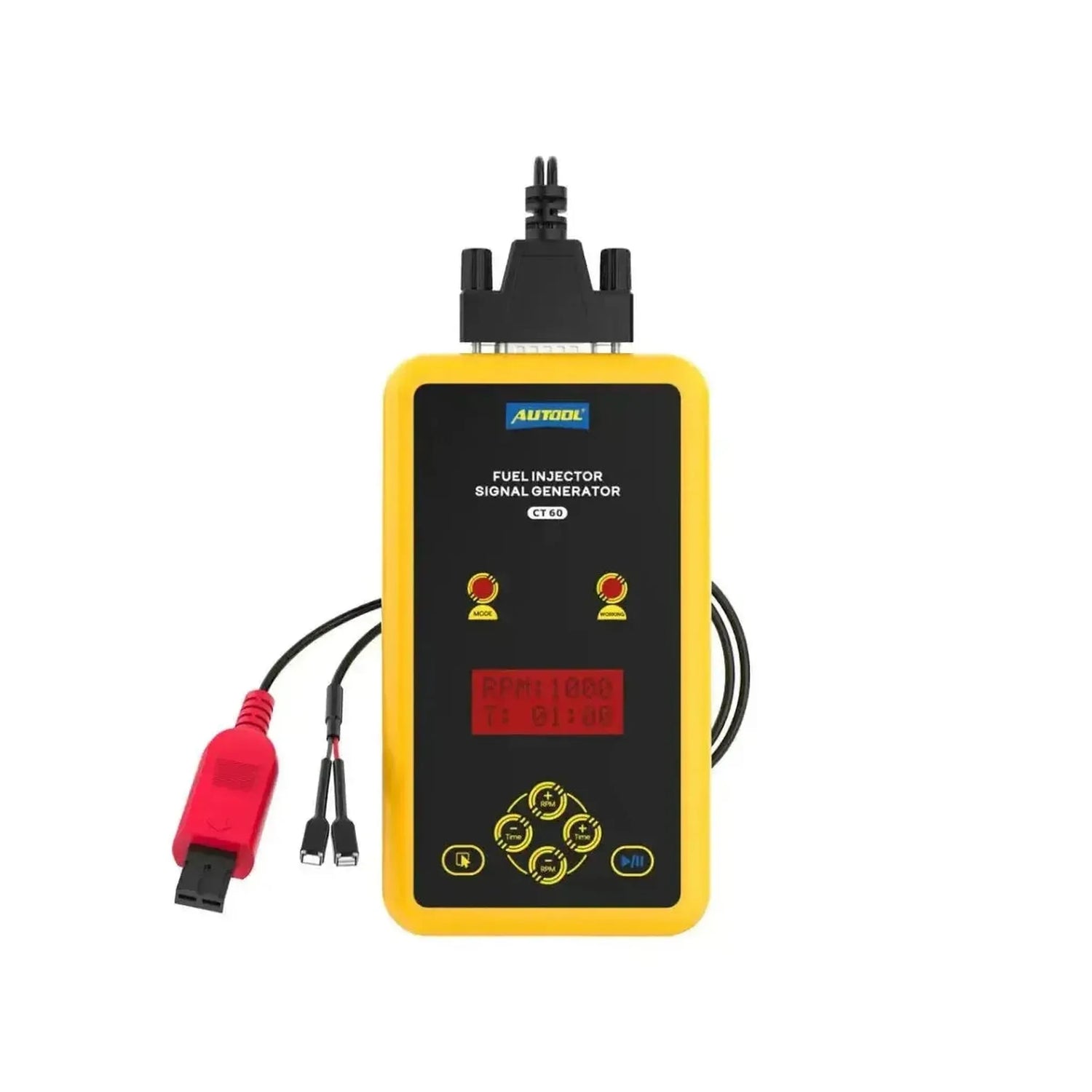

The Autool CT60 is a signal generator designed for testing and diagnosing fuel injectors. The tester generates pulse signals to check the operation of injectors for issues such as clogging, leakage, or incomplete combustion. The device is compatible with both standard 12V injectors, typically used in naturally aspirated engines, and high-voltage injectors that require a voltage up to 75V, such as those in turbocharged engines.

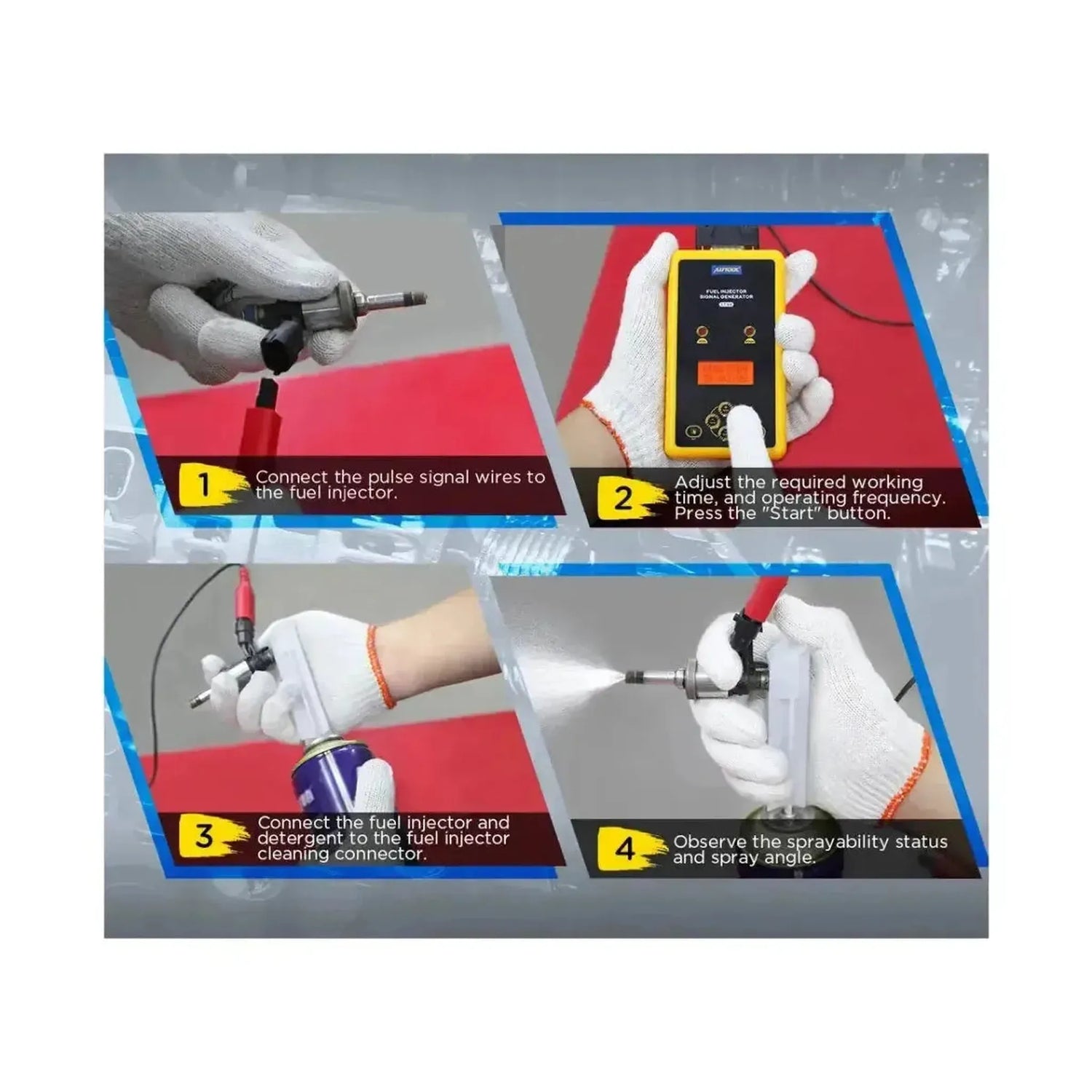

Through the LCD screen and control buttons, the operating frequency and test duration can be precisely set. The frequency is variable from 600 to 4000 RPM and the duration can be set from 0 to 99 minutes. The CT60 can be used independently for diagnosis or in combination with an ultrasonic cleaner. In that case, the tester drives the injector to open and close during the cleaning process for effective removal of carbon deposits.
Application and functionality:
The Autool CT60 is used for driving and functional testing of various types of fuel injectors.
- Injector diagnosis: The device helps identify common injector problems, including stuck, leaking, or blocked injectors.
- Driving during cleaning: Generates pulses to open and close injectors when placed in an ultrasonic cleaning bath, improving cleaning efficiency.
- Compatibility with injector types: Supports standard 12V injectors and high-voltage injectors with a drive voltage up to 75V.
- Adjustable parameters: The operating frequency (simulating engine speed from 600-4000 RPM) and test duration (0-99 minutes) are manually adjustable via the control panel.
Package Contents:
- 1x Autool CT60 injector signal generator
- 1x Manual
- 1x Power Adapter
- 1x Power cable with battery clamps
- 1x Signal output cable
- 2x Injector Adapter
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autool |
| Model | CT60 |
| Product type | Injector signal generator |
| Power supply | DC 12V |
| Supported injectors | Standard (12V), High voltage (75V) |
| Frequency range | 600 - 4000 RPM |
| Time range | 0 - 99 minutes |
| Dimensions | 14.7 x 8.2 x 2.9 cm |
| Weight | 165 g |
