Foxwell BT715 Plus | Battery Tester

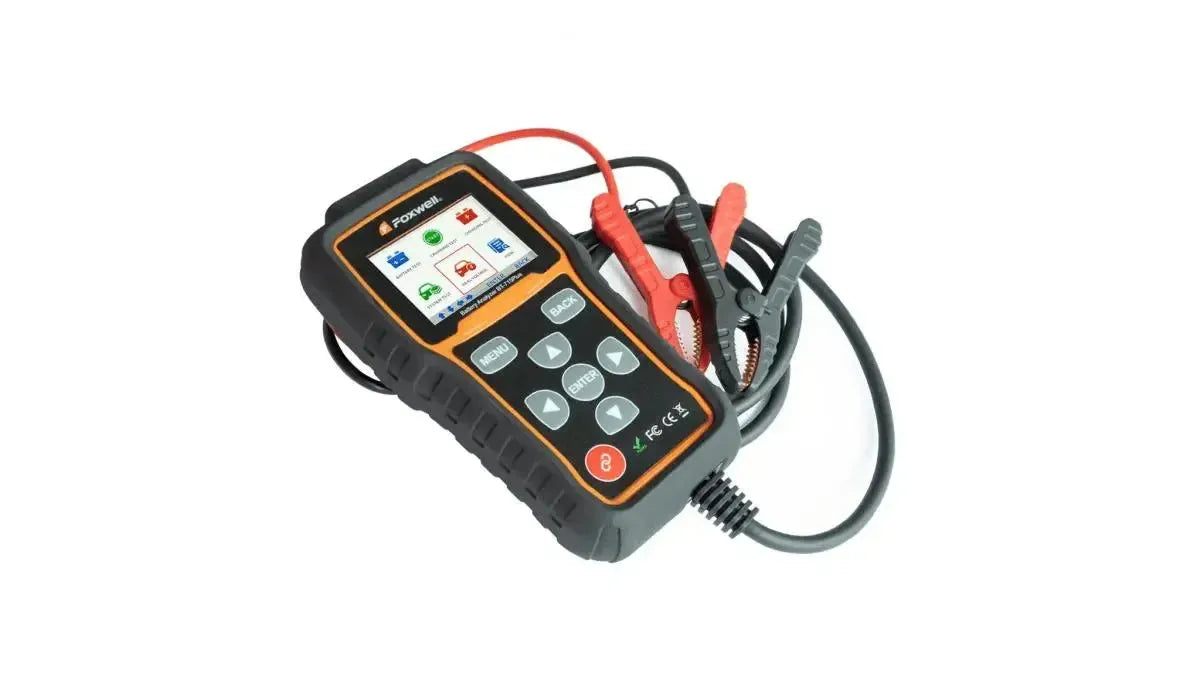

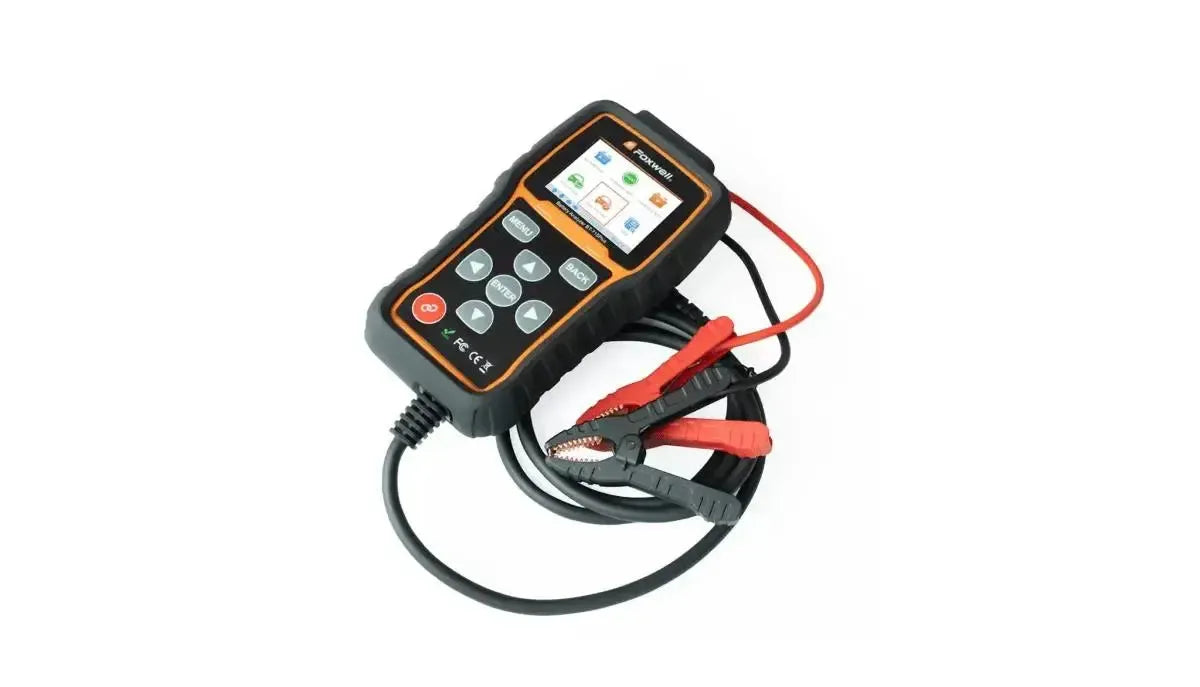

The Foxwell BT715 Plus is a Battery tester designed for analyzing 12V Battery's and 6V, 12V and 24V starting and charging systems. The tester is suitable for various Battery types, including regular flooded Battery's, AGM Flat Plate, AGM Spiral, and Gel Battery's. The device is powered by the Battery being tested and has an operating voltage of 8-30V DC. The results and menus are displayed on a 320 x 240 pixels large, backlit LCD screen.
This Battery tester performs comprehensive analyses to check the condition of the Battery and the operation of the starting and charging system. Functions include measuring the actual cold cranking amps (CCA), the starting voltage and time, and the charging voltage under various conditions. The tester can also evaluate the operation of the alternator, rectifier diode, and charging current. Test results can be saved on the device and reviewed later.
Application and functionality:
This Battery tester is developed for analyzing the status of the Battery, the starting and charging system.
- Battery test: Analyzes the condition of the Battery and calculates the actual cold cranking amps (CCA) and aging status.
- Cranking test (Cranking test): Tests and analyzes the starting system, including the required starting voltage and start time.
- Charging test (Charging test): Analyzes the operation of the charging system, including charging voltage (no load and load) and ripple voltage.
- System test: Evaluates the operation of components such as the alternator, rectifier diode, and charging current.
- Voltage display: Shows the real-time voltage of the Battery.
- View results: Provides the ability to view and analyze previously saved test results.

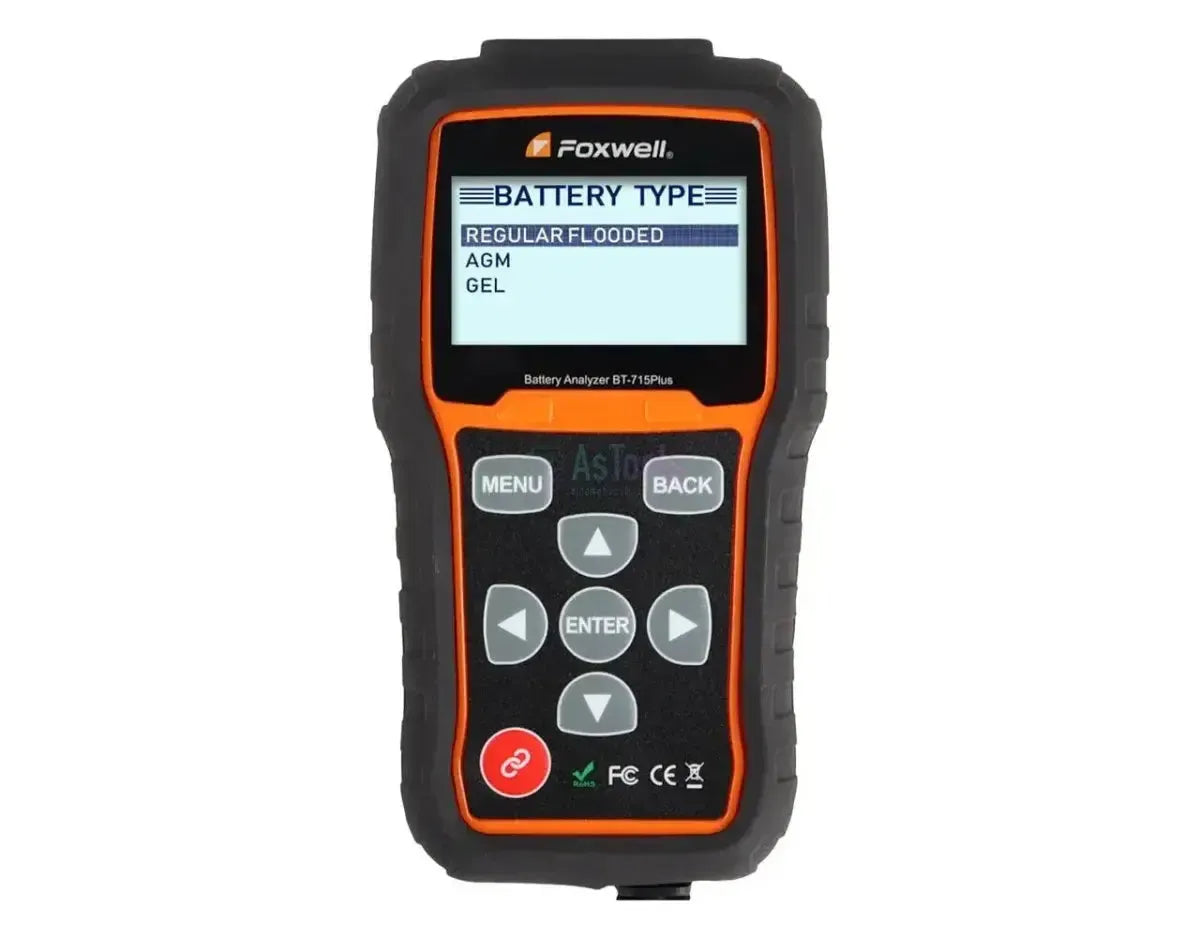

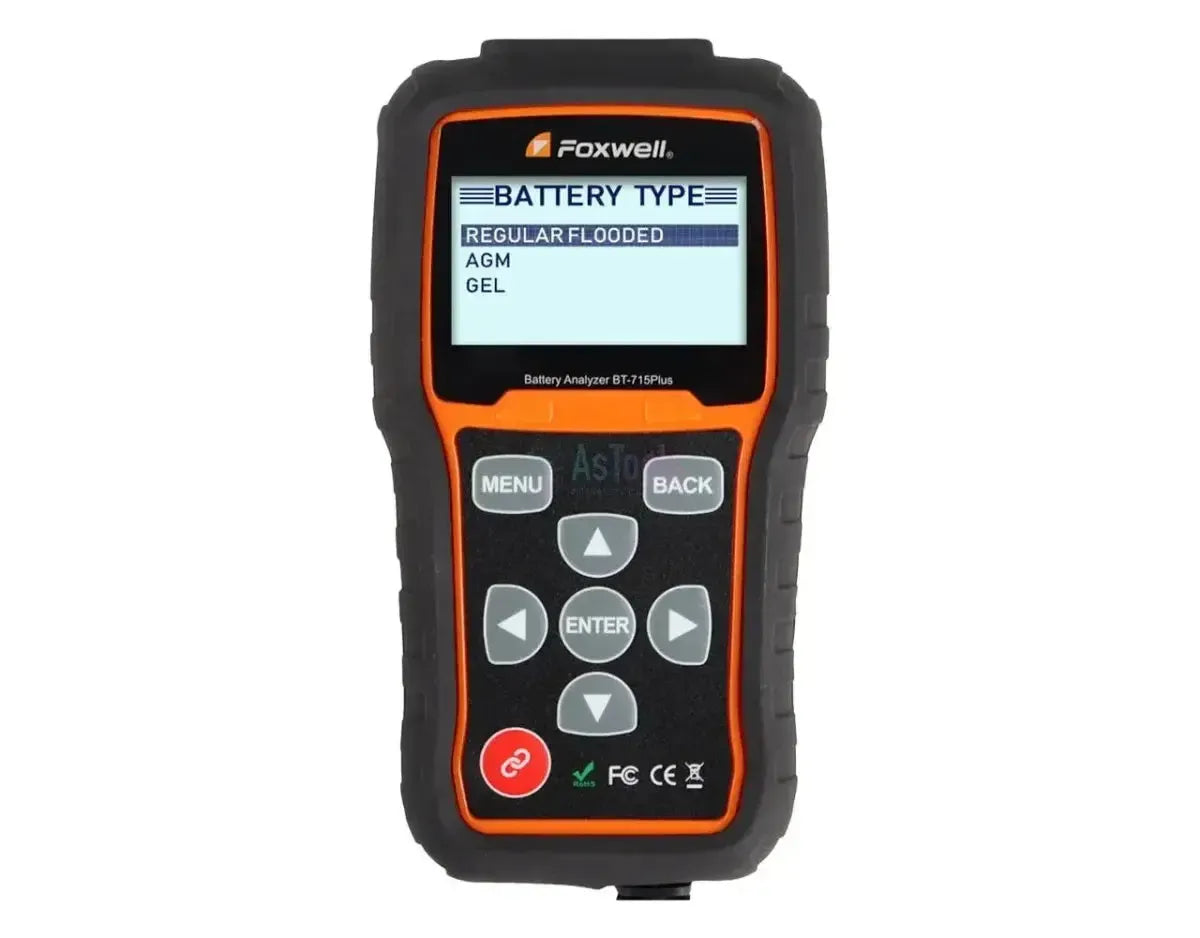

Supported Battery types:
The BT715 Plus is compatible with a wide range of 12V Battery types.
- Regular flooded Battery (Flooded): Standard lead-acid Battery's with liquid electrolyte.
- AGM Flat Plate: Absorbed Glass Mat Battery's with flat plates.
- AGM Spiral: Absorbed Glass Mat Battery's with spiral-shaped cells for higher current output.
- Gel: Batteries where the electrolyte is bound in a gel.
Supported Battery standards:
The tester supports various international Battery standards for broad applicability.
- CCA (Cold Cranking Amps): Measurement range of 100-3000A.
- CA (Cranking Amps): Measurement range of 100-3000A.
- MCA (Marine Cranking Amps): Measurement range of 100-3000A.
- DIN (German Industry Standard): Measurement range of 100-1800A.
- EN (Europe Standard): Measurement range of 100-3000A.
- IEC (International Electrotechnical Commission): Measurement range of 100-1800A.
- JIS (Japanese Industry Standard): Measurement range from 26A17 to 245H52.
- SAE (Society of Automotive Engineers): Measurement range of 100-3000A.

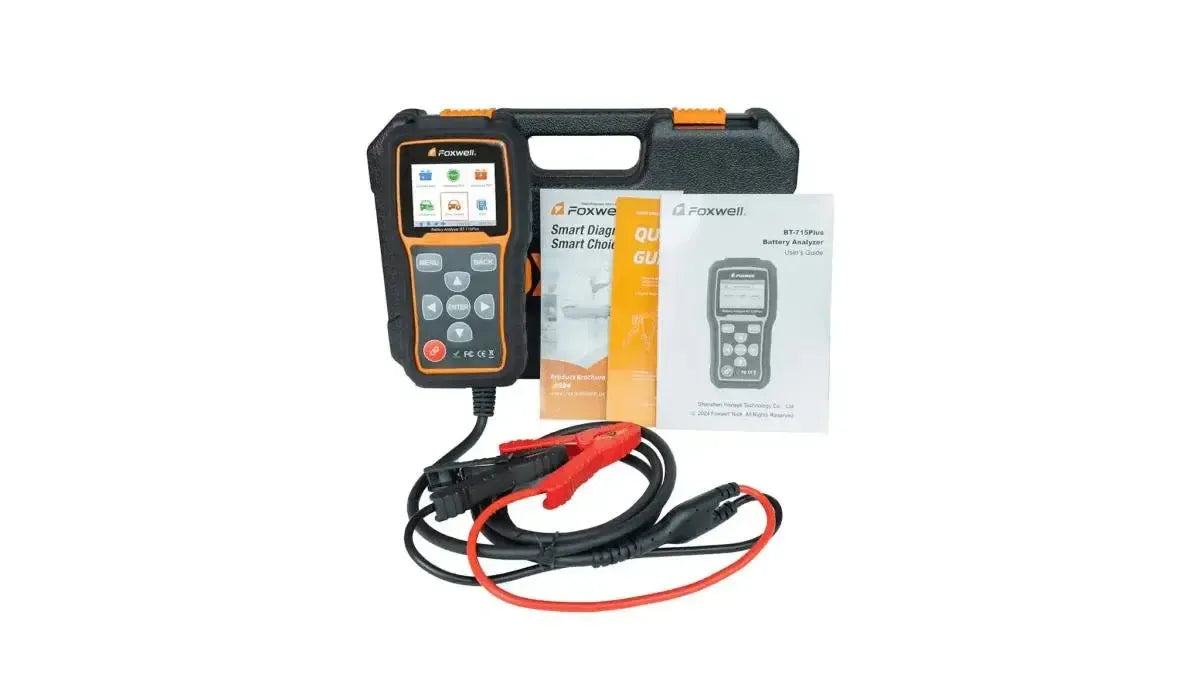

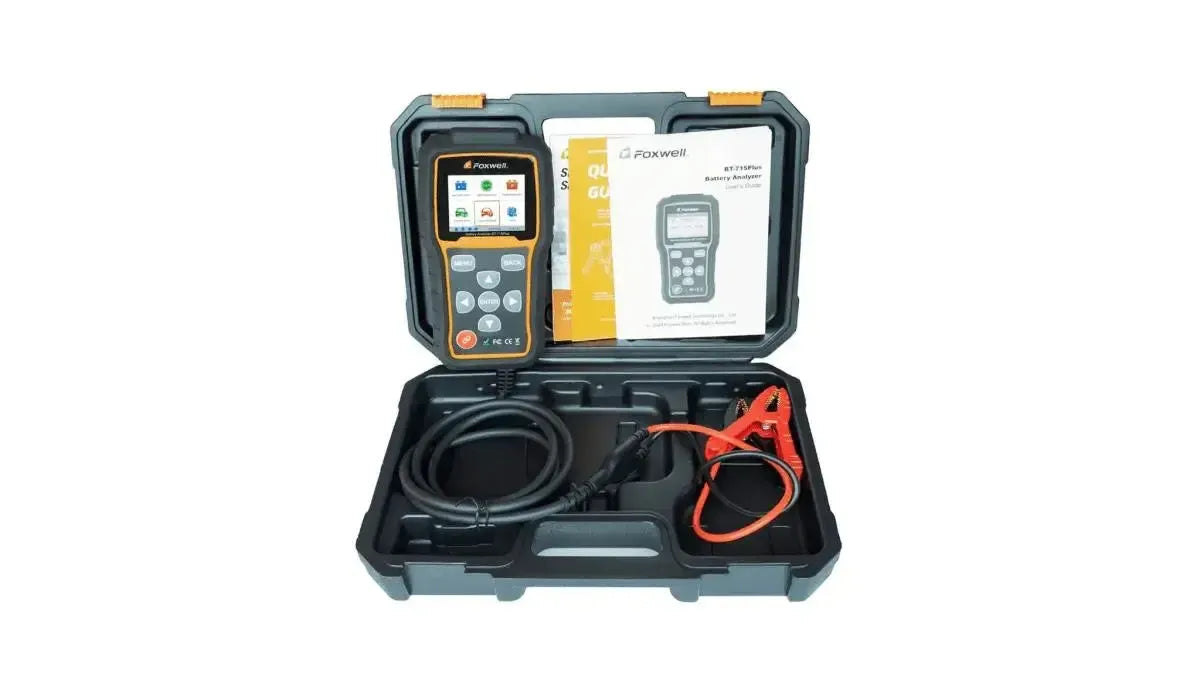

Package Contents:
- 1x Foxwell BT715 Plus Battery tester
- 1x Manual
- 1x Storage case
Technical specifications:
| Product brand | Foxwell |
| Product model | BT715 Plus |
| Application | Battery, start, and charging system analysis |
| Battery Voltage | 12V Batteries; 6V, 12V & 24V start and charging systems |
| Measurement Range CCA | 100-3000A |
| Test Functions | Battery test, start test, charge test, system test, voltage display |
| Display | 320 x 240 pixels, backlit LCD |
| Power Supply | 8-30V DC (via the Battery to be tested) |
| Connections | Fixed test cables with Battery clamps |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | 190 x 90 x 36 mm |
| Weight | 1.6 kg |
