UPA-USB V1.3 Programmer With 19 Adapters
The UPA-USB V1.3 is a professional and versatile programming tool, developed for electronics repair technicians, automotive technicians, and advanced hobbyists. This tool specializes in reading, writing, and editing data on microcontrollers and EEPROM memory chips. It is an essential instrument for applications requiring direct access to memory chips on printed circuit boards (PCBs), such as data recovery, module cloning, or electronic repairs.

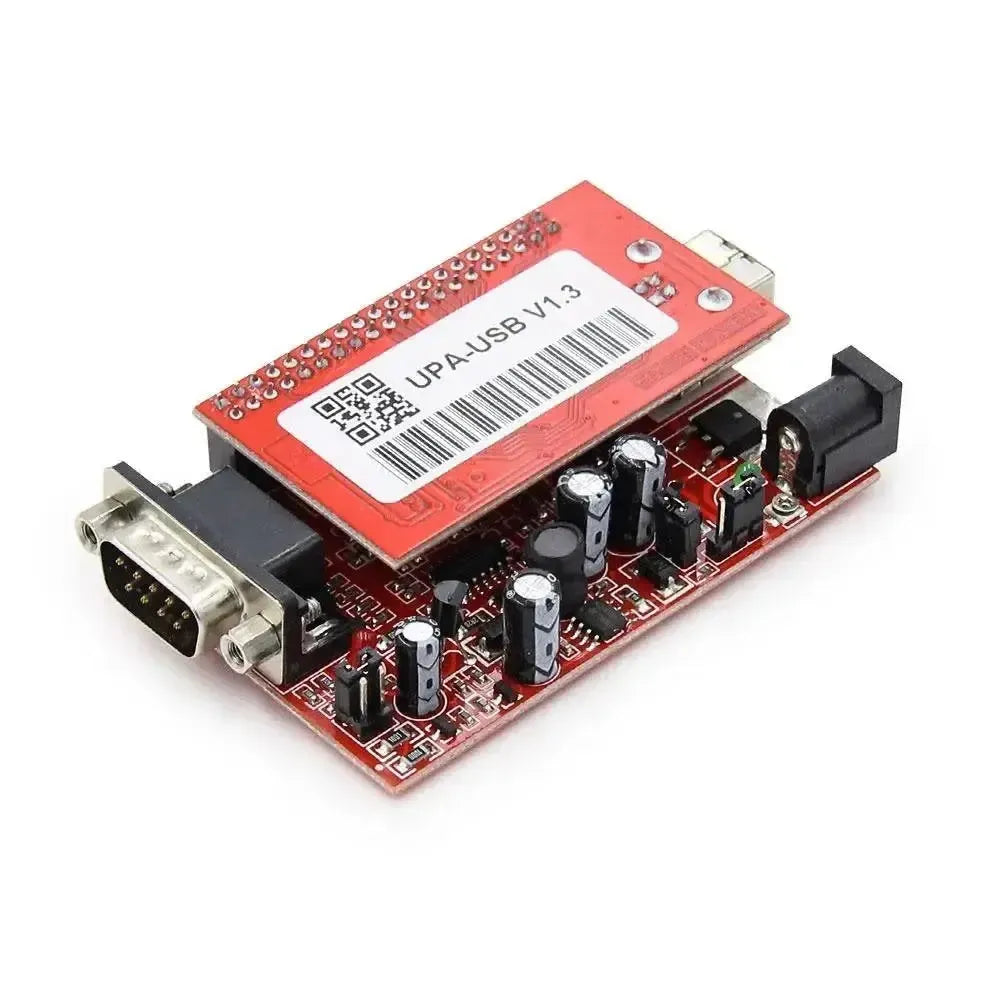

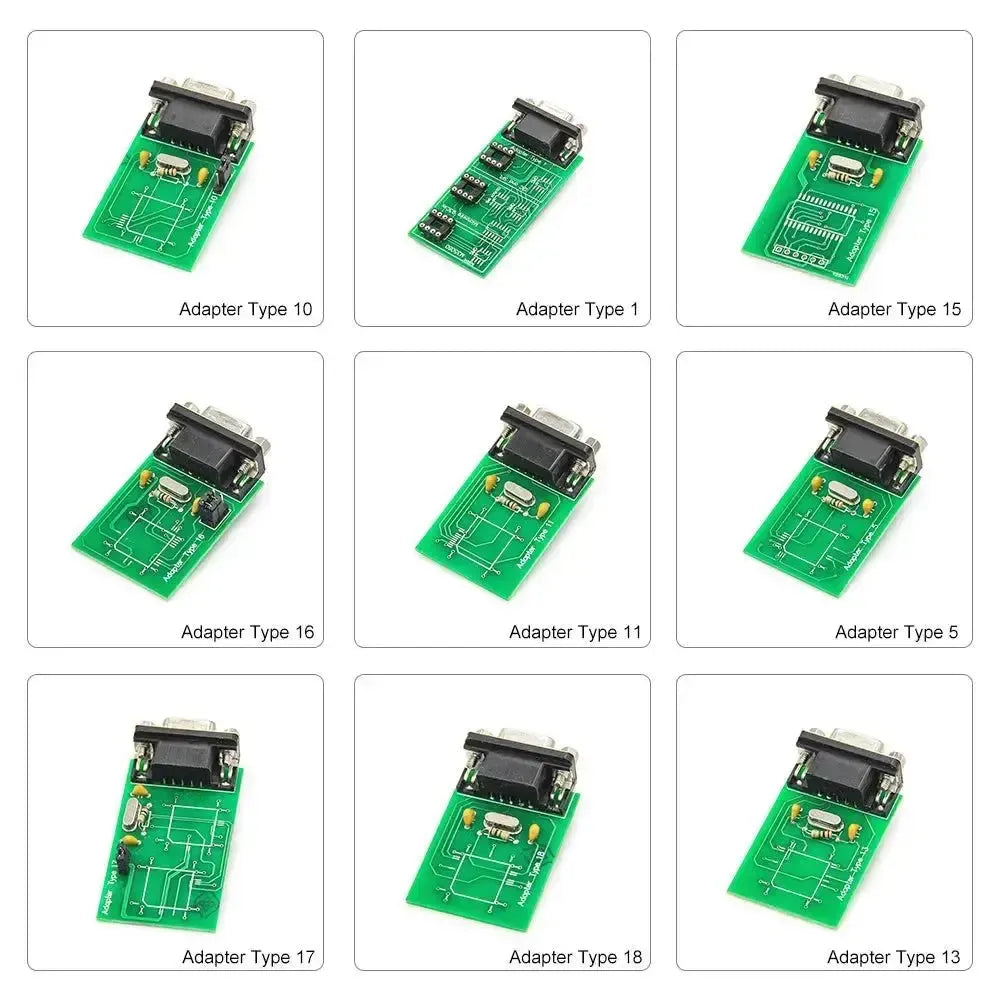

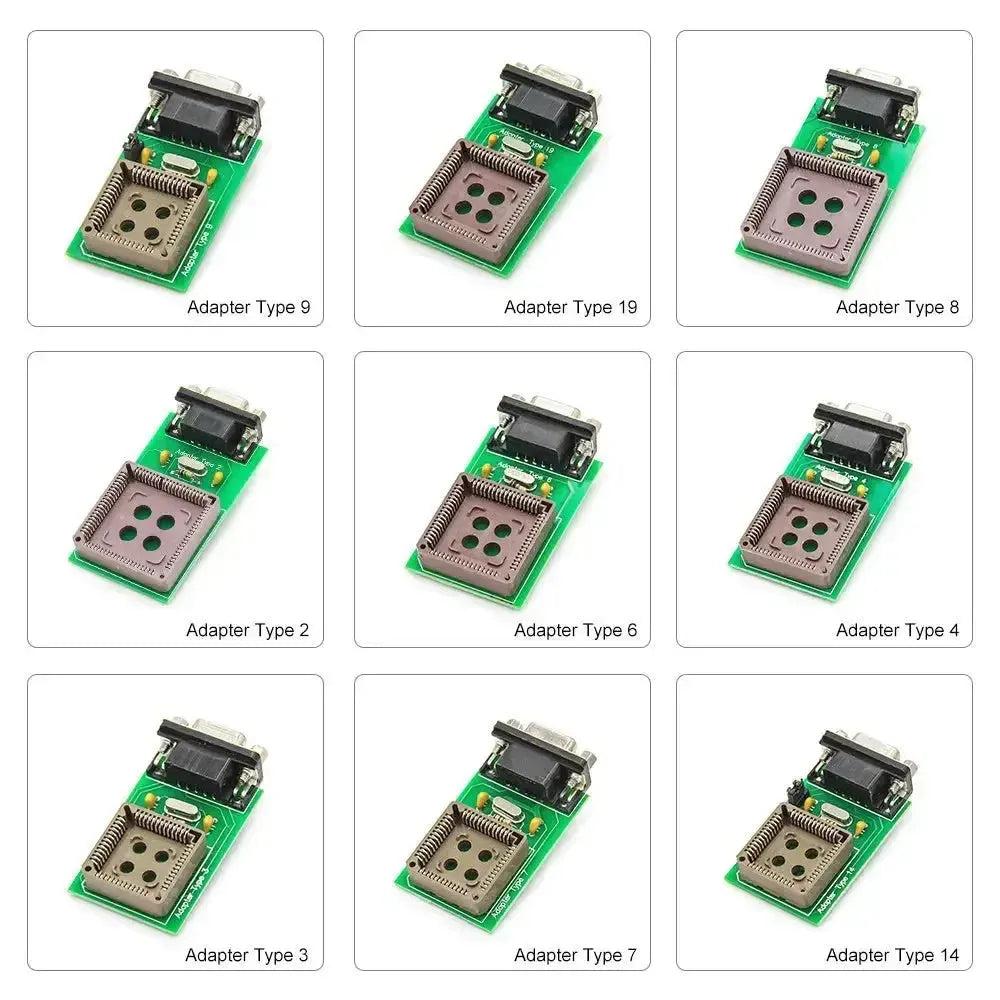

The set consists of the reliable UPA-USB V1.3 main unit and an extensive set of 19 adapters, providing compatibility with various chip types and packages (SOIC, TSSOP, QFP). Many chips can be accessed directly without desoldering, ensuring safe and efficient in-circuit programming, ideal when working on dashboards, ECUs, airbag modules, or car radios.
Application and functionality:
- EEPROM reading/writing: Support for serial EEPROM chips (I2C, SPI, Microwire) for data manipulation.
- Microcontroller programming: Suitable for Motorola/Freescale HC05, HC08, HC11, HC12, MC9S08, MC9S12, among others.
- Odometer correction: Adjusting the mileage in dashboards or BCMs.
- Immobilizer repair: Reading, resetting, or virginizing PIN codes of immobilizer data.
- Airbag module reset: Clearing crash data after an accident.
- Car radio decoding: Reading security codes from memory.
- ECU cloning: Transferring data from defective to working engine control units.
- Data recovery: Restoring data on damaged printed circuit boards.
- In-circuit programming: Programming chips directly on the circuit board (if supported).
Compatible with the following devices and software:
Supported microcontrollers (selection):
- Motorola/Freescale (NXP): HC05, HC08, HC11, HC12, MC9S08, MC9S12
- STMicroelectronics: ST62*, ST7*, ST10*
- Texas Instruments: TMS370, TMS374, TMS375
- Microchip/Atmel: ATmega, Temic, PIC12, PIC16

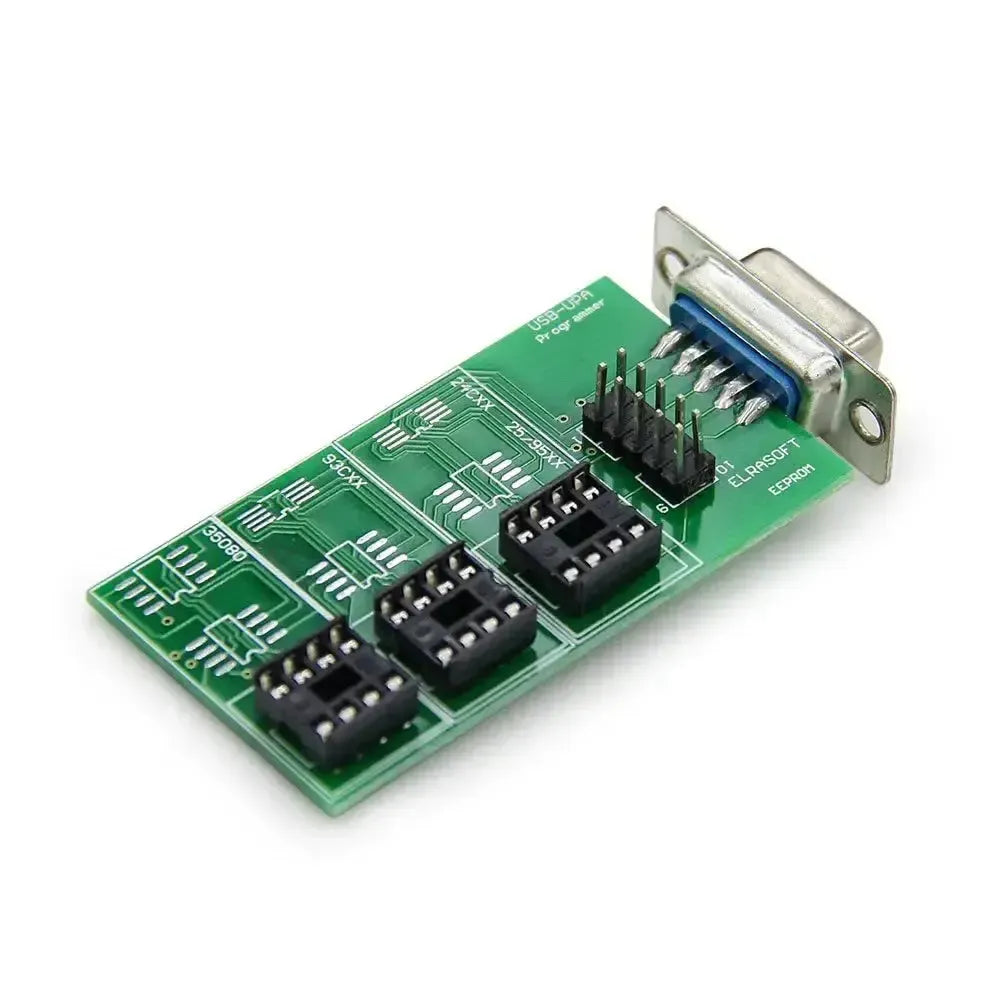

Supported EEPROMs: 24Cxx (I2C), 93Cxx (Microwire), 25Cxx (SPI) from various manufacturers
Software compatibility:
- Works with UPA-USB Device Programmer Software (UUProg)
- Compatible with Windows XP, 7, 8, 10 (32- and 64-bit)
- Note: Software and drivers are not included – installation is the user's responsibility

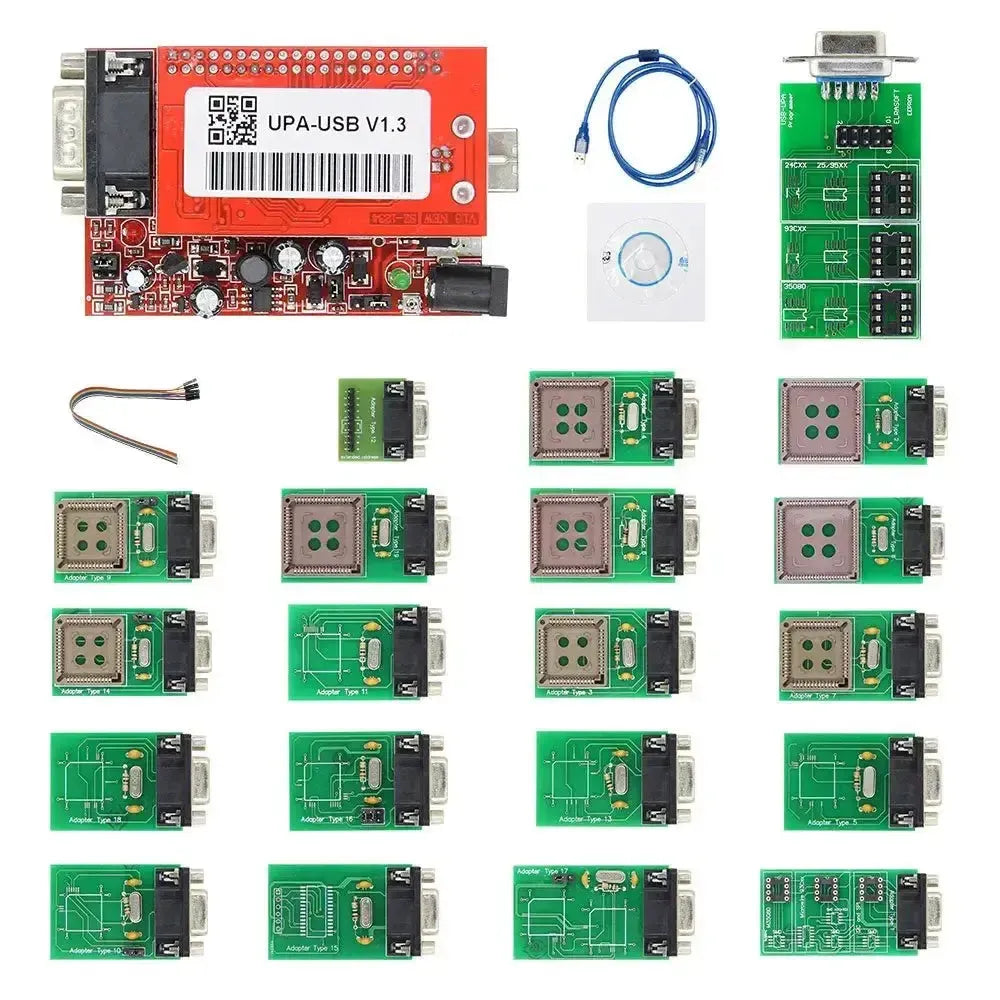

Package Contents:
- 1x UPA-USB V1.3 programmer main unit
- 1x USB cable

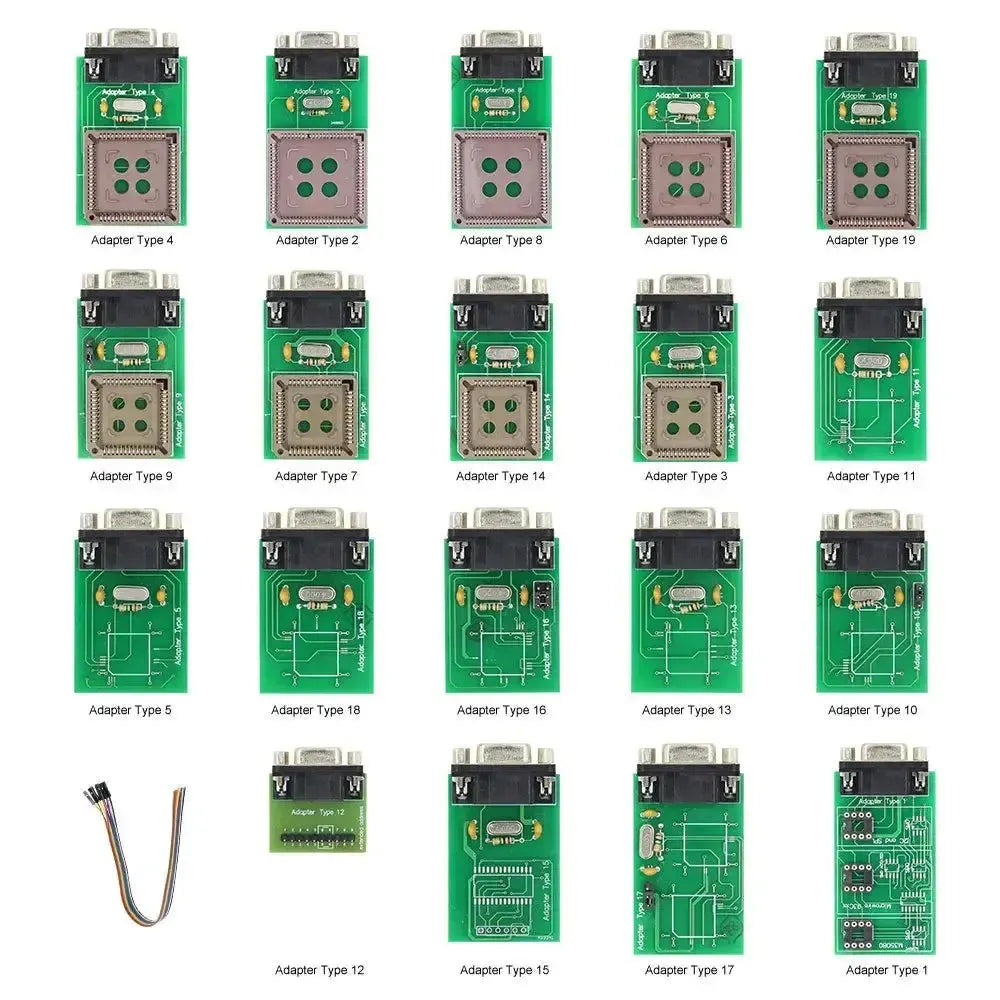

- 1x Set of 19 programming adapters (for e.g. SOIC, PLCC, QFP)
- 1x 10-pin flat-ribbon cable for in-circuit programming
Technical specifications:
| Specification | Description |
|---|---|
| Model | UPA-USB Programmer V1.3 |
| Computer connection | USB 2.0 |
| Power supply | Via USB port (5V) |
| Supported protocols | I2C, SPI, Microwire, BDM, JTAG (depending on adapter) |
| Adapters included | 19 pieces for various chip types and sizes |
| Software | UPA-USB Device Programmer (UUProg), not included |
| Operating system | Windows XP, 7, 8, 10 (32- and 64-bit) |
| Protection | Overcurrent protection on all programming outputs |
| Material | High-quality PCB and industrial components |
