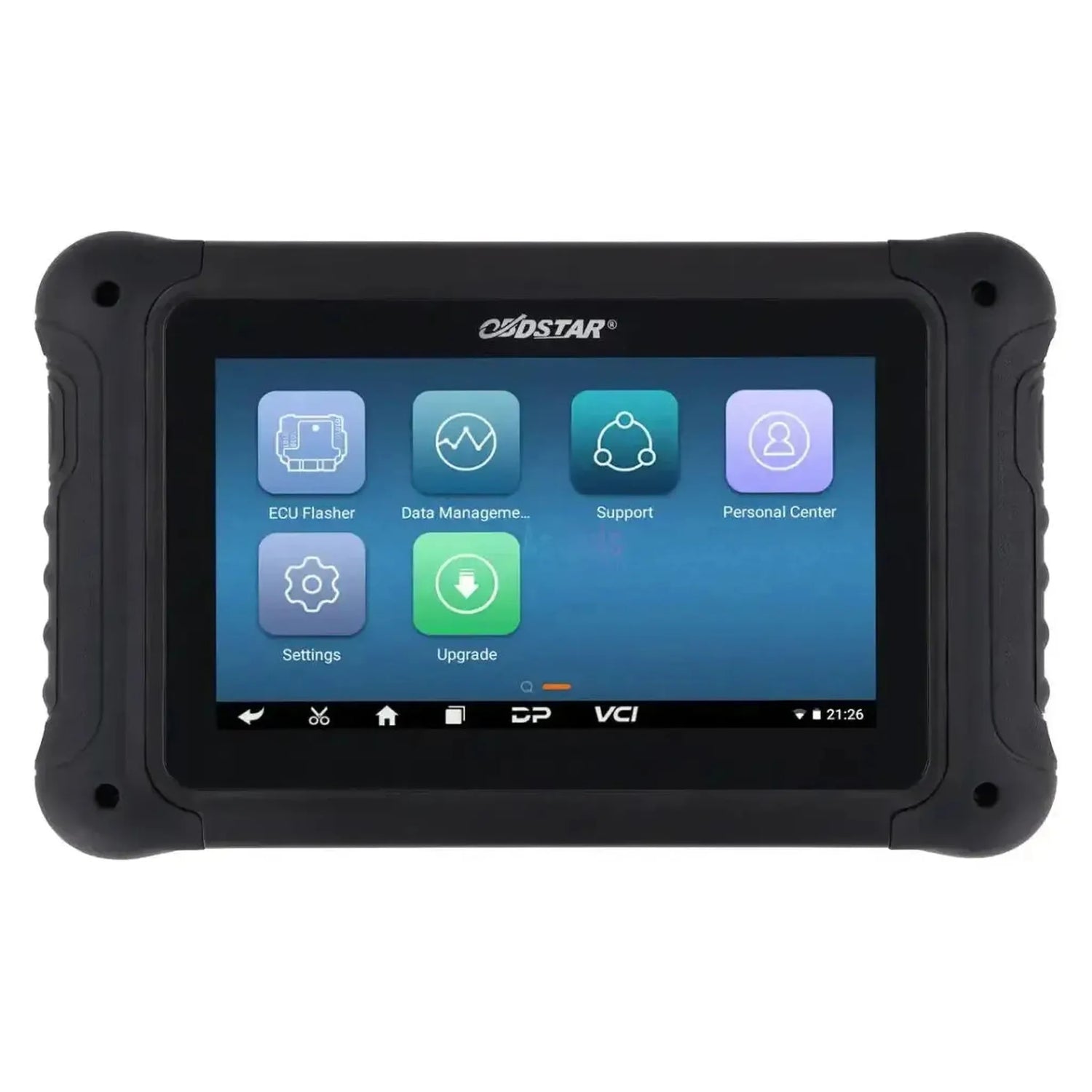

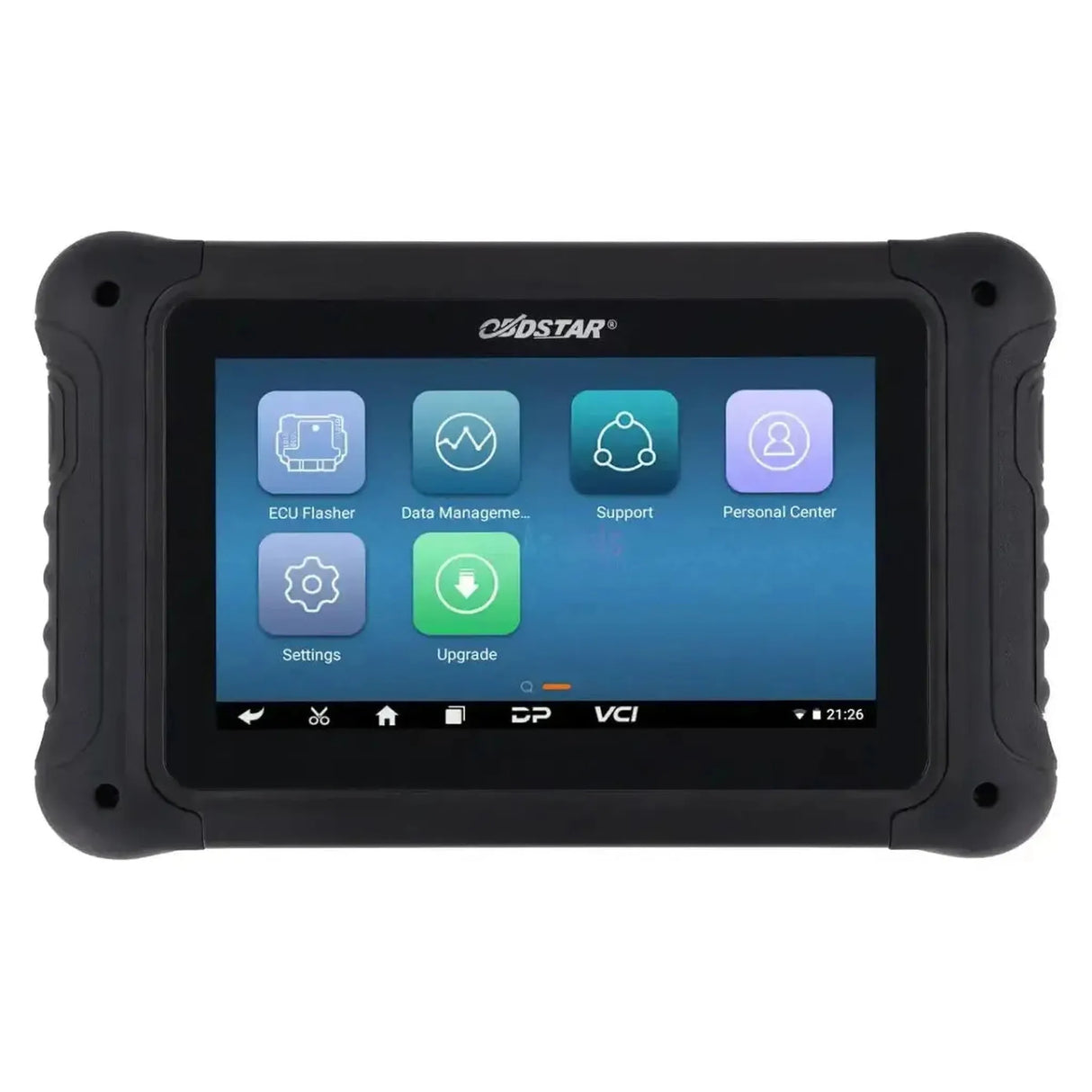

The OBDSTAR DC706 ECU programmer is a specialized device for cloning, reading, and writing data on engine control units (ECM), transmission control units (TCM), and body control modules (BCM) of cars and motorcycles. The device operates via OBD, BENCH, BOOT, BDM, and JTAG and supports reading ECU info, reading and writing EEPROM/DFLASH/PFLASH/MAP, resetting to virgin status, odometer correction, reading IMMO pin code, and ECU recovery. The Full version comes with all seven configurations, making ECM, TCM, and Body/Other cloning immediately available. The software license is valid for 1 year from activation.
The DC706 runs on Android 5.1.1 with an RK3128 quad-core ARM Cortex A7 processor, a 7-inch capacitive touchscreen with 1024×600 resolution, 16 GB internal storage expandable via microSD up to 32 GB. The device supports WiFi for software updates and is powered by a 3700 mAh polymer lithium battery. For expansion to specific transmission adapters, CAN-FD communication, and bench work, various optional TCM adapters and programming kits such as the P003+ and MP001 are available.
ADVANTAGES
KEY POINTS
Diagnostic functions
The DC706 is primarily an ECU programmer and offers diagnostic-oriented functions needed for reading and preparing control units before and after flashing or cloning.
- Reading ECU info: Reads hardware and software version, ECU identification, and internal parameters from engine control units, TCMs, and BCMs.
- IMMO pin code reading: Reads the immobilizer system’s pin code, necessary for key matching and ECU replacement procedures.

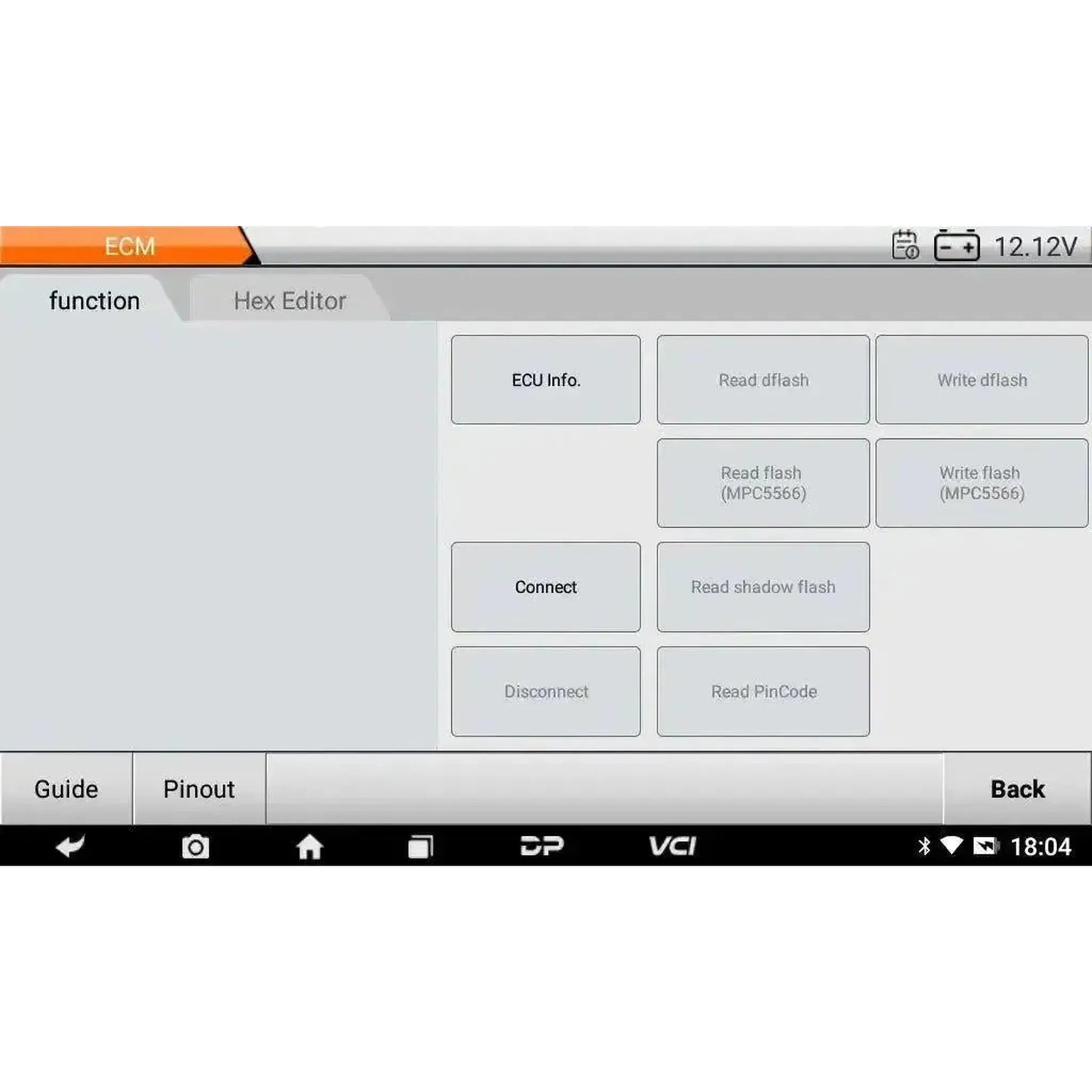

- EEPROM/DFLASH/PFLASH/MAP reading and writing: Provides access to the ECU’s internal memory for data analysis, backup, and reprogramming.

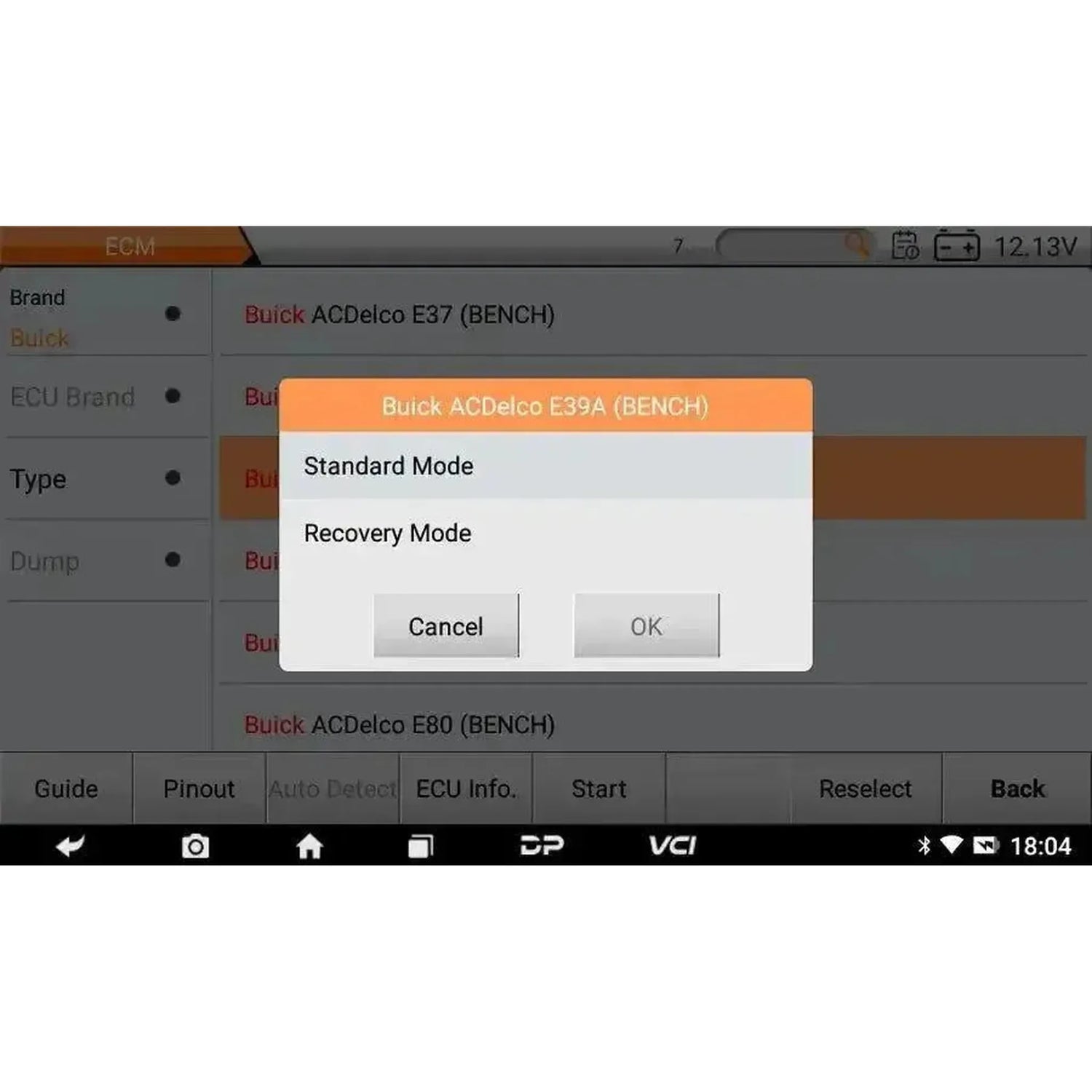

- ECU recovery: Restores control units that no longer function due to a failed flash or corrupted software.
Service and maintenance functions
The DC706 supports multiple service and maintenance functions directly related to ECU tasks. Function availability may vary by vehicle make, model, and year.
Engine and drivetrain
- ECU cloning: Copies the complete data from an original engine control unit to a replacement ECU, including all adaptive values and coding.
- Transmission control unit cloning: Duplicates software and data from a TCM to a replacement unit, supported for AC Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, and ZF, among others.
Body and comfort systems
- Body control module cloning: Copies data from a BCM to a new module for FCA, Fiat, Ford, GM/Opel, Land Rover, Jaguar, PSA, Smart, and Volvo, among others.
- Radio code reading: Reads the security code of the audio system for reactivation after battery disconnection or replacement.
Electrical and safety systems
- Immobilizer service: Supports tasks related to the immobilizer system in combination with ECU and BCM procedures.
- Airbag crash data reset: Clears crash data from the airbag control unit so the module can be reused after a collision.
Other service and maintenance functions
- Odometer correction: Adjusts the recorded mileage after replacing or repairing a dashboard or control unit.
Special functions and capabilities
In addition to standard cloning, the DC706 offers multiple specialized functions for in-depth ECU operations.
- ECU virgin reset: Resets the control unit to factory settings so it can be paired with another vehicle.

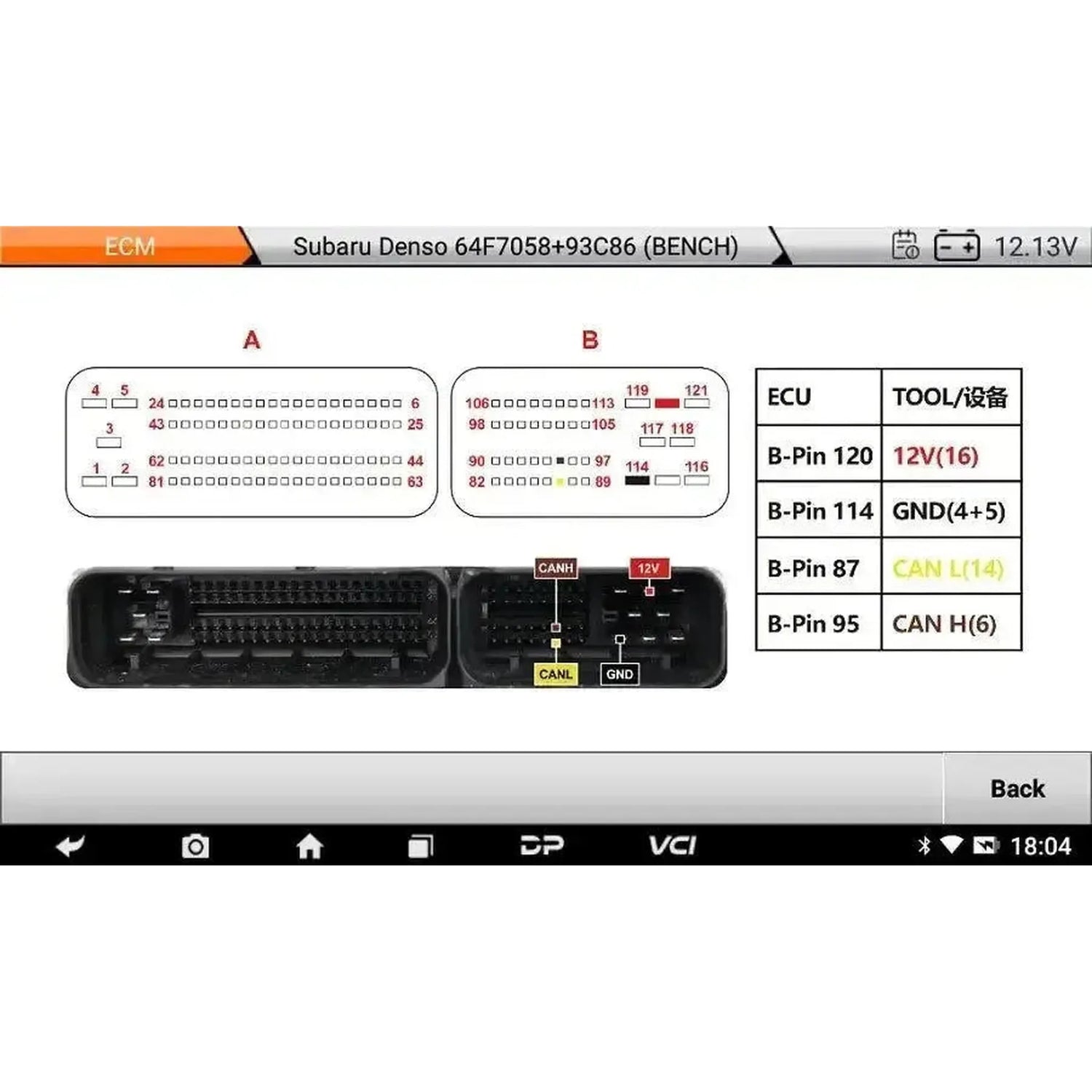

- All-mode programming: Works via OBD, BENCH, BOOT, BDM, and JTAG, enabling both in-vehicle and bench operations.
- Motorcycle ECU support: Cloning ECMs on motorcycles with Bosch, Delphi, and EFI platforms.
- WiFi updates: Software expansions and new vehicle support are installed wirelessly via WiFi.
Supported vehicle brands
The DC706 supports a wide range of vehicle brands for ECU, TCM, and BCM operations, divided across different regions.
- European: Abarth, Alfa Romeo, Alpina, Aprilia, Aston Martin, Audi, Benelli, Bentley, BMW, Bugatti, Citroën, Dacia, Daimler, Dallara, David Brown, Derbi, DS, Ferrari, Fiat, Gilera, Italjet, Iveco, Jaguar, KTM, Lada, Lamborghini, Lancia, Land Rover, MAN, Maserati, Mercedes-Benz, MINI, Morgan, Moto Guzzi, Opel, Peugeot, Piaggio, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, UAZ, Vauxhall, Vespa, Volkswagen, Volvo, Wiesmann
- Asian: Acura, Ashok Leyland, Daewoo, Genesis, Honda, Hyundai, Infiniti, Isuzu, Kia, Luxgen, Mahindra, Mazda, Mitsubishi, Nissan, Royal Enfield, SsangYong, Subaru, Suzuki, Tata, Toyota, VinFast
- American: BRP, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, General Motors, GMC, Holden, Hummer, Jeep, Lincoln, Massey Ferguson, Mercury, Polaris, Pontiac, Saturn, Shelby
- Chinese: Baic, CFMoto, Changan, Changhe, Chery, FAW, GAC, Geely, Great Wall, JAC, JMC, Lifan, MG, SAIC, Weiwang
Optional additions and expansions
The DC706 can be expanded with various hardware adapters and programming kits for specific transmissions, body control modules, and complex ECUs.
Hardware modules and accessories
- C4-07 (MB-VGS4-0-NAG2) Adapter Kit: Kit for solderless data transfer and personalization of Mercedes-Benz 7G-Tronic VGS4-0 NAG2 transmission control units.
- C4-09 (MB91F526) Adapter Kit: Adapter set for reading and writing FLASH/DFLASH data on MAGNETI MARELLI and MAZDA 3 DENSO Body Control Modules.
- CANFD Adapter: Module for communication with vehicles using the CAN Flexible Data-Rate protocol, such as recent models from General Motors, Hyundai, and Kia.
- CONVERTER V2: Converts the signal to ensure compatibility when using third-party diagnostic devices in combination with the main unit.
- MP001 Kit: Programming kit with 12 I/O ports for reading and writing data on complex ECUs not supported by the P003+ kit.
- P003+ Kit: Kit with an increased clock frequency for stable reading and writing of data on specific Bosch, Siemens, and Continental engine control units.
- TCM-001A VW DQ200 Adapter: Adapter for direct connection to Volkswagen DQ200 (0AM/0CW) transmission control units.
- TCM-002A VW DQ250 Adapter: Adapter for direct connection to Volkswagen DQ250 (02E/0D9/CXX) transmission control units.
- TCM-003 VW DL501 Adapter: Adapter for direct connection to Volkswagen DL501 (0B5) transmission control units.
- TCM-004 VW DL382 Adapter: Adapter for direct connection to Volkswagen DL382 transmission control units.
- TCM-005 VW DQ380/DQ381/DQ500 Adapter: Adapter for direct connection to Volkswagen DQ380, DQ381, and DQ500 (0DE) transmission control units.
- TCM-006 VW VL381 Adapter: Adapter for direct connection to Volkswagen VL381 (0AW) transmission control units.
- TCM-008 Chrysler/Ford/Volvo MPS6 Adapter: Adapter for direct connection to MPS6 transmission control units from various brands.
- TCM-009 Ford DPS6 Adapter: Adapter for direct connection to Ford DPS6 transmission control units.
- TCM-010 Benz/Infiniti VGS2-FDCT Adapter: Adapter for direct connection to VGS2-FDCT and VGS-FDCT transmission control units.
- TCM-011 Benz VGS2-FCVT Adapter: Adapter for direct connection to Mercedes-Benz VGS2-FCVT transmission control units.
- TCM-012 Benz VGS3-NAG2 Adapter: Adapter for direct connection to Mercedes-Benz VGS3-NAG2 and VGS2-NAG2 transmission control units.
- TCM-013 Benz VGS3-FDCT Adapter: Adapter for direct connection to Mercedes-Benz VGS3-FDCT transmission control units.
- TCM-014 Benz VGS-NAG3 Adapter: Adapter for direct connection to Mercedes-Benz VGS-NAG3 transmission control units.
- TCM-017 Benz 7G DCT Adapter: Adapter for direct connection to Mercedes-Benz 7G DCT transmission control units.
- TCM-018 Buick/Chevrolet 6T30-6T50 Adapter: Adapter for direct connection to 6T30, 6T35, 6T40, 6T45, and 6T50 transmission control units.
- TCM-019 Cadillac/GM/Hummer 6L45-6L90 Adapter: Adapter for direct connection to 6L45, 6L50, 6L80, and 6L90 transmission control units.
- TCM-020 Various Brands 6T70/6T75/6T80 Adapter: Adapter for direct connection to 6T70, 6T75, and 6T80 transmission control units.
- TCM-021 Various Brands 8HPxx/6HPxx Adapter: Adapter for direct connection to various ZF 8HP and 6HP transmission control units.
- TCM-022 BMW 6HP Adapter: Adapter for direct connection to BMW 6HP transmission control units.
- TCM-023 Acura/Chrysler/Jeep 9HP Adapter: Adapter for direct connection to various 9HP (ZF 9HP48) transmission control units.
- TCM-024 Various Brands 8HP45-90 Adapter: Adapter for direct connection to 8HP45-90 and GEN3 TC277 transmission control units.
- TCM-025 Jaguar 8HP45 Adapter: Adapter for direct connection to Jaguar 8HP45 (GEN3 TC275) transmission control units.
- TCM-026 Volvo/Ford/Mazda AWF21 Adapter: Adapter for various AWF21, AW6A-EL, and TF-70SC transmission control units.
- TCM-027 Buick/Opel/Saab AF40-6 Adapter: Adapter for various AF40-6, AW55, AX6N, and TF-73SC transmission control units.
- TCM-029 Porsche 8DT TC400 Adapter: Adapter for direct connection to Porsche 8DT TC400 transmission control units.
- TCM-030 Audi/VW DQ400E Adapter: Adapter for direct connection to Audi/VW DQ400E transmission control units.
License information
The OBDSTAR DC706 comes with a software license linked to the device upon activation. The Full version includes all seven function configurations (ECM, TCM, and Body/Other cloning) at purchase.
- License period: The software license is valid for 1 year from the first activation.
- Software updates: During the active license period, updates are delivered via WiFi with new vehicle support, expansions of ECU, TCM, and BCM databases, and fixes for known issues.
- Extended functions: New ECU protocols, updated cloning procedures, and additional vehicle coverage require an active license to be downloaded and used.
- After license expiration: The device will continue to operate with the last installed software version; new updates and expansions will only be available again after license renewal.
Package Contents
- 1x OBDSTAR DC706 ECU programmer
- 1x 12V2A charger
- 1x M001 main cable
- 1x P004 Adapter
- 1x BENCH B-V2 ECU flasher bench cable
- 1x Set jumper wires (5 specifications)
- 1x 3-IN-1 jumper extension cable
Technical specifications
| Specification | Description |
|---|---|
| Product brand | OBDSTAR |
| Product model | DC706 (Full) |
| Product category | ECU programmer |
| Operating system | Android 5.1.1 |
| Processor | RK3128 quad-core ARM Cortex A7 |
| Internal storage | 16 GB |
| Memory expansion | microSD (TF) up to 32 GB |
| Screen | 7 inch capacitive touchscreen |
| Screen resolution | 1024 × 600 |
| WiFi | Supported |
| Battery | 3700 mAh rechargeable polymer lithium battery |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Dimensions | 243 × 148 × 36 mm |
| Weight | Approximately 0.766 kg |
