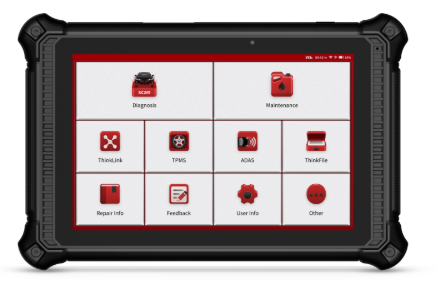

Thinkcar ThinkTool 393 | Diagnostic Tool | Car
The Thinkcar ThinkTool 393 is a professional scanner for performing advanced vehicle diagnostics. It supports more than 100 passenger Car brands and offers extensive diagnostic capabilities, service functions, and online programming. The system runs on Android 10 and is equipped with a 10-inch touchscreen and a THINKLINK VCI. A license for 2 years of software updates is included.
This device supports modern vehicle protocols such as CAN FD and DoIP, and is compatible with J2534, D-PDU, and RP1210 passthrough programming. Features like topology module display, ADAS calibration (with optional hardware), and Video Remote Diagnostic provide additional functionality for the professional workshop.
Diagnostic functions:
The ThinkTool 393 offers extensive diagnostic capabilities for all available vehicle systems.
- Read and clear fault codes: Reading and deleting diagnostic trouble codes (DTCs) from all present vehicle systems.
- Live data: Displaying real-time data from sensors and components in various formats, such as text, graph, and meter.
- Actuator control / Bi-directional control: Activating vehicle components to test functionality, such as controlling relays, injectors, or fans.
- Topology module: Provides a graphical overview of the communication structure between the various control units in the vehicle, enabling quick analysis of the network status.
Key and EEPROM functions:
The ThinkTool 393 offers functions for managing the immobilizer and keys. The availability of functions may vary by vehicle brand and model.
Key functions:
- Key programming: Programming new or replacement keys for the vehicle.
- IMMO functions: Resetting and adjusting the immobilizer and reading PIN codes.
Service and maintenance functions:
The Thinkcar ThinkTool 393 supports more than 34 service and maintenance functions. The availability of specific functions may vary by vehicle brand, model, and year.
Engine and drivetrain:
- Oil and service interval reset: Resets the oil and service light after maintenance.
- Learn throttle body (ETS): Resets the throttle values to default settings.
- Injector coding: Writes the new injector codes to the engine control unit after replacement.
- Adjust transmission: Performs an adaptation process for the automatic transmission to improve shift quality.
- Learn crankshaft position sensor: Calibrates the crankshaft position sensor for accurate engine control.
- Reset AdBlue system: Resets the AdBlue warning system after refilling the fluid.
- Reset air-fuel ratio (A/F): Adjusts the air-fuel ratio for optimal engine performance.
- Reset start-stop system: Configures or deactivates the automatic start-stop system.
- Bleed cooling system: Activates the water pump to remove air from the cooling system.
- Adjust clutch: Calibrates the clutch engagement point after replacement.
- Adjust turbo: Performs a calibration for the turbo after installation or repair.
- Reset engine control unit (ECU): Restores the engine control unit to factory settings.
Exhaust systems:
- Diesel particulate filter regeneration (DPF): Forces regeneration of the diesel particulate filter to remove blockages.
- Adjust exhaust gas recirculation (EGR): Calibrates the EGR valve after cleaning or replacement.
- Reset NOx sensor: Resets the stored values of the NOx sensor after replacement.
Brake and safety systems:
- Initialize electronic parking brake (EPB): Opens and closes the brake calipers for maintenance and calibrates the parking brake after replacement.
- Bleed ABS brake system: Removes air from the brake lines of the ABS system.
- Reset airbag module: Resets the airbag control unit after an accident or repair.
Steering system and chassis:
- Calibrate steering angle sensor (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.
- Calibrate air suspension: Adjusts the vehicle's ride height and calibrates the level sensors.
- Reset tire pressure monitoring system (TPMS): Resets the TPMS after tire or sensor replacement.
Body and electronics:
- Register battery management system (BMS): Registers a new Battery in the vehicle system.
- Reset immobilizer (IMMO): Reprograms keys or resets the immobilizer.
- Initialize sunroof: Resets the basic settings of the sunroof after replacement or malfunction.
- Initialize adaptive headlights (AFS): Calibrates the adaptive headlight system.
- Change language settings: Changes the system language of the vehicle display.
- Calibrate mileage (ODO): Adjusts the mileage, solely for correction purposes after instrument panel replacement.
- Perform seat calibration: Calibrates the memory functions of electrically adjustable seats.
- Deactivate transport mode: Turns off the transport mode used to save the Battery during transport.
- Adjust tire size: Programs a new tire size into the onboard computer.
- Calibrate electric windows: Resets the basic settings of the electric windows.
- Reset footwell module (FRM): Restores the functionality of the footwell module.
- Calibrate gateway module: Performs a calibration on the central gateway module.
- Initialize rain and light sensor: Calibrates the sensitivity and operation of the rain and light sensor.
Special functions and capabilities:
The ThinkTool 393 features various advanced functions for programming, remote diagnosis, and support for modern vehicle protocols.
Codings and programming:
- J2534, D-PDU and RP1210 passthrough: Ability to use the VCI as a passthrough interface for factory-specific diagnostic software.
- Online programming: Perform online coding and programming for various vehicle brands, including Audi, BMW, Mercedes-Benz, and Volkswagen.
Cloud and reporting functions:
- Video Remote Diagnostic: Provides the ability to get remote assistance from a technician via a video connection.
Other special features:
- ADAS calibration: Supports calibration of Advanced Driver-Assistance Systems (ADAS) in combination with the optional THINKCAR ADAS equipment.
- CAN FD and DoIP support: Compatible with modern communication protocols such as CAN FD (Flexible Data-Rate) and DoIP (Diagnostics over Internet Protocol).
Supported vehicle brands:
This diagnostic tool supports a wide range of vehicle brands. Below is an overview of compatible brands, categorized by region.
- European: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, DR, Ferrari, Fiat, GAZ, Iveco, IZH, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mclaren, Mercedes-Benz, Mini, Opel, PAZ, Peugeot, Porsche, Renault, Rolls Royce, Rover, Saab, Seat, SeAZ, Skoda, Smart, Sprinter, Vauxhall, VAZ, Volkswagen, Volvo, ZAZ
- Asian: Acura, Ashok Leyland, Daewoo, Daihatsu, FUSO, HINO, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, Saipa, Samsung, Ssangyong, Subaru, Suzuki, Tata, Toyota, United Pakistan, VinFast
- American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, General Motors, Holden, Jeep, Lincoln, Tesla
- Chinese: BAIC, Brilliance, BYD, Changan, Changhe, Chery, Cowin, Dongfeng, Exeed, FAW, Foton, Geely, Gonow, Great Wall Motors, Hafei, Haima, JAC, Jetour, Jindong, JMC, Joylong, Karry, Leap, Lifan, Maxus, MG, Polarsun, Qoros, Riich, Roewe, SGM, SGMW, Shineray, Soueast, SWM, Trumpchi, Zotye, ZX Car
Package Contents:
- 1x Thinkcar ThinkTool 393 tablet
- 1x THINKLINK VCI
- 1x 3-in-1 plug (EU, UK, US)
- 1x Battery clamp cable
- 1x BMW-20 adapter
- 1x BZ-38 adapter
- 1x CR-6 adapter
- 1x Ethernet cable
- 1x FT-3 adapter
- 1x G/V-12 adapter
- 1x HA-3 adapter
- 1x Charging cable
- 1x M/H-12+16 adapter
- 1x NN-14+16 adapter
- 1x OBD adapter cable
- 1x OBD diagnostic cable
- 1x Programming cable
- 1x Cigarette lighter cable
- 1x TA-17 adapter
- 1x TA-22 adapter
- 2x Fuse (AC250V/5A, ø5*20mm)
- 2x Fuse (AC250V/5A, ø6*30mm)
- 1x Manual
- 1x Package Contents
- 1x Storage case
License information:
- Includes 2 years of updates: A software update license for 2 years is included with the purchase.
After the license expires, the basic functions and the already downloaded software remain operational. Online functions, such as programming and downloading new updates, require an active license.
Technical Specifications:
| Specification | Description |
|---|---|
| Product Brand | Thinkcar |
| Product Model | ThinkTool 393 |
| Operating System | Android 10 |
| Screen Size | 10 inch |
| RAM Memory | 4 GB |
| Storage Memory | 128 GB |
| Camera | 13 MP (rear) |
| Battery | 12,600 mAh / 3.8 V |
