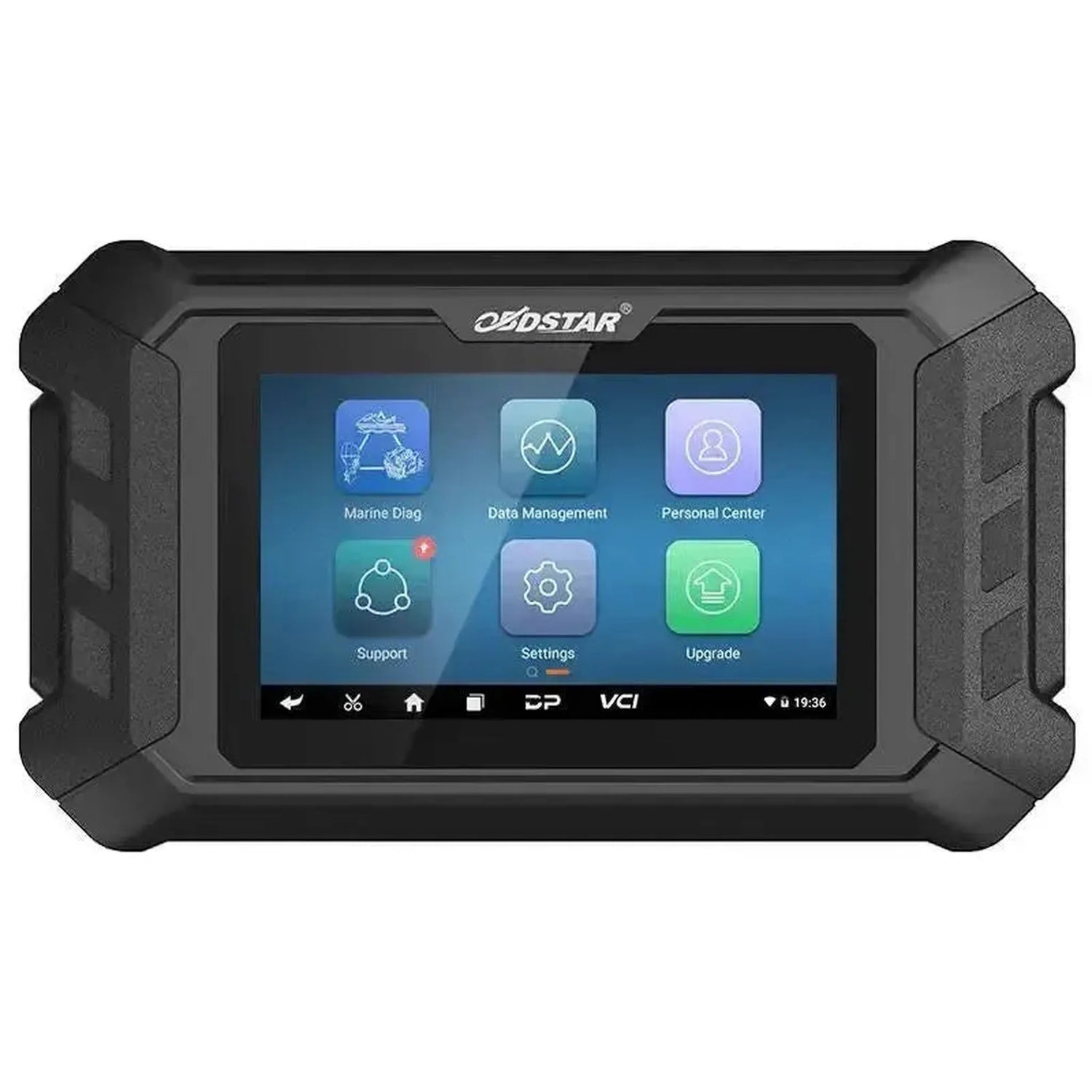

OBDSTAR IScan Suzuki (Marine) | Diagnostic Tool | Motorboat

Diagnostic Functions

The OBDSTAR IScan Suzuki (Marine) supports the following diagnostic functions for Suzuki outboard motors:

• Read fault codes: Reading stored and current fault codes from connected control units with associated descriptions.
• Clear fault codes: Removing fault codes after repairs or inspections.

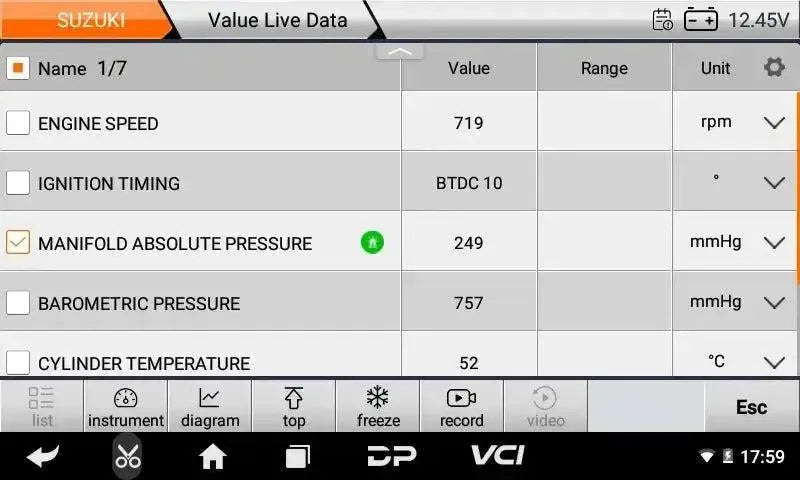

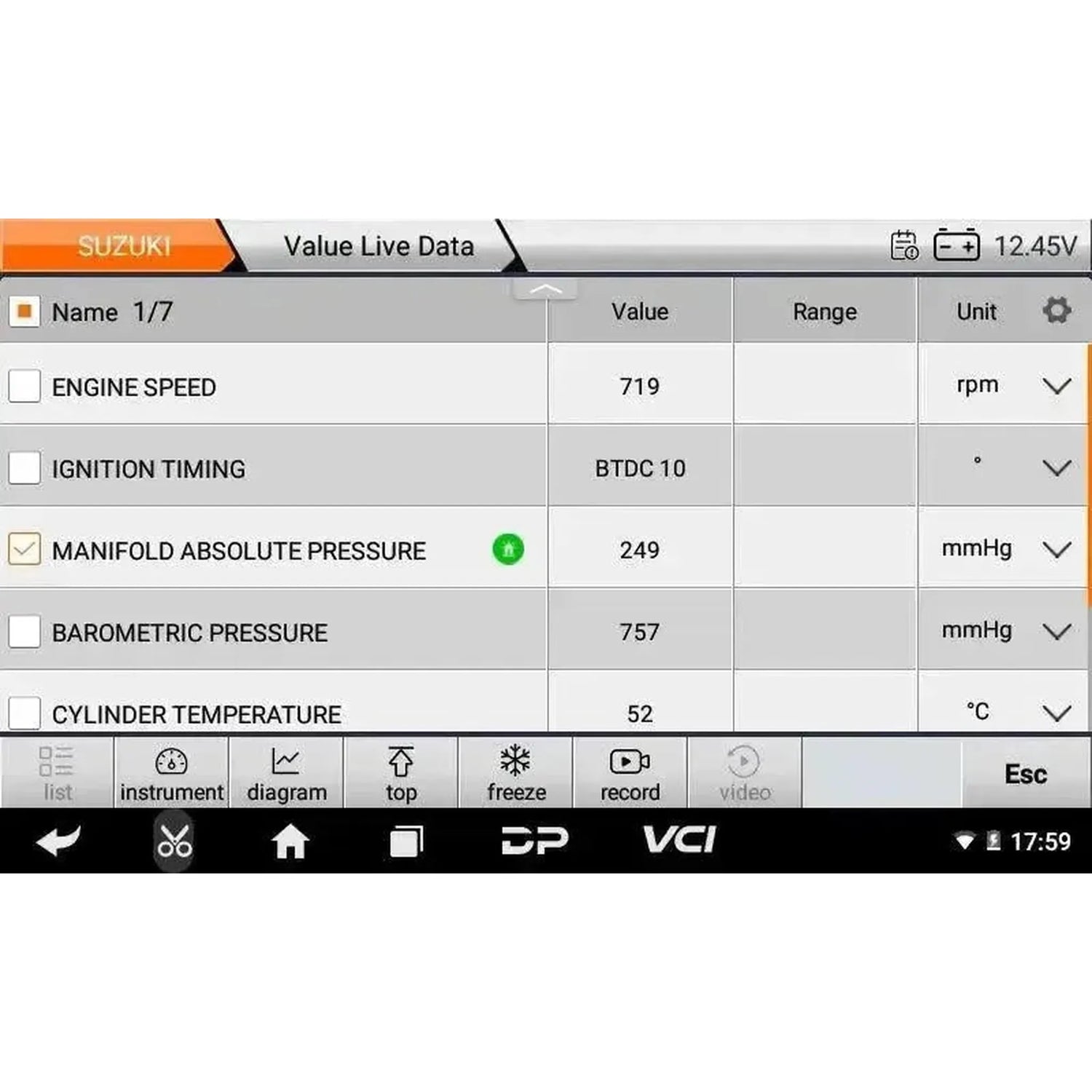

• Live data streams: Displaying real-time sensor and system values to locate sensor and component faults.
• Actuation tests: Activating actuators to check the operation of individual components.
• Setting: Changing system settings and parameters within supported modules.
• Coding: Adjusting codings on control units within the capabilities of the Suzuki platform.
• Data recording and playback: Capturing data streams during driving or testing and reviewing them later for detailed analysis.

Service and maintenance functions

The IScan Suzuki (Marine) supports multiple service and maintenance functions. Available functions may vary by Suzuki engine type, model, and year.

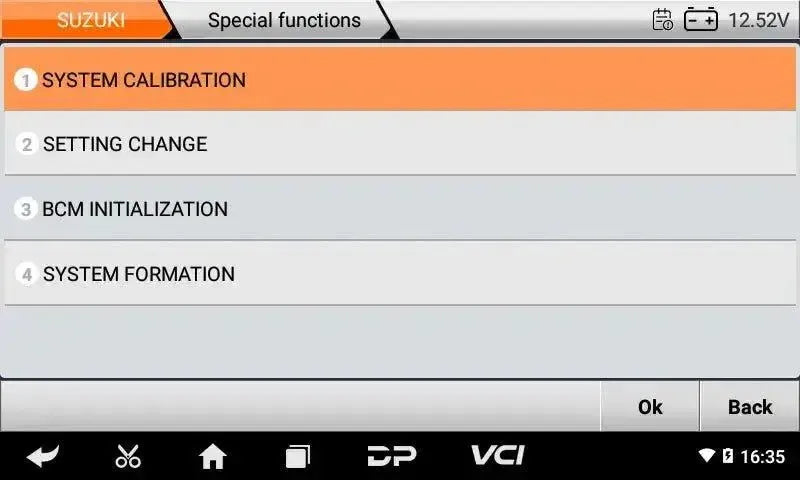

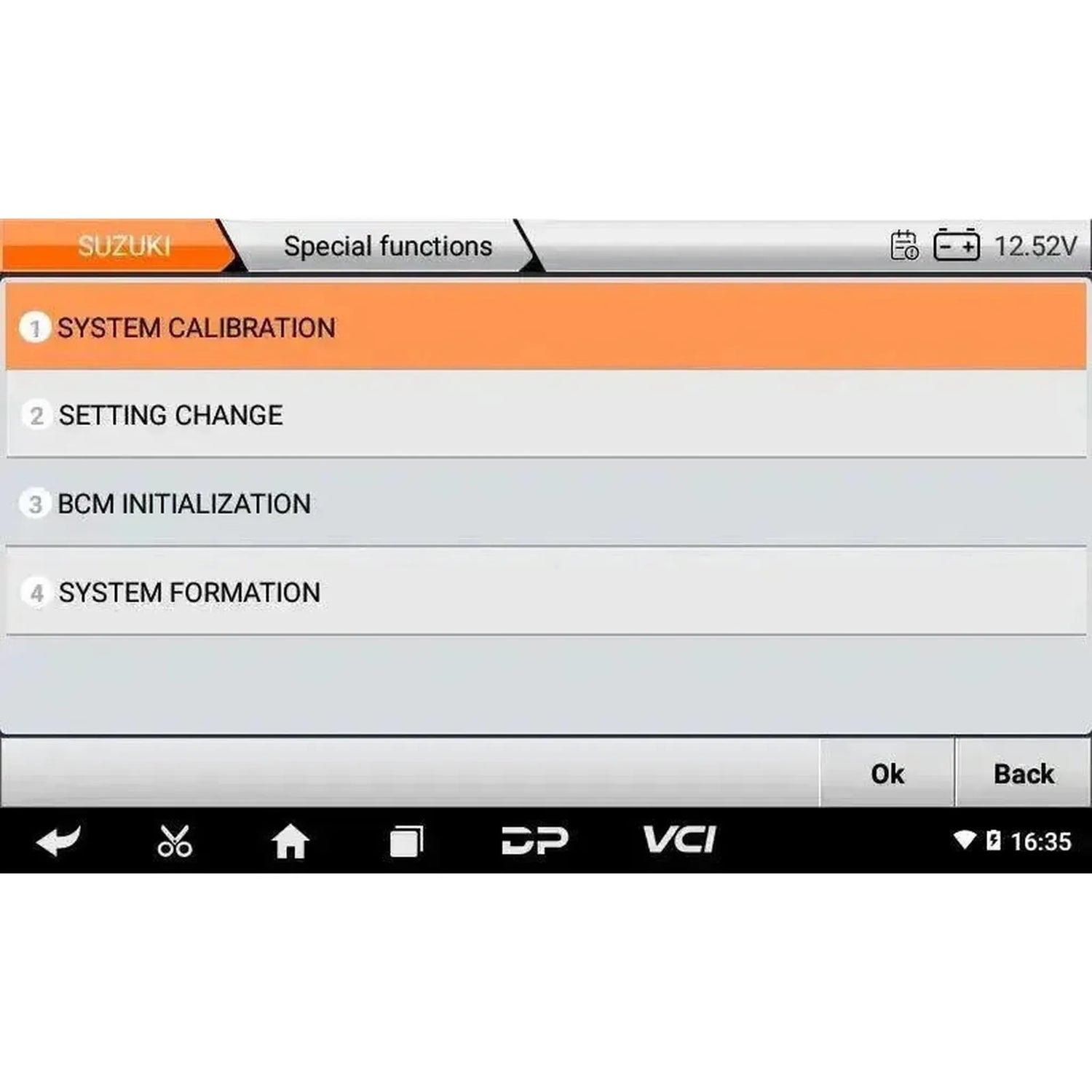

System and module service

• Instance setting: Configuring a specific module or component instance after replacement or adjustment.
• System calibration: Performing calibrations at the system level to align values within specified tolerances.

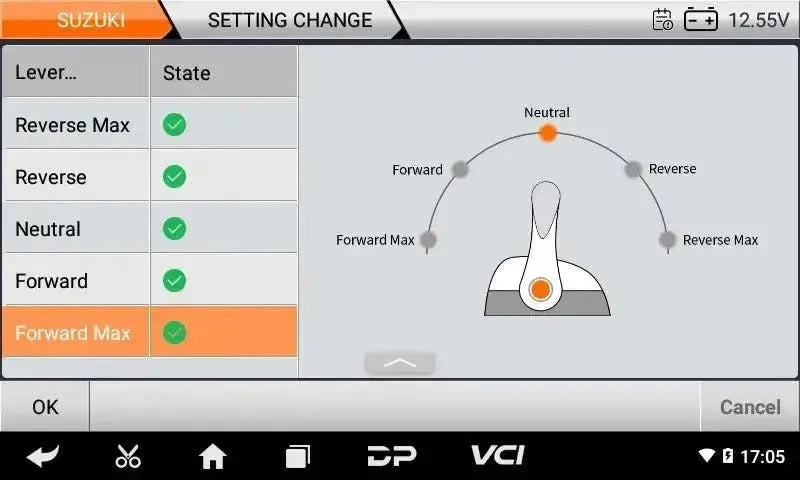

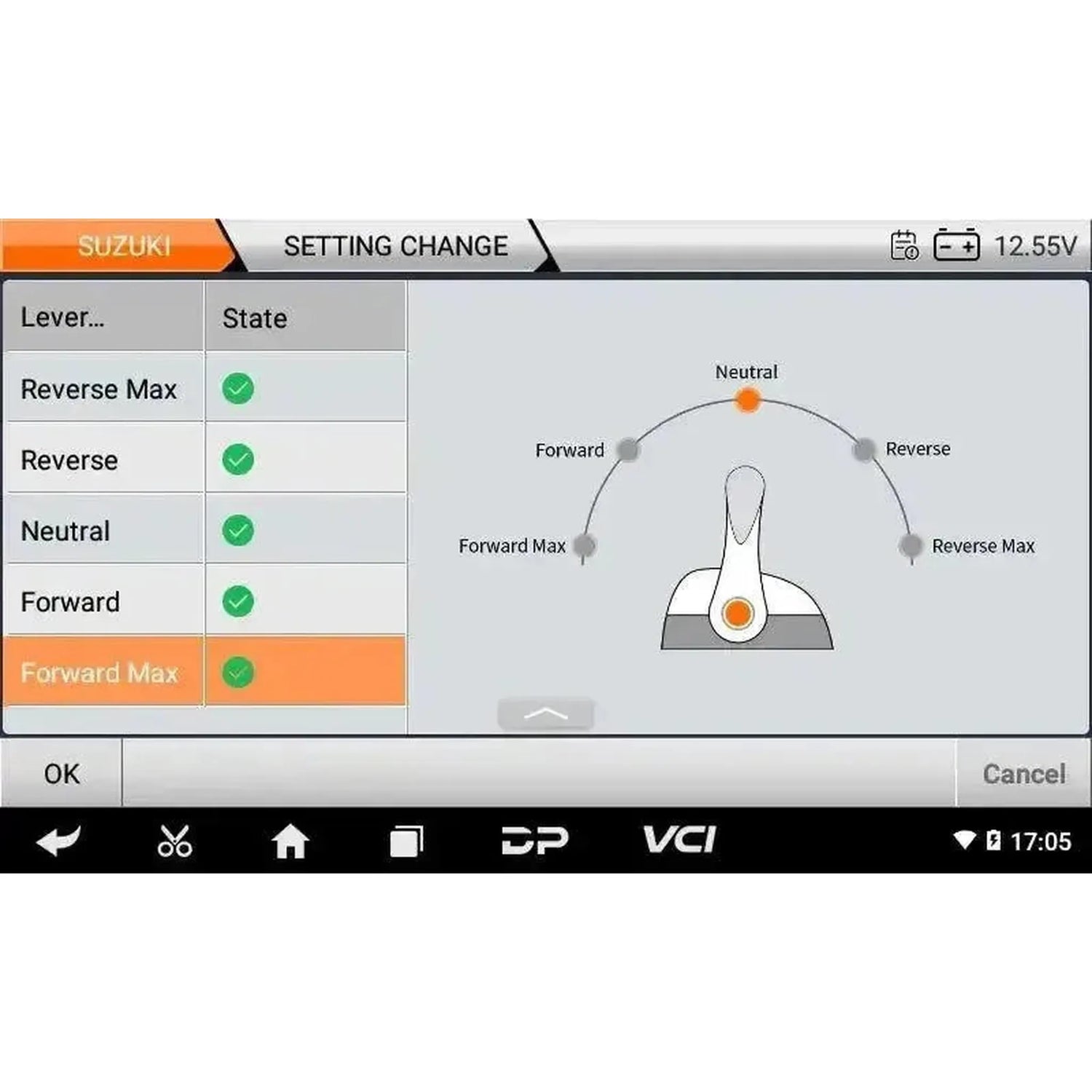

• Change setting: Adjusting existing system settings to the desired configuration.
• BCM initialization: Initializing the body control module after replacement or reset.
• System formation: Initial configuration or formation of a system after component changes or installation.

Special functions and capabilities

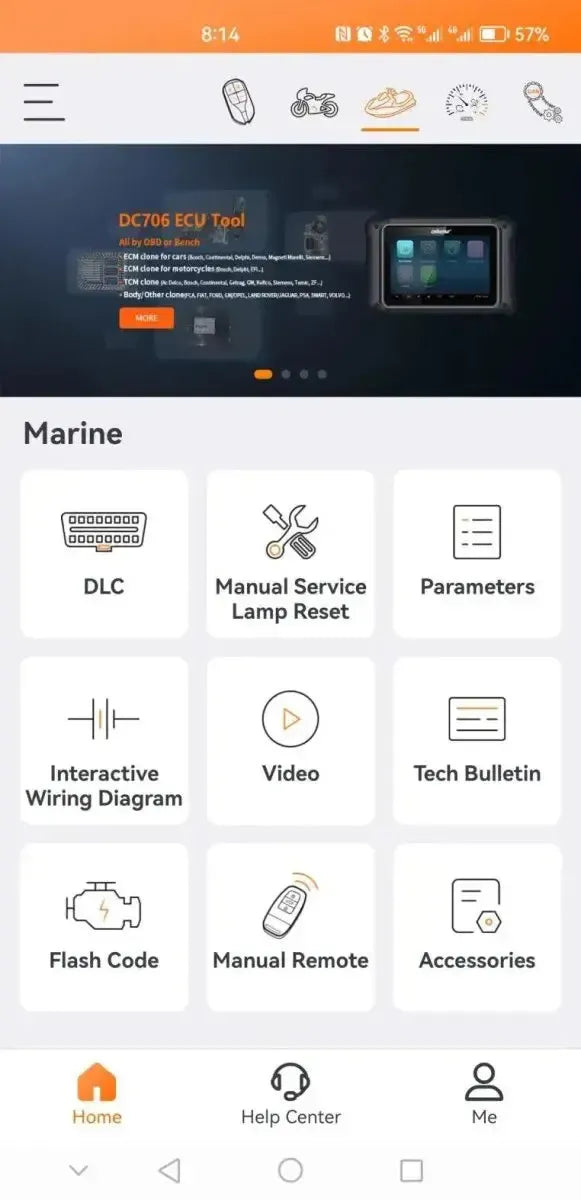

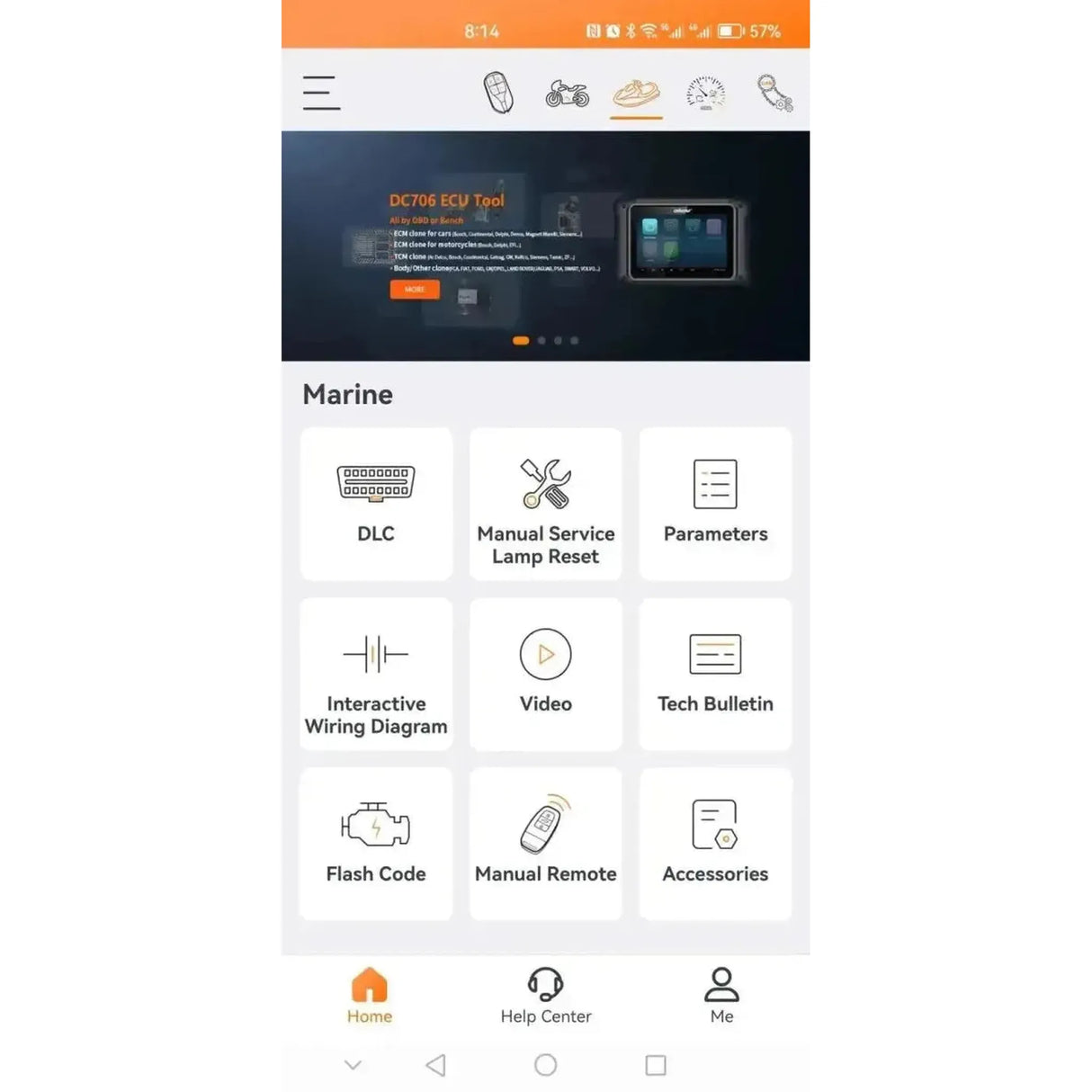

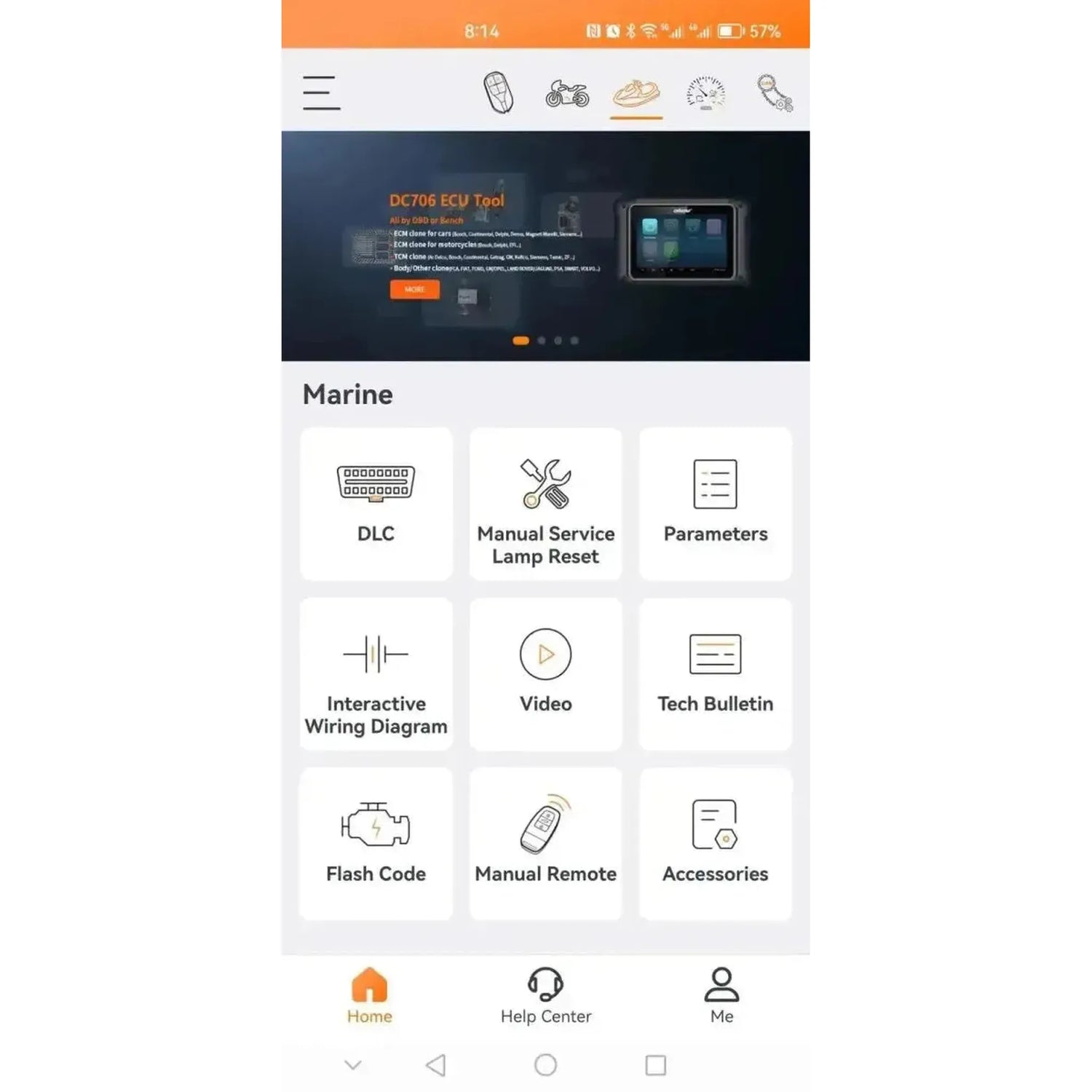

In addition to diagnostic functions, the IScan Suzuki (Marine) offers multiple special functions through the device and the associated mobile app.

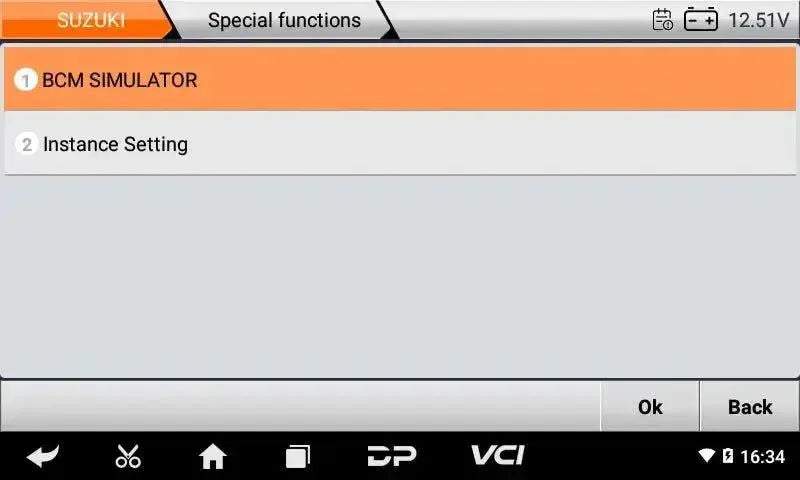

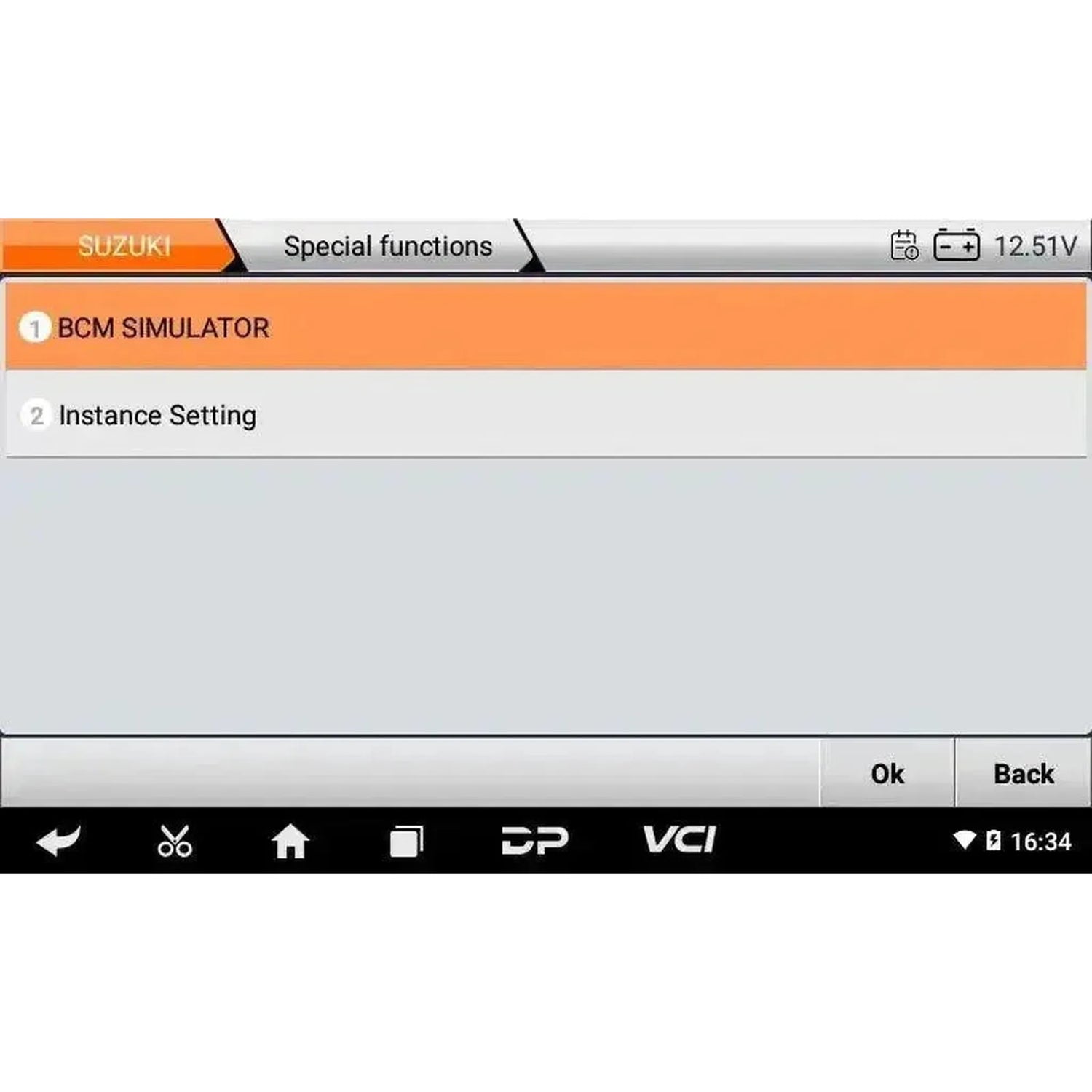

• BCM simulator: Simulating the body control module for testing and analysis purposes.
• Diagnostic connector location: Overview via the OBDSTAR mobile app of the location of diagnostic connectors on Suzuki engines.

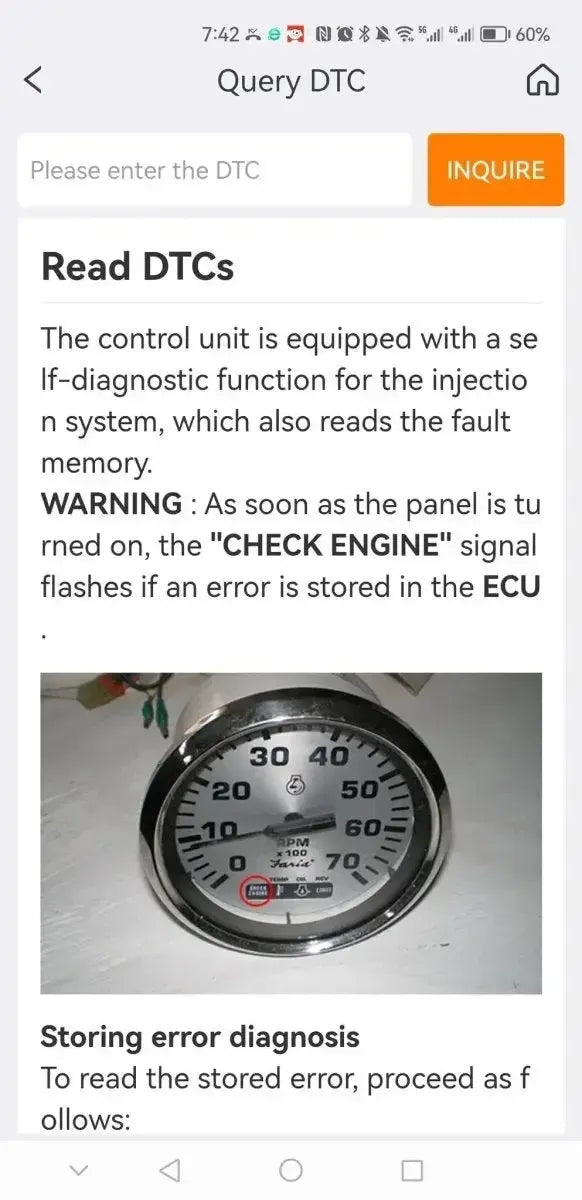

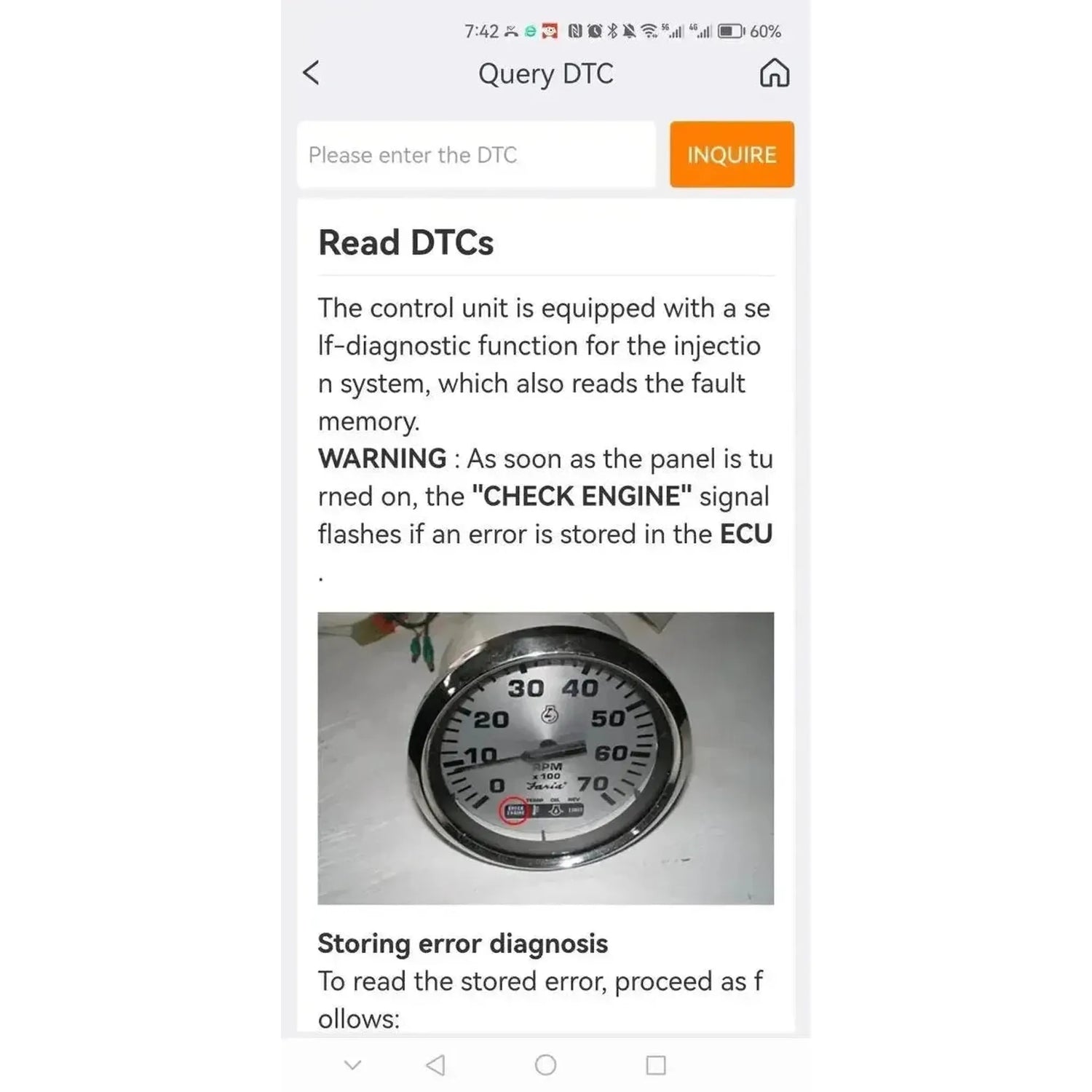

• Flashcode database: Looking up flashcodes and their meanings via the mobile app.
• Technical bulletins: Consulting technical bulletins to support diagnosis and repair.
• Manual service function: Performing manual service operations such as service light reset.
• Basic parameters: Insight into basic parameters of the connected system via app integration.

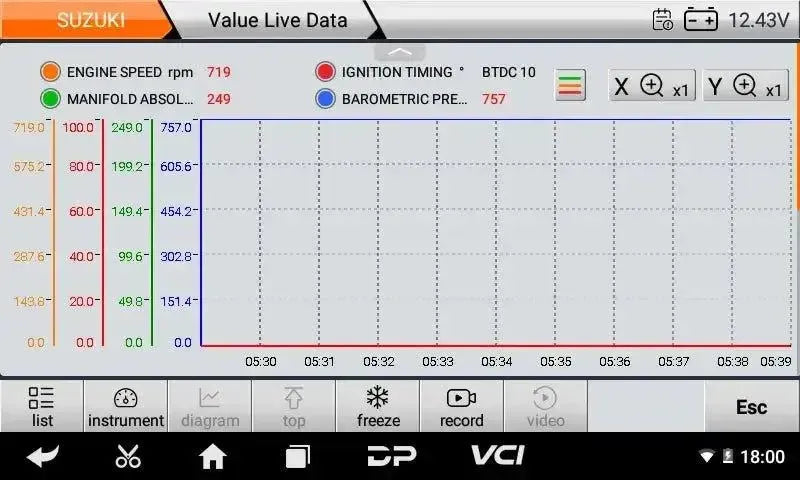

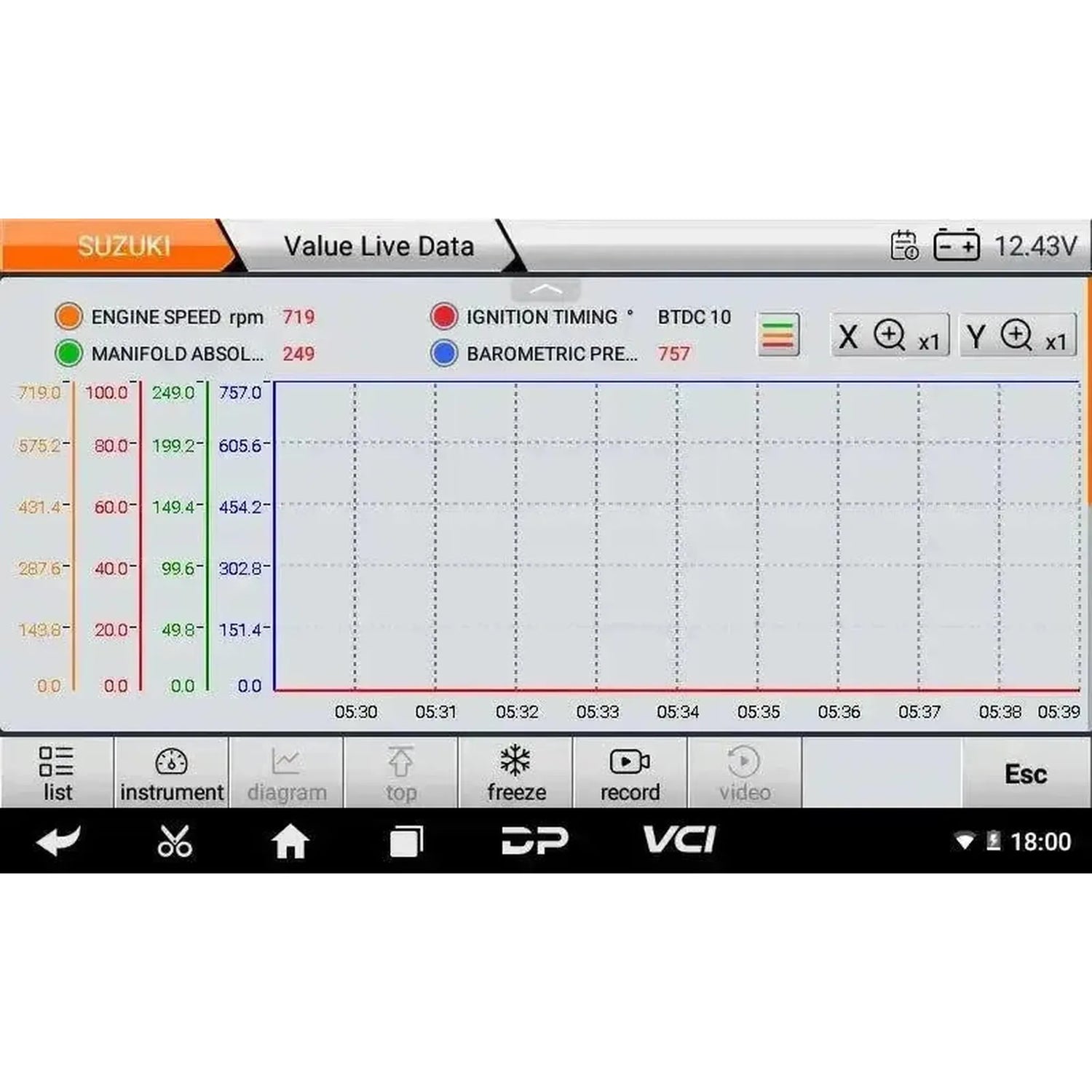

• Multiple data stream display: Display data streams as text, waveform chart, or instrument chart.
• Remote assistance: Remote support by OBDSTAR technicians via the one-click remote function.
• WiFi software update: Update software via a wireless internet connection with one click.

Supported vehicle brands

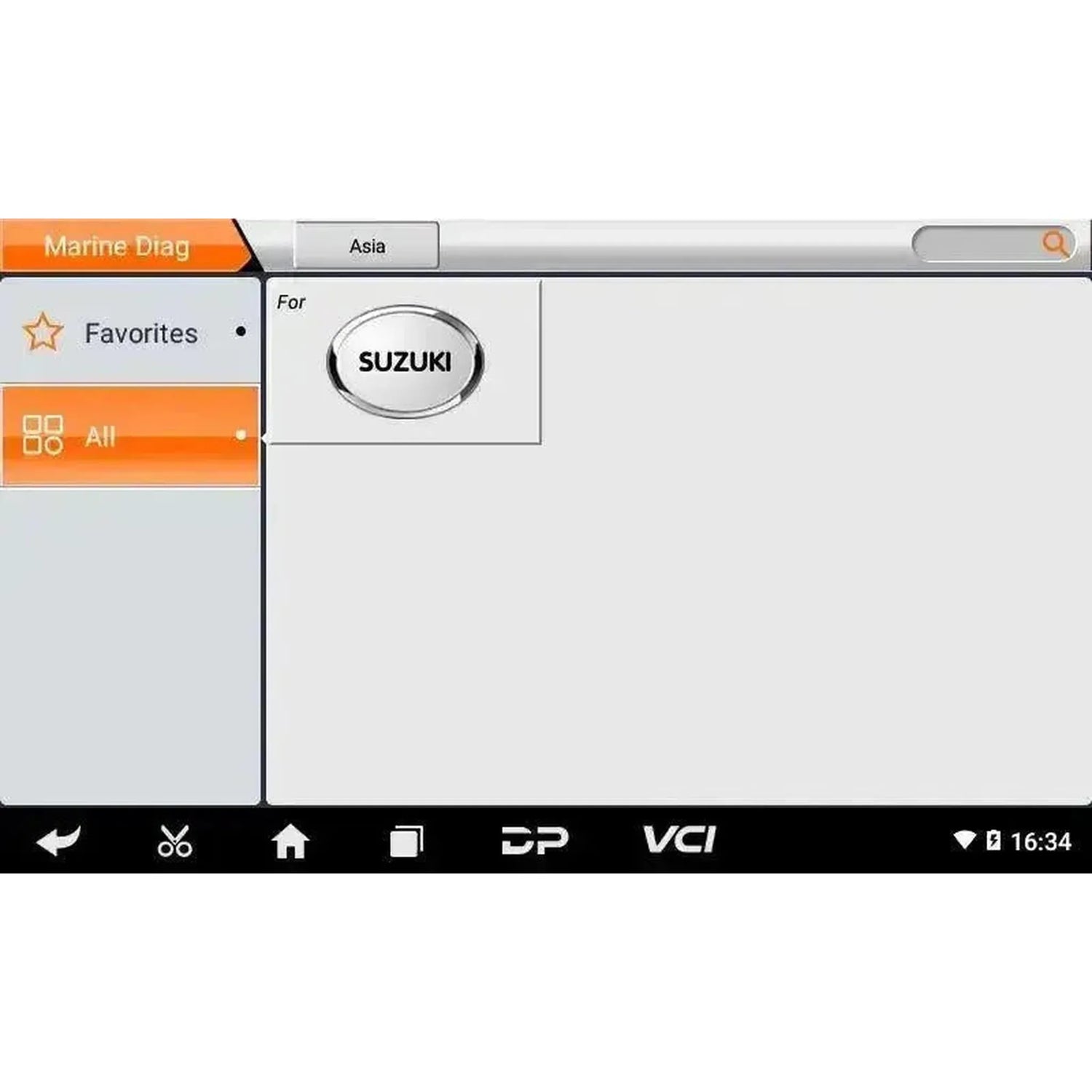

The IScan Suzuki (Marine) is specifically developed for the Suzuki marine platform.

• Asian: Suzuki

License information

The IScan Suzuki (Marine) comes with a software license that provides access to software updates for Suzuki marine models for a fixed period. After the license period expires, the already installed features remain usable.

• License period: A 2-year license is included at purchase for access to software updates.
• Software updates: Updates add support for new Suzuki model years up to the most recent releases and include feature expansions and bug fixes.
• Extended features: Access to the latest model year support, WiFi updates, and integration with the OBDSTAR mobile app requires an active license.
• After license expiration: The device will continue to operate with the last installed software version, but no new updates or new model years can be added until the license is renewed.

Package Contents

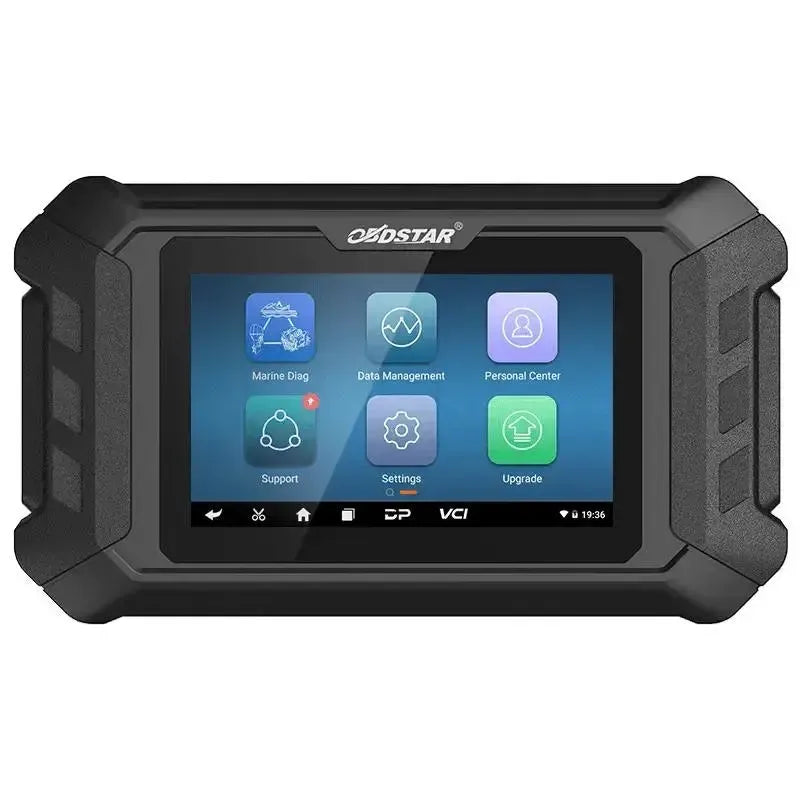

• 1x OBDSTAR IScan Suzuki (Marine) Diagnostic Tool
• 1x 12V2A charger
• 1x M001B main cable
• 1x M062 Suzuki adapter
• 1x M069 Suzuki adapter
