OBDSTAR IScan Kawasaki (Marine) | Diagnostic Tool | Motorboat

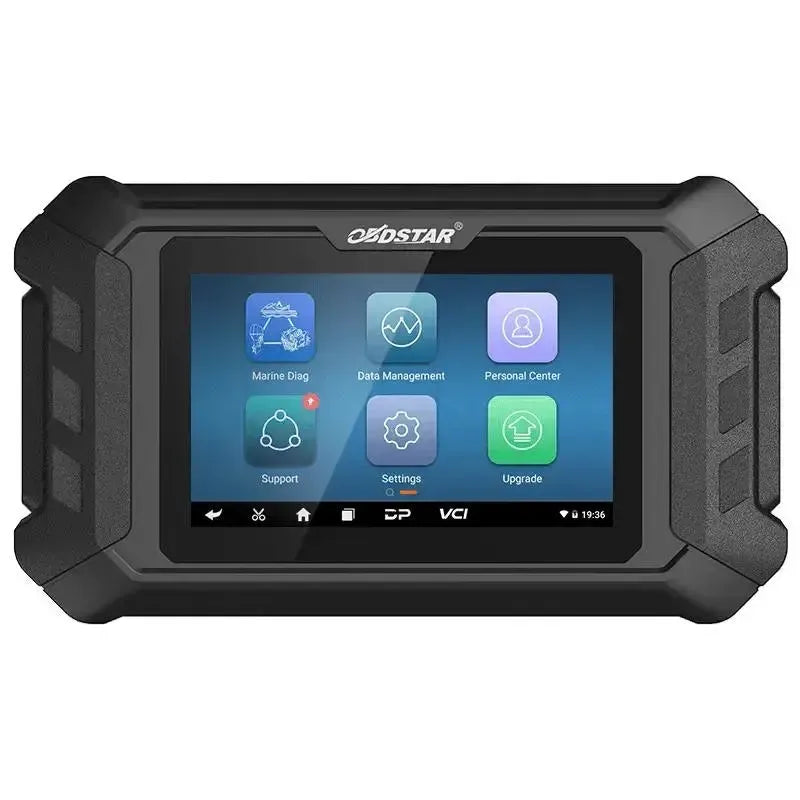

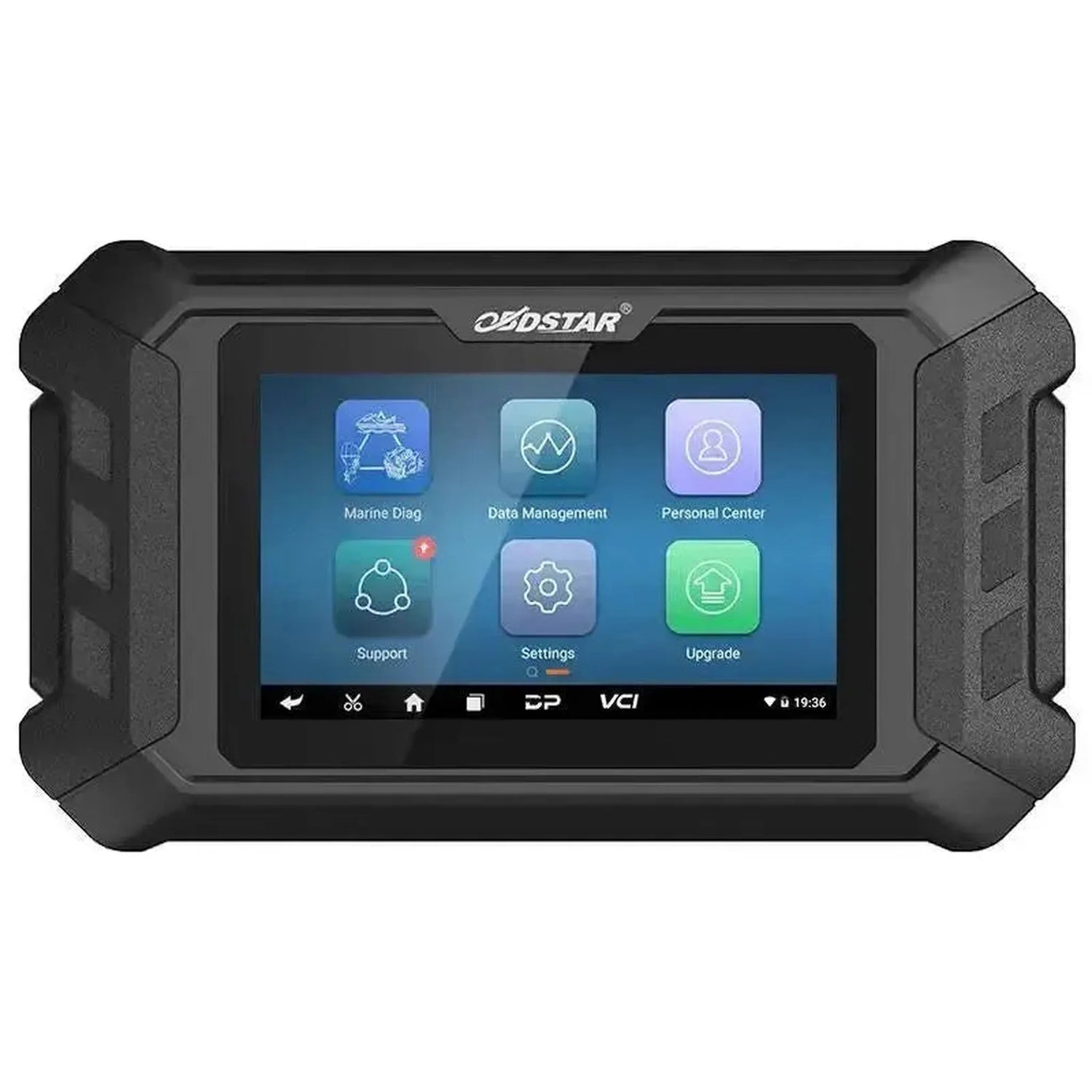

The OBDSTAR IScan Kawasaki (Marine) is a uitleesapparatuur specifically developed for Kawasaki marine vehicles, such as jet skis and motorboats. The system is based on an Android tablet with a 5.0-inch capacitive touchscreen and an RK3128 quad-core processor. The main functionalities include reading and clearing fault codes, displaying live data, and performing special functions. A license for 2 years of software updates is included with purchase.
The device supports automatic vehicle identification based on the VIN and offers the ability to view live data in various formats, such as text, waveform, and graph. Updates are performed via a Wi-Fi connection. A diagnostic history function provides quick access to previously tested vessels and stored reports.
Diagnostic functions:
The IScan Kawasaki supports various diagnostic functions for a complete system analysis of the vehicle.
- Read and clear fault codes: Reads and clears diagnostic trouble codes (DTCs) from the present control units.

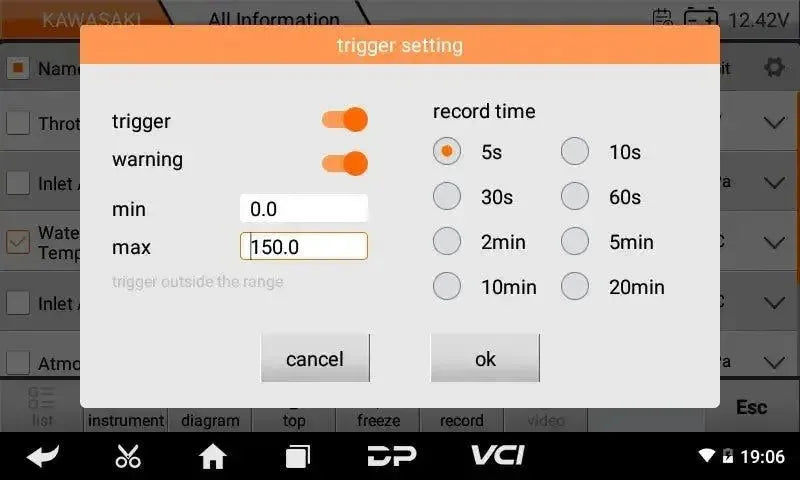

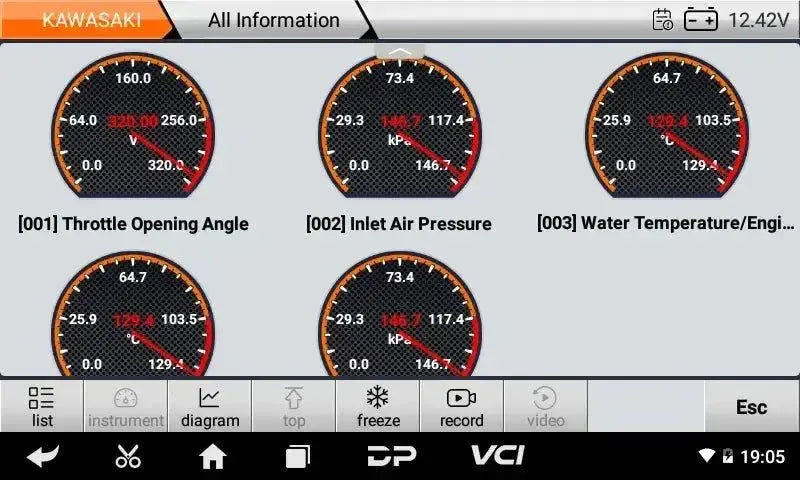

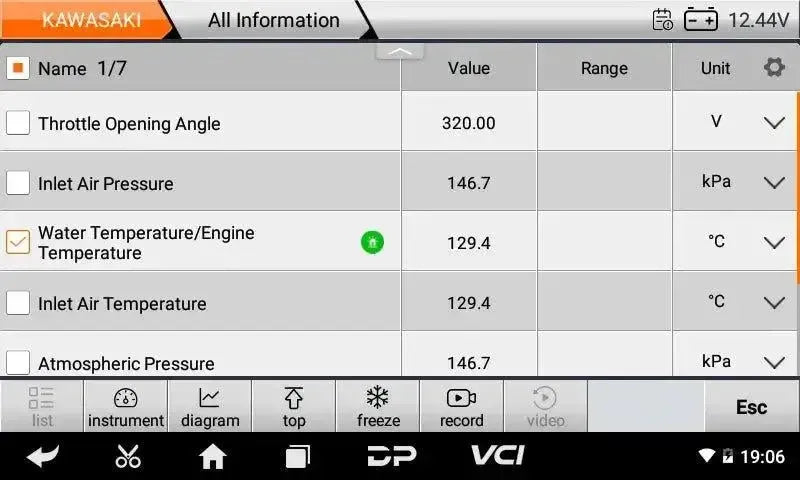

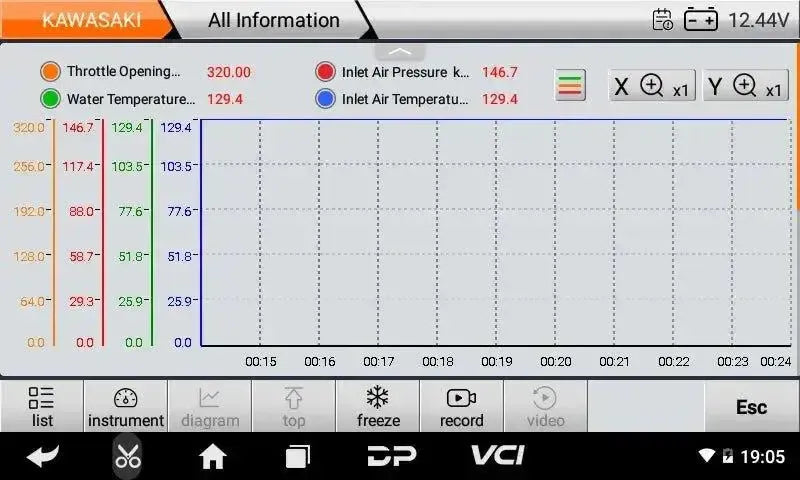

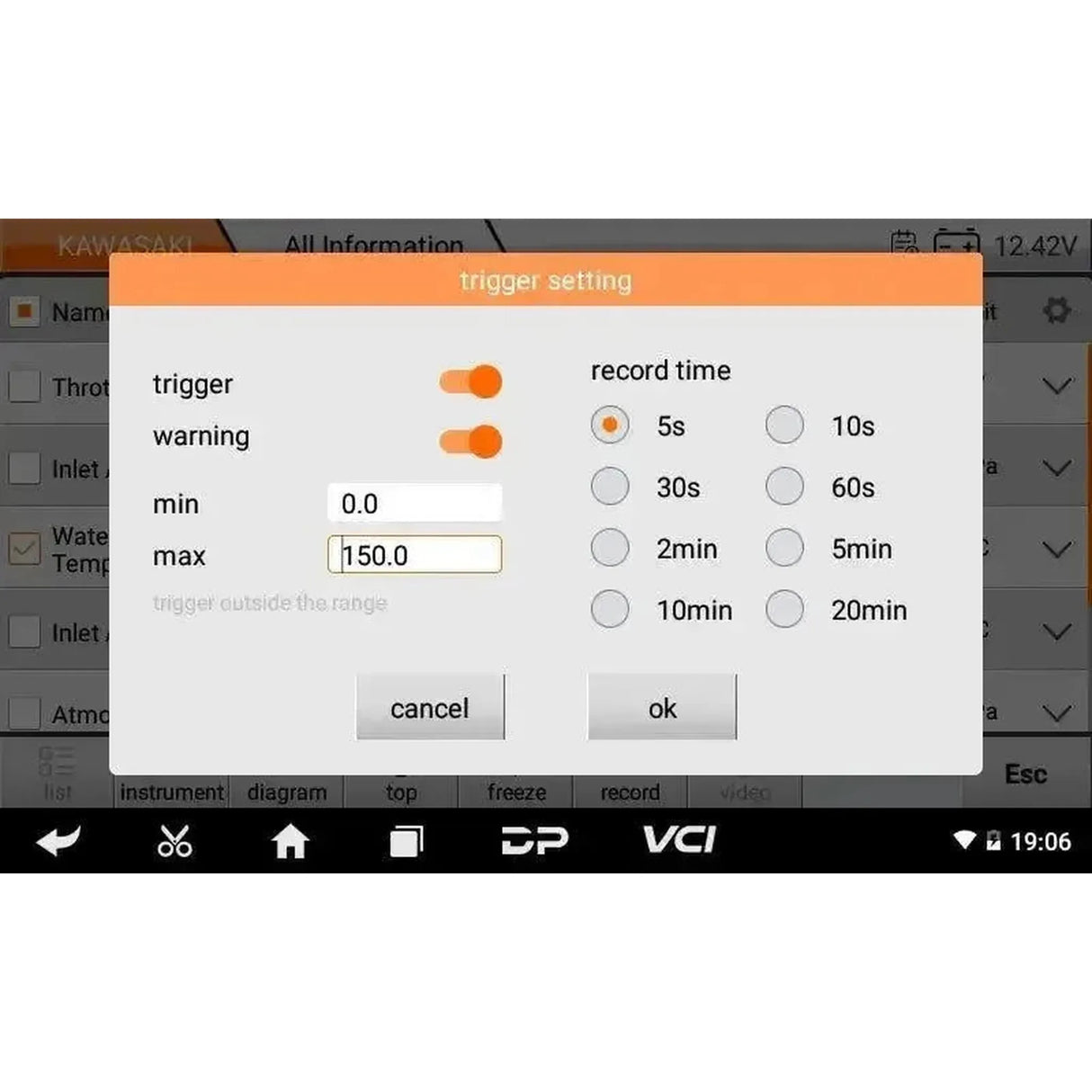

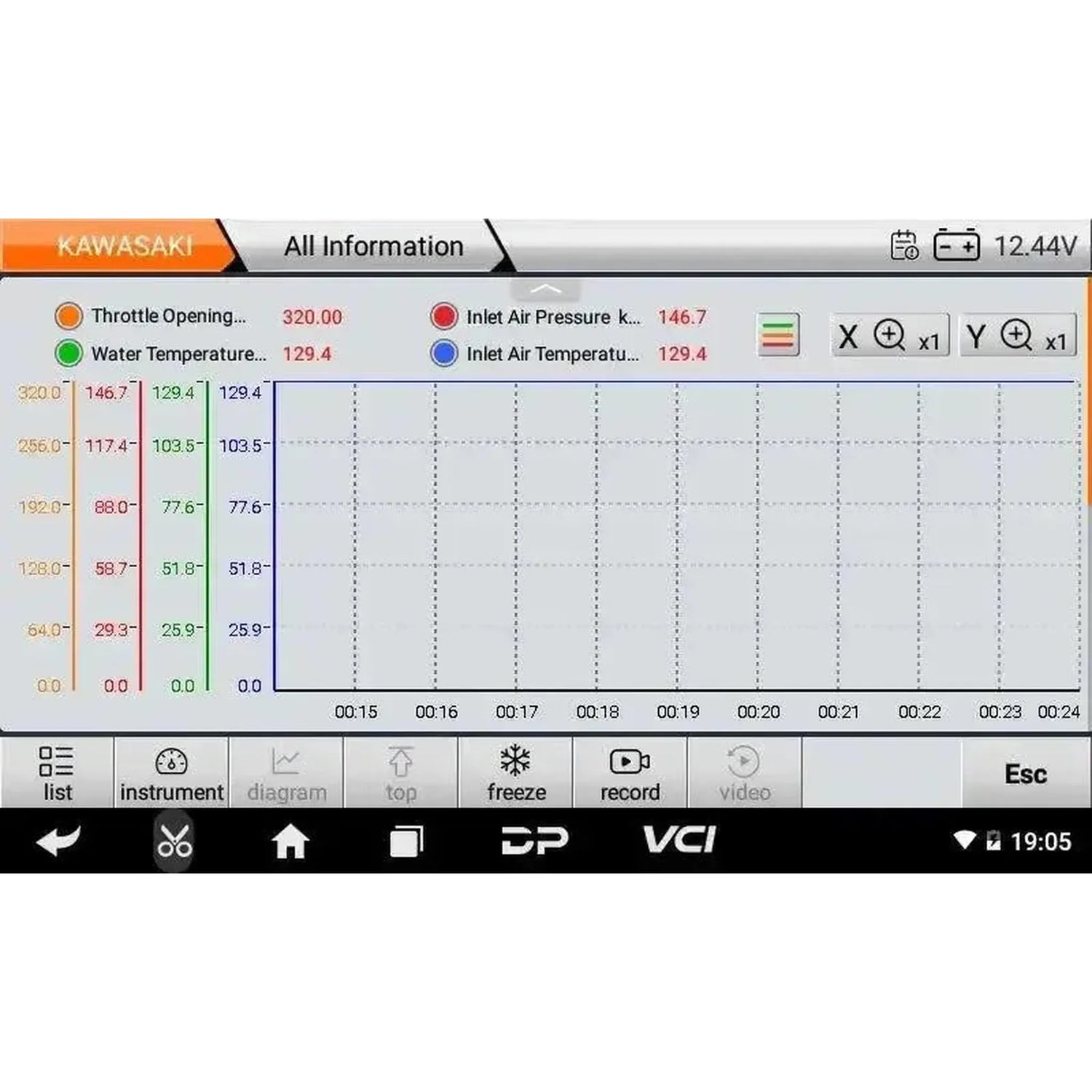

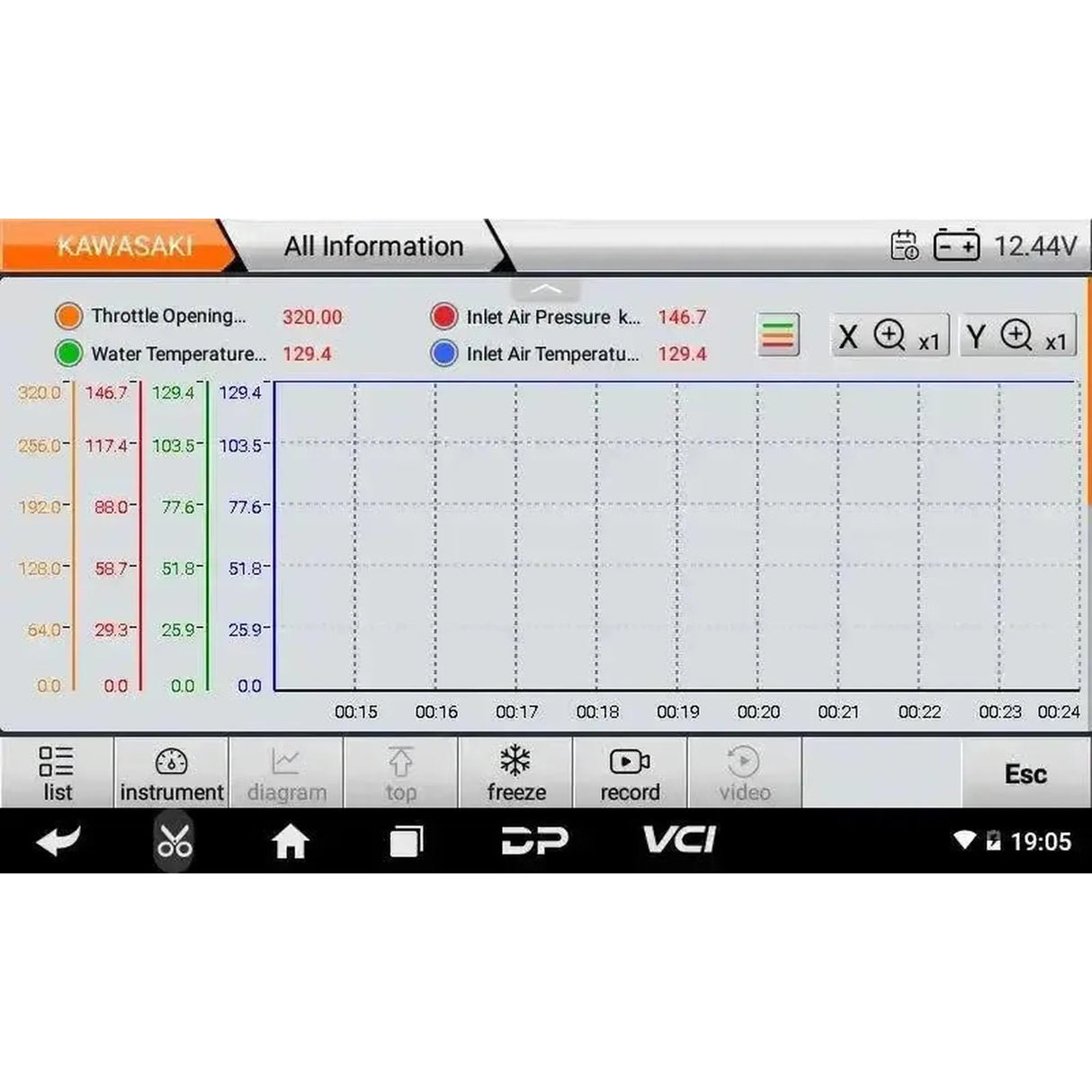

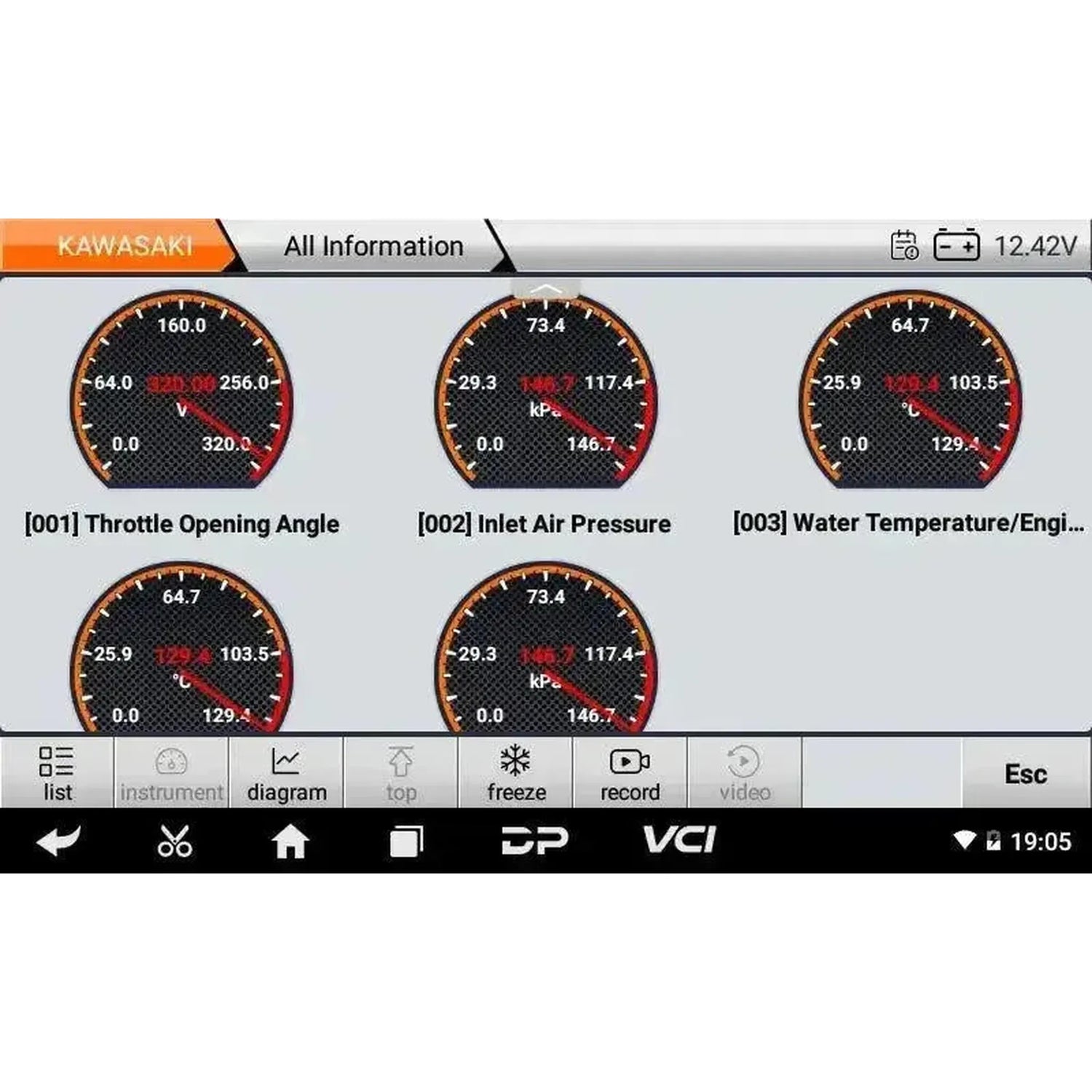

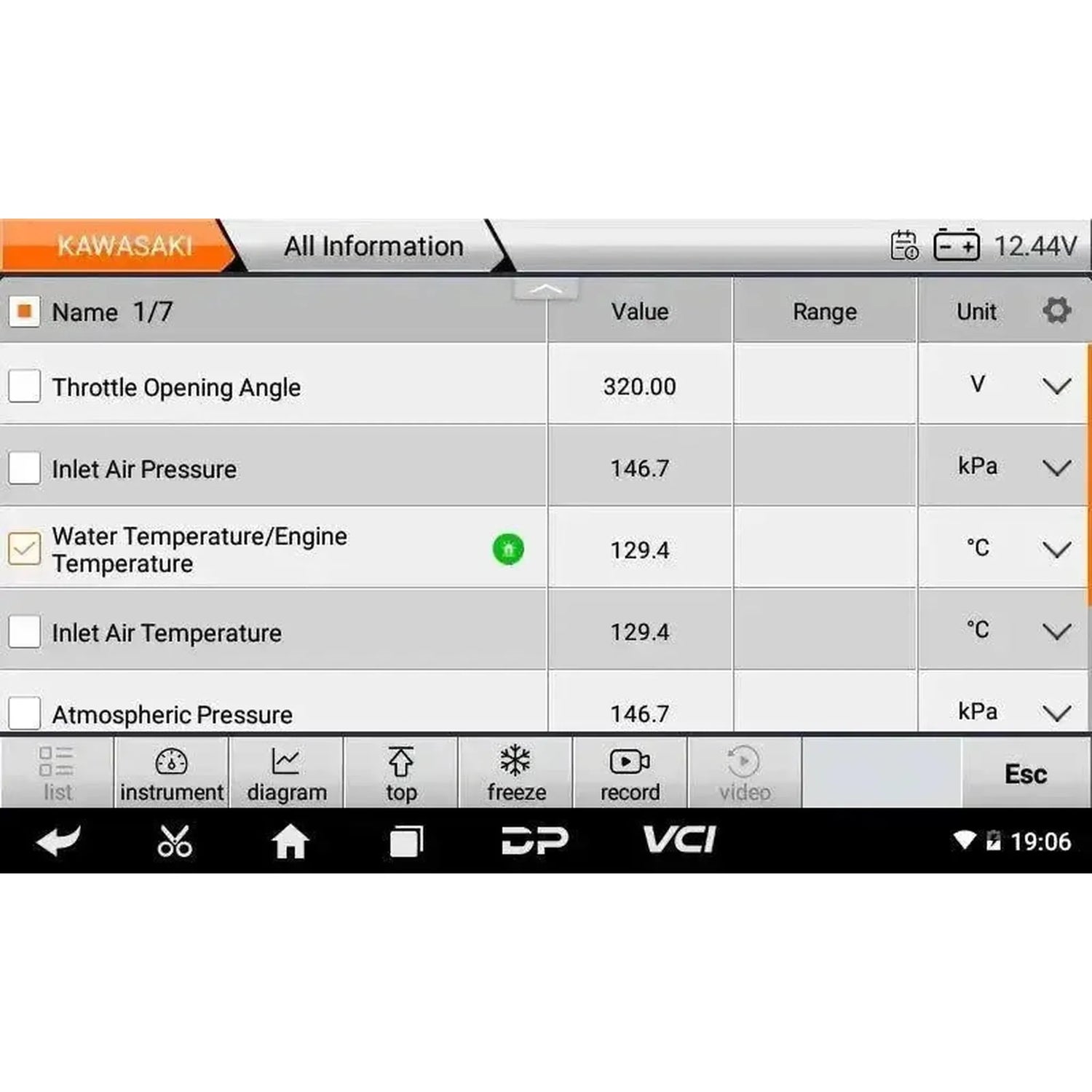

- Live data: Displays real-time data streams in various formats, including text, waveform charts, and instrument charts.
- Actuator test: Performs actuator tests to verify the operation of specific components and systems.
- Read ECU information: Displays detailed information from the control unit, such as software and hardware versions.

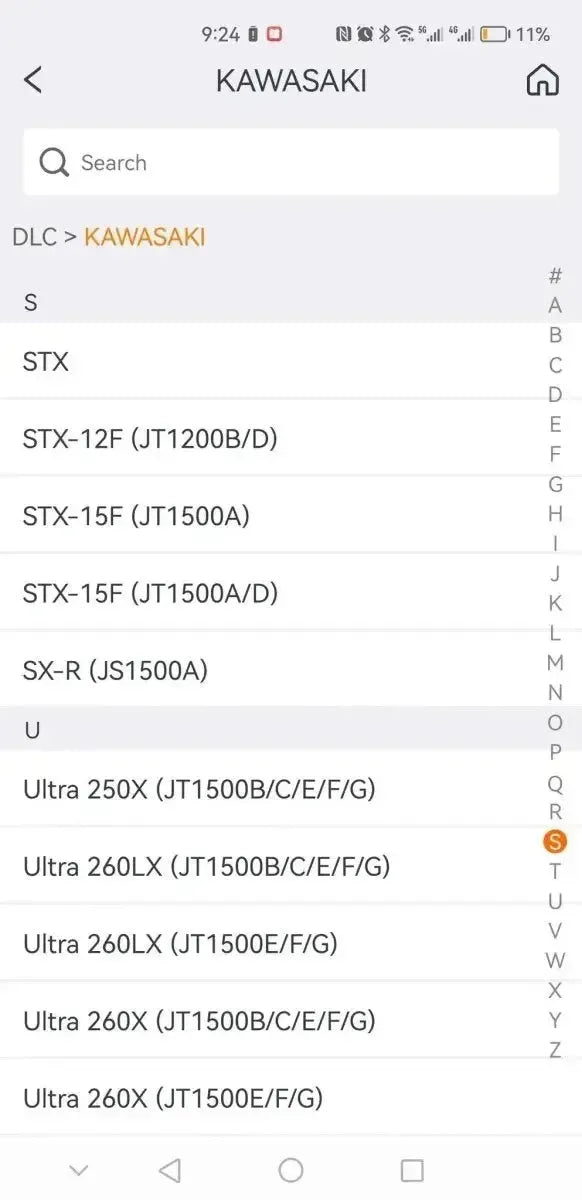

- VIN recognition: Automatically identifies the vehicle based on the chassis number (VIN).
Key and EEPROM functions:
The device offers functions for managing keys and the immobilizer. The availability of functions may vary by model and year.
Key functions:
- Register FOB key: Registers new FOB keys (keyless entry), with support for situations where all keys are lost.
- Register immobilizer key: Programs new keys for the immobilizer system, including support for complete key loss.
Service and maintenance functions:
This device supports more than 10 specialized service and maintenance functions for Kawasaki personal watercraft and motorboats. The availability of functions may vary depending on the specific model and year of the vehicle.
Module and system configuration:
- Write chassis number (VIN): Programs the vehicle identification number into a new or replacement control unit.
- Change settings: Allows specific system parameters and settings to be adjusted.
- Control unit registration: Links new or replacement control units, such as the fuel injection control unit (FI ECU) or the steering lock unit, to the vehicle.
Brake system:
- ABS actuator activation: Tests the operation of the ABS actuators. This function can be performed for the front and rear brakes together or separately.
General functions:
- Indicator function: Performs a test of the dashboard warning lights.
-
Set clock: Sets the time on the instrument panel.
Manage transport mode:
- Turns transport mode on or off to limit power consumption during transport or storage.
Special features and capabilities:
The IScan Kawasaki offers additional functionalities that support the diagnostic process.
- Diagnostic history: Provides quick access to previously tested vessels and stored diagnostic reports.
- Wi-Fi updates: The system can receive and install software updates directly via a Wi-Fi connection.

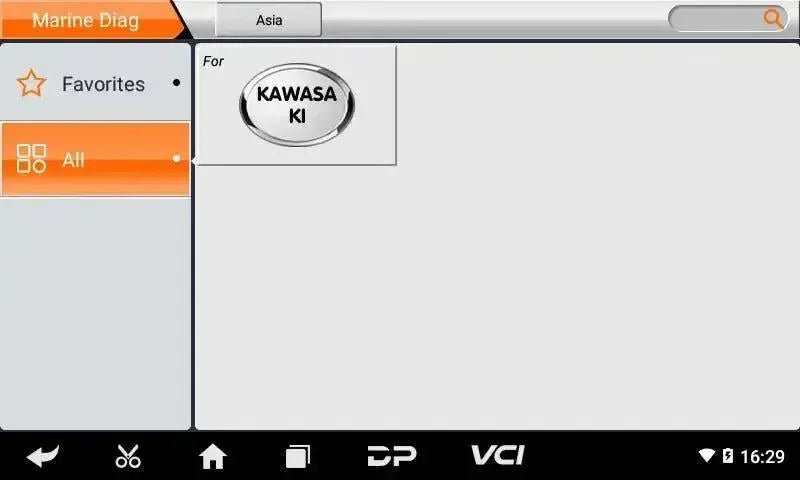

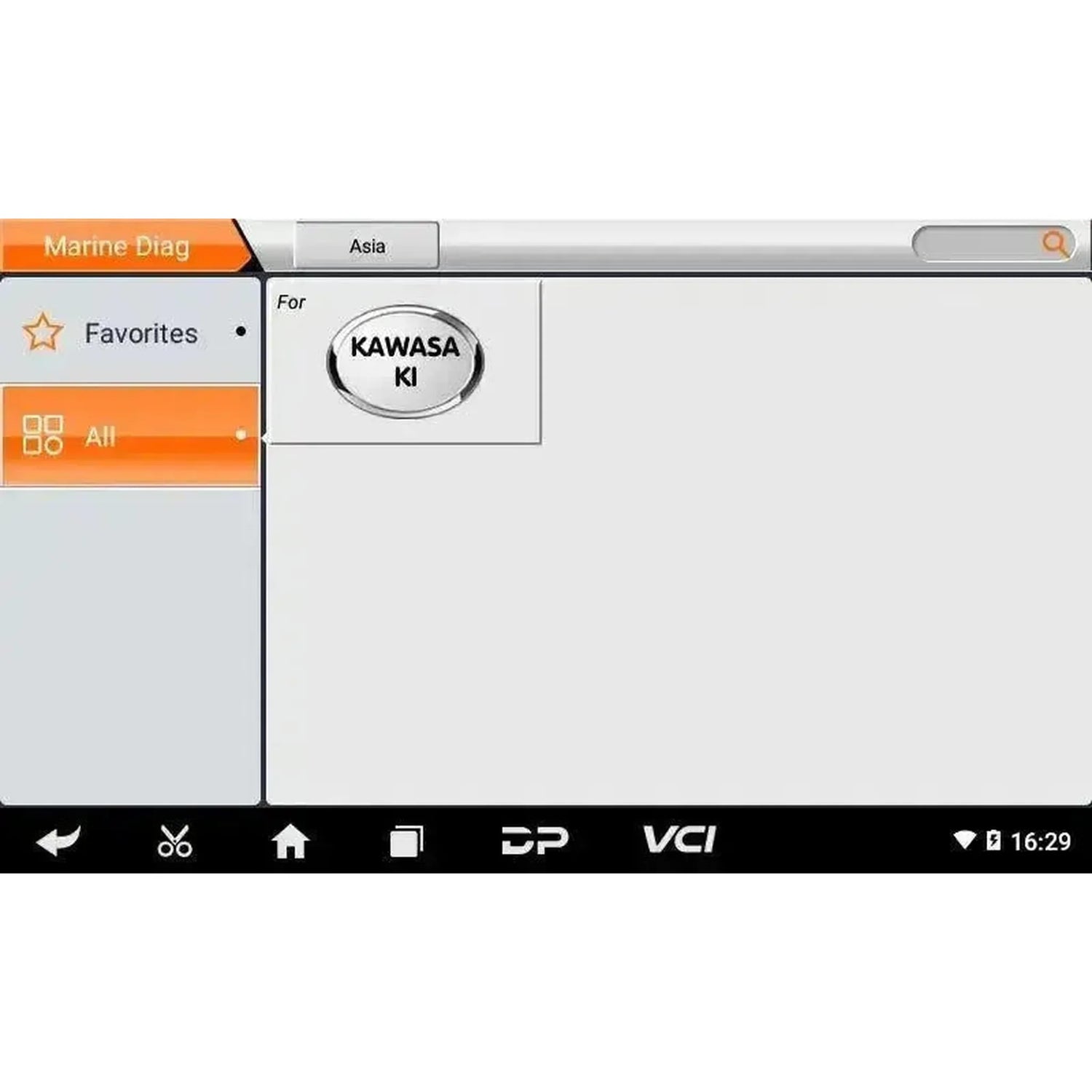

Supported vehicle brands:
The OBDSTAR IScan is a brand-specific diagnostic device designed for Kawasaki marine vehicles.
- Asian: Kawasaki
Package Contents:
- 1x OBDSTAR IScan Kawasaki (Marine) diagnostic device
- 1x Main cable (M001B)
- 1x Kawasaki adapter cable (M005)
- 1x Kawasaki adapter cable (M066)
- 1x Kawasaki adapter cable (M067)
- 1x 12V2A charger
License information:
- Including 2 years of updates: A 24-month update license is included with purchase.
After the license expires, the basic functions of the device remain available, but no new software updates will be received.
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | OBDSTAR |
| Product model | IScan Kawasaki (Marine) |
| Operating system | Android 5.1.1 |
| Screen size | 5.0 inch |
| Screen resolution | 800*480 |
| Processor | RK3128 quad-core ARM Cortex A7 |
| Storage memory | 32 GB (via MicroSD card) |
| Connectivity | Wi-Fi, USB |
| Battery | 2600mA, rechargeable polymer lithium Battery |
