The OBDeleven 3 ULTIMATE Pack is the most complete diagnostic solution on the market, combining professional functionality with unlimited ease of use. This package combines the OBDeleven 3 hardware with a 12-month ULTIMATE license and unlimited One-Click Apps, giving you access to both exclusive developer tools and unlimited automatic codings.
This is not a simple scanner; it is a cloud-based diagnostic tool that enables full bi-directional communication and in-depth data analysis for the VAG group (Volkswagen, Audi, Seat, Škoda, Bentley, Lamborghini) and offers growing functionality for BMW and Toyota.
Why the ULTIMATE Pack is essential for the expert?
The ULTIMATE license removes all restrictions. For the intensive user, workshop, or tuner, this offers the highest Return on Investment (ROI) because there are no variable costs (credits) per action anymore. You have a fixed cost structure with maximum functionality.
Technical superiority & exclusive features:
The Ultimate version offers everything from PRO, plus exclusive tools:
- One-Click App Builder: Create your own 'One-Click Apps'. Program complex sequences of coding actions into one script to standardize common workshop procedures.
- Raw Data Access: View raw, unfiltered functional data from control units. Essential for advanced troubleshooting where interpreted data is insufficient.
- SFD-Protected Access: Officially accredited by the Volkswagen Group for 'real-time' unlocking of secured modules on the latest platforms such as the Golf 8 and Audi A3 (8Y).
- Automatic Checksum Correction: The software automatically calculates and corrects checksums when writing codings, minimizing the risk of 'bricking' an ECU.
Hardware Architecture: OBDeleven 3:
The hardware has been rebuilt from the ground up to handle the increasingly complex data streams of modern vehicle architectures (such as CAN-FD and DoIP implications).
- Processor & Speed: Equipped with an automotive-grade dual-core processor that ensures latency-free processing of live data graphs and fast scans of all control units.
- Protocols: Full support for ISO 15765-4 (CAN), K-Line, and UDS (Unified Diagnostic Services).
- Connectivity: Bluetooth 5.2 Low Energy (BLE) provides a rock-solid connection with both iOS and Android devices, with significantly greater range and lower power consumption than predecessors.
Unlimited One-Click Apps: Maximum efficiency:
Time is money. With the ULTIMATE Pack, you never have to count or purchase credits again. You have unlimited access to the library of automated scripts.
Example applications: Perform service resets, brake pad replacements, VIM unlocks, or retrofits as often as needed. You execute the change with one press of a button, while the app safely writes the correct parameters to the ECU in the background without extra cost per car.

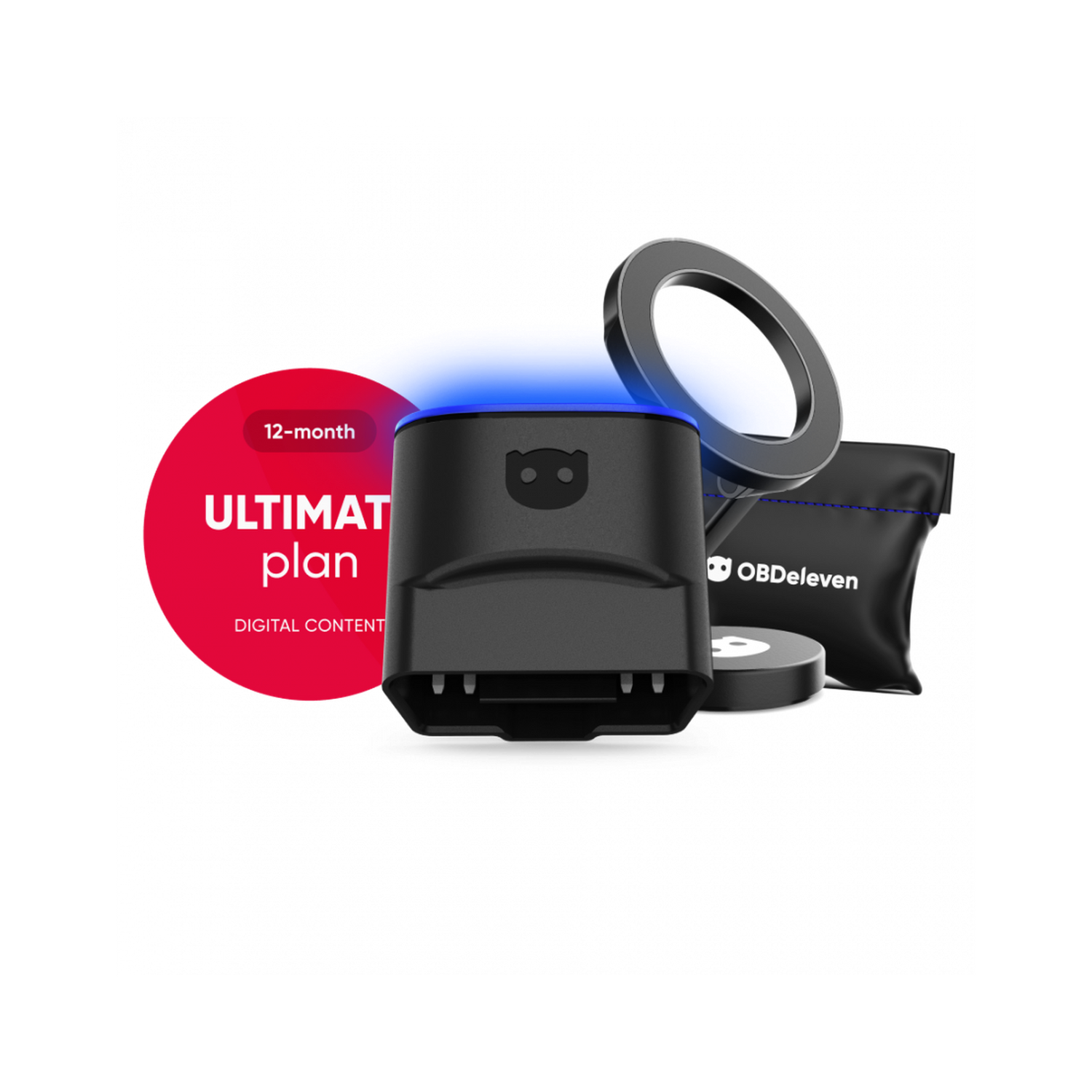

Package Contents:
- 1 × OBDeleven 3 device: The physical OBD2 diagnostic interface.
- 1 × Digital license for 12 months OBDeleven ULTIMATE Plan: Activates unlimited apps, OCA builder, and Raw Data access in the app.
- 1 × Accessory set: Includes Carry Pouch and Phone Holder.
Note: The OBDeleven 3 device is shipped physically. For use, a compatible smartphone or tablet (iOS/Android) with the OBDeleven app and an active internet connection is required.
Specifications & compatibility:
| Feature | Detail |
|---|---|
| License Type | ULTIMATE (12 Months) - Unlimited use |
| Platform Support | Full: VAG (VW, Audi, Seat, Škoda, etc.) Beta/Basic: BMW (F/G/I-series), MINI, Toyota |
| Operating System | Android 6.0+ & iOS 14.0+ |
| Security | Supports SFD-unlock (requires 2FA account setup) |
Disclaimer: As an authorized supplier, we guarantee an original product with full factory warranty. For BMW/Toyota features, we advise consulting the current coverage list from the manufacturer, as development is ongoing.
