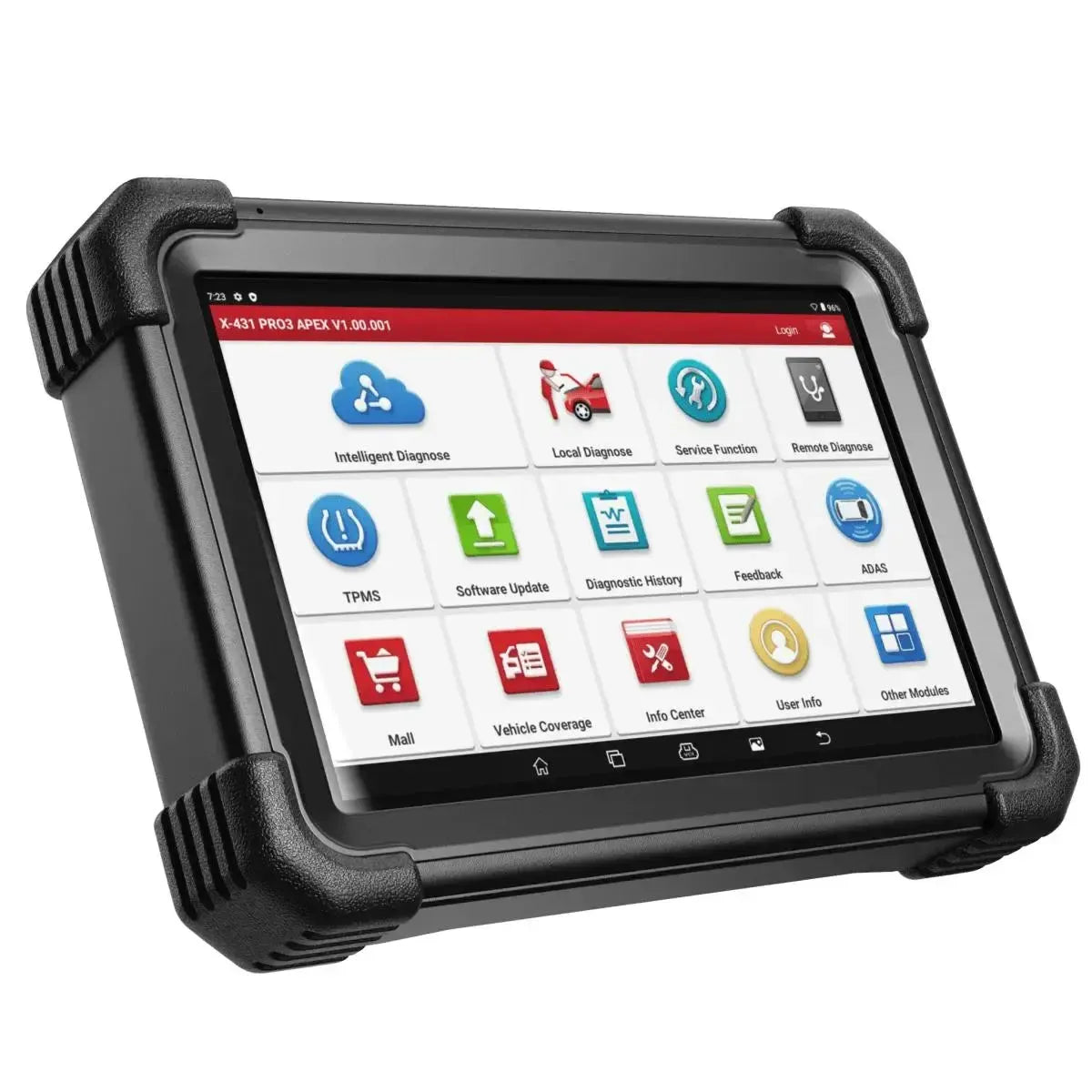

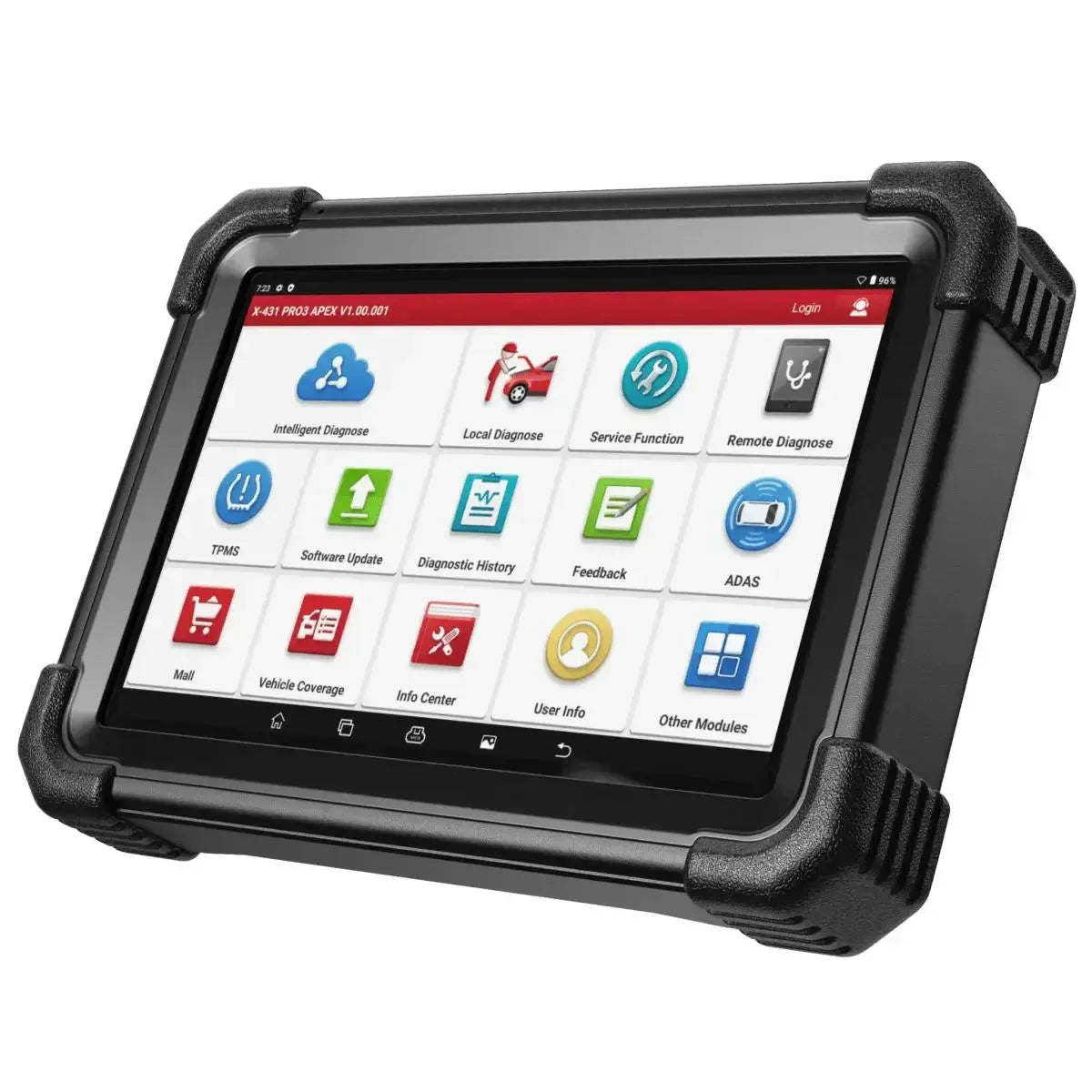

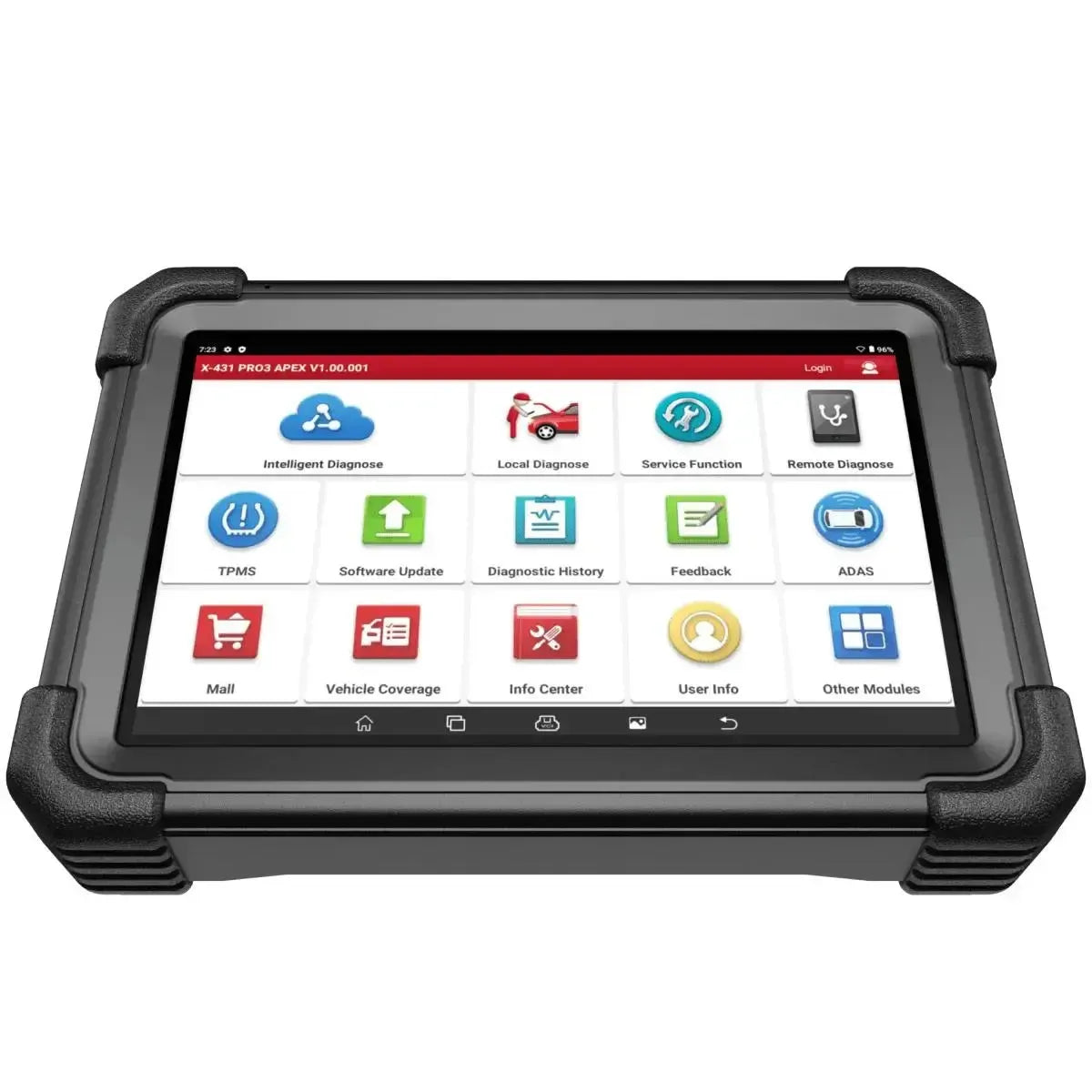

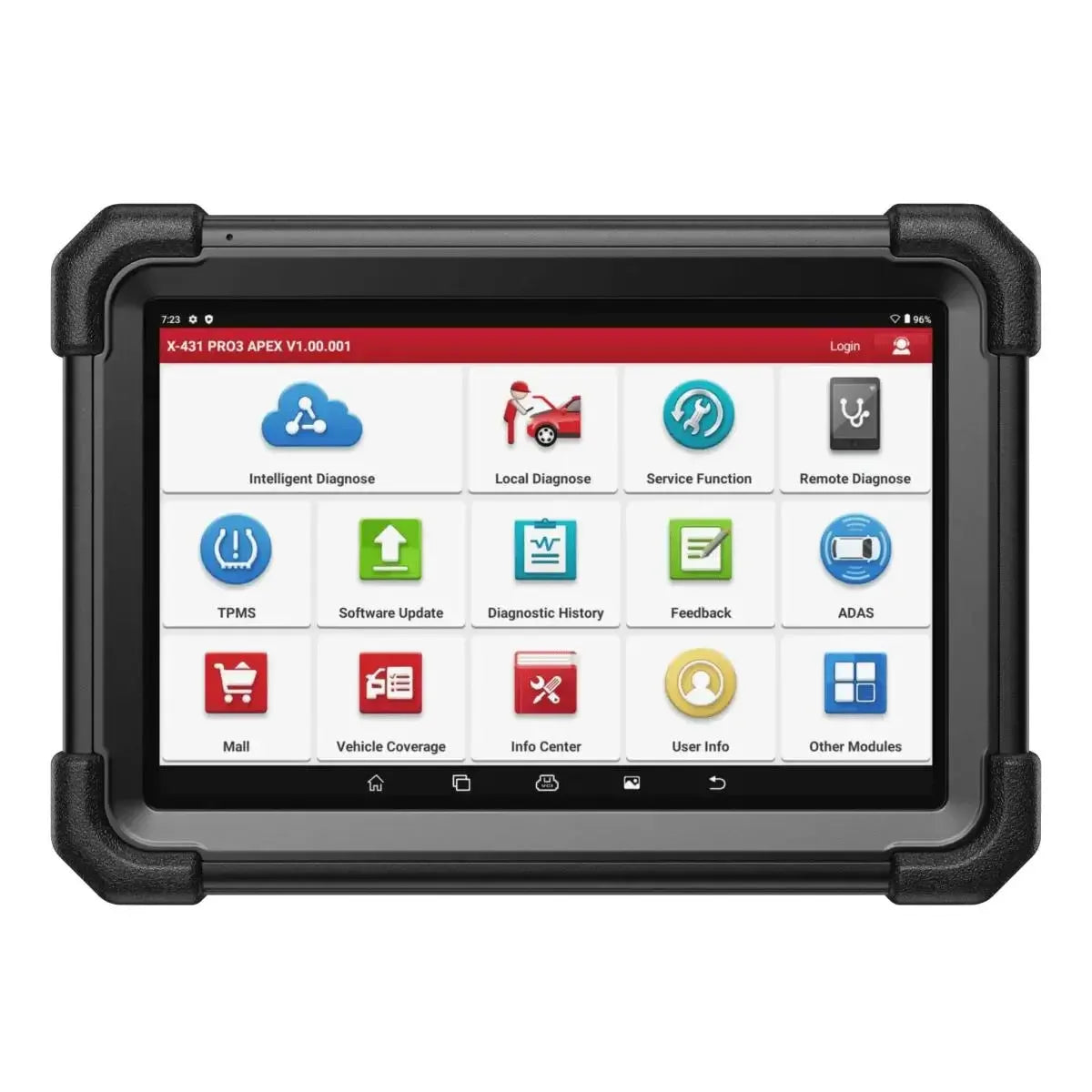

Launch X-431 Pro3 Apex Car Diagnostic Tool

The Launch X-431 Pro3 Apex is an advanced and versatile OE-level diagnostic platform, designed for professional workshops that require speed, reliability, and extensive functionality. As the successor to the popular X-431 V4.0 series, the Apex is equipped with a more powerful processor, faster software, and a bright 10.1-inch Full HD touchscreen tablet running on Android 10. The Pro3 Apex combines complete system diagnosis, advanced online coding, and more than 40 maintenance functions in one robust and modular platform.

Wireless communication is via the compact and powerful DBScar VII VCI, which supports modern communication protocols such as CAN-FD and DoIP. This makes the system fully compatible with the latest vehicle platforms, including electric vehicles and vehicles with complex network architecture. The Pro3 Apex comes standard with two years of free software updates, including access to online features and coverage of more than 110 vehicle brands worldwide. After this period, the device continues to function fully on the last installed software version. For further updates, an annual license is required.

Diagnostic functions:

The Launch X-431 Pro3 Apex offers advanced diagnostic capabilities at OE level, with full coverage of all electronic vehicle systems. The system combines speed, overview, and technical depth for professional use in any workshop.

• Complete system diagnosis (OE-Level): Provides in-depth access to all electronic modules, including engine, transmission, ABS, airbag (SRS), body control module (BCM), air conditioning, steering, instrument panel and more. Supports reading and clearing fault codes with detailed technical descriptions.

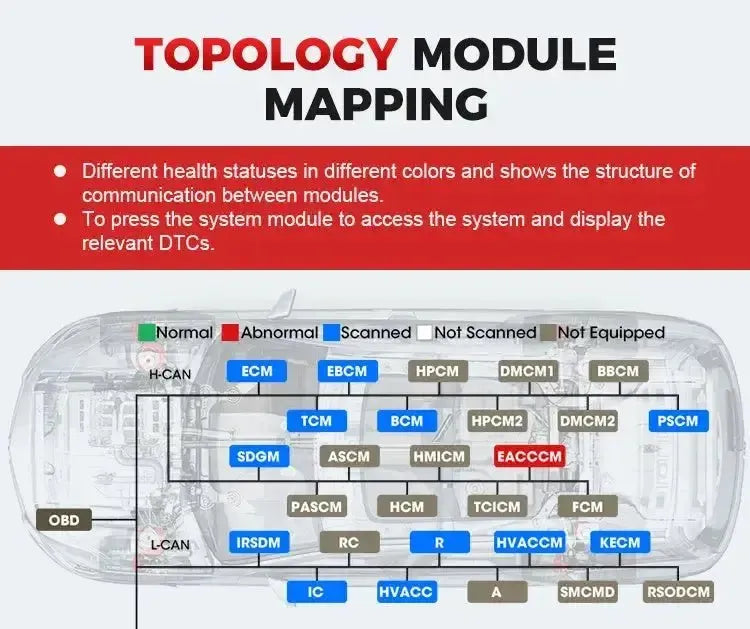

• Intelligent topology mapping: Visualizes the complete communication network of the vehicle in an interactive topology view, with color coding of active, faulty, or offline modules. This speeds up the detection of network faults, especially in modern CAN bus structures.
• Active tests (bidirectional control): Sends commands to actuators, relays, and components to test their operation without physical disassembly. Examples include activating the fuel pump, air conditioning clutch, brake system, or window control.
• Live datastream: Displays real-time data from sensors and control units in text, graph form, or as analog meters. Supports simultaneous analysis of multiple data streams for thorough fault tracing.
• AutoVIN: Automatically recognizes the vehicle based on the chassis number (VIN) and automatically selects make, model, and year for a quick and accurate start of diagnosis.

Maintenance and service functions:

The Launch X-431 Pro3 Apex supports more than 40 maintenance and reset functions that allow vehicle systems to be quickly and accurately adjusted, calibrated, or reactivated after maintenance or parts replacement. Suitable for universal workshops and brand-specific service.

• Oil service reset (Service): Resets the maintenance interval and turns off the service light after oil change.
• Electronic Parking Brake (EPB): Releases, applies, and initializes the electronic handbrake for safe brake maintenance.
• Battery Management System (BMS): Registers a new Battery and optimizes the vehicle's charging strategy.
• Steering Angle Sensor (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.
• Diesel Particulate Filter (DPF): Starts forced regeneration of the soot filter and clears related fault codes.
• ABS pump bleeding (ABS): Activates the ABS system to remove air from the hydraulic brake system.
• Reset tire pressure monitoring system (TPMS): Learns new sensors and resets the TPMS after tire service.
• Initialize throttle body (ETC): Calibrates the electronic throttle valve after replacement or cleaning.
• Code injectors: Programs the unique identification codes of new injectors into the ECU.
• Transmission adaptation (CVT/AT): Resets learning values of automatic transmissions for improved shift timing.
• Crankshaft sensor learning (TEC): Relearns the position of the crankshaft after sensor or ECU replacement.
• Reset AdBlue system: Resets urea level measurement and fault codes after refilling or maintenance.
• Air suspension calibration: Calibrates ride height and damping in vehicles with electronic air suspension.
• Headlight adjustment (AFS): Calibration of adaptive or steering headlights after replacement or alignment.
• Initialize windows and roof: Restores automatic functions of electric windows and sunroofs.
• Start/stop settings: (De)activates the automatic start/stop system after adjustment or fault repair.
• Seat occupancy sensor (SRS): Calibrates passenger detection for correct airbag activation.
• Activate/deactivate transport mode: Puts the vehicle in or out of transport mode for delivery or storage.
• Change system language: Changes the language display of the infotainment system or instrument panel.
• Reset air/fuel ratio (A/F): Resets adaptive values for mixture control after sensor installation.

Programming and coding functions:

The Launch X-431 Pro3 Apex offers extensive coding capabilities at OE level for customizing and configuring vehicle modules. This makes the system particularly suitable for workshops working on advanced vehicle systems.

• Advanced ECU coding: Provides the ability to recode modules, for example after replacement or adjustment of components. This allows hidden functions to be activated, such as deactivating start/stop, setting coming-home lighting or automatic mirror folding.
• Online coding: Supports coding via the original factory server, including for Volkswagen, Audi, BMW, and Porsche. The correct configuration settings are automatically retrieved based on the VIN, ensuring accurate and error-free adjustment.
• Guided functions (VAG): For vehicles of the Volkswagen group (VW, Audi, Seat, Skoda), the system offers step-by-step instructions for performing complex coding tasks, such as replacing modules, key coding, or resetting ABS parameters.

Cloud and reporting functions:

The Launch X-431 Pro3 Apex supports powerful cloud and reporting functions that help the workshop organize, document, and share diagnostic results in a professional and efficient manner.

• Cloud storage & management: All diagnostic reports can be automatically saved in the Launch Cloud, providing a secure backup, central archiving, and direct access from other devices or locations.
• Professional reports: Generates clear pre-scan and post-scan reports, which can be personalized with workshop logo, customer data, and comments. These are suitable for customer transparency, warranty claims, and insurance documentation.
• Easy sharing and printing: Reports can be shared directly from the tablet via email or wirelessly printed via Wi-Fi, without the need for a PC or external software.

Additional features and special capabilities:

The Launch X-431 Pro3 Apex is developed as a powerful, future-proof diagnostic platform that not only reads vehicles but also optimizes daily workshop processes.

• Support for modern vehicle protocols: The DBScar VII VCI supports all current protocols, including CAN-FD (required for, among others, GM and Ford) and DoIP (used by, among others, BMW, Volvo and Land Rover). This makes the device fully compatible with the latest vehicle platforms and network technologies.
• FCA Secure Gateway (SGW) access: Provides authorized access to the secure systems of Fiat, Chrysler, Jeep, Dodge and Alfa Romeo via AutoAuth. This allows, besides fault code reading, also active tests, calibrations and service resets to be performed.
• Professional workshop workflow: The software is designed to increase efficiency with features such as:

  • Pre- & post-scan reports: Generates pre- and post-diagnosis reports with which you document the repair. Ideal for transparency towards customers and necessary for insurance claims.

  • Diagnostic feedback: With one click, you send a fault code or unclear system response directly to Launch technical support, who can analyze the problem remotely.
• Expandable diagnostic platform: The Pro3 Apex forms the heart of a modular ecosystem that can be expanded with, among others, ADAS calibration, key programming, TPMS tools and 24V diagnostics for commercial vehicles. This way, the system grows with your workshop and future needs.

Optional expansions and modules:

The Launch X-431 Pro3 Apex is modularly built and compatible with various expansion modules. This allows the system to be adapted to the needs of the workshop, from driver assistance systems to TPMS, key programming and 24V diagnostics.

• ADAS calibration: Compatible with Launch ADAS calibration frames (mobile and PRO version) for performing precise driver assistance system calibrations such as lane assist, adaptive cruise control, and camera/radar positioning.
• Key programming: Supports connection with the Launch X-PROG 3, enabling advanced IMMO and key programming functions, including reading and writing data during ECU or key replacement.
• Battery analysis: Compatible with the Launch BST360 Bluetooth Battery tester, allowing you to fully analyze battery status, voltage, capacity and the start/charging system.
• Videoscope: Works with the Launch VSP-600 inspection camera, suitable for visual inspections of hard-to-reach places such as cylinders, EGR channels, or wiring behind the dashboard.
• Oscilloscope: Expandable with the Launch O2-1 Scopebox, a 4-channel oscilloscope for in-depth measurements of signals from sensors, actuators and communication lines (such as CAN bus).
• TPMS tool: Works together with the Launch X-431 TSGUN, allowing you to read, program, learn and activate TPMS sensors.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DR, Ferrari, Fiat, FordEU, GAZ, Iveco, IZH, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, McLaren, Mercedes-Benz, MINI, Opel, PAZ, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, Seat, SeAZ, Skoda, Smart, Sprinter, UAZ, Vauxhall, VAZ, Volvo, Volkswagen, Volkswagen CV, ZAZ
• Asian brands: Acura, Daewoo, Daihatsu, GTR, Holden, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, Samsung, SsangYong, Subaru, Suzuki, Tata, Toyota, United Pakistan
• American brands: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Lincoln
• Chinese brands: BAIC, BJEC, Brilliance, BYD, Changan, Changhe, Chery, DFSK, FAW, Foton, Geely, Gonow, GWM, Hafei, Haima, JAC, JAC Refine, Jinlong, JMC, Joylong, Lifan, Maxus, MG, Polarsun, Qoros, Senova, Senoua, Soueast, SGM, SGMW, Shineray, Spark, Trumpchi, Weiwang, Xinkai, Zotye, Zhongxing

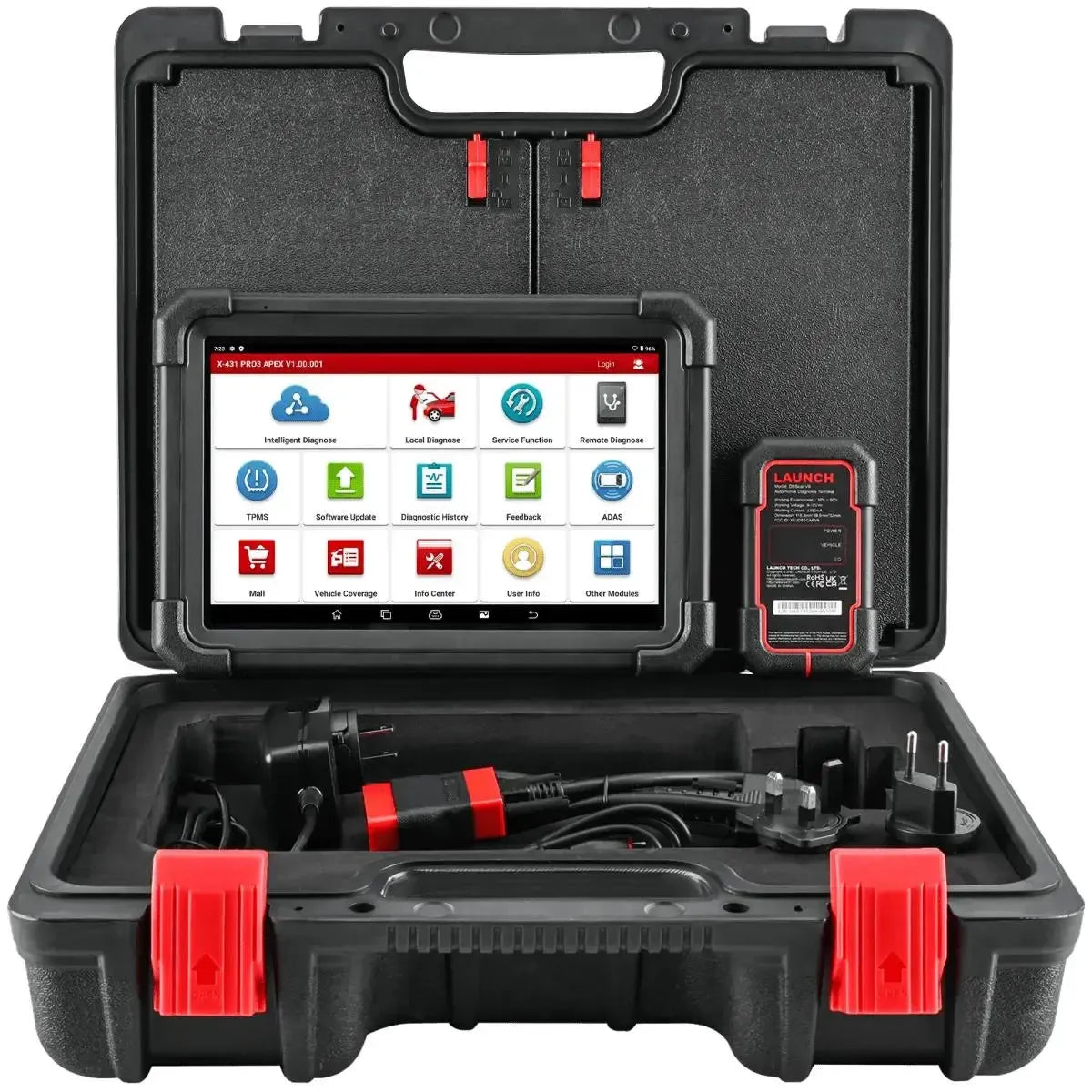

Package contents:

• Launch X-431 Pro3 Apex Diagnostic Tool
• Launch DBSCar VII Interface
• Launch 15 Pins DB15 Extension Cable
• Launch 15 Pins DB15 - 16 Pins OBD2 Adapter
• USB-A - USB-C adapter cable
• Power adapter
• Manual

License information:

• Includes 2 years of updates: A 24-month update license is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.
