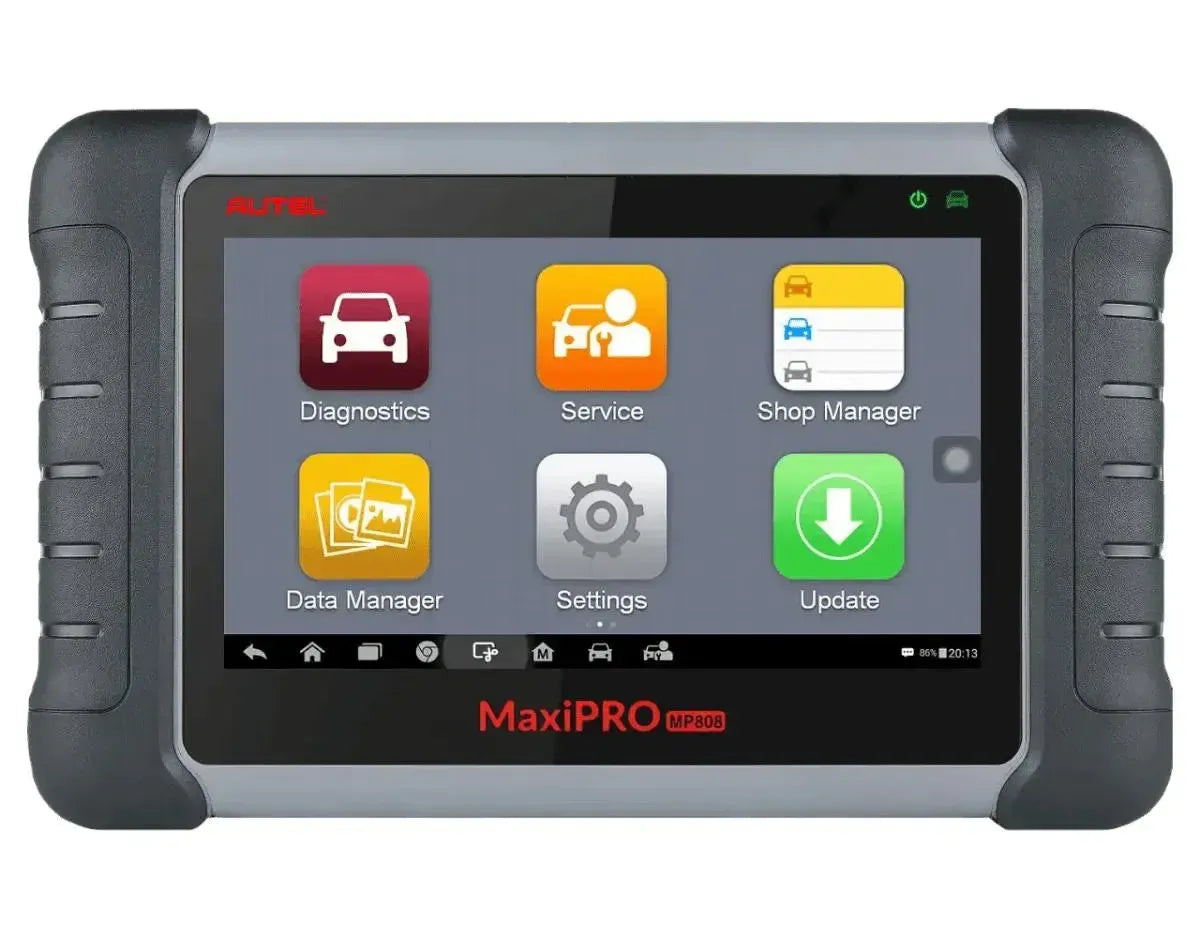

Autel MaxiPro MP808S Car Diagnostic Tool

The Autel MaxiPro MP808S is an advanced and fast Diagnostic Tool at OE level, developed for professional mechanics who need a powerful and complete diagnostic tablet. The device offers extensive system diagnosis, bidirectional functions, and a wide range of maintenance applications within a single platform. The addition “S” stands for Speed, referring to the significantly improved hardware performance compared to previous models.

The MP808S runs on the Android 11 operating system and is equipped with a fast Rockchip RK3566 processor, ensuring all functions run smoothly and quickly. Communication with vehicles is via a wired OBD2 connection, providing extremely stable and fast data transfer. Vehicle coverage includes more than 80 American, Asian, and European brands. The license includes standard 2 years of free software updates. After this period, the device remains fully usable with the last installed software, but an annual license is required for access to new updates and online functionality.

---

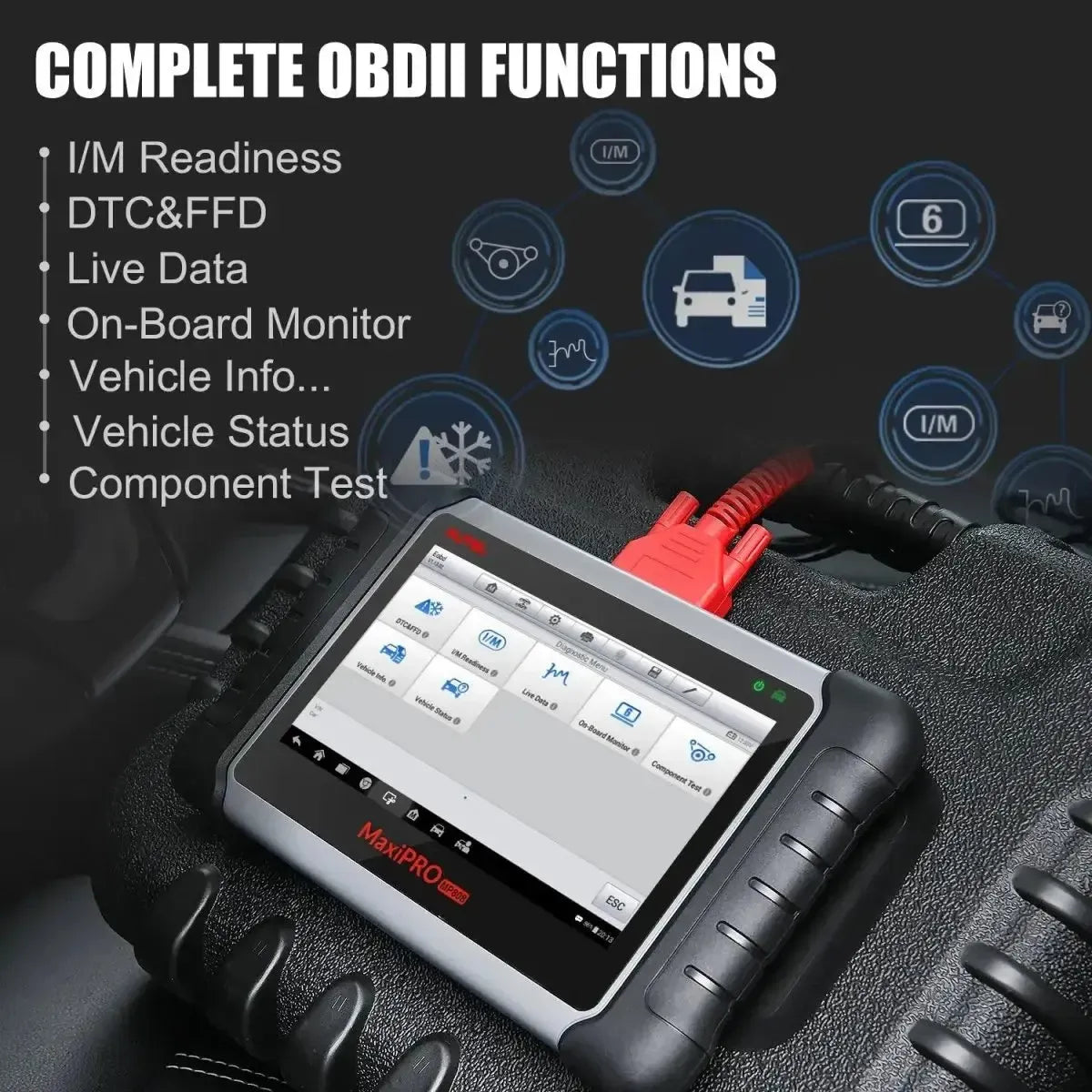

Diagnostic functions:

The Autel MaxiPro MP808S offers extensive OE-level diagnostic capabilities, comparable to the functionality of brand dealers. The device is suitable for both standard fault code reading and advanced system analysis.

• Full system diagnosis: Access to all electronic systems of the vehicle, such as engine, transmission, ABS, airbag (SRS), body control module (BCM), air conditioning and more. This allows reading, clearing fault codes, and in-depth analysis of malfunctions.
• Active tests (bidirectional control): Send test commands to various components to check their operation without physical disassembly. Examples include activating the fuel pump, testing injectors, or controlling the cooling fan.

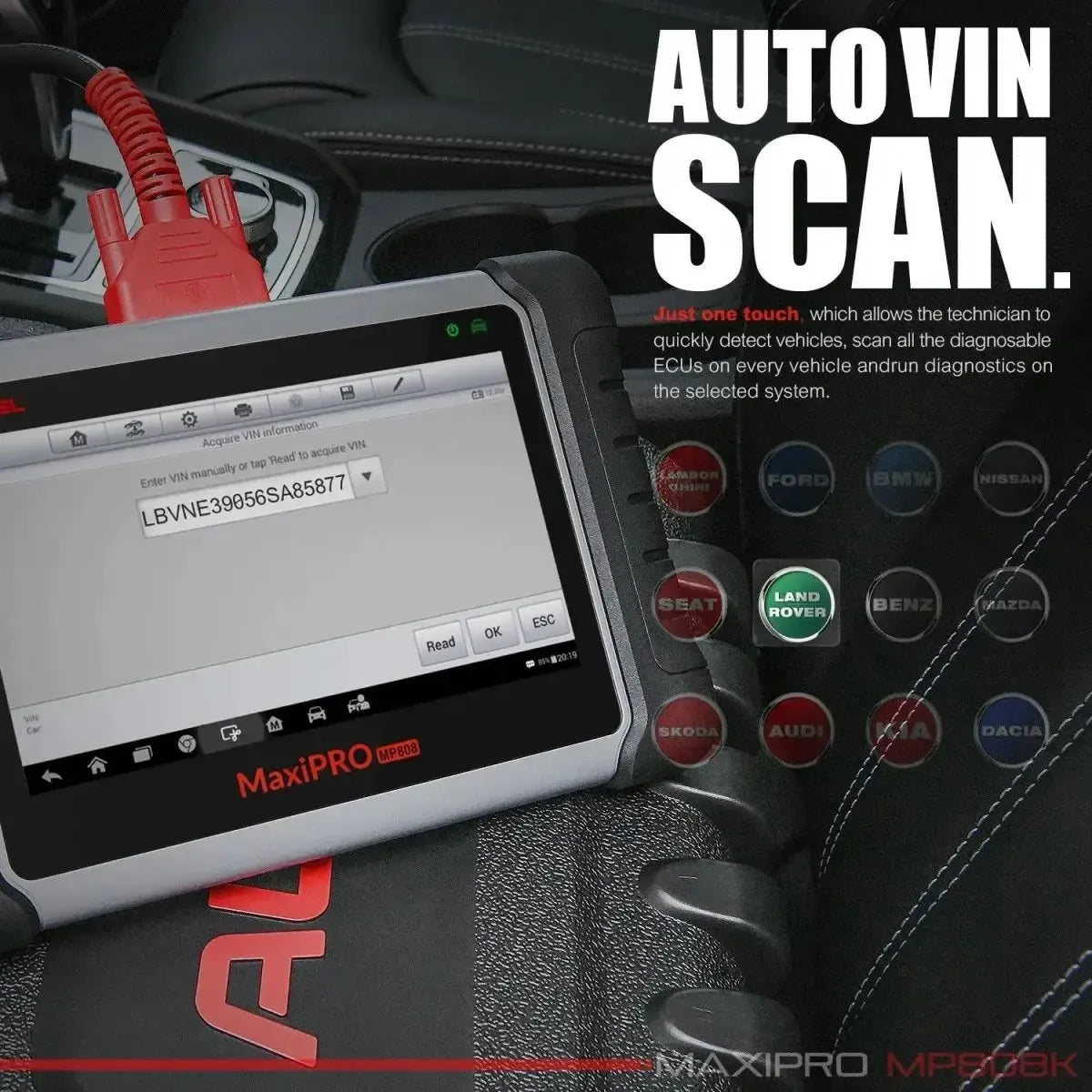

• AutoVIN and AutoScan: Automatic vehicle identification via the chassis number (VIN) and automatic detection of all present modules. This allows for a quick full system scan.
• Live datastream: Display of real-time data from sensors and actuators, presented in text format or as analog/digital graphs for visual analysis.
• Freeze frame data: Displays stored vehicle data from the exact moment a emission-related fault code was generated, helping to identify the cause.

---

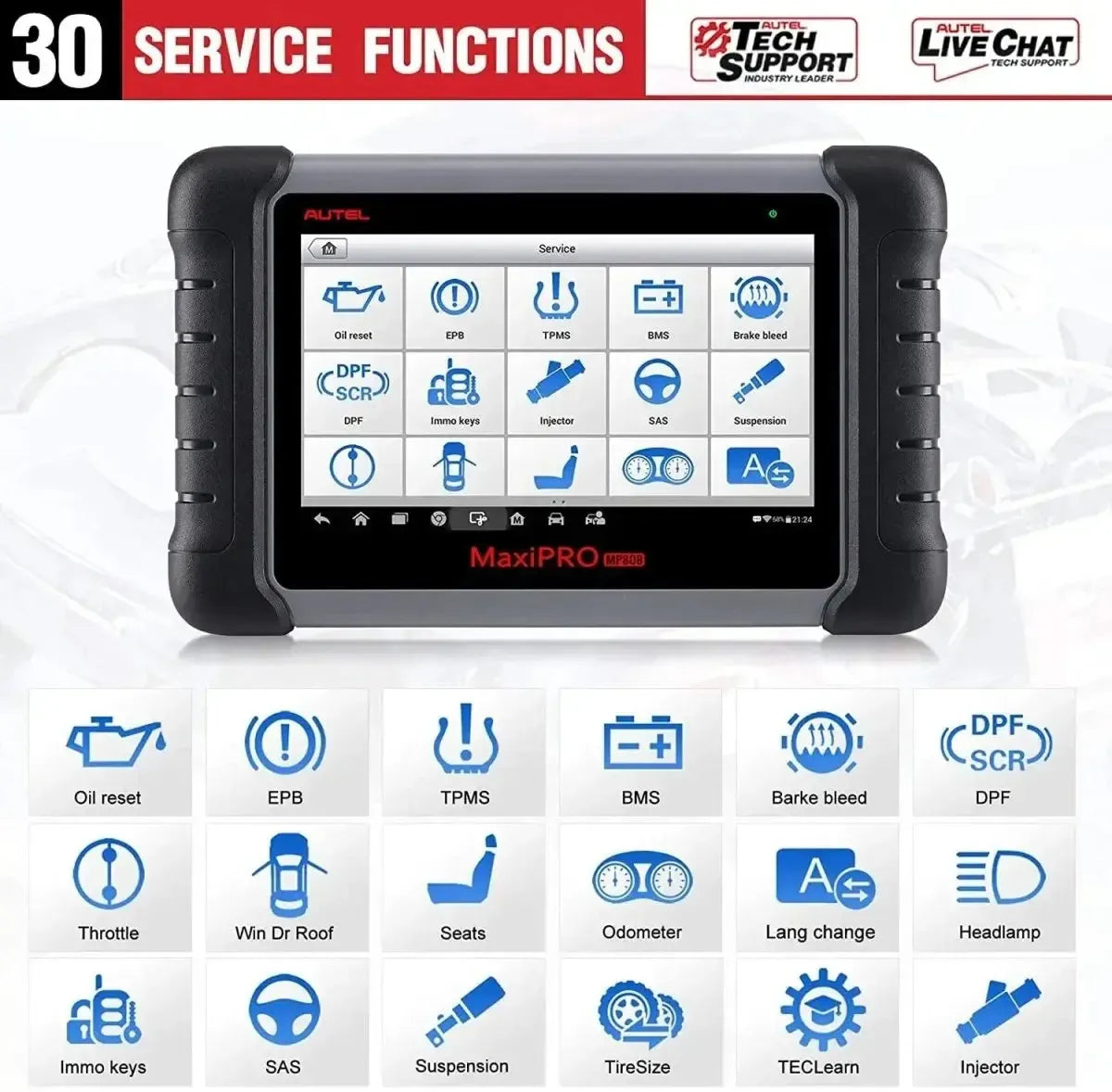

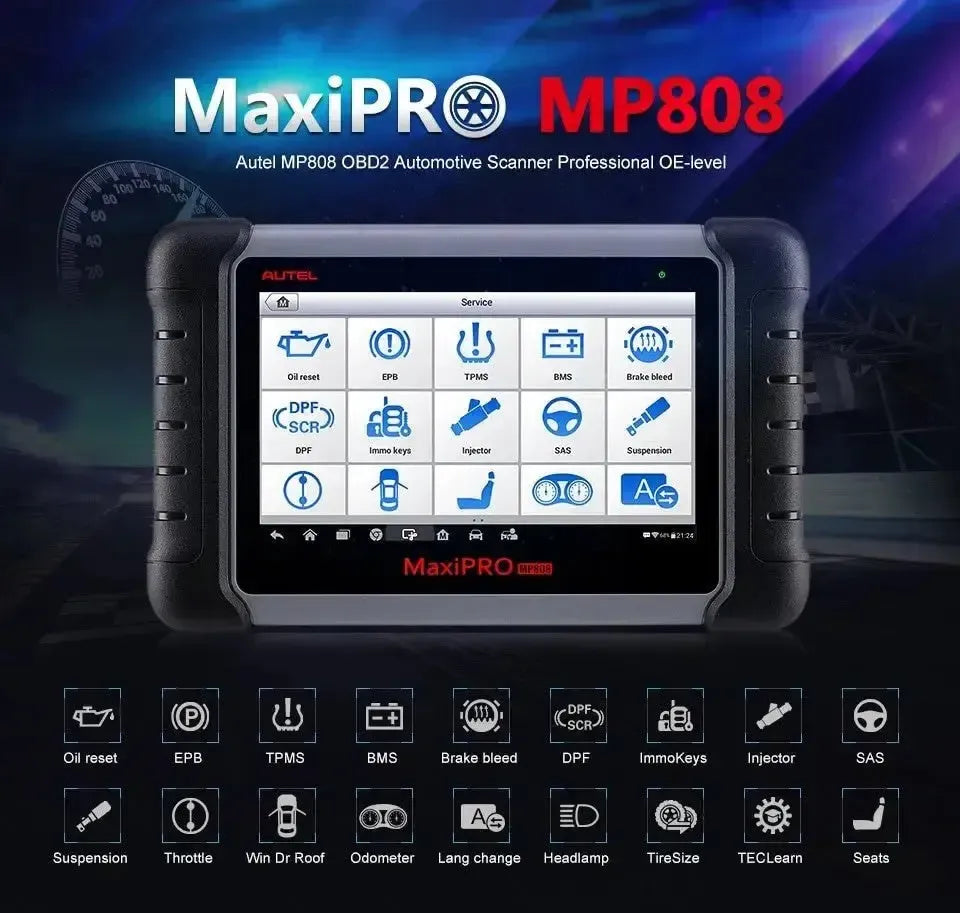

Maintenance and service functions:

The Autel MaxiPro MP808S supports more than 30 maintenance and service functions, enabling technicians to quickly and accurately perform system maintenance after repairs or component replacement. These functions are essential for resetting, initializing, and adjusting various vehicle systems.

• Oil Service Reset (Service): Resets the maintenance light and interval after oil change.
• Electronic Parking Brake (EPB): Release and initialize the electric handbrake for safe maintenance of the braking system.
• Battery Management System Initialization (BMS): Registers a new battery for correct operation of the charging system.
• Steering Angle Sensor Initialization (SAS): Calibration of the steering angle sensor after alignment or replacement of steering components.
• Diesel particulate filter initialization (DPF): Forced regeneration of the soot filter and clearing of fault codes.
• ABS pump bleeding (ABS): Removes air from the ABS system after brake repairs or fluid replacement.
• Tire pressure monitoring system reset (TPMS): Resets and learns new sensors in the tire pressure system.
• Injector initialization: Programs the correct codes of new injectors into the engine management system.
• Throttle body initialization (ETC): Calibrates the throttle after cleaning or replacement.
• Transmission initialization (CVT): Reset of learned values for automatic or CVT transmissions.
• Crankshaft position sensor initialization (TEC): Learning the crankshaft sensor after replacement or engine maintenance.
• Air suspension initialization: Calibrates ride height on vehicles with adaptive air suspension.
• Headlight adjustment initialization (AFS): Calibration of adaptive or steering headlights.
• And many others: Such as start/stop settings, EGR adjustment, air conditioning settings, window initialization and more.

---

Programming and coding functions:

The Autel MaxiPro MP808S supports various coding options, but no full ECU programming. This distinguishes the device from more advanced models such as the Autel Ultra series.

ECU coding: The MP808S enables adjustment of electronic modules after replacement, with access to advanced configuration options.

• Component adaptation: After replacement of, for example, a brake module or climate control unit, the correct coding can be loaded.
• Activate hidden functions: Ability to activate options deactivated by the manufacturer, such as coming-home lighting, needle sweep on start, or automatic mirror folding.
• Change vehicle settings: Adjust settings such as the operation of the start/stop system, seatbelt warning or welcome lighting.

No ECU programming: The MP808S does not support full reprogramming or flashing of ECUs. This function is only available on models from the Autel Ultra series or with J2534 pass-thru support.

---

Cloud and reporting functions:

The Autel MaxiPro MP808S offers various functions for managing, sharing, and analyzing diagnostic data, enabling mechanics to work more efficiently and inform customers professionally.

• Data Manager: A built-in application that allows diagnostic reports, live data recordings, and screenshots to be saved, managed, and reviewed at any desired time.
• Professional reports: Generates clear pre-scan and post-scan reports, which provide insight into the vehicle status before and after maintenance. This is especially valuable for insurance work and as proof of performed tasks.
• Sharing and printing: Reports can be printed directly via Wi-Fi or shared as a PDF file via email with customers or colleagues.
• MaxiFix Cloud: Provides access to the global Autel community database, containing practical repair tips, fault code solutions, and diagnostic procedures shared by other technicians.

---

Additional functions:

In addition to diagnosis, service, and coding, the MP808S offers various additional functions that increase ease of use and improve support during complex tasks.

• Pre- and post-scan functionality: Facilitates the workflow by automatically generating an overview of all present fault codes before the repair, and a status report afterwards to confirm the performed work.

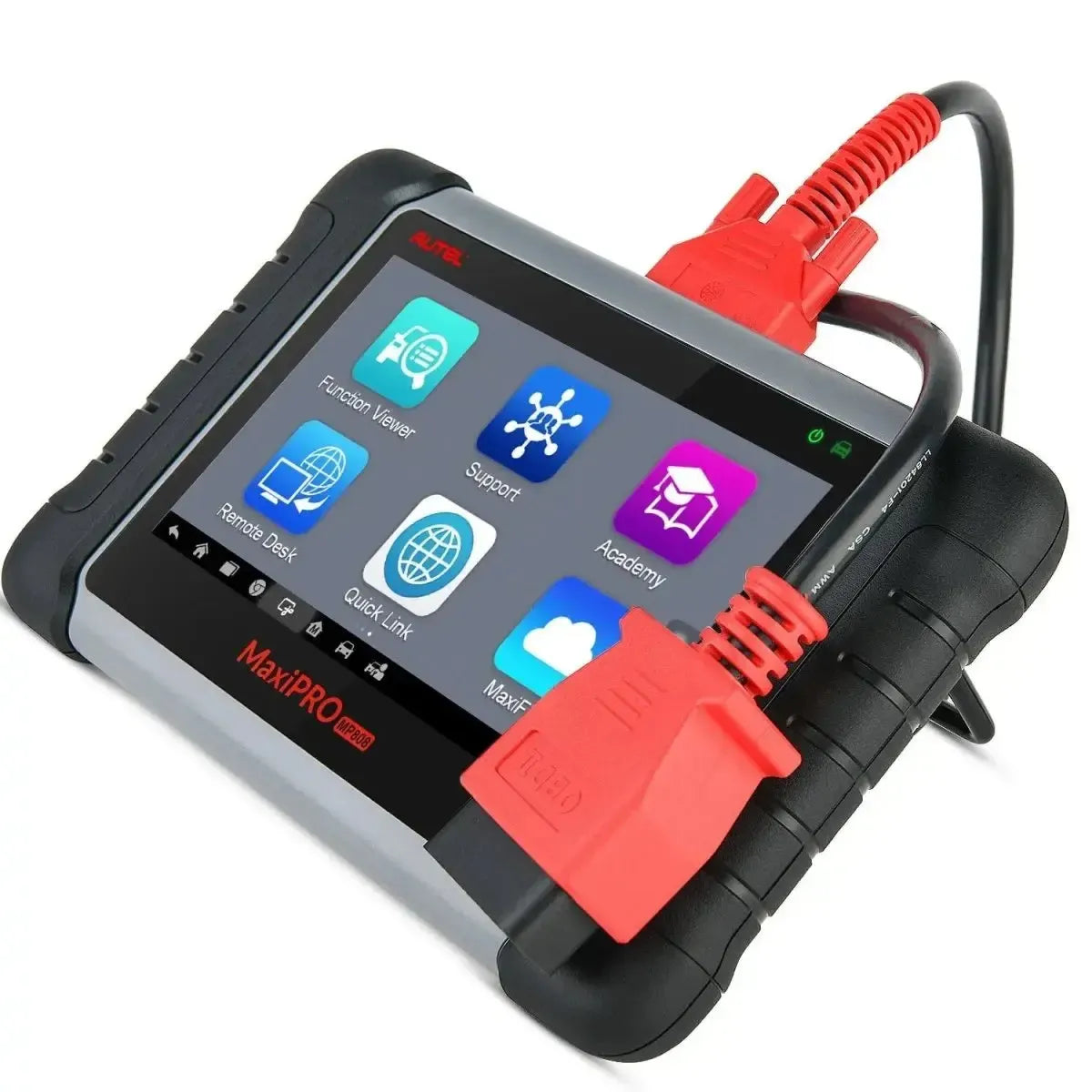

• Remote Desk: Provides the ability for the tablet to be remotely taken over by technical support, which is ideal for solving complex problems or for remote assistance.

---

Optional expansions and modules:

The functionality of the Autel MaxiPro MP808S can be expanded with various additional accessories and registrations, making the device even more versatile in diagnostic and service applications.

• Autel MaxiVideo MV105 / MV108: Digital inspection cameras (videoscopes) for visually inspecting hard-to-reach parts such as combustion chambers, behind dashboards or inside wheel arches.
• Autel MaxiBAS BT506: Advanced battery tester that performs extensive measurements on the charging, starting and battery circuit. The results are displayed directly in the MP808S interface.
• FCA AutoAuth support: Through a separate registration with AutoAuth, the user gains authorized access to the Secure Gateway (SGW) of vehicles from Fiat, Chrysler, Alfa Romeo, Dodge and Jeep. This access is required for full diagnostic and service functions on modern FCA models.

---

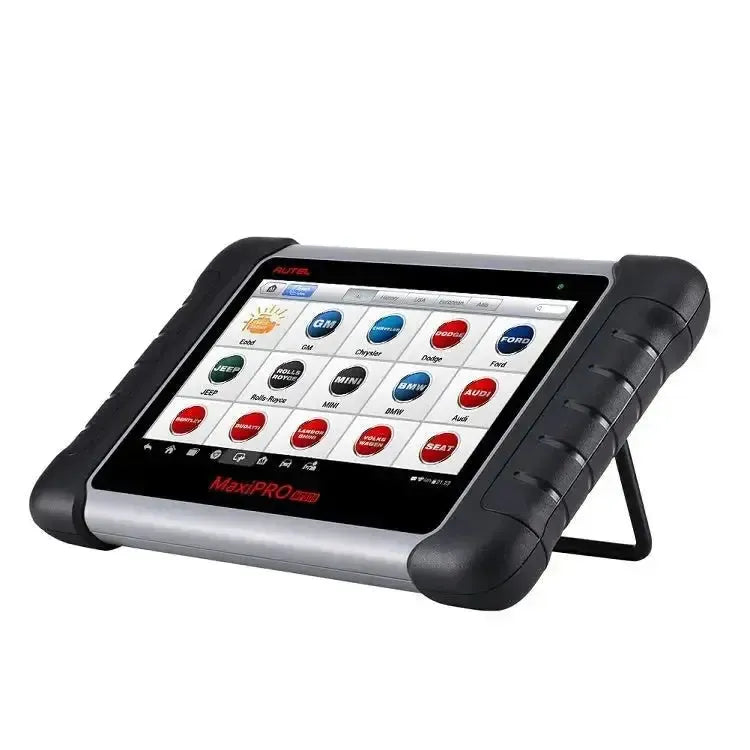

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

---

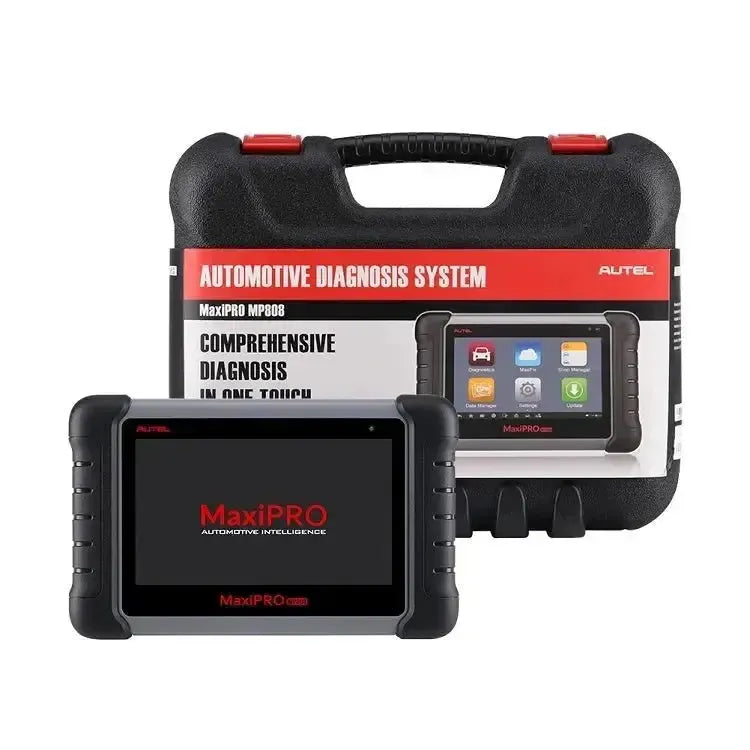

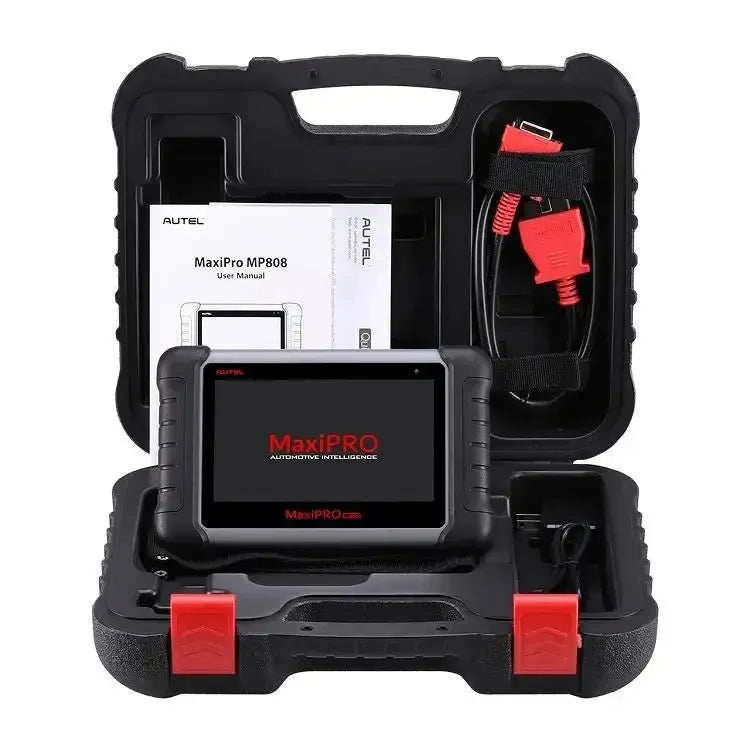

Package Contents:

• Autel MaxiPro MP808S Diagnostic Tool
• Autel 15 Pins DB15 - 16 Pins OBD2 adapter cable
• USB-A - Mini USB-B adapter cable
• Charging plug
• Manual
• Storage case
• Cleaning cloth

---

License information:

• Includes 2 years of updates: A update license for 24 months is included with purchase.

After the second year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.

---
