Discover similar products: Diagnostic Tools Adapter Cables
AsTools  |  SKU: Autel DB15 Cable / 1.27

Autel | 15-pin DB15 - 16-pin OBD2 Adapter Cable | Diagnostic Tool

€19,95 incl.
€16,49 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

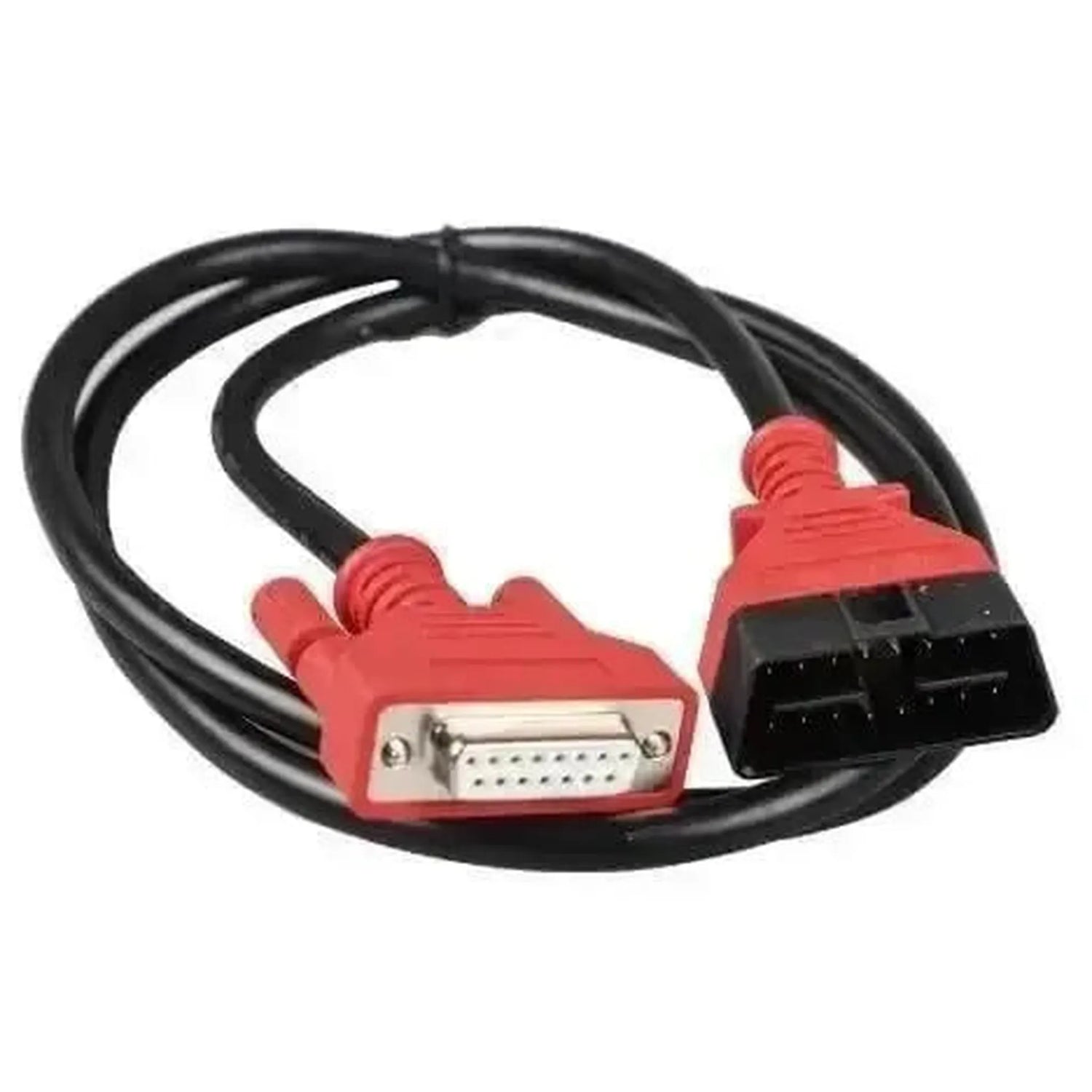

The Autel 15-pin DB15 - 16-pin OBD2 Adapter Cable functions as the primary data cable between the diagnostic tool and the vehicle. This cable features a 15-pin DB15 connector with locking screws for connection to the serial port of the diagnostic tablet, and a standard 16-pin OBD2 connector for coupling to the vehicle's diagnostic port (DLC). The product serves as a physical bridge for bidirectional communication and power transfer between the diagnostic tool and the vehicle's internal networks.

Technically, this main cable facilitates the complete signal transmission and protocol compatibility required for modern OBD2 and EOBD diagnostics. The cable supports a pass-through connection for all standardized communication protocols, including CAN, J1850, ISO9141, and KWP2000. Thanks to the direct pin-out configuration, not only is vehicle data transmitted reliably and without latency, but the cable also delivers the necessary power supply (12V) from the vehicle battery directly to the connected diagnostic device.

ADVANTAGES

✔ Secure attachment to the diagnostic device thanks to integrated locking screws on the DB15 connector.
✔ Facilitates direct power supply (12V) from the vehicle battery to the diagnostic tablet.
✔ Supports unaltered signal transmission of all common OBD2 communication protocols.
✔ Equipped with thick insulation and strain relief for reliable use in workshop conditions.

KEY POINTS

✕ Only compatible with specific, wired Autel Diagnostic Tools.
✕ Does not replace Bluetooth VCI modules or wireless communication interfaces.
✕ The cable length limits physical mobility around the vehicle during diagnosis.

Applications and functionalities

This adapter cable is essential for performing wired vehicle diagnostics and offers the following functionalities in combination with compatible Autel equipment:

  • Read and clear fault codes: Enables the physical data flow to retrieve diagnostic trouble codes (DTCs) from various electronic control units (ECUs) and clear them after repair.
  • Live data streaming: Provides a stable broadband connection for real-time display of parameters, sensor data, and graphs on the diagnostic tool.
  • Device power supply: Conducts the 12V voltage from the OBD2 port (Pin 16) directly to the diagnostic tablet, powering or charging the device during use.
  • Bidirectional communication: Supports active test functions, learning, and coding by sending and receiving data simultaneously without signal loss or interference.

Compatible devices

This main cable is exclusively designed with the specific DB15 pin-out configuration for use with the following Autel diagnostic tools:

Autel:

  • MaxiCheck MX808
  • MaxiCheck MX808S
  • MaxiCheck MX900
  • MaxiCom MK808
  • MaxiCom MK808S
  • MaxiCom MK808Z
  • MaxiCom MK900
  • MaxiDiag MD808 Pro
💡
Good to know: Before connecting, check that the pins in the vehicle's diagnostic port are not bent or dirty. This prevents damage to the connector and ensures uninterrupted signal transmission during reading.

Package Contents

  • 1x Autel | 15-pin DB15 - 16-pin OBD2 Adapter Cable | Diagnostic Tool
