OTOFIX V1 | Interface

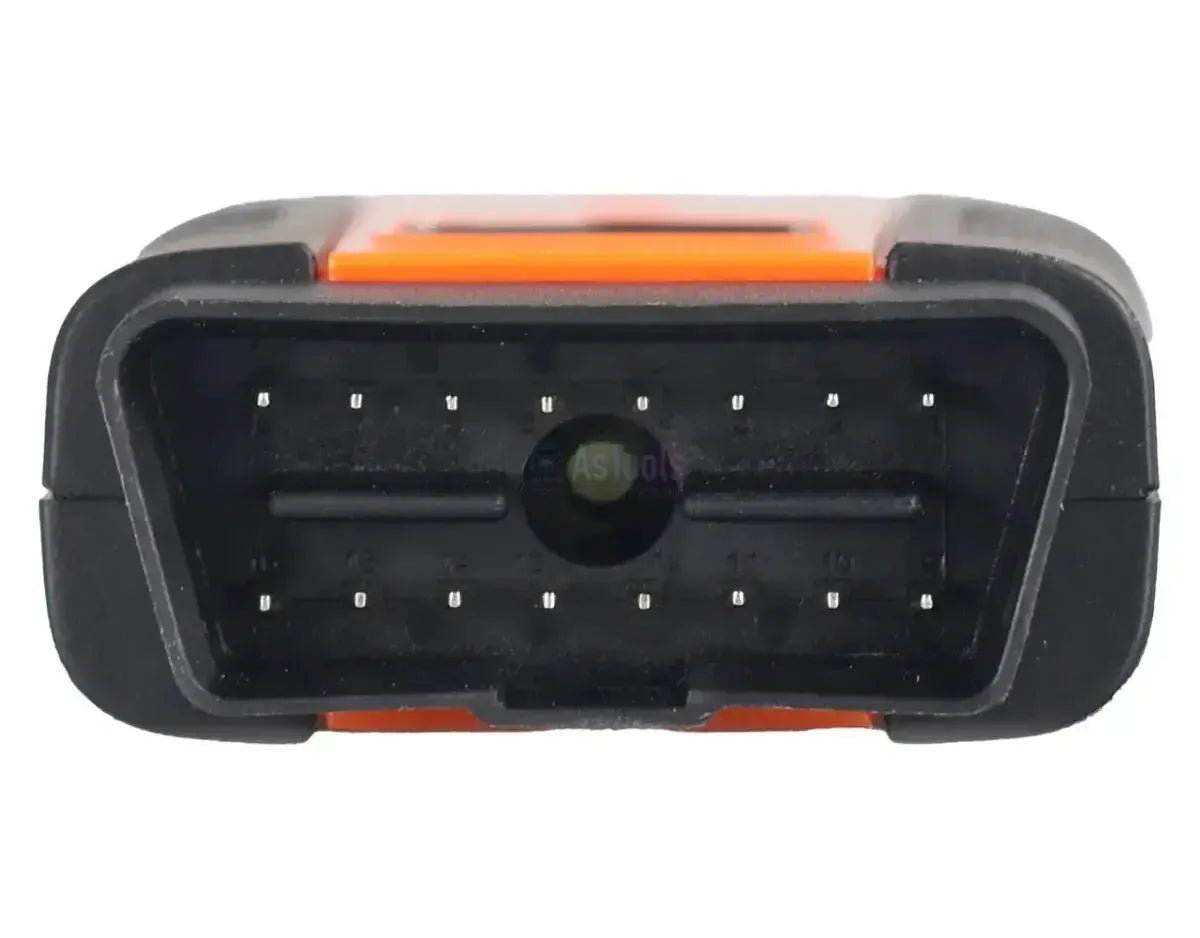

The OTOFIX V1 is a vehicle communication interface (VCI) that establishes a wireless connection between a compatible diagnostic tablet and the 16-pin OBDII port of a vehicle. The device uses Bluetooth for data transfer and supports various modern communication protocols, including CAN FD and DoIP. The compact housing is designed for use in a workshop environment.
The interface is powered directly via the OBDII connector of the vehicle, eliminating the need for external power. An integrated LED indicator displays the status of power and communication. The OTOFIX V1 functions as a replacement or additional VCI for the supported OTOFIX diagnostic equipment.
Application and functionality:
This VCI is used to read and transmit diagnostic data from the vehicle to an OTOFIX diagnostic tablet. The functionality includes establishing a stable data link for performing diagnostic tasks.
- Communication: Wireless connection via Bluetooth with a compatible diagnostic tablet.
- Diagnostic protocols: Support for CAN, CAN FD, DoIP, and K-Line for communication with vehicle systems.

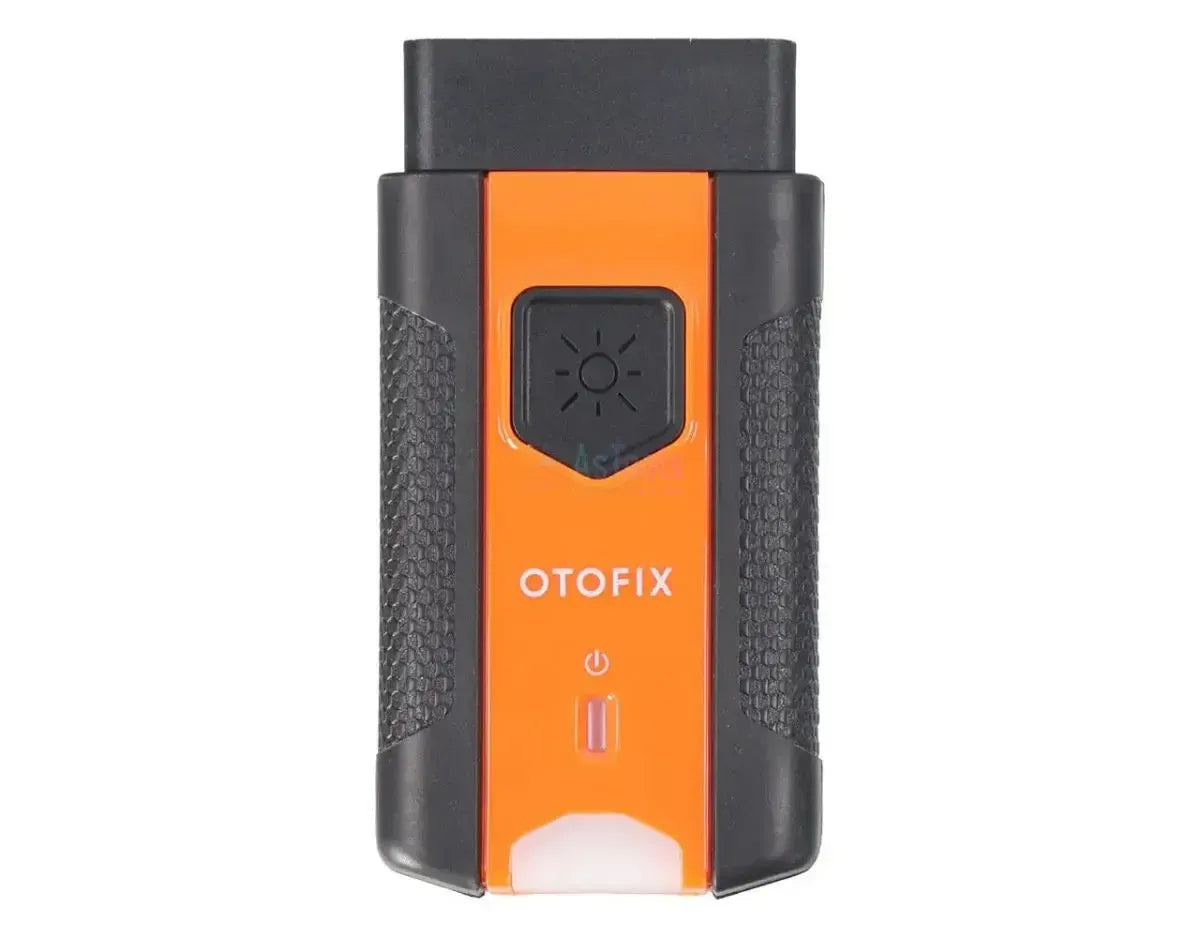

- Status indication: An LED indicator shows the operational status and the active connection.
- Power supply: The device is powered by the vehicle battery via the OBDII port.
Compatibility:
The OTOFIX V1 interface is exclusively designed for use with specific OTOFIX diagnostic tablets. It is not compatible with equipment from other brands.
- OTOFIX D1
- OTOFIX D1 Lite
- OTOFIX D1 Max
- OTOFIX D1 Pro
- OTOFIX IM1
Package Contents:
- 1x OTOFIX V1 Interface
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | OTOFIX |
| Product model | V1 |
| Interface type | VCI (Vehicle Communication Interface) |
| Protocol support | CAN, CAN FD, DoIP, K-Line |
| Connection | Bluetooth |
| Power supply | 9 V - 36 V DC via OBDII port |
| Dimensions | Approx. 90 × 47 × 21 mm |
| Weight | Approx. 70 g |
