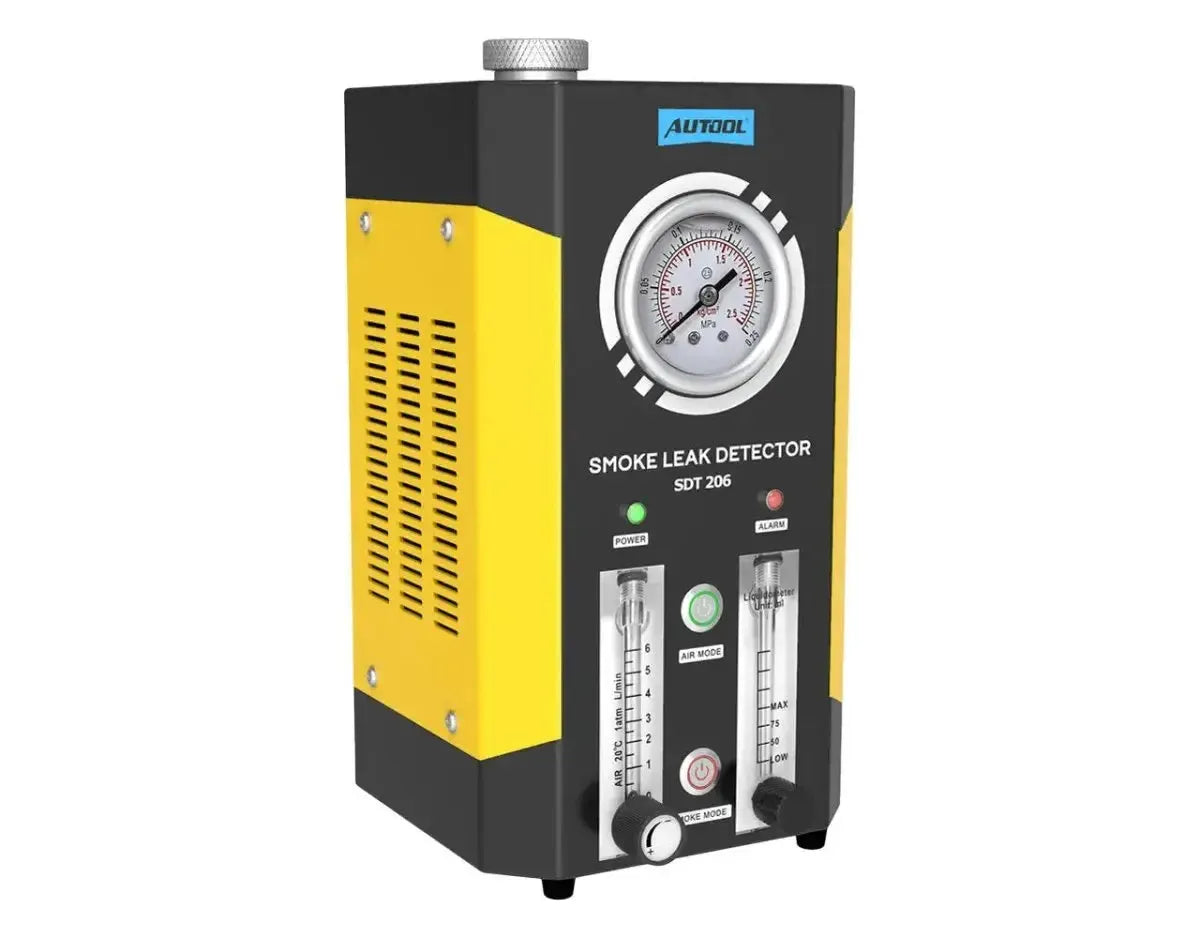

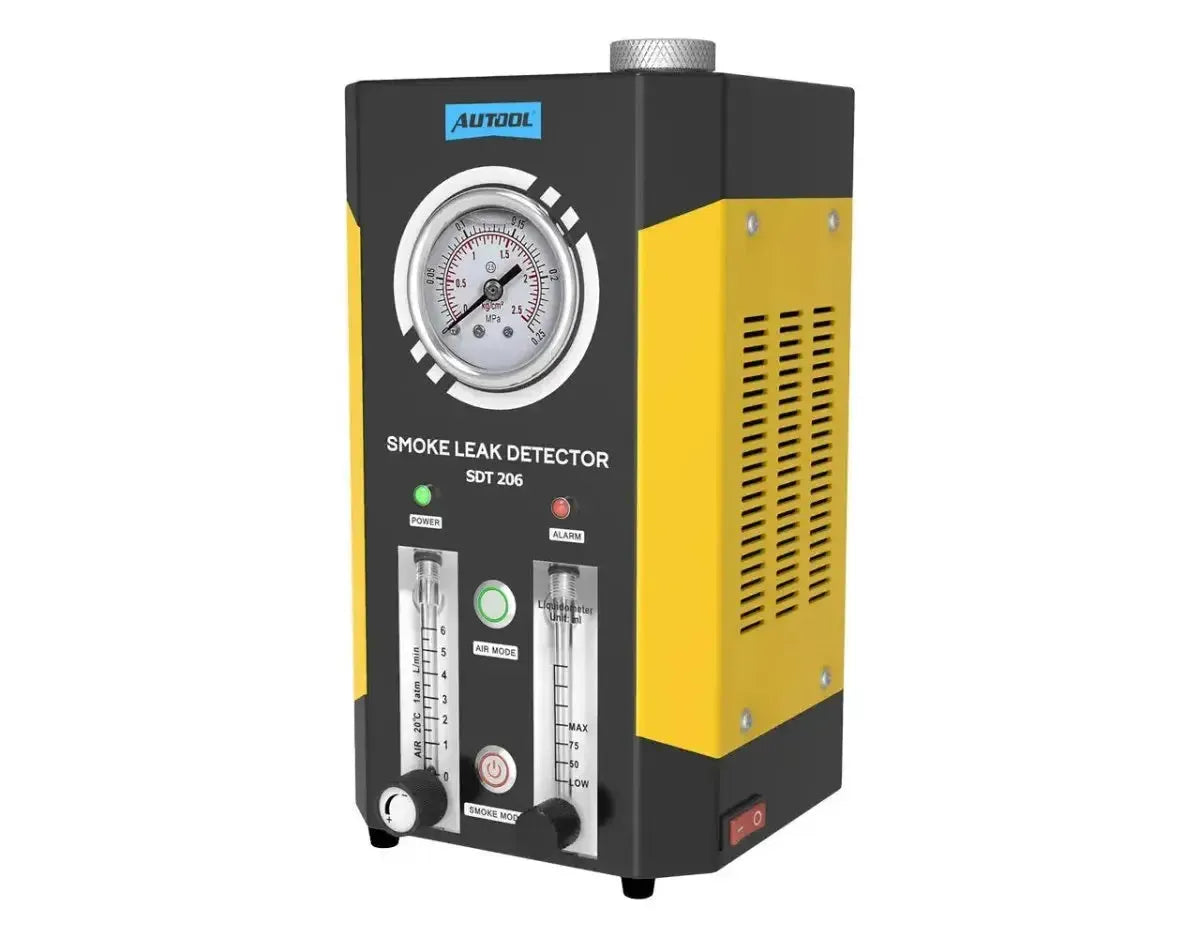

The Autool SDT206 is a professional smoke leak detector designed to identify leaks in sealed vehicle systems. The smoke generation operates through controlled heating, with a built-in pump providing independent compressed air supply without requiring an external compressor. The unit delivers a constant operating pressure of up to 18 psi and air displacement up to 6 liters per minute. Power is drawn directly from the 12V vehicle battery using the supplied battery clamps. This type of leak detection is specifically engineered for low-pressure circuits, such as intake, exhaust, crankcase, and EVAP systems across various motor vehicles.
During the diagnostic procedure, the machine simplifies smoke injection with separate control buttons for air-only testing and smoke testing. The pressure regulation and actual flow rate can be precisely monitored via the built-in analog pressure gauge and rotary dial flowmeter, allowing the technician to fine-tune the supply to match the system capacity being tested. For leak visualization, the system fills sealed lines with dense smoke; when this smoke escapes, it immediately marks the location of a crack or poor connection. Practical operation is further enhanced by a transparent fluid sight glass and an integrated drain valve to safely remove excess or contaminated test fluid after the diagnostic process.
KEY BENEFITS
✔ Fully independent operation thanks to two integrated air pumps; no external shop air required.
✔ Lower fluid consumption and cleaner testing with the separate air and smoke modes.
✔ Precise control over smoke injection volume thanks to the adjustable flowmeter.
✔ Easy fluid management with the visible sight glass and drain valve.
IMPORTANT NOTES
✕ Not suitable for high-pressure circuits due to the maximum operating pressure of 18 psi.
✕Must be used near a power source due to the required 12V vehicle battery power supply.
✕Requires regular checking during intensive use due to the maximum fluid capacity of 20 ml.
✕Test fluid not included — The refill bottle is empty; baby oil or specialized smoke fluid must be purchased separately.
Application and Functionality
The Autool SDT206 is engineered with specific features to make the testing process efficient and controlled within professional diagnostic environments.
- Air Mode: Activates only the internal compressor to fill the sealed system with clean compressed air. This allows you to detect pressure drops using the pressure gauge first, without unnecessarily consuming smoke fluid or introducing contamination into the system.
- Smoke Mode: Engages the internal heating element. The fluid is converted into dense smoke that, driven by the pumps, flows into the test lines within ten seconds for visual detection of cracks and leaks.
- Flow Control: The amount of air or smoke pumped into the system is infinitely adjustable via a mechanical dial knob. The flow meter with glass tube and indicator displays the throughput volume in liters per minute directly.
Special Features and Capabilities
To prevent damage to both the device and the vehicle, this smoke tester is equipped with various safety and monitoring mechanisms.
- Integrated Pressure Monitoring: The large analog pressure gauge on the front panel allows you to pressurize the test circuit. If the gauge drops back when pumping stops, this indicates pressure loss. This way, even micro-leaks that are not visually apparent can be detected.
- Thermal Protection: The device is equipped with a built-in temperature sensor. Once the heating element reaches its operating limit due to intensive use, the red alarm indicator lights up and power to the element is paused to prevent dry running or overheating.
- Transparent Fluid Management: On the front is a fluid level indicator that displays the current contents between minimum and maximum. Via a valve on the underside, unused or aged test oil can be easily drained after a test run.
Compatible Vehicles and Systems
Thanks to the wide operating pressure range and included adapter fittings, the smoke machine is suitable for many different low-pressure diagnostic applications.
- System Type: EVAP fuel vapor recovery systems, crankcase ventilation, intake manifolds, exhaust systems, turbo circuits, cooling systems, and interior seals on doors and windows.
- Vehicle Category: Passenger cars, light commercial vehicles, motorcycles, ATVs, snowmobiles, and boats with a 12V electrical system.
- Diagnostic Application: Detecting cracked vacuum lines, worn gaskets, leaking EGR valves, damaged intercoolers, and missing seals.
Package Contents
- 1x Autool SDT206 smoke tester
- 1x Power cable with battery clamps
- 1x Smoke hose with velcro strap
- 1x Standard cone adapter
- 1x Universal inflatable adapter
- 1x EVAP-specific adapter
- 1x Set of sealing caps in various sizes
- 1x Valve core tool
- 1x Empty refill bottle for test oil
- 1x Hanging hook
- 1x User manual
💡

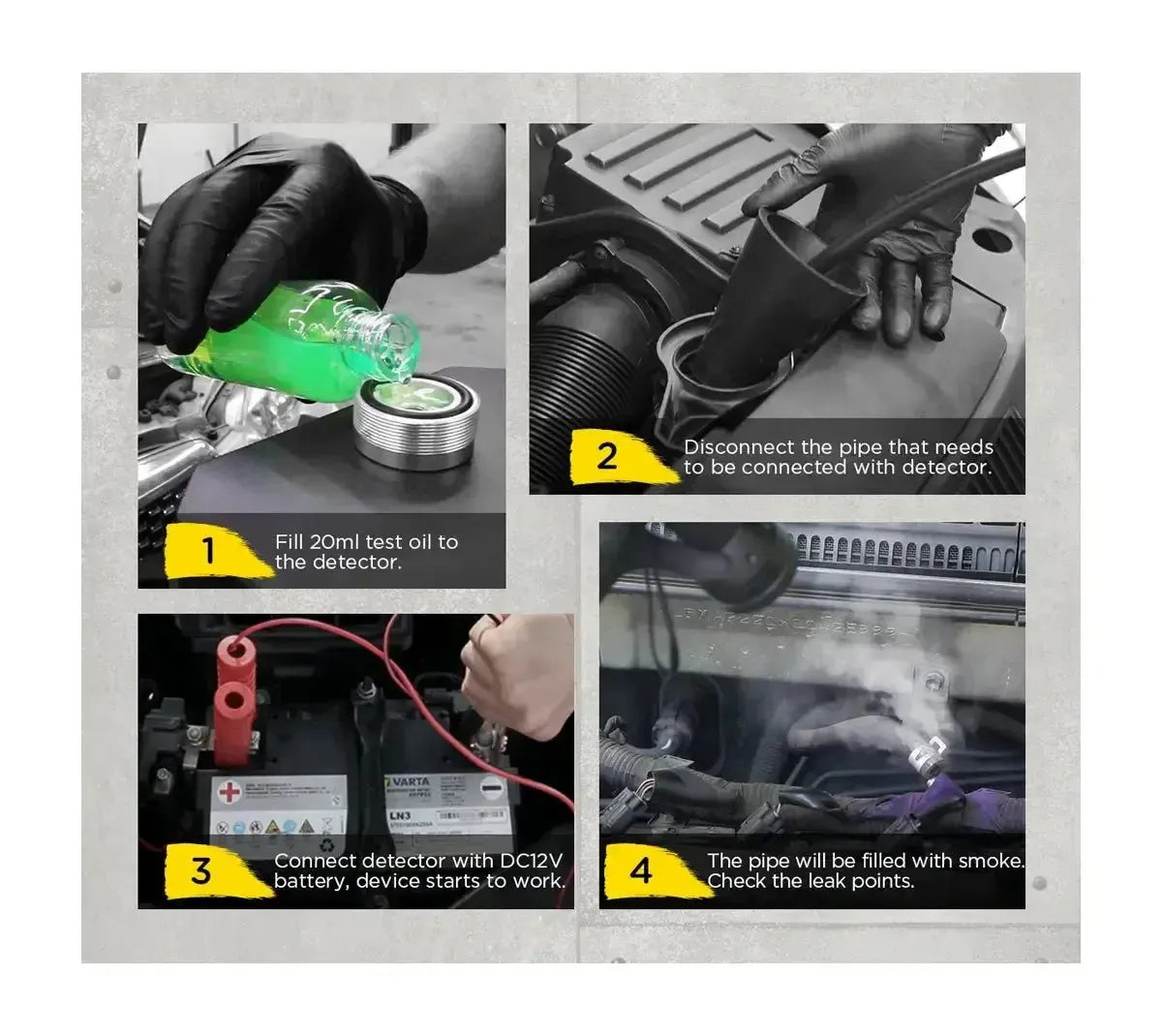

Good to know: Always fill a maximum of 20 ml baby oil or dedicated smoke fluid, as excess will block the internal airflow. Additionally, start every diagnostic in air mode: if the pressure gauge shows no pressure drop, there's no leak and you'll save fluid and time. After use, drain the remaining test oil through the valve at the bottom.
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Autool |
| Product model | SDT206 |
| Product type | Smoke tester for leak detection in low-pressure systems |
| Operating pressure | Less than 18 psi, approximately 1.2 bar |
| Air displacement | Less than 6 liters per minute |
| Air supply | Integrated air pump |
| Power supply | 12V DC via vehicle battery |
| Test fluid capacity | Maximum 20 ml per session |
| Smoke generation | Heating with limited oxygen supply |
| Monitoring | Analog pressure gauge, flow meter, sight glass and thermal protection |
| Rated power | 70 W |
| Air pumps | Two integrated pumps |
| Smoke buildup | Within ten seconds |
| Dimensions | 275 x 150 x 150 mm |
| Weight including packaging | 5.5 kg |
| Item number | SDT206 |
