Autool | Measuring Cable and Test Probe Set (92-Piece)
The Autool test cable and probe set is a 92-piece set designed for performing diagnostic measurements on electrical and electronic circuits in vehicles. This set can be used in combination with a multimeter or oscilloscope and contains an extensive selection of connectors and test probes suitable for most vehicles from Europe, the United States, and Japan.

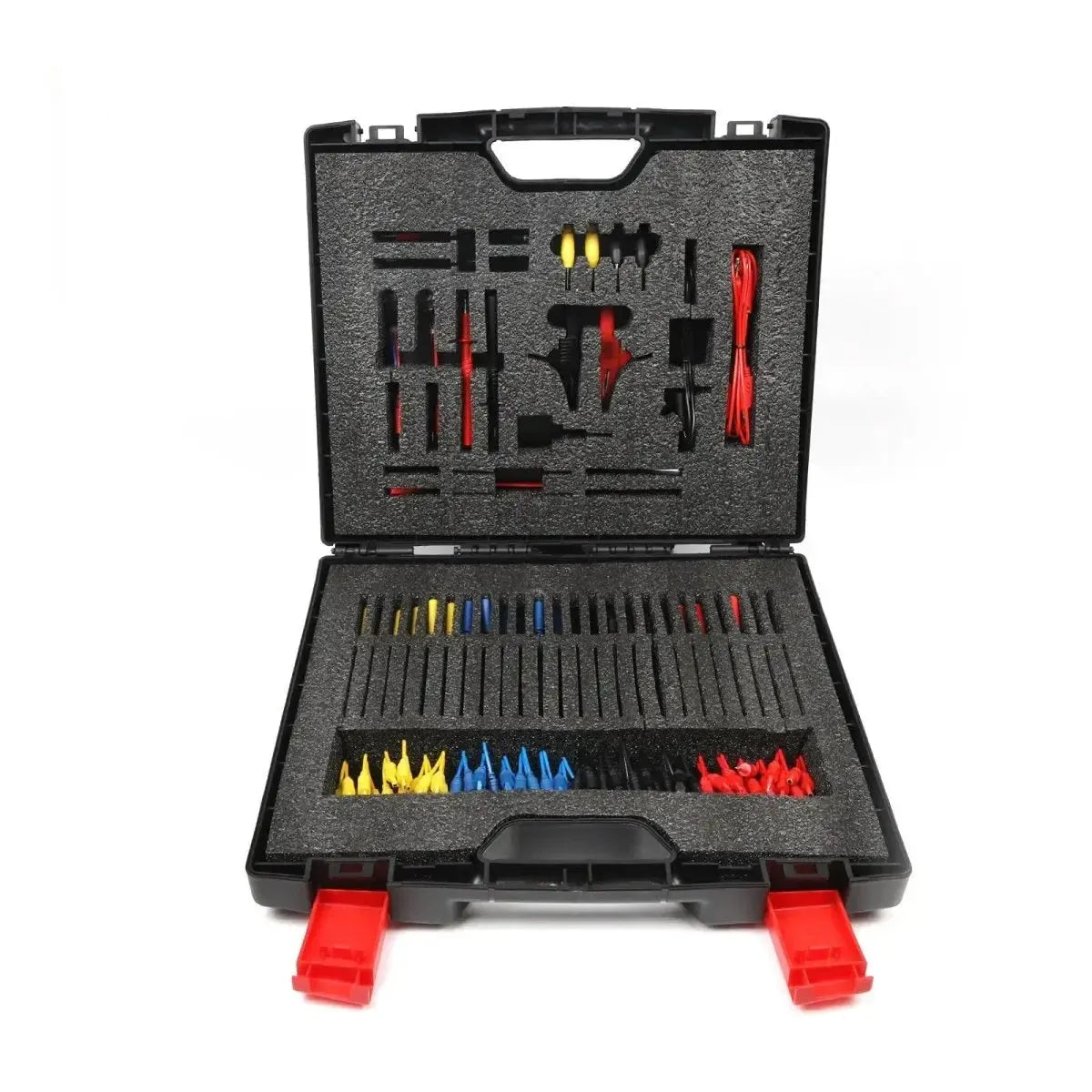

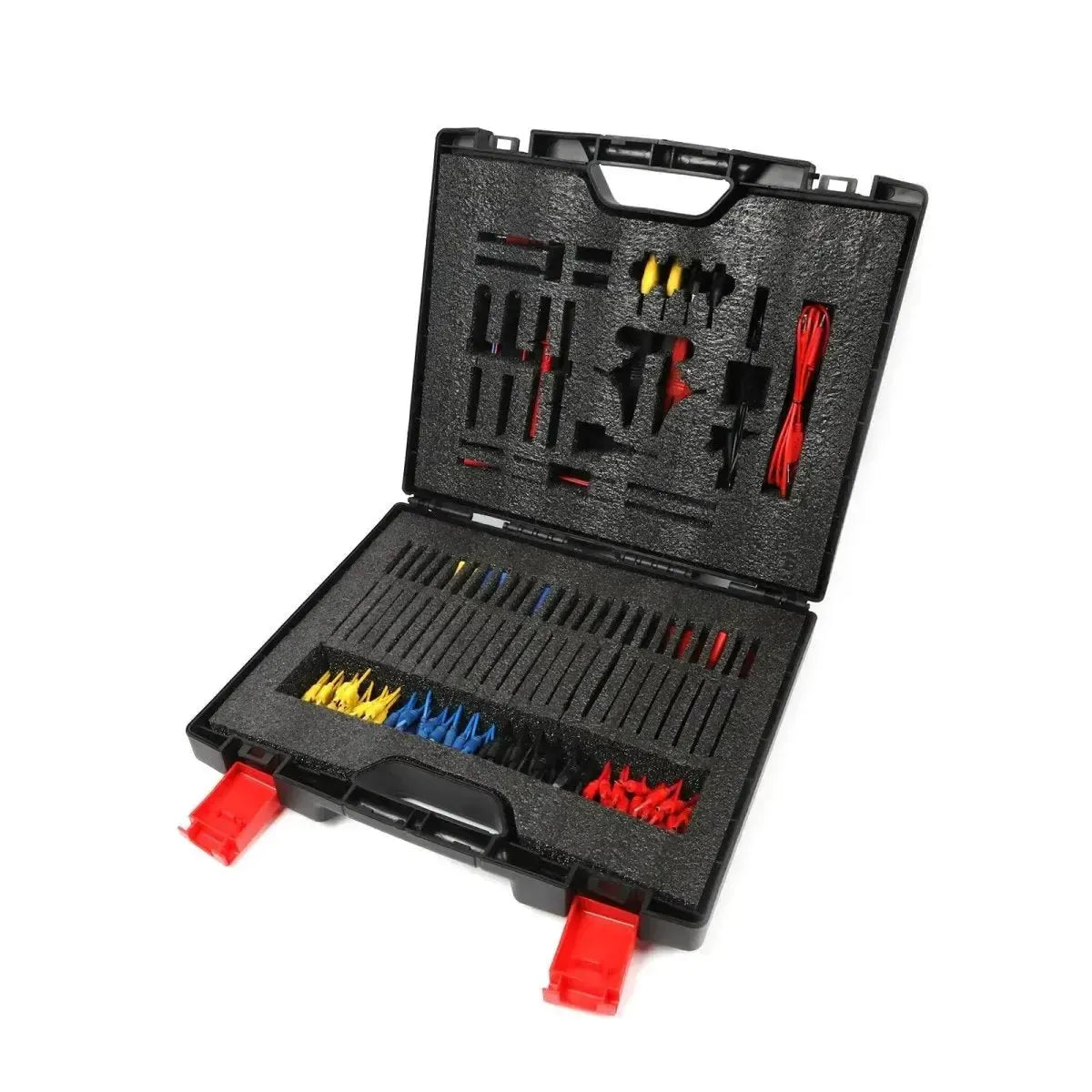

The set enables connection to the rear of terminals without damaging the circuit, preventing corrosion and increased impedance. The included parts are suitable for measuring various signals on sensors, actuators, and control units. All components are organized in a sturdy case with foam padding for protection and overview.
Application and functionality:
This set offers a variety of connectors for safe and accurate measurement of electrical signals in automotive applications.
- Connection to measuring equipment: The cables are equipped with standard 4 mm banana plugs for connection to most multimeters and oscilloscopes.
- Back-probing: With the included probes, measurements can be taken at the back of connectors without damaging the wiring, preserving the integrity of the circuit.
- Various connections: Includes a wide range of flat and round male and female terminals for direct connection to various vehicle connectors.
- Current measurement: The crocodile clips allow circuits to be connected for measuring current or for applying an external power source.
- Variable resistance simulation: The set contains potentiometers (variable resistors) for simulating sensor signals, such as those from a throttle position sensor or temperature sensor.

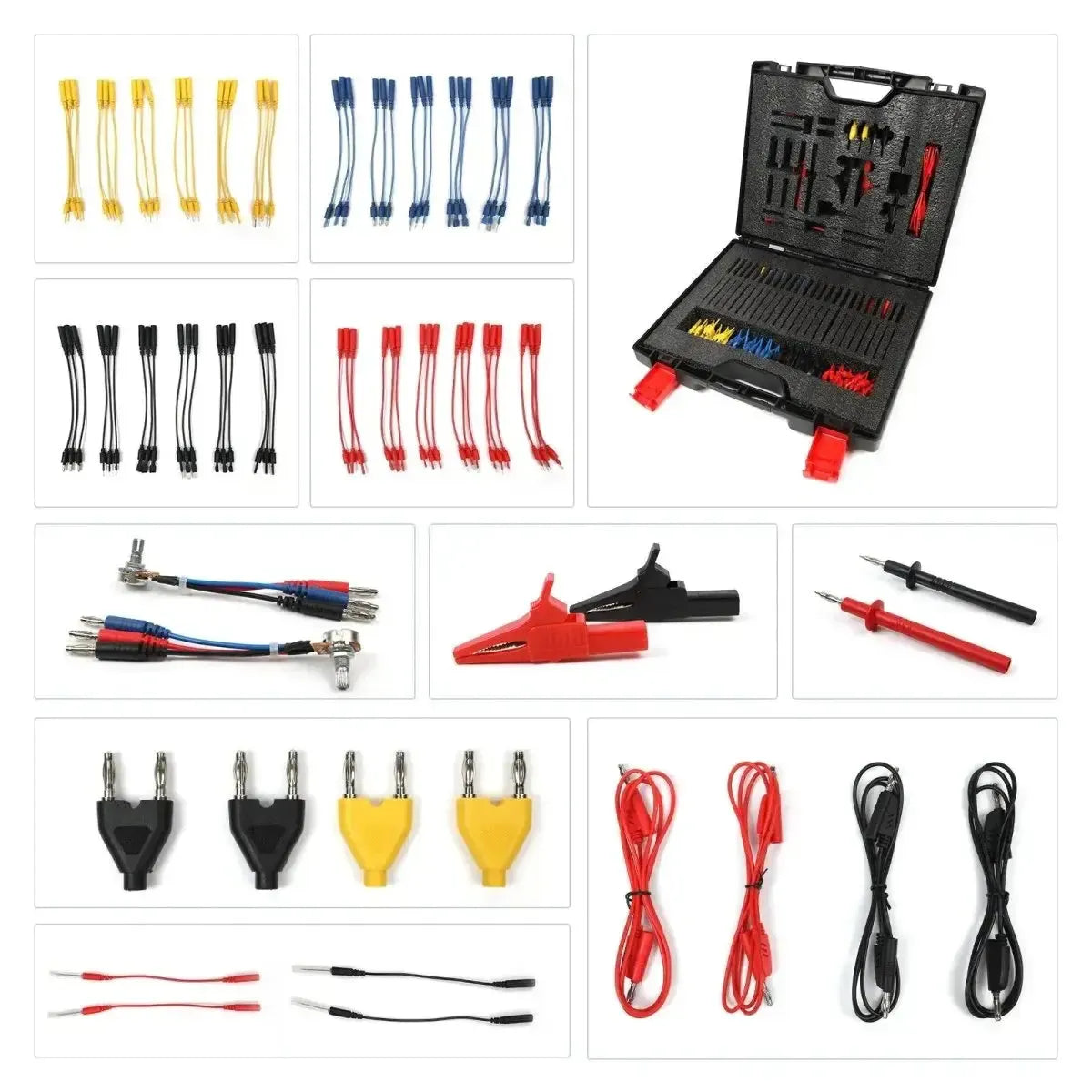

Package Contents:

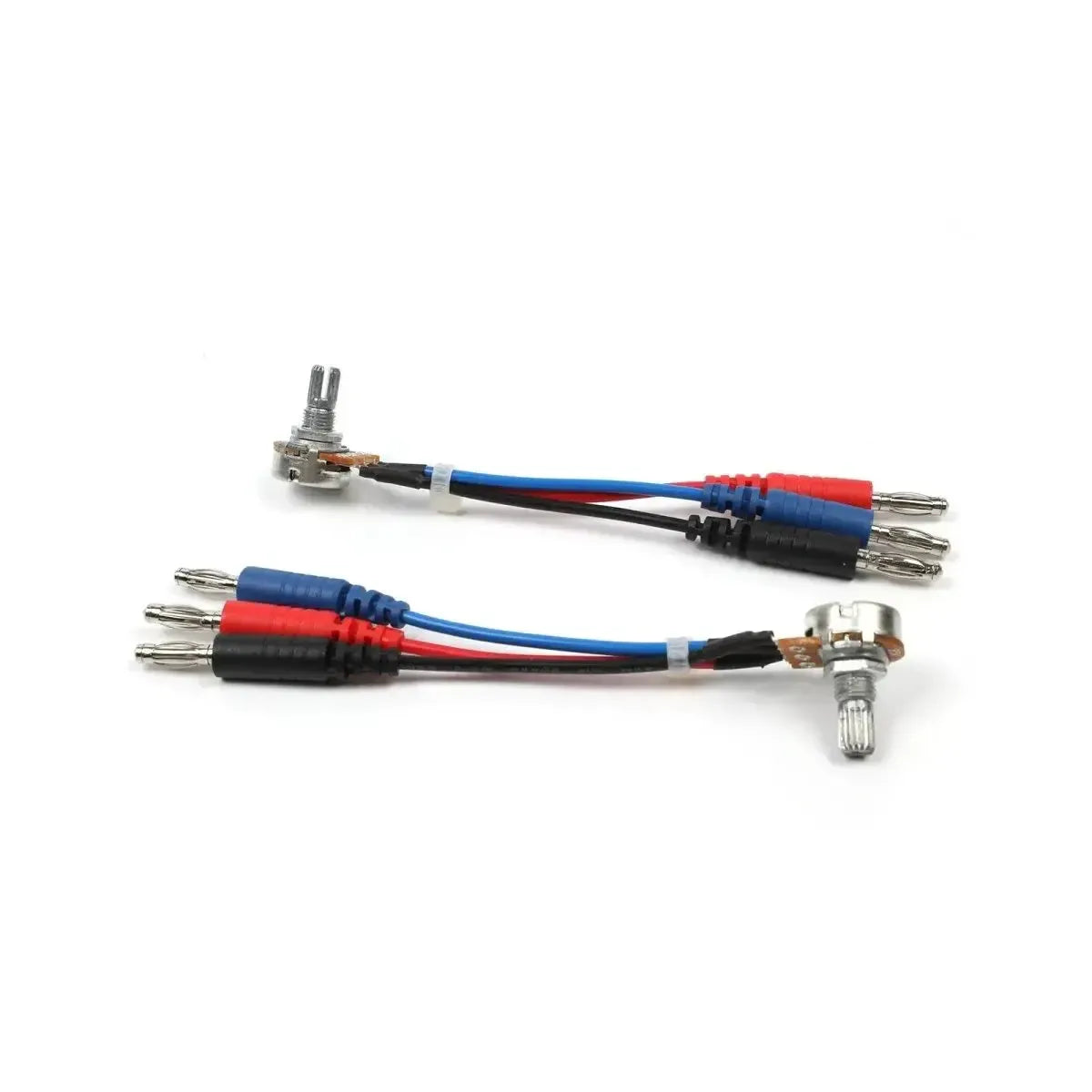

- 2x Potentiometers (5KΩ)

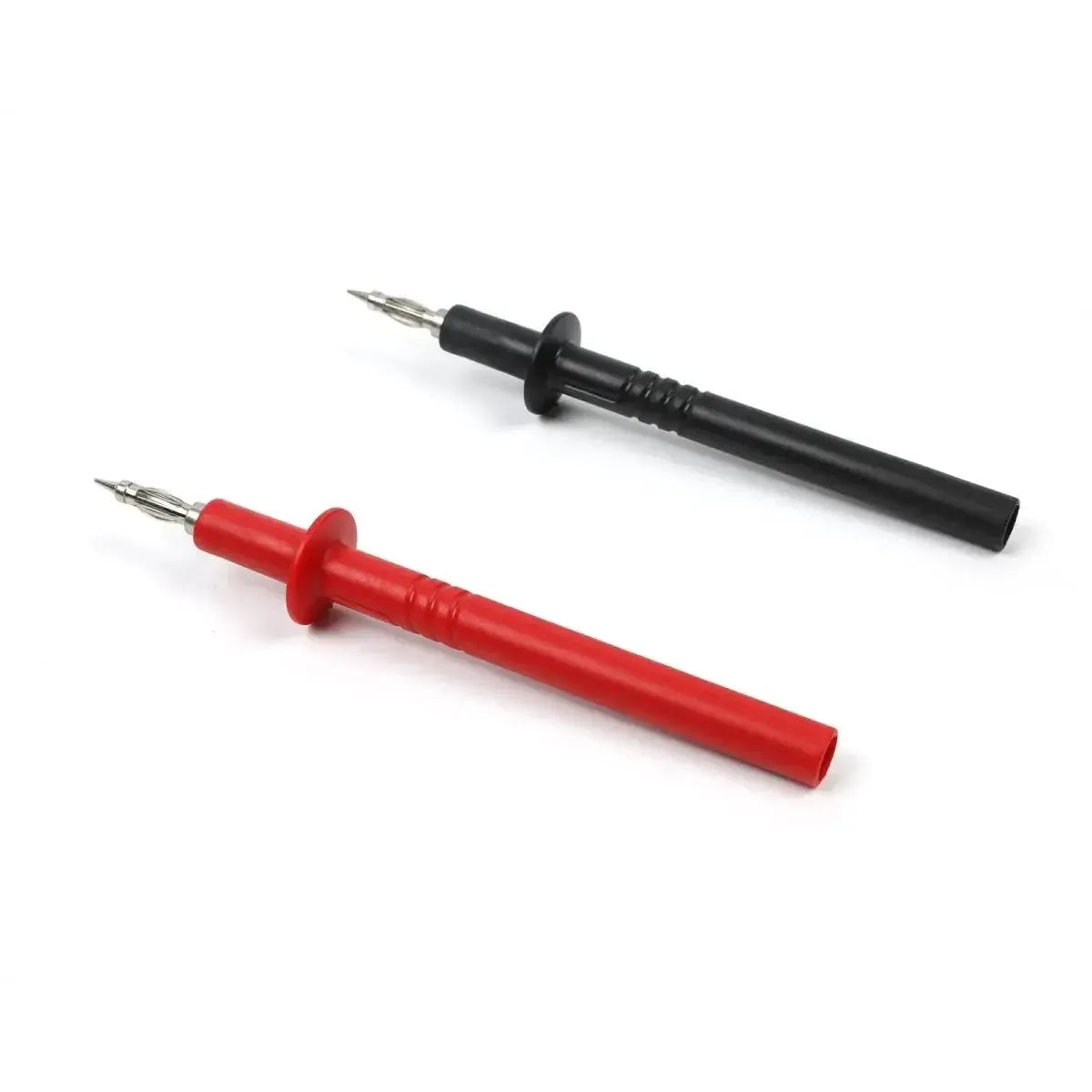

- 2x Test probes

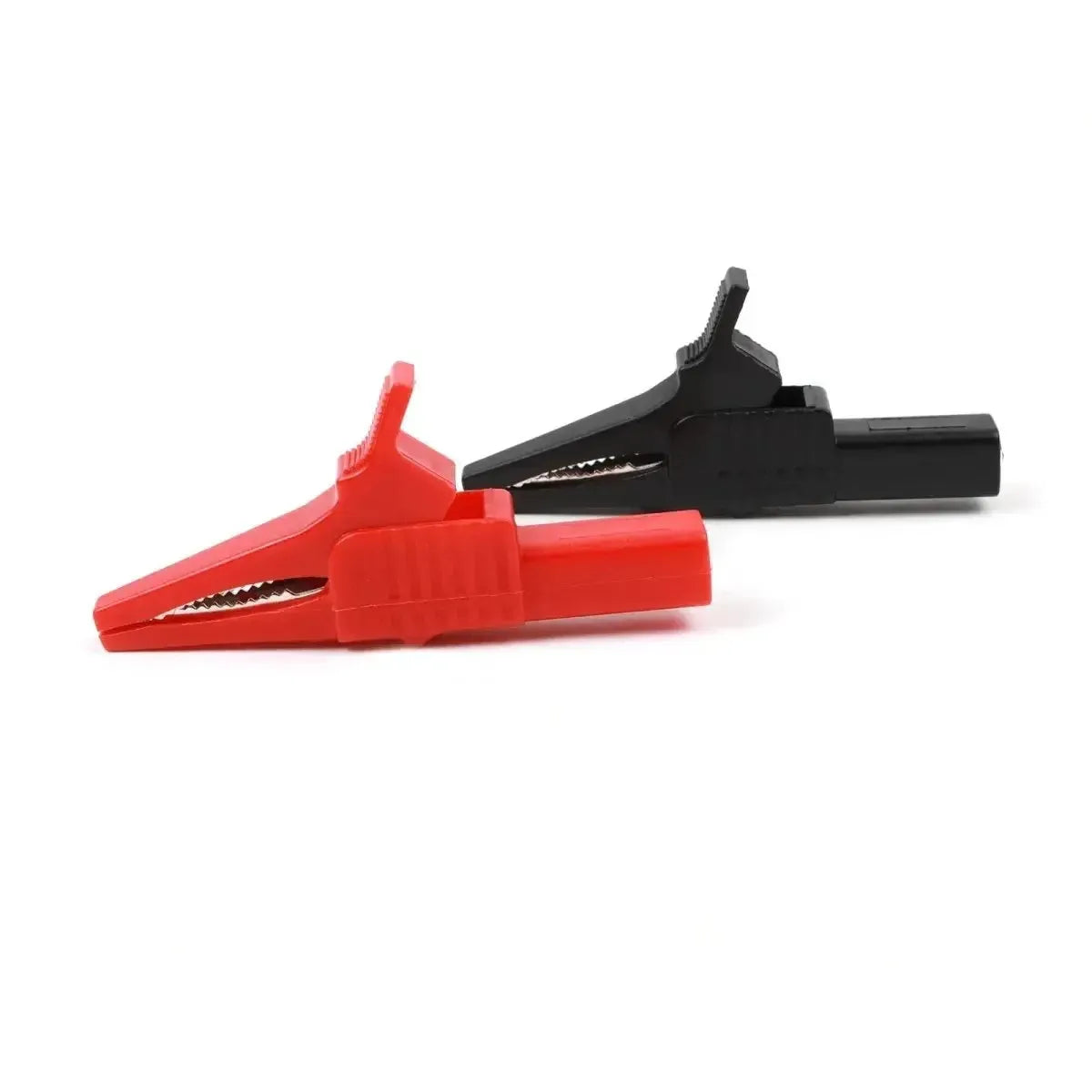

- 2x Large crocodile clips

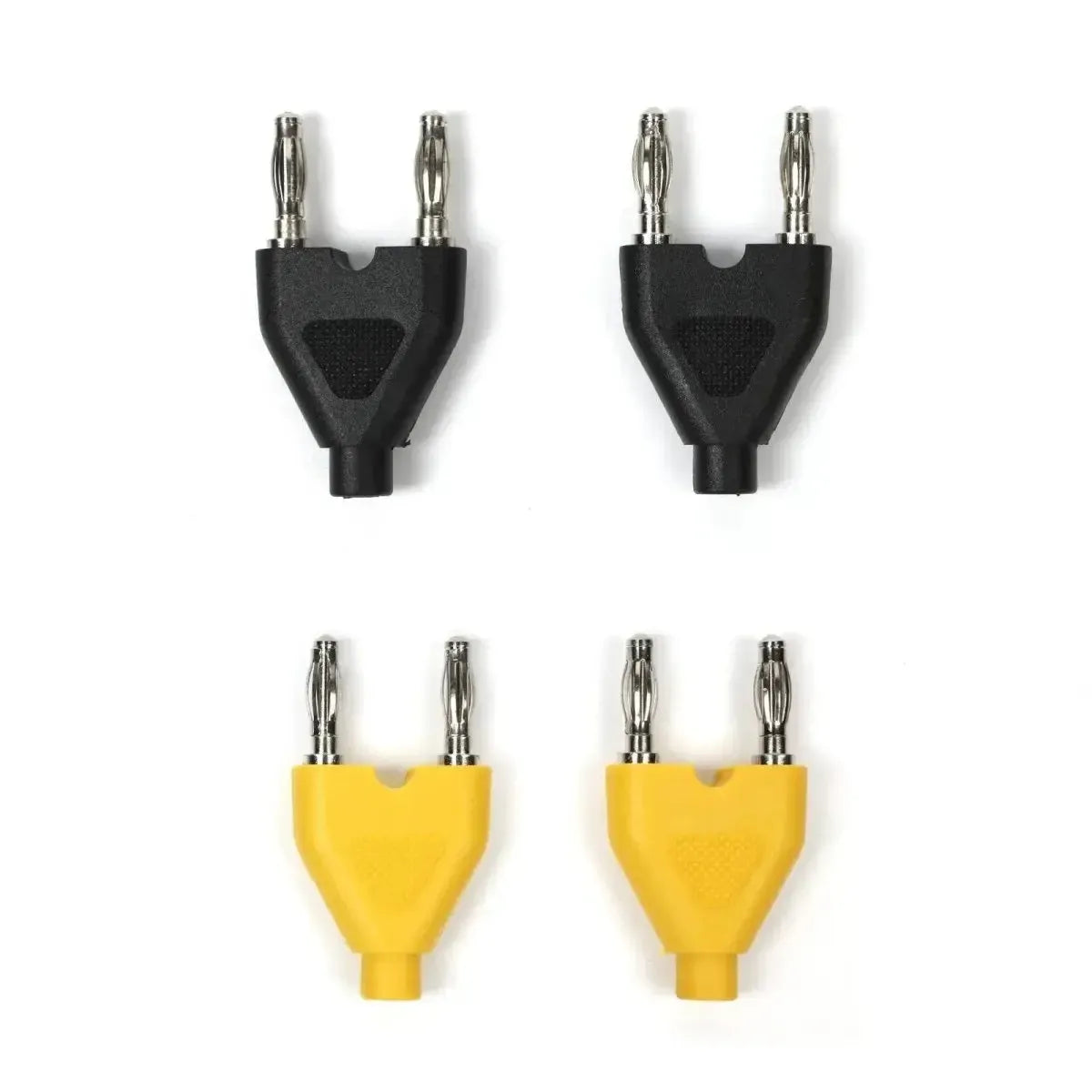

- 4x 1-to-2 connectors

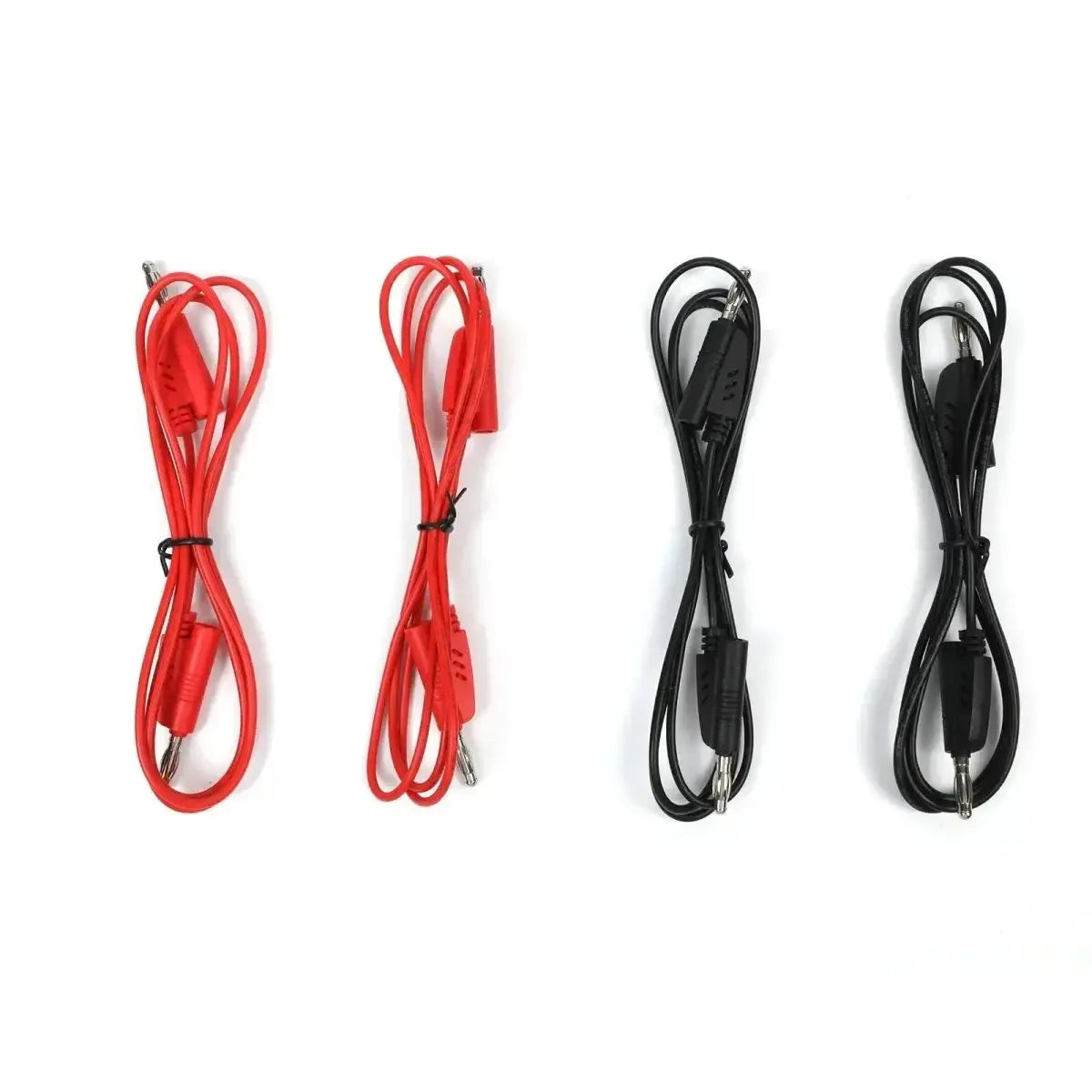

- 4x Test cables with banana plugs
- 12x Connector bridges

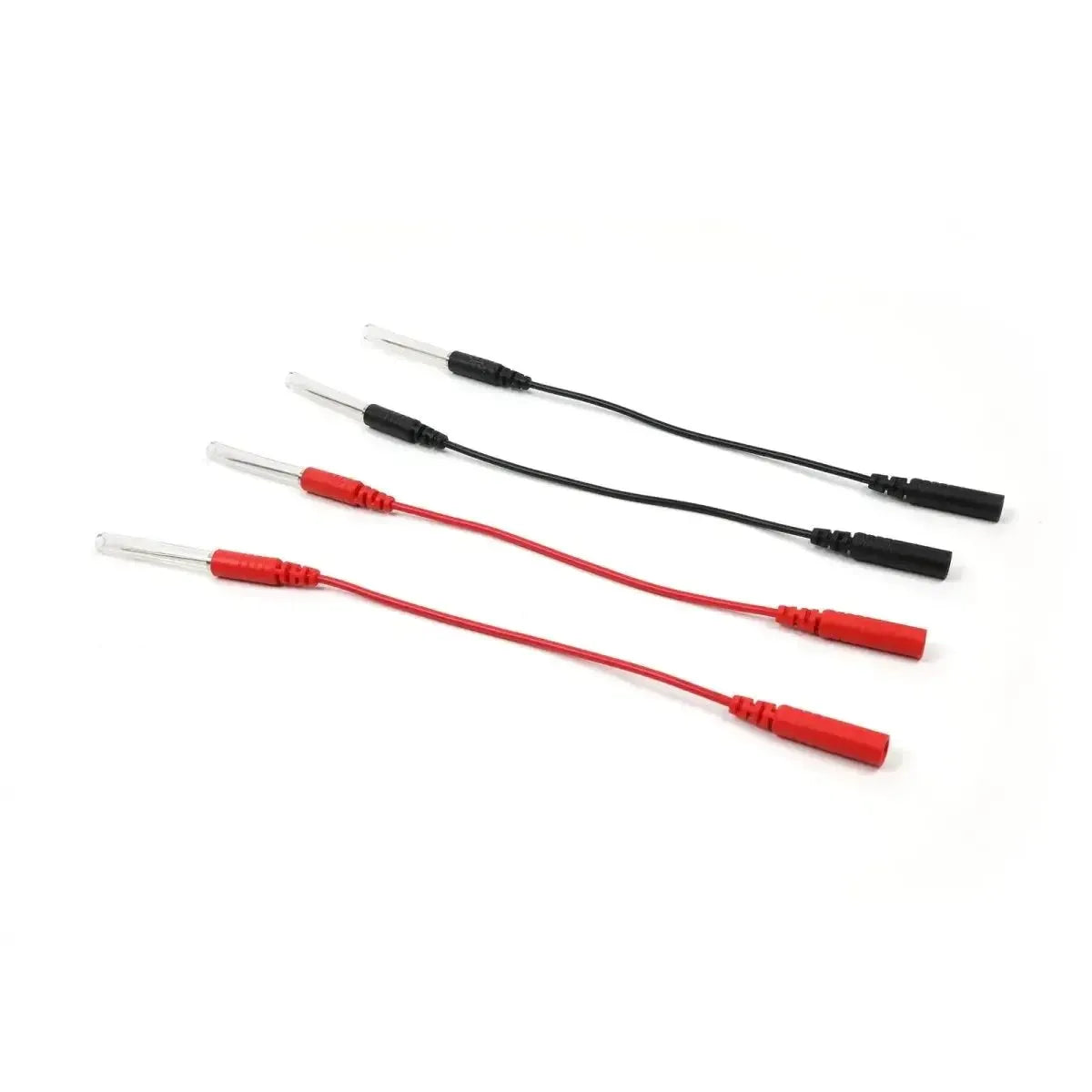

- 24x Needle probes
- 48x Various round and flat terminals (male/female)

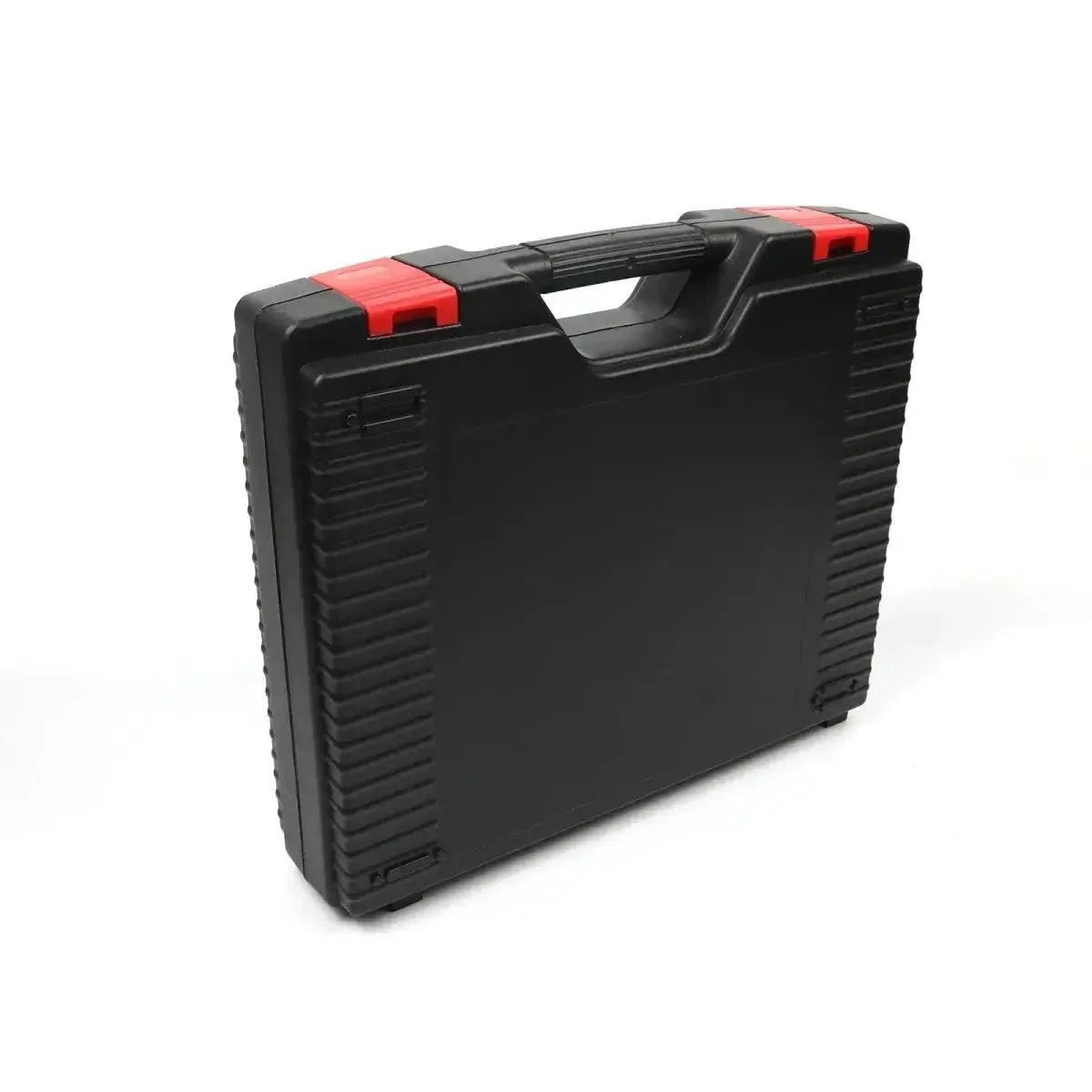

- 1x Sturdy storage case
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autool |
| Model | Test lead and test probe set |
| Number of parts | 92 |
| Connection | 4 mm banana plug |
| Application | Automotive diagnostics, electrical measurements |
| Compatibility | Universal (multimeters, oscilloscopes) |
| Case material | Plastic with EVA foam insert |
