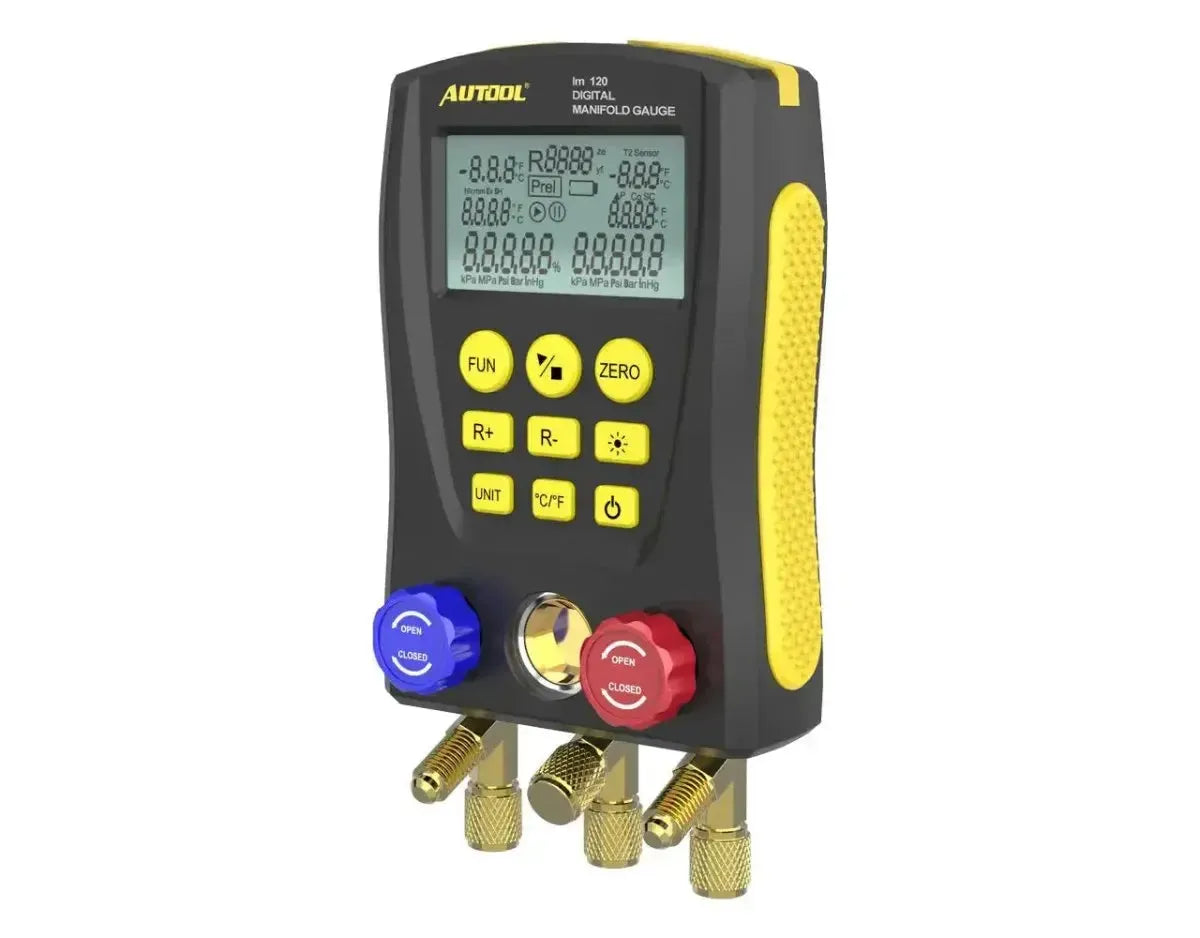

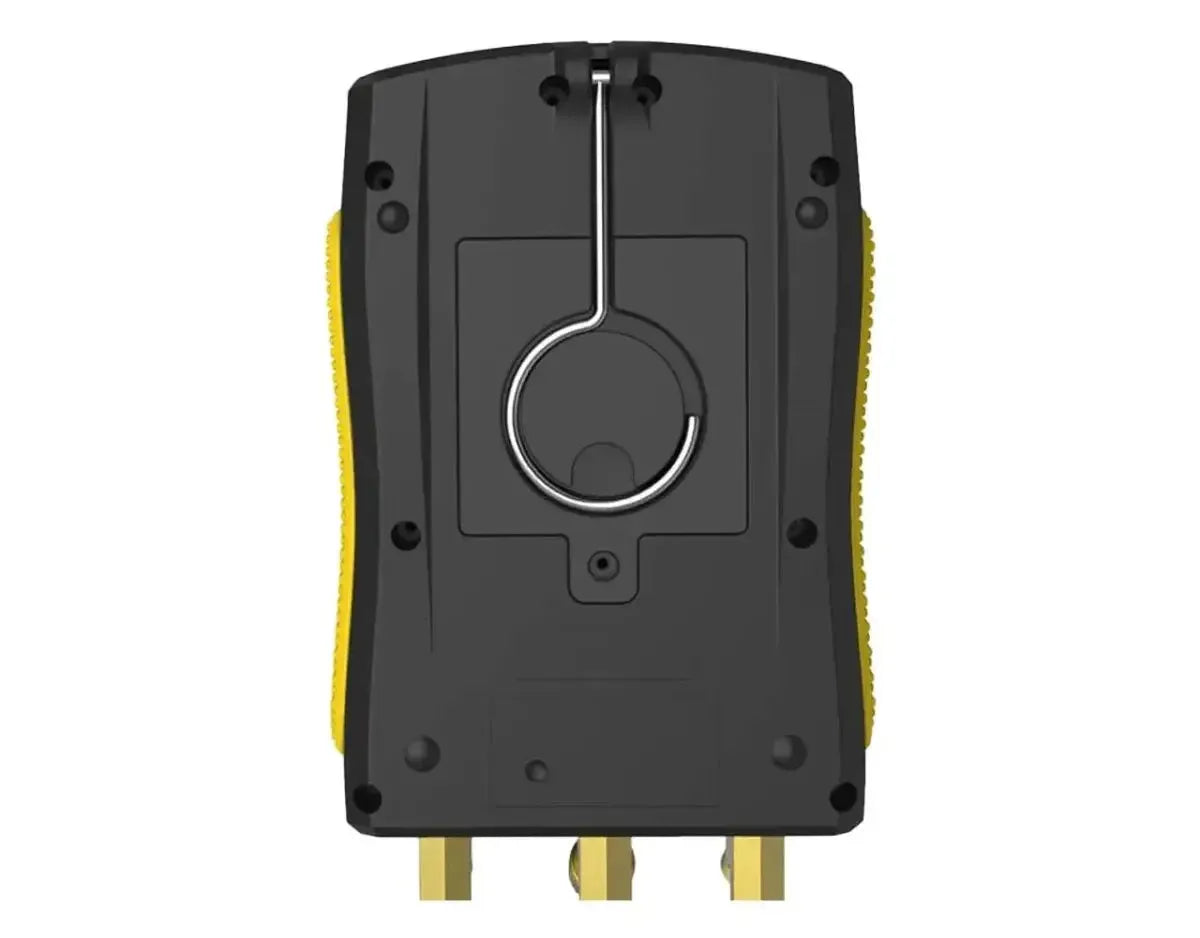

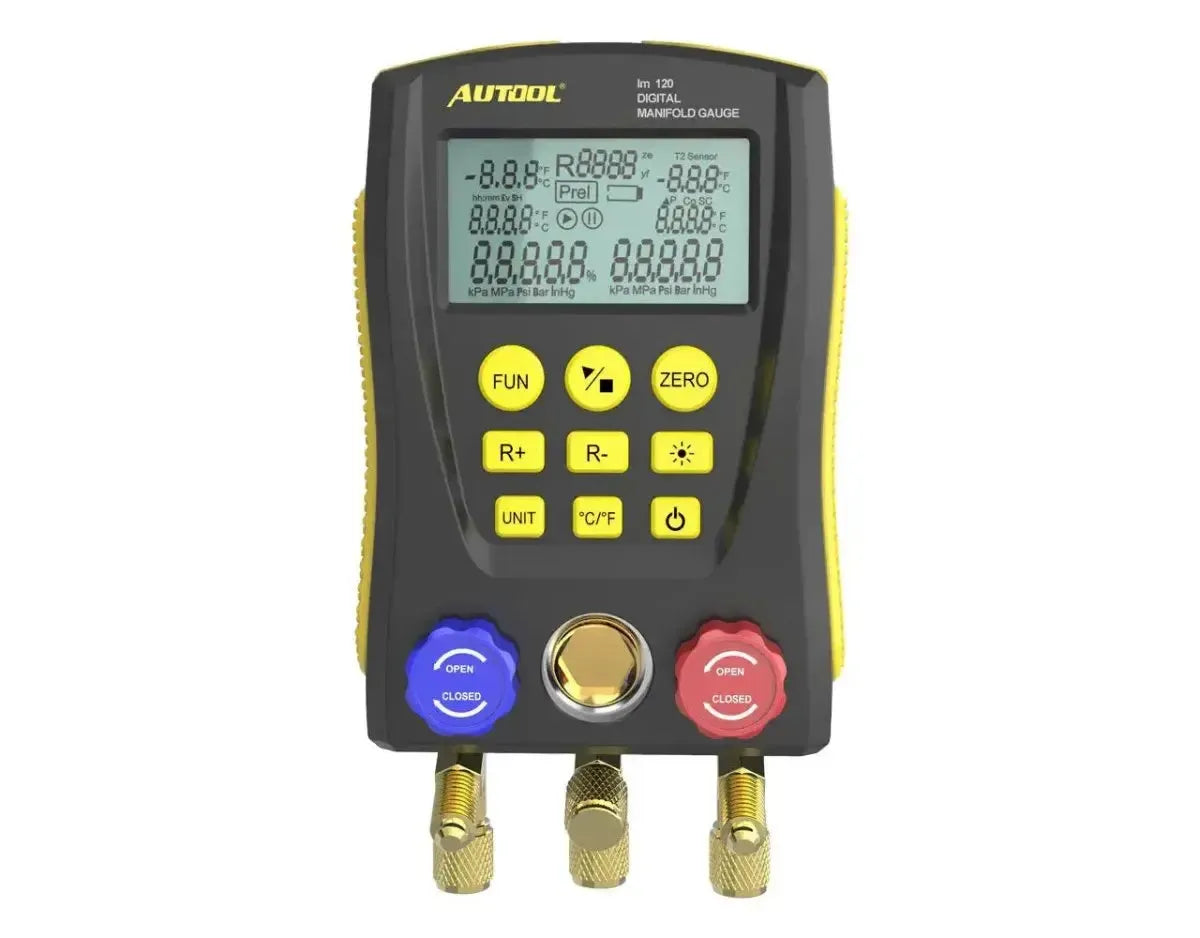

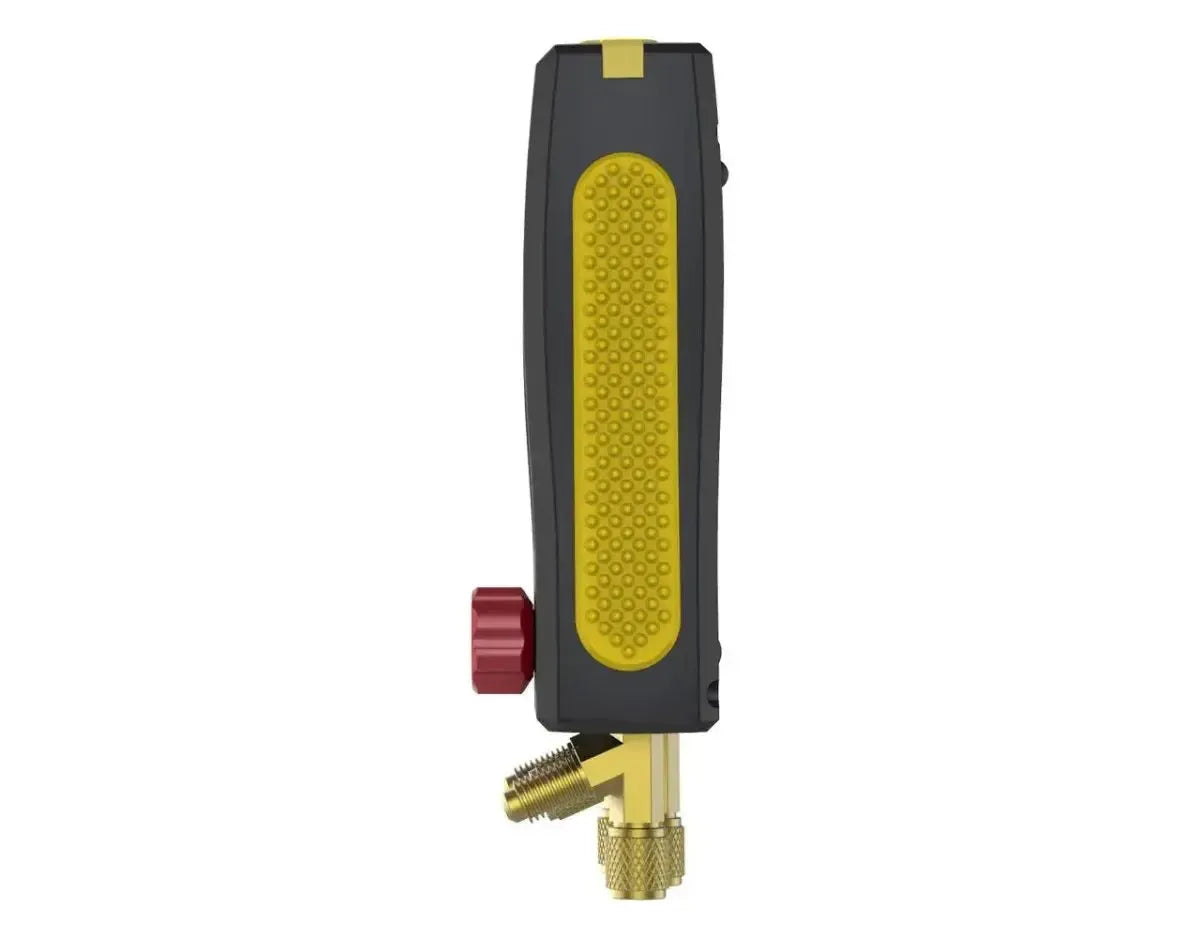

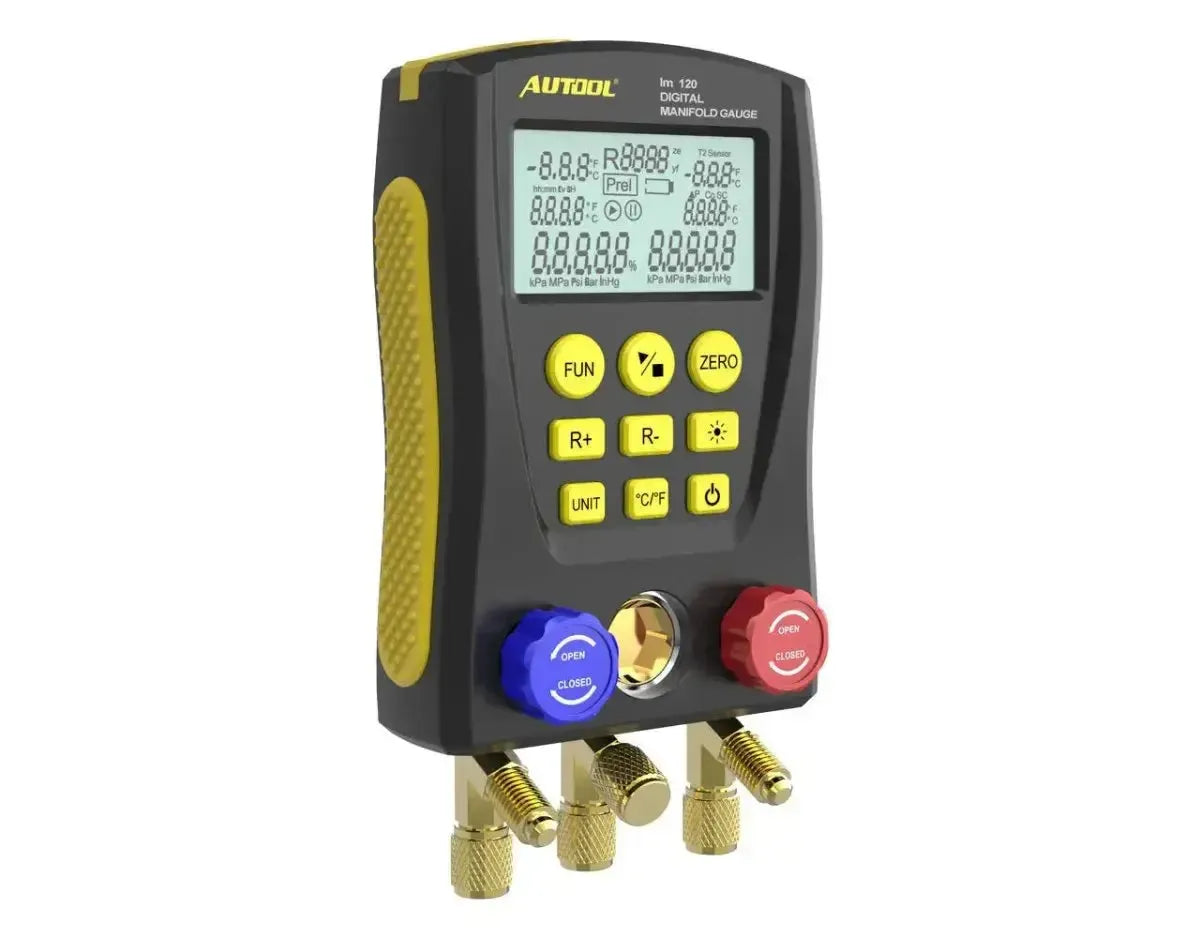

Autool LM120 | AC Manifold Gauge
The Autool LM120 is a digital air conditioning manometer for installation, maintenance, and inspection of cooling systems. The manometer measures pressure in a range of 0 to 6000 kPa and vacuum from -101 to 0 kPa. The temperature range is from -40°C to 150°C, making it suitable for various applications in air conditioning systems.
This manometer is equipped with a built-in database containing pressure and evaporation temperature data for 89 different refrigerants. The device features dual pressure and temperature measurement and functions for vacuum measurement and pressure loss tests. The illuminated LCD screen clearly displays all measurements, and the sight glass allows visual monitoring of the refrigerant status.
Application and functionality:
The Autool LM120 offers various measurement modes for a complete analysis of air conditioning systems.
- Pressure and temperature test: Simultaneously measures pressure and temperature on both the high- and low-pressure sides of the system.
- Evaporation pressure and temperature test: Calculates and displays the evaporation temperature (Ev) and pressure, indicating the transition from liquid to gas.
- Condensation pressure and temperature test: Calculates and displays the condensation temperature (Co) and pressure, indicating the transition from gas to liquid.
- Pressure loss test: Performs a leak test by measuring the pressure difference (ΔP) over a set period to determine the system's tightness.
- Refrigerant selection: Provides the ability to select the correct refrigerant from a database of 89 types for accurate calculations.
- Vacuum measurement: Measures the vacuum level to check for the absence of non-condensable gases and moisture in the system.
Package Contents:
- 1x Autool LM120 digital air pressure gauge
- 3x Test hose
- 2x Temperature clamp
- 1x Manual
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autool |
| Model | LM120 |
| Pressure test range | 0 - 6000 kPa |
| Pressure resolution | 1 kPa |
| Pressure accuracy | ±0.5%(FS) + 5dgt |
| Maximum pressure load | 10000 kPa (10 MPa / 100 Bar) |
| Vacuum Test Range | -101 - 0 kPa |
| Vacuum Resolution | 1 kPa |
| Temperature Test Range | -40°C - 150°C |
| Temperature Resolution | 0.1°C (-40°C - 99.9°C), 1°C (100°C - 150°C) |
| Temperature Accuracy | ±0.5°C + 2dgt |
| Pressure Units | kPa, MPa, Bar, inHg, PSI |
| Temperature Units | °C, °F |
| Power Supply | 4 x 1.5V AA (LR6) batteries |
| Dimensions | 170 x 110 x 50 mm |
| Weight | 950 g |
