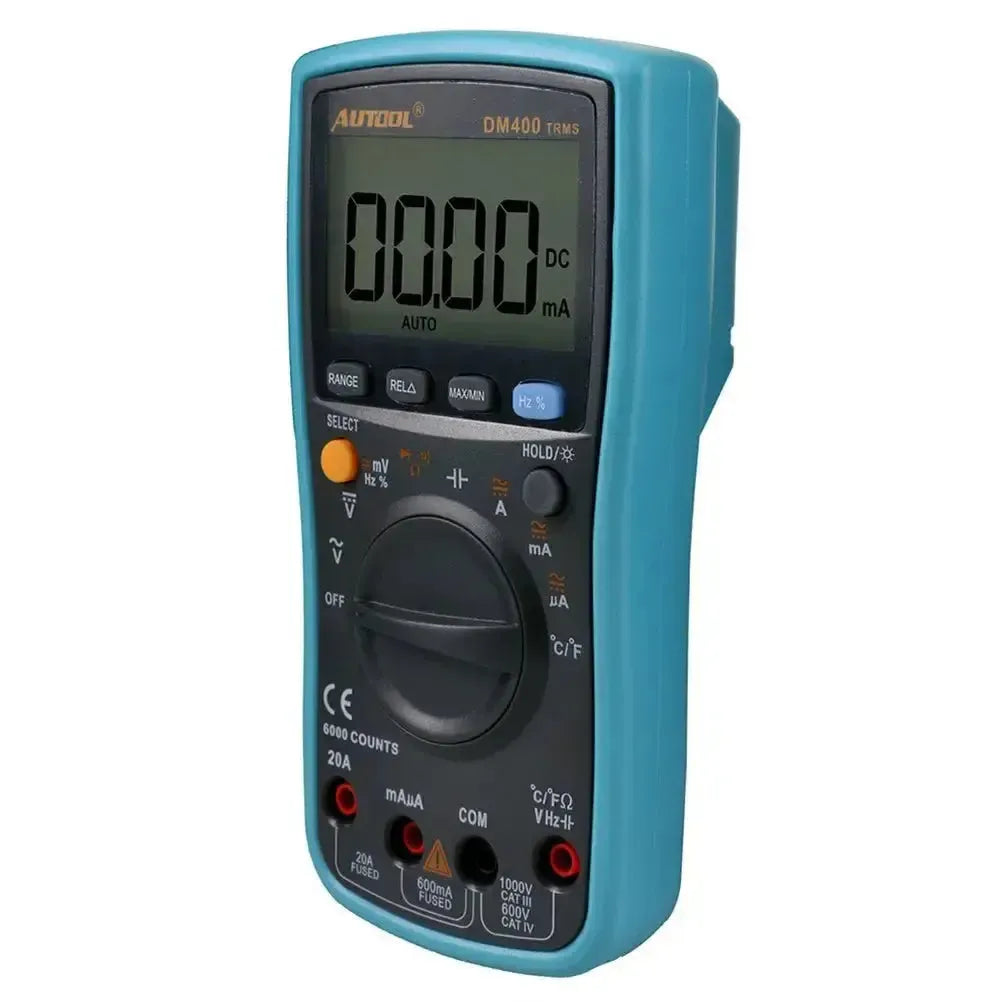

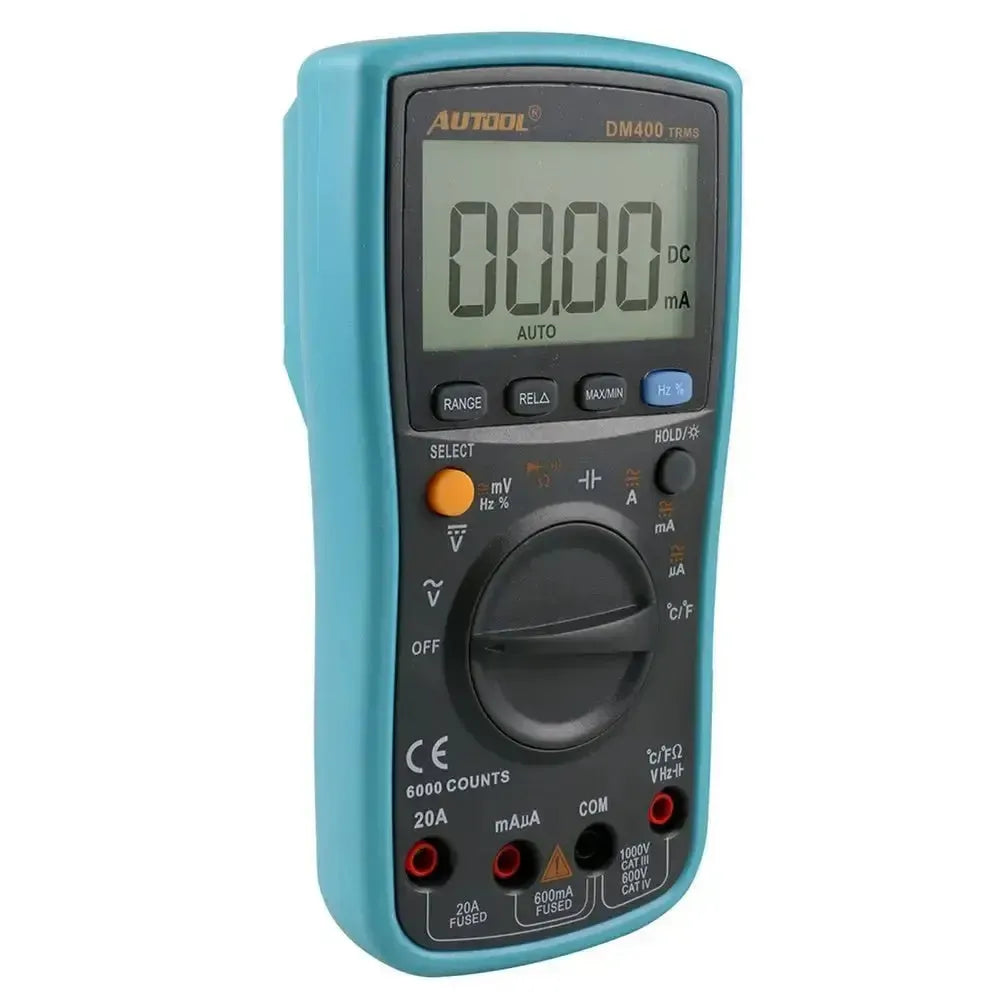

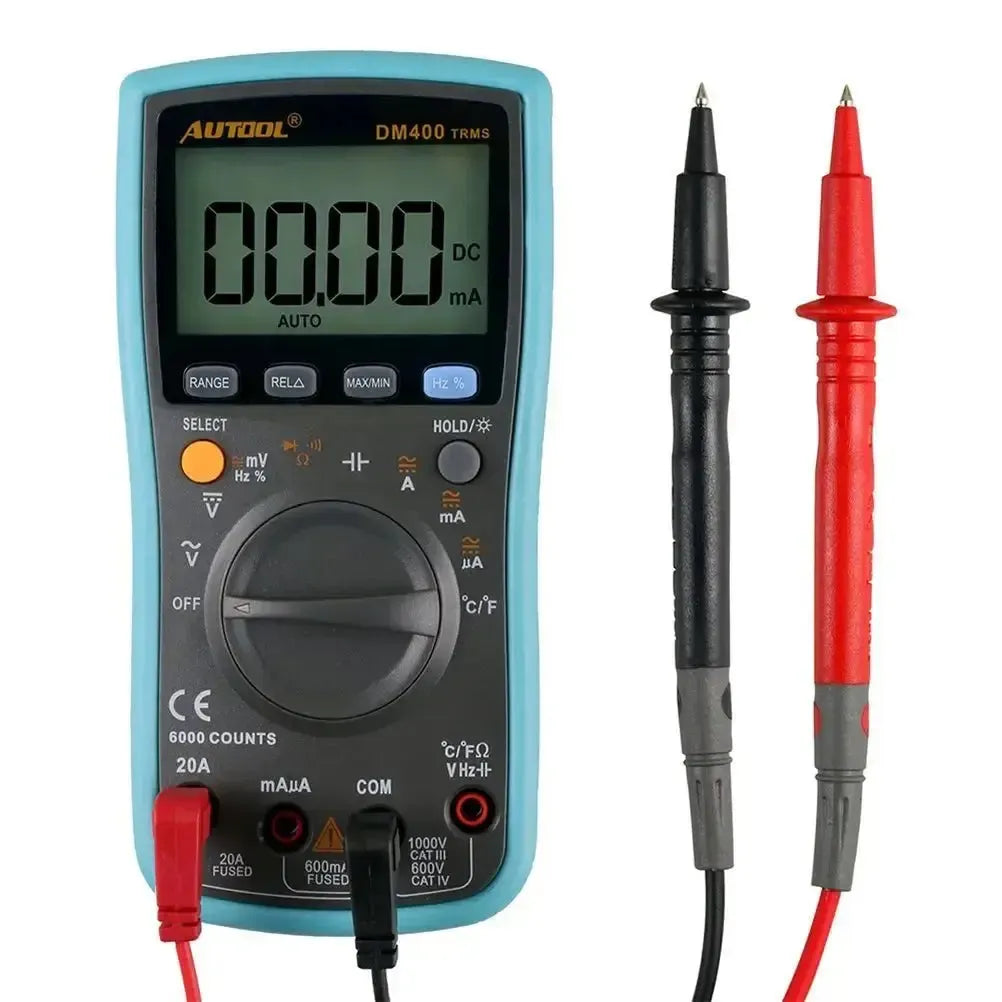

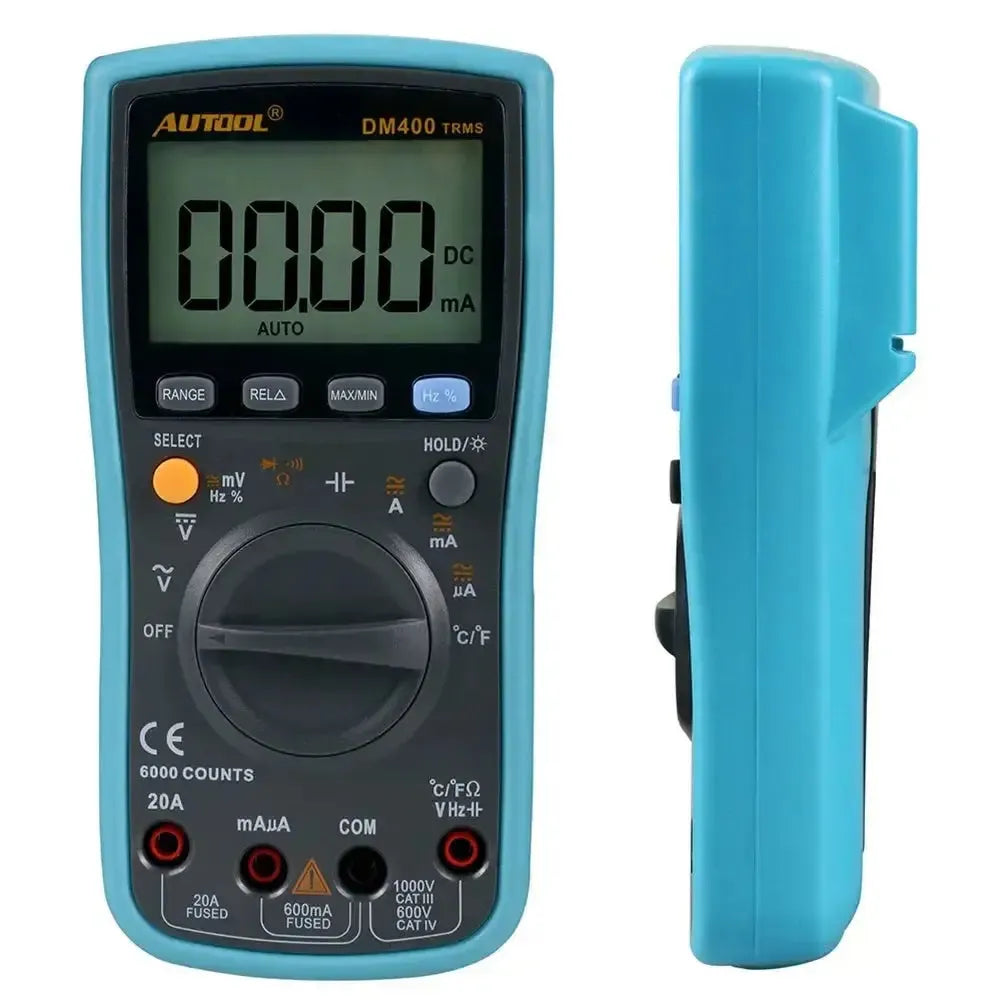

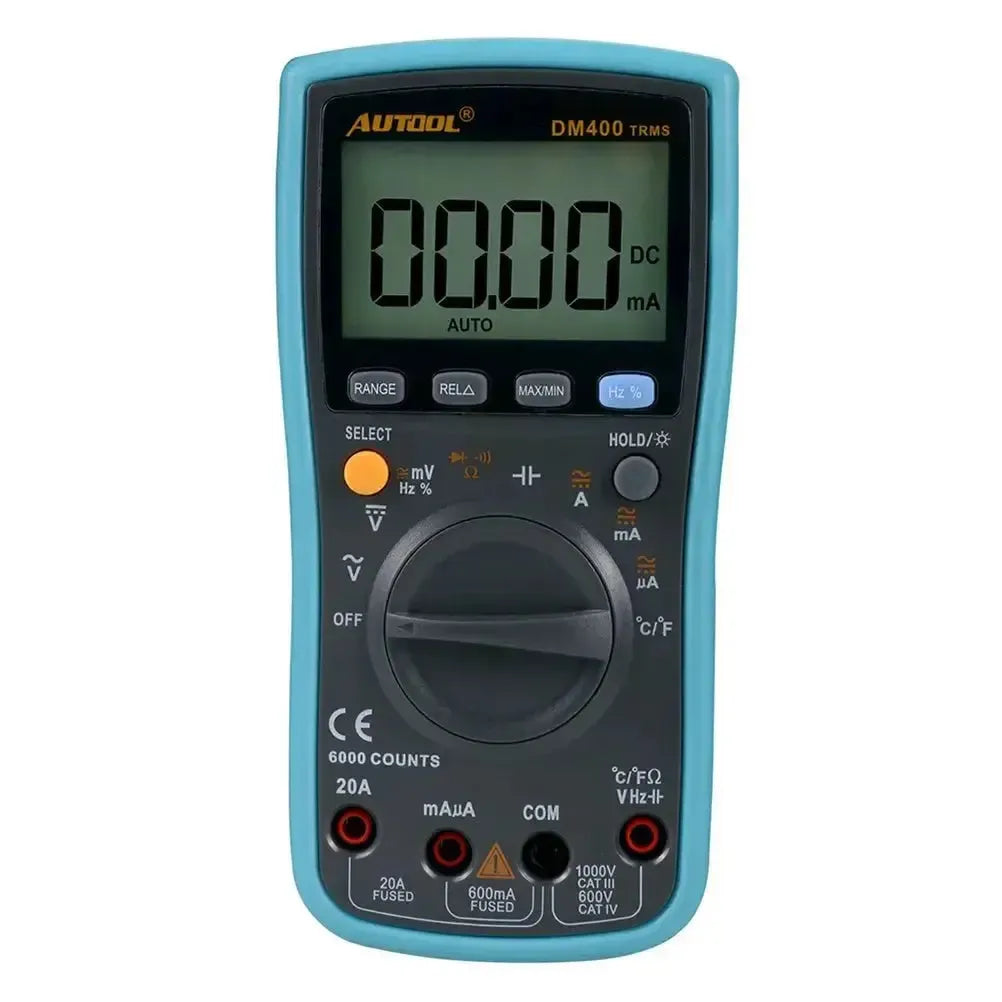

The Autool DM400 is a digital multimeter designed for measuring various electrical quantities. This instrument uses True RMS technology for accurate measurements of both sinusoidal and non-sinusoidal AC waveforms. The multimeter features a 6000-count LCD display with backlighting for clear reading in different lighting conditions. Functions include measuring AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and temperature.
In addition to the basic measurements, the DM400 offers extra functionalities such as automatic and manual range selection, a diode test, and a continuity test with an acoustic signal. The meter is equipped with functions for Data Hold and Max/Min registration to hold measured values or record peak values. A K-type thermocouple is included for temperature measurements. The multimeter has an automatic shut-off function to extend battery life and a low battery indication.
Application and functionality:
The DM400 is suitable for performing electrical measurements in various applications, from general household use to professional and industrial environments. The main functions are:
- True RMS measurement: Ensures accurate measurement of AC voltage and current, regardless of the waveform.
- Data Hold and Max/Min registration: Functions for locking the current measured value on the display and recording the highest and lowest measured value.
- Temperature measurement: With the included K-type thermocouple, temperatures can be measured in degrees Celsius or Fahrenheit.
- Auto and manual range: Offers the flexibility to select the measurement range automatically or set it manually.
- Backlit display: The large LCD screen is equipped with lighting for good readability in low light.
- Safety category: Complies with CAT III 1000 V and CAT IV 600 V safety standards.
Measurement ranges and functions:
This instrument offers a wide range of measurement functions and ranges for various diagnostic tasks.
- DC voltage: 0.1 mV to 1000 V
- AC voltage (True RMS): 0.1 mV to 750 V
- DC current: 0.1 µA to 20 A
- AC current (True RMS): 0.1 µA to 20 A
- Resistance: 0.1 Ω to 60 MΩ
- Capacitance: 10 nF to 10000 µF
- Frequency: 1 Hz to 10 MHz
- Temperature: -20 °C to 1000 °C
- Duty cycle: 1% to 99%
- Continuity test: Acoustic signal at low resistance
- Diode test: For testing semiconductor diodes

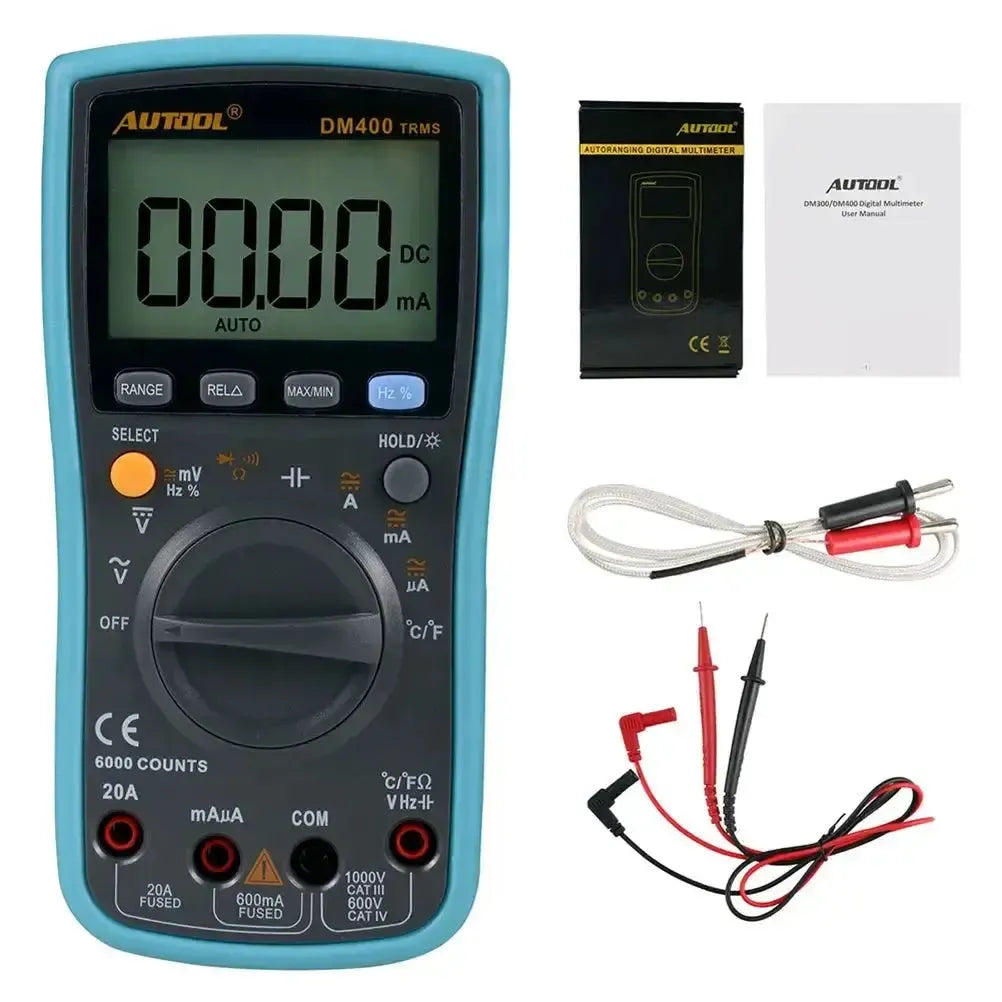

Package Contents:
- 1x Autool DM400 digital multimeter

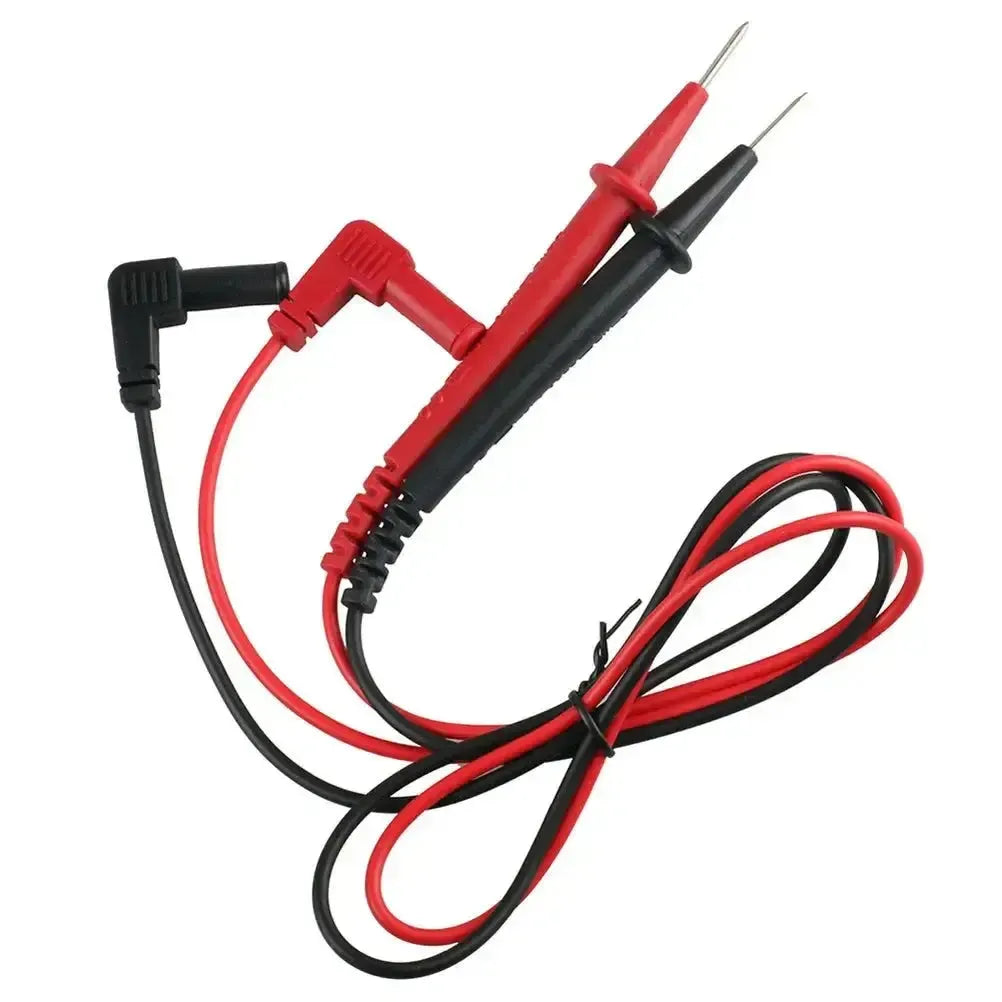

- 1x Set of test leads

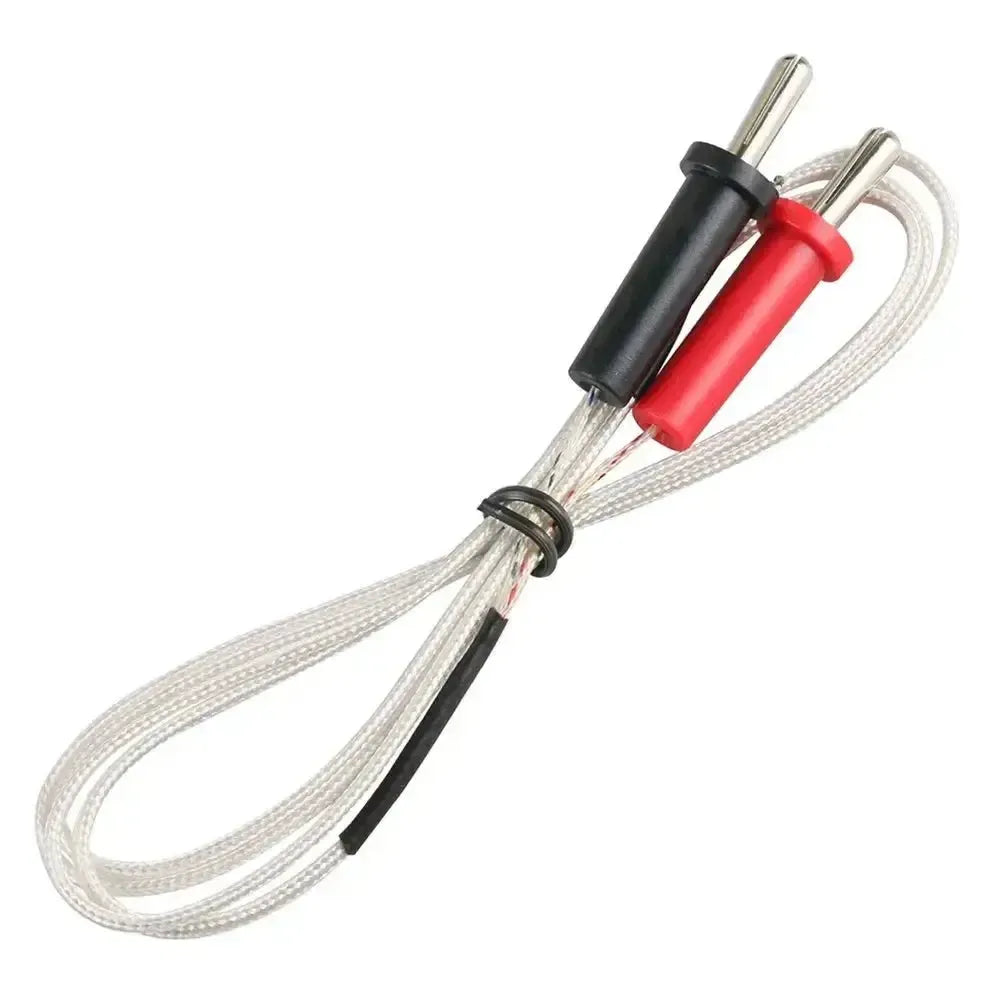

- 1x K-type thermocouple
- 1x Manual
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Autool |
| Product model | DM400 |
| Measurement type | True RMS |
| Display | 6000-count LCD with backlight |
| Range selection | Automatic / Manual |
| Sampling frequency | 3 times per second |
| DC voltage range | 600 mV / 6 V / 60 V / 600 V / 1000 V |
| AC voltage range | 600 mV / 6 V / 60 V / 600 V / 750 V |
| DC current range | 600 µA / 6000 µA / 60 mA / 600 mA / 20 A |
| AC current range | 600 µA / 6000 µA / 60 mA / 600 mA / 20 A |
| Resistance range | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ |
| Capacitance range | 10 nF / 100 nF / 1 µF / 10 µF / 100 µF / 1000 µF / 10000 µF |
| Frequency range | 5 Hz / 50 Hz / 500 Hz / 5 kHz / 50 kHz / 500 kHz / 5 MHz / 10 MHz |
| Temperature range | -20 °C to 1000 °C |
| Safety category | CAT III 1000 V, CAT IV 600 V |
| Power supply | 2x 1.5V battery (not included) |
| Automatic shutdown | Yes (manually deactivatable) |
| Operating environment | 0 °C to 40 °C, relative humidity <80% |
