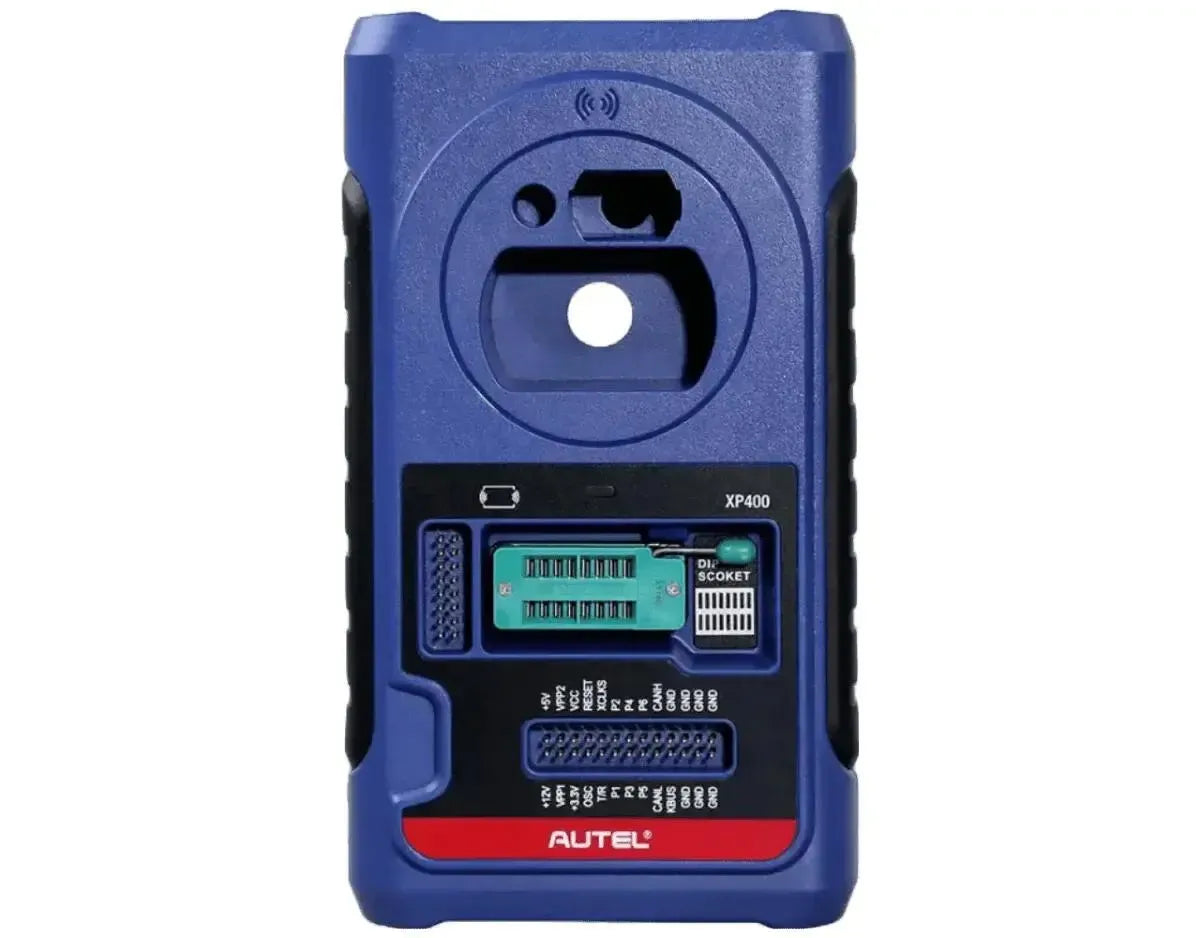

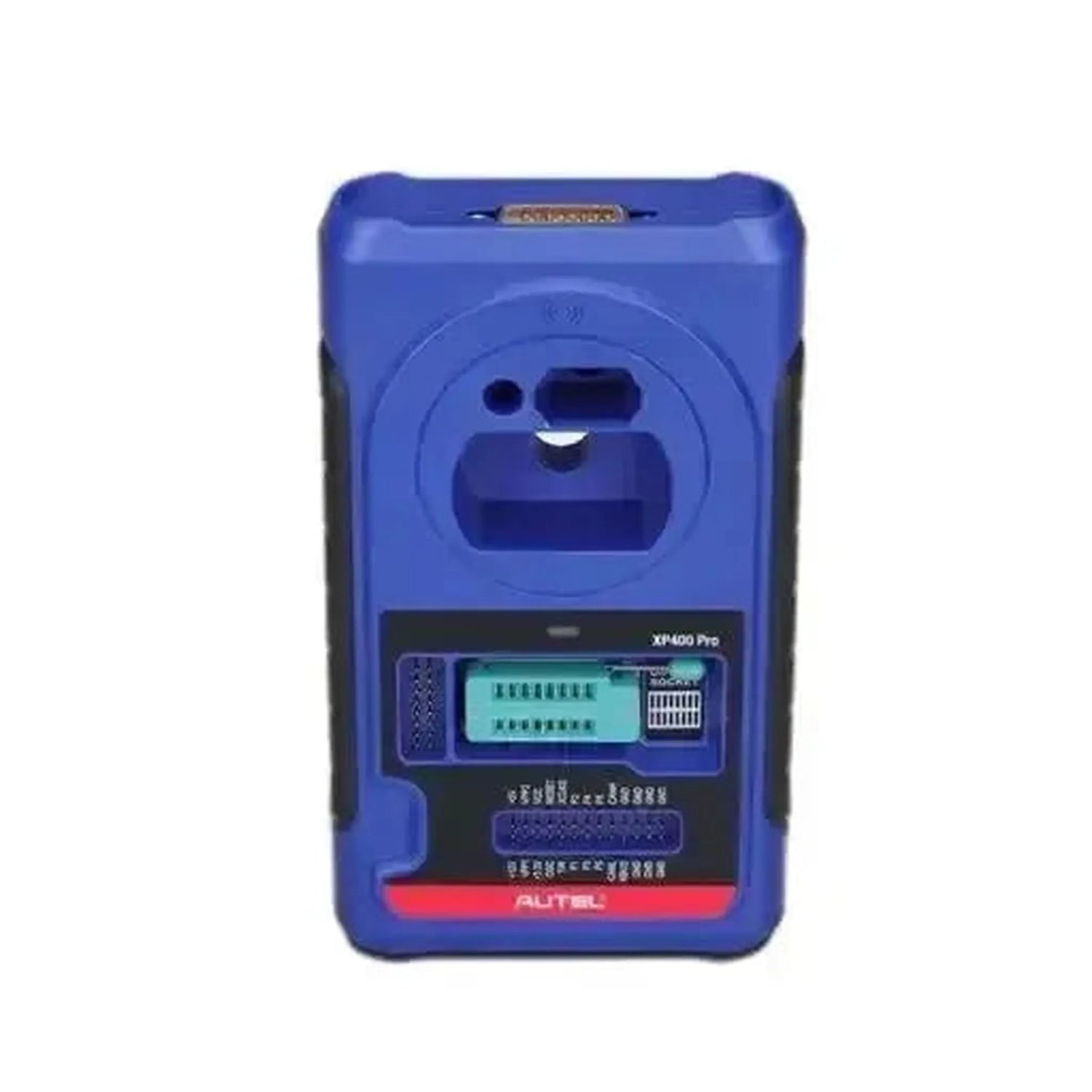

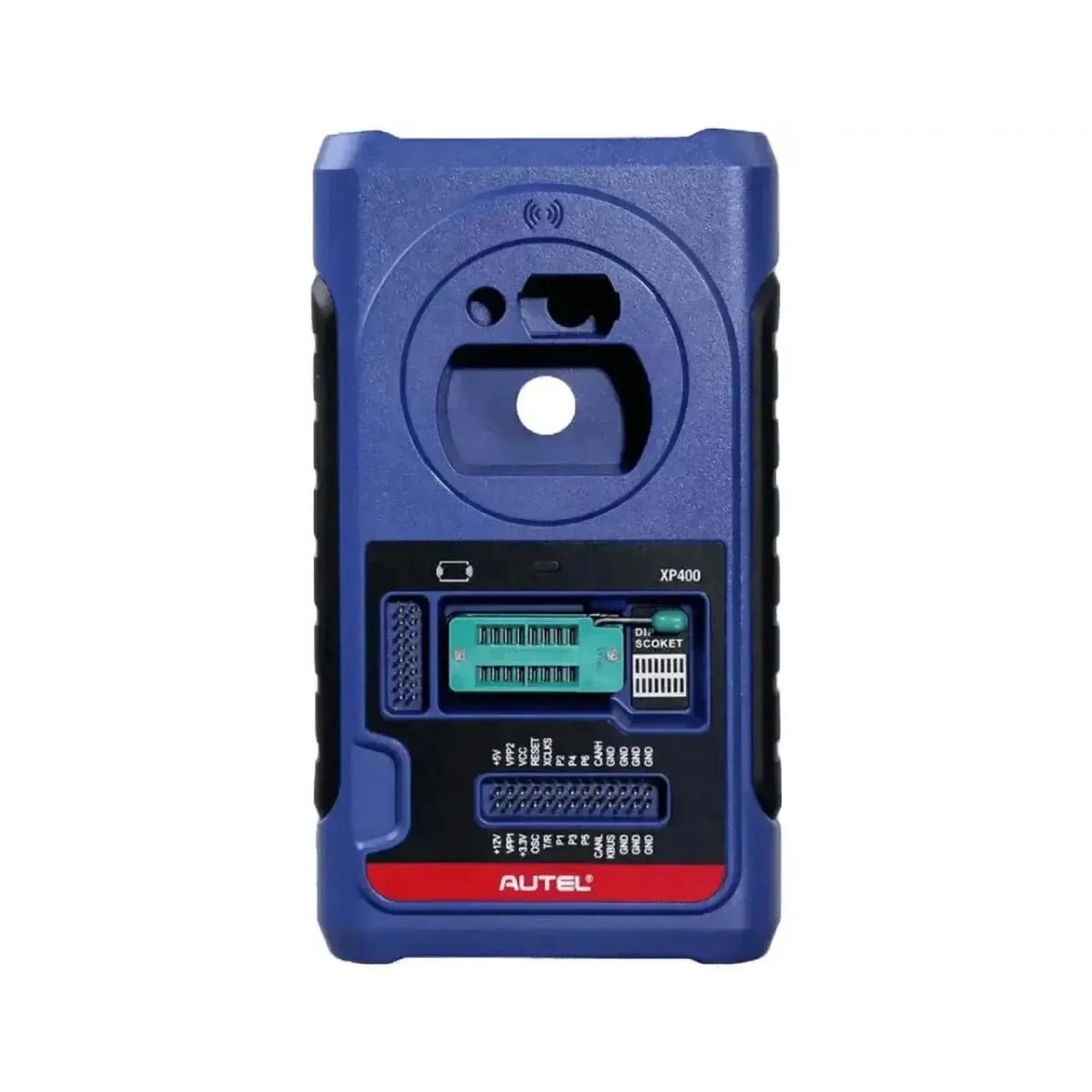

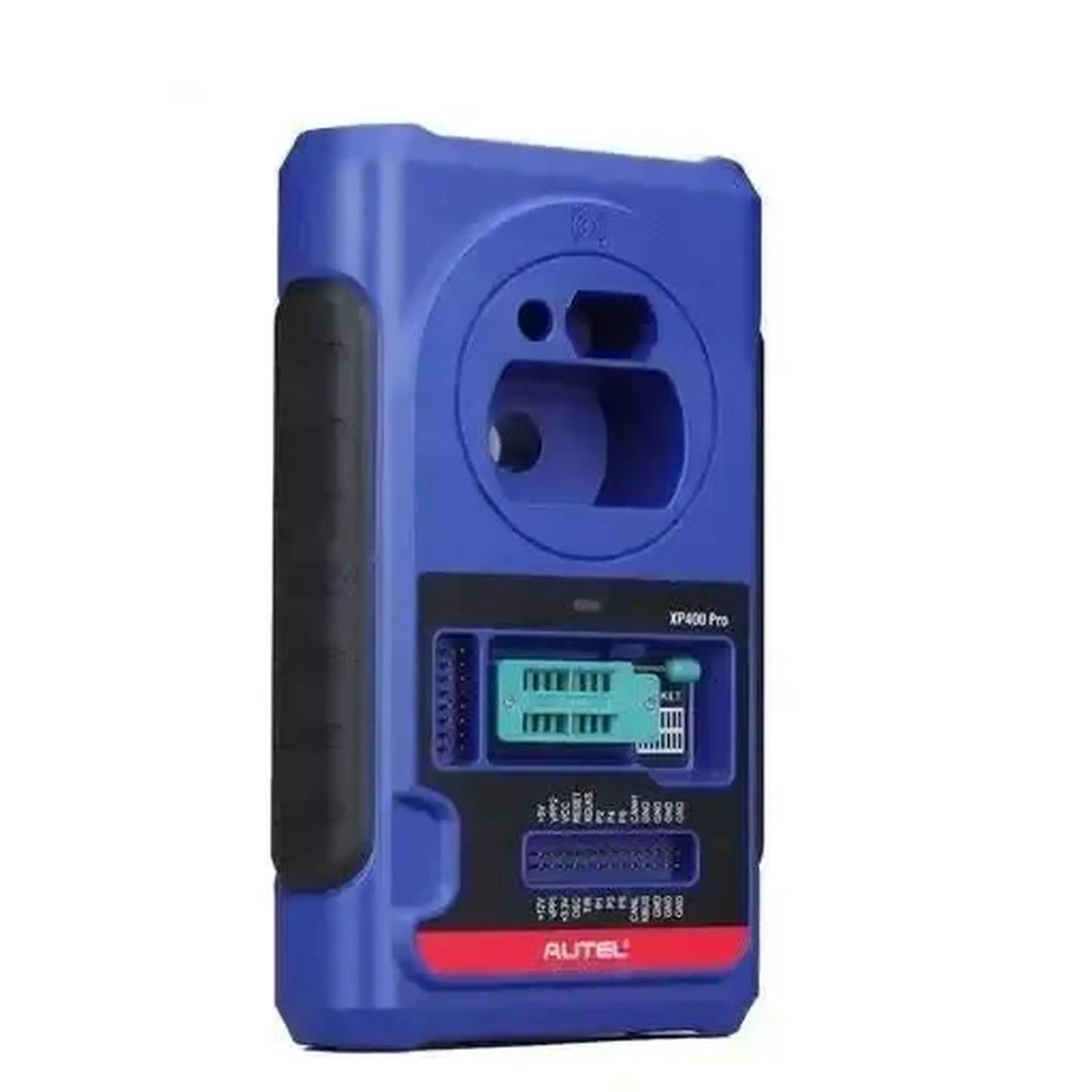

The Autel XP400 Pro is an all-in-one key programmer designed for reading, writing, and programming transponders, key chips, EEPROM and MCU memories, and immobilizer components. The device connects to a compatible Autel diagnostic platform and functions as an external programming interface for work performed outside the vehicle on the workbench. The housing includes a transponder reader, a DIP socket for IC chips, and multiple connectors for EEPROM, MCU, and ECU operations via included adapters and cables.

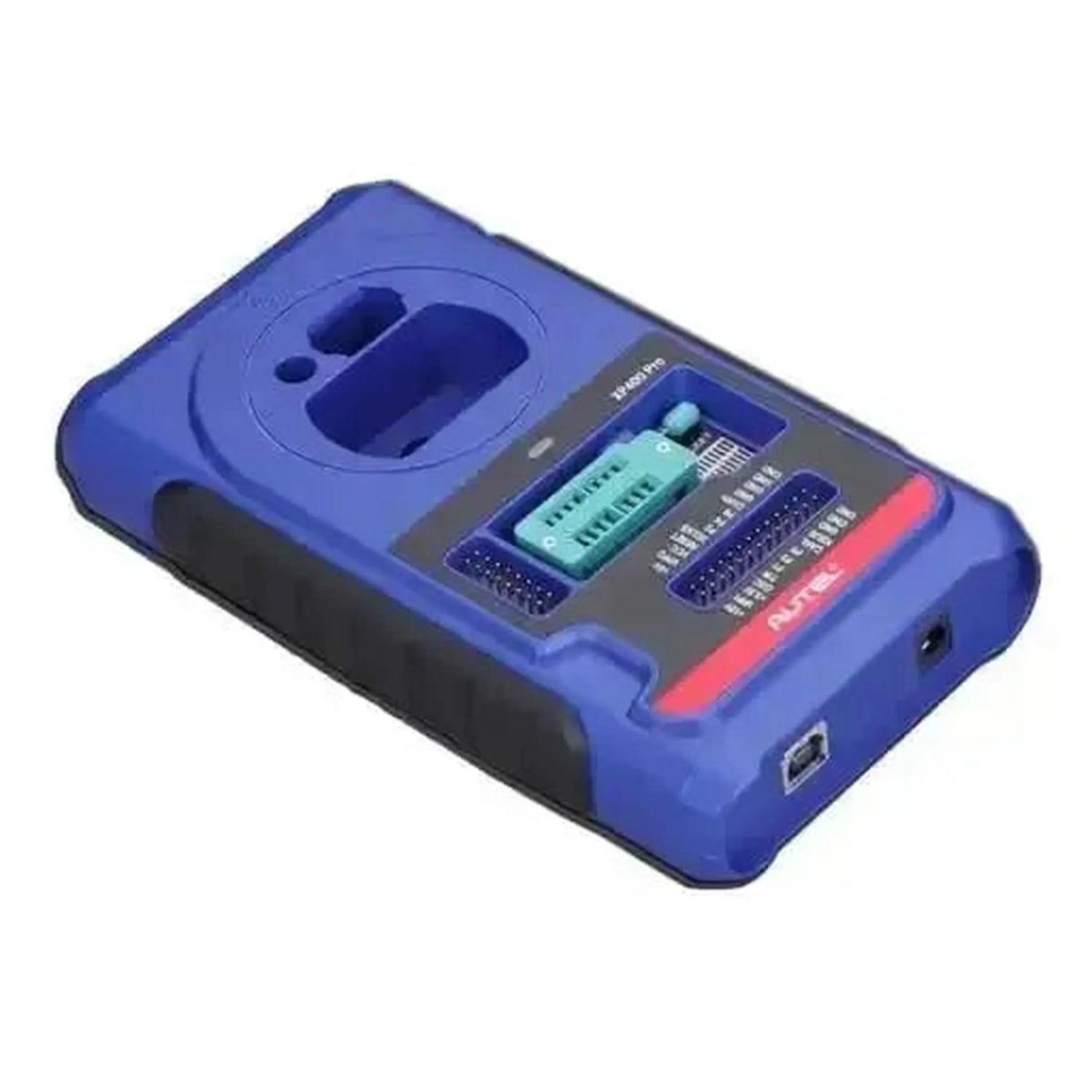

During use, the XP400 Pro communicates via a USB connection with the host device, after which operation is fully controlled via the tablet or PC. For chip-level operations, the IC is placed in the DIP socket or connected via one of the included EEPROM adapter boards. For ECU and BCM operations, the APB cables and solder wires are used to make a direct connection to the control module. The integrated transponder reader detects and programs key chips without disassembly, and data is exchanged in real time with the diagnostic software on the host device.
ADVANTAGES
KEY POINTS
Applications and functionalities
The Autel XP400 Pro supports the following key and chip operations:
- Transponder reading and writing: Detects the type of transponder in a key and programs new chips for use in the vehicle.
- Key chip copying: Copies data from an original key to a blank transponder for spare keys.
- EEPROM reading and writing: Reads and writes EEPROM memories via the DIP socket or the included adapter circuit boards.
- MCU reading and writing: Performs operations on microcontrollers within immobilizer and BCM modules.
- IMMO data processing: Reads immobilizer data from ECUs and BCMs for key learning and replacement procedures.
- Pincode reading: Retrieves the required pincode from the vehicle system for key programming.
- Remote control generation: Programs and pairs remotes to the vehicle via the Autel platform.
Special features and capabilities
The XP400 Pro offers some features that distinguish this version from the standard XP400:
- Extended chip support: Supports additional MCU and EEPROM types not covered by the standard XP400, including broader support for modern immobilizer systems.
- MQB immobilizer operations: Supports key learning and data reading operations on MQB platform vehicles via the included adapters.
- BMW and Mercedes IMMO support: Processes FBS3 and CAS modules for key replacement on specific premium brands.

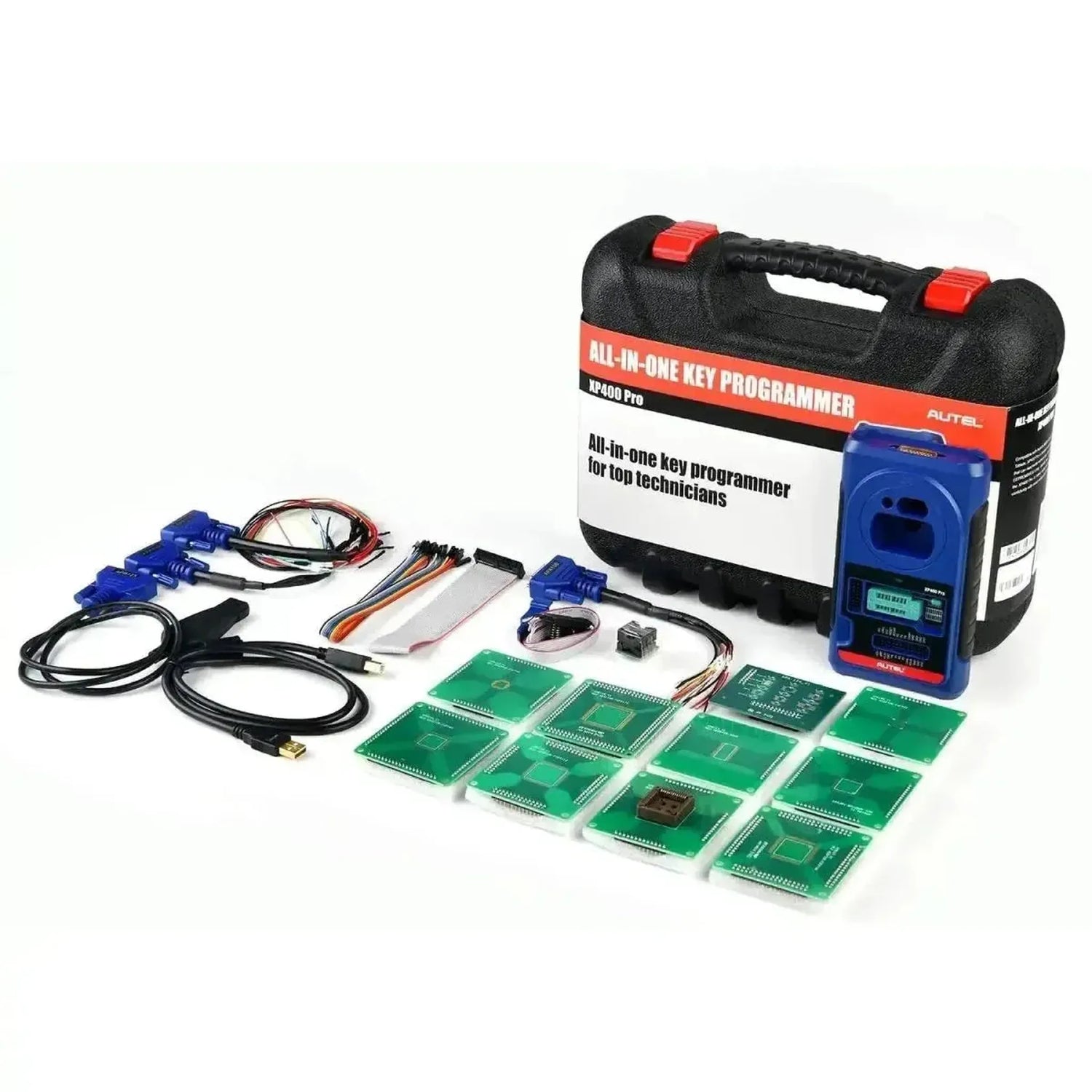

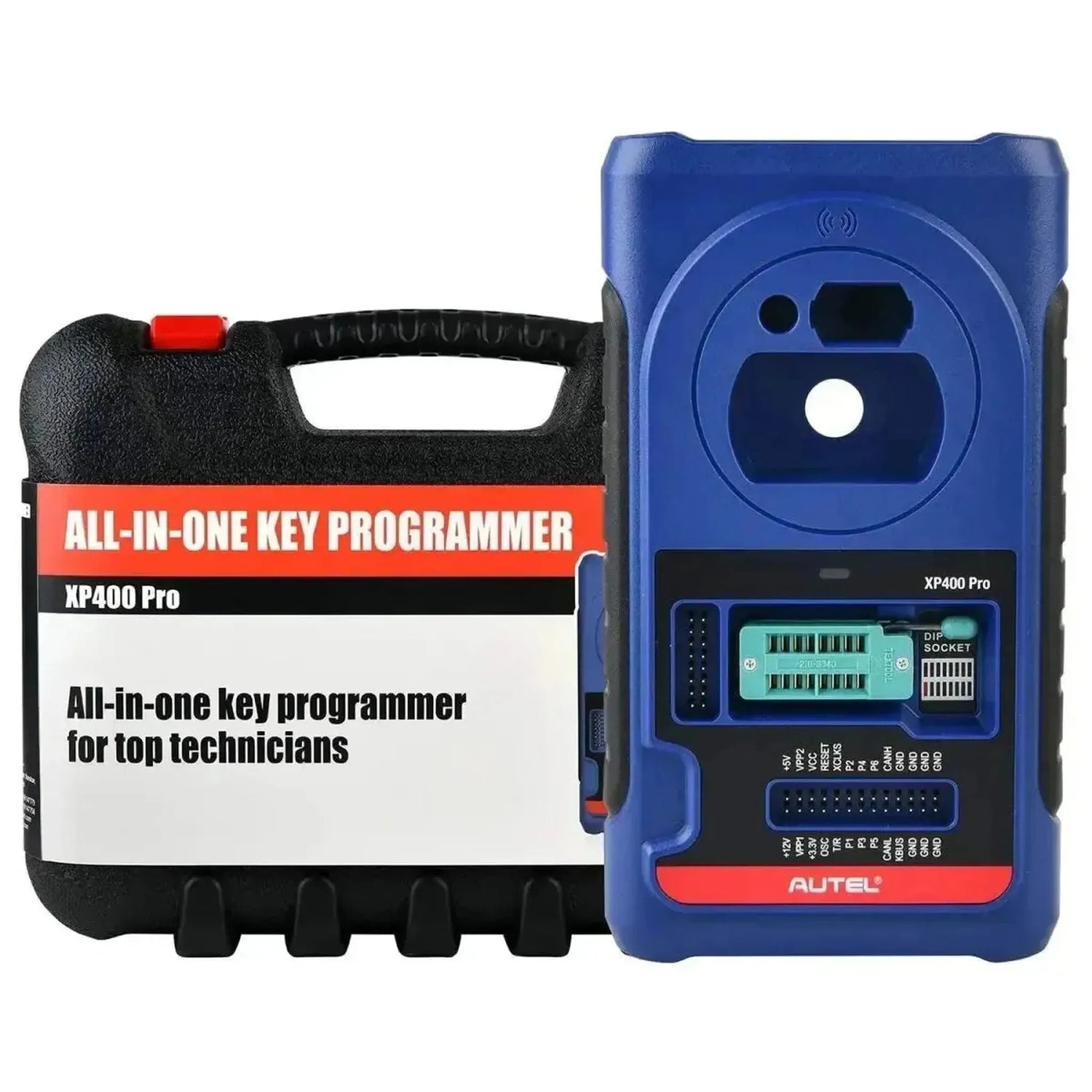

Package Contents
- 1x Autel XP400 Pro | Key programmer
- 1x USB cable
- 1x APB112 smart key emulator
- 1x APA101 EEPROM clip
- 1x APA002 EEPROM adapter
- 1x APA003 cable set

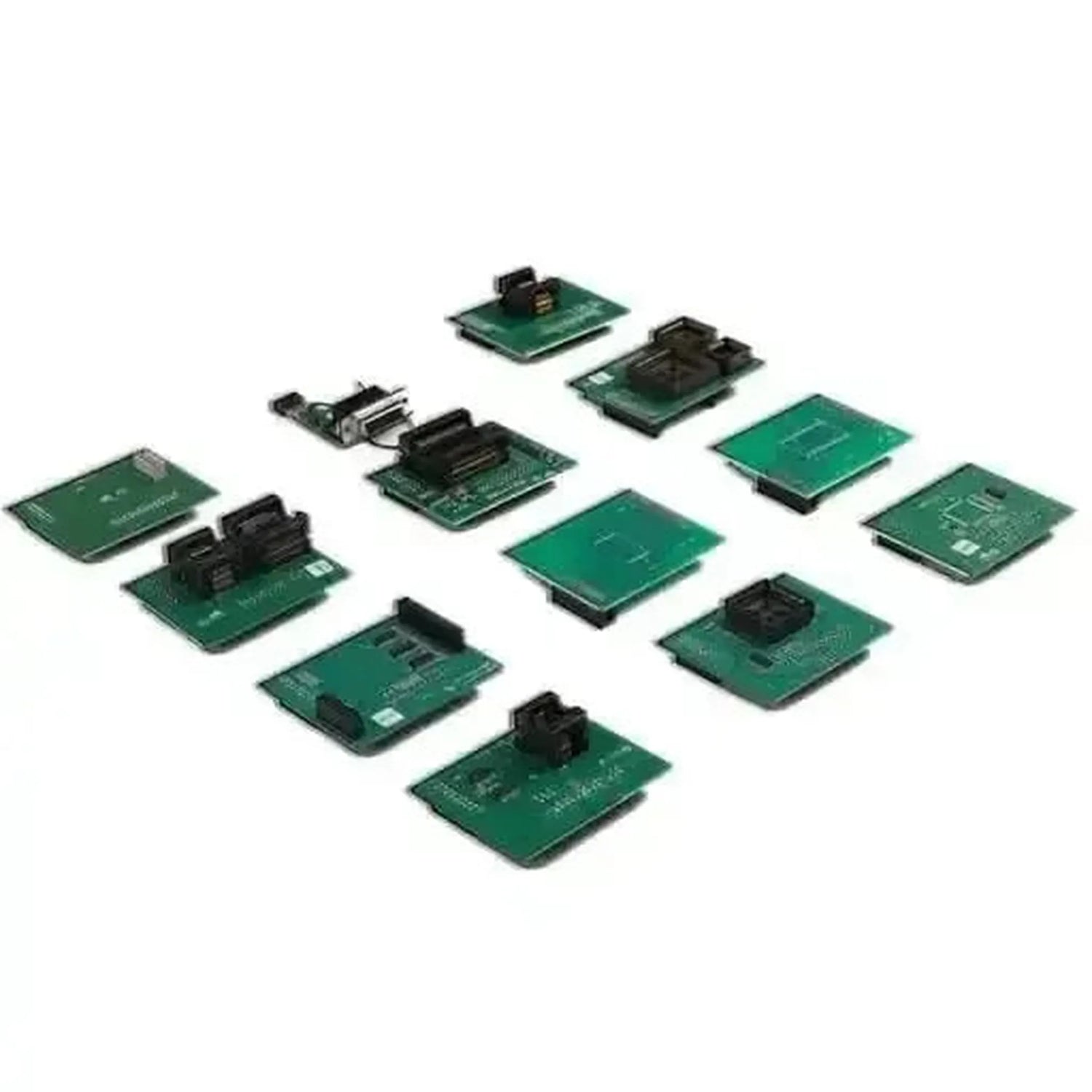

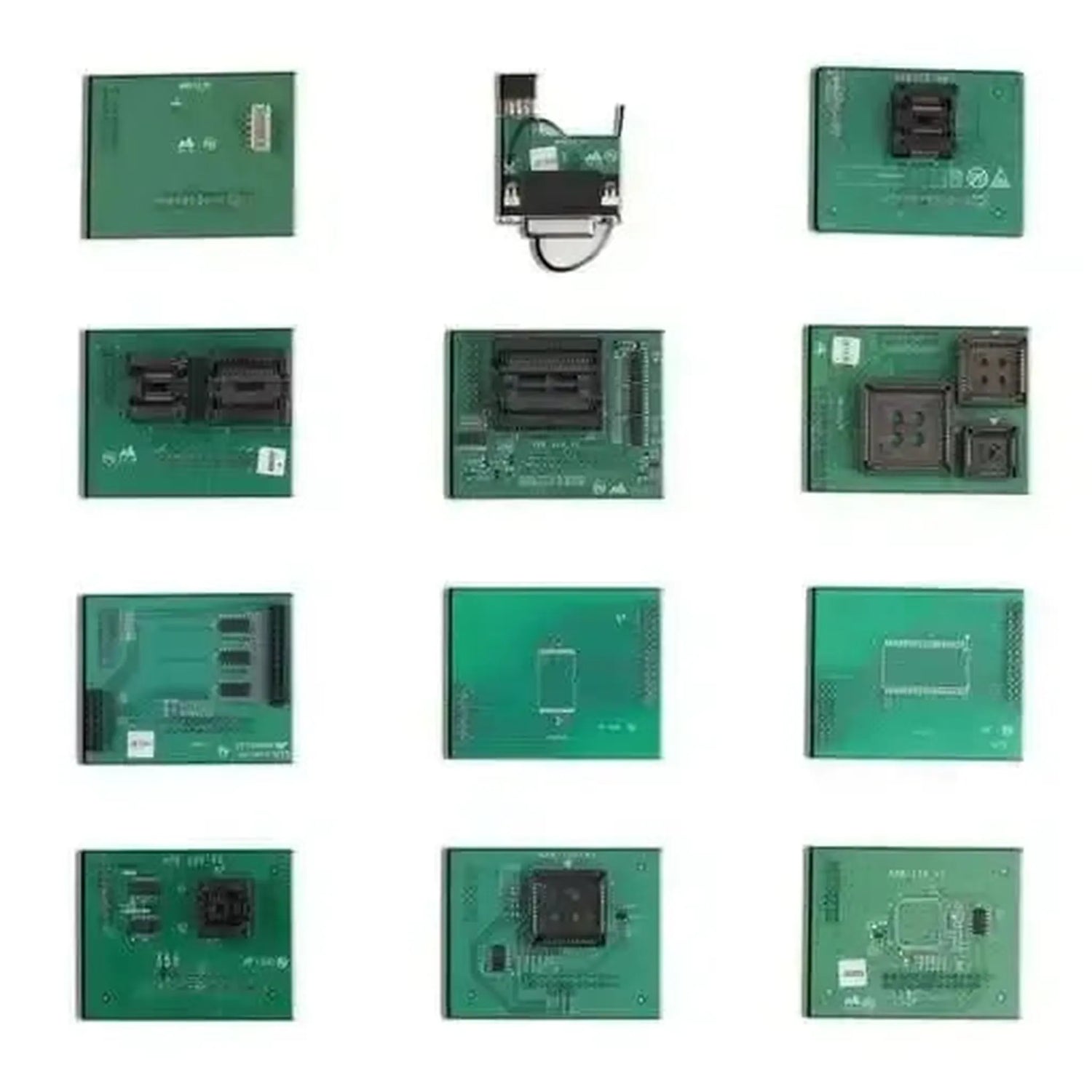

- 1x Set of EEPROM adapter circuit boards
- 1x Set of read/write solder wires

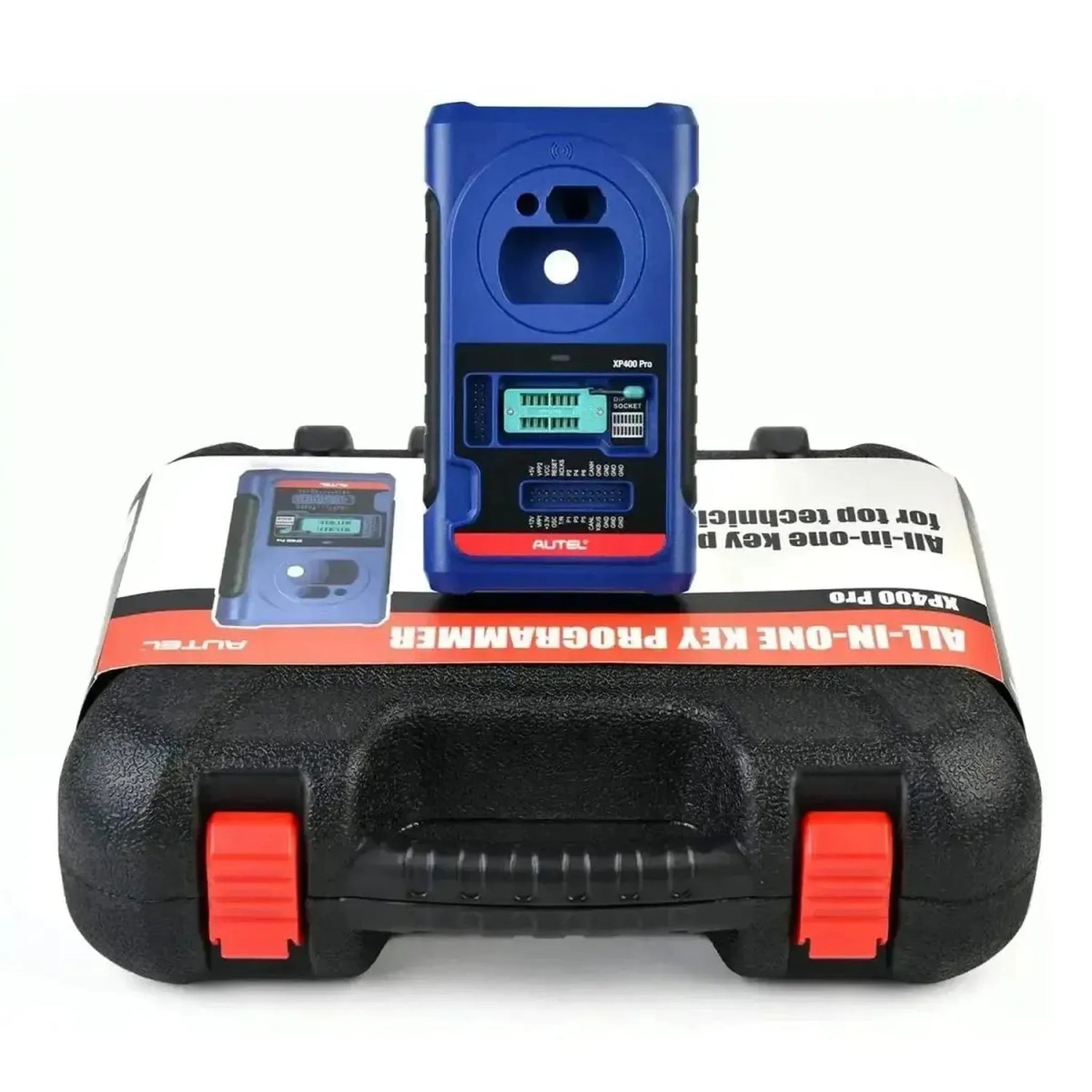

- 1x Storage case
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Autel |
| Product model | XP400 Pro |
| Type | All-in-one key programmer |
| Connection | USB |
| Functions | Transponder reading/writing, EEPROM, MCU, IMMO, pincode reading |
| Memory support | EEPROM and FLASH |
| Compatibility | Autel diagnostic tablets with key programming functionality |
| Housing | Plastic with rubber protection |
