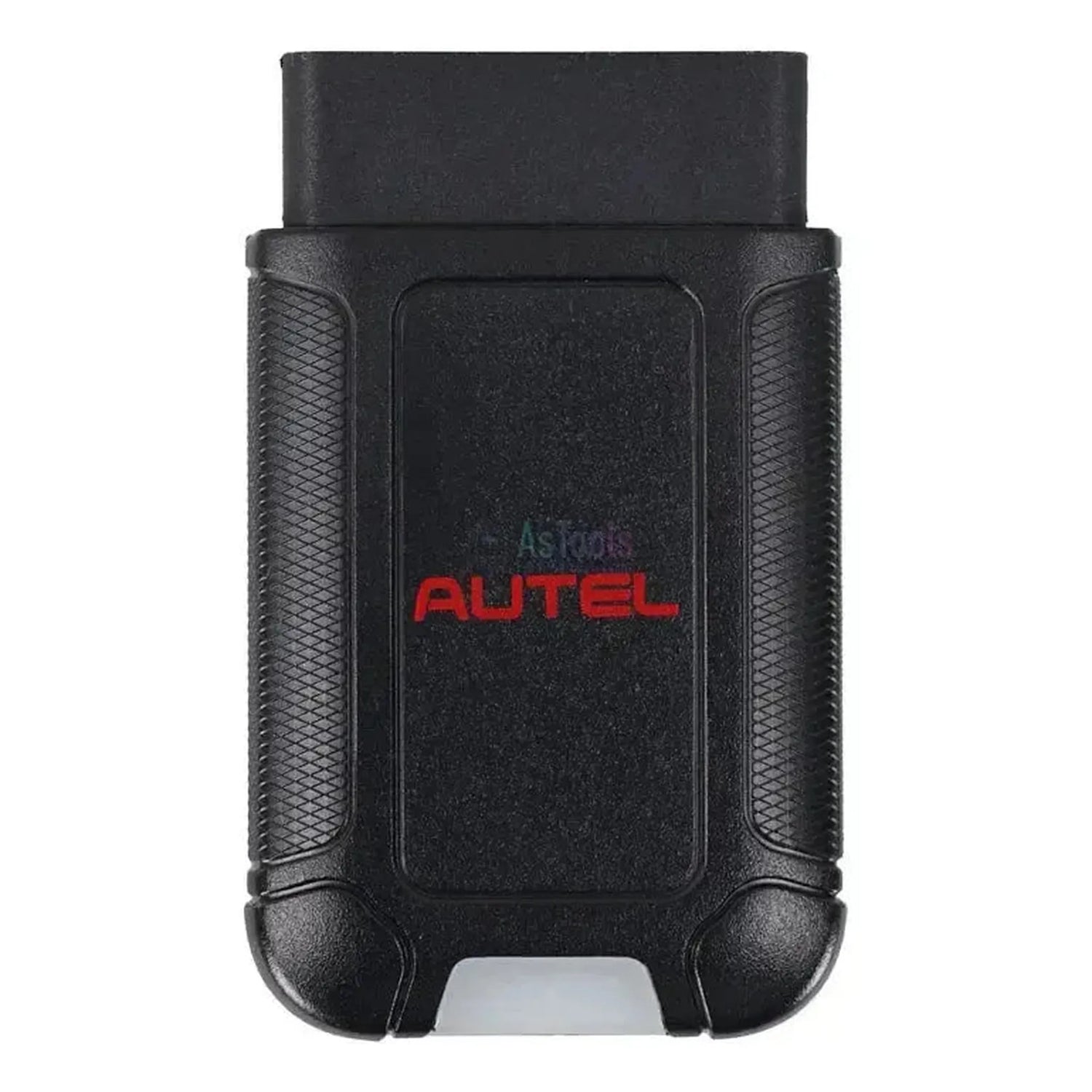

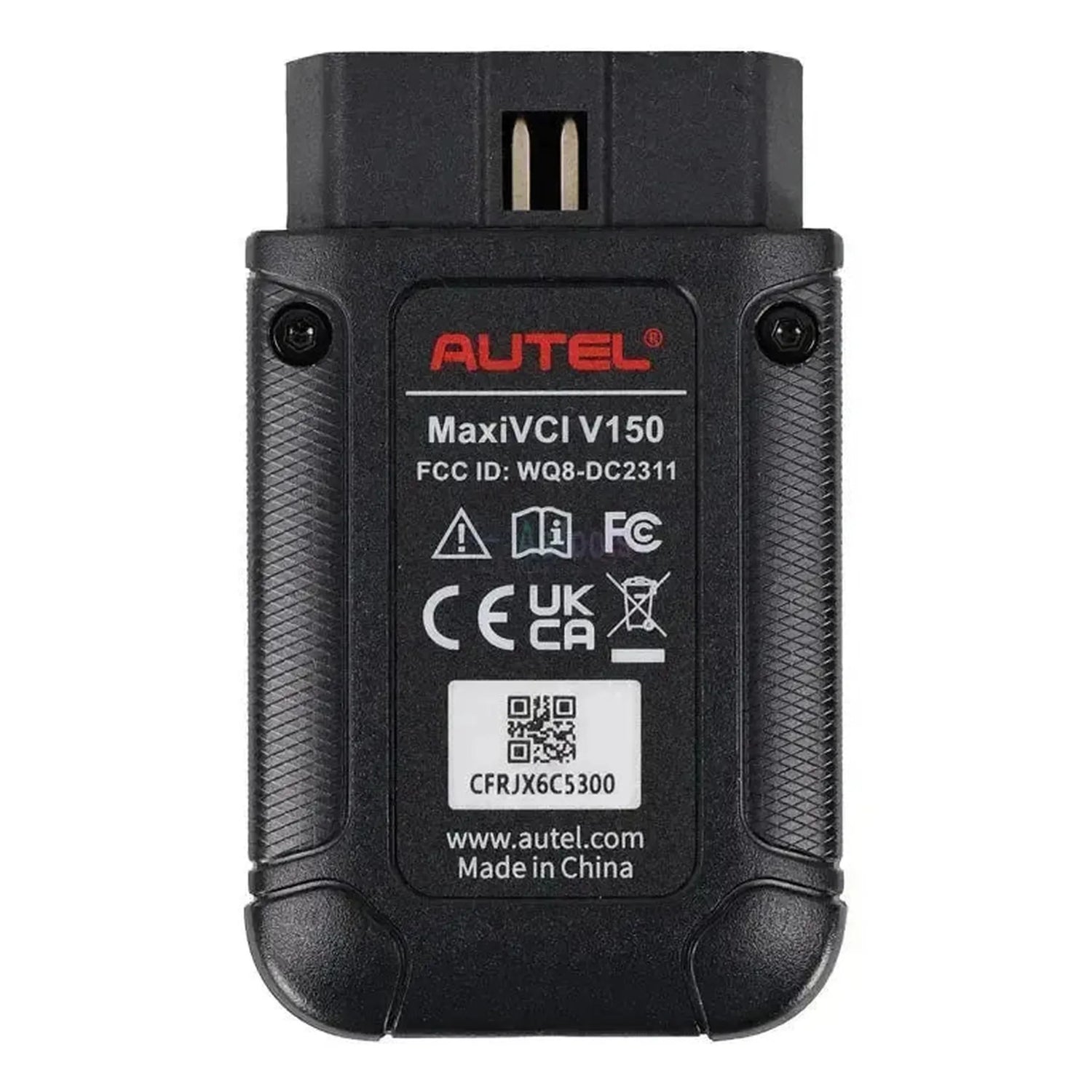

Autel MaxiVCI V150 Interface
The Autel MaxiVCI V150 is a wireless vehicle communication interface (VCI) that connects via Bluetooth between an Autel diagnostic device and the vehicle. The device connects to the vehicle's OBD-II port and acts as a bridge for data transfer, allowing diagnostic functions such as fault code reading, live data display, and system tests to be performed efficiently.
Thanks to support for the latest OBD2 protocols, including DoIP and CAN-FD, the MaxiVCI V150 is suitable for modern vehicles with advanced electronic systems. The wireless Bluetooth technology offers a working range of up to 10 meters, giving technicians flexibility during diagnostic tasks.
Note: The Autel MaxiVCI V150 is intended solely as a replacement for a defective or lost original VCI in compatible Autel diagnostic devices.
Package contents:
- Autel MaxiVCI V150 Interface
Technical specifications
| Specification | Value |
|---|---|
| Communication | Bluetooth v2.1 + EDR |
| Wireless range | Up to 10 meters |
| Power supply voltage | 12V DC via OBD-II |
| Operating temperature | 0°C to +50°C |
| Storage temperature | -20°C to +70°C |
| Dimensions | 89.8 mm x 47.1 mm x 21.1 mm |
| Weight | 70.7 grams |
| Protocol support | OBDII, CAN, ISO9141, KWP2000, J1850 PWM, J1850 VPW, UDS, DoIP, CAN-FD |
