Autel KM100E | Key Programmer | Car

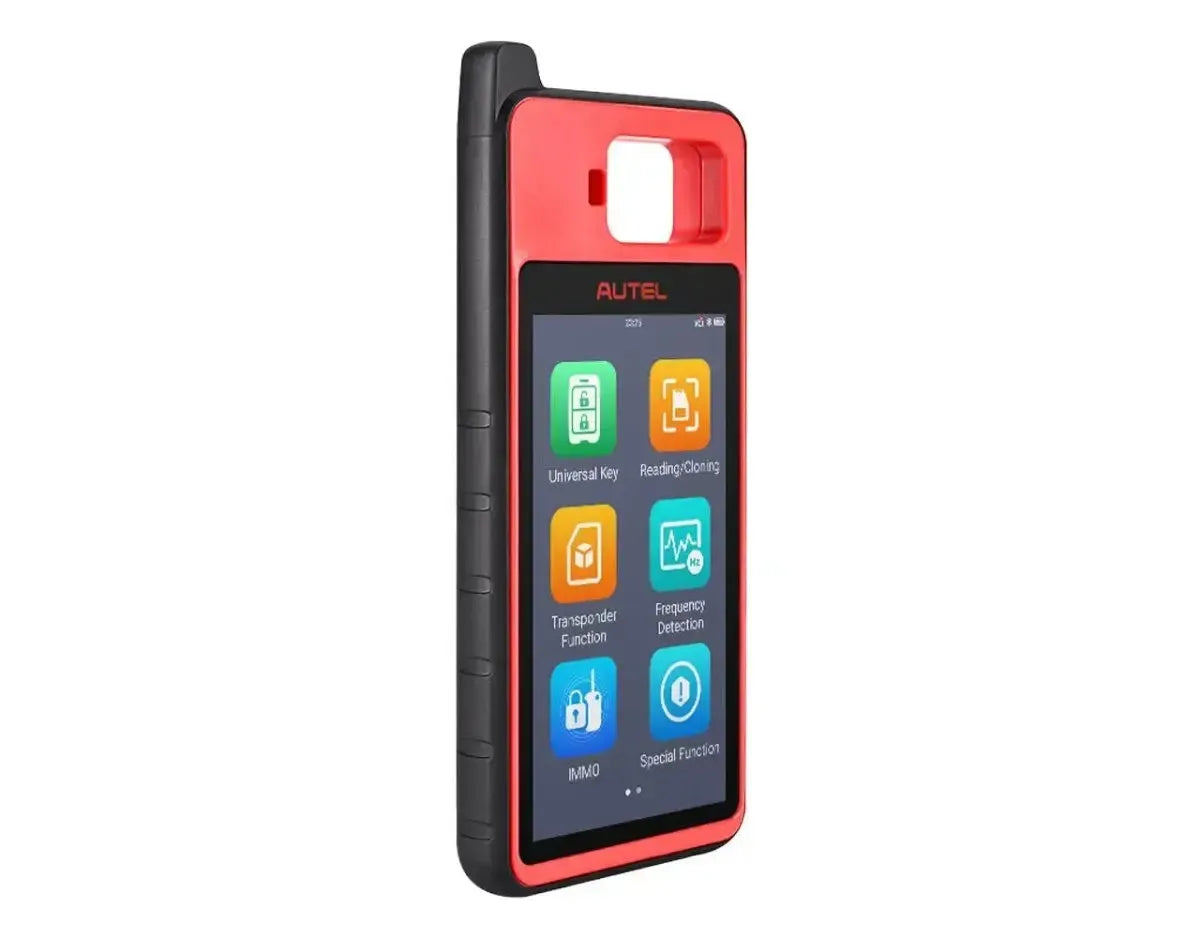

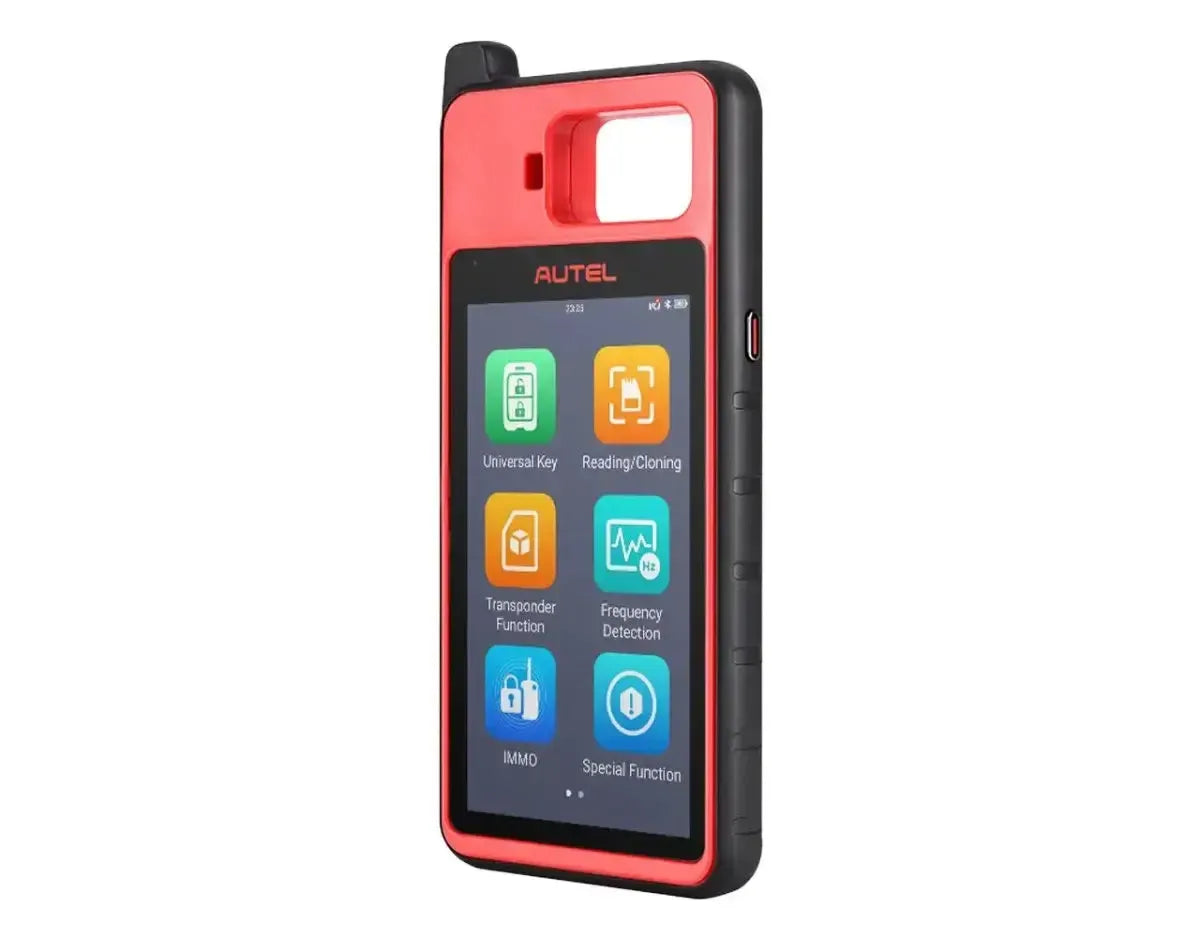

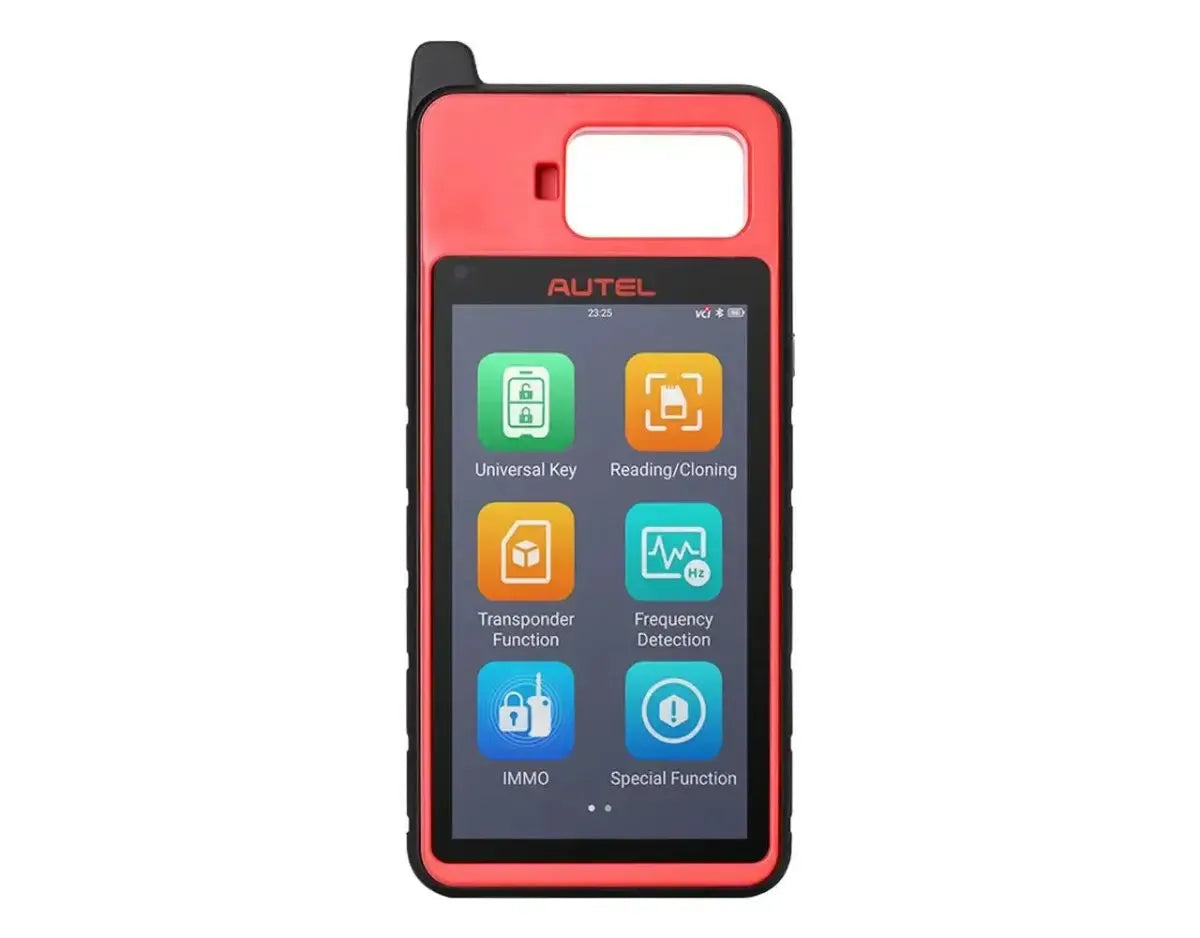

The Autel MaxiIM KM100E is an advanced and fully wireless key programmer and transponder tool, developed for automotive key specialists, locksmiths, and professional garages. This compact yet powerful device is equipped with a 5.5-inch HD touchscreen, runs on Android 9.0, and offers an intuitive user interface for fast and accurate key procedures. The KM100E excels in generating universal Autel I-Keys, cloning and editing transponders, performing IMMO learning procedures, and programming smart keys for a wide range of vehicles.

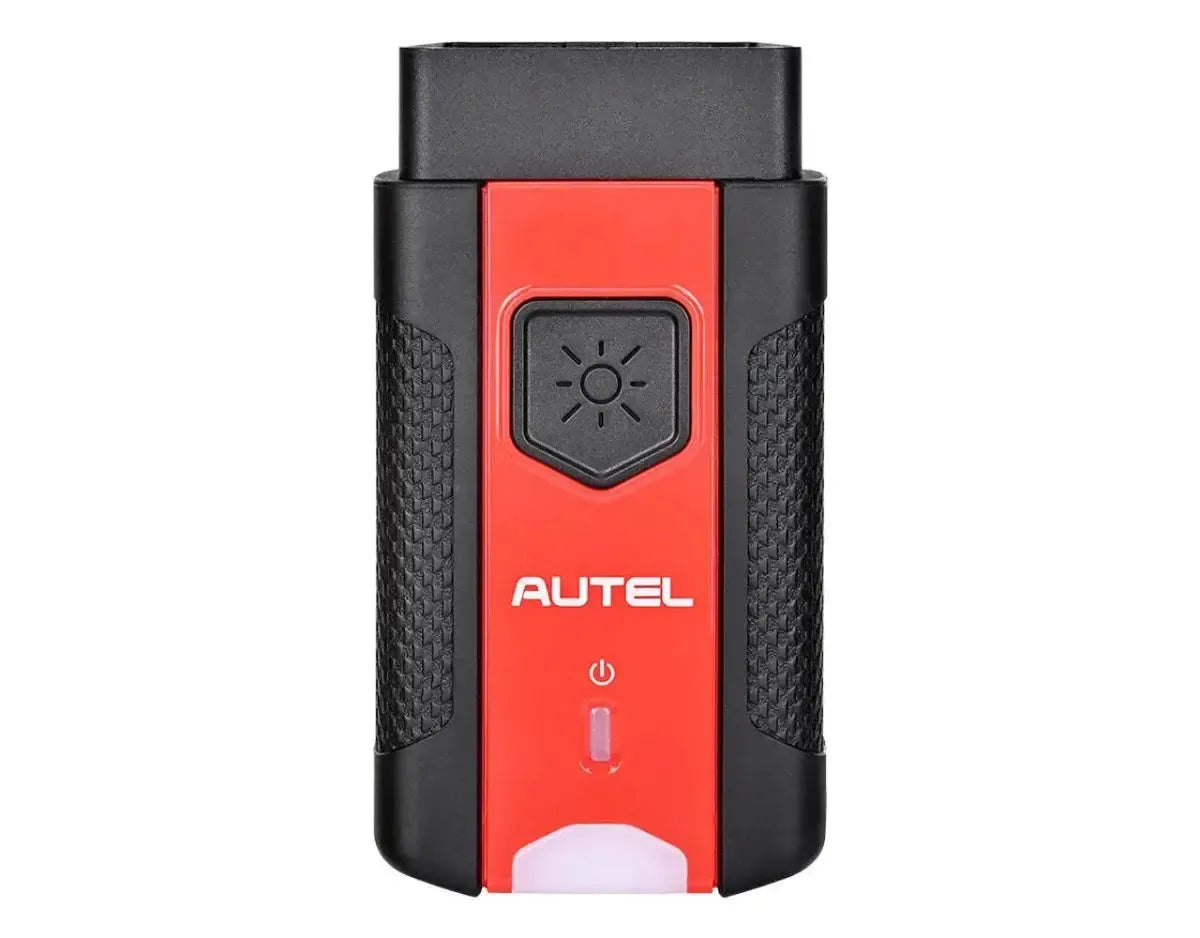

Communication with the vehicle is via the included MaxiVCI V200, which enables a stable wireless OBD2 connection. This allows IMMO functions to be performed quickly and without wiring. An important advantage of the KM100E is the lifetime free software updates. This ensures the user permanently retains access to the latest features, vehicle support, and transponder types – without annual license fees. This makes the KM100E a particularly cost-effective and future-proof investment for key professionals.

Key & transponder functions:

The KM100E is specifically developed for key and transponder management and offers extensive OE-level functionality. Thanks to support for more than 700 vehicle models, fast key generation, and versatile transponder tools, this device is ideal for key professionals, garages, and locksmiths.

• Universal key generation (in 60 seconds): Generates a fully functional Autel I-Key within one minute, compatible with more than 700 vehicle models from various brands.
• IMMO learning procedures via OBD: Supports original key learning procedures via the OBD port for more than 90% of vehicles on the road, including brands such as BMW, Volkswagen, Toyota, Honda and GM.
• Reading, writing, and cloning transponders:
• Reading: Identifies chip type, immobilizer structure, transponder ID, and lock status.
• Cloning: Duplicates existing transponders, making OBD learning not always necessary.
• Editing: Supports 20 protocols for modifying transponder data.
• Key Renewal: Unlocks previously used or locked smart keys from 36 vehicle brands, so they can be reprogrammed.
• Transponder Simulation: Uses the KM100E to simulate a transponder in emergencies or for testing purposes (e.g., ID46, ID47, ID49).
• Frequency Detection: Detects the transmission frequency of a key (e.g., 315 MHz, 433 MHz), to check remote control functionality.
• Coil Detection: Checks whether the ignition lock coil is active and emits signals when a key is presented.

Additional features and special capabilities:

The KM100E is designed with smart support features that simplify and speed up the key programming process. These features make the device not only powerful but also very user-friendly – even for less experienced technicians.

• AutoVIN Technology: Automatically recognizes the vehicle via the 17-digit chassis number (VIN) as soon as the VCI is connected. This ensures fast, error-free vehicle identification, which is crucial for the correct execution of IMMO and key procedures.
• Guided Instructions: Guides the user with clear step-by-step on-screen directions during every key or IMMO procedure. Instructions such as “turn on the ignition” or “press the hazard lights” make the workflow intuitive and reduce the chance of errors that could block the immobilizer system.
• Extensive IMMO database: The KM100E contains an integrated vehicle and chip database, with information about chip types, transponder structures, known faults, disassembly instructions, and vehicle-specific tips. This knowledge is directly available on the device, without the need for additional resources.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, BMW, Citroën, Dacia, Ferrari, Fiat, FordEU, Jaguar, Lancia, Land Rover, Maserati, MINI, Opel, Peugeot, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volvo
• Asian brands: Acura, BAIC Huansu, BAIC Motor, BAIC Ne, BAIC Senova, BAIC Weiwang, Baojun, Brilliance, BYD, Changan, Changhe, Chery, Daihatsu, Emgrand, Englon, Foton, GAC Motor, Geely, Gleagle, Great Wall, Hafei, Haima, Haval, Honda, Hyundai, Infiniti, Isuzu, JAC, JMC, Karry, Kia, Land Wind, Lexus, Lifan, Luxgen, Mazda, Maple, MG, Mitsubishi, Nissan, Rely, Riich, Roewe, SAIC Maxus, Scion, SsangYong, Subaru, Suzuki, TJFAW, Toyota, WEY, Zotye
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Hummer, Jeep

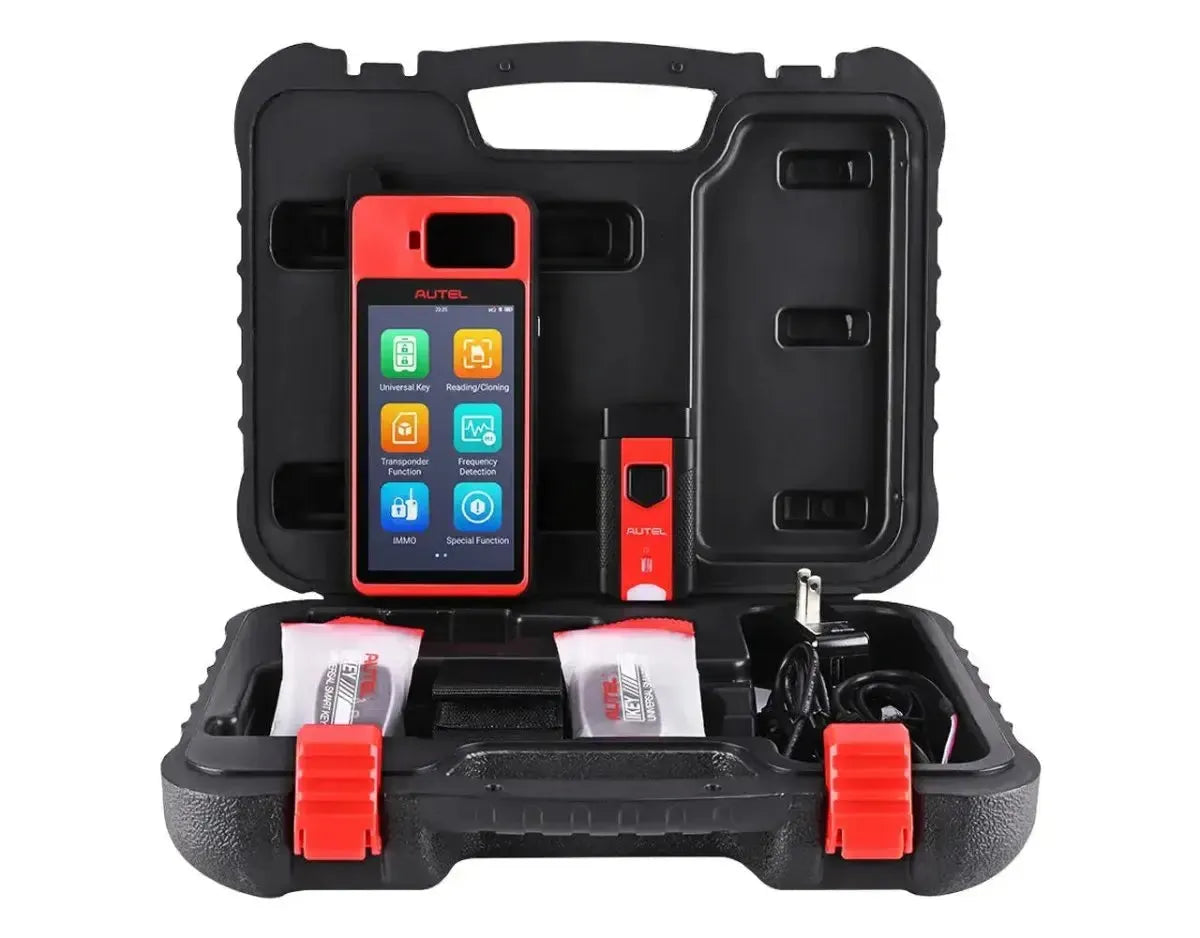

Package Contents:

• Autel KM100E Key Programmer
• Autel MaxiVCI V200 Interface
• Autel IKEY (2 pieces)
• USB-C - USB-C Adapter Cable
• USB-A - USB-C Adapter Cable
• USB-A - 6 Open End Adapter Cable
• Charging plug
• Manual

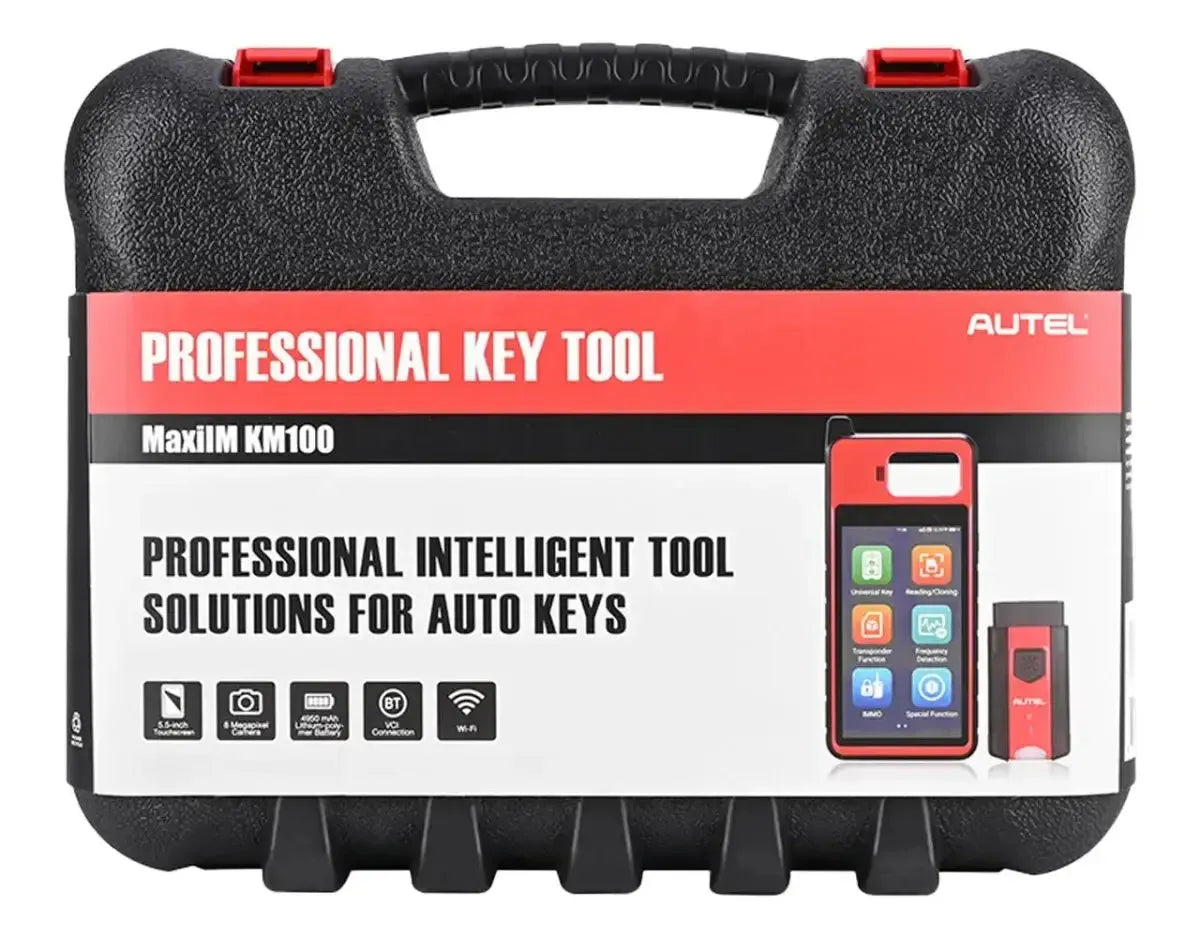

• Storage case

License information:

The Autel MaxiIM KM100E comes standard with lifetime free software updates. There are no annual license fees required for using features or receiving new vehicle coverage, system improvements, and transponder support.

Users thereby have permanent access to the latest functionalities, without additional subscription costs – making the KM100E a very cost-effective and future-proof investment.

Technical specifications
