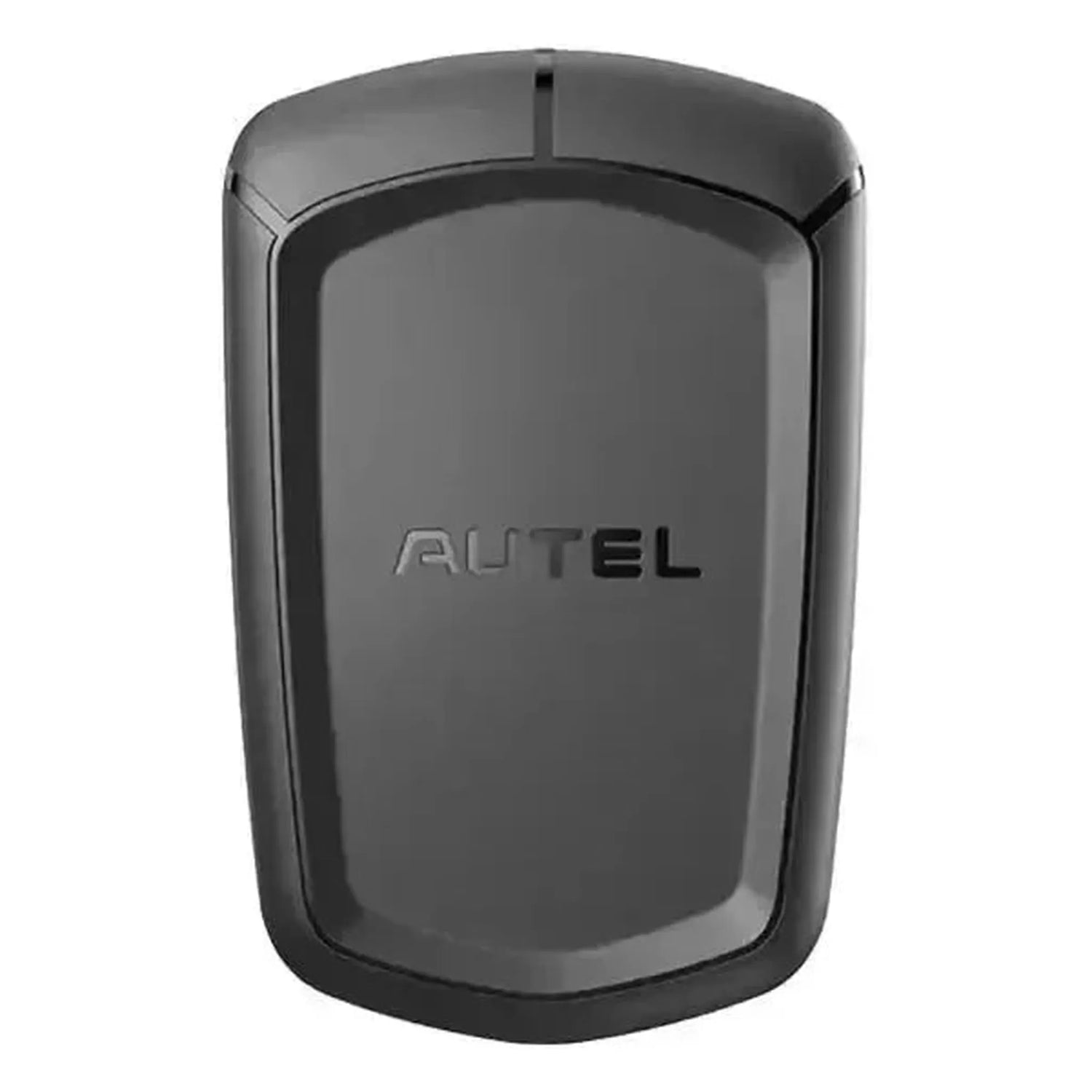

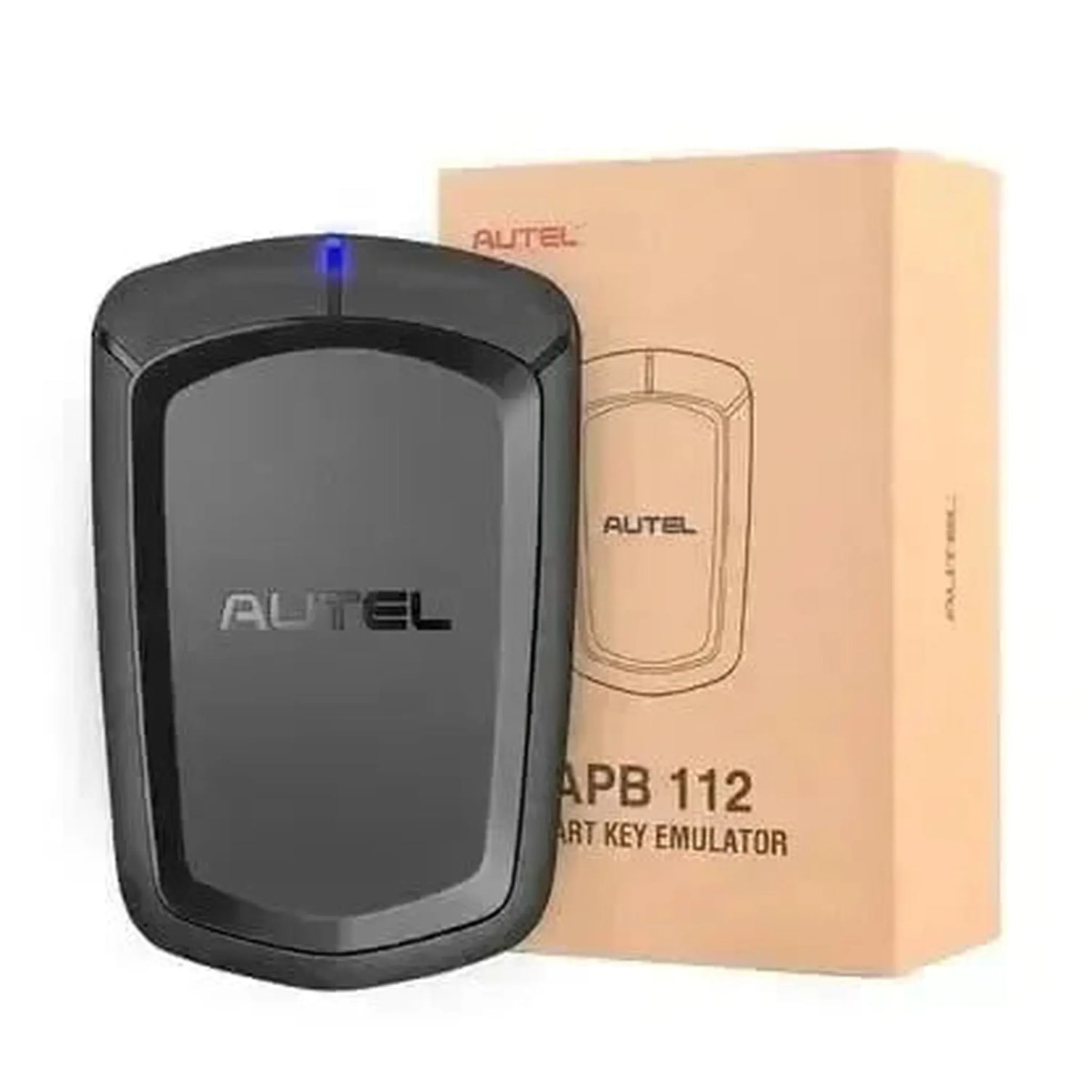

The Autel APB112 Smart Key Emulator is an accessory for key programming that works with Autel diagnostic platforms such as the IM508, IM608, and the XP400/XP400 Pro key programmer. The device emulates a smart key and is used to read, collect, and temporarily store transponder data from an existing key. This allows the technician to reconstruct the EEPROM data package of an original key when a physical key is missing or damaged.
The device connects via USB to the Autel tablet or XP400 programmer and functions as a signal source to the vehicle. During a key replacement procedure, the APB112 simulates communication with the immobilizer (IMMO), allowing the diagnostic platform to calculate the PIN code, secret key, and associated EEPROM data. This speeds up All Keys Lost procedures and key learning routines on compatible vehicle models.
ADVANTAGES
HIGHLIGHTS
Applications and functionalities
The APB112 supports the following key and IMMO operations:
- Key emulation: Simulates a smart key towards the vehicle so the diagnostic platform can establish communication with the immobilizer.
- EEPROM data collection: Reads and collects transponder data from an existing key to build the data file for key replacement.
- Support for PIN code calculation: Provides the necessary signal information for the Autel platform to calculate the PIN code and secret key.
- All Keys Lost procedure: Enables key replacement on vehicles where no working key is available.

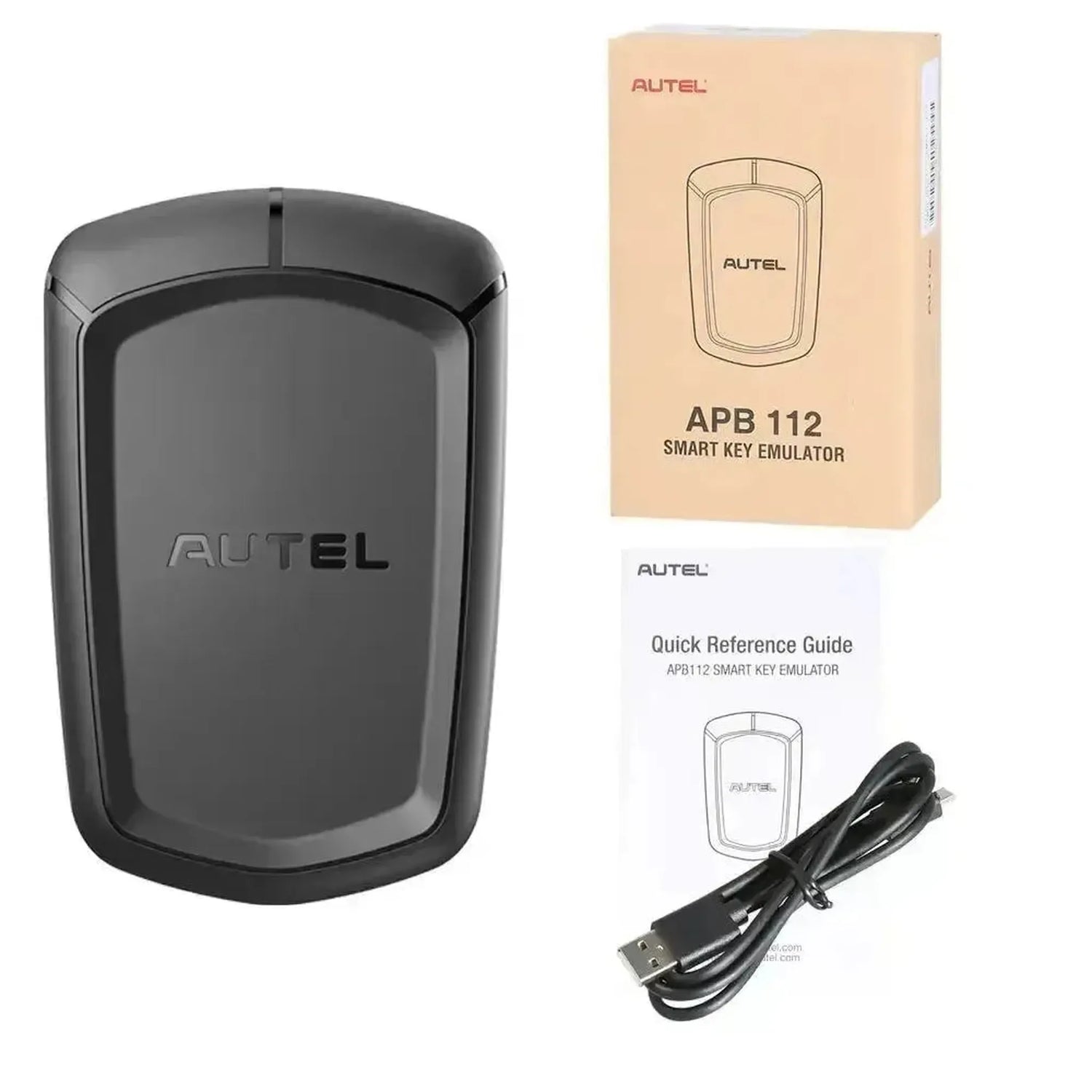

Package Contents
- 1x Autel APB112 Smart Key Emulator
- 1x USB cable
- 1x Quick Reference Guide
Technical specifications
General
- The manufacturer of the emulator or adapter.Brand
- Autel
- Which component or system the device simulates or replaces, showing which problem it addresses.Emulator type
- Smart key emulator
- Which other device the emulator or adapter is used with. Without that device, it is of limited use.Works with
- Autel IM508
- Autel IM608
- Autel XP400
Features
- The device reads the code from a working key and stores it, allowing it to behave as that key.Key code cloning
- Yes
- Data in the memory (EEPROM) can be read or modified, for example when programming an ISN code.Read and write memory data
- Yes
Connection
- How the device connects to the vehicle, control unit or computer. This determines how much installation work is involved.Connection
- USB
- Whether data must first be loaded using a separate programming device. That device would then be required additionally.Programmer required
- Yes
Other specifications
- Product type
- Smart Key Emulator / IMMO accessory
- Main function
- Key emulation and EEPROM data collection
