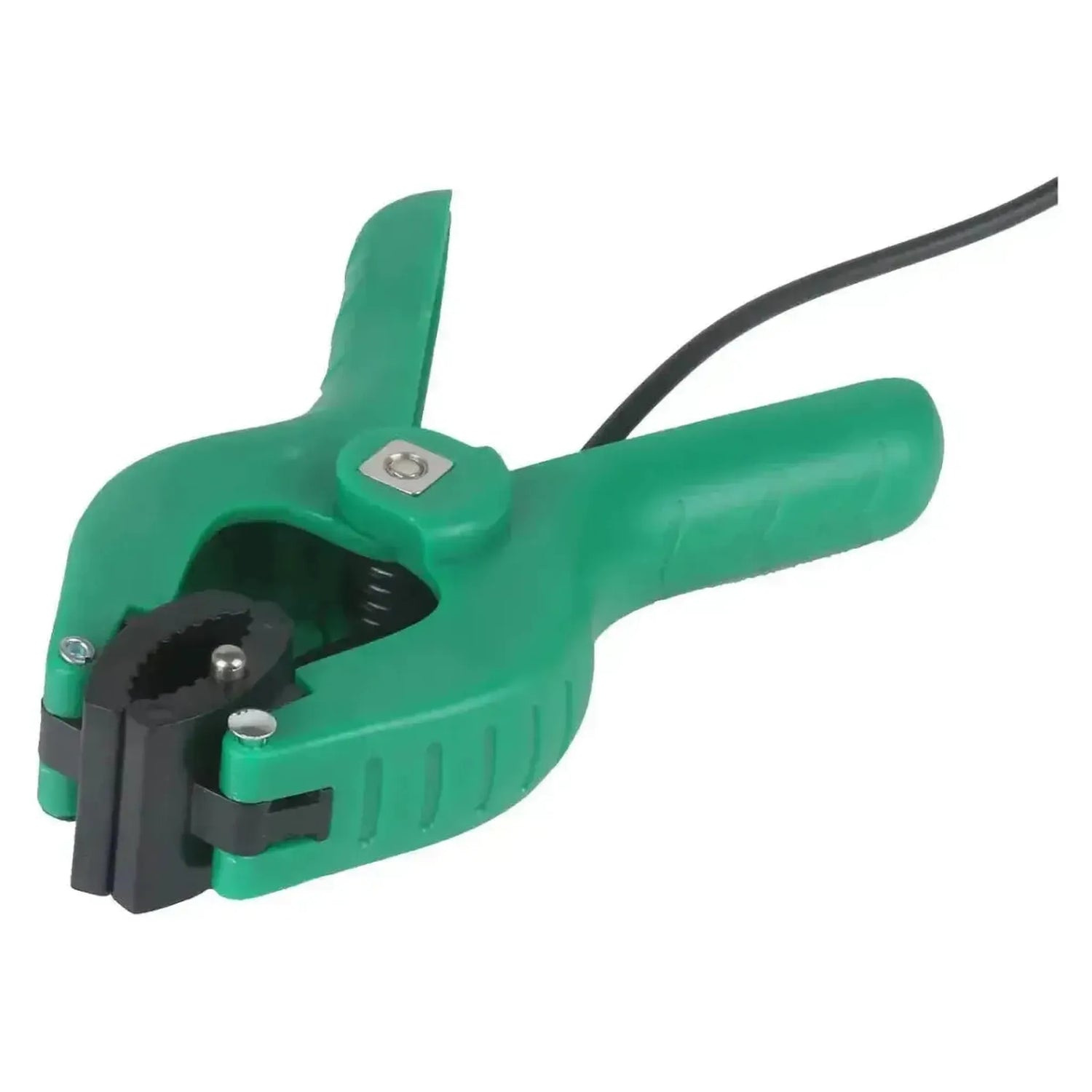

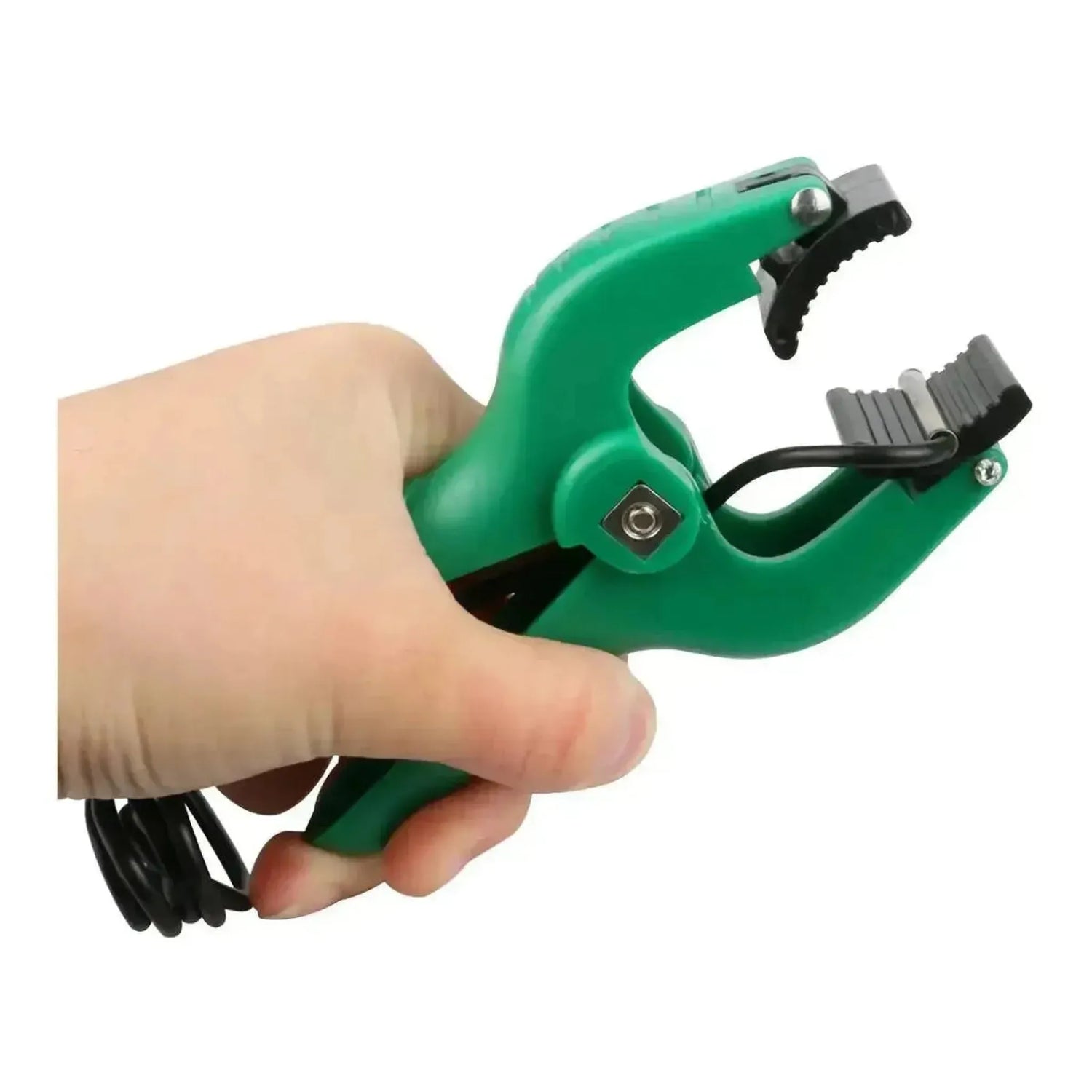

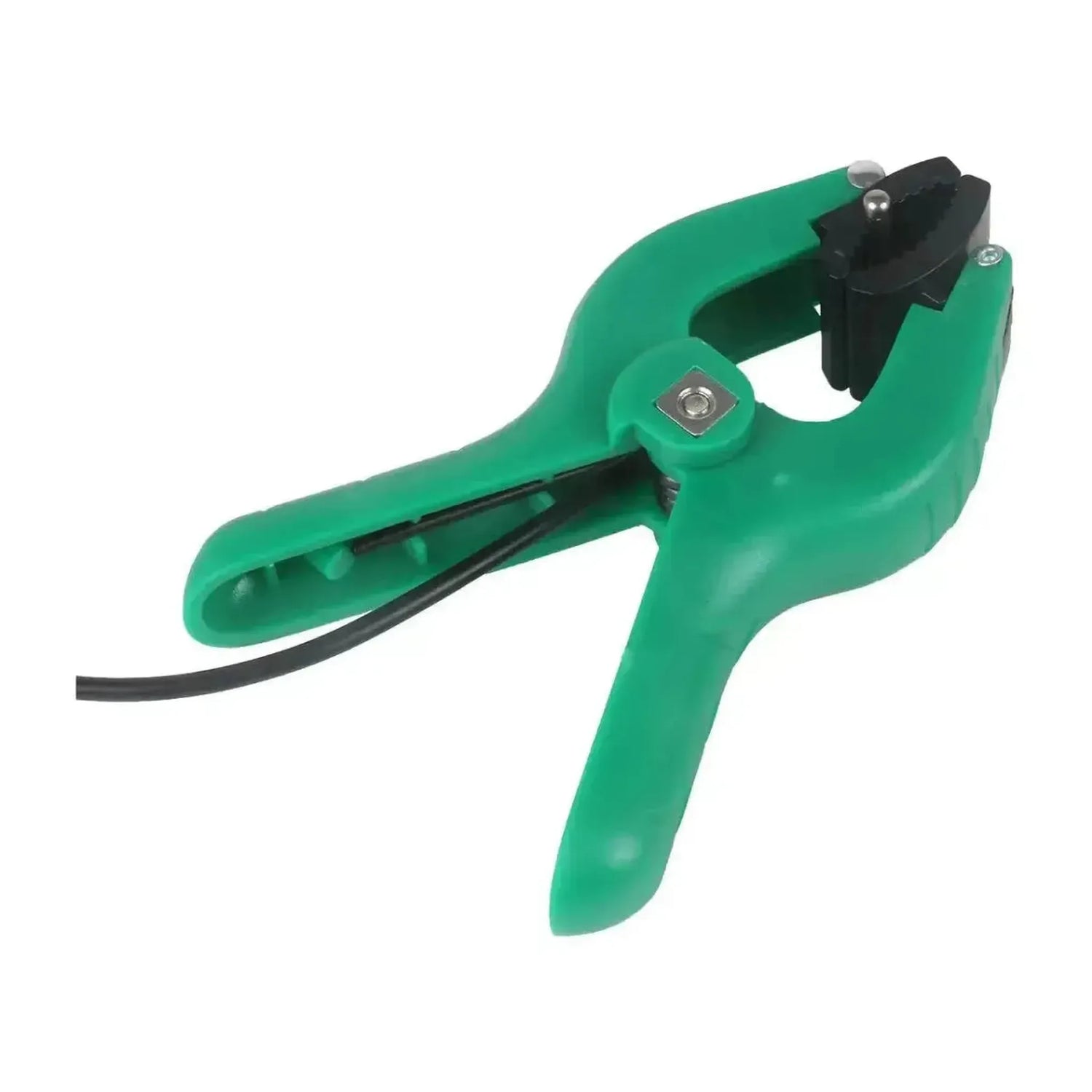

The Autool MCD11027-1 is a set of HVAC temperature clamps used as an accessory for air conditioning service and diagnostic equipment. The clamps are placed around the supply and return pipes of the air conditioning system to measure the surface temperature of the pipes. The green plastic housing with spring-loaded clamp function holds the sensor securely on the pipe, while the integrated temperature sensor in the jaw forms the contact point for the measurement.
The clamps connect via the signal cable to a compatible HVAC measurement or service station. During use, each clamp records the temperature at its measurement point, after which the host device calculates the temperature difference between the two pipes. This difference provides insight into the operation of the air conditioning, such as cooling performance and refrigerant flow. The shape of the jaw is designed for round pipes, so the sensor surface rests flat against the surface for consistent measurement.
ADVANTAGES
HIGHLIGHTS
Applications and functionalities
The Autool MCD11027-1 supports the following HVAC measurement applications:
- Measure supply temperature: Clamp around the air conditioning supply pipe records the temperature of the refrigerant heading to the evaporator.
- Measure return temperature: Clamp around the return pipe measures the temperature after heat exchange, providing insight into the system's thermal behavior.
- Determine temperature difference: Simultaneous measurement on both pipes provides the difference used by the host device to assess cooling performance.
- Connect to service station: Signal cable connects each clamp to the HVAC measuring or service station as an external temperature sensor.
Package Contents

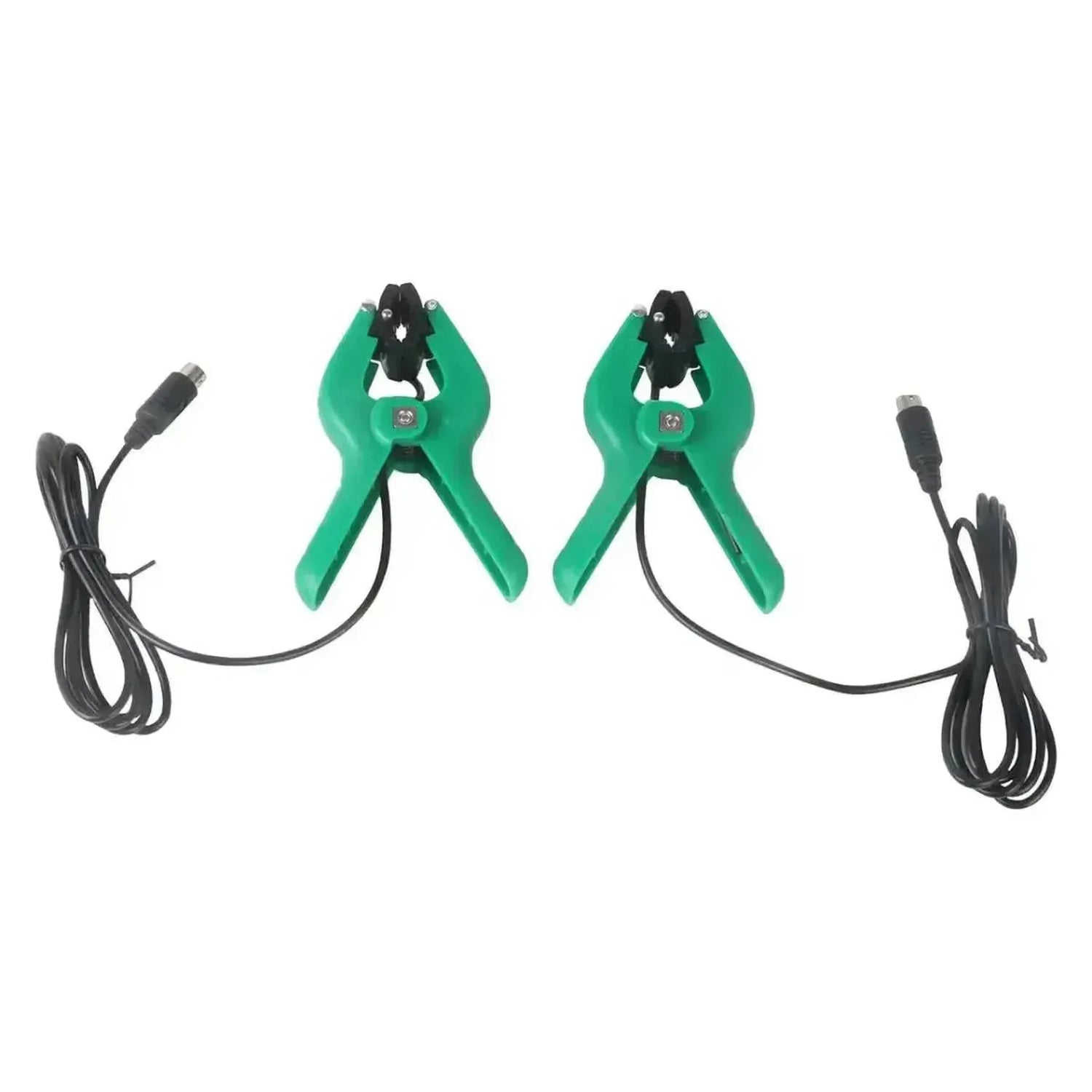

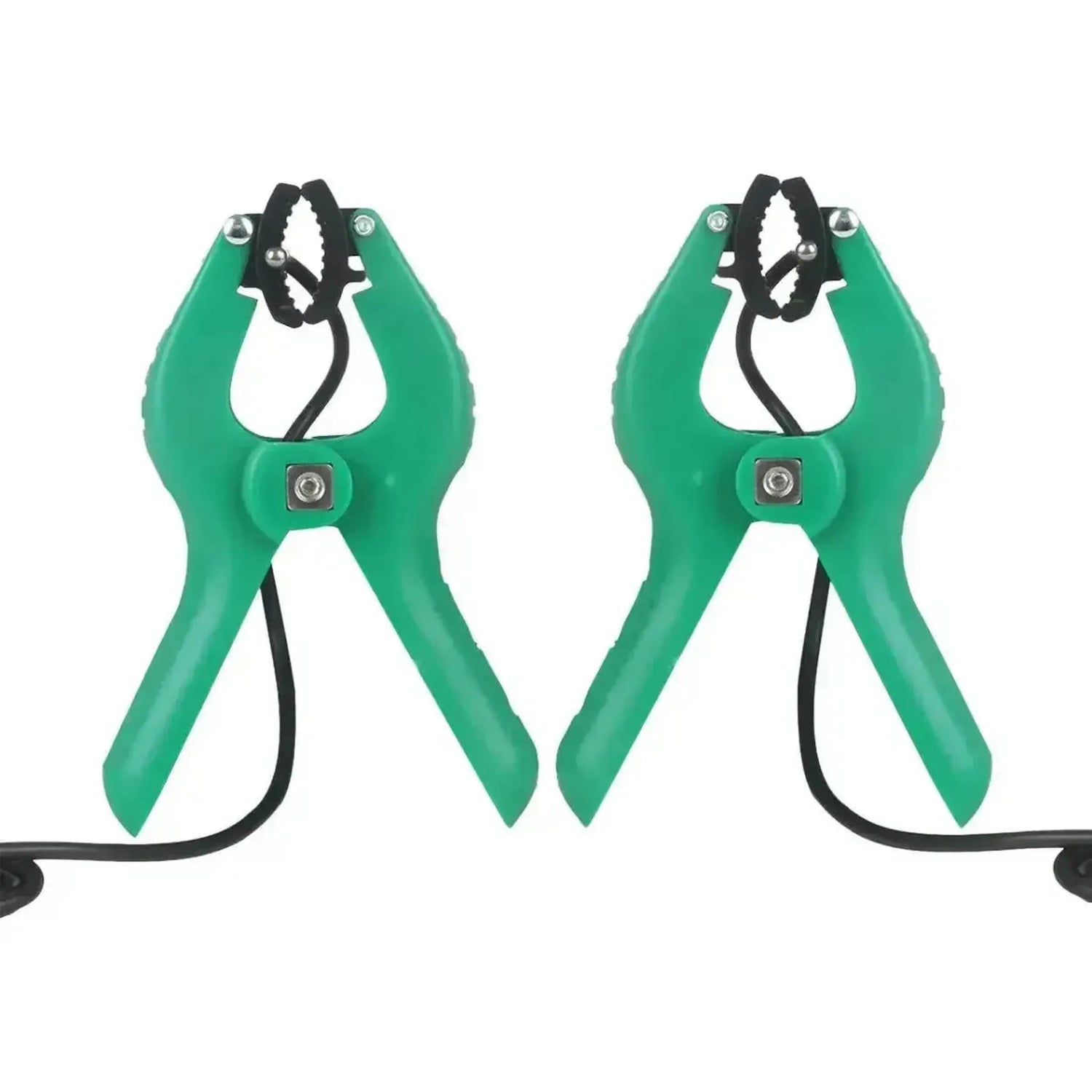

- 2x Autool (MCD11027-1) HVAC Temperature Clamp with signal cable
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Autool |
| Product model | MCD11027-1 |
| Product type | HVAC temperature clamps |
| Application | Temperature measurement on supply and return lines of air conditioning systems |
| Quantity per set | 2 clamps |
| Clamp type | Spring-loaded clamp jaw with integrated temperature sensor |
| Housing | Plastic, green |
| Connection | Signal cable to HVAC host device |
