Autool PT640 GDI Fuel Pressure Tester

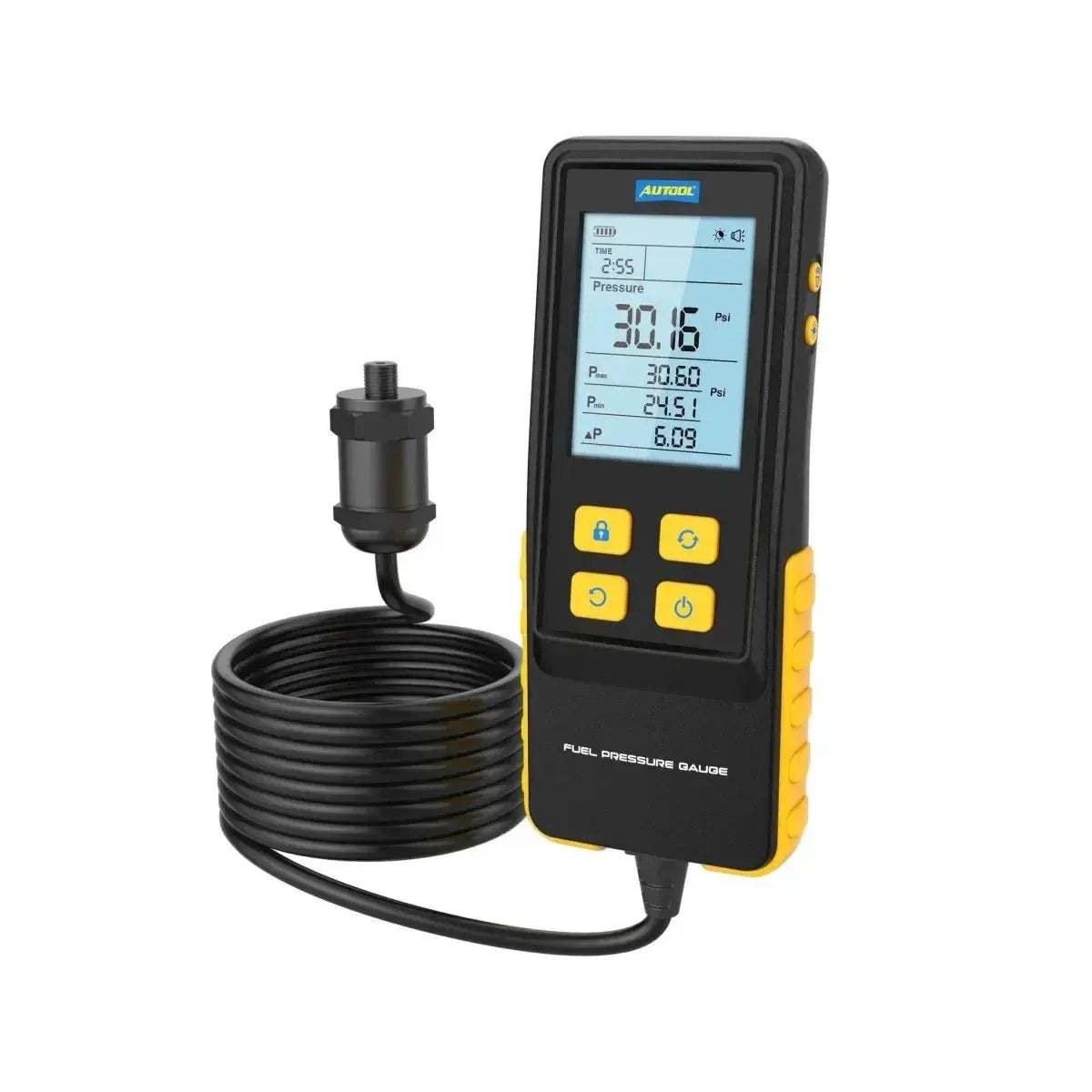

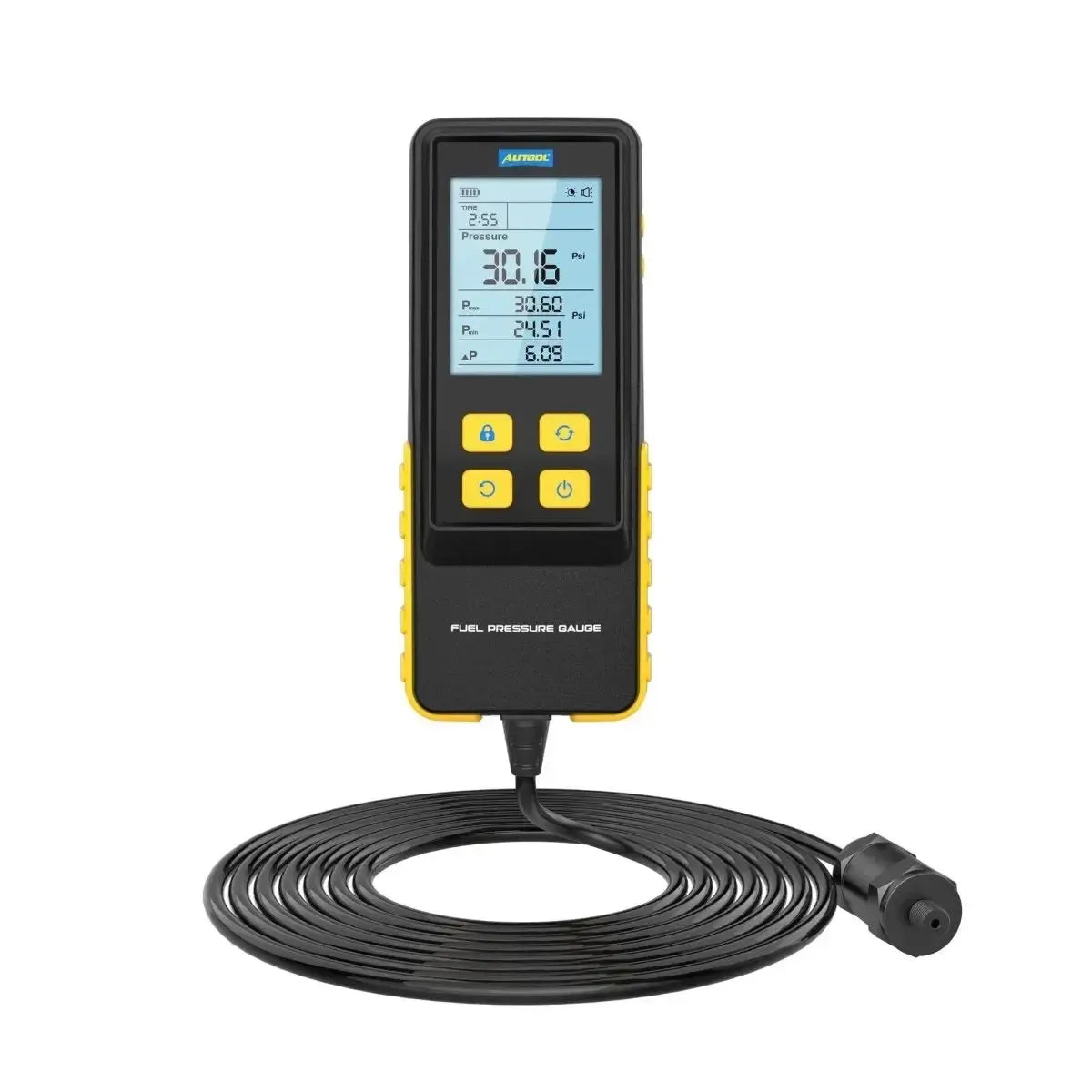

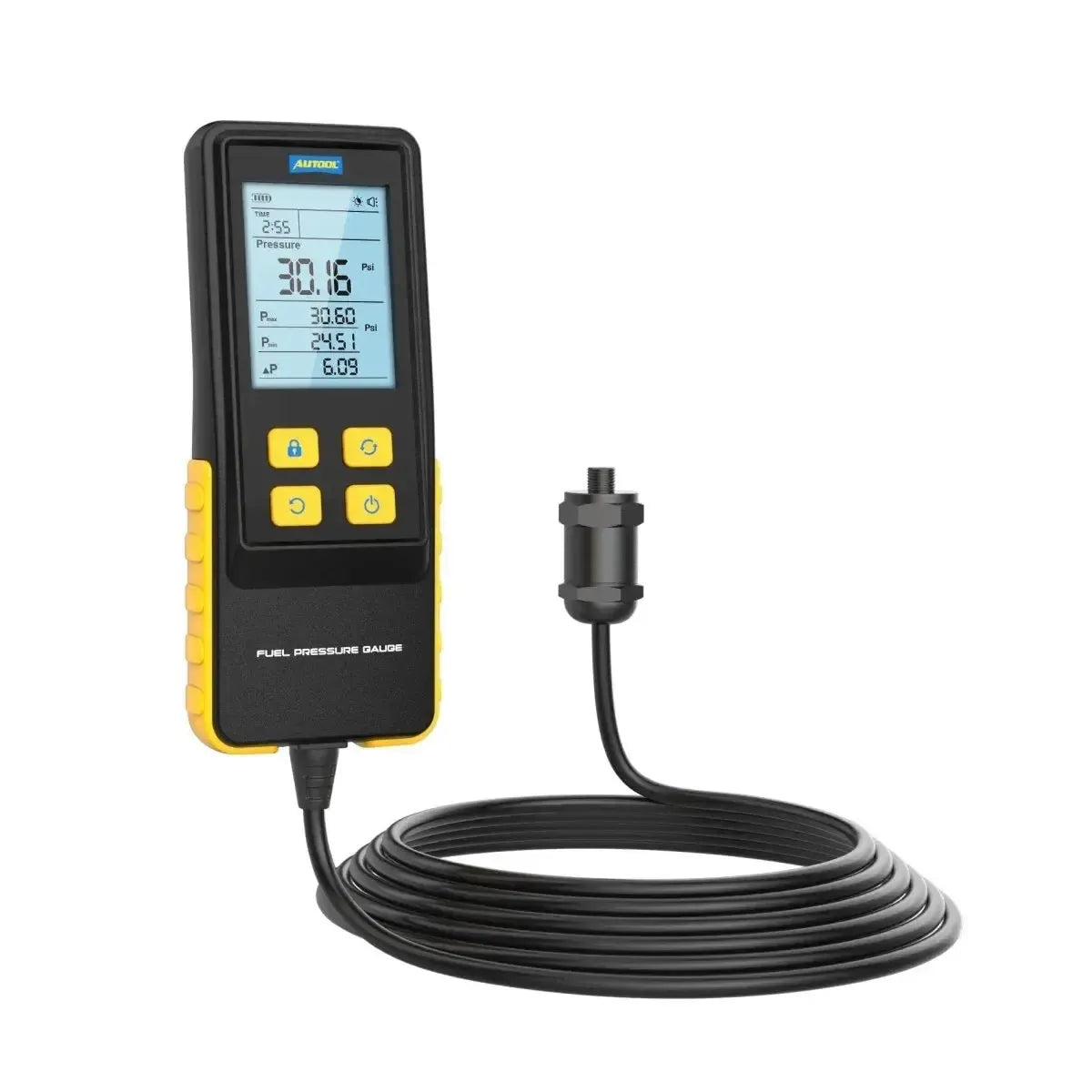

The Autool PT640 GDI is an advanced digital fuel pressure tester, specially designed for vehicles with direct gasoline injection (GDI). The device accurately measures fuel pressure in high-pressure systems, up to 360 bar (5221.3 psi), making it suitable for modern engines operating with direct injection. Thanks to its compact design and user-friendly interface, the PT640 is ideal for both professional mechanics and experienced DIYers.
The 2.8-inch HD backlit display shows real-time readings, including current pressure, maximum and minimum pressure, pressure difference, and measurement duration. The PT640 supports multiple pressure units (bar, kg/cm², psi) and offers features such as data hold and auto power off, contributing to efficient and safe operation.
Features:
- Digital pressure measurement: Accurately measures fuel pressure in GDI systems up to 360 bar.
- Multiple pressure units: Supports bar, kg/cm² and psi for versatile use.
- Real-time display: Displays current pressure, maximum and minimum values, pressure difference, and measurement duration.
- Data lock: Locks the screen to hold measurement values for analysis.
- Automatic shutdown: Automatically shuts off after 5 minutes of inactivity to save battery.
Special features:
- Zero pressure setting: Allows the device to be calibrated to atmospheric pressure for accurate measurements.
- Backlight: 2.8-inch HD screen with adjustable backlight for use in various lighting conditions.
- Overpressure protection: Alerts at pressure values above 355 bar to prevent damage to the device.
- Compact and portable: Lightweight design with a flexible probe for easy operation and storage.
Package contents:
- Autool PT640 GDI Fuel Pressure Tester
- Manual

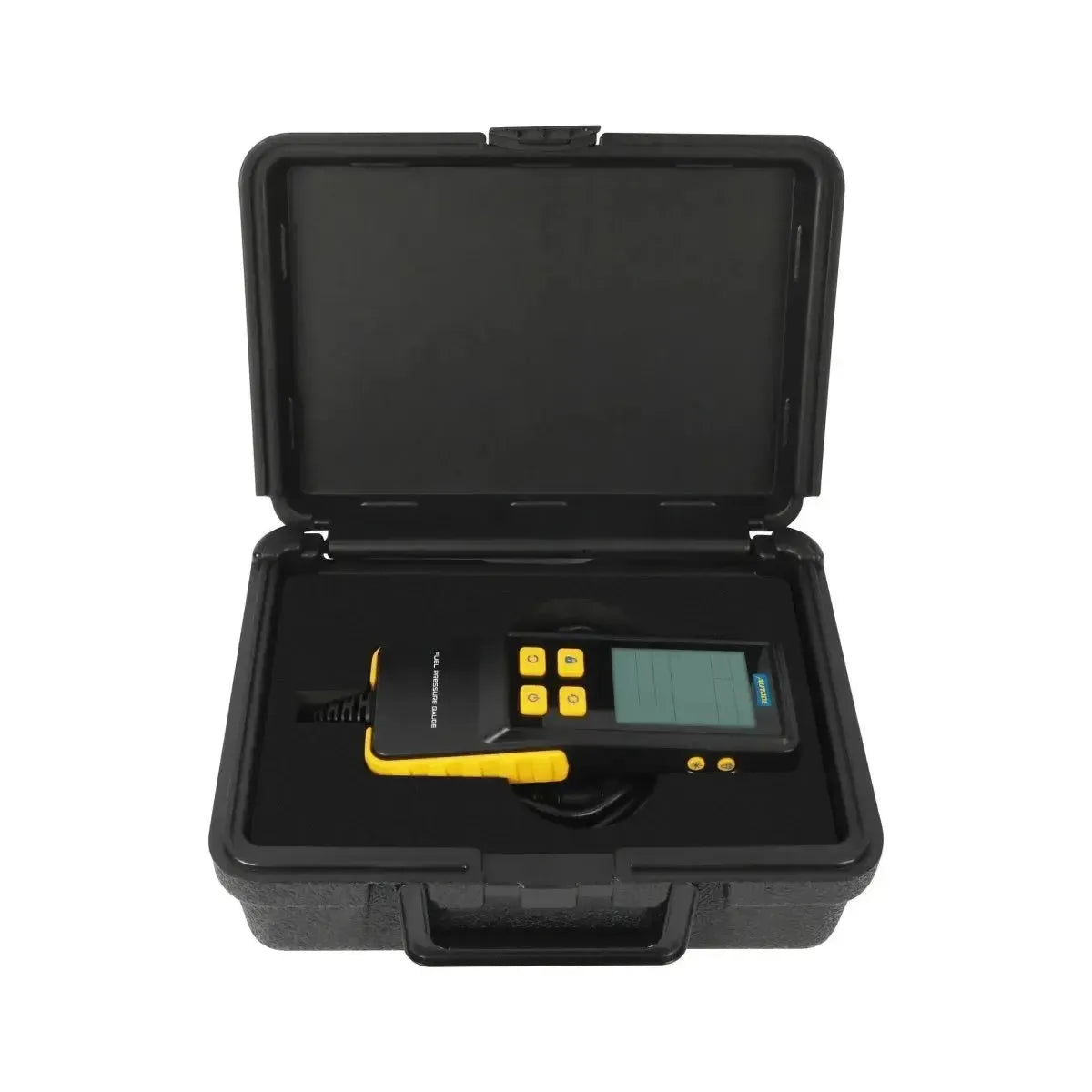

- Carrying case
Technical specifications
| Specification | Value |
|---|---|
| Pressure measurement range | 0 – 360 bar / 0 – 367 kg/cm² / 0 – 5221.3 psi |
| Resolution | 0.1 bar / 0.1 kg/cm² / 0.1 psi |
| Accuracy | ±1% of full scale |
| Power supply voltage | 6 V (4 x AAA batteries) |
| Operating temperature | -10°C to 60°C |
| Screen | 2.8-inch HD LCD with backlight |
| Overpressure protection | 400 bar |
| Automatic shutdown | After 5 minutes of inactivity |
| Weight | 0.5 kg |
| Dimensions (L x W x H) | 175 x 72 x 29 mm |
