Autool PT530 Air Pressure Tester

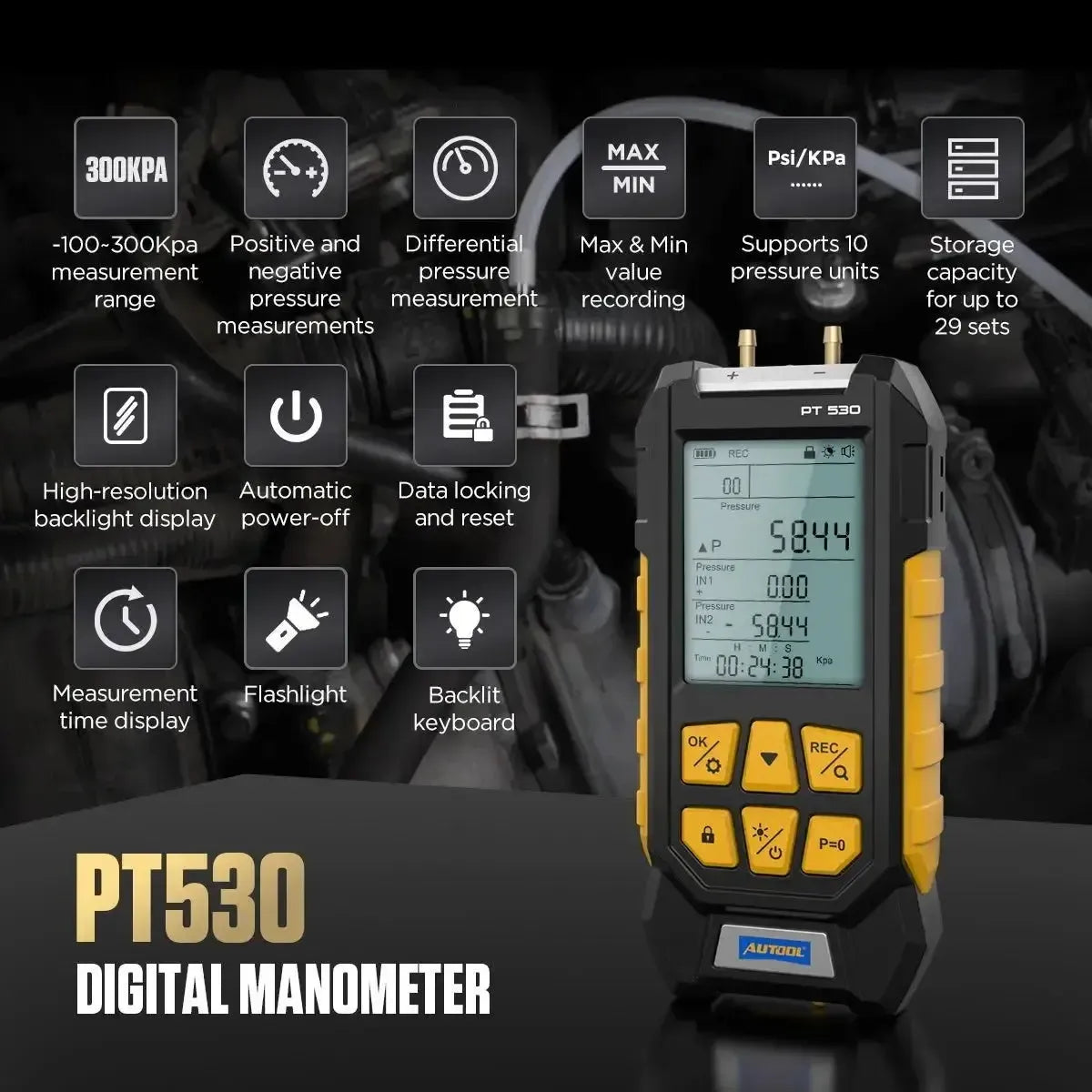

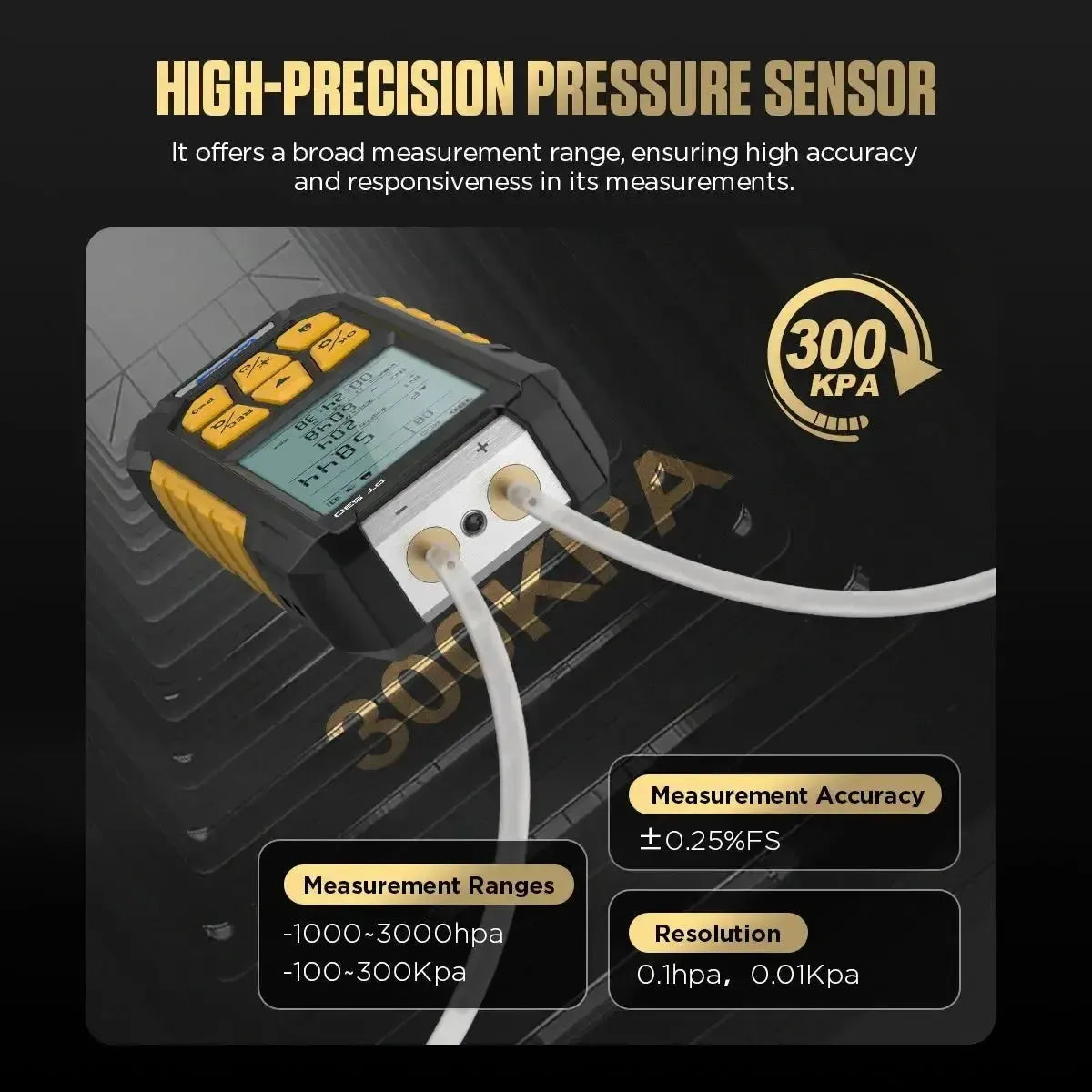

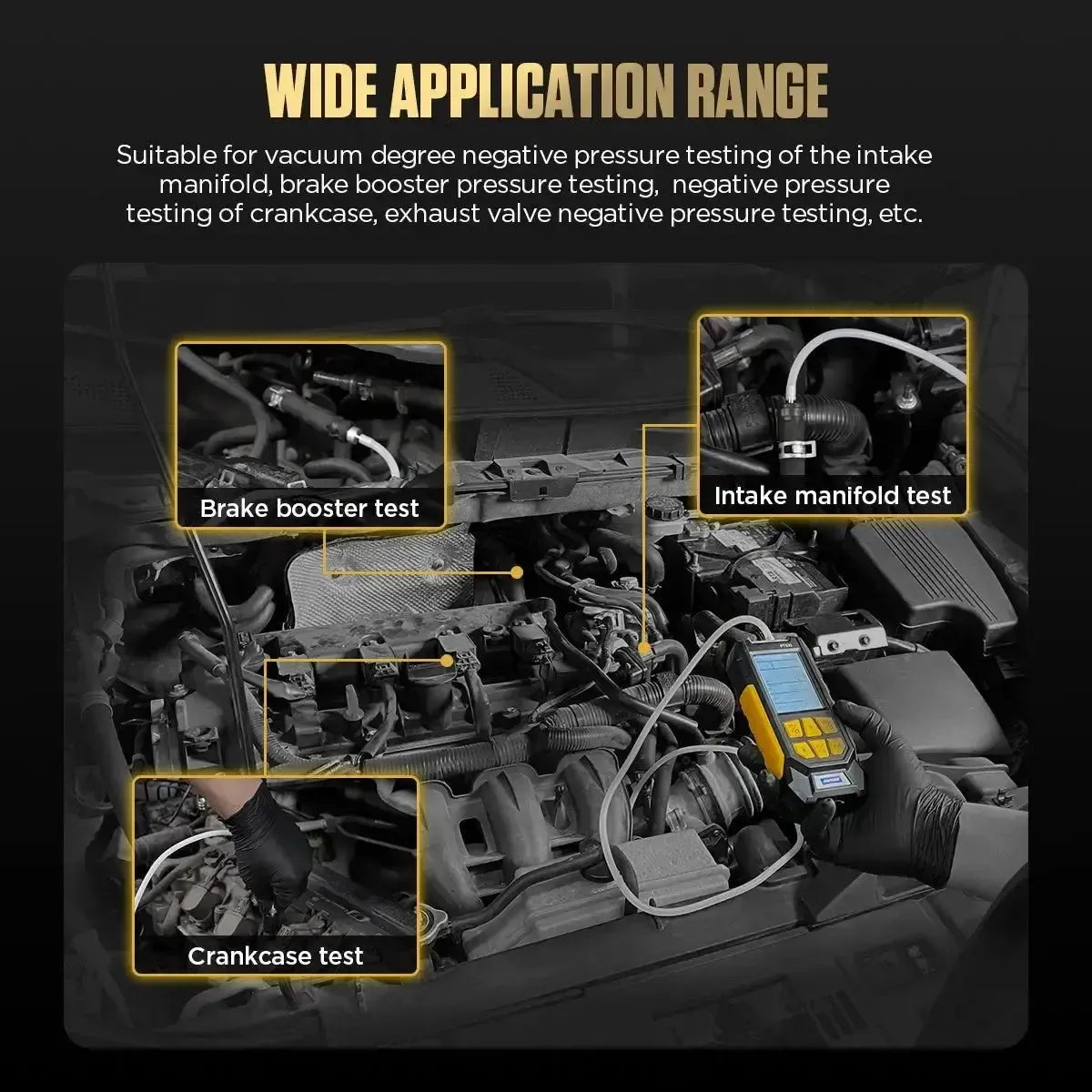

The Autool PT530 is an advanced digital manometer with dual ports, designed for accurate measurement of pressure and vacuum in various applications. With a measurement range of -100 to 300 kPa and an accuracy of ±0.25% FS, this instrument provides reliable measurements for both low and high pressure environments. Thanks to support for ten different units, including hPa, Torr, mbar, inHg, mmHg, inH₂O, mmH₂O, psi, kPa, and kg/cm², the PT530 is versatile for use in various sectors.

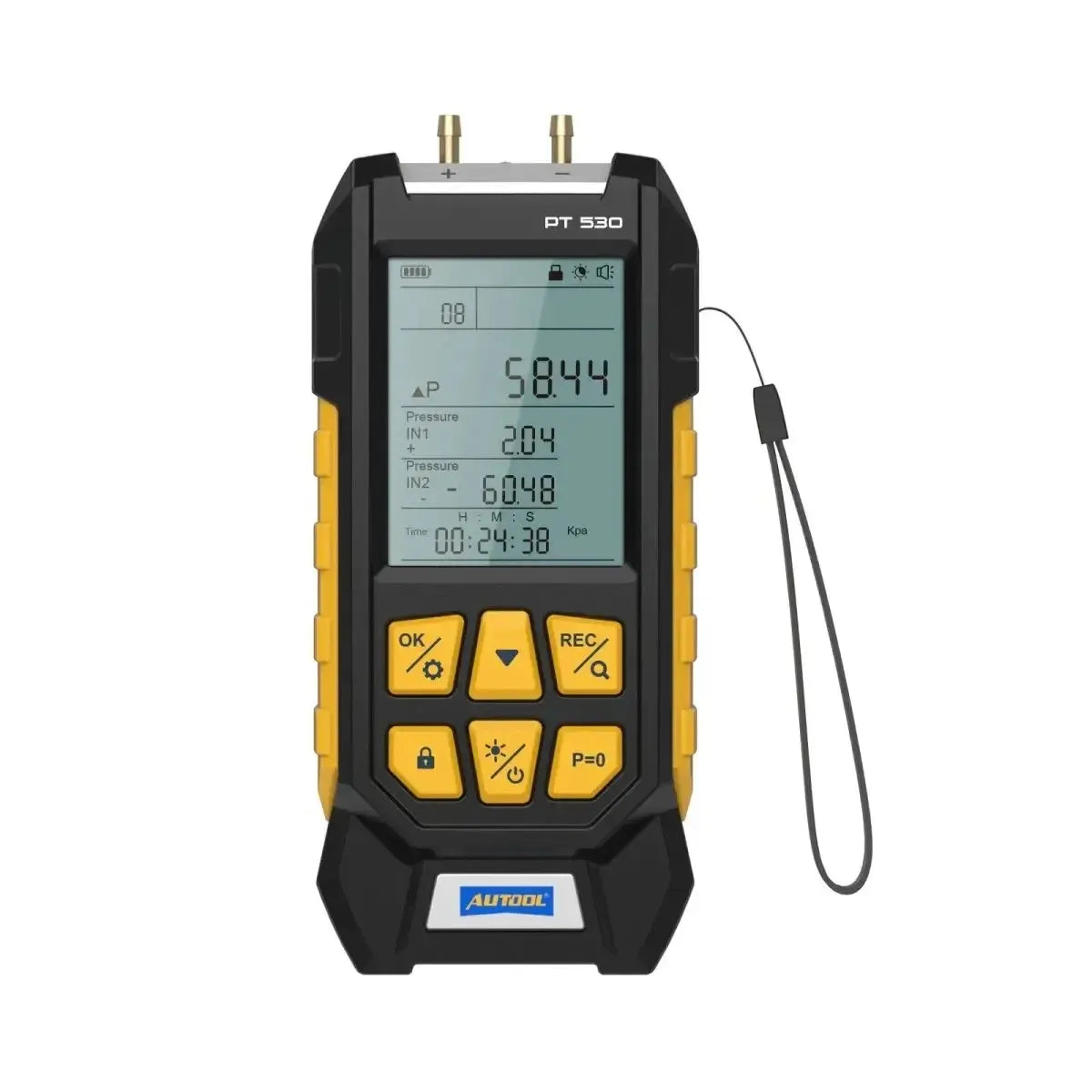

The device features a 2.8-inch HD LCD screen with backlight, ensuring clear display of measurement values even in low-light environments. The magnetic backplate allows the manometer to be easily attached to metal surfaces, enabling hands-free operation. Additionally, the housing is reinforced with lead components, increasing durability and providing protection against shocks and drops.
Features:
- Dual port measurement: Enables simultaneous measurement of pressure and differential pressure.
- Multiple measurement units: Supports ten different pressure units for versatile use.
- Data storage: Provides the ability to store measurement data for later analysis.
- Illuminated display: 2.8-inch HD LCD screen with backlight for use in dark environments.
- Magnetic attachment: Backplate with magnet for easy attachment to metal surfaces.
Special features:
- Temperature compensation: Built-in module for accurate measurements, even in cold environments.
- Lock function: Allows holding measurement values for accurate reading.
- Automatic shutdown: Automatically turns off after 15 minutes of inactivity to save battery.
- Lighting options: Equipped with a built-in flashlight function for use in poorly lit areas.

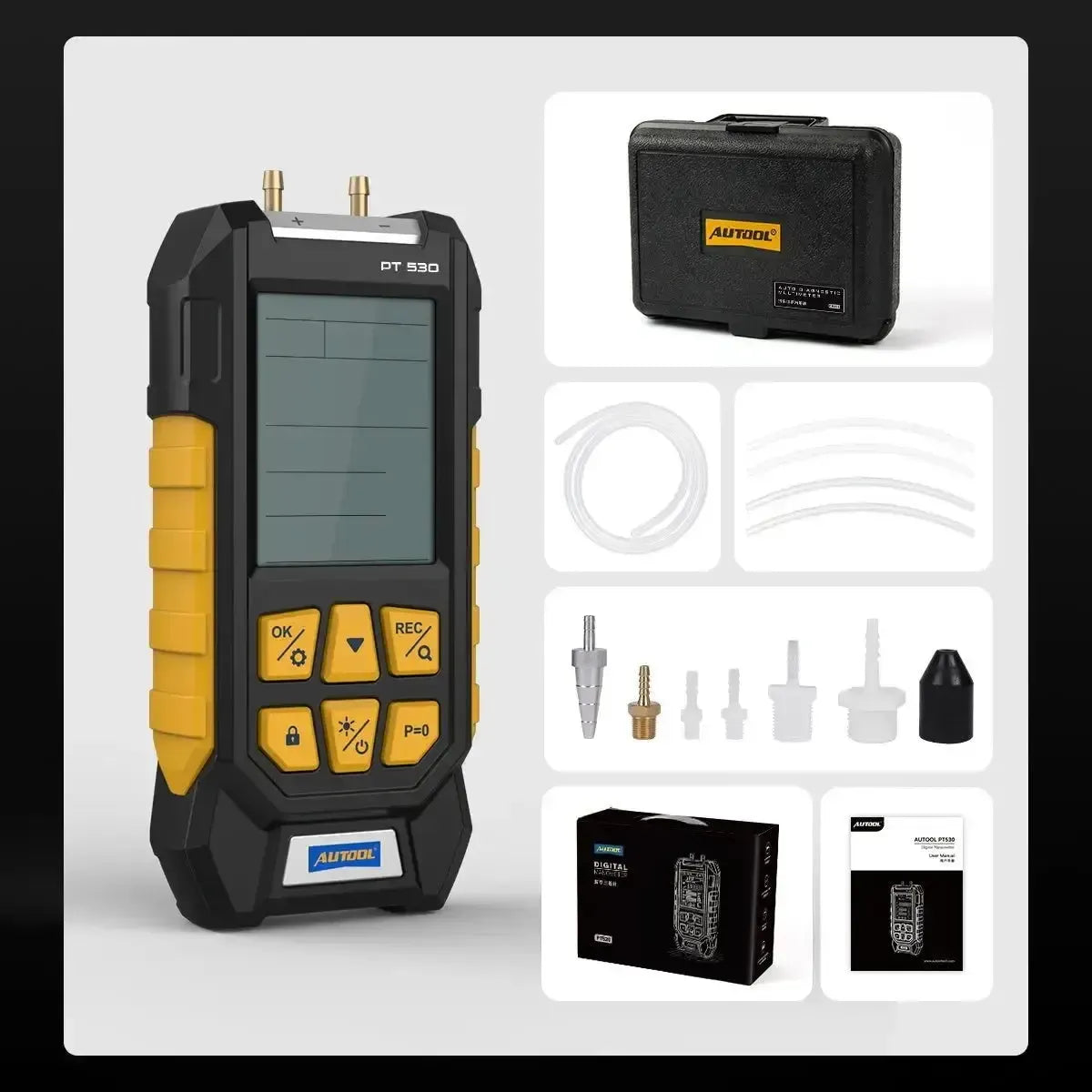

Package contents:
- Autool PT530 Air Pressure Tester
- Hose (OD: 5.00 x 8.00 cm)
- Hoses (OD: 3.99 x 5.99 cm) (2 pieces)
- Hoses (OD: 5.00 x 8.00 cm) (2 pieces)

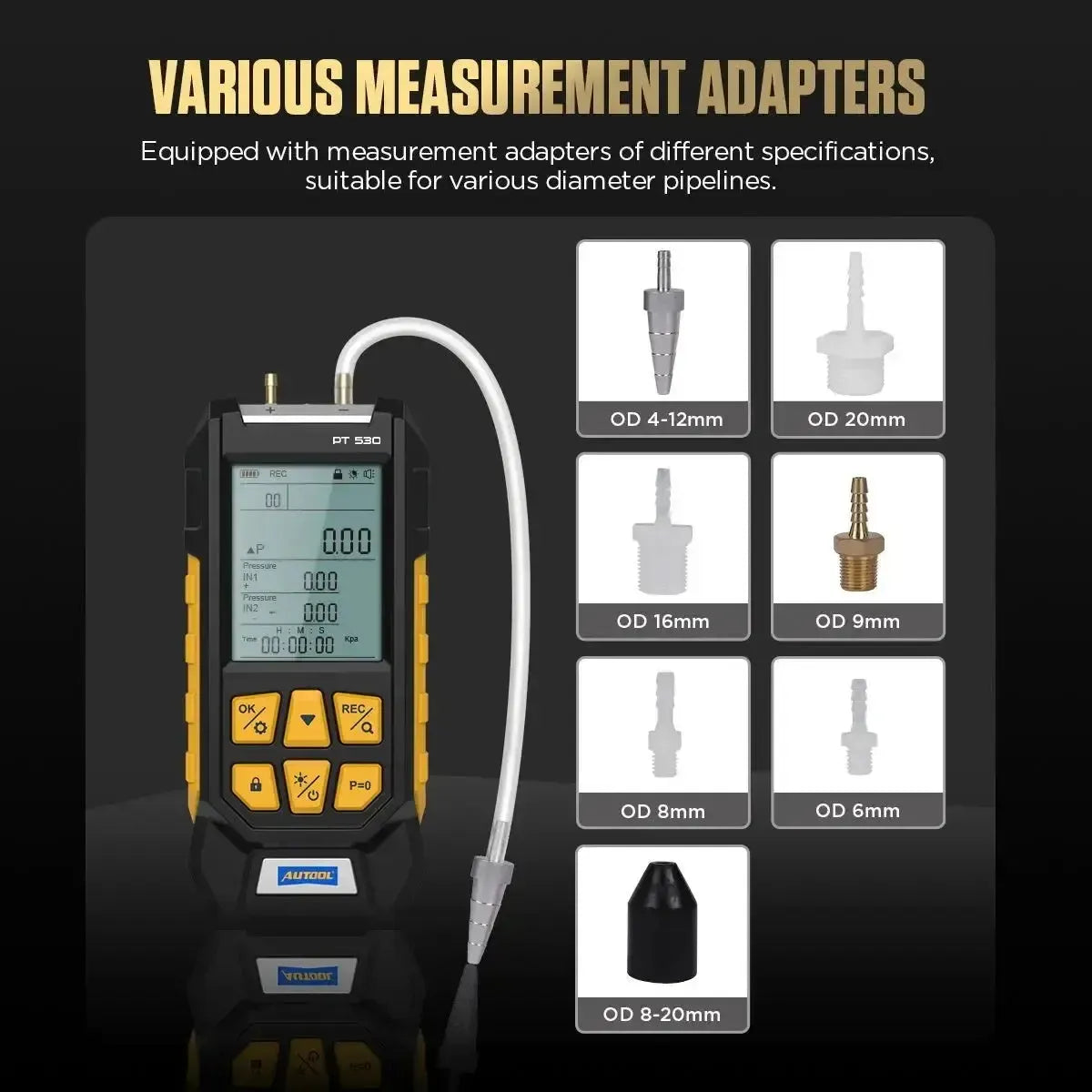

- Adapter connectors (7 pieces)
- Manual

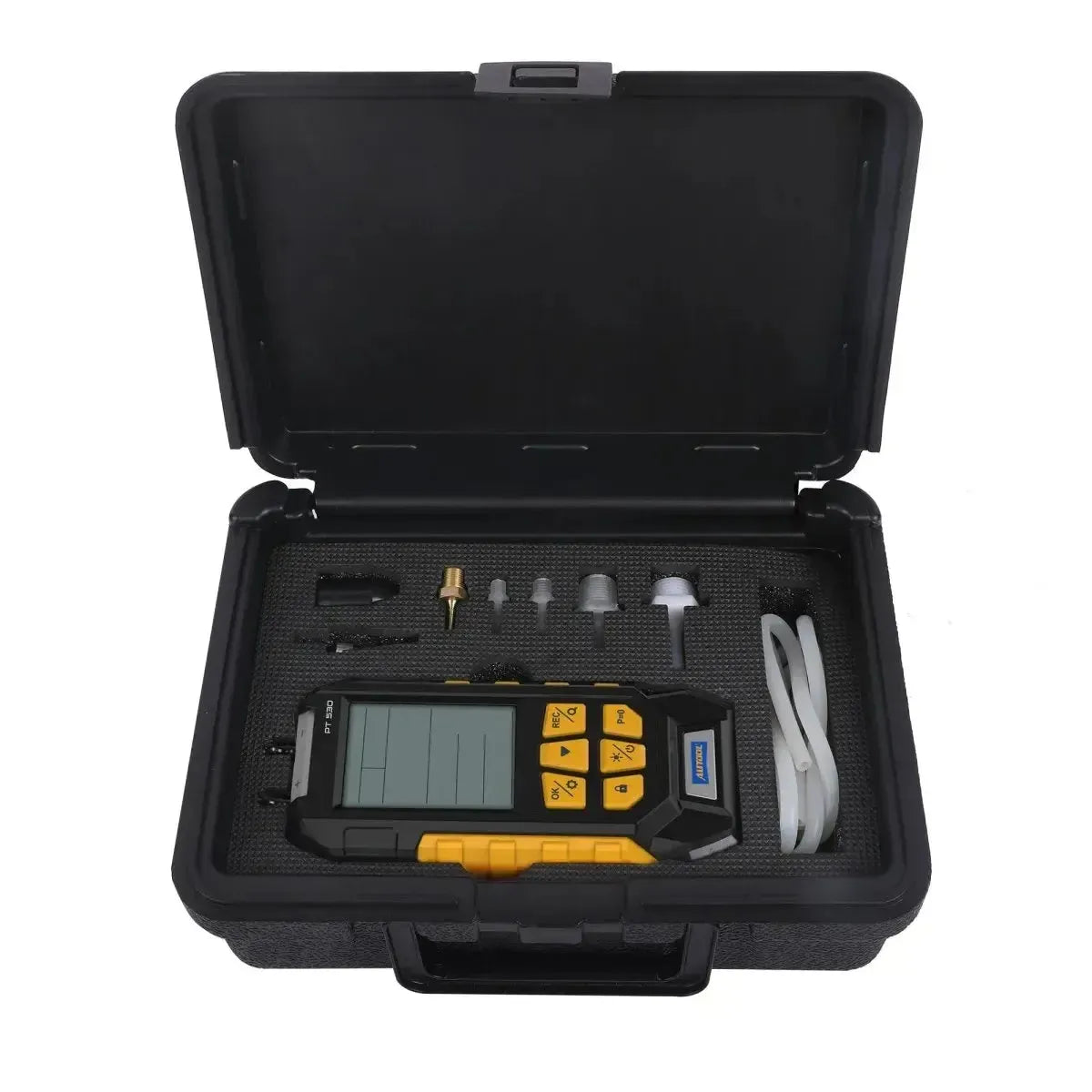

- Storage case

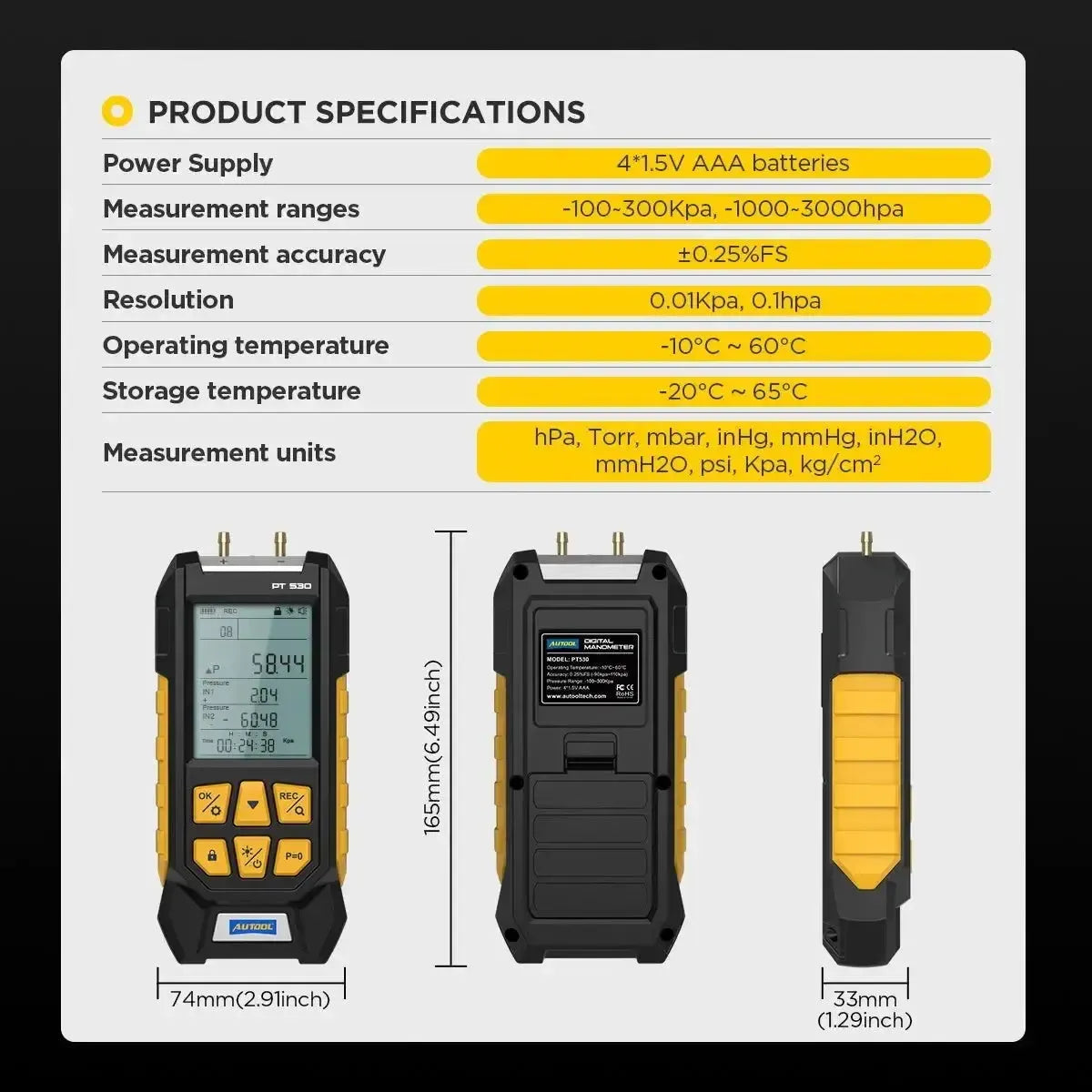

Technical specifications
| Specification | Value |
|---|---|
| Measurement range | -100 to 300 kPa / -1000 to 3000 hPa |
| Accuracy | ±0.25% FS |
| Resolution | 0.1 kPa / 1 hPa |

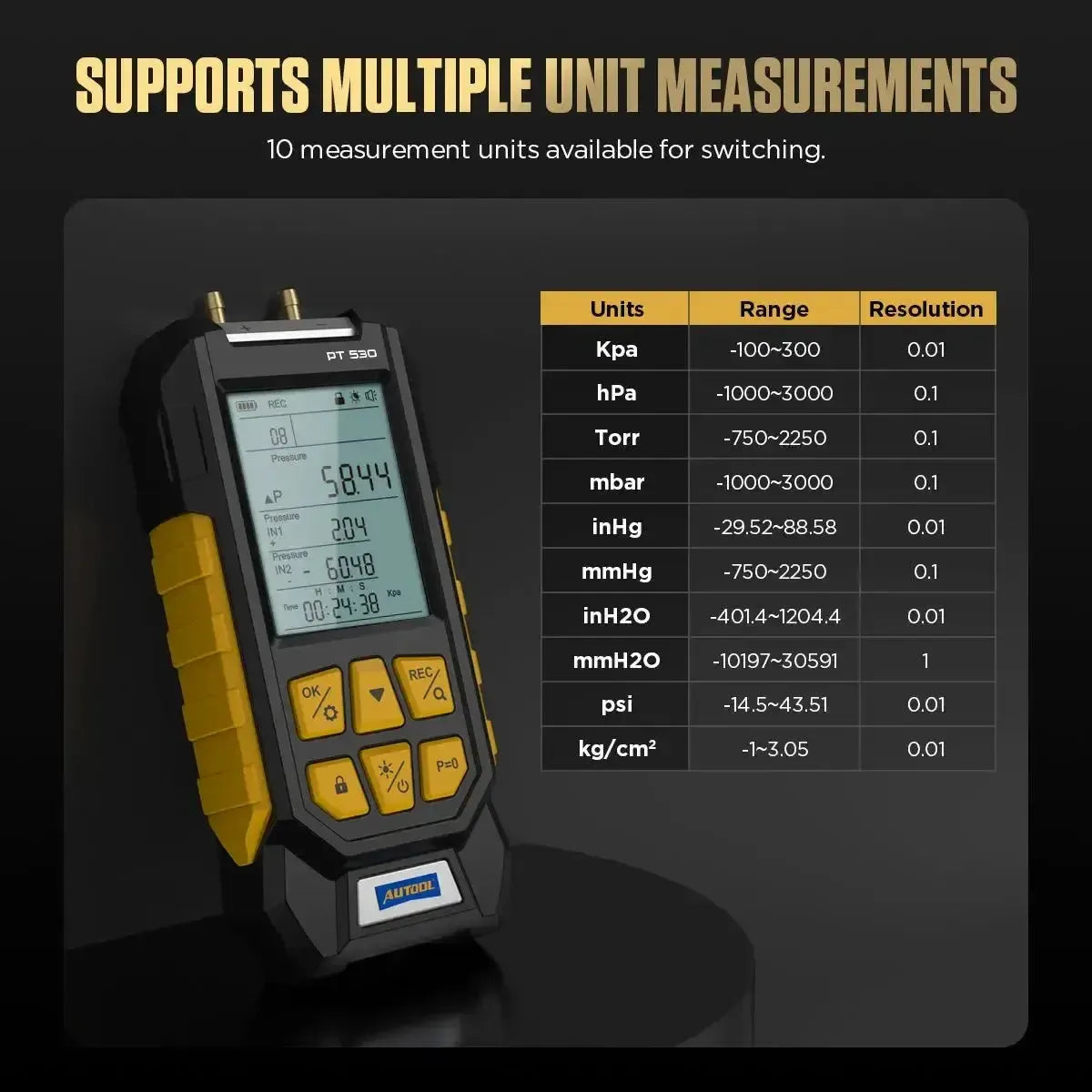

| Measurement units | hPa, Torr, mbar, inHg, mmHg, inH₂O, mmH₂O, psi, kPa, kg/cm² |
| Power supply voltage | 4 x 1.5 V AAA batteries |
| Operating temperature | -10°C to 60°C |
| Storage temperature | -20°C to 65°C |
| Display | 2.8-inch HD LCD with backlight |
| Dimensions | 164 x 70 x 32 mm |
| Weight | 240 g |
