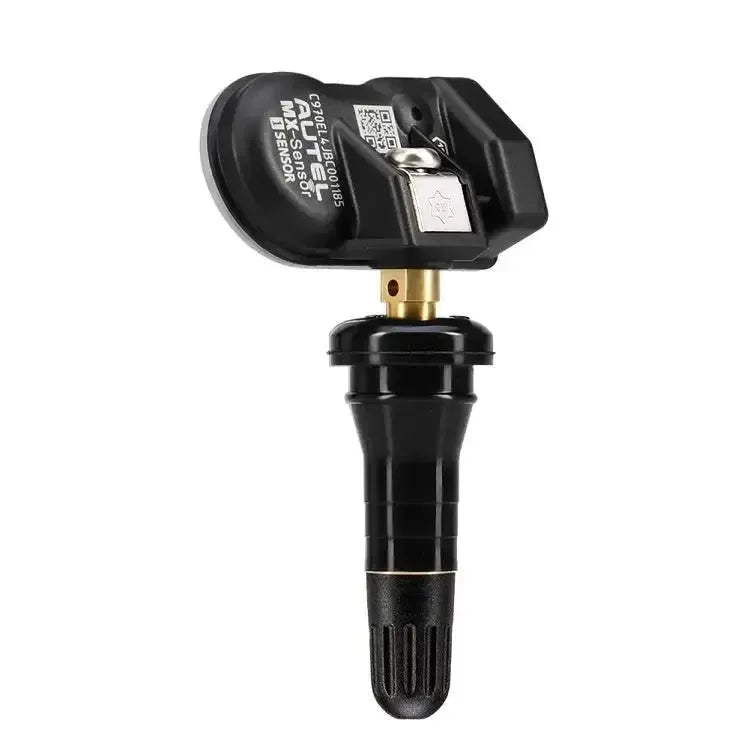

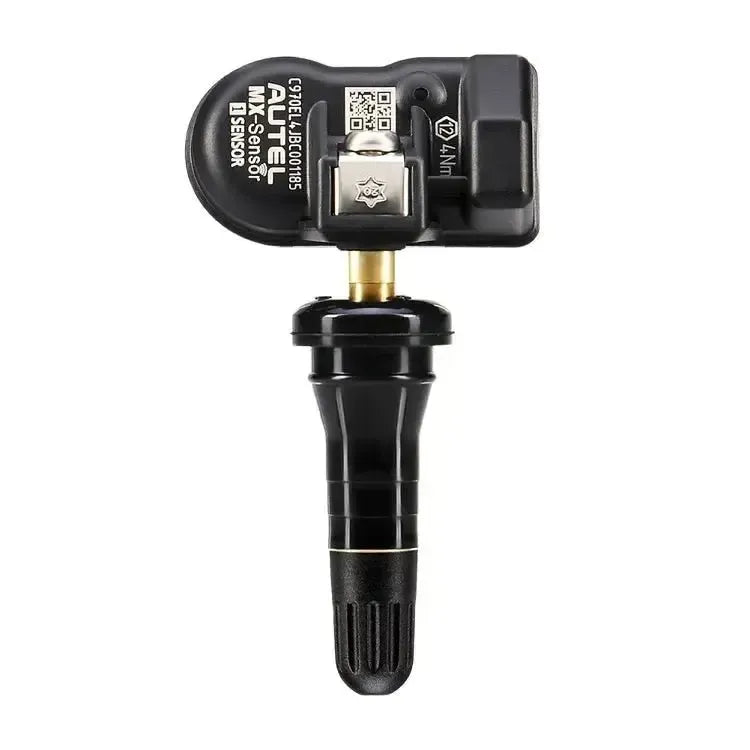

Autel MX-Sensor 315MHz+433MHz Rubber TPMS (Screw-in)
The Autel MX-Sensor Rubber TPMS (Screw-in) is an advanced, programmable tire pressure sensor that supports both 315MHz and 433MHz frequencies. With its dual frequency design, this sensor offers vehicle coverage of more than 98%, making it an efficient solution for workshops working with various car brands. The screw-in rubber valve stem provides a vibration-free seal and makes this sensor suitable for both steel and alloy wheels.
The sensor is built according to OE specifications and offers high accuracy in measuring tire pressure and temperature. The internal circuit is optimized for stable RF performance, with strong transmission power and low interference. The robust housing is resistant to moisture, dust, salt, and temperature fluctuations from -40°C to +125°C, contributing to a long service life and high operational reliability.
Important: This TPMS sensor can only be programmed with a TPMS programmer of the same brand, such as an Autel TPMS programmer. Use of programming tools from other brands is discouraged and may lead to incompatibility, error codes, or the sensor not being recognized by the vehicle. For optimal operation, correct initialization and learning via vehicle-specific procedures is required.
Features:
- Dual frequency (315MHz + 433MHz): one sensor for almost all vehicles.
- 100% ID cloneable: no relearning needed upon replacement.
- Wireless programming: even when the sensor is already mounted.
- Replaceable valve stems: rubber and metal can be replaced without tools.
- Long battery life: 4–6 years of reliable operation.
- Lightweight design: Only 12 grams without valve.
- Wide temperature range: Operation from -40°C to +125°C.
- Strict quality control: Each sensor has a unique serial number for traceability.
Package contents:
- Autel MX-Sensor 315MHz+433MHz Rubber TPMS (Screw-in)
Technical specifications
| Specification | Value |
|---|---|
| Frequency | 315 MHz / 433 MHz |
| Battery life | 4–6 years |
| Operating temperature | -40°C to +125°C |
| Storage temperature | -40°C to +35°C |
| Humidity | ≤90% |
| Pressure measurement range | 0 to 800 kPa |
| Pressure accuracy | ±10 kPa |
| Temperature range | -40°C to +125°C |
| Temperature accuracy | ±5°C |
| G-sensor accuracy | ±15% |
| Transmission power | 5–8 dBm |
| Battery voltage | 3.0 V |
| Dimensions (W x H x D) | 42.2 mm x 27.9 mm x 17.4 mm |
| Weight (without valve) | 12 g |
| Valve type | Rubber, screw mounting |
