Launch Creader Professional CRP919X BT Car Diagnostic Tool

The Launch CRP919X BT is an advanced, wireless OBD2 scanner designed for professional mechanics and serious DIYers. With its extensive functionality, including ECU coding, bidirectional control, and support for the latest protocols such as CAN FD and DoIP, this scanner offers in-depth diagnostic capabilities for a wide range of vehicles.

Thanks to the Bluetooth connectivity and the 7-inch touchscreen with Android 10.0, the CRP919X BT is both powerful and user-friendly. The scanner supports more than 10,000 vehicle models from over 100 manufacturers worldwide, making it a versatile tool for any modern workshop.

Diagnostic functions:

• Full System Diagnosis: Scans and analyzes all electronic systems, including engine, transmission, ABS, SRS, TPMS, and more.
• Read and Clear Fault Codes: Quickly detects and clears fault codes (DTCs) to resolve malfunctions.
• Live Data Streaming: Displays real-time sensor data in numeric and graphical views for in-depth analysis.
• Freeze Frame Data: Provides snapshots of vehicle parameters at the time of a fault.
• Automatic VIN Recognition: Automatically identifies vehicles for quick and accurate diagnosis.

Maintenance functions:

• Oil/Service Reset: Resets service intervals after oil changes and routine maintenance.
• Electronic Parking Brake Reset: Maintains and replaces brake pads on vehicles with electronic parking brakes.
• Steering Angle Sensor Calibration: Calibrates the steering angle sensor after repairs or wheel alignment.
• Battery Registration: Registers a new battery and resets the battery management system.
• TPMS Reset: Resets the tire pressure monitoring system after tire replacement or rotation.
• DPF Regeneration: Supports regeneration of the diesel particulate filter in diesel engines.
• ABS Bleeding: Removes air from the ABS brake system after maintenance.
• Injector coding: Programs new injectors after replacement or repair.
• Throttle body calibration: Resets and calibrates the throttle body for optimal performance.
• Adaptive transmission reset: Recalibrates transmission parameters for smooth shifting.
• Airbag reset: Resets the airbag system after repair or accident.
• Anti-theft matching (IMMO): Programs keys and resets the immobilizer system.
• AdBlue reset: Resets the AdBlue system in diesel vehicles.
• Headlight reset: Calibrates and resets headlight settings after maintenance.
• Air suspension reset: Calibrates air suspension systems after maintenance or replacement.
• Transmission calibration: Calibrates automatic transmissions for optimal performance.
• EGR adaptation: Calibrates the exhaust gas recirculation system to improve emissions.
• Coolant system bleeding: Activates the water pump to remove air from the cooling system.
• Clutch adjustments: Calibrates the clutch system after maintenance.
• Fuel pump calibration: Adjusts and calibrates the fuel pump.
• Start-stop system maintenance: Resets and calibrates the start-stop system.
• Panoramic roof initialization: Calibrates and resets electric panoramic roofs.
• Window calibration: Calibrates electric windows after maintenance or replacement.
• NOx sensor reset: Resets nitrogen oxide sensors for emission control.
• Transmission calibration (CVT): Calibrates Continuously Variable Transmissions.
• Exhaust valve reset: Tests and calibrates electronic exhaust valves.
• Suspension calibration: Calibrates the vehicle suspension after repair or replacement.
• Wiper calibration: Calibrates windshield wipers for proper operation.
• Turbocharger calibration: Calibrates turbocharger system for better performance.
• AFT reset (aftertreatment system): Resets emission aftertreatment systems in vehicles.
• Transport mode: Activates or deactivates transport mode during vehicle transport.
• Air conditioning reset: Reset the air conditioning system after repairs.


Special functions:

• Bidirectional control (active tests): Control actuators and perform tests on components such as fans, pumps, and lighting.
• ECU coding: Perform online and offline coding for customizing or replacing electronic modules.
• Support for CAN FD and DoIP: Communicates with modern vehicles via the latest protocols for fast and reliable diagnosis.
• FCA AutoAuth: Access to secured gateways of FCA vehicles (e.g., Chrysler, Jeep, Dodge) for full diagnosis. (License required)
• VAG-guided functions: Step-by-step guidance for diagnosis and service of Volkswagen, Audi, Skoda, and Seat vehicles.
• PMI function (Programmable Module Installation): Supports programming of modules after replacement.

Supported car brands:

European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, Ferrari, Fiat, FordEU, GAZ, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, McLaren, Mercedes-Benz, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, VAZ, Volvo, Volkswagen, Volkswagen CV

Asian brands: Acura, Daewoo, Daihatsu, GTR, Holden, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Samsung, SsangYong, Subaru, Suzuki, Tata, Toyota

American brands: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Lincoln

Chinese brands: BAIC, BJEC, Brilliance, Changan, Changhe, Chery, Foton, Gonow, GWM, Haima, JAC, JAC Refine, Jinbei, Joylong, Kinglong, MG, Luxgen, Roewe, Senoua, SGM, Weiwang, Zotye, Zhongxing

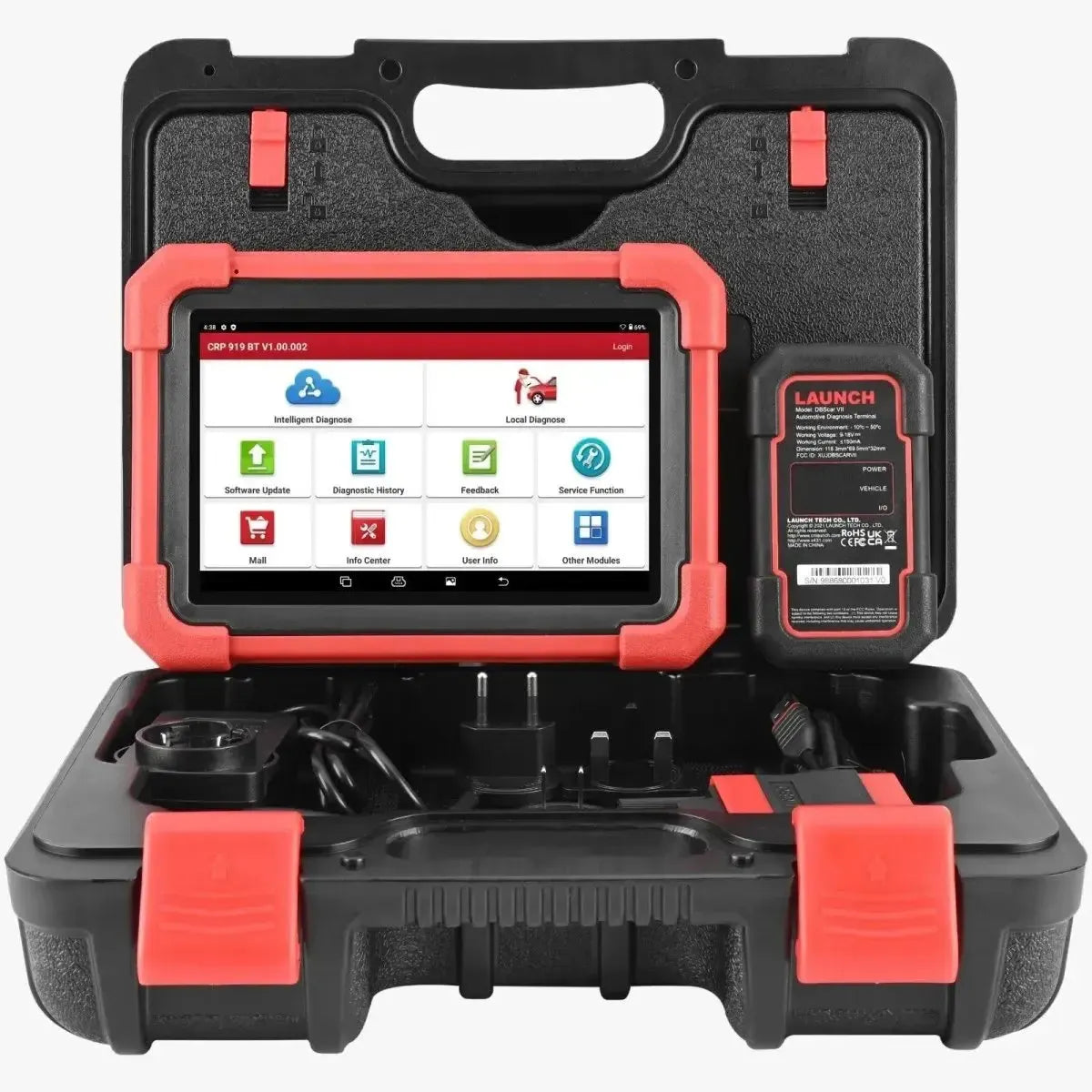

Package contents:

• Launch Creader Professional CRP919X BT Diagnostic Tool
• Launch DBSCar VII Interface
• Launch 15 Pins DB15 extension cable
• Launch 15 Pins DB15 - 16 Pins OBD2 Adapter
• USB-A - USB-C adapter cable
• Power adapter
• Manual

License information:

When purchasing the Launch Creader Professional CRP919X BT, you receive a license for 2 years of free software updates. Updates are easily performed online via Wi-Fi. After the 2-year license expires, the device remains fully functional for all previously supported vehicle models and functions; however, online features will expire and you will no longer receive new updates. You can renew the license annually if desired, to maintain access to the latest updates and online features.

Technical specifications
