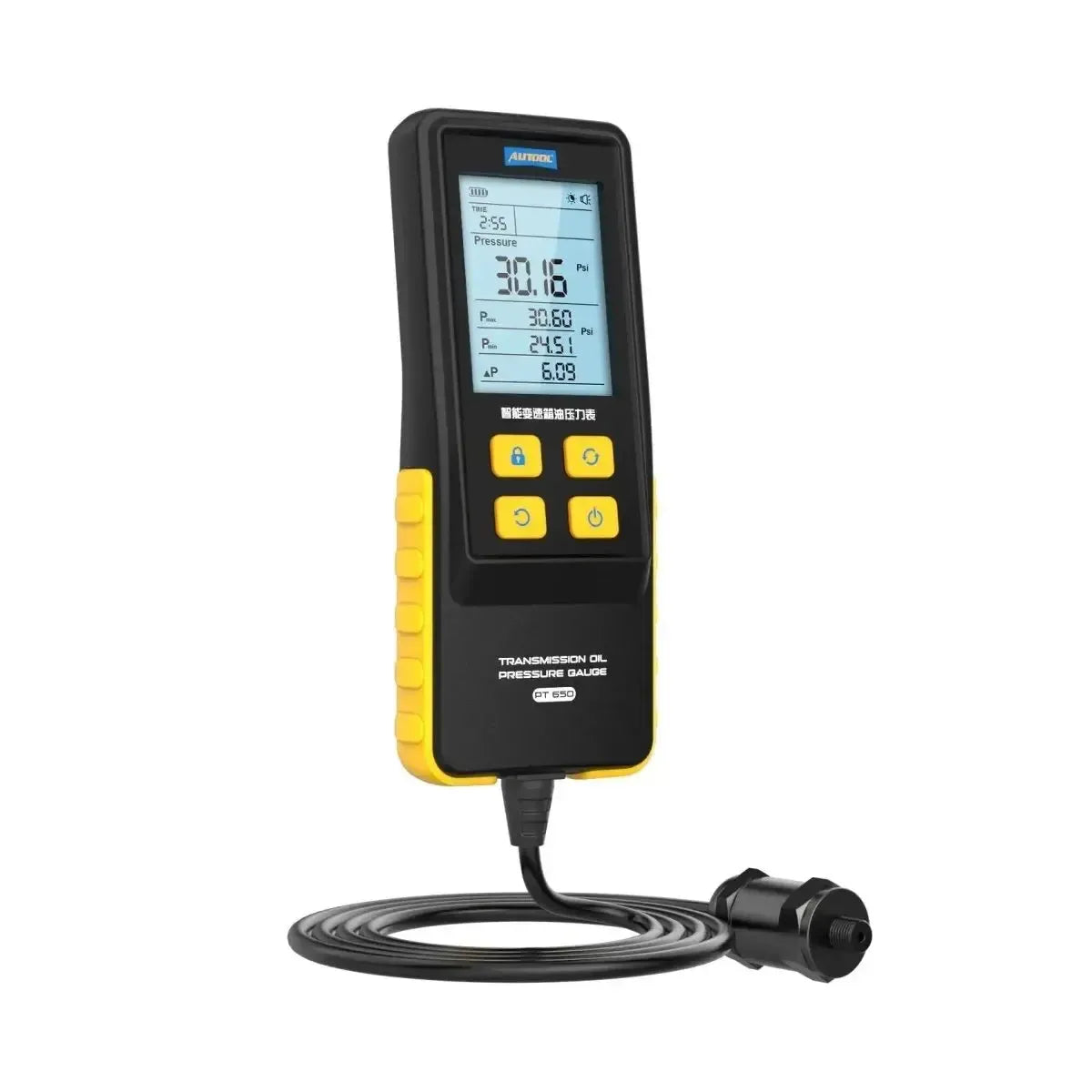

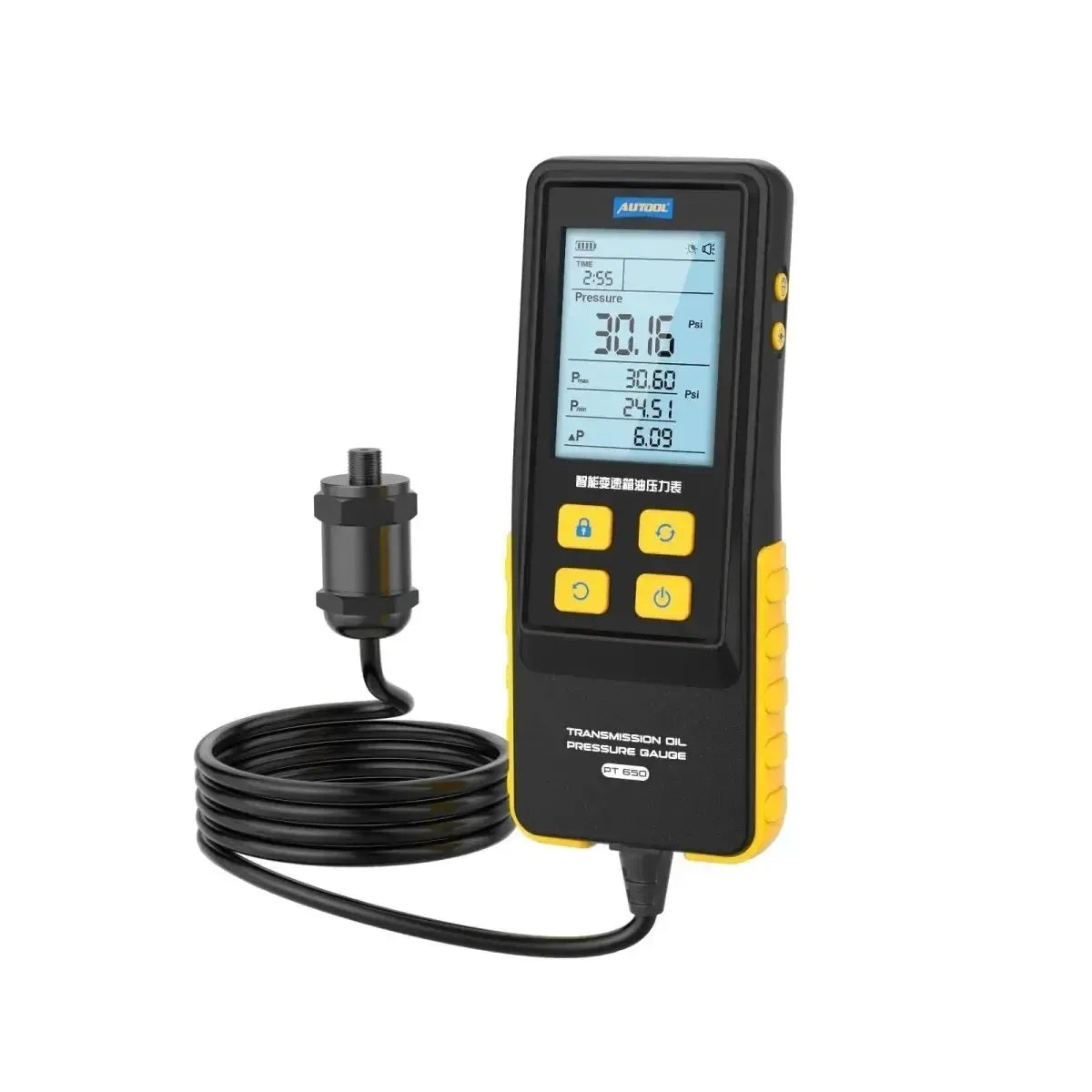

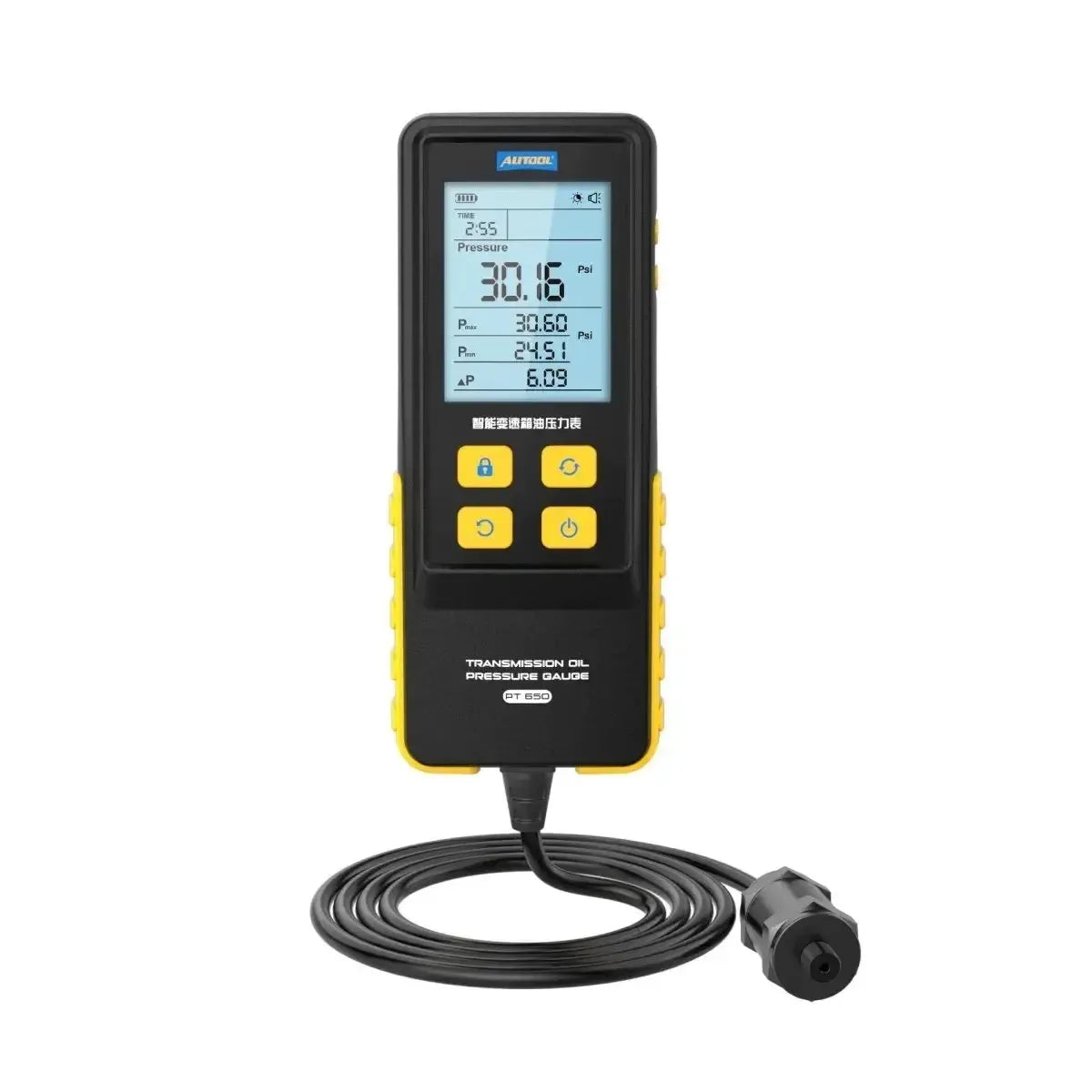

Autool PT650 Transmission Oil Pressure Tester

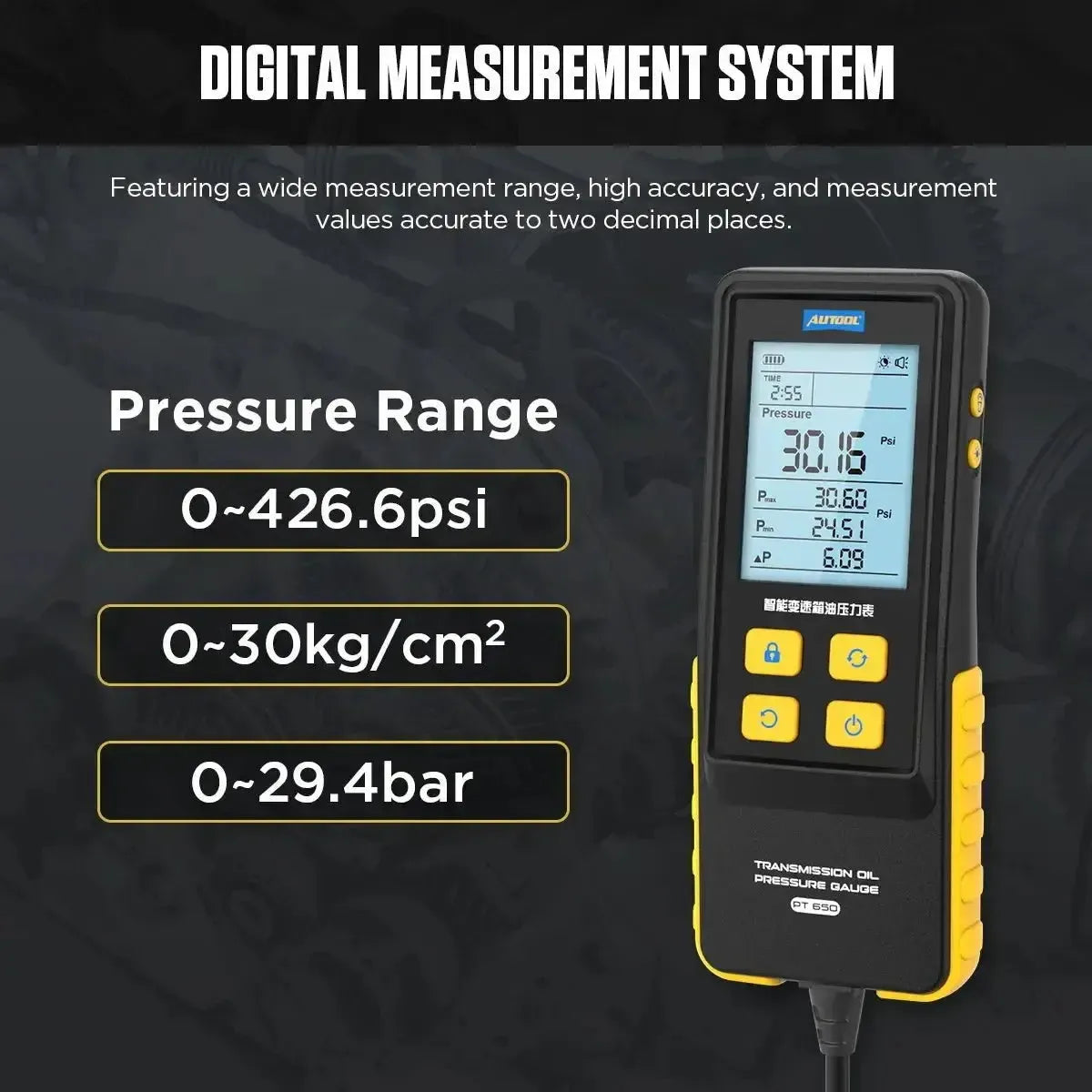

The Autool PT650 is a digital transmission oil pressure tester, designed for accurate measurements of oil pressure in automatic transmissions. With a measurement range up to 426.6 PSI (29.4 bar) and a resolution of 0.01 units, this device offers real-time measurements as well as maximum, minimum, and differential pressure values. The 2.8-inch LCD screen with backlight provides clear readings under various lighting conditions.

Features:

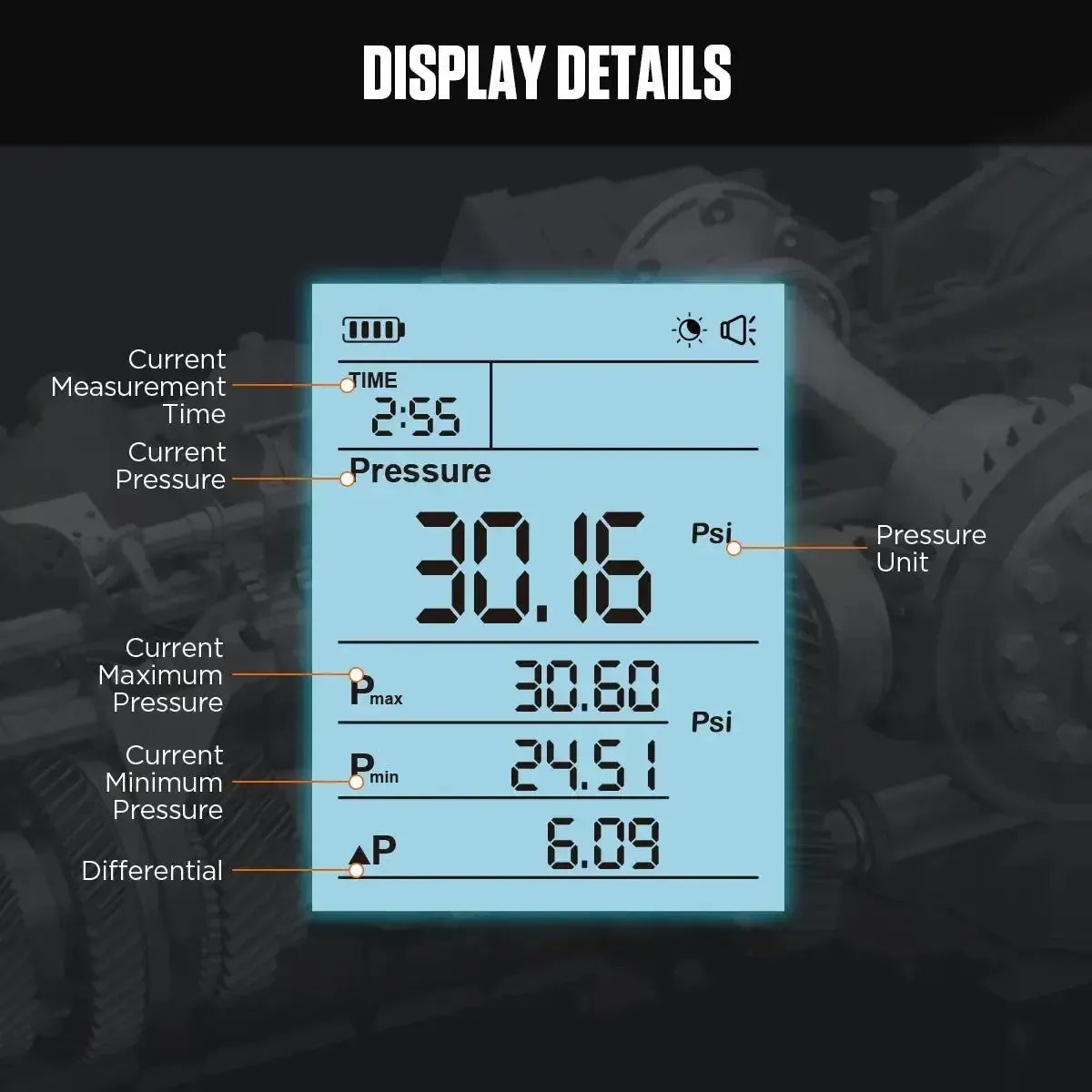

• Digital measurement system: Measure real-time pressure, average pressure, oil temperature, and measurement time with a resolution of 0.01 units.
• Multiple pressure units: Easily switch between PSI, Bar, and kg/cm² with the press of a button.

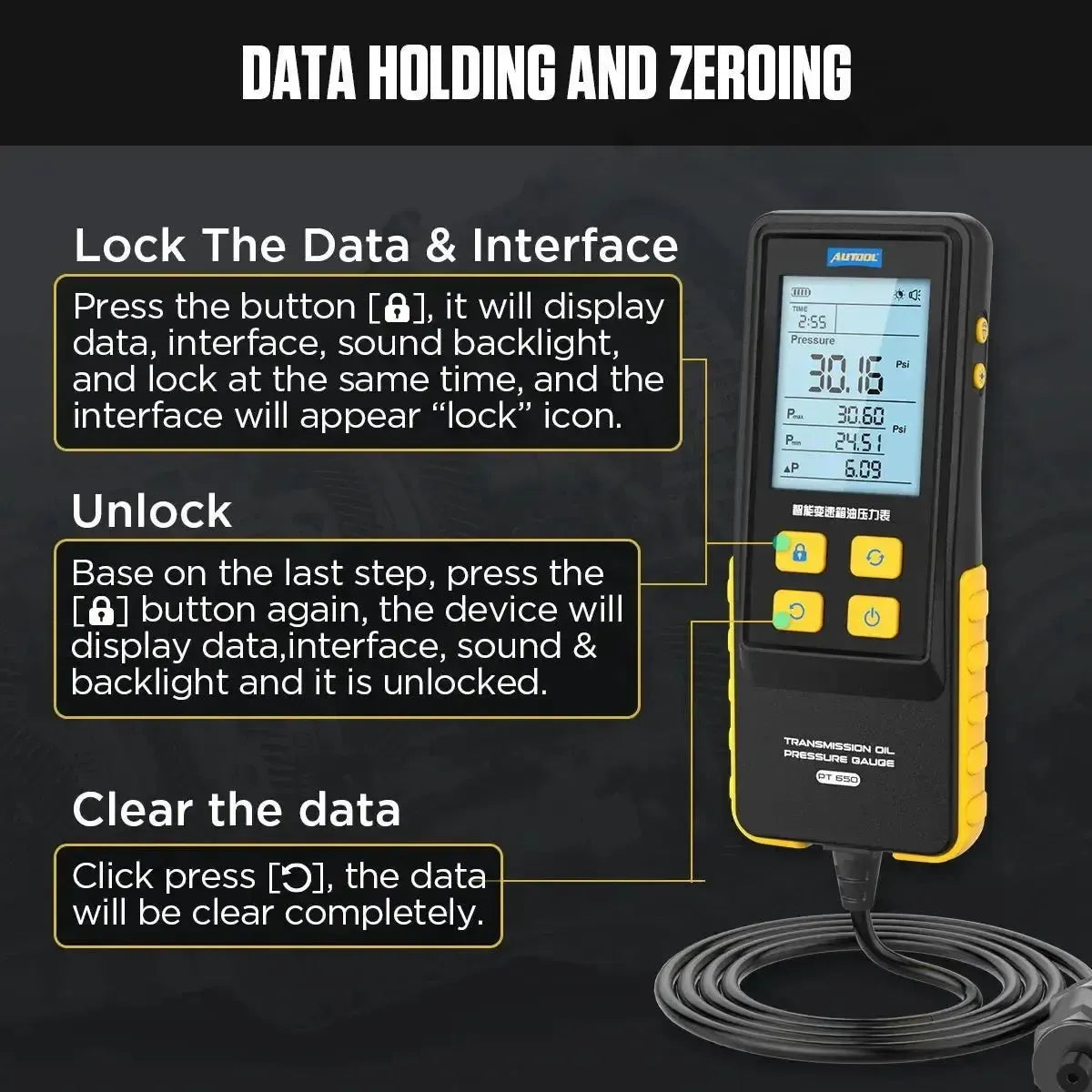

• Data storage: Stores up to 6 sets of measurement data for later analysis.
• Automatic shut-off: Automatically shuts off after 5 minutes of inactivity to save battery.

Special features:

• High-quality materials: Made of corrosion-resistant materials for long service life.
• User-friendly design: Compact and lightweight, easy to carry and store.
• Wide compatibility: Suitable for a wide range of vehicles, including cars, trucks, and motorcycles.

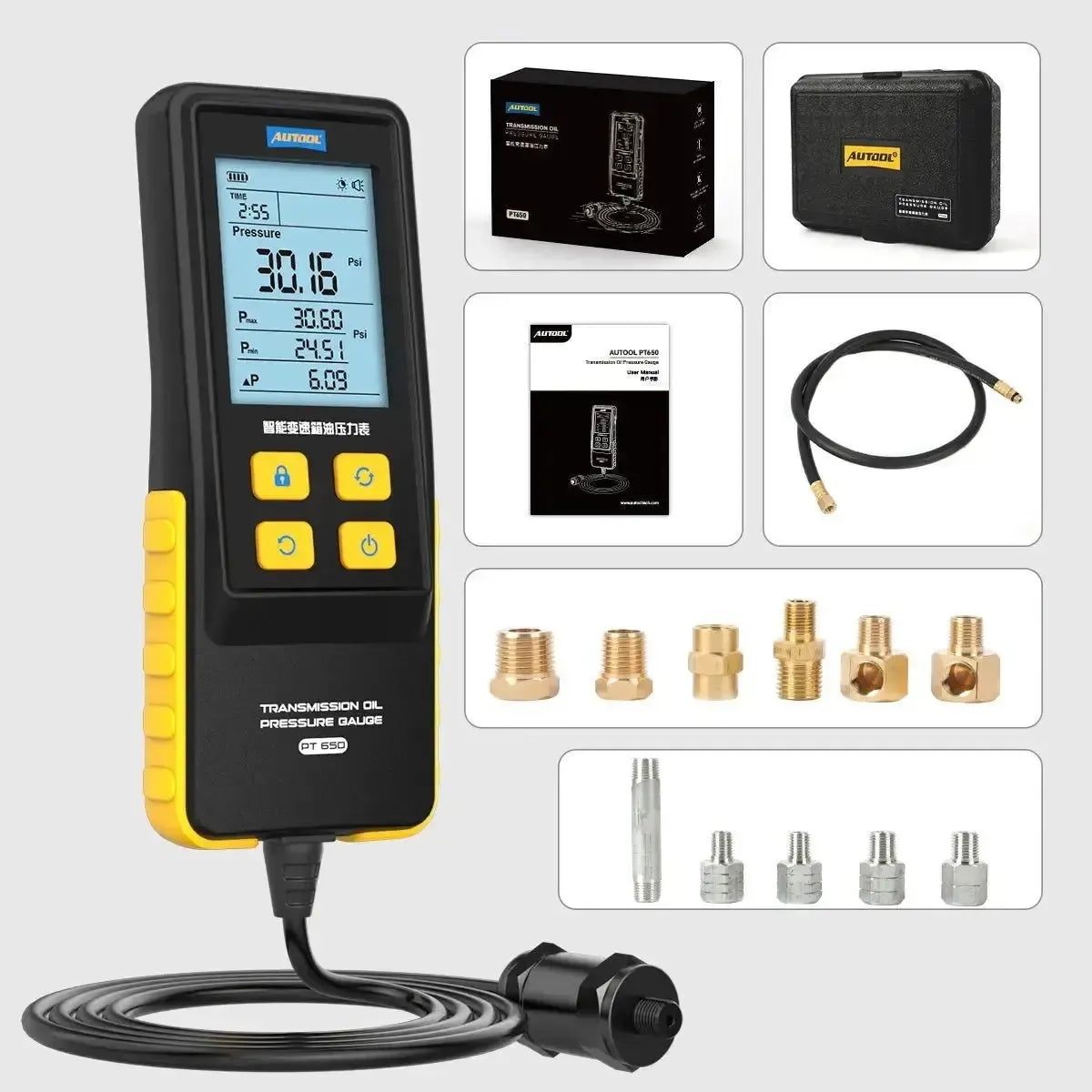

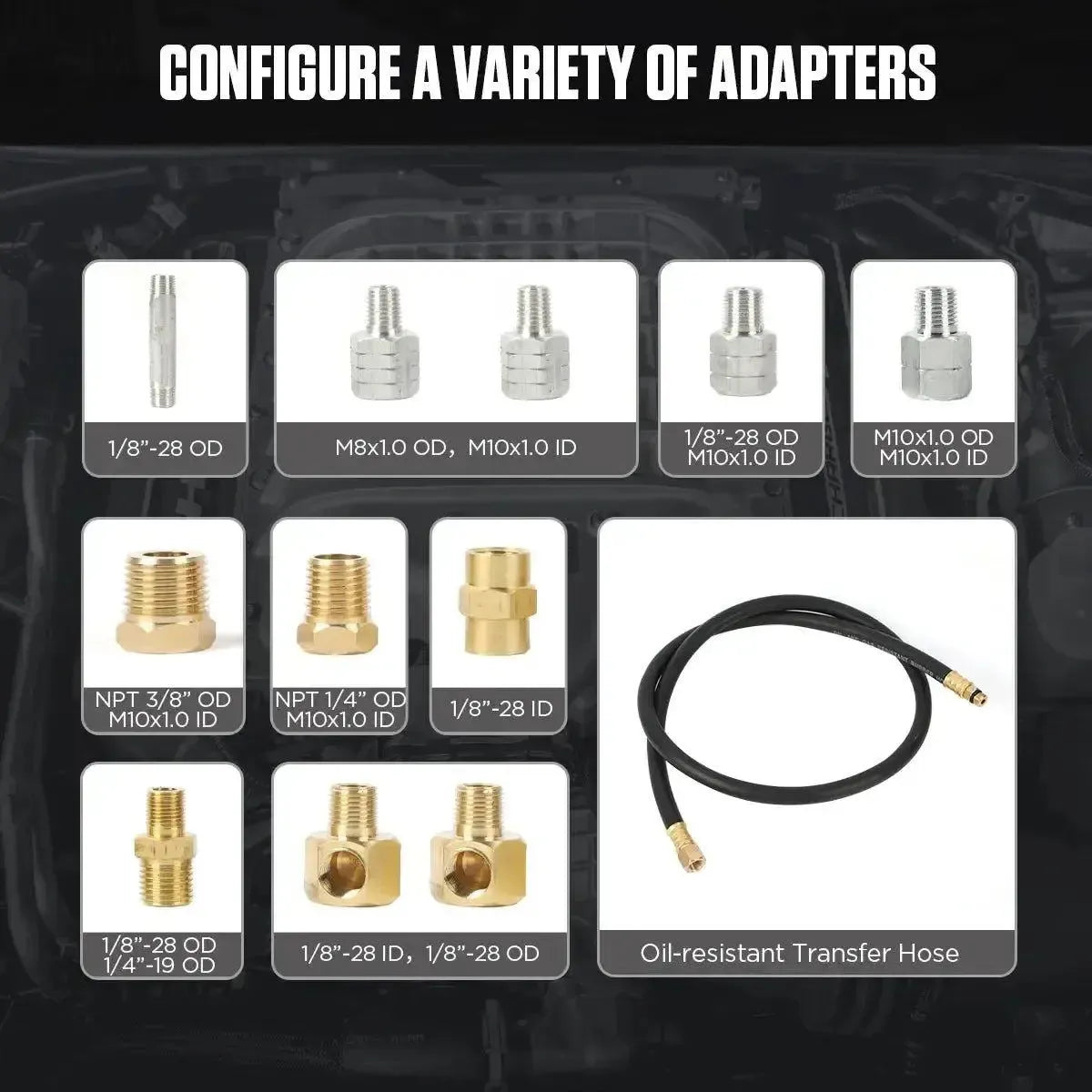

Package contents:

• Autool PT650 Transmission Oil Pressure Tester
• Oil-resistant feed hose
• 1/8"-28 OD adapter
• M8x1.0 OD adapter
• M10x1.0 ID adapter
• 1/8"-28 OD - M10x1.0 OD adapter
• M10x1.0 OD - M10x1.0 ID adapter
• NPT 3/8" OD - M10x1.0 ID adapter
• NPT 1/4" OD - M10x1.0 ID adapter
• 1/8"-28 ID adapter
• 1/8"-28 OD - 1/4"-19 OD adapter
• 1/8"-28 ID adapter
• 1/8"-28 OD adapter
• Manual

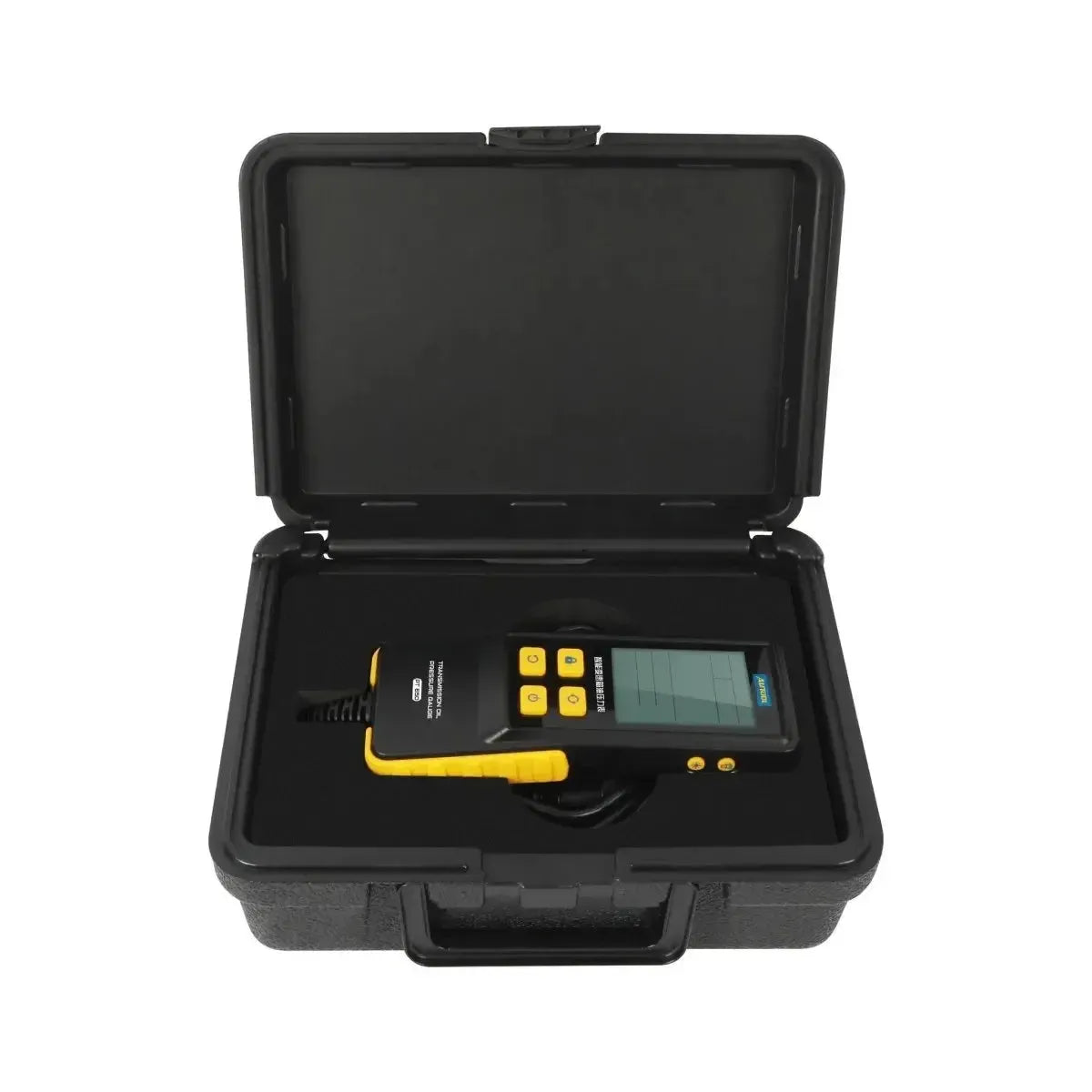

• Storage case

Technical specifications
