(OLD model) (New model T20)

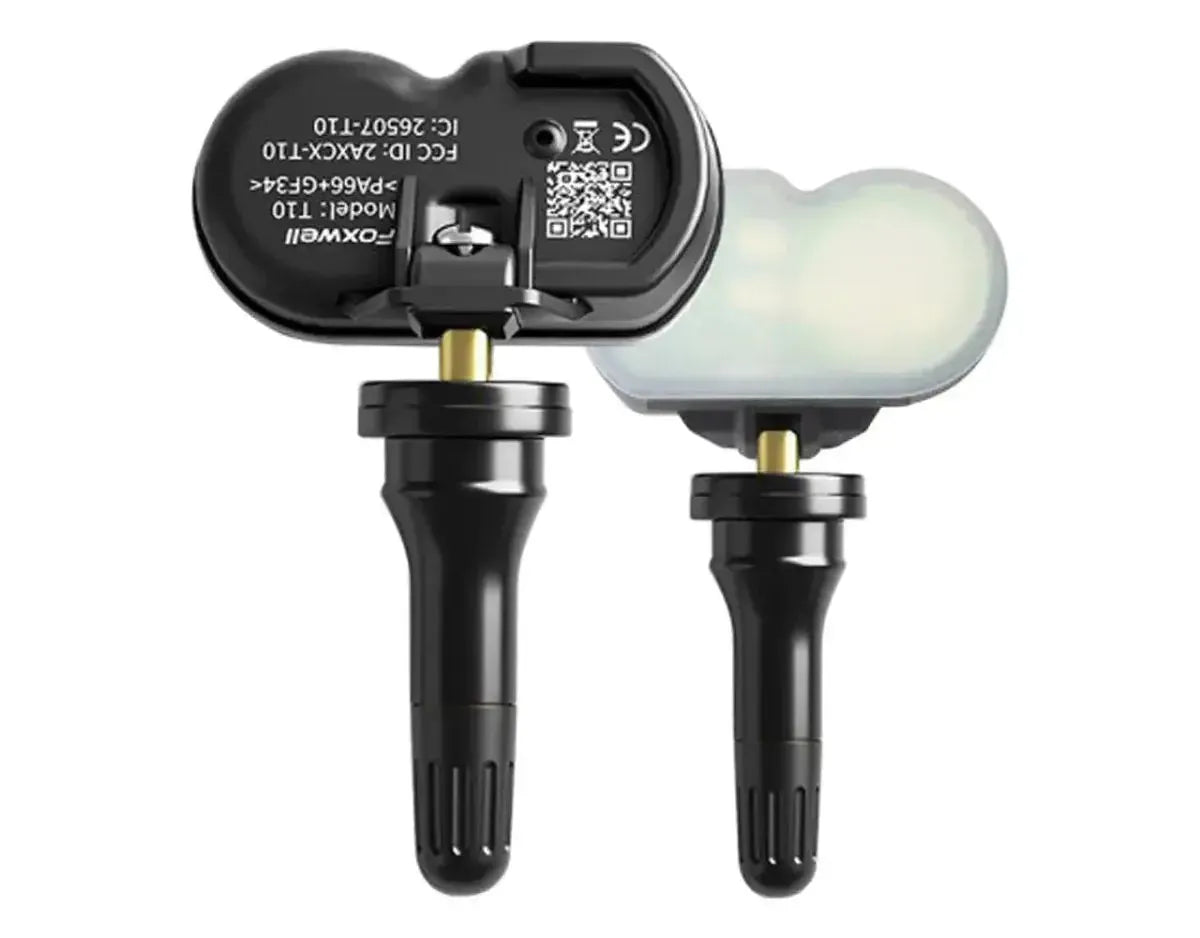

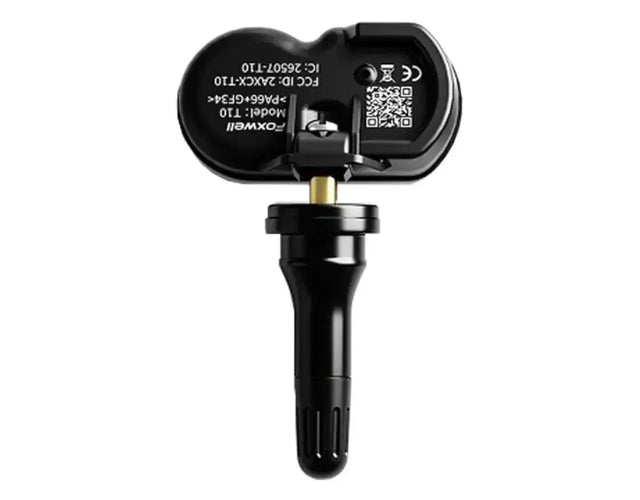

The Foxwell T10 TPMS sensor Rubber (Screw-in) is a dual-frequency programmable sensor operating on both 315MHz and 433MHz, making it suitable for more than 98% of all vehicles with a tire pressure monitoring system. This universal coverage makes the sensor ideal for workshops seeking efficient, brand-independent solutions. The screw-in rubber valve combines ease of installation with strong vibration damping and leak-free performance at high speeds.
The sensor is equipped with a high-quality measurement module that provides real-time monitoring of tire pressure and temperature with high signal stability. The internal components are protected against dust, moisture, mud, and temperature extremes. Thanks to optimized RF performance and long battery life, the T10 meets strict OEM standards and is suitable for various driving conditions and climate regions.
Important: This TPMS sensor can only be programmed with a TPMS programmer of the same brand, such as a Foxwell TPMS programmer. Use of programming tools from other brands is discouraged and may lead to incompatibility, error codes, or the sensor not being recognized by the vehicle. For optimal operation, correct initialization and learning via vehicle-specific procedures is required.
Features:
- Dual frequency (315MHz + 433MHz): one sensor for almost all vehicles.
- 100% ID cloneable: no relearning needed upon replacement.
- Wireless programming: even when the sensor is already installed.
- Unlimited reprogrammable: the sensor can be programmed multiple times.
- Replaceable valve stems: rubber and metal can be replaced without tools.
- Long battery life: more than 5 years of reliable operation.
- Wide temperature range: Operation from -40°C to +125°C.
- Water resistance: IP67 rating.
- Strict quality control: Each sensor has a unique serial number for traceability.
Package contents:
- Foxwell T10 Sensor 315MHz+433MHz Rubber TPMS (Screw-in)
Technical specifications
| Specification | Value |
|---|---|
| Frequency | 315 MHz / 433 MHz |
| Battery life | More than 5 years |
| Operating temperature | -40°C to +125°C |
| Storage temperature | -40°C to +35°C |
| Humidity | ≤90% |
| Pressure measurement range | 0 to 900 kPa |
| Pressure accuracy | ±1 kPa |
| Temperature range | -40°C to +125°C |
| Temperature accuracy | ±1°C |
| G-sensor accuracy | ±1 g |
| Transmit power | 5–8 dBm |
| Battery voltage | 3.0 V |
| Dimensions (W x H x D) | 46.2 mm x 27.8 mm x 17.7 mm |
| Weight (without valve) | 12 g |
| Valve type | Rubber, screw mounting |
