(OLD model) (New model T20)

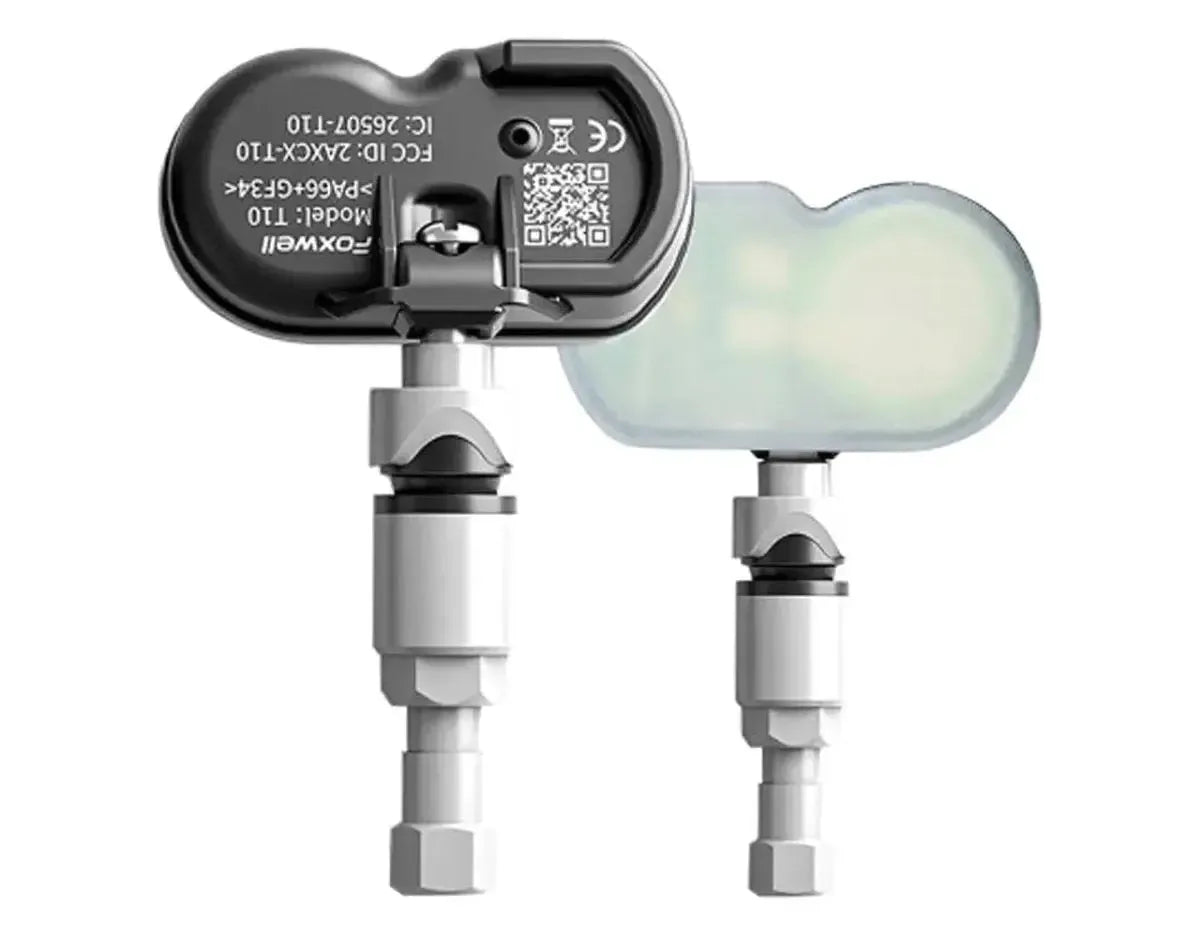

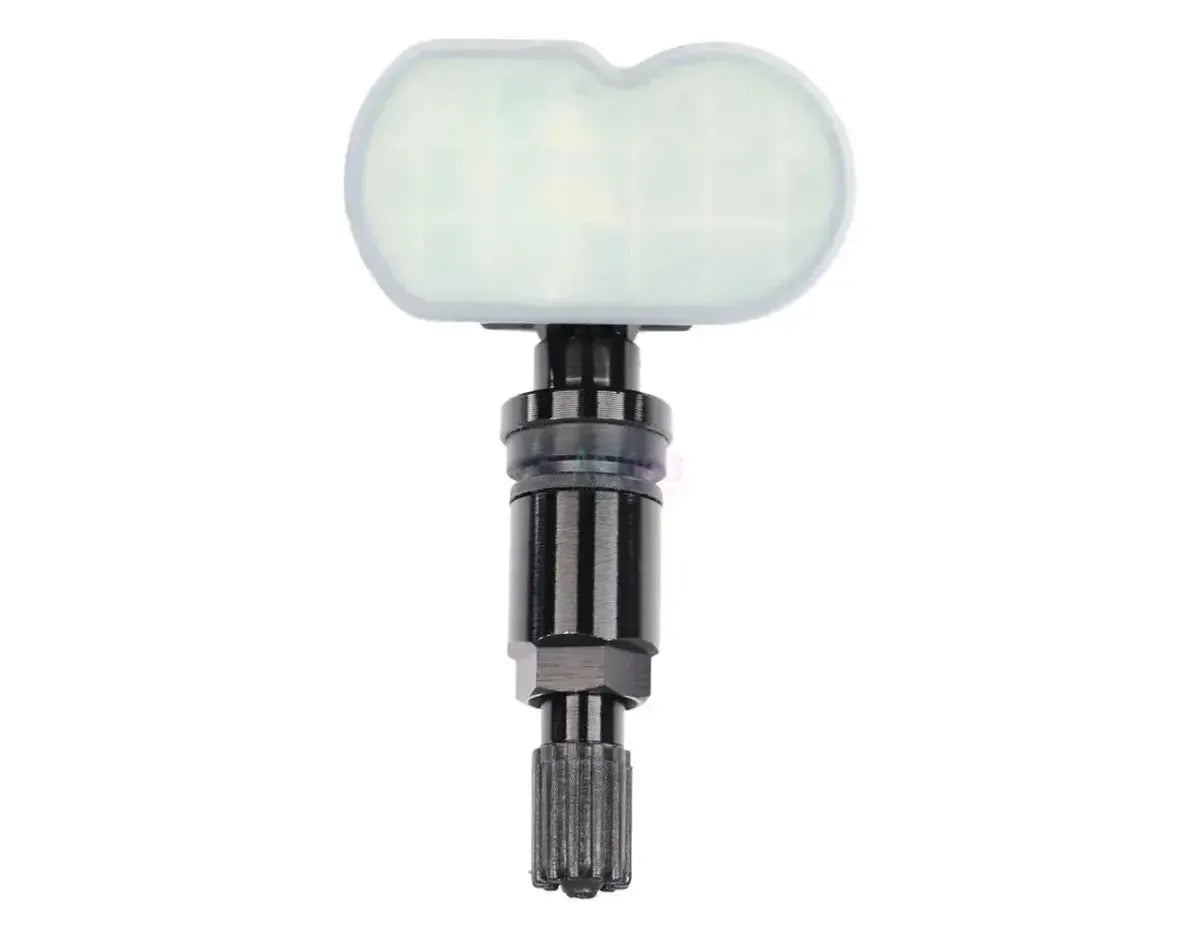

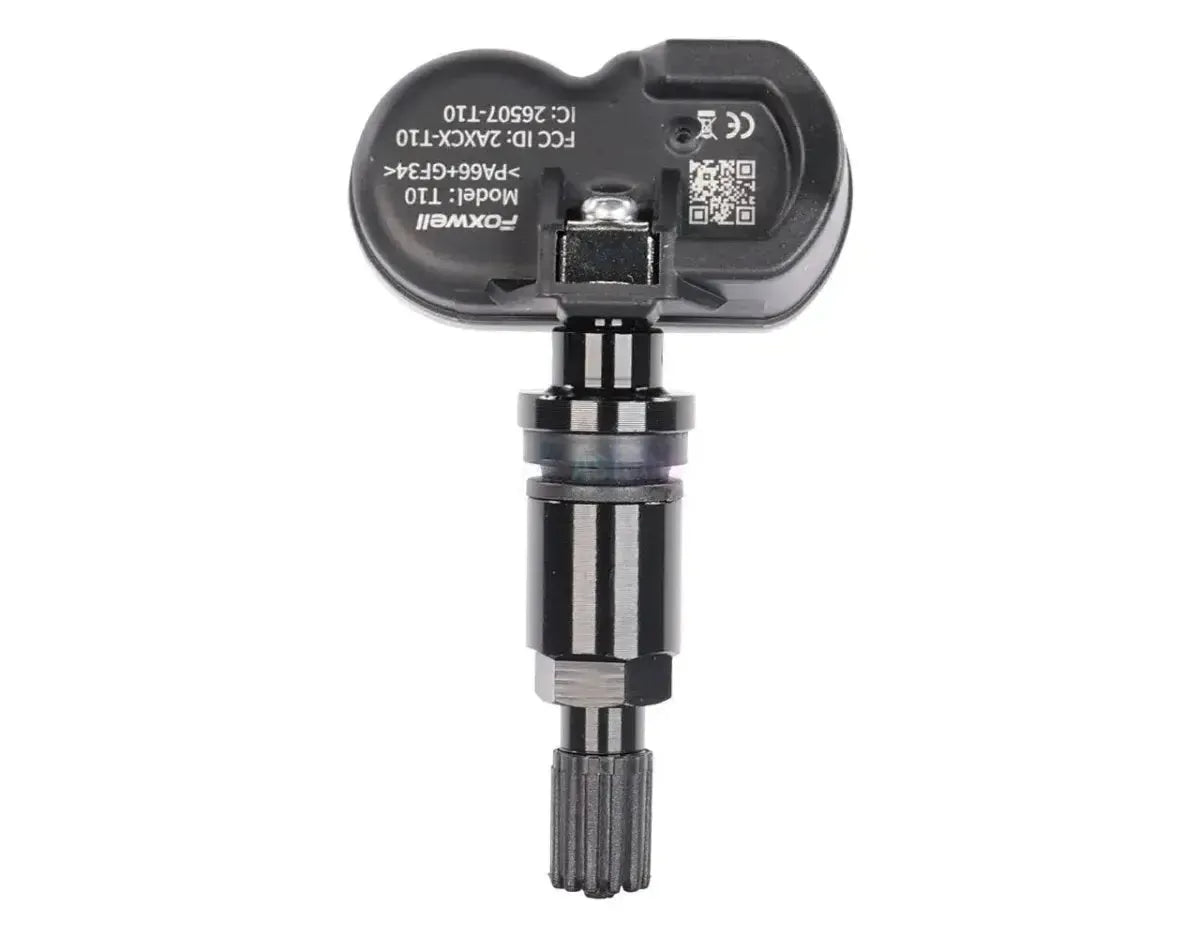

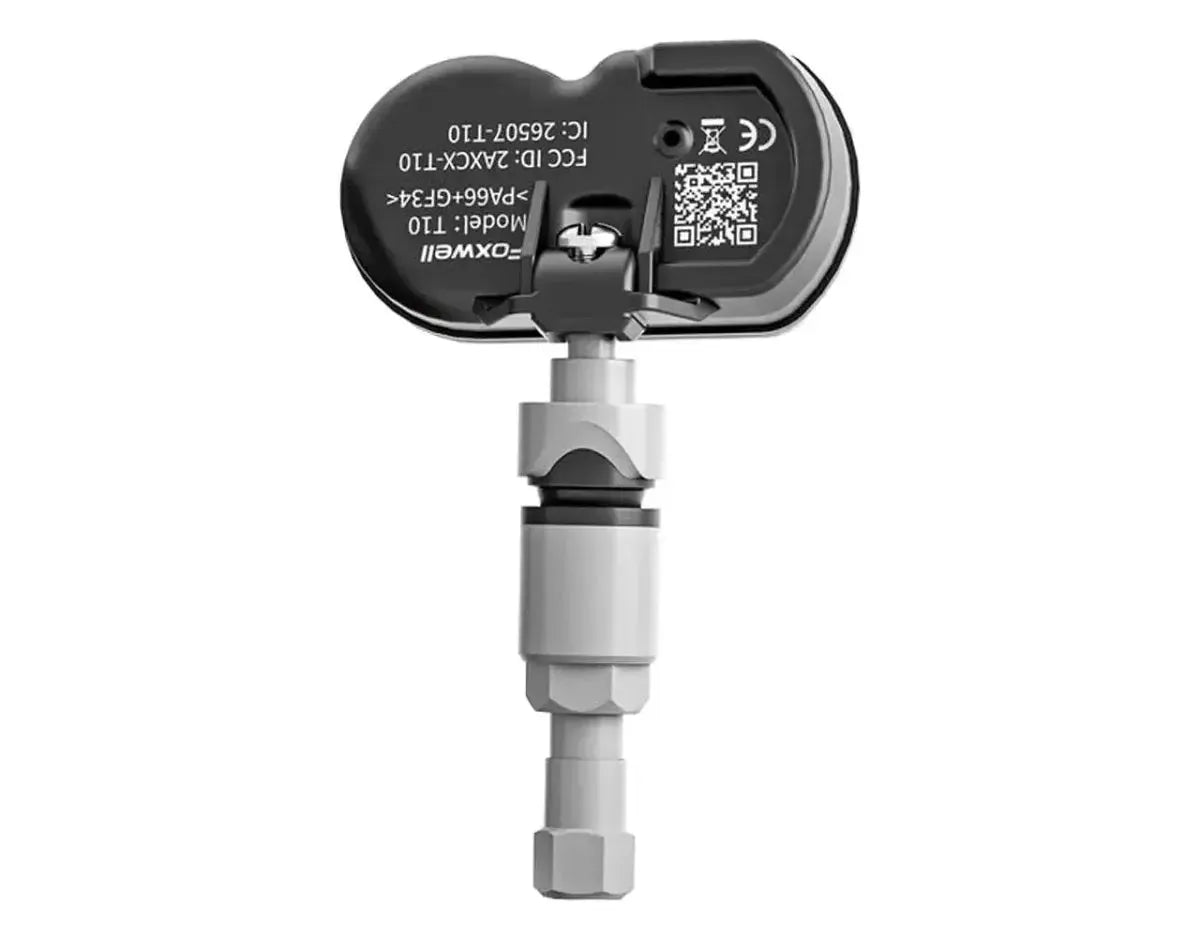

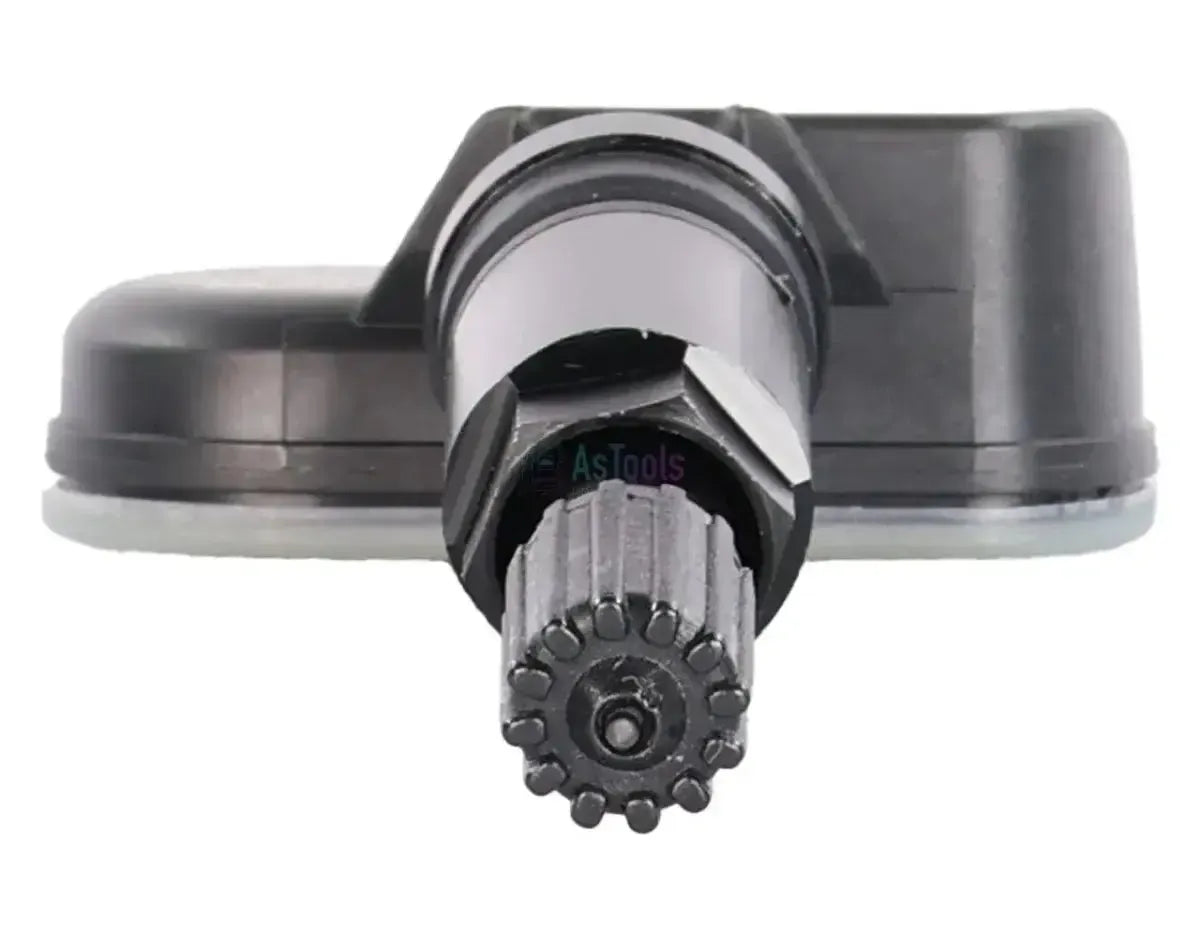

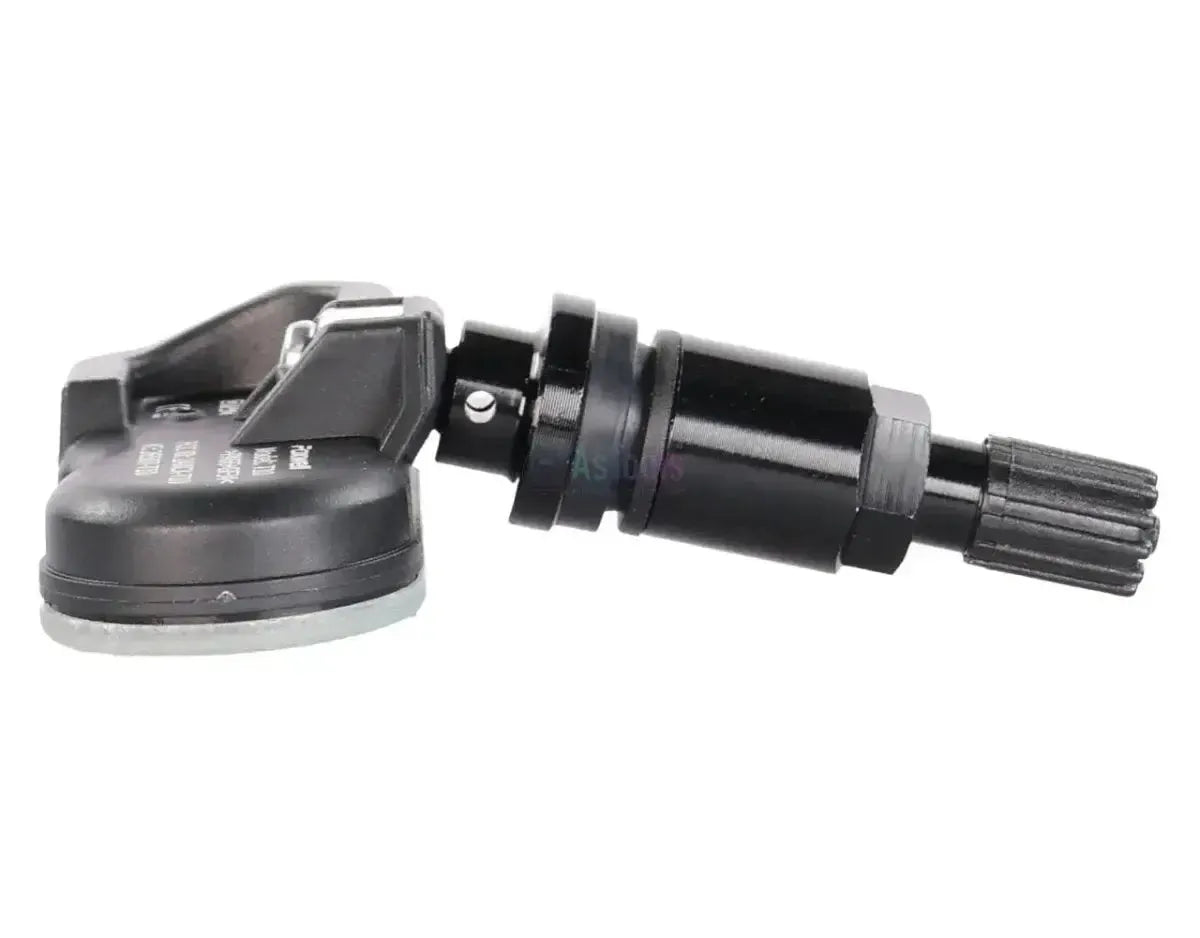

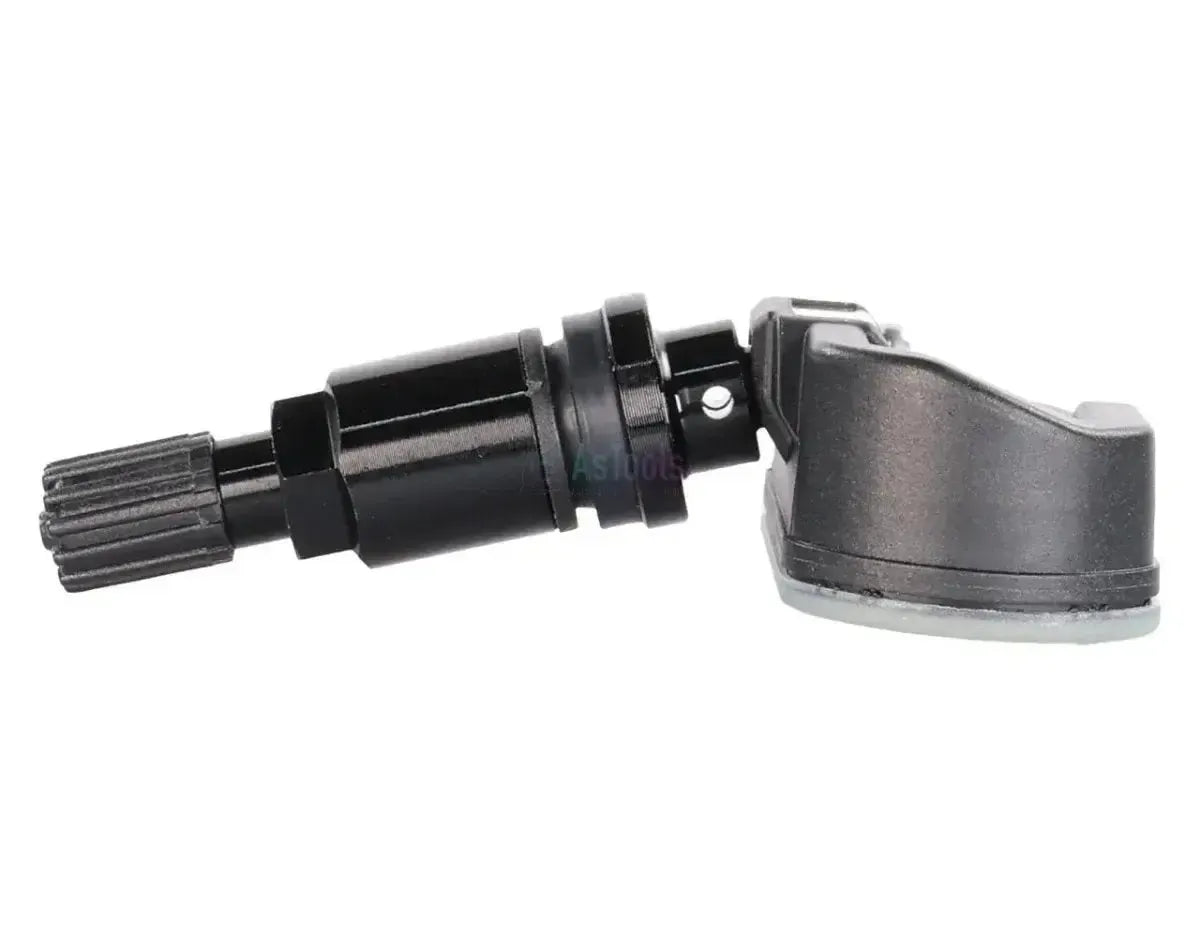

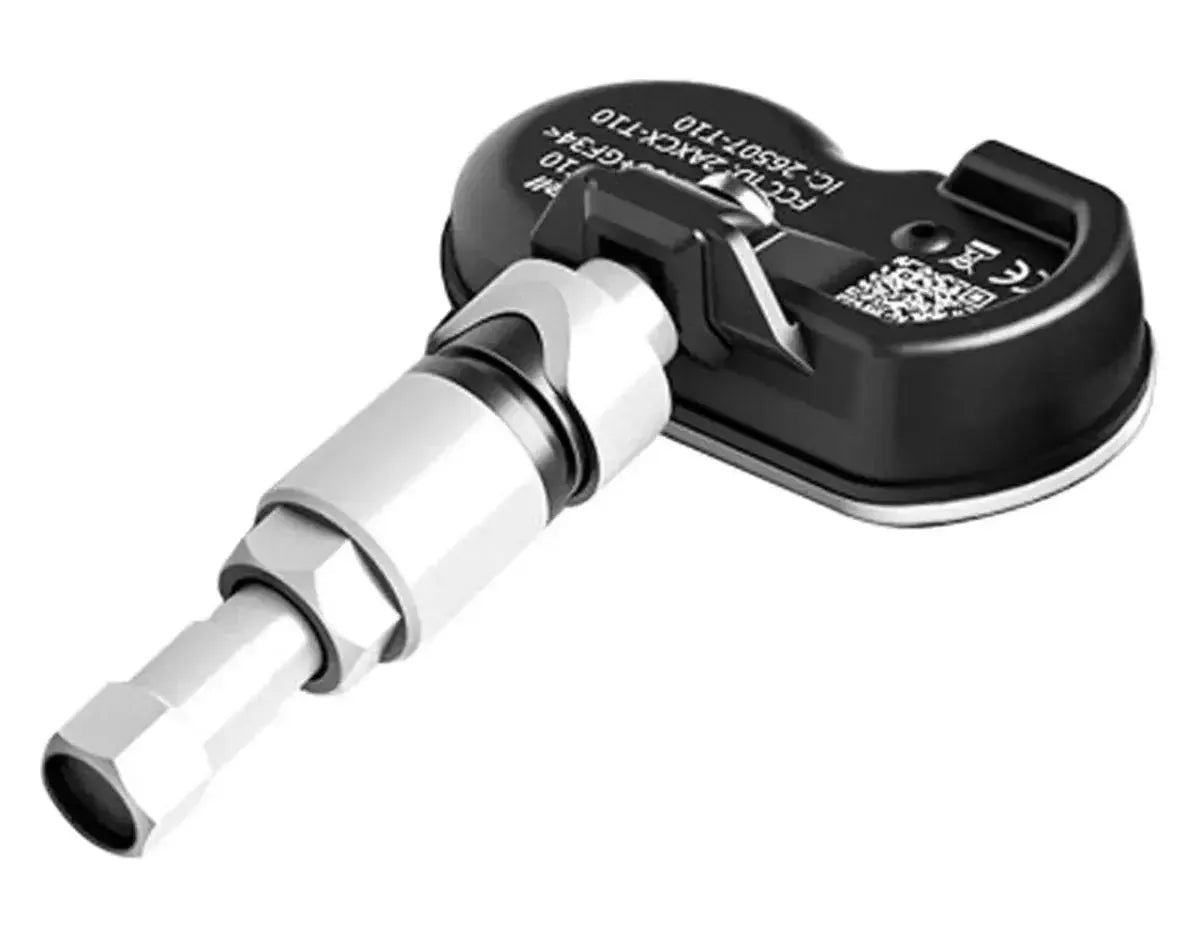

The Foxwell T10 TPMS sensor Aluminium (Screw-in) is a programmable sensor with dual frequency support (315MHz and 433MHz), suitable for more than 98% of vehicles with a TPMS system. The sensor is designed for professional use in workshops and offers a durable solution for TPMS diagnosis and replacement. The aluminum valve with screw mounting ensures a robust and corrosion-resistant installation, ideal for use at higher speeds and in harsher environments.
The internal chip is equipped with a powerful RF module and precise measuring sensors for real-time monitoring of tire pressure and temperature. The sensor is designed according to OE specifications and offers high signal stability, fast response, and long battery life. The housing is fully sealed against moisture, dirt, and salt, and suitable for use in temperature ranges from -40°C to +125°C.
Important: This TPMS sensor can only be programmed with a TPMS programmer of the same brand, such as a Foxwell TPMS programmer. Use of programming tools from other brands is discouraged and may lead to incompatibility, error codes, or the sensor not being recognized by the vehicle. For optimal operation, correct initialization and learning via vehicle-specific procedures is required.
Features:
- Dual frequency (315MHz + 433MHz): one sensor for almost all vehicles.
- 100% ID cloneable: no relearning needed upon replacement.
- Wireless programming: even when the sensor is already installed.
- Unlimited reprogrammable: the sensor can be programmed multiple times.
- Replaceable valve stems: rubber and metal can be replaced without tools.
- Long battery life: more than 5 years of reliable operation.
- Wide temperature range: Operation from -40°C to +125°C.
- Water resistance: IP67 rating.
- Strict quality control: Each sensor has a unique serial number for traceability.
Package contents:

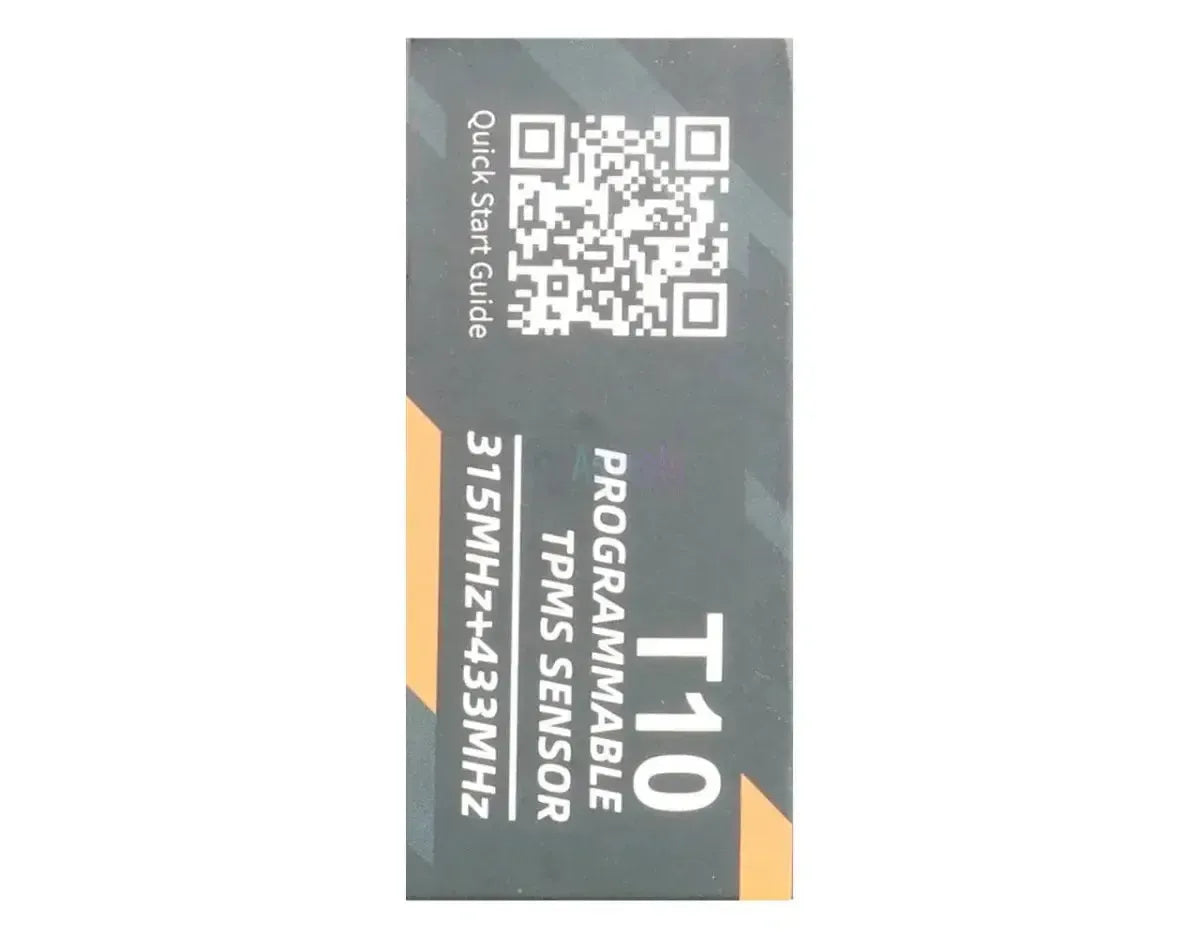

- Foxwell T10 Sensor 315MHz+433MHz Aluminum TPMS (Screw-in)
Technical specifications
| Specification | Value |
|---|---|
| Frequency | 315 MHz / 433 MHz |
| Battery life | More than 5 years |
| Operating temperature | -40°C to +125°C |
| Storage temperature | -40°C to +35°C |
| Humidity | ≤90% |
| Pressure measurement range | 0 to 900 kPa |
| Pressure accuracy | ±1 kPa |
| Temperature range | -40°C to +125°C |
| Temperature accuracy | ±1°C |
| G-sensor accuracy | ±1 g |
| Transmit power | 5–8 dBm |
| Battery voltage | 3.0 V |
| Dimensions (W x H x D) | 46.2 mm x 27.8 mm x 17.7 mm |
| Weight (without valve) | 12 g |
| Valve type | Aluminum, screw mounting |
