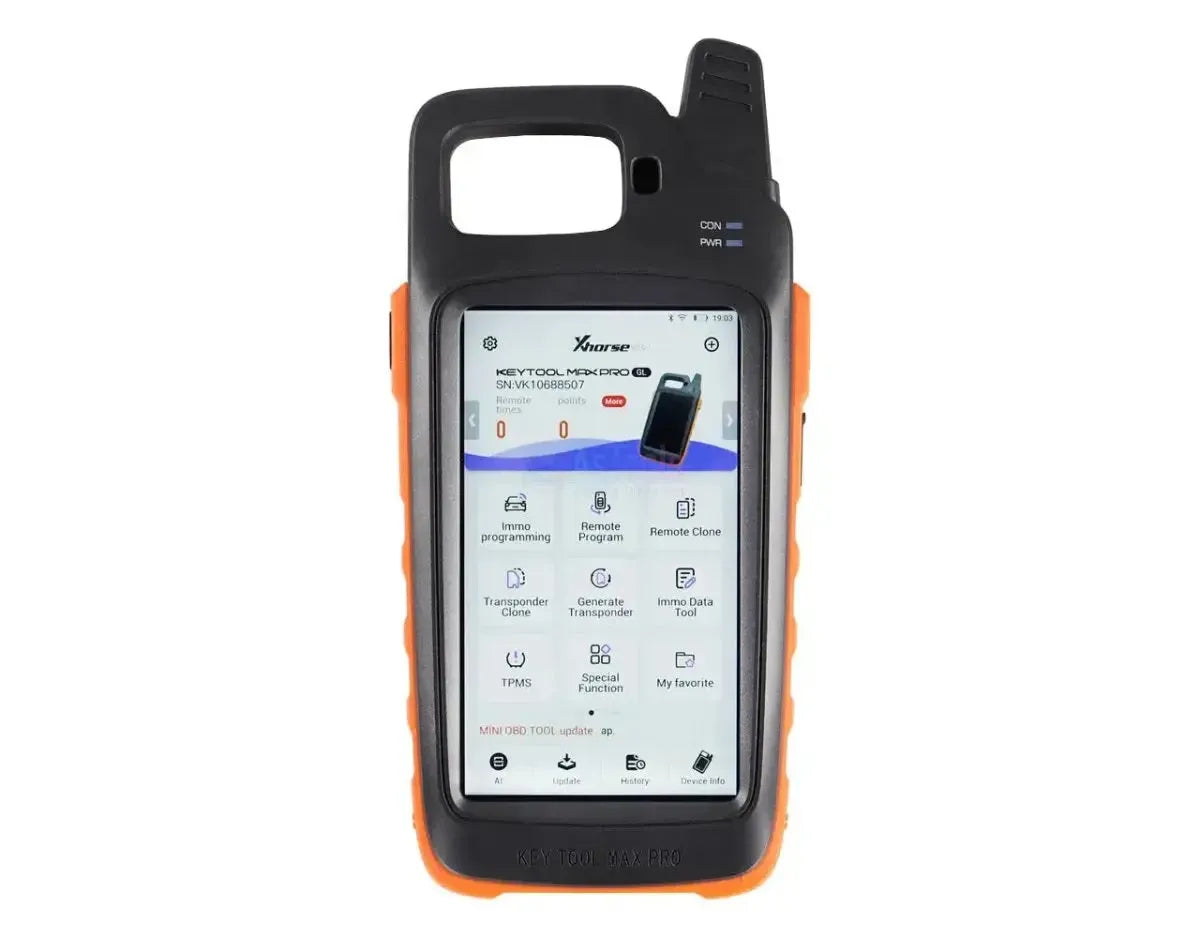

Xhorse Key Tool Max Pro Key Programmer

The Xhorse Key Tool Max Pro is a powerful and multifunctional key programmer, designed for both locksmiths and professional automotive technicians. The device combines transponder programming, remote generation, OBD diagnostics, TPMS programming, and battery tests in a single compact device. Thanks to the built-in OBD part, no separate Mini OBD Tool is needed anymore. The device operates completely wirelessly via Wi-Fi and Bluetooth, and is compatible with the entire Xhorse ecosystem, including key cutting machines and cloud applications.

The Key Tool Max Pro supports a wide range of vehicle brands and chip types (such as ID46, ID48, 4D, 8A, 4A) and also offers access to daily tokens for ID48 cloning, frequency tests, smart key creation, and EEPROM functionality (via adapters). Thanks to the Xhorse app, users can save vehicle history, receive updates, manage tokens, and share data between multiple Xhorse tools.

Key and immobilizer functions:

• Read, clone, and generate transponders: Supports e.g. ID13, ID46, ID48 (96-bit), ID4D, ID4A, ID8A, and more.
• Generate remote controls: Programs universal and original remotes via wireless communication or programming cable.
• Smart key programming: Compatible with Toyota, Honda, BMW CAS1-CAS3, VAG, Mercedes (FBS3), and more via OBD.
• Daily ID48 cloning (96-bit): 1 free token per day via Xhorse app, expandable with loyalty points.
• Read PIN code: Support for vehicles where PIN is readable via OBD or via server.
• Read key information: Displays chip ID, status, battery voltage, and frequency of keys.

Diagnostic and service functions:

• OBD diagnosis: Reads and clears fault codes, displays ECU information, live data, and system status for engine, ABS, airbags, etc.
• Service functions: Supports basic functions like oil reset, electronic parking brake (EPB), battery registration (BMS), and TPMS reset.
• TPMS programming: Supports reading, cloning, and programming TPMS sensors (such as Xhorse sensors).
• Active tests: Allows users to manually control components depending on vehicle support.
• Battery test function: Measures battery voltage, quiescent current (leakage), and charge status via included test cable.

Extra features:

• Built-in OBD interface: No separate Mini OBD Tool needed – everything integrated into the device.
• Frequency test (RF): Measures key fob signals between 300–450 MHz.
• Battery test remote keys: Checks remotes for signal strength and battery status.
• Shortcut to Xhorse app: For updates, user registration, token management, and vehicle history.
• Xhorse Cloud Backup: Synchronizes data with other Xhorse devices such as the Condor or Dolphin lines.
• OTA updates via Wi-Fi: Software updates are wireless, without PC or external software.

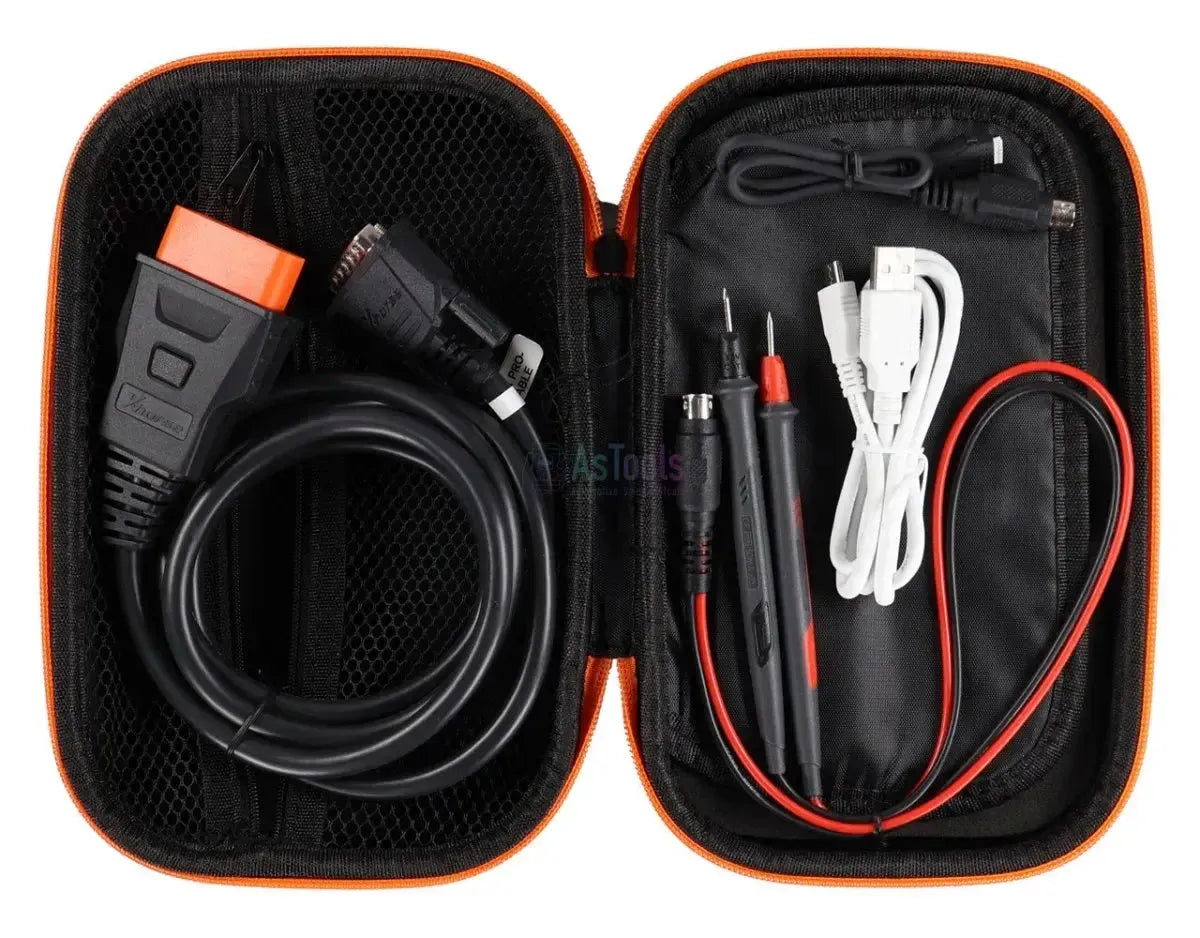

Package contents:

• Xhorse Key Tool Max Pro Key Programmer

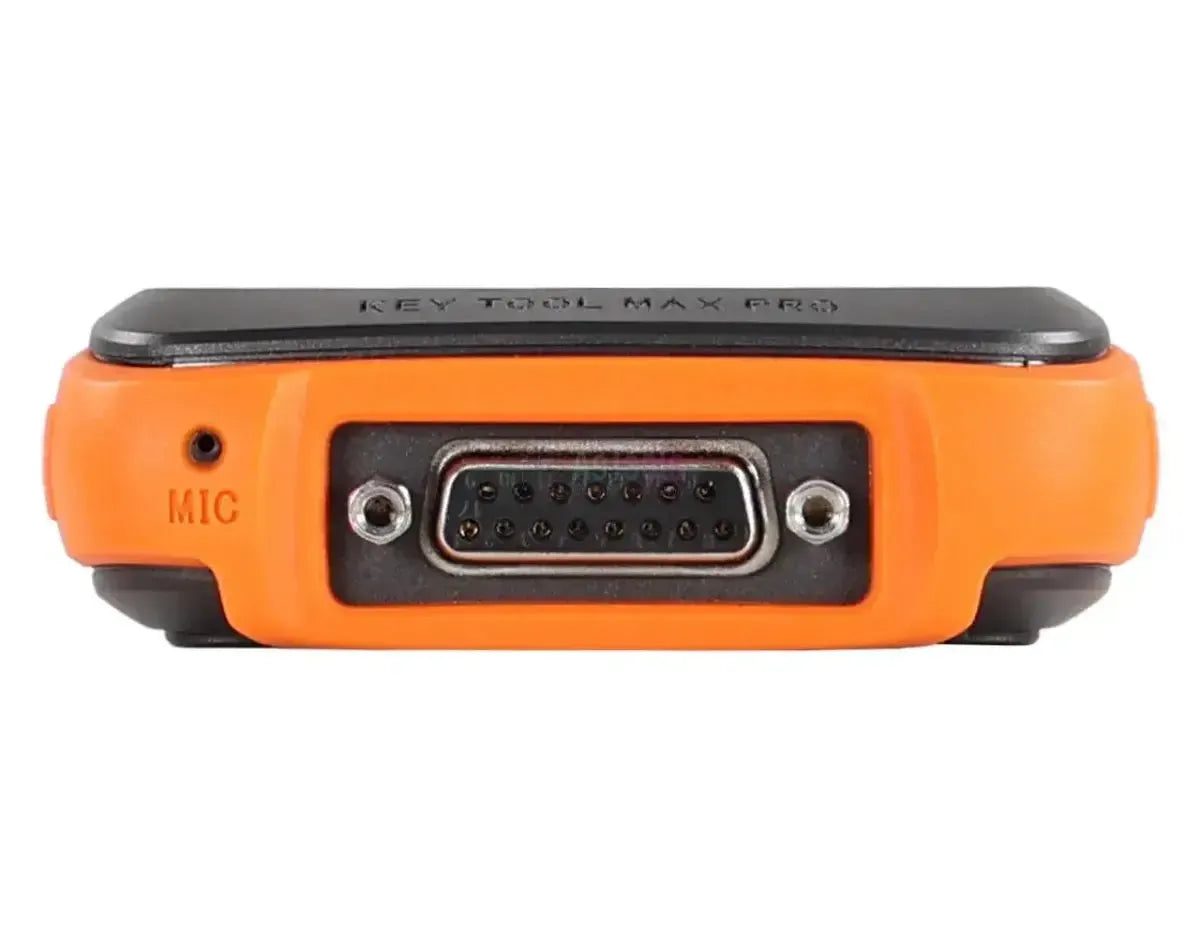

• Xhorse 15 Pins DB15 - 16 Pins OBD2 Adapter Cable
• Xhorse Test Pins
• USB-A - USB-C Adapter Cable
• Charging cable

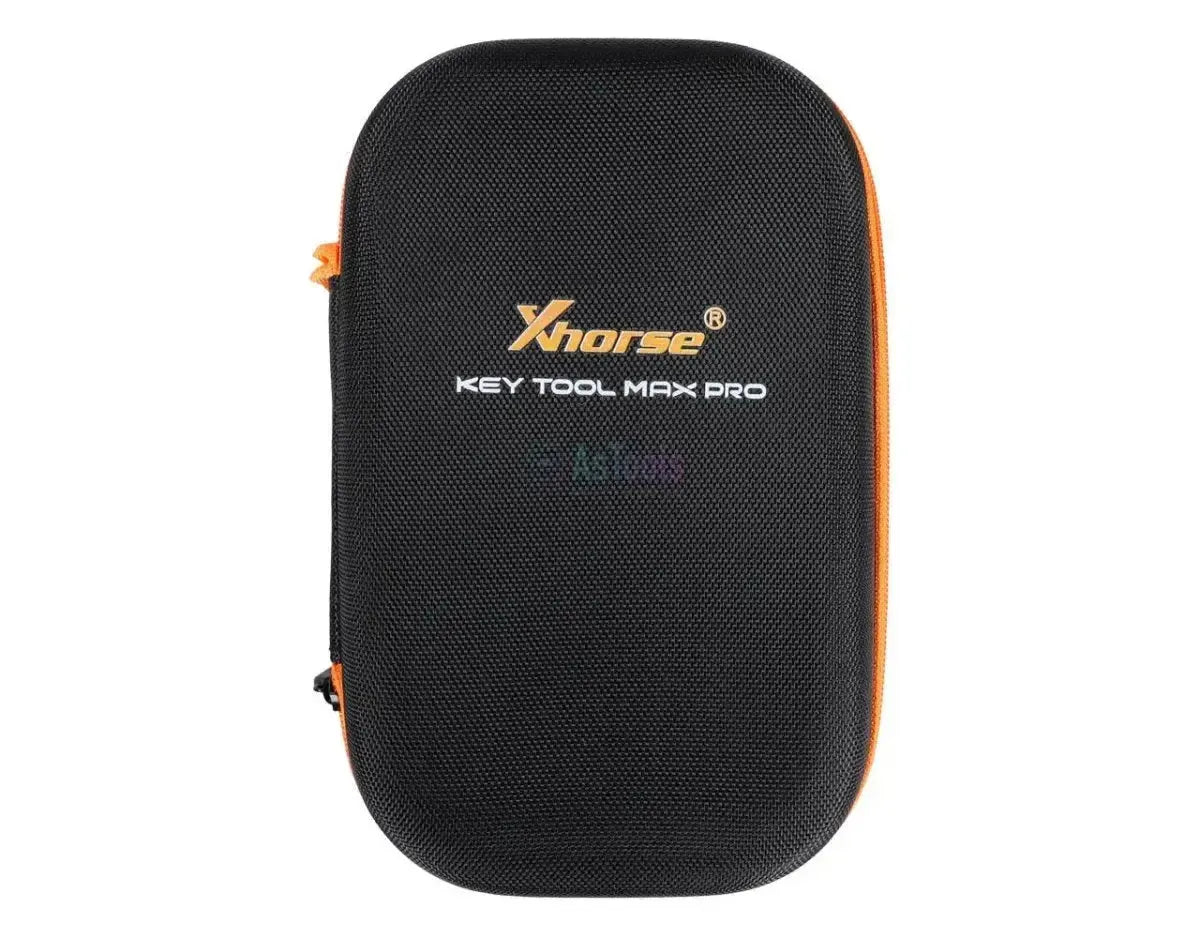

• Storage Case
• Manual

License information:

• Including lifetime updates: No annual license fees. All firmware and vehicle updates are made available via the Xhorse app. Tokens for specific functions (such as ID48 cloning) are granted through a points system, with 1 free token per day.
