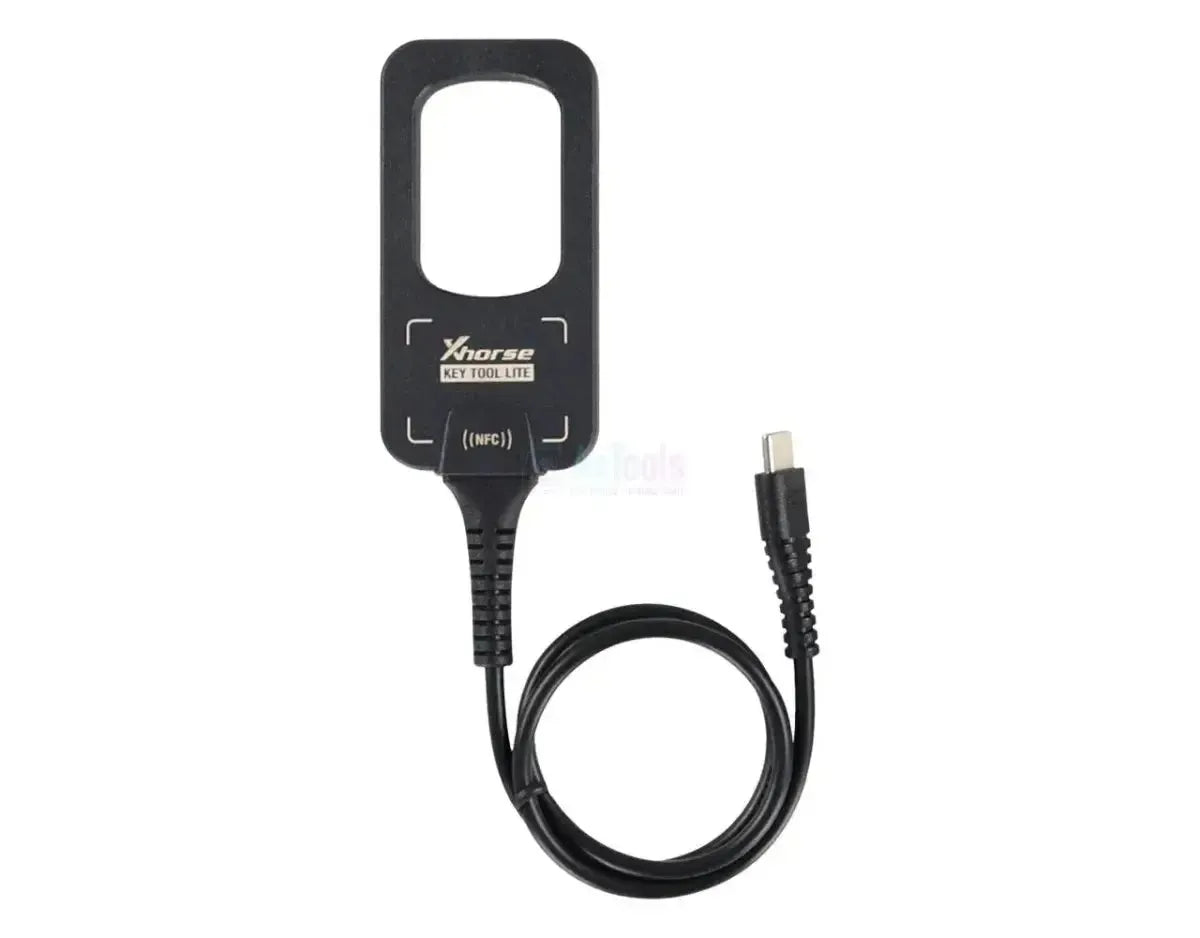

Xhorse Key Tool Lite Key Programmer

The Xhorse VVDI Key Tool Lite is a compact key programmer specially designed for use with Android devices via a USB-C connection. This device offers a wide range of functions for generating and cloning transponders, detecting frequencies, and managing remotes. With support for more than 850 vehicle models from 80 different brands worldwide, the Key Tool Lite is a versatile tool for professionals in the car key industry.

The Key Tool Lite comes with six universal XKB501EN wired remotes and offers features such as generating remotes, cloning transponders (such as ID46, 4D, 8A/H), and performing special functions like unlocking Toyota Smart Keys and renewing Honda cycle keys. Although the device does not support ID48 96-bit cloning and remote cloning, it still offers a cost-effective solution for common key programming needs.

Functions:

• Transponder recognition and cloning: Supports various transponder types such as 46, 48, 4D 70/83, 8A/H, G, 4E, and more.
• Remote generation: Supports generating remotes for more than 6000 vehicle models from 200 brands worldwide.
• Frequency detection: Detects frequencies within the range of 300–450 MHz.
• Special features: Includes unlocking Toyota Smart Keys, renewing Honda cycle keys, and detecting ignition coil signals.
• App control: Full control via the Xhorse app on Android devices.

Special features:

• Compact and portable design: Easy to carry and use in various work environments.
• Direct Android connection: Connects directly to Android devices via a USB-C port.
• Extensive vehicle coverage: Supports more than 850 vehicle models from 80 brands worldwide.
• Free updates: Regular firmware updates via the Xhorse app ensure up-to-date functionality.

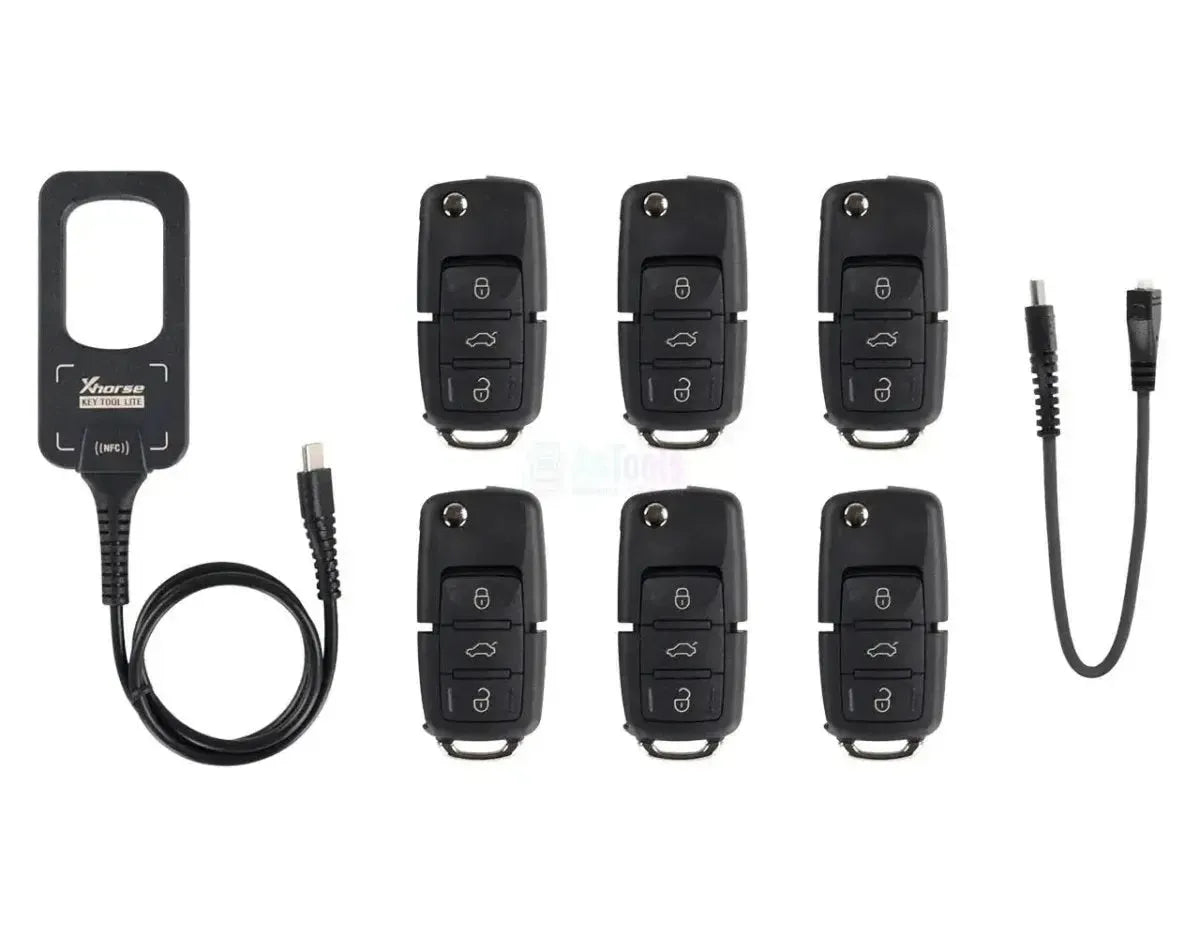

Package contents:

• Xhorse Key Tool Lite Key Programmer

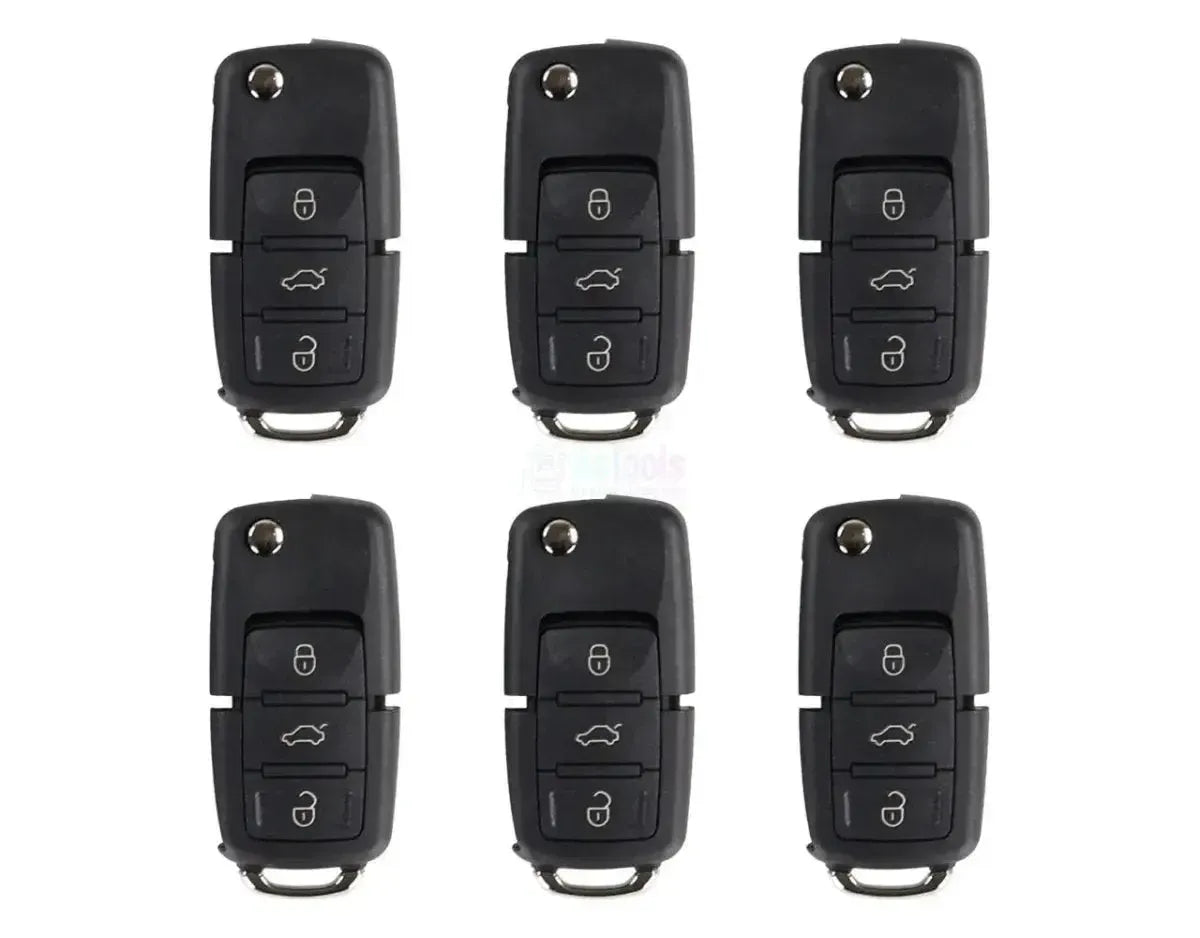

• Xhorse XKB501EN Keys (6 pieces)
• Manual
