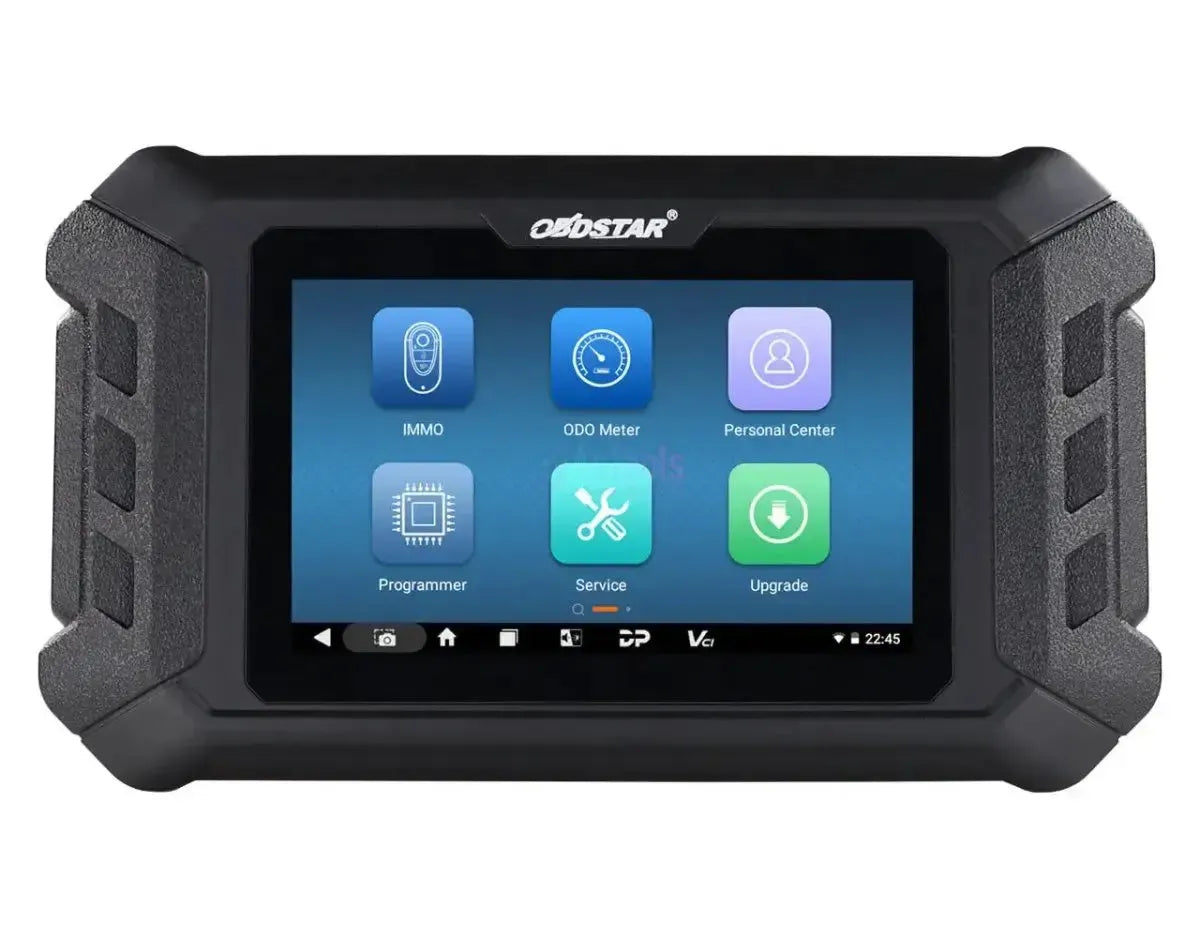

OBDSTAR X300 Mini Ford/Mazda Multifunction Programmer

The OBDSTAR X300 Mini Ford/Mazda is a wired multifunctional programmer for Ford and Mazda cars. Equipped with a 5-inch touchscreen, Android operating system, 1.2GHz quad-core processor, 16GB storage, and supplied with a one-year license.

The Car IMMO function of the OBDSTAR X300 Mini Ford/Mazda is specially designed to assist technicians in programming keys, reading PIN codes, and managing car immobilizer systems. This functionality is indispensable for resolving access and start problems, making it an essential device for key programming and security management.

Car IMMO (Immobilizer):

The Car IMMO function of the OBDSTAR X300 Mini Ford/Mazda enables technicians to program keys, read PIN codes, and manage car immobilizer systems. This is essential for troubleshooting vehicle access and starting issues, making it a crucial tool for key programming and security management. It supports a wide range of car brands and models, making it a versatile solution for workshops.

When keys are present:

• Read EEPROM: Allows technicians to read EEPROM data for analysis and programming.
• Read IMMO data: Essential for obtaining immobilization information from the vehicle.
• Load IMMO data: Allows loading previously read IMMO data for programming.
• Create standard dealer key: Enables technicians to create a new dealer key.
• Add a key directly: Allows users to add a new key to the system directly without deleting existing keys.
• Program keys: For programming one or more keys to the vehicle.
• Erase keys: Removes existing keys from the immobilizer system.
• Create OEM dealer key: For creating an original manufacturer key.
• Unlock keys: Enables unlocking previously programmed keys.
• Write EEPROM: Writing data to the EEPROM chip.
• Clear fault codes (DTC): For clearing registered fault codes in the Car.
• Reset ICM: Resets the Instrument Cluster Module to factory settings.
• Check IMMO status: Displays the current status of the immobilizer system.

In case of loss of all keys:

• Read EEPROM (with programming device): Reading EEPROM via an external programming device.
• Create EEPROM service data: Creates service data for the EEPROM for reprogramming.
• Write EEPROM service data (with programming device): Writes the created service data to the EEPROM via a programming device.
• Write original EEPROM data (via OBD): Writes the original EEPROM data back to the Car via OBD.
• Read IMMO data: Retrieves immobilization information from the Car.
• Create standard and OEM dealer keys: For creating both standard and OEM dealer keys.
• Directly add a key and program keys: Adds new keys and programs them to the Car.
• Reset ICM and write ABS code: Resets the ICM and writes the ABS code for correct operation.
• Check IMMO status: Displays the current status of the immobilizer system.

Special functions:

• Cluster calibration: The cluster calibration function offers the ability to calibrate or reprogram the instrument cluster of Cars. This includes adjusting the odometer, correcting speedometer deviations, and updating the cluster software. This function is essential for maintaining the accuracy of vehicle information and supports a wide range of Car brands.
• EEPROM/PIC: This function enables users to program and manipulate EEPROM (Electrically Erasable Programmable Read-Only Memory) and PIC (Peripheral Interface Controller) microcontrollers. This is crucial for performing repairs and modifications within the electronic system of the Car. It provides technicians the ability to modify or restore data, which can be essential when solving complex electronic problems.
  • Read PIN code: The "Read PIN code" function allows reading the security PIN codes of Cars, which are often needed for programming new keys or performing certain security-related functions. This significantly speeds up the process of key programming and immobilizer management.
  • Data recovery: 'Data recovery' is designed to restore lost or damaged data within the vehicle electronics. This can be crucial after a malfunction or failure, preserving essential vehicle information and configurations.
  • EEPROM RW (Read/Write): This functionality provides the ability to read and write data in EEPROM chips. It allows technicians to modify or update data, including mileage, service settings, or other vehicle-specific information stored in the EEPROM.
  • Data initialization: 'Data initialization' involves setting or resetting vehicle systems to their original or desired state. This may be necessary after replacing components, updating software, or correcting incorrect configurations within the vehicle's electronic system.
• Immobilizer initialization (IMMO): This maintenance function facilitates re-synchronizing the key with the vehicle's immobilizer system, an essential step in unlocking the immobilizer. Re-synchronization is often required after replacing parts such as the ignition key, ignition switch, or key battery. By re-pairing the key and the system, it ensures optimal communication between these components, which is crucial for the correct operation and security of the vehicle.

Supported vehicle brands:

• Ford
• Mazda

Package contents:

• OBDSTAR X300 Mini Ford/Mazda Multifunction Programmer

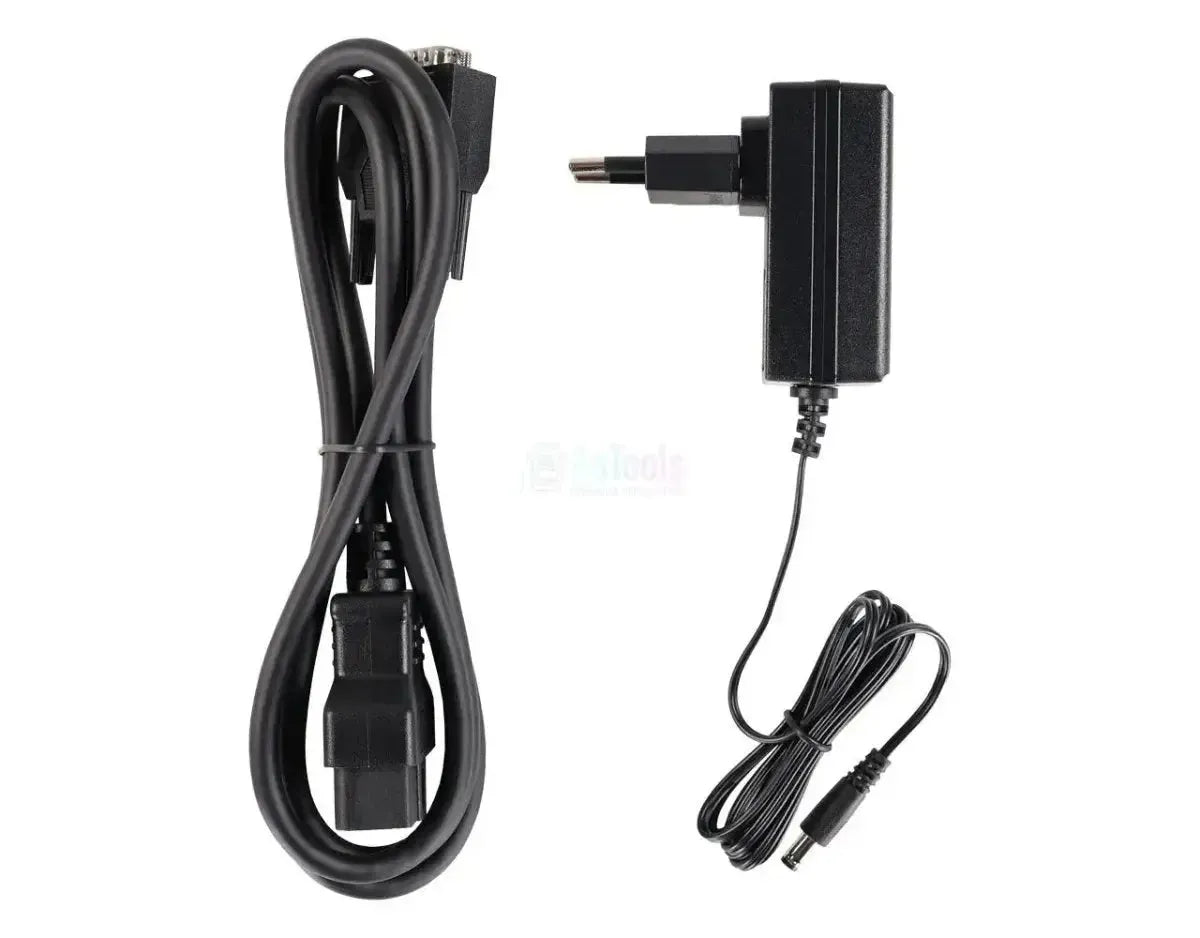

• OBDSTAR 15 Pins DB15 - 16 Pins OBD2 Adapter
• Power adapter

License information

• Including 1 year of updates: A 12-month update license is included with the purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.
