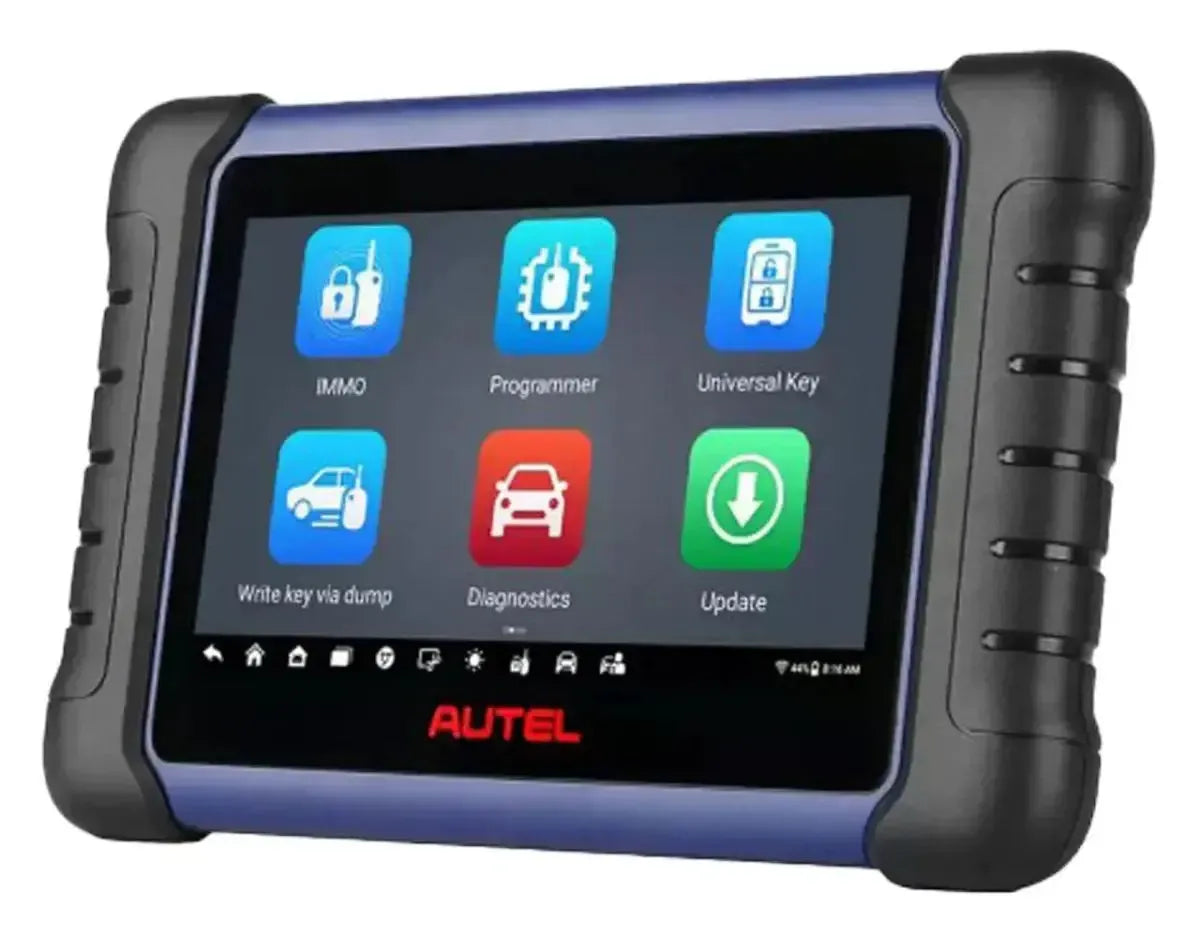

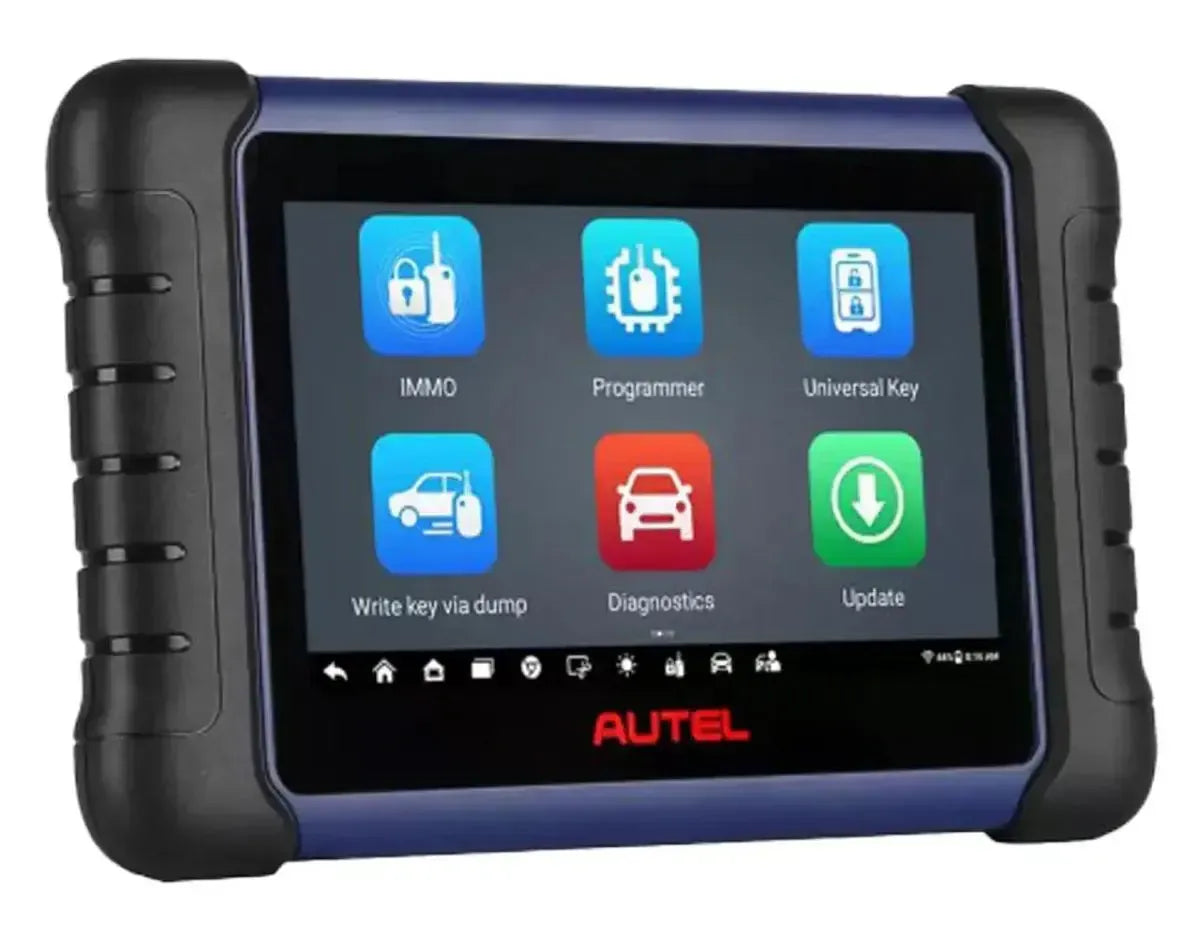

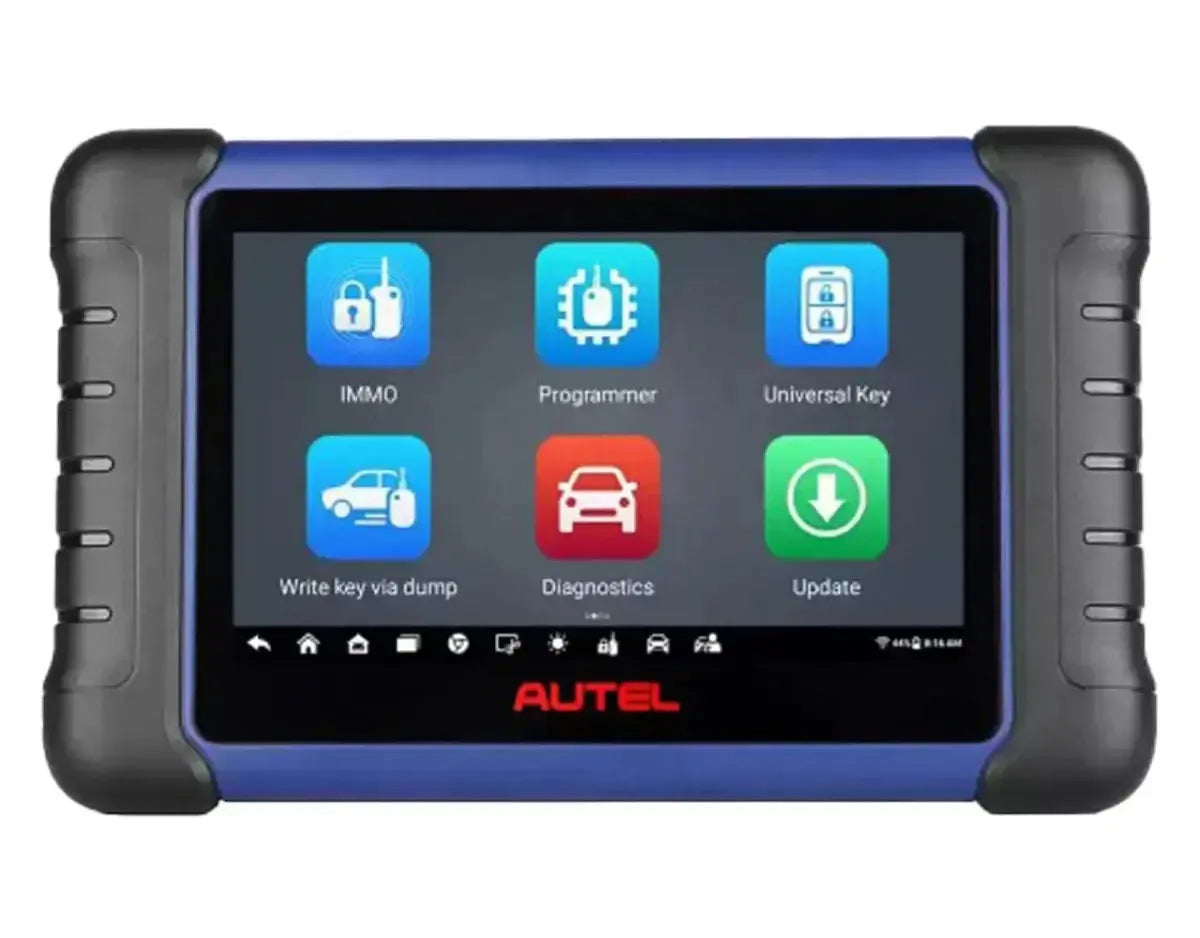

Autel MaxiIM IM508S Car Key Programmer

The Autel MaxiIM IM508S is an advanced and professional key and IMMO reading device, designed for locksmiths, garage technicians, and technicians who need reliable functionality for key programming, immobilizer management (IMMO) and full OE-level diagnostics. As an evolution of the popular IM508, the IM508S features a faster processor, more internal memory, and a more modern Android environment, resulting in faster performance and a smoother user experience. The robust 7-inch touchscreen tablet offers a clear interface with step-by-step instructions, allowing even less experienced users to confidently perform complex key procedures.

Communication with the vehicle is via a wired OBD2 connection, providing maximum stability during IMMO procedures. The IM508S comes standard with the XP200 key and chip programmer, suitable for most transponder applications. For more advanced functions, such as IC reading, key verification, or Mercedes IR programming, an upgrade to the XP400 Pro is available – bringing the device practically to the level of an IM608 Pro. Purchase includes one year of free software updates. After this period, the device continues to function fully on the last installed version; a paid license is required for future updates and access to cloud features.

Diagnostic and service functions:

In addition to its powerful key and IMMO capabilities, the IM508S functions as a full OE-level diagnostic tool, comparable to models from the MaxiCheck series. It offers extensive access to vehicle systems for troubleshooting, live data analysis, and maintenance.

• Complete system diagnosis: Supports in-depth diagnosis on more than 80 vehicle brands. Reads and clears fault codes from all electronic modules, such as engine, transmission, ABS, airbag (SRS), BCM, comfort systems, HVAC and more.
• Active tests (bidirectional control): Performs direct control of actuators and components to test their operation without disassembly. Examples include activating fuel pumps, testing fans, or controlling windows, locks, and mirrors.
• Extensive service functions: The IM508S provides access to more than 25 maintenance functions, including:
  • Oil service reset
  • Electronic parking brake (EPB)
  • Battery management system reset (BMS)
  • Steering angle sensor calibration (SAS)
  • Diesel particulate filter regeneration (DPF)
  • And more functions such as injector calibration, TPMS reset, and transmission adjustments

Key & IMMO functions:

The IM508S excels in key and immobilizer management (IMMO) and offers features typically found only on significantly more expensive platforms. With support for dozens of brands and vehicles, this is the ideal tool for locksmiths and workshops wanting to professionally offer IMMO services.

• Smart IMMO functions: The IM508S offers two operating modes for different user levels:
  • Smart Mode: A guided, step-by-step workflow for common key tasks, ideal for universal use.
  • Expert Mode: Provides direct access to individual IMMO functions, for advanced technicians working on specific scenarios or brands.
• Extensive key programming:
  • Read PIN code / calculate CS: Reads the immobilizer PIN code and component security (CS) data, even in ‘All Keys Lost’ scenarios.
  • Learn keys (Add Key): Programs a new key or remote control without overwriting existing keys.
  • All keys lost: Supports key learning if no original key is available anymore.
  • Replace IMMO components: Supports relearning of IMMO-related components such as the IMMO-ECU, engine ECU, and KESSY modules upon replacement.
  • Read / write / clone transponder: Via the supplied XP200, transponders can be identified, duplicated, and edited. Supports various chip types for universal applications.

Optional expansions and modules:

The true power of the IM508S is fully realized with the available expansion modules, elevating functionality to the level of the IM608 Pro. These accessories are ideal for workshops and key technicians performing advanced IMMO and programming tasks.

• Autel XP400 Pro programmer: Expands the IM508S into a top-level key programming platform. Essential for advanced "bench" programming (off-vehicle), including:
  • EEPROM reading/writing: Supports more than 3,000 chip types (EEPROM, MCU, IMMO ECU, engine ECU).
  • Mercedes IR key programming: Support for infrared keys and ESL/ESM functions on Mercedes-Benz.
  • IC chip key reading/writing: Specifically for modern models of Hyundai/Kia, requiring direct chip access.
• Autel G-BOX: Speeds up and simplifies PIN code calculation for Mercedes-Benz, especially in ‘All Keys Lost’ scenarios. Indispensable for vehicles with DAS3/4 systems.
• Autel APB112 Smart Key Emulator: Simulates a smart key to simplify key learning, useful for complex immobilizers or testing purposes.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Fiat, FordEU, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

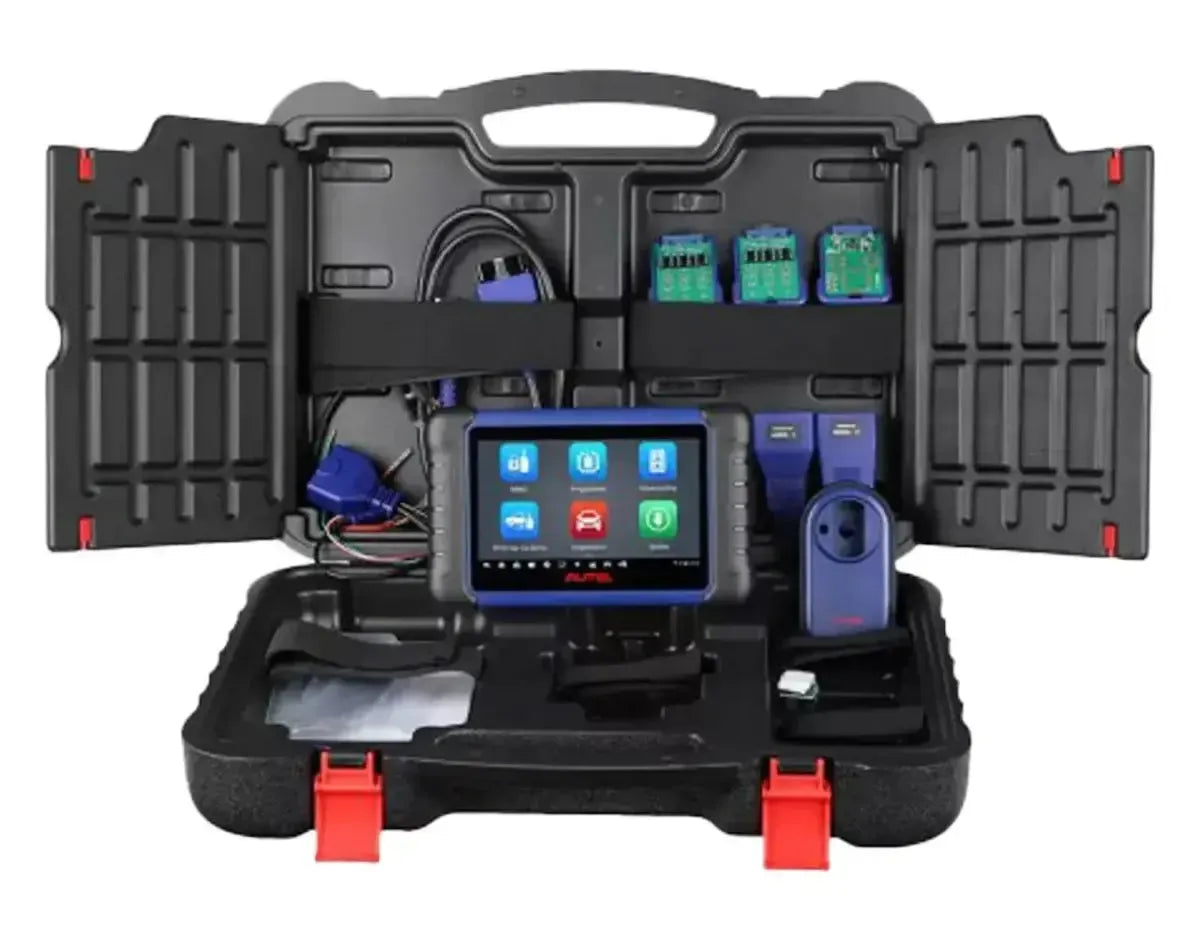

Package contents:

• Autel MaxiIM IM508S Key Programmer
• Autel XP200 Key Programmer
• Autel 15 Pins DB15 - 16 Pins OBD2 Adapter cable
• USB-A - Mini USB-B Adapter cable
• Charging plug
• Manual
• Storage case
• Cleaning cloth
• Autel Honda 3 Pins OBD1 - 16 Pins OBD2 Adapter
• Autel Kia 10 Pins OBD1 - 16 Pins OBD2 Adapter
• Autel Mazda 17 Pins OBD1 - 16 Pins OBD Adapter
• Autel Kia 20 Pins OBD1 - 16 Pins OBD2 Adapter
• Autel AAC001 - (MED17) Adapter cable
• Autel APB001 - (EEPROM) Adapter
• Autel APB002 - (68HC908) Adapter
• Autel APA001 - (EEPROM clamp) Adapter cable
• Autel APA002 - (EEPROM) Socket

License information:

• Including 1 year of updates: A 12-month update license is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.

Technical specifications
