Launch X-431 V+ SmartLink HD Truck Diagnostic Tool

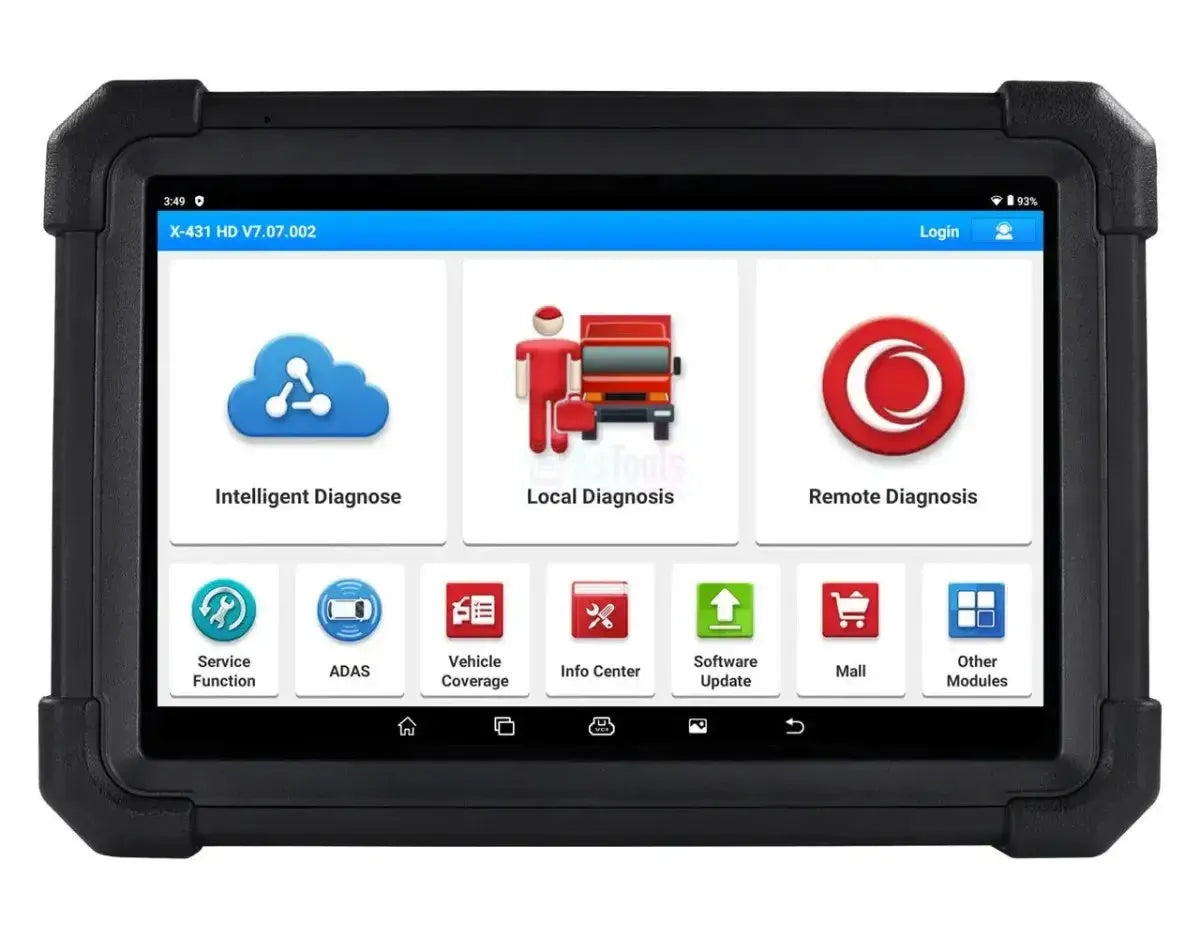

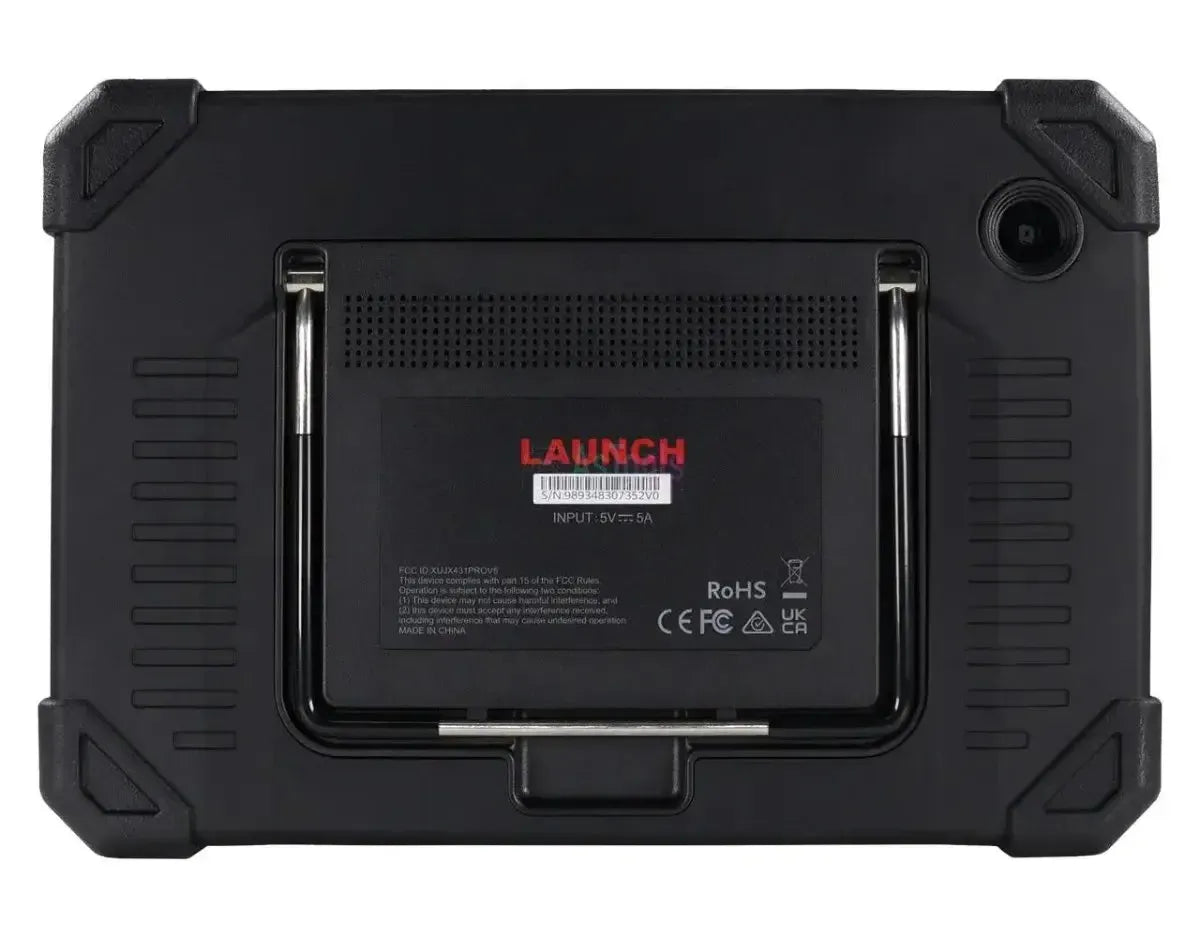

The Launch X-431 V+ SmartLink HD is an advanced Diagnostic Tool, specially designed for diagnosing heavy commercial vehicles such as trucks, buses, agricultural and construction machines. The system combines the powerful X-431 V+ tablet with the renewed SmartLink C 2.0 interface, enabling faster and more stable communication via Wi-Fi, Bluetooth, and Ethernet. With a 10.1-inch touchscreen, Android 10 operating system, 4 GB RAM, and 64 GB storage capacity, the device offers an intuitive user experience and extensive functionality.

The SmartLink C 2.0 supports a wide range of vehicle makes and models. The system is suitable for various vehicle types, such as trucks, buses, agricultural machines, construction machines, trailers, and ships. Additionally, it supports both local and remote diagnosis, allowing technicians to diagnose and program vehicles remotely via the SmartLink Service Platform.

Diagnostic functions:

• Complete system diagnosis: Support for reading and clearing fault codes, live data streams, and performing activation tests for all electronic systems.
• Automatic vehicle identification (Car VIN): Fast and accurate identification of vehicles via VIN scanning.
• Live data display: Real-time monitoring of sensor data and system parameters, with support for graphical display.
• Freeze Frame data: Displays stored vehicle data at the time a fault code was generated.
• Bidirectional tests: Active control of components such as pumps, valves, and actuators to test their operation.
• Diagnostic reports: Automatic generation of detailed reports for documentation and customer communication.
• Topology display: Visual representation of communication between different vehicle systems and modules.
• Support for multiple protocols: Including CAN FD and DoIP for extensive vehicle coverage.

Maintenance and service functions:

• Diesel particulate filter regeneration (DPF): Activates diesel particulate filter regeneration to prevent or clear blockages.
• Injector coding: Programs new injectors for optimal fuel injection and engine performance.
• Adjust speed limiter: Sets the vehicle's maximum speed according to specific operational requirements.
• Adjust idle speed: Controls the idle speed for efficient engine operation.
• Fan calibration: Calibrates the cooling fan for optimal engine temperature control.
• Remote throttle control: Provides the ability to remotely control engine speed during maintenance work.
• Urea/AdBlue system management: Manages the SCR system for emission control, including dosing and system tests.
• Brake system reset: Calibrates and resets the electronic brake system after maintenance or component replacement.
• Transmission replacement: Performs adjustments to the ECU after transmission replacement or overhaul.
• NOx sensor reset: Resets the nitrogen oxide sensors for accurate emission measurements.
• Aftertreatment system management: Manages systems such as SCR and DPF for optimal emission control.
• Suspension system calibration: Calibrates air suspension and other suspension systems for ride comfort and safety.
• Change language settings: Adjusts the language of the vehicle interface to the user's preference.
• Adjust PTO settings: Configures the PTO settings for specific applications such as hydraulic pumps or generators.

Special functions:

• ADAS calibration: Support for Advanced Driver Assistance Systems (ADAS) calibration using optional modules.
• SmartLink Super Remote Diagnosis: Enables remote diagnosis and programming of vehicles via the SmartLink Service Platform.
• Topology display: Visual representation of communication between different vehicle systems and modules.
• Graphical Cylinder Shutoff: Visual display and control of cylinder shutoff for efficient engine diagnosis.
• Graphical AdBlue Metering Amount: Graphical monitoring of AdBlue metering amounts for precise emission control.
• Support for multiple protocols: Includes J2534, D-PDU, RP1210, CAN FD, and DoIP for extensive vehicle coverage.
• Expandable modules: Support for additional modules such as oscilloscope, videoscope, sensor box, TPMS tools, key programmer, and battery tester.
• Dual Wi-Fi connectivity: Improved connection between scanner and VCI for faster and more stable communication during diagnostics.

Supported vehicle brands:

Buses: Ashok Leyland, Bonluck, Credo, ERF, Ford, Freightliner, FUSO, Golden Dragon, Higer, HINO, Hyundai, International, Irisbus, Irizar, Isuzu, Iveco, JMC, Kinglong, MAN, Mercedes-Benz, Mitsubishi, Neoplan, Nissan, Renault, Scania, Setra, Sitcar, Sunlong, Sunwin, Tata, Toyota, Volvo, Yutong, Zhongtong

Trucks: Ashok Leyland, Astra, Bremach, Caterpillar, DAF, DFL, ERF, FAW, Ford, Freightliner, Foton, FUSO, HINO, Hyundai, International, Isuzu, Iveco, JAC, JMC, Kenworth, Mack, MAN, Mercedes-Benz, Mitsubishi, Nissan, Peterbilt, Renault, Scania, Sinotruk, Sterling, Tata, Toyota, UD, Volvo, Western Star

Trailers: Trailer, Wabco

Agricultural machines: Astra, CASE, Caterpillar, DEUTZ, Doosan, HINO, Iveco, JCB, MAN, Mercedes-Benz, Perkins, Scania, Shangchai, Steyr, Volvo, Yuchai

Off-road and construction machines: CASE, Caterpillar, DEUTZ, Flexi-Coil, JCB, Miller, Renault, Steyr

Combustion engines: Caterpillar, Cummins, Iveco, MAN, Scania, Steyr

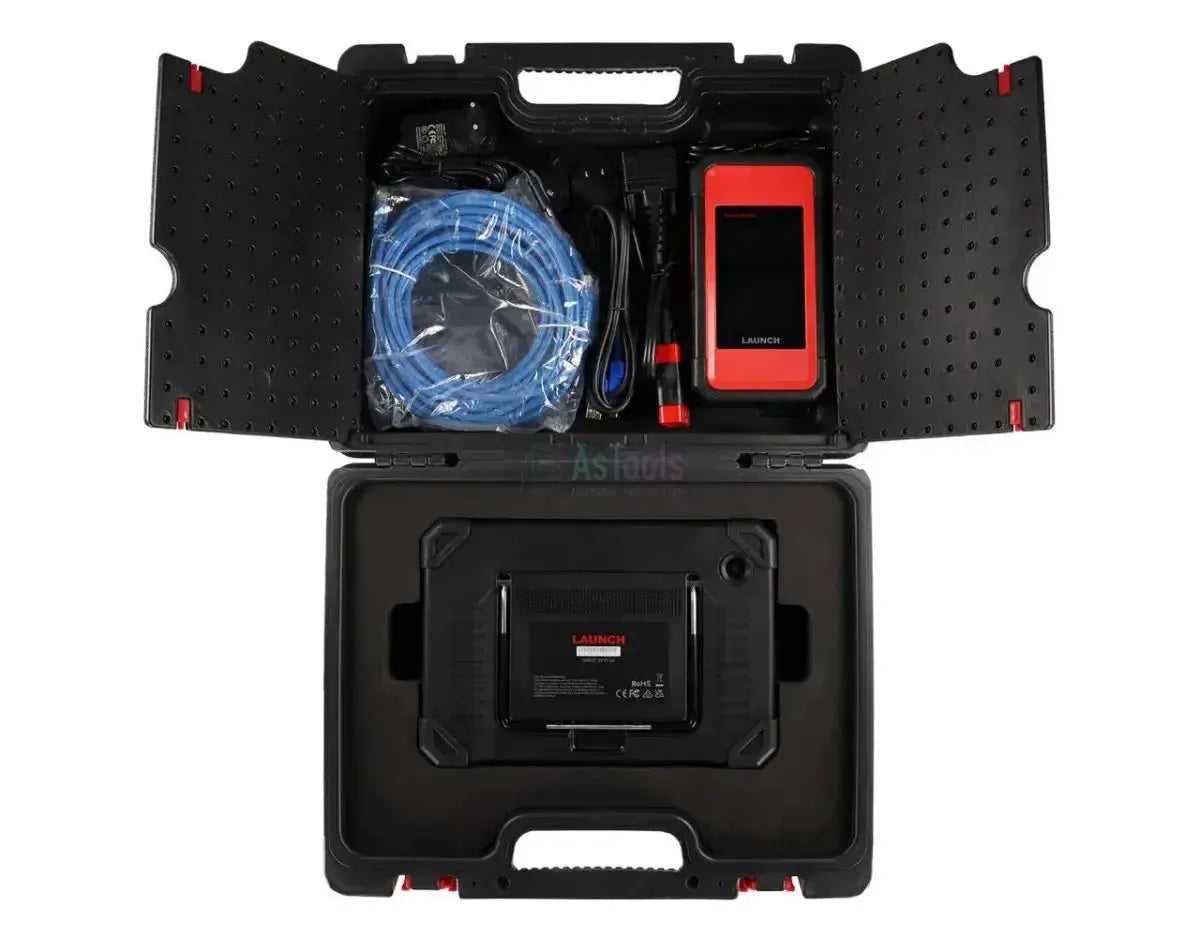

Package contents:

• Launch X-431 V+ SmartLink HD Diagnostic Tool

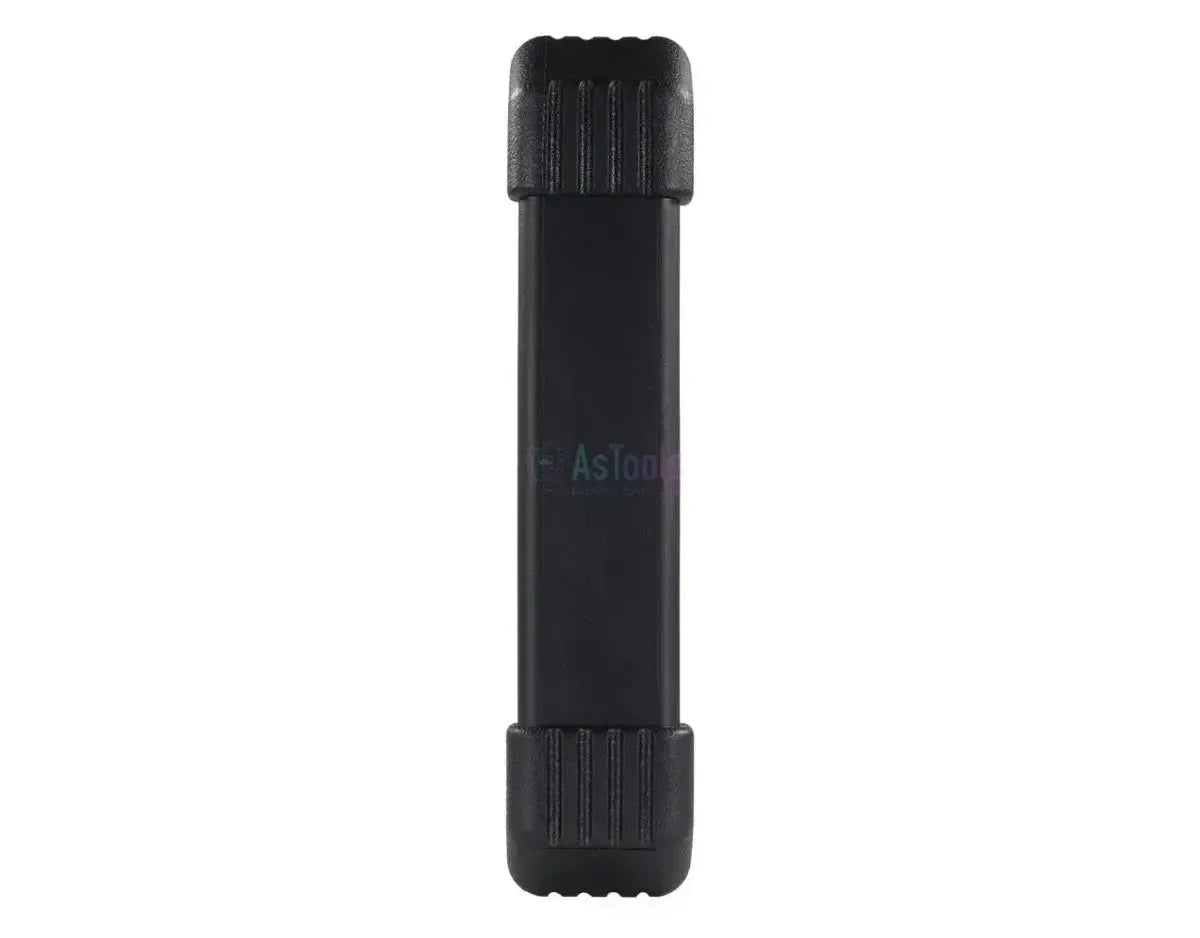

• Launch SmartLink C Interface
• Launch 15 Pins DB15 - 16 Pins OBD2 Adapter cable
• USB-A - Micro-B Adapter cable
• RJ45 Network cable
• Power adapter
• Manual

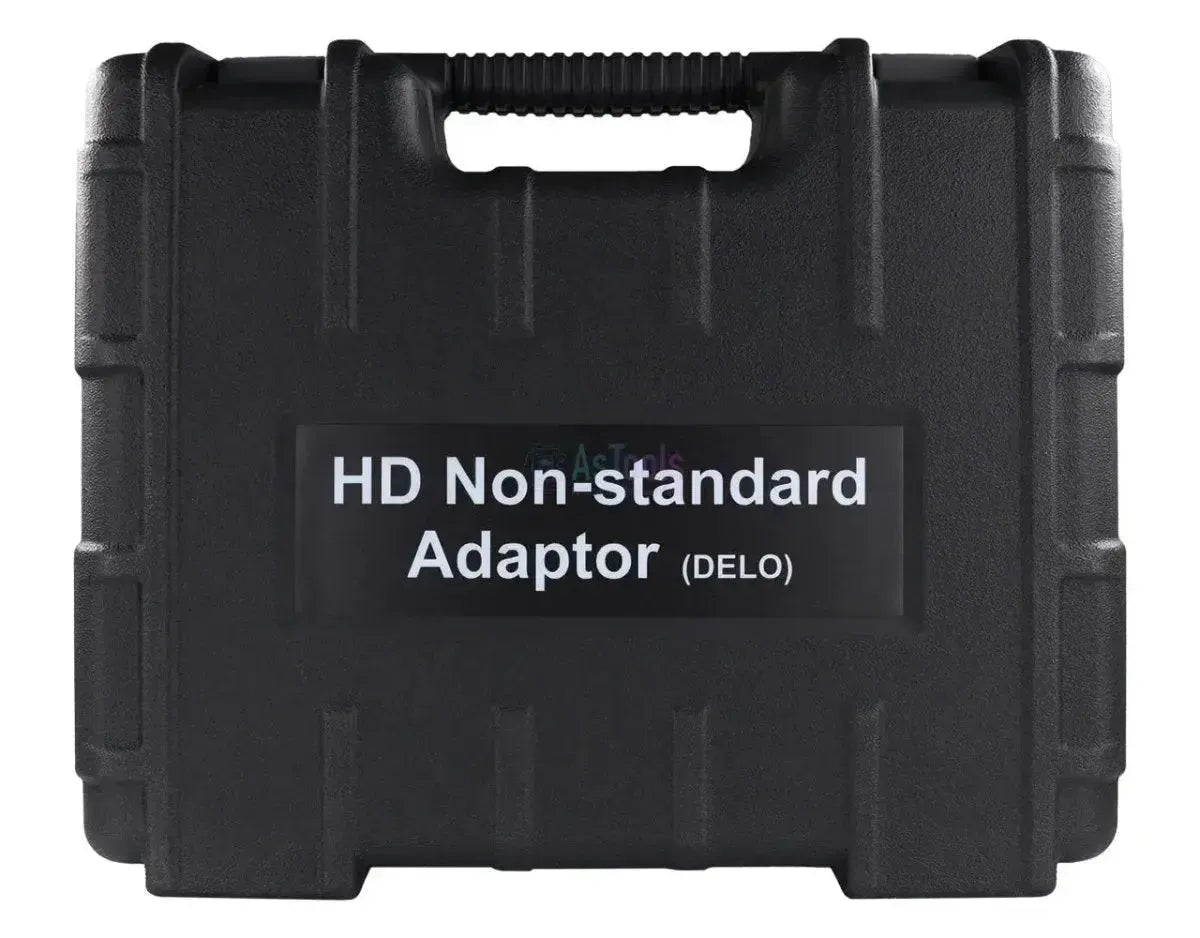

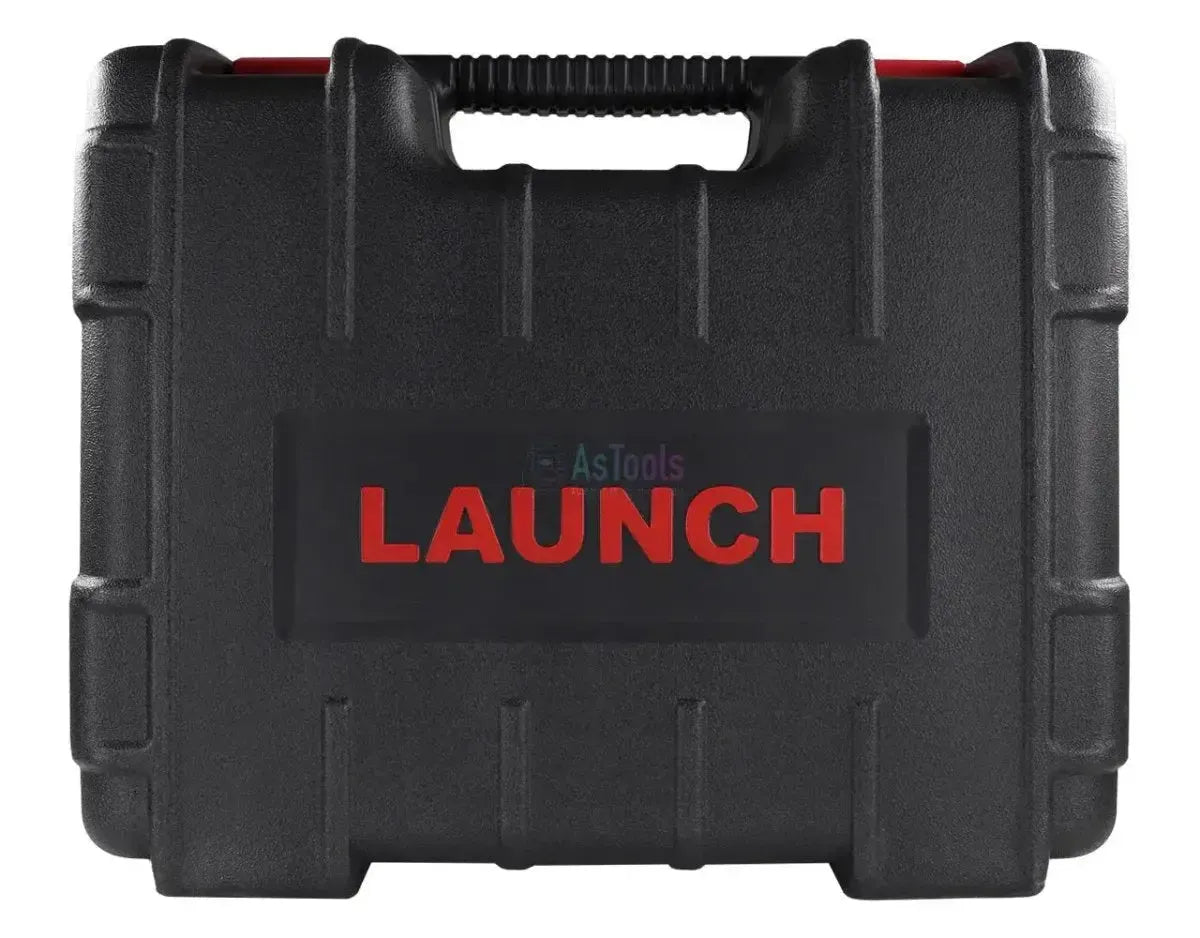

• Storage Case
• Launch Battery Clamp Power Cable
• Launch Cigarette Lighter Power Cable

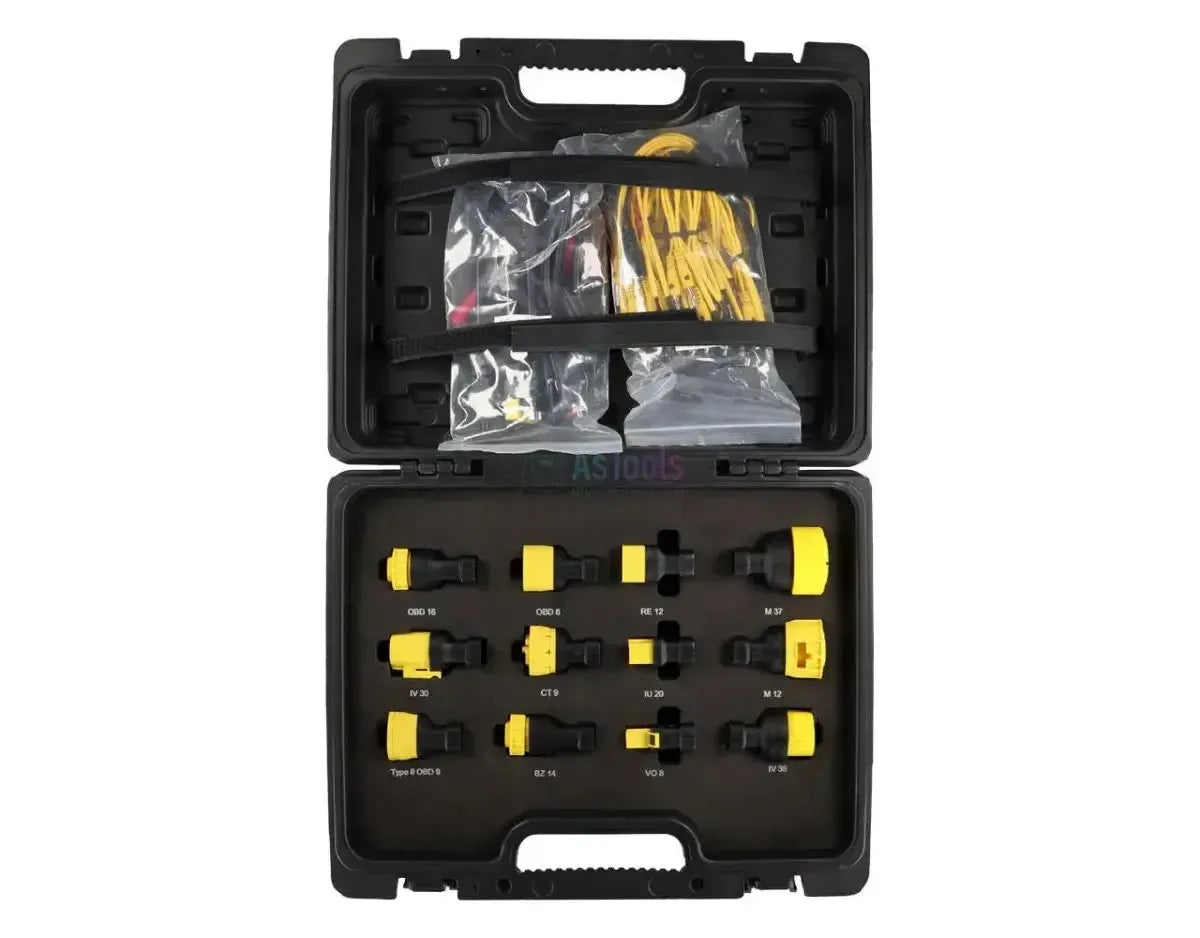

• Launch 6 Pins J1708 - 16 Pins OBD2 Adapter Cable
• Launch Volvo 8 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch 9 Pins J1939 - 16 Pins OBD2 Adapter Cable
• Launch CAT 9 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch Renault 12 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch MAN 12 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch Mitsubishi/Hyundai 12 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch Mercedes-Benz 14 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch Hyundai 16 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch Scania 16 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch Iveco 30 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch MAN 37 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch Iveco 38 Pins OBD1 - 16 Pins OBD2 Adapter Cable
• Launch Multifunctional OBD - 16 Pins OBD2 Adapter Cable
• Launch Electrically Controlled Switching Line 1 (4 pieces)
• Launch Electrically Controlled Switching Line 2 (4 pieces)
• Launch Electrically Controlled Switching Line 3 (4 pcs)
• Launch Electrically Controlled Switching Line 4 (4 pcs)
• Launch Electrically Controlled Switching Line 5 (4 pcs)
• Launch Electrically Controlled Switching Line 6 (4 pcs)
• Launch Electrically Controlled Switching Line 7 (4 pcs)
• Launch Electrically Controlled Switching Line 8 (4 pcs)
• Launch Electrically Controlled Switching Line 9 (4 pcs)

License information:

When purchasing the Launch X-431 V+ SmartLink HD, you receive a license for 2 years of free software updates. After this period expires, the device remains fully functional for all previously supported vehicle models and diagnostic functions; however, access to new updates and online features will cease. If desired, you can renew the license for an annual fee to maintain access to the latest updates and online features.

Technical specifications
