Launch X-431 PAD VII Elite Car Diagnostic Tool

The Launch X-431 PAD VII Elite is an innovative and highly advanced professional Diagnostic Tool, specially developed for Car garages and technical specialists. With a large 13.3-inch touchscreen, powerful octa-core processor, Android 9.0 operating system, and 256 GB storage space, the device offers fast, accurate, and in-depth vehicle diagnostics. Thanks to the high-quality and robust housing with IP65 certification, this scanner is resistant to water and dust, making it extremely suitable for intensive workshop use.

In addition to diagnostic power, the X-431 PAD VII Elite excels with support for more than 110 Car brands worldwide, extensive coding capabilities, and advanced protocols such as J2534, CAN FD, and DoIP. With wireless connectivity via dual-band Wi-Fi, automatic VIN recognition, and a powerful 19,000 mAh battery capacity, this Diagnostic Tool offers optimal ease of use, reliability, and flexibility in any workshop environment.

Diagnostic functions:

• Complete system diagnosis: Support for more than 110 vehicle brands worldwide, including American, Asian, and European models.
• Automatic vehicle identification (Car VIN): Fast and accurate identification of vehicles through various methods, including automatic VIN scan and manual input.
• Live data and Freeze Frame: Display of real-time data and snapshots of vehicle parameters at the moment of a malfunction.
• Topology display: Visual representation of communication between different vehicle systems and modules.
• Support for multiple protocols: Includes J2534, D-PDU, RP1210, CAN FD, and DoIP for extensive vehicle coverage.

Maintenance and service functions:

• Oil and service light reset: Resets maintenance indicators after an oil or regular service.
• Battery registration: Registers a new battery so the charging system works optimally and the battery lifespan is extended.
• Diesel particulate filter regeneration: Activates regeneration of the diesel particulate filter (DPF) to prevent or resolve clogging.
• Electronic parking brake reset: Calibrates the electronic parking brake system after replacing brake pads or discs.
• ABS brake bleeding: Automatically bleeds the ABS brake system after maintenance on brake lines or components.
• Injector coding: Programs and codes injectors after replacement to ensure optimal fuel injection.
• Tire pressure monitoring system reset: Resets the TPMS system after replacing tires or sensors.
• Electronic throttle adjustment: Calibrates the throttle body after maintenance or replacement for optimal engine performance.
• Transmission calibration: Recalibrates automatic transmissions for smooth shifting after maintenance.
• Steering angle sensor calibration: Calibrates the steering angle sensor after alignment or replacing steering components.
• Coolant bleeding: Removes air from the cooling system after maintenance to ensure optimal cooling.
• Start/Stop system reset:
  Resets the automatic start-stop system after maintenance or battery replacement.
• AdBlue system reset: Resets the SCR and AdBlue system after maintenance or refilling AdBlue.
• Clutch calibration: Calibrates electronic clutch systems after replacement or repairs.
• Immobilizer reset: Resets and programs the immobilizer system after key or part replacement.
• Turbo adjustment: Calibrates turbochargers after maintenance or replacement to ensure optimal performance.
• Exhaust gas recirculation calibration: Calibrates the EGR system after maintenance or replacement.
• Air conditioning system calibration: Recalibrates the air conditioning system after maintenance or component replacement.
• Adaptive headlights calibration: Calibrates adaptive headlights after replacement or repair.
• Seat occupancy sensor calibration: Resets and calibrates sensors for seat occupancy to support the airbag system.
• Accelerator pedal calibration: Resets and calibrates the electronic accelerator pedal after repairs or replacement.
• Window calibration: Calibrates electrically operated windows after maintenance or replacement.
• Sunroof calibration: Calibrates the panoramic roof or sunroof after maintenance or repair.
• Nitrogen oxide sensor reset: Resets NOx sensors for proper emission control after replacement or maintenance.
• Engine angle sensor calibration: Calibrates the crankshaft position sensor after repair or replacement.
• Gateway module calibration: Calibrates communication and gateway modules after replacement or maintenance.
• Fuel system bleeding: Bleeds the fuel system after maintenance on pipes or filters.
• High-voltage battery maintenance: Special maintenance and management for batteries in hybrid and electric Cars.
• Rain sensor and light sensor calibration: Calibrates sensors for automatic windshield wipers and headlight control.
• Activate/deactivate transport mode: Turns the transport mode on or off for new Cars.
• Adaptive cruise control calibration: Calibrates the sensors of the adaptive cruise control system after repairs.
• ECU module coding: Programs and codes electronic modules after replacement or updates.
• Tire wear reset: Resets and calibrates systems that monitor tire wear.
• Module matching vehicle modules: Calibrates specific vehicle modules after repair or replacement.
• Change language setting: Changes the language settings of the vehicle in infotainment systems or onboard computers


Special features:

• ADAS calibration: Support for Advanced Driver Assistance Systems (ADAS) calibration using optional modules.
• Smartlink C VCI: Advanced vehicle communication interface for extensive diagnostic capabilities without limitations in vehicle type or brand.
• Expandable modules: Support for additional modules such as oscilloscope, videoscope, sensor box, TPMS tools, key programmer, and battery tester.
• Topology display: Visual representation of communication between different vehicle systems and modules.
• Online coding and programming: Support for online ECU coding and programming for selected brands such as BMW and Mercedes-Benz.
• Dual Wi-Fi connectivity: Improved connection between scanner and VCI for faster and more stable communication during diagnostics.

Supported Car brands:

European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DR, Ferrari, Fiat, FordEU, GAZ, Iveco, IZH, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, McLaren, Mercedes-Benz, MINI, Opel, PAZ, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, Seat, SeAZ, Skoda, Smart, Sprinter, UAZ, Vauxhall, VAZ, Volvo, Volkswagen, Volkswagen CV, ZAZ

Asian brands: Acura, Daewoo, Daihatsu, GTR, Holden, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, Samsung, SsangYong, Subaru, Suzuki, Tata, Toyota, United Pakistan

American brands: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Lincoln

Chinese brands: BAIC, BJEC, Brilliance, BYD, Changan, Changhe, Chery, DFSK, FAW, Foton, Geely, Gonow, GWM, Hafei, Haima, JAC, JAC Refine, Jinlong, JMC, Joylong, Lifan, Maxus, MG, Polarsun, Qoros, Senova, Senoua, Soueast, SGM, SGMW, Shineray, Spark, Trumpchi, Weiwang, Xinkai, Zotye, Zhongxing

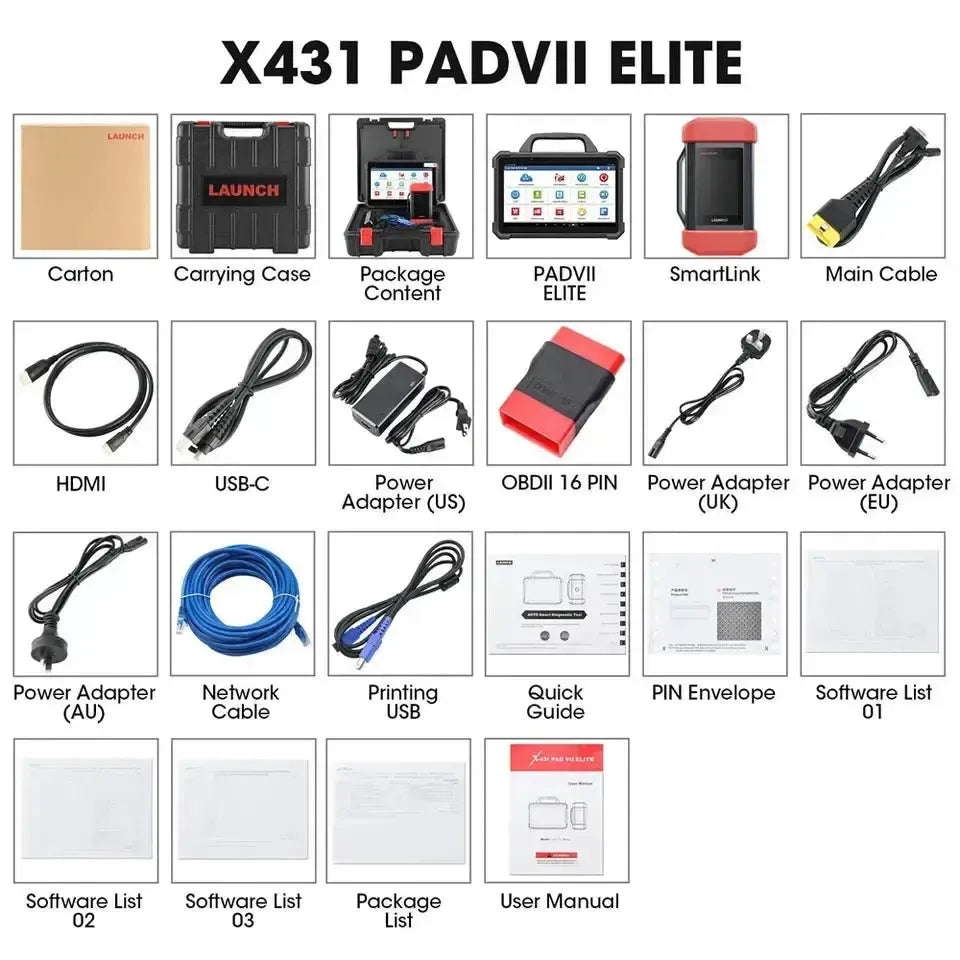

Package contents:

• Launch X-431 PAD VII Elite Diagnostic Tool
• Launch SmartLink C Interface
• Launch 16 Pins OBD2 Extension Cable
• USB-A - USB-B Extension Cable
• USB-A - USB-C Extension Cable
• Mini-HDMI - HDMI Extension Cable
• RJ45 Network cable
• Power adapter
• Manual
• Storage case
• Launch 15 Pins DB15 - 16 Pins OBD2 Extension Cable
• Launch 15 Pins DB15 - 16 Pins OBD2 Adapter

License information:

When purchasing the Launch X-431 PAD VII Elite, you receive a license for 2 years of free software updates. After this period, the device remains fully functional for all previously supported vehicle models and diagnostic functions; however, access to new updates and online features will expire. You can renew the license annually if desired to maintain access to the latest updates and online features.

Technical specifications
