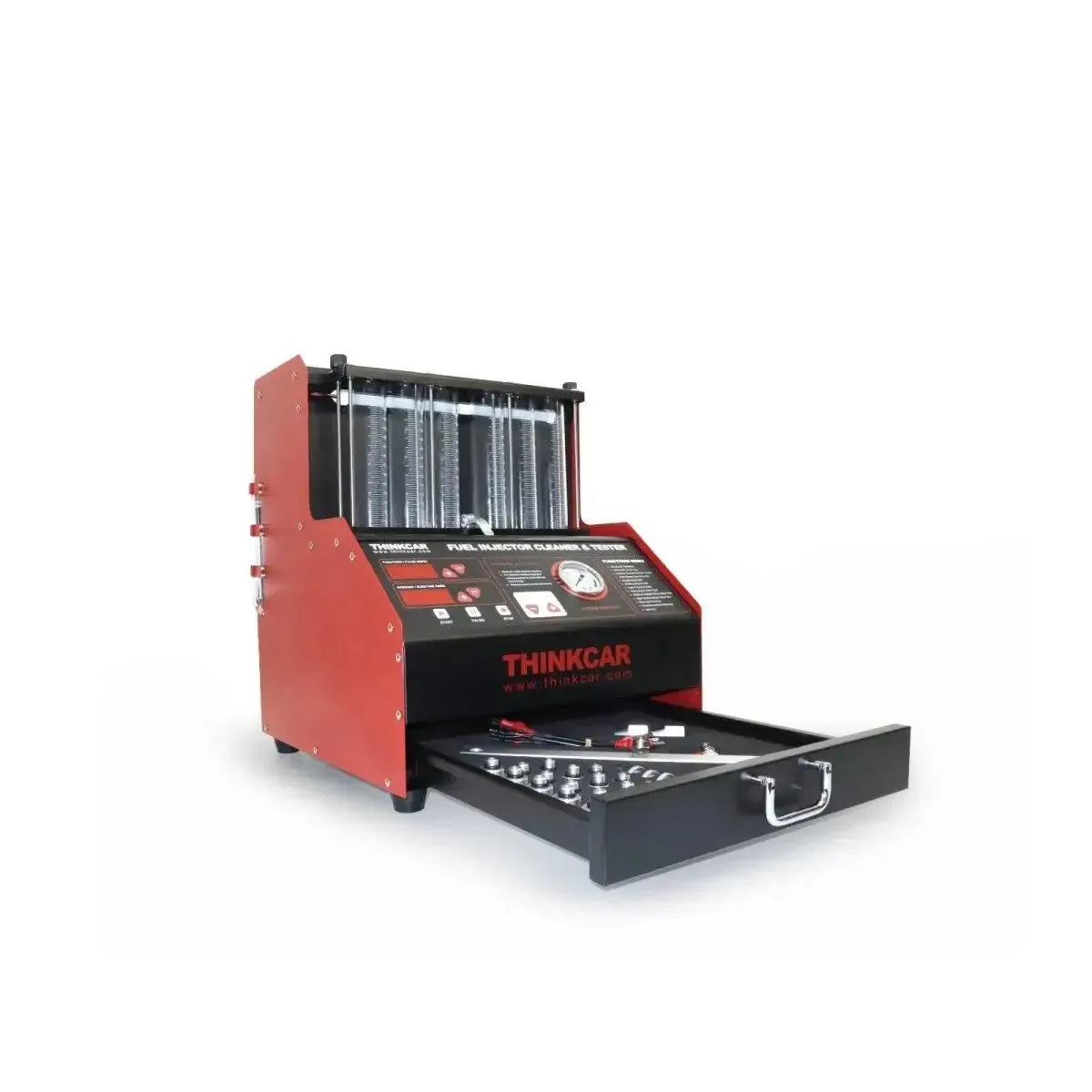

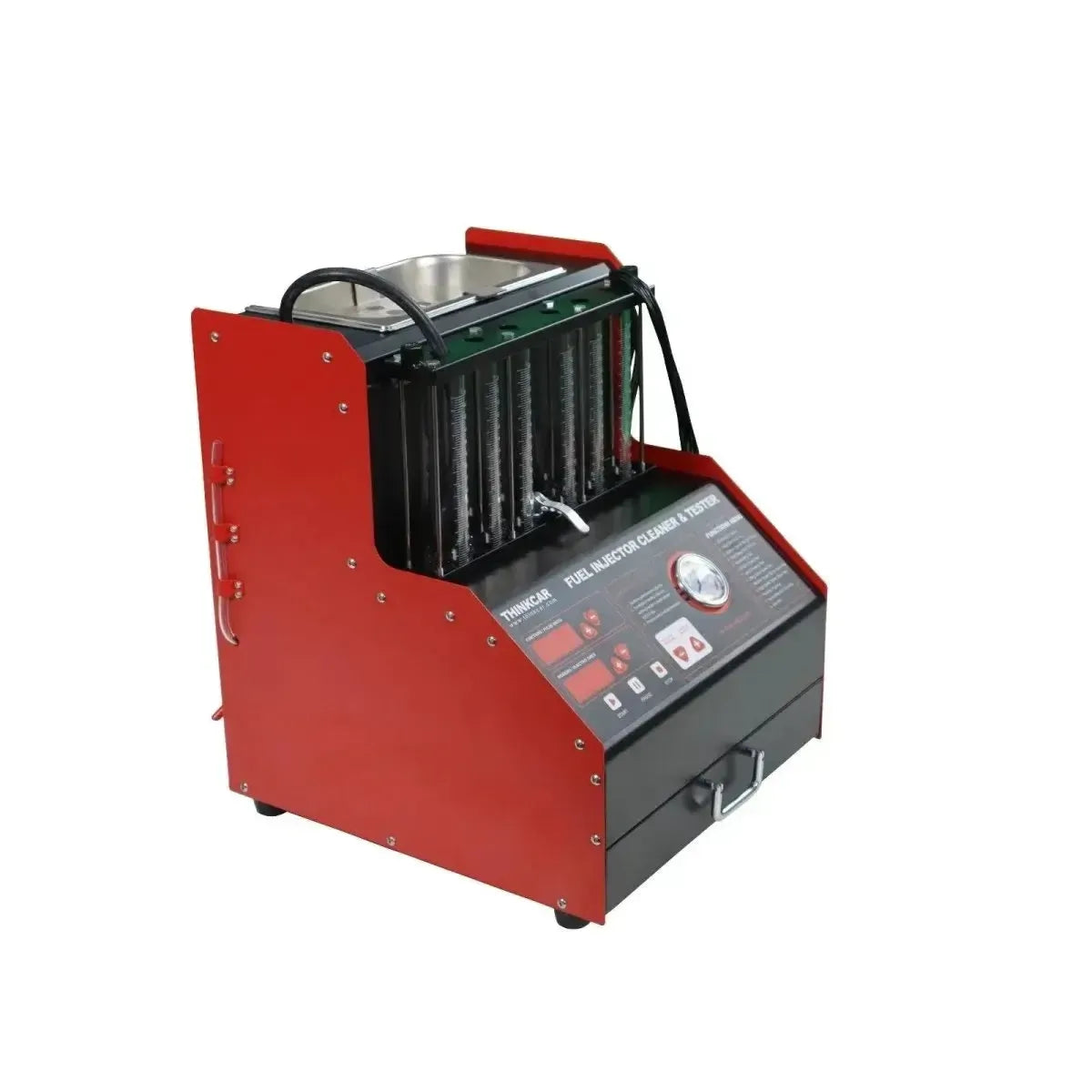

Thinkcar TK-IMT602 Gasoline Injector Tester

The Thinkcar TK-IMT602 is an advanced device that combines ultrasonic cleaning technology with microcomputer-controlled injector tests. It is designed for cleaning and testing fuel injectors of gasoline engines, simulating various engine conditions to accurately evaluate injector performance. With the ability to clean and test up to six injectors simultaneously, the device is ideal for use in workshops and garages.

The TK-IMT602 supports a wide range of test modes, including idle speed, medium speed, high speed, acceleration, and more. The device detects the uniformity of injection volume and checks the spray pattern of each injector using backlighting, ensuring thorough diagnosis.

Features:

• Ultrasonic Cleaning: Uses ultrasonic waves to remove stubborn carbon deposits and dirt from injectors, ensuring optimal fuel atomization.
• Injector Test: Simulates various engine conditions to assess injector performance, including tests at idle, medium and high speeds, as well as acceleration and leak tests.
• Uniformity test: Checks the uniformity of fuel injection of each injector and monitors the spray pattern using backlighting.
• Backflushing: Offers the ability to flush injectors in reverse direction, which helps remove stubborn blockages.
• Support for GDI injectors: Compatible with both standard 12V injectors and 75V GDI injectors, making it suitable for a wide range of vehicles.


Special features:

• Simultaneous cleaning of 6 injectors: Increases efficiency by cleaning and testing multiple injectors simultaneously.
• Durable Bosch oil pump: Ensures long-lasting and stable operation of the device.
• Compact design with integrated drawer: Provides space-saving and easy storage of accessories.
• Visual fuel level gauge: Makes it easy to check the level of the cleaning fluid.
• User-friendly interface: The LED display and intuitive operation make the device easy to use.


Suitable for injector types:

The Thinkcar TK-IMT602 is suitable for cleaning and testing the following gasoline injectors:

• Electronic Fuel Injectors (EFI)
• Sequential Fuel Injectors (SFI)
• Gasoline Direct Injection (GDI)
• Multi-Port Fuel Injectors (MPFI)

Package contents:

• Thinkcar TK-IMT602 gasoline injector tester
• Handwheel locks (2 pcs)
• Injector shims (6 pcs)
• Vice adapters (6 pcs)
• Main adapters (6 pieces)
• Main pulse extension cable
• Pulse signal transmission extension cables (12 pieces)
• Resistance test extension cable
• Power cables (2 pieces)
• Fuel separator with top feed
• Fuel separator stoppers (5 pieces)
• Funnel
• Hole stopper
• Hanging hook
• Manual

Technical specifications
