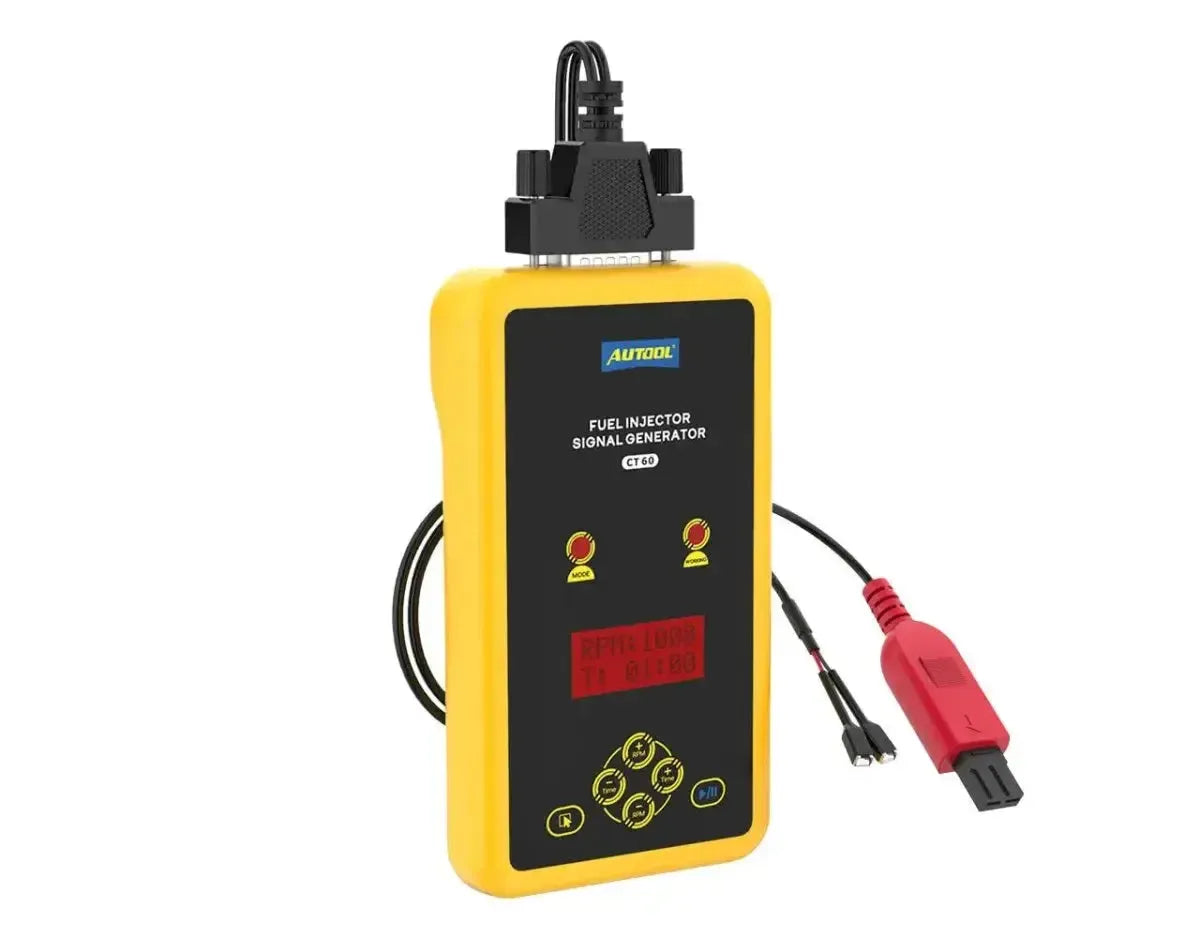

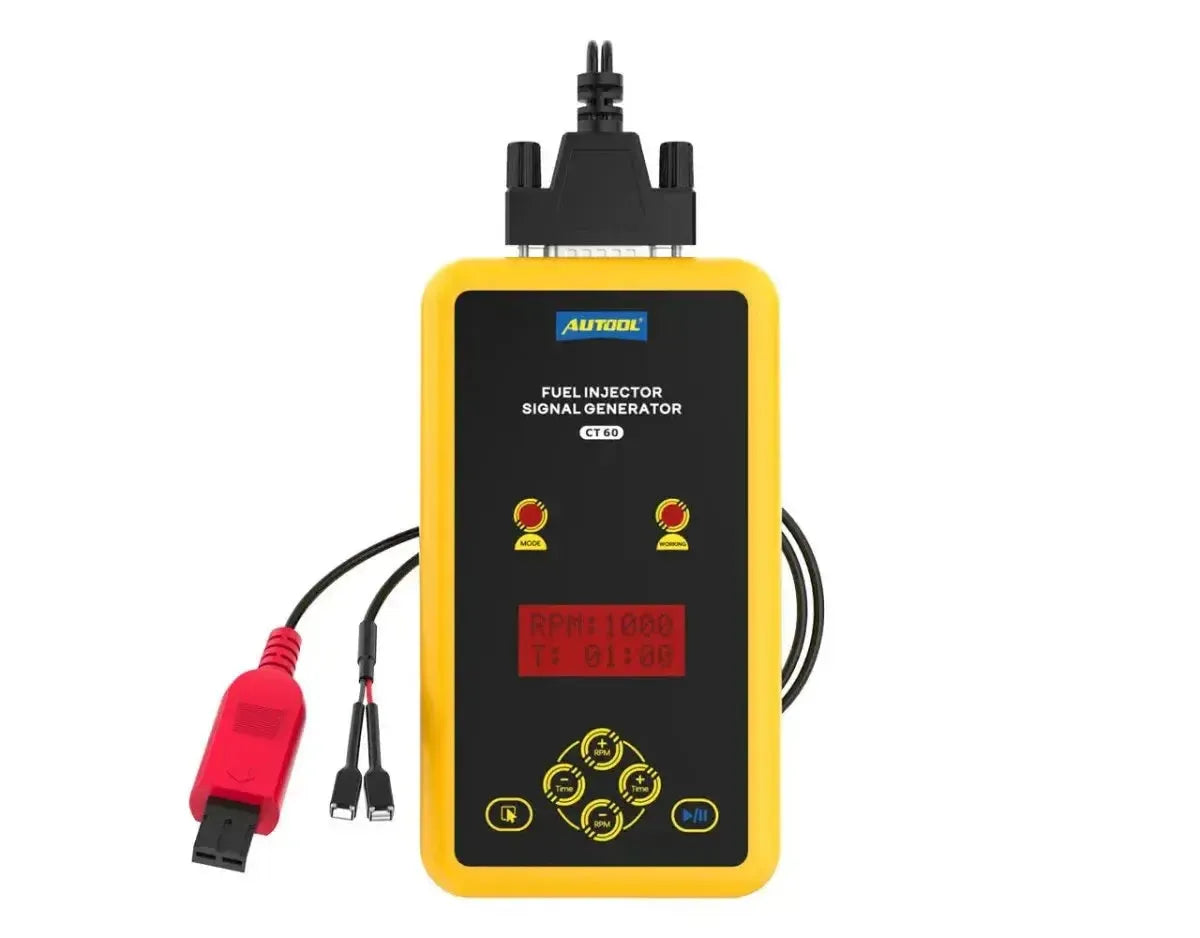

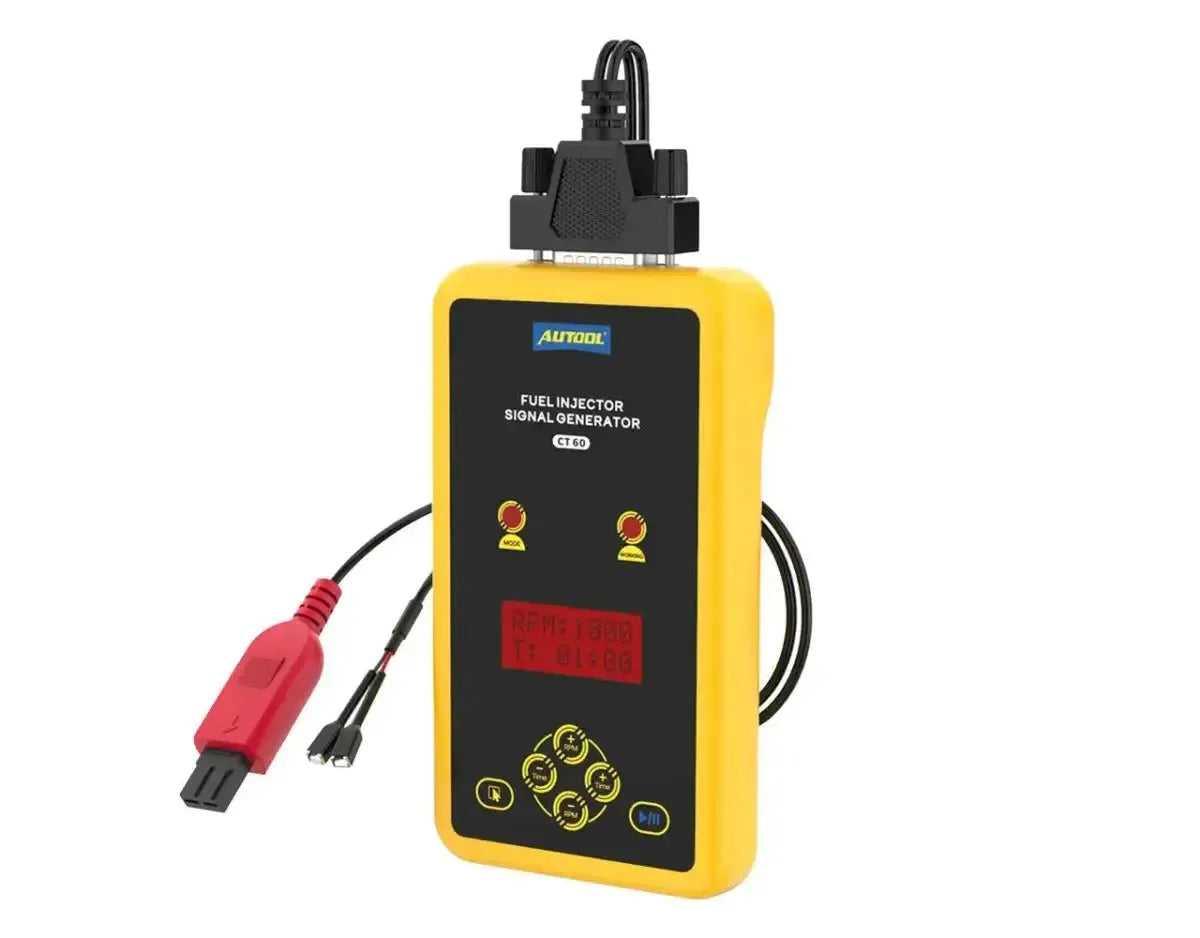

Autool CT60 Injector Tester

The Autool CT60 is a compact and versatile injector tester specially designed for testing and cleaning fuel injectors. With the ability to test two injectors simultaneously, the device is ideal for both professional workshops and DIY enthusiasts. The CT60 supports both standard 12V injectors and high-voltage injectors up to 70V, making it suitable for a wide range of vehicles. Thanks to the adjustable operating frequency and time, users can precisely tailor the test parameters to their specific needs.

Functions:

• Standard and high-voltage injector support: Compatible with both 12V standard injectors and 70V high-voltage injectors, including GDI systems.

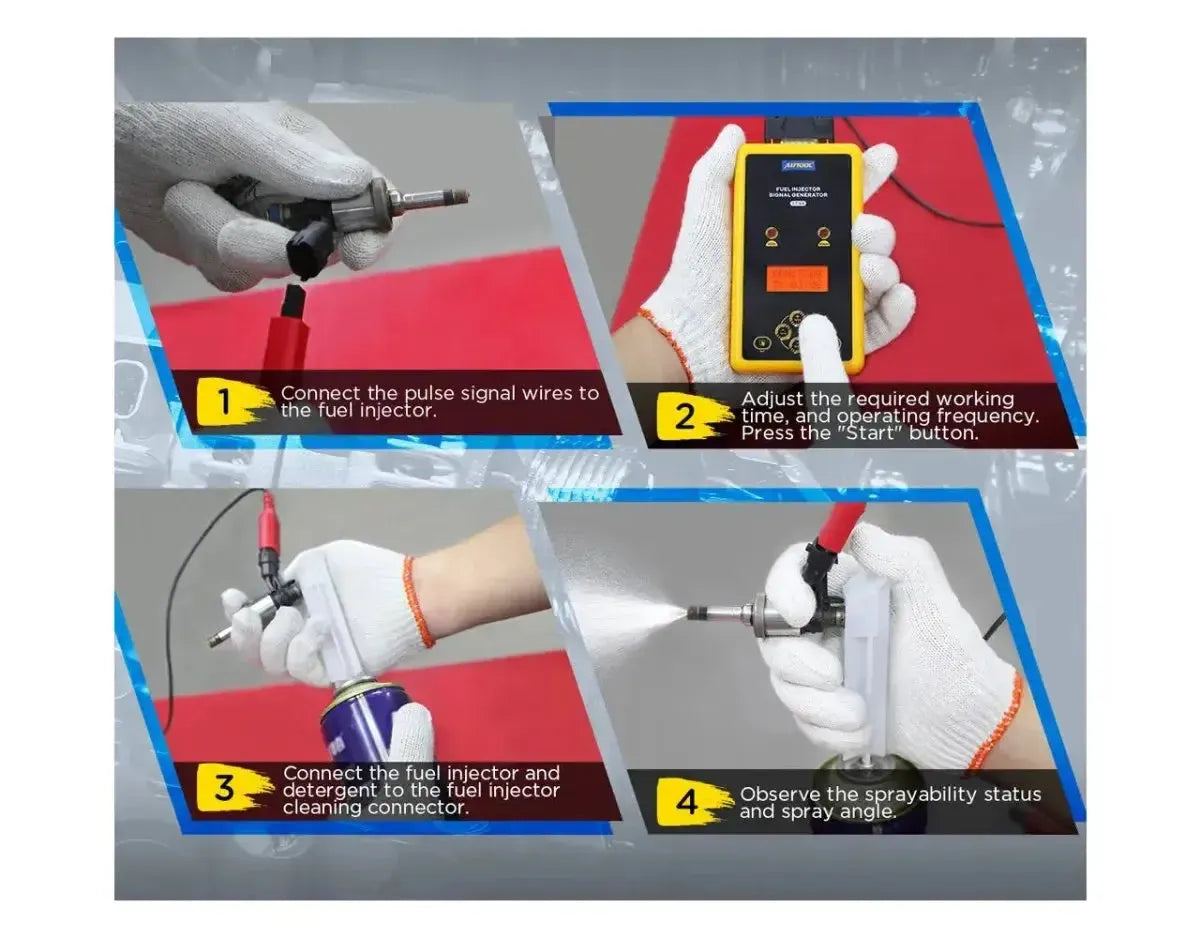

• Simultaneous testing of two injectors: Allows for the simultaneous testing of two injectors and comparison of their spray pattern and angle.

• Adjustable working frequency and time: Offers a working frequency range of 600 to 6000 rpm and an adjustable working time of 0 to 99 minutes. LCD display: Clearly shows the current working frequency and test time for accurate adjustments.

• Compatible with cleaning equipment: Can be used in conjunction with ultrasonic cleaners and older injector testers for improved cleaning efficiency.

Special features:

• Compact and portable design: Weighing only 0.5 kg and measuring 15×9×5 cm, the CT60 is easy to transport and store.

• Easy operation: The intuitive interface and clear buttons make the device user-friendly, even for beginners.

• Safety features: Equipped with safety measures to prevent damage to the vehicle or user during testing.

Package contents:

• Autool CT60 Injector Tester

• Power adapter

• Injector Extension Cables (3 Pieces)

• Injector Connection Lines (2 Pieces)

• Manual

Technical specifications
