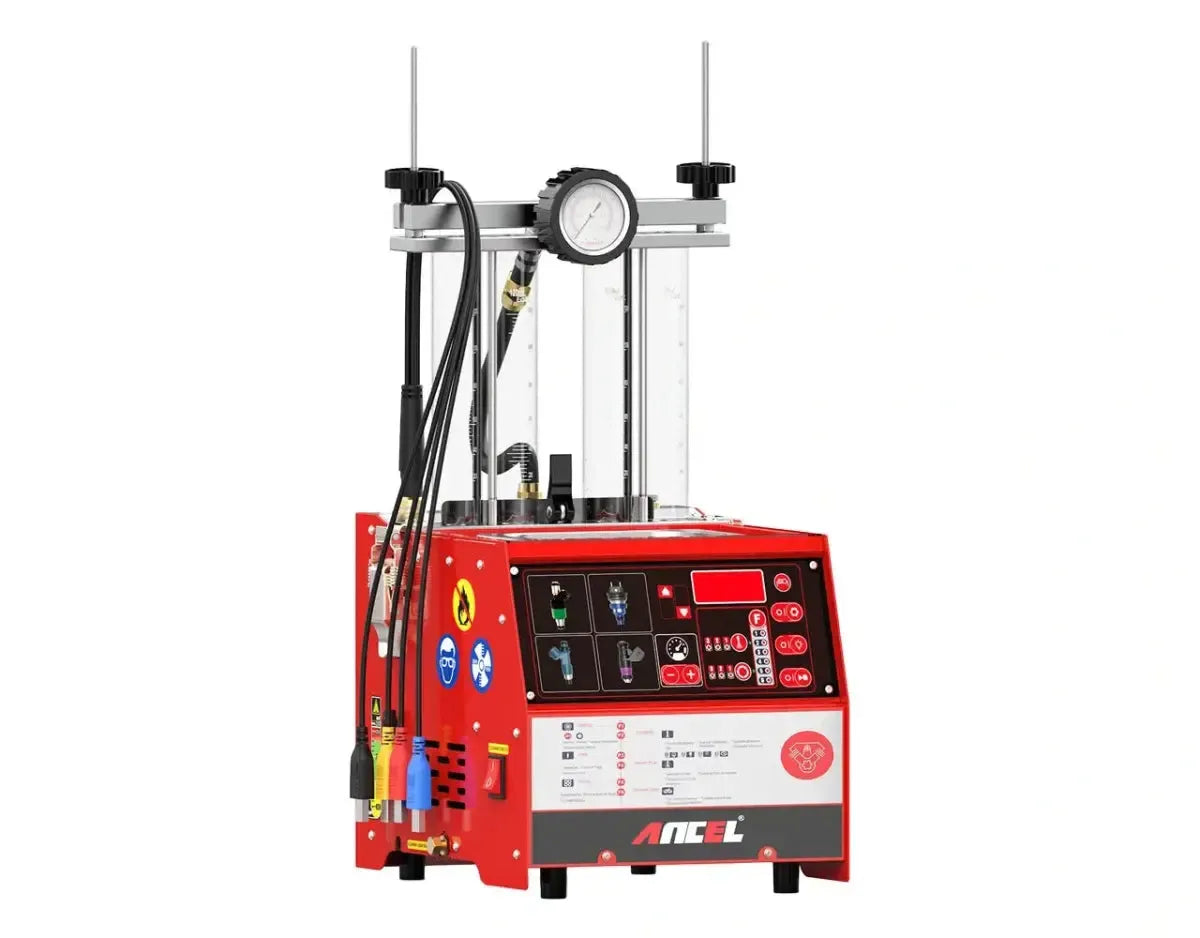

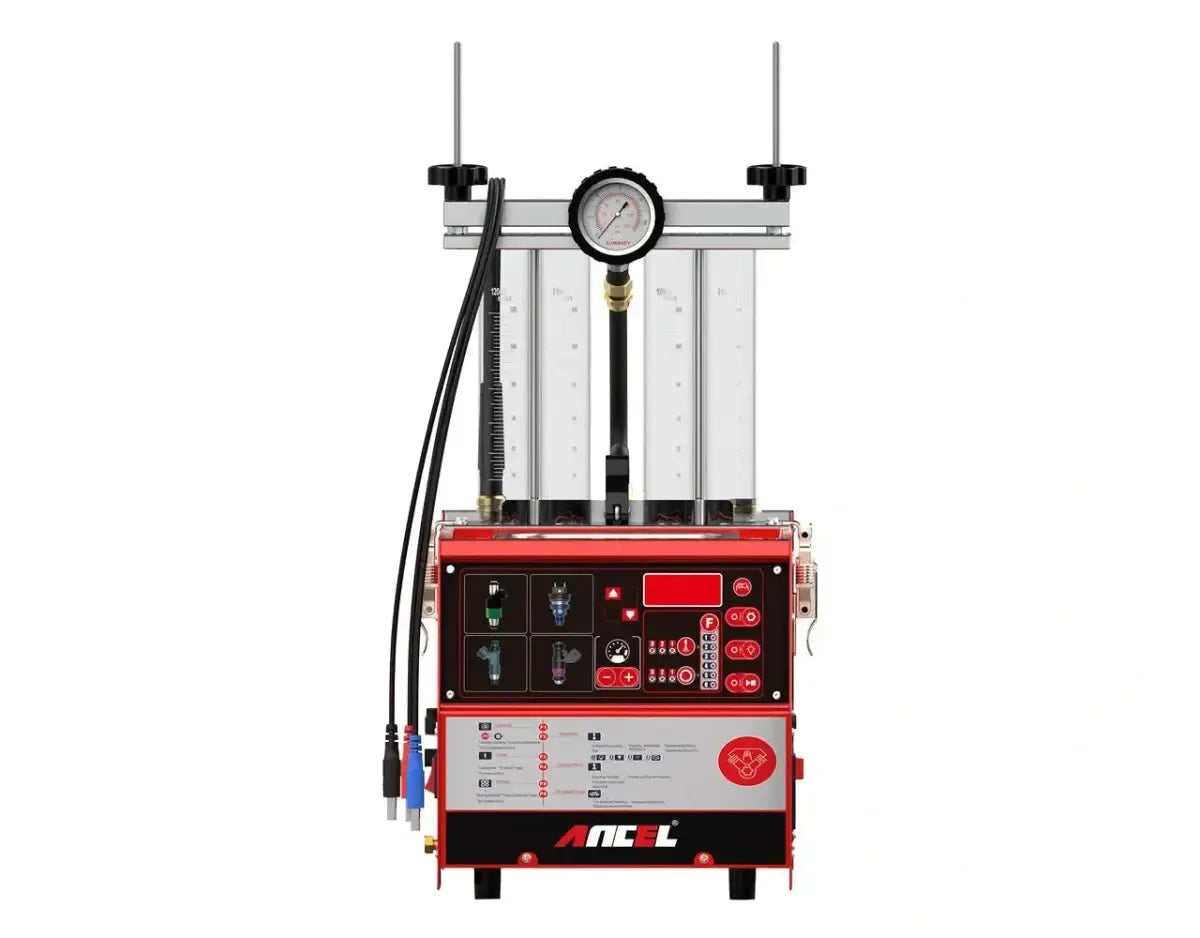

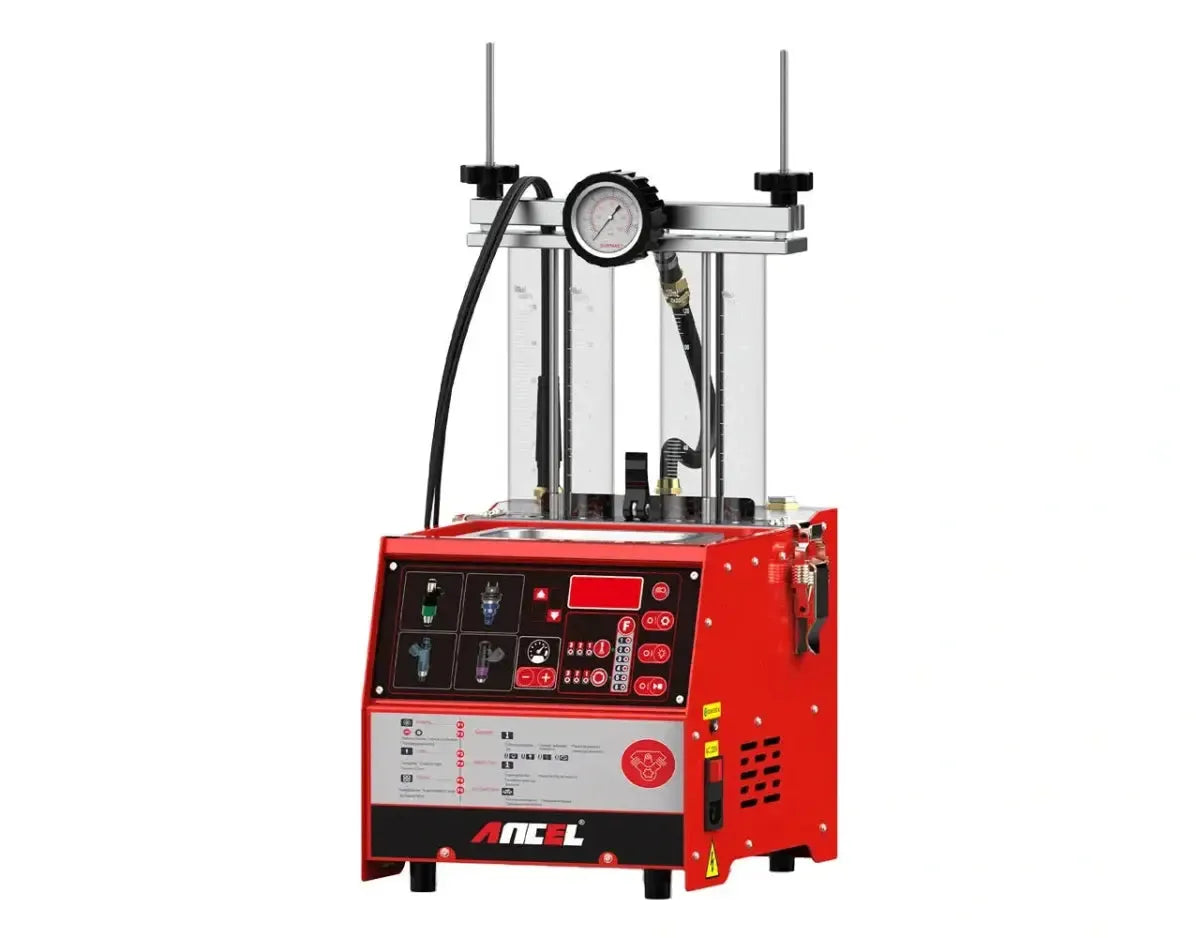

Ancel AJ400 Gasoline Injector Tester

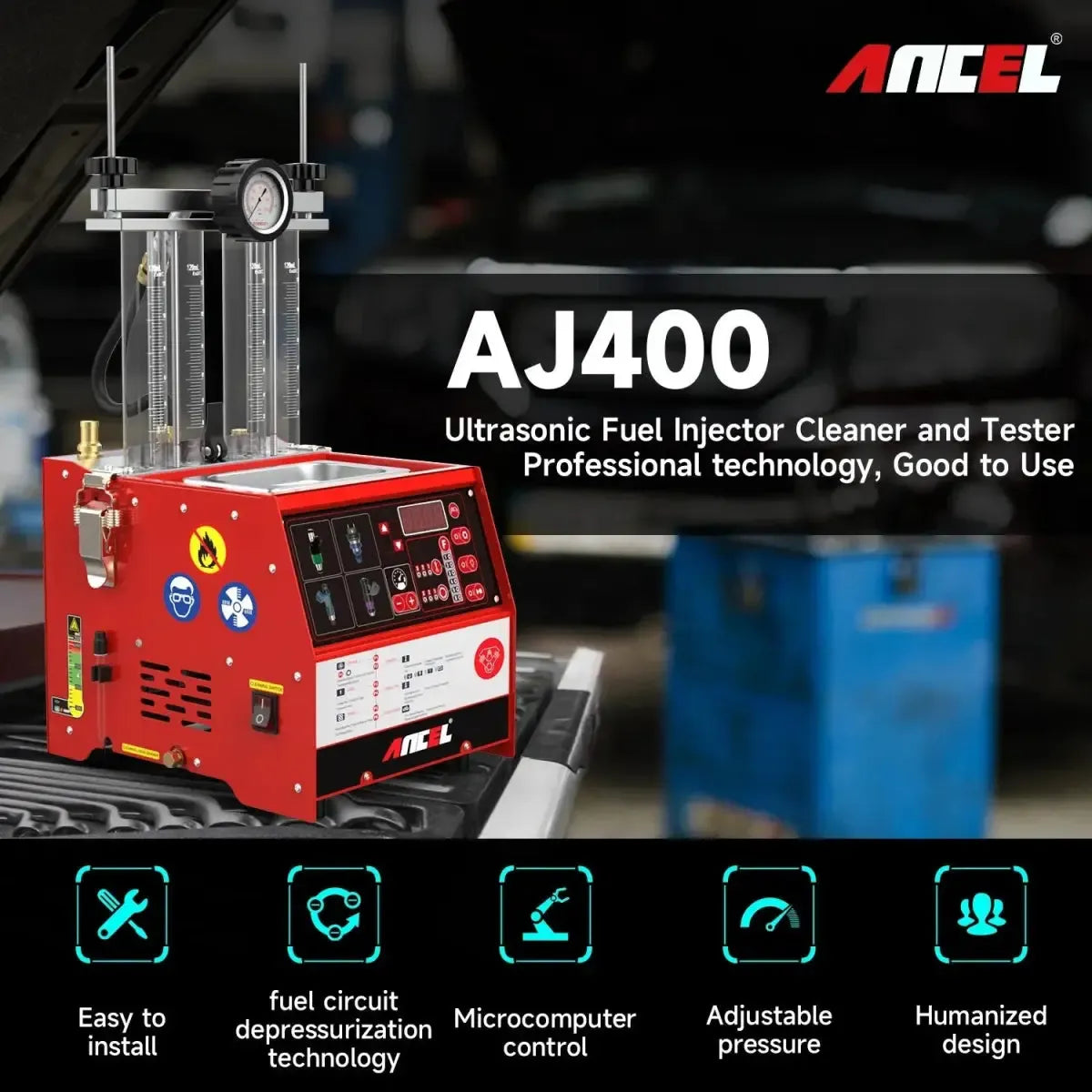

The Ancel AJ400 is a professional injector tester and cleaner that combines ultrasonic cleaning technology with microprocessor-controlled fuel pressure regulation. The device is designed for thorough cleaning and testing of gasoline injectors, including GDI, EFI, MPI, and SFI systems. With the ability to clean and test four injectors simultaneously, the AJ400 is ideal for use in workshops and garages.

The AJ400 supports various test modes, including idle speed, mid-range speed, high speed, acceleration, and more. The device detects the uniformity of the injection volume and checks the spray pattern of each injector using backlighting, ensuring a thorough diagnosis.

Features:

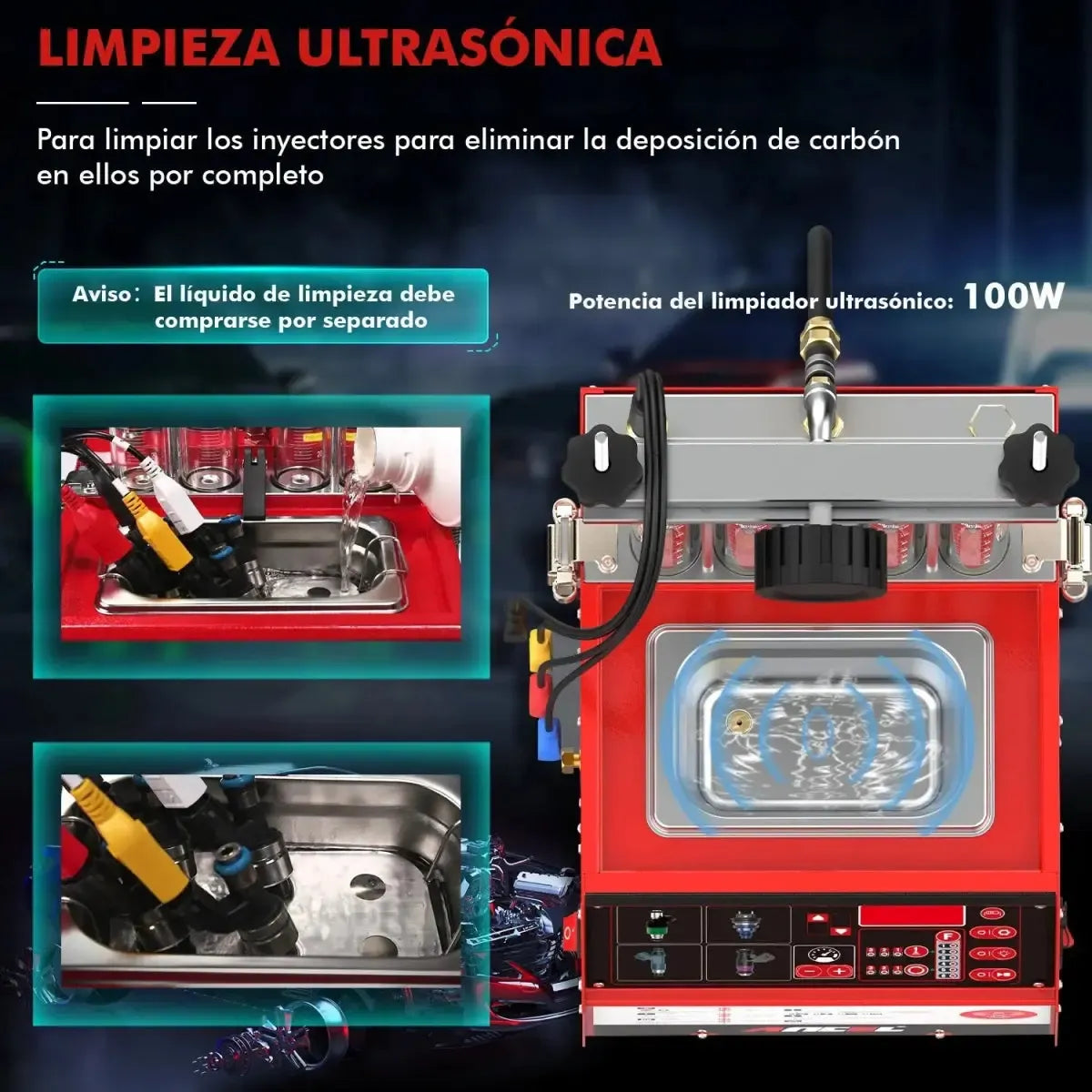

• Ultrasonic Cleaning: Removes stubborn carbon deposits and dirt from injectors using ultrasonic waves, ensuring optimal fuel atomization.

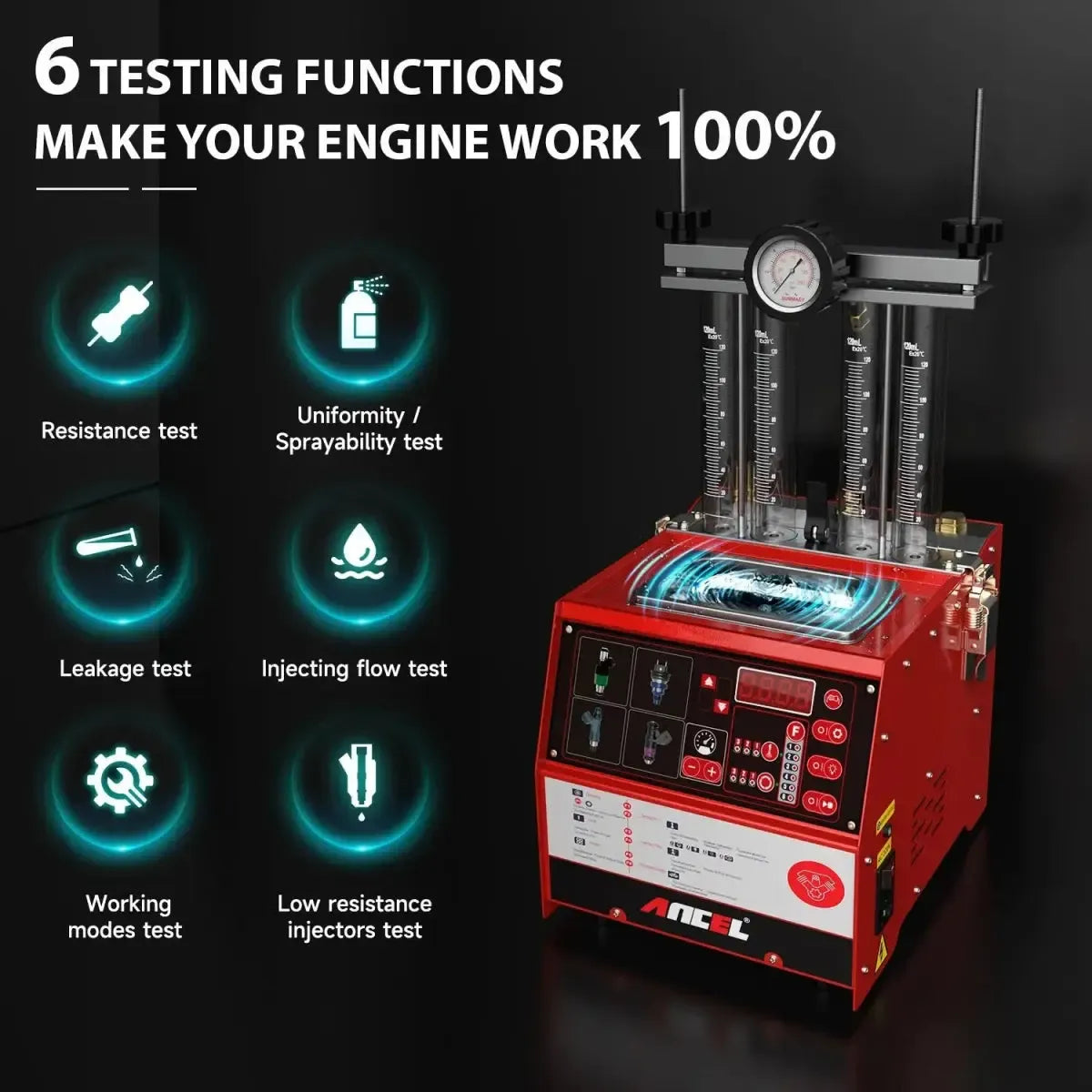

• Injector Test: Simulates various engine conditions to assess injector performance, including tests at idle, mid-range, and high speeds, as well as acceleration and leak tests.

• Uniformity Test: Checks the consistency of fuel injection from each injector and monitors the spray pattern using backlighting.

• Backflushing: Provides the ability to flush injectors in reverse, which helps remove stubborn clogs.

• Support for GDI injectors: Compatible with both standard 12V injectors and 75V GDI injectors, making it suitable for a wide range of vehicles.

Special features:

• Simultaneous cleaning of 4 injectors: Increases efficiency by cleaning and testing multiple injectors at the same time.

• Durable Bosch oil pump: Ensures long-lasting and stable operation of the device.

• Compact design with integrated drawer: Offers space-saving and easy storage of accessories.

• Visual fuel level gauge: Makes it easy to check the level of the cleaning fluid.

• User-friendly interface: The LED display and intuitive controls make the device easy to use.

Suitable for injector types:

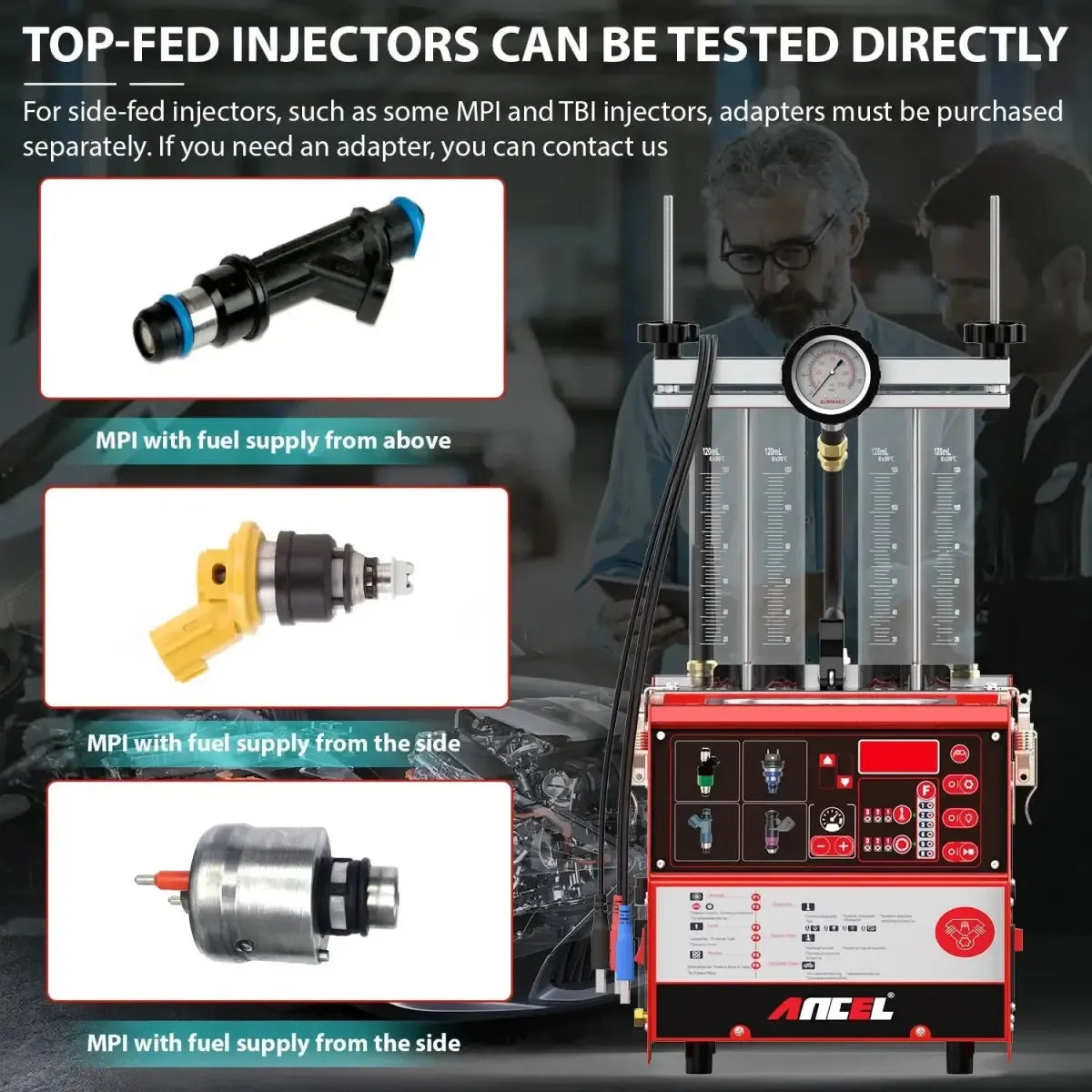

The Ancel AJ400 is suitable for cleaning and testing the following gasoline injectors:

• Electronic Fuel Injectors (EFI)

• Sequential Fuel Injectors (SFI)

• Gasoline Direct Injection (GDI)

• Multi-Port Fuel Injectors (MPFI)

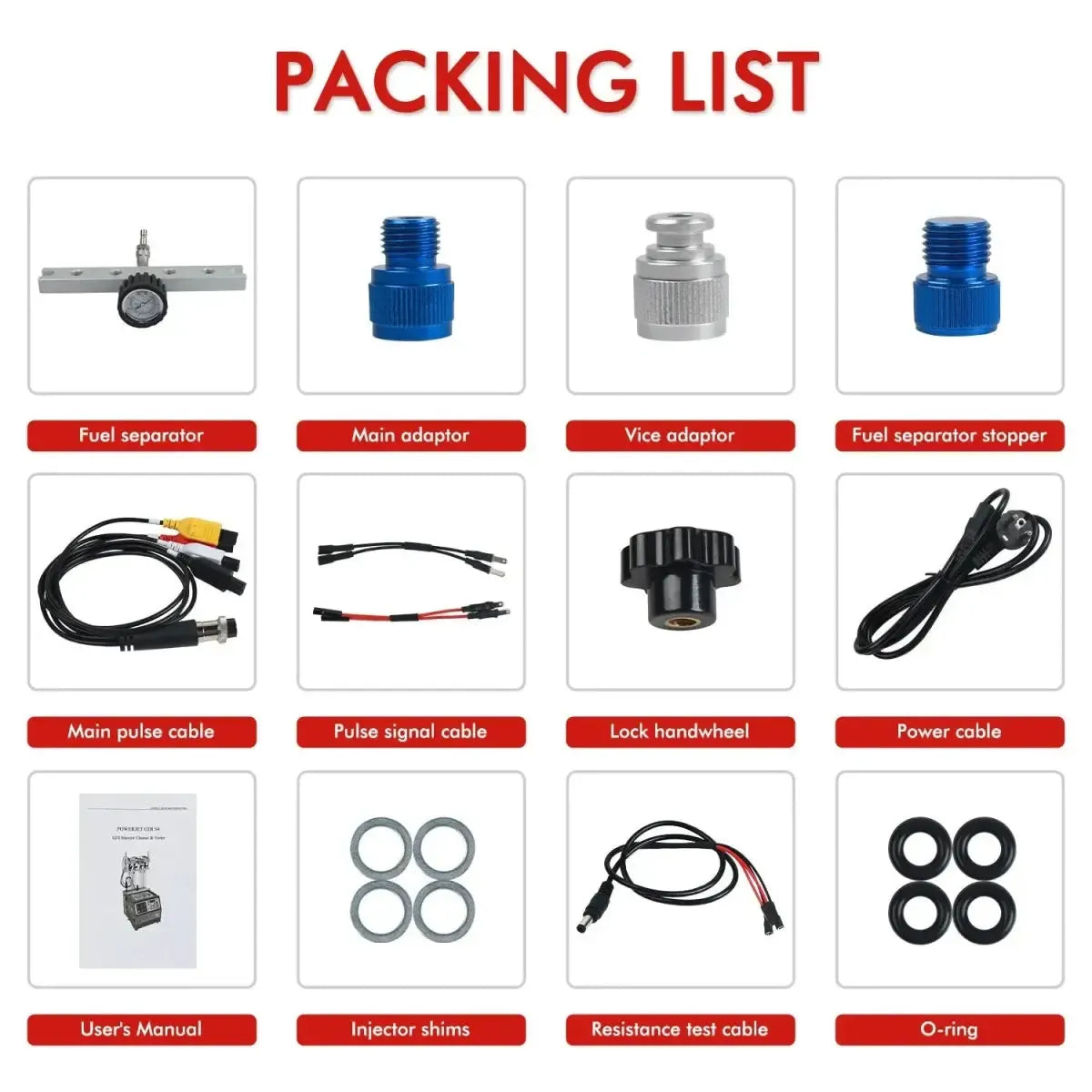

Package contents:

• Ancel AJ400 gasoline injector tester

• Handwheel locks (2 pcs)

• Injector shims (4 pieces)

• Vice adapters (4 pieces)

• Main adapters (4 pieces)

• Main pulse extension cable

• Pulse signal transmission extension cables (8 pieces)

• Resistance test extension cable

• Fuel separator with top feed

• Fuel separator stoppers (3 pieces)

• Power cable

• Manual

Technical specifications
