TopDiag P100 Circuit tester

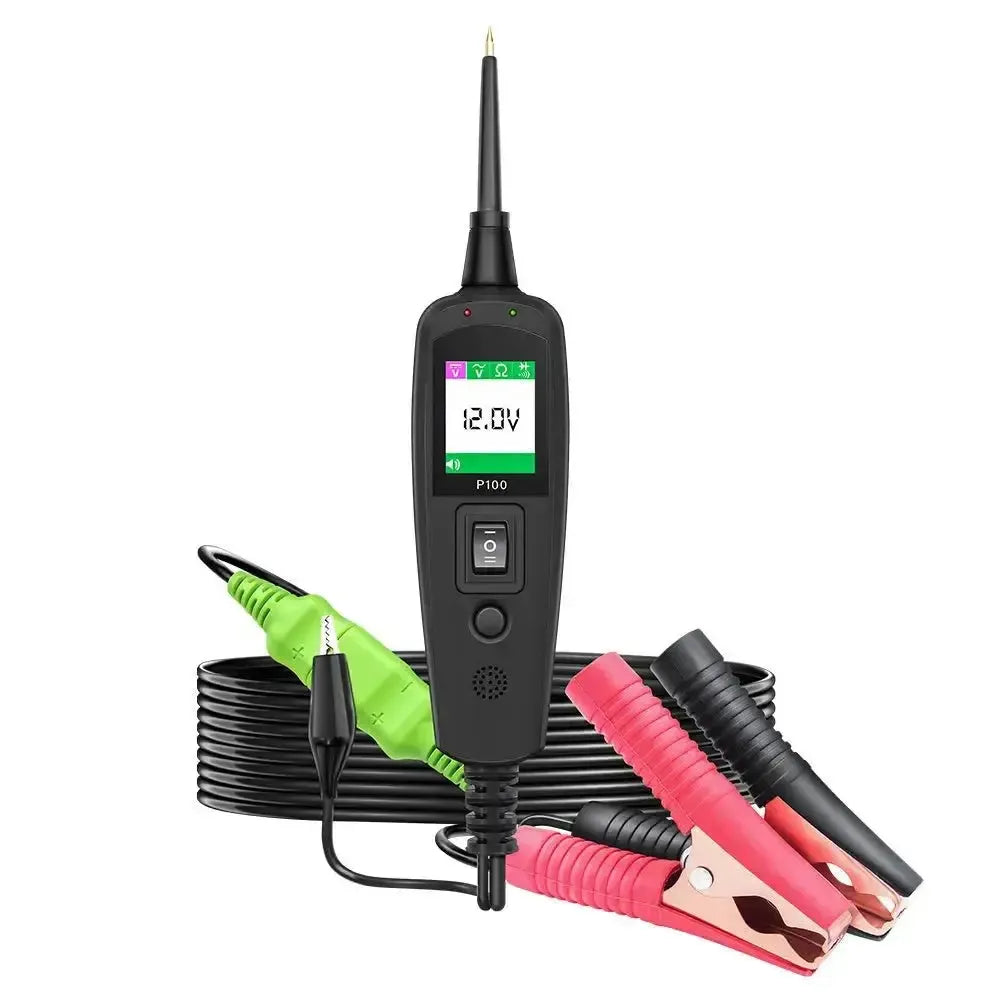

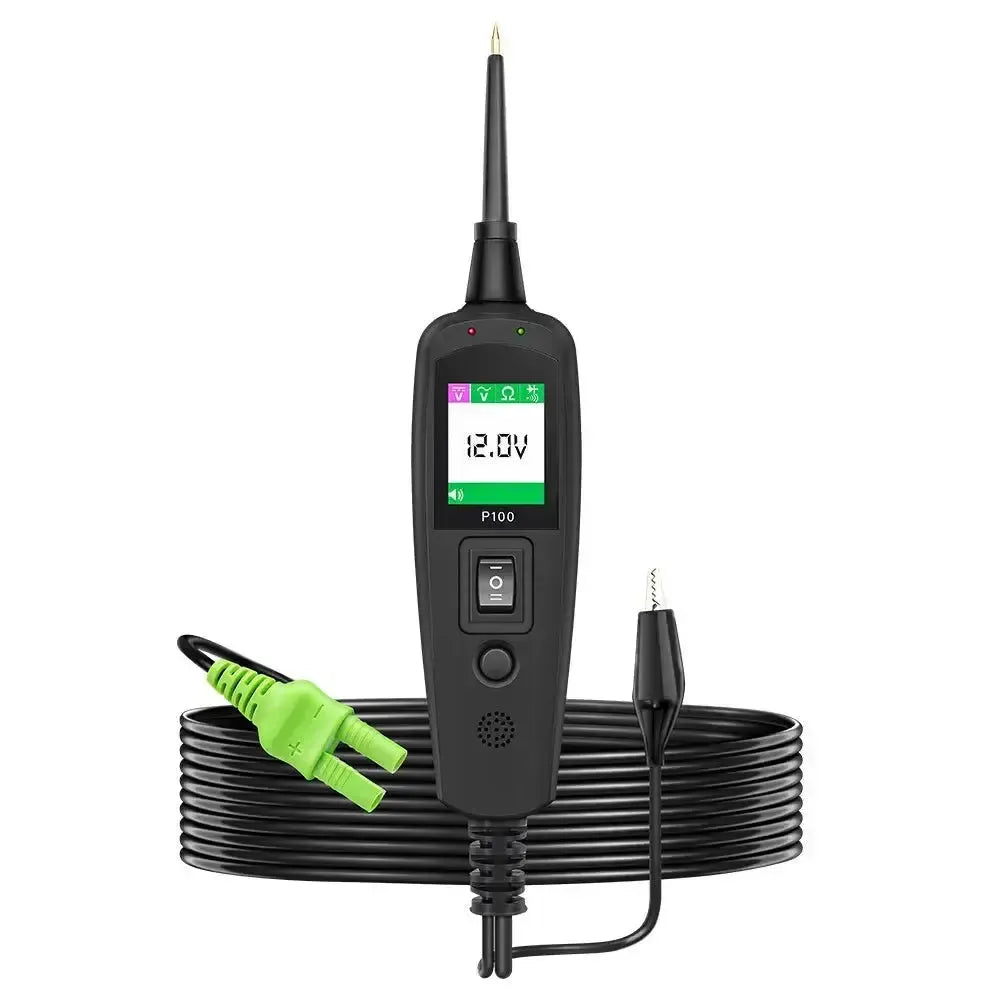

The TopDiag P100 is a versatile automotive circuit tester, designed for diagnosing electrical systems in vehicles with a voltage range from 9V to 70V. The device supports both 12V and 24V systems, making it suitable for cars, trucks, and other vehicles. With functions such as voltage measurement (AC/DC), resistance measurement, continuity test, diode test, and component activation, the P100 offers extensive capabilities for both professionals and DIY enthusiasts.

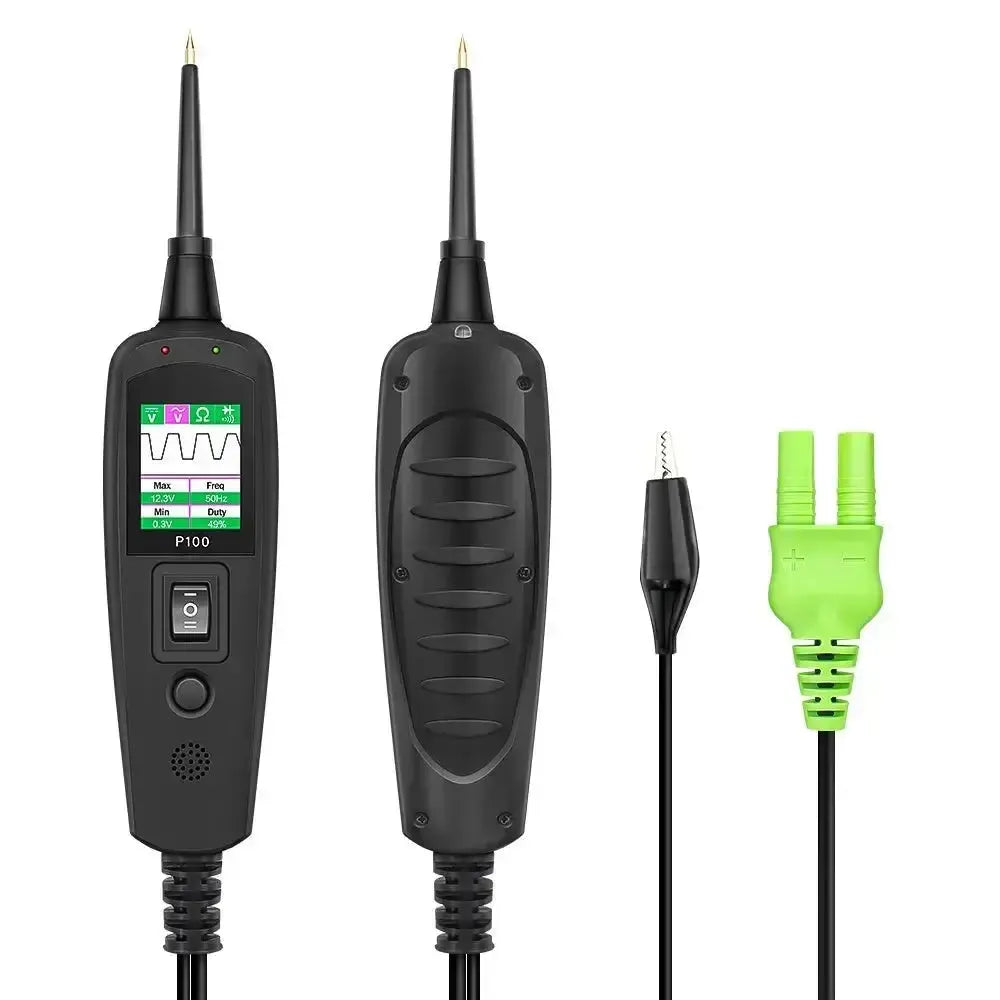

The P100 is equipped with a TFT color display of 160x128 dpi for clear presentation of measurement results. Thanks to the built-in LED lighting and a 10 meter long cable, the device is flexible to use even in poorly lit or hard-to-reach areas. The tester features an internal automatic fuse that protects the device from overload, enhancing safety.
Functions:
- Voltage measurement (DC/AC): Measures DC voltage from 0 to 65V and AC voltage up to ±110V, with a resolution of 0.1V.
- Resistance measurement: Measures resistance from 0 to 200 kΩ, useful for checking components and wiring.
- Continuity test: Detects open and closed circuits using an acoustic signal and LED indicators.
- Diode test: Checks the operation of diodes by measuring the voltage drop.
- Component activation: Enables direct activation of electrical components with the push of a button, without extra wiring.
Special features:
- Built-in LED lighting: Illuminates the test area, which is useful when working in dark environments.
- Overload protection: Protects the device against overload; in case of overload, the fuse automatically switches off to prevent damage.
- Long cable: With a cable length of 10 meters, the P100 offers sufficient reach for various vehicle applications.
- User-friendly design: The lightweight and ergonomic design makes the P100 easy to carry and use in various work environments.

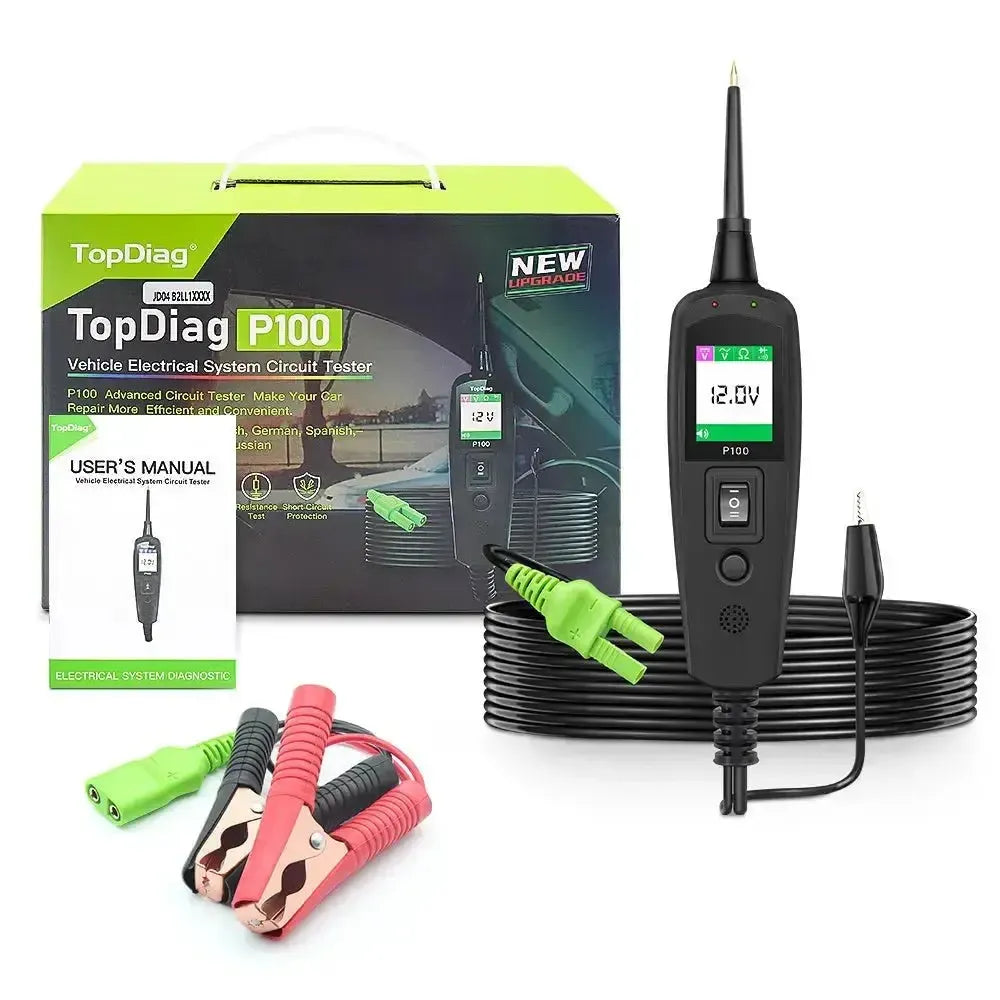

Package contents:
- TopDiag P100 Circuit tester

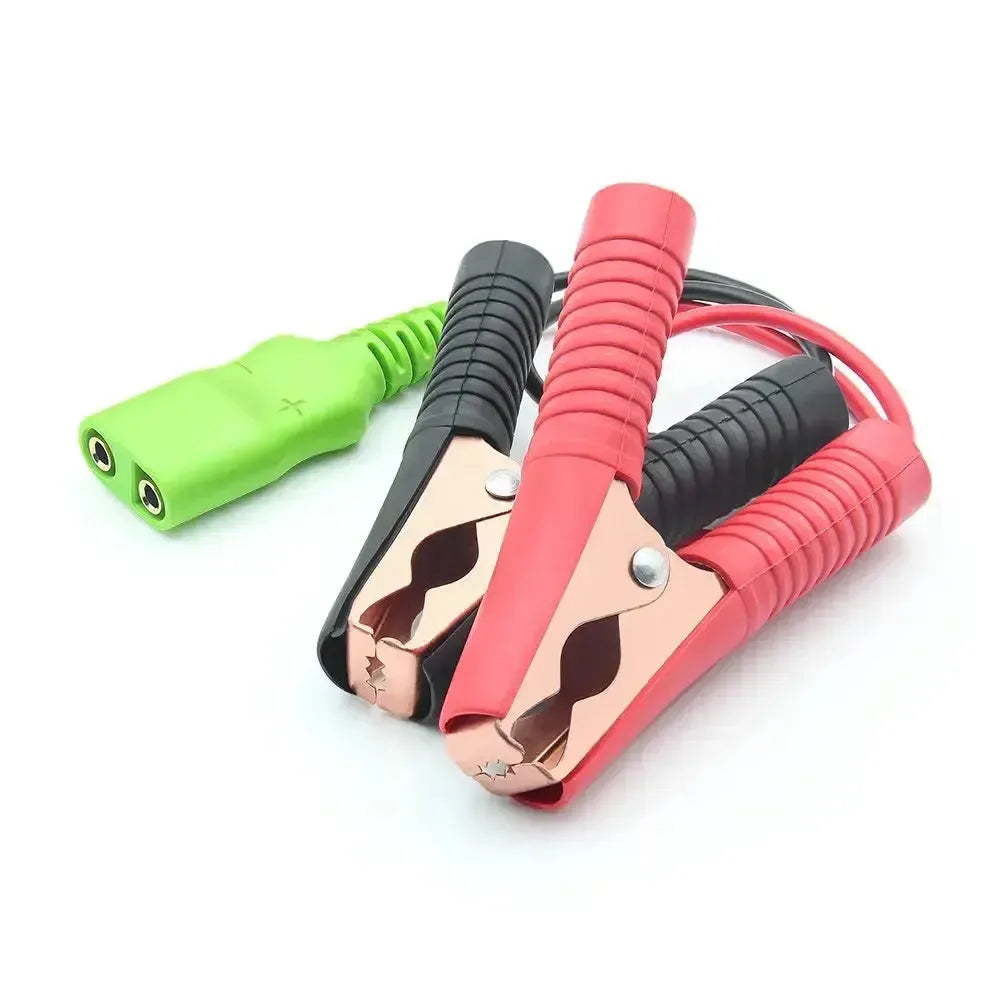

- Battery clamp adapter cable (Power)
- Extension cable (6 m)

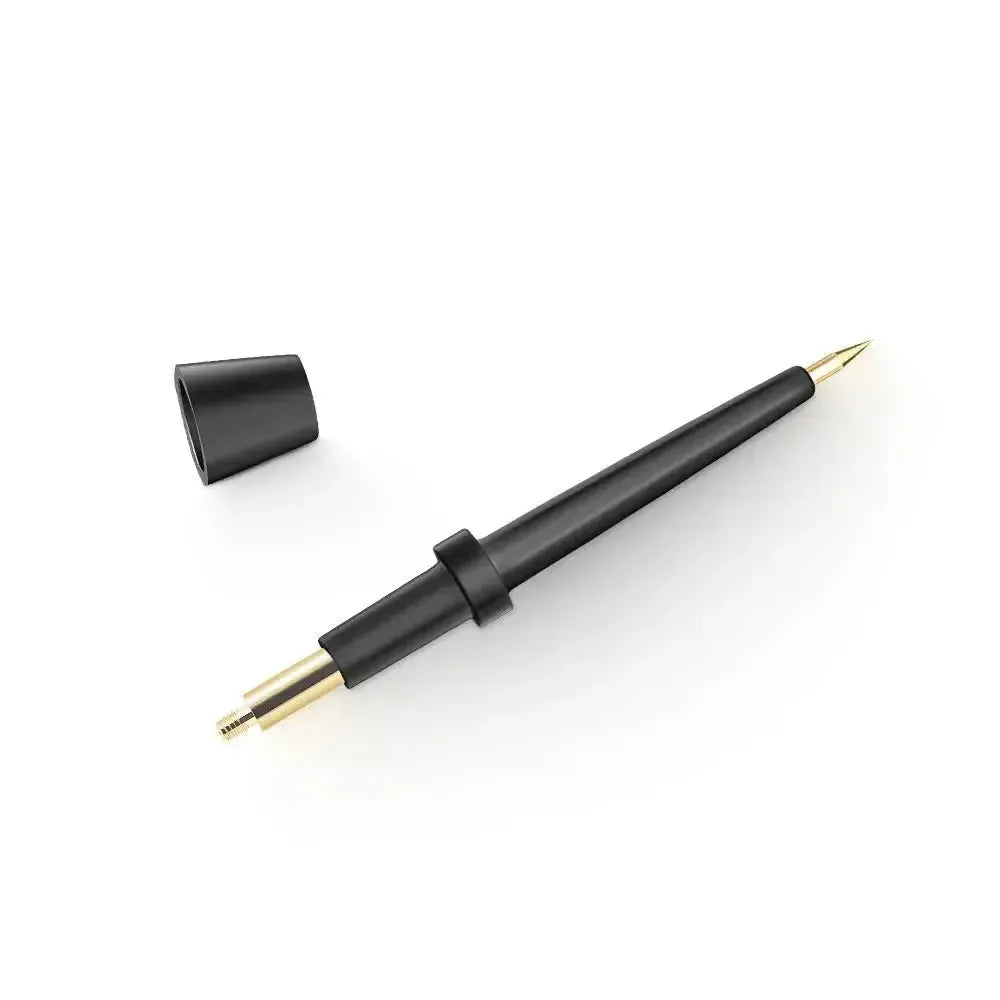

- Probe Tip
- Manual

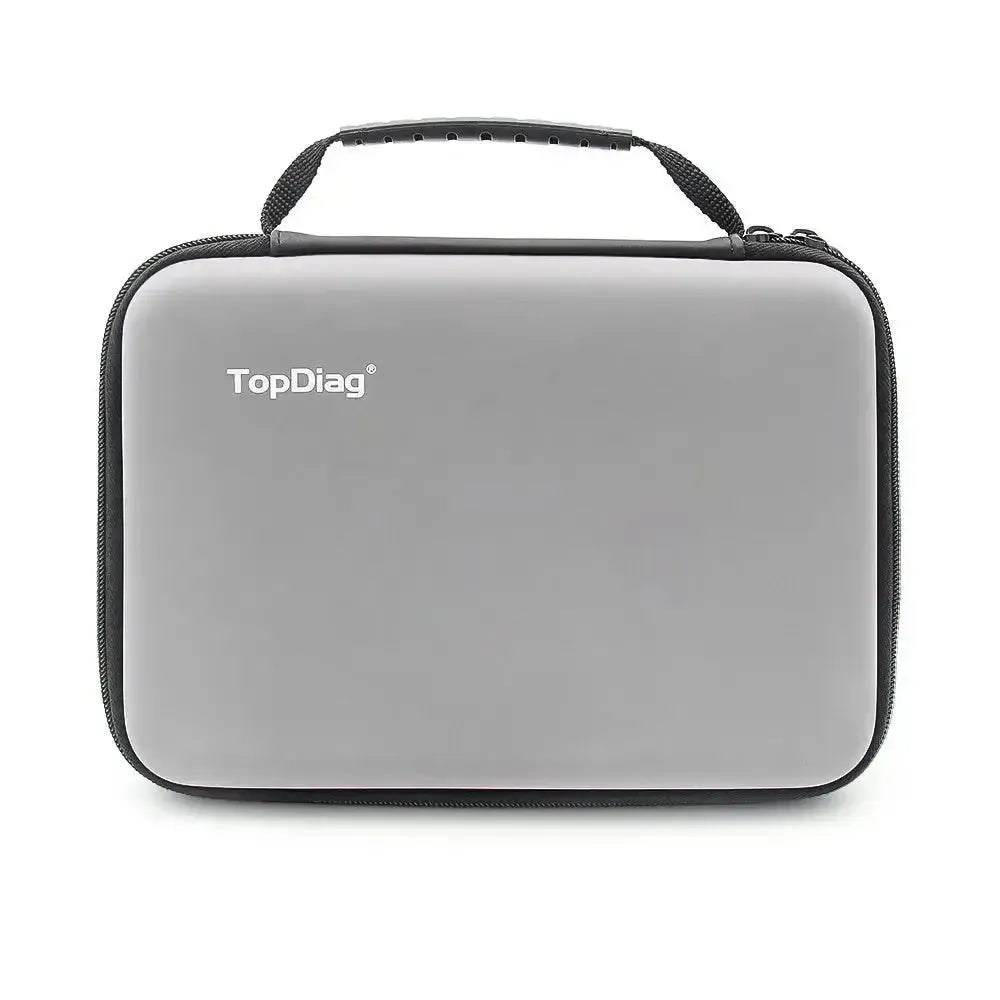

- Storage bag
Technical specifications
| Specification | Value |
|---|---|
| Voltage range (DC) | 0–65V ±1 digit |
| Voltage range (AC) | ±110V |
| Resistance range | 0–200 kΩ |
| Display | TFT color display (160x128 dpi) |
| Cable length | 10 meters |
| Operating temperature | 0°C to 60°C |
| Storage temperature | -40°C to 70°C |
| Dimensions (L×W×H) | 165×40×27 mm |
| Weight | 0.1 kg |
| Power supply | 12V or 24V via vehicle battery |
| Fuse | Automatic internal fuse |
