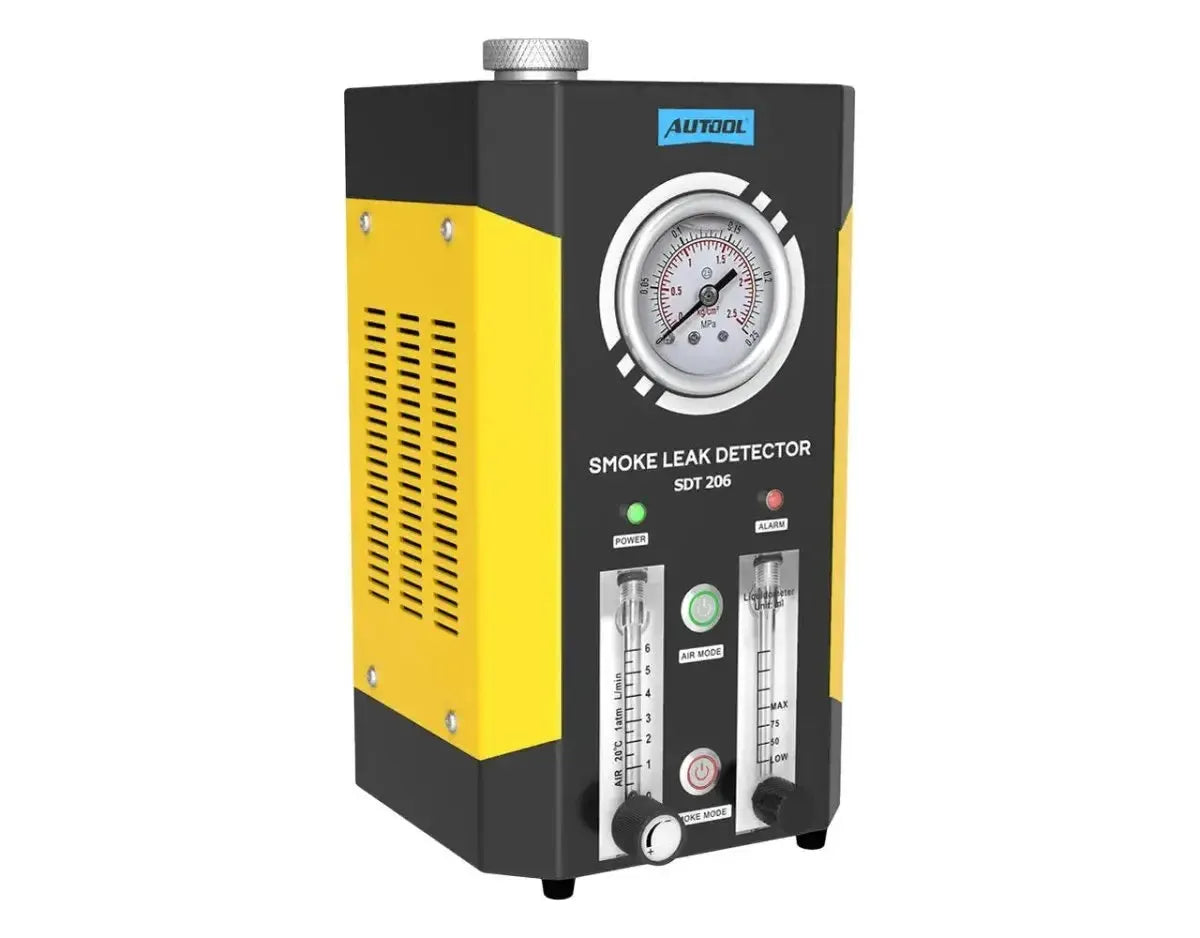

Autool SDT206 Smoke Tester

The Autool SDT206 is a versatile Smoke Tester designed to detect leaks in closed vehicle systems such as intake, exhaust, crankcase ventilation, and EVAP. With an integrated air pump, smoke generator, and control valve, this tester offers reliable diagnosis without an external air compressor. Smoke production starts within 30 seconds, and the system operates safely on standard 12V vehicle voltage.

The SDT206 features a digital Pressure Gauge, an adjustable pressure regulator, and an integrated safety system against overheating and fluid shortage. Thanks to the robust design and included accessories, this tester is suitable for daily use in professional workshops where fast, accurate, and visual leak detection is required.

Functions:

• Intake system test: Trace leaks in manifolds, throttle bodies, vacuum hoses, and turbo lines.

• EVAP system check: Safe and accurate testing of fuel vapor systems with pressure protection.

• Crankcase ventilation check: Diagnose PCV systems for leaks or blockages.

• Exhaust system test: Detect hard-to-hear exhaust leaks via visible smoke.

• Digital pressure display: Accurate Pressure Gauge shows real-time test pressure.

• Adjustable pressure output: Adjust the smoke pressure for different systems.

• Fast startup time: Ready to use within 30 seconds.

• Operates on 12V: Connects via battery clamps; no mains power required.

Special features:

• EVAP safety mode: Automatic pressure limit to protect EVAP components.

• Liquid level sensor: Warns of low smoke fluid.

• Overheat protection: Automatic shutdown above safe temperature limit.

• Digital Pressure Gauge: For precise pressure monitoring during the test.

• Hanging hook & carrying bracket: Practical design for mobile use in the workshop.

Package contents:

• Autool SDT206 Smoke Tester

• Battery clamp power cable

• Rubber hose

• Cone seal

• Inflatable seal

• Rubber sealing caps

• Plastic sealing caps

• Valve removal wrench

• Filling bottle

• EVAP adapter

• Filling funnel

• Hanging hook

• Manual

Technical specifications
