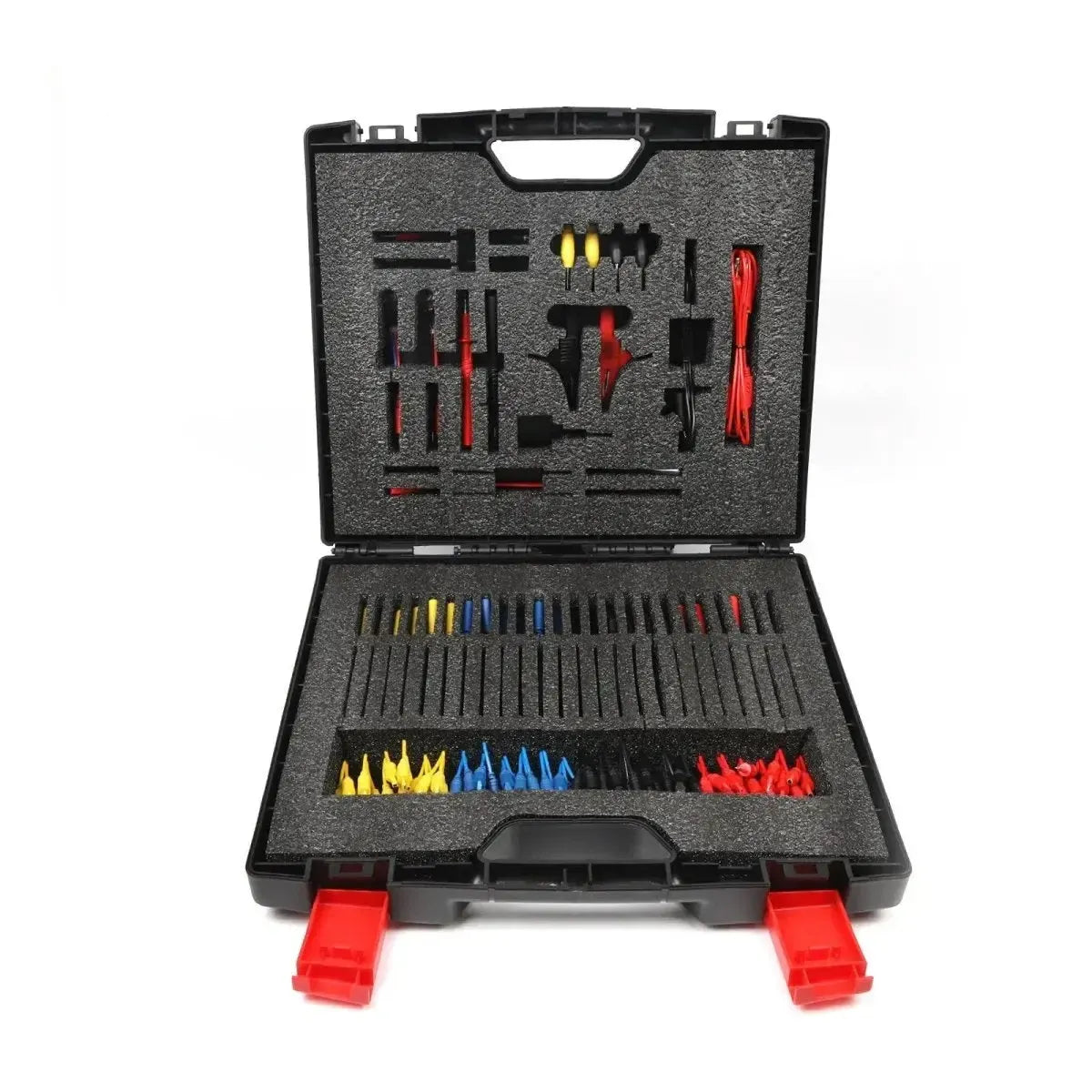

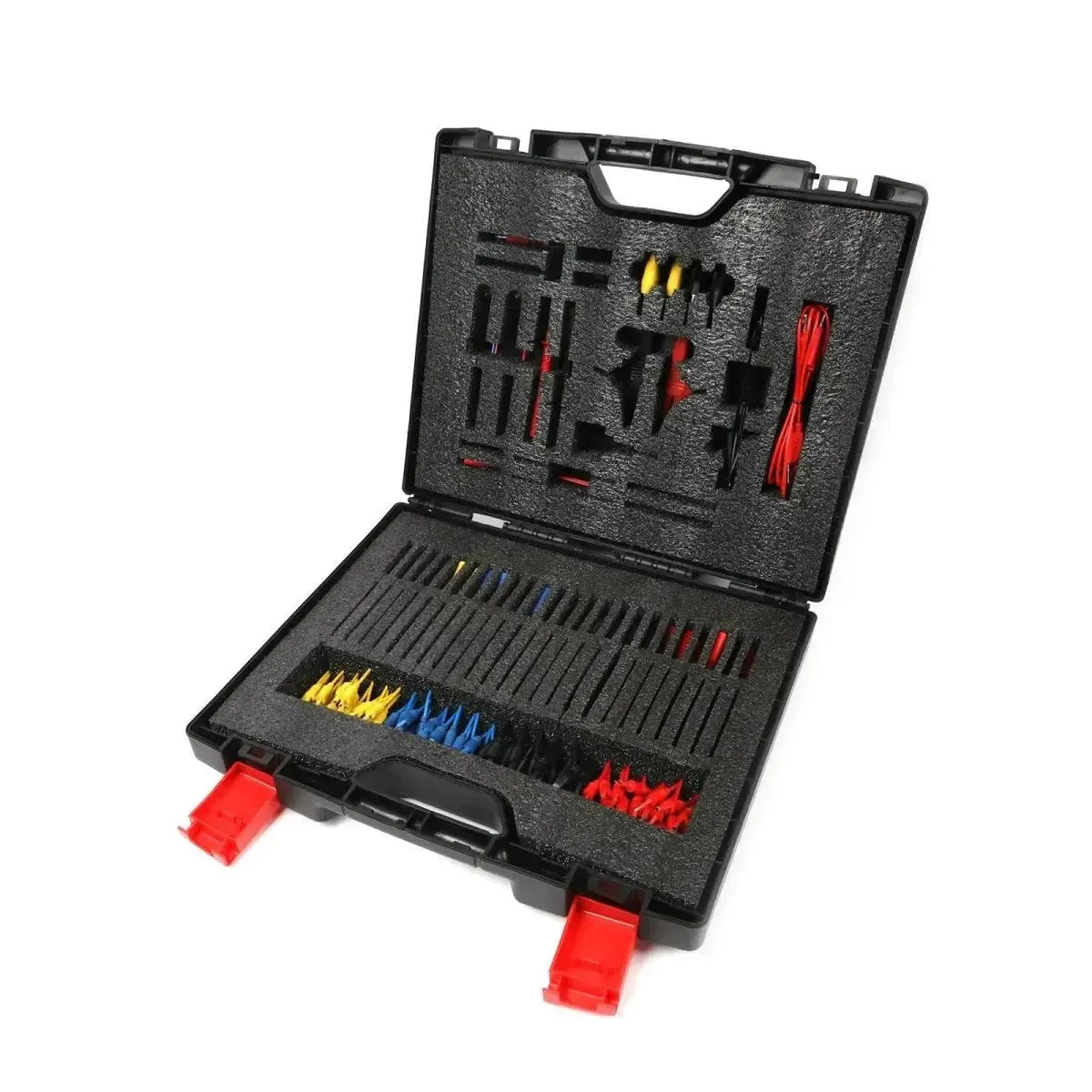

Autool Meet Cable and Test Pins Set 92-Piece

The Autool test cable and Probe Pins set is an essential tool for performing electrical diagnostics on vehicles. This set contains various male and female connectors, making it easy to connect electronic components to test equipment. This not only saves time but also ensures accurate diagnoses. The set is ideal for connecting car ECUs and electronic connector terminals and is highly suitable for use by automotive service technicians. Additionally, the banana plugs can be easily connected to automotive test instruments. In short, the Autool test cable and Probe Pins set is an indispensable instrument for performing electrical diagnostics on vehicles.

Features:

• Direct measurement from the back of the wiring harness plug connection: This prevents damage to the wiring, reducing insulation rubber damage and impedance caused by rust.

• Suitable for any meter: Can be used for extending oscilloscope probes, reducing wiring issues, and speeding up detection.

• Current measurement without cutting or disconnecting wires: The resistance wire can be connected in series in the circuit.

• Variable resistance: Can act as a plug for water temperature sensors and hypothetical signals from throttle position sensor components to the computer, reducing replacement risks.

• Two LED lights: For monitoring Hall, photoelectric signals, fuel injectors, solenoid valves, automatic transmission shift solenoids, and other actuator control signals.

• SRS replacement resistors: To simulate airbags and seatbelt pretensioners, preventing accidents and misjudgments during maintenance.

• Various wire resistors: Suitable for connector connections of European, American, and Asian car systems, with high versatility and ease of use.

• Transform your test and measurement equipment: Into powerful diagnostic tools.

• Fault diagnosis: In sensors, actuators, and electronic circuits in modern vehicles.

• Used for: Tracing, inspecting, recording, or repairing complex vehicle circuits.

Special features:

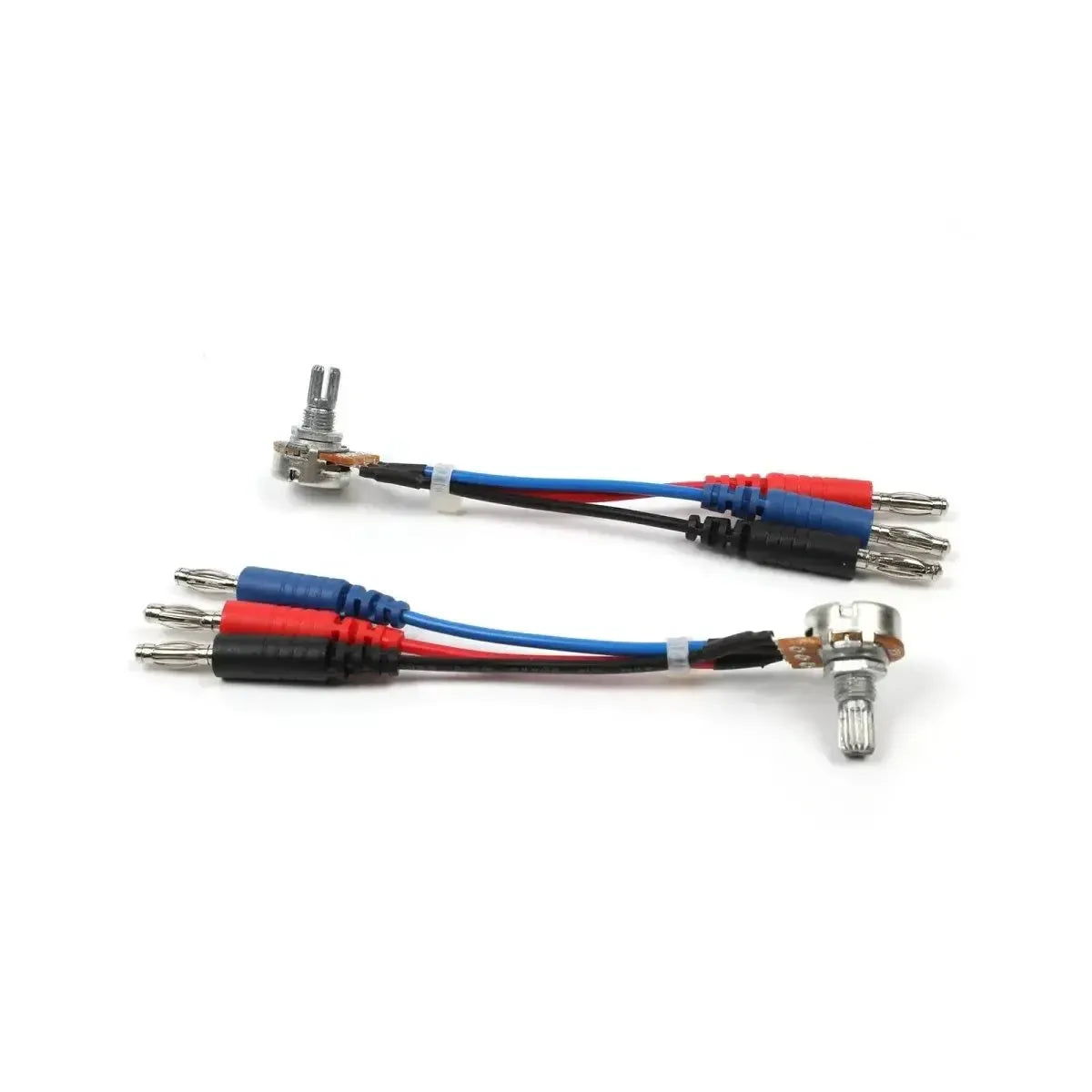

• Potentiometers (5K): Variable resistors for simulating temperature and throttle position sensors.

• LED stroboscopes: For monitoring Hall, photoelectric signals, fuel injectors, solenoid valves, and other actuator control signals.

• SRS connectors: For simulating airbags and seatbelt pretensioners, preventing accidents and misjudgments during maintenance.

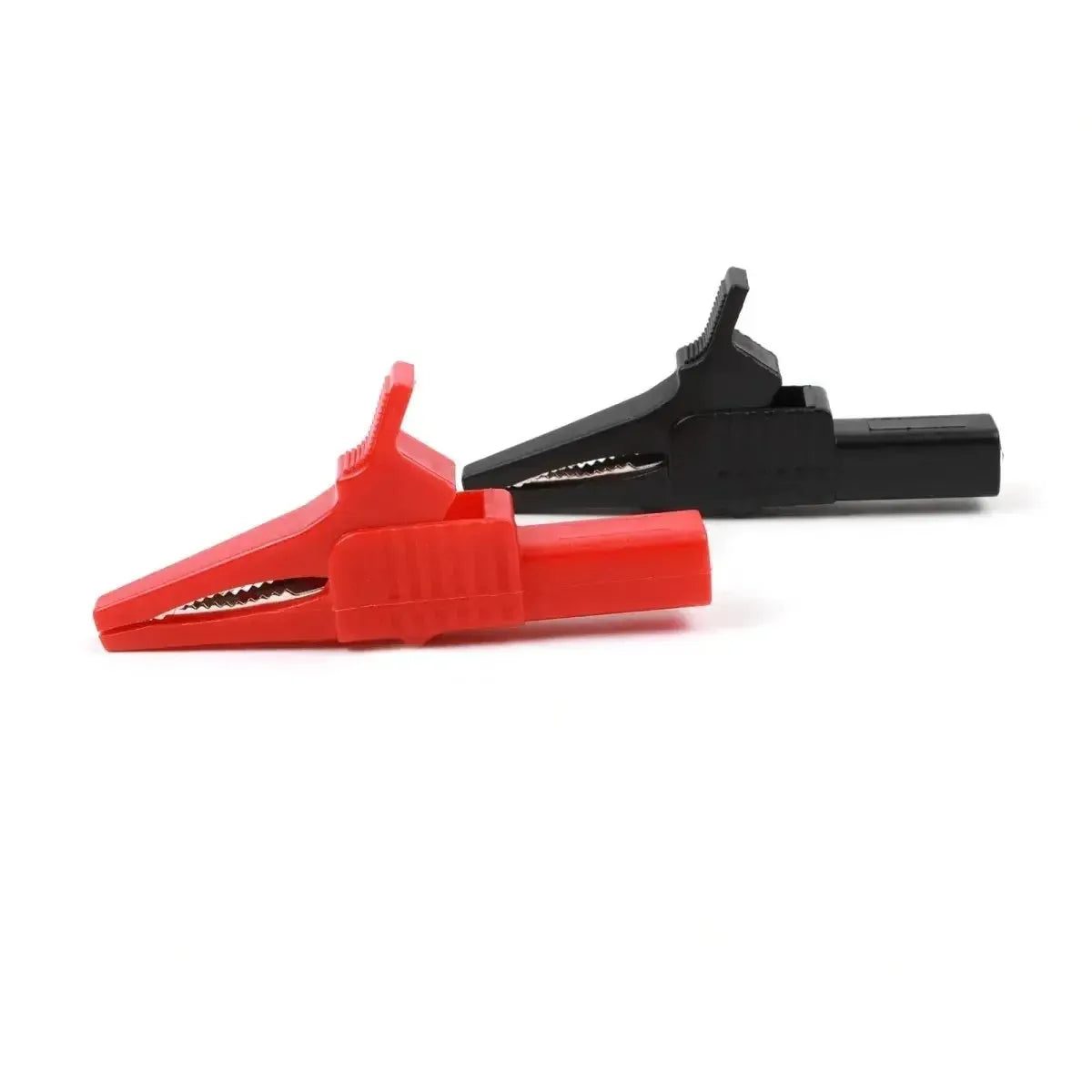

• Crocodile clips and Probe Pins: For versatile connection options during testing.

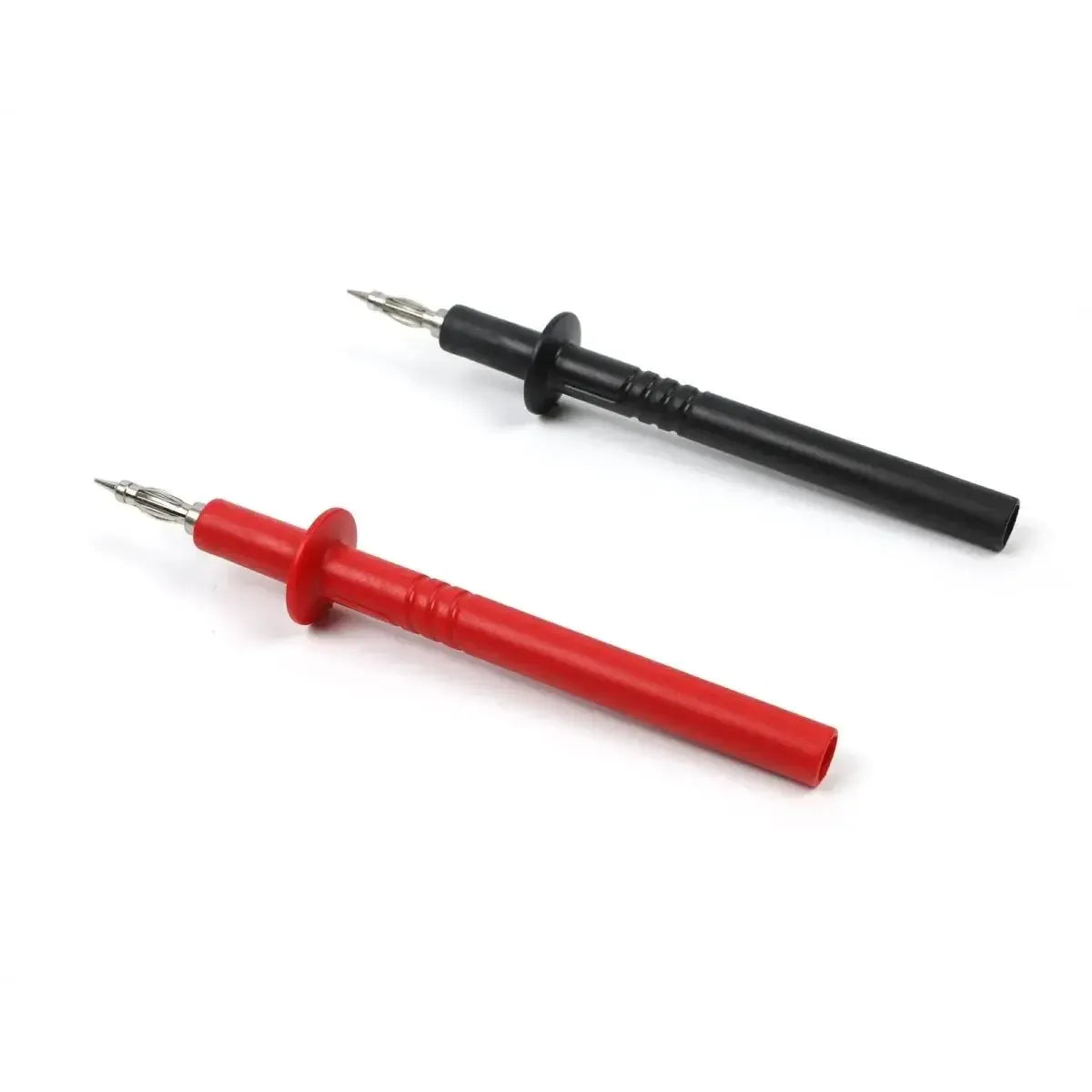

• Needle-shaped probes: For measuring in hard-to-reach places without damaging the wiring.

• 1 Pins to 2 Pins and 1 Pins to 1 Pins connectors: For various connection options.

• Round and flat terminals: In different sizes for compatibility with various vehicles.

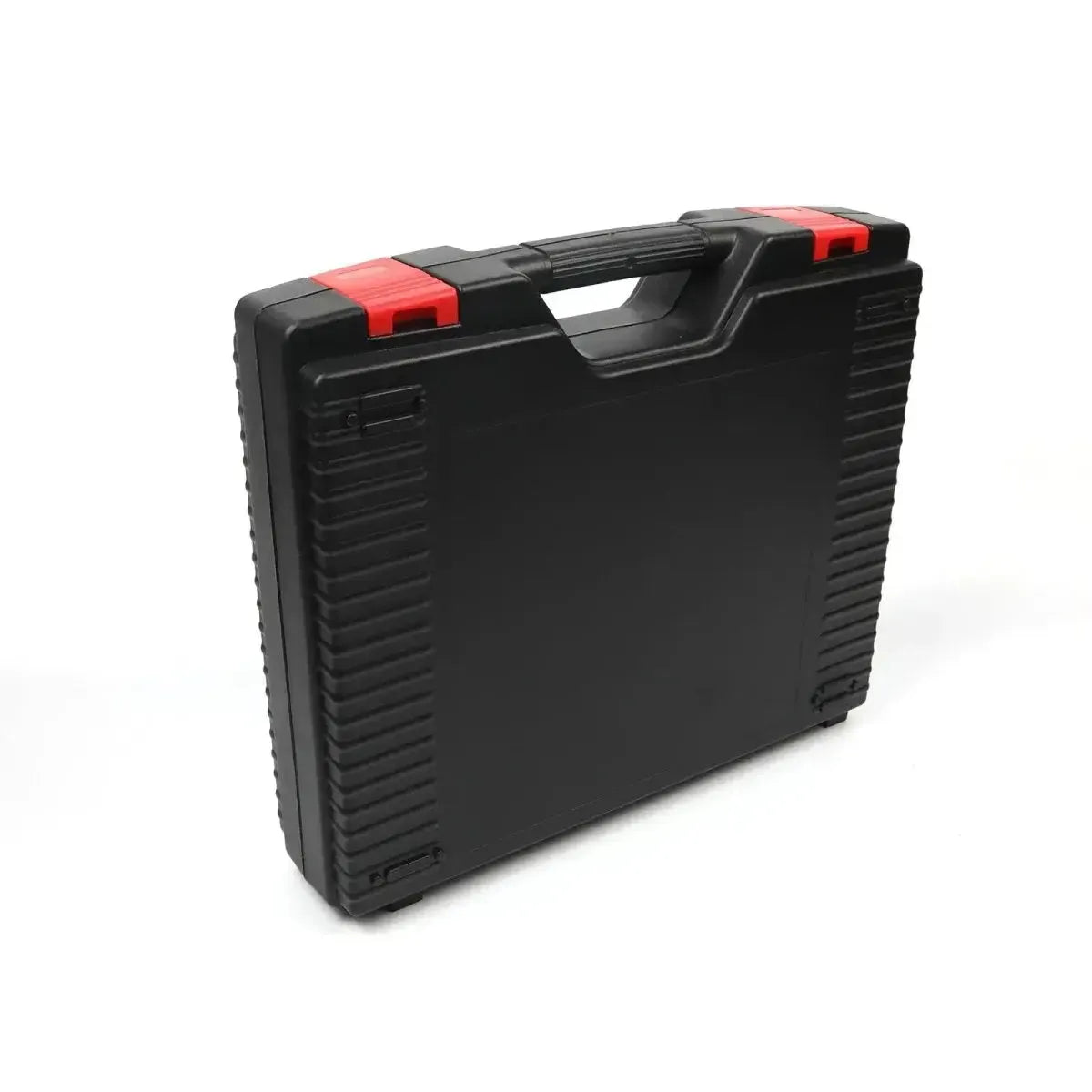

• Storage case: For organized and safe storage of all parts.

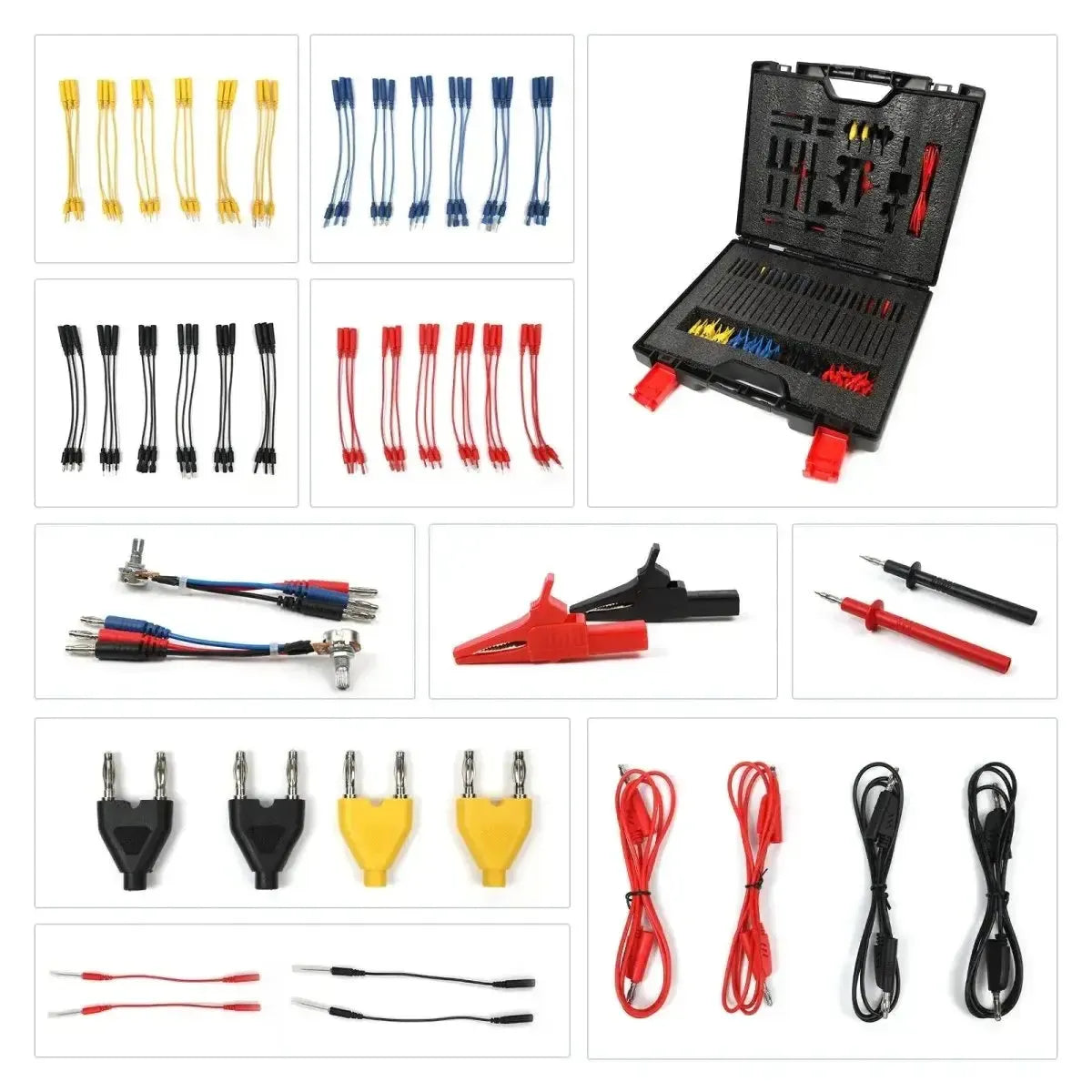

Package contents:

• 5K Potentiometers (Variable Resistors) (2 Pieces)

• LED stroboscopes (2 Pieces)

• SRS connectors (2 Pieces)

• Crocodile clips (2 Pieces)

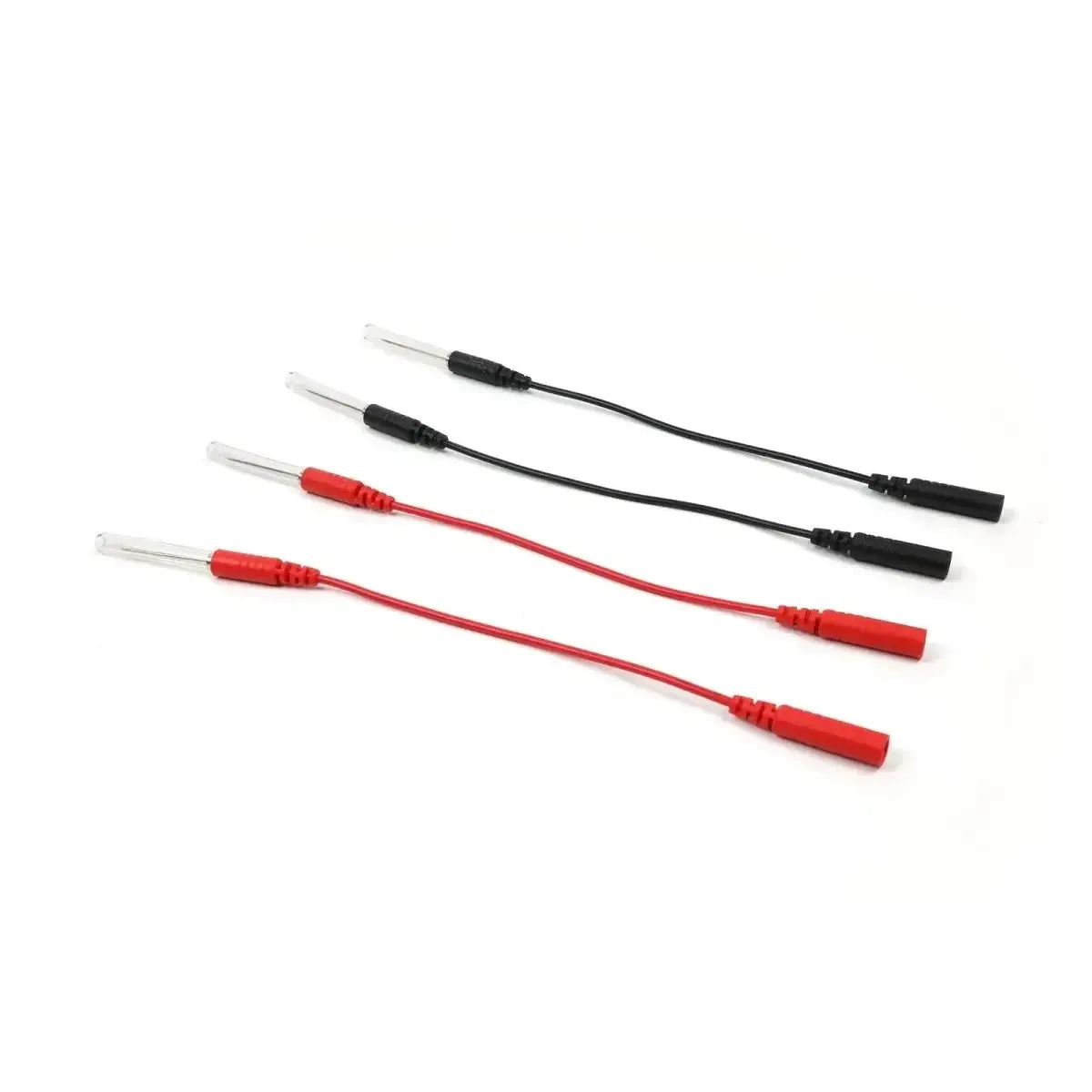

• Probe Pins (2 Pieces)

• Needle-shaped probes (2 Pieces)

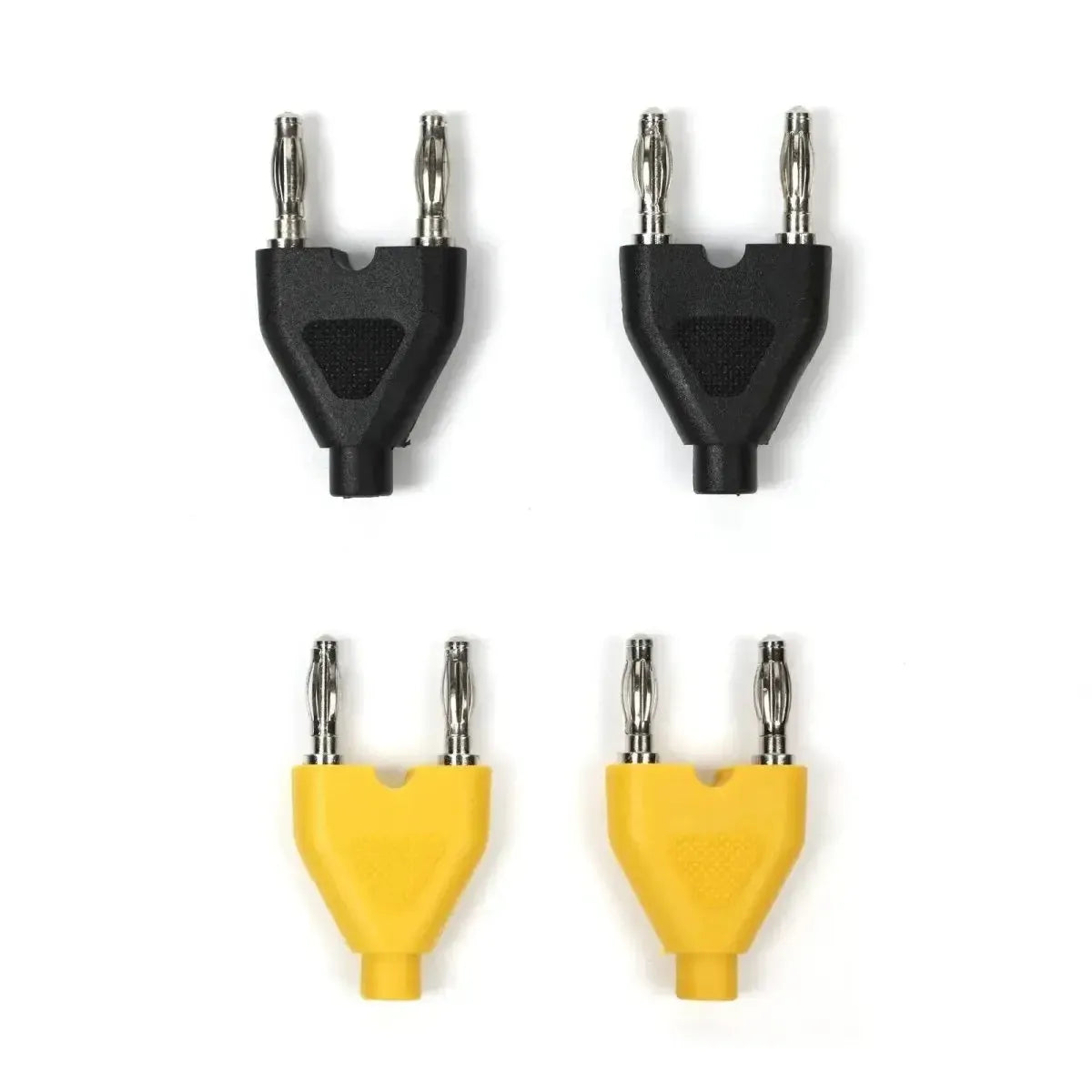

• 1 Pins to 2 Pins connectors (2 Pieces)

• 1 Pins to 1 Pins connectors (4 Pieces)

• Round terminals (24 Pieces)

• Flat terminals (48 Pieces)

• Storage case
