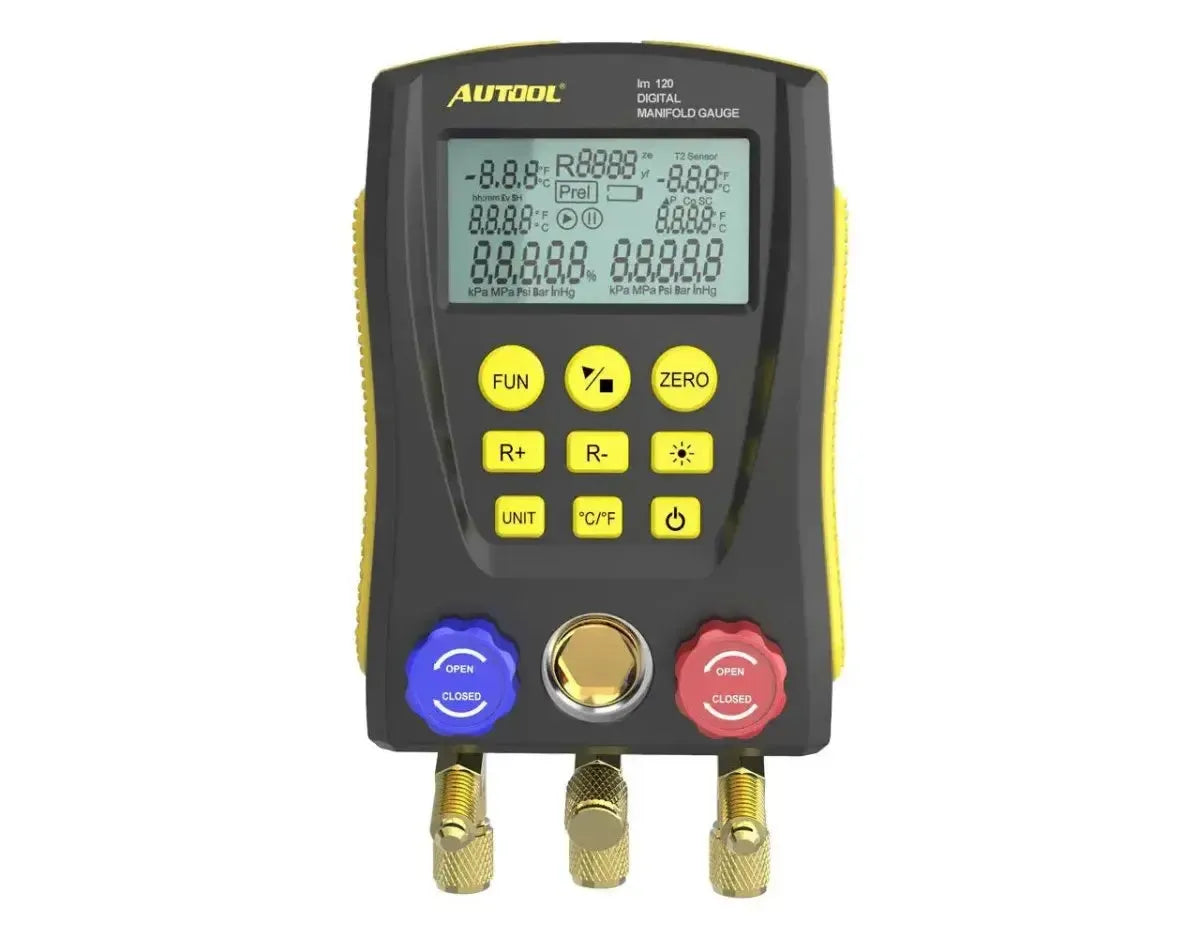

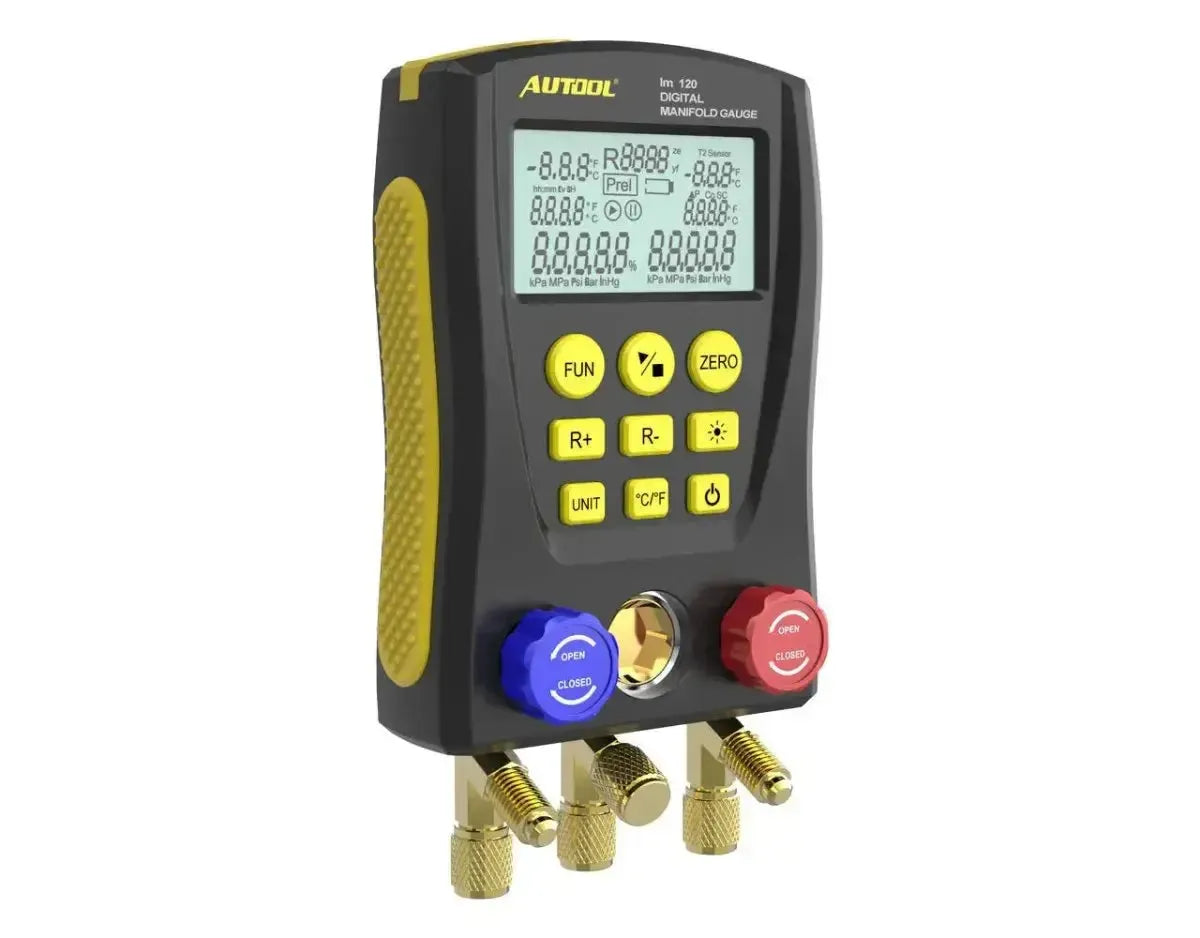

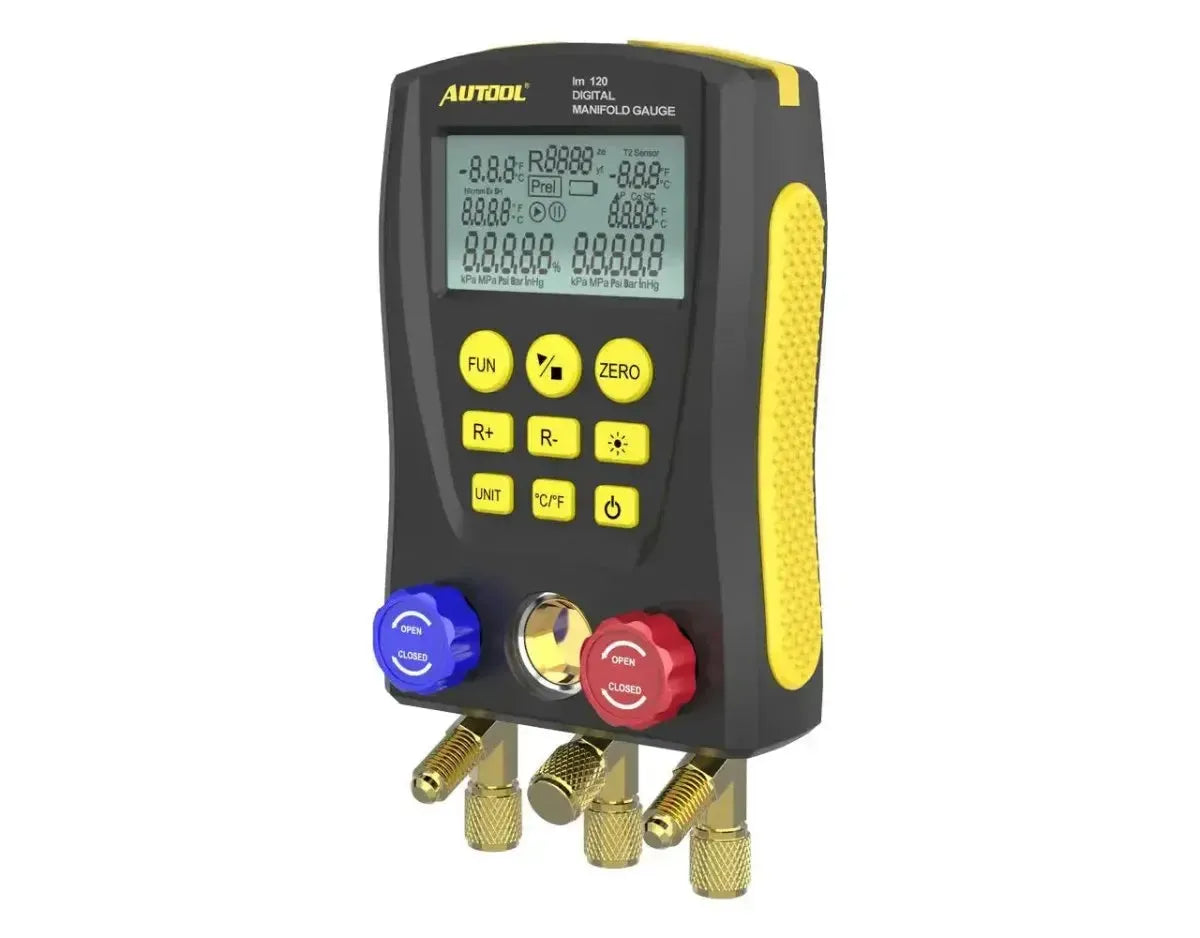

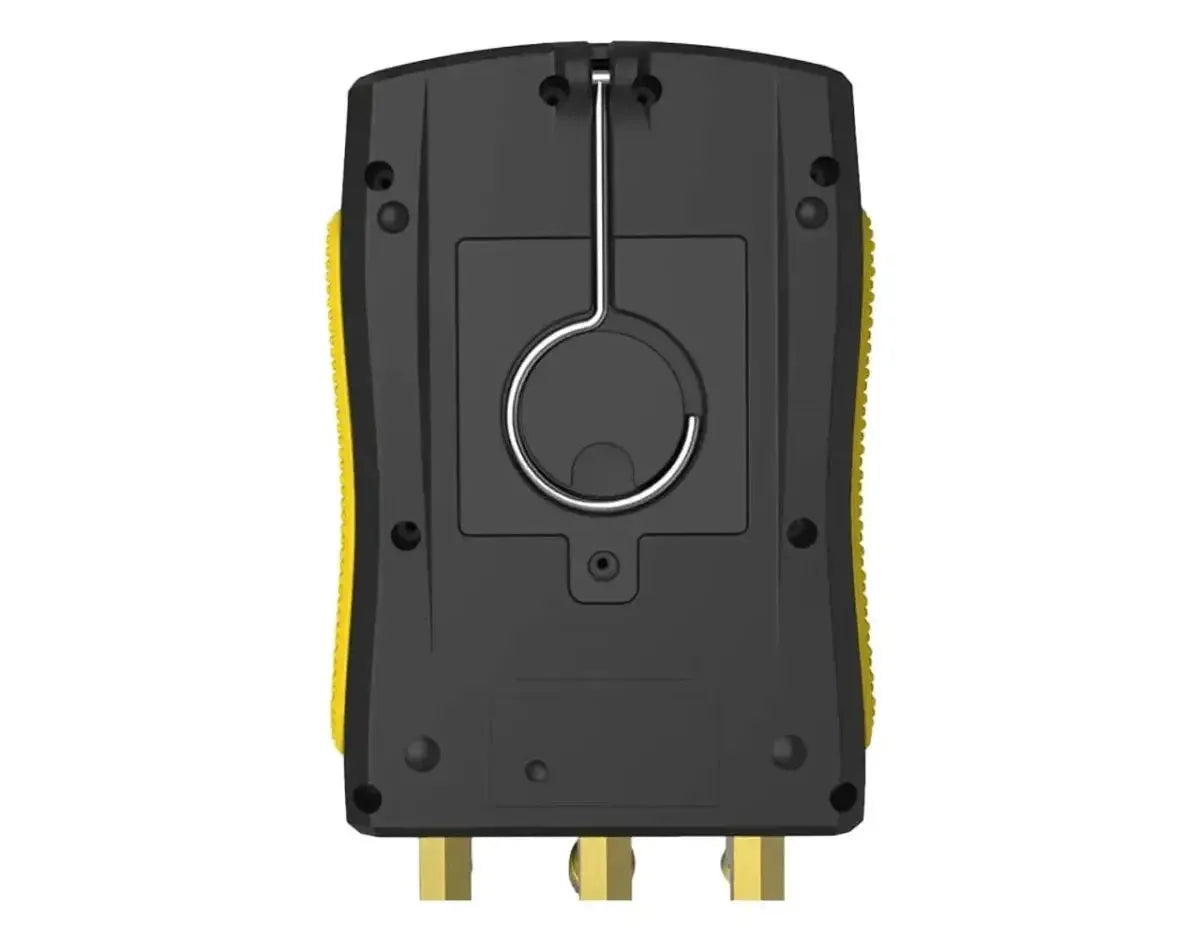

Autool LM120+ AC Manifold Gauge
The Autool LM120+ is an advanced digital AC Manifold Gauge, designed for installation, maintenance, and diagnosis of HVAC and refrigeration systems. The device provides accurate measurements of pressure, temperature, and vacuum, and features a built-in database with 89 types of refrigerants according to the US NIST standard. Thanks to the dual pressure and temperature measurements and features such as subcooling and superheating calculations, the LM120+ is ideal for both professional technicians and advanced DIYers.
The LM120+ is equipped with a large backlit LCD screen for clear display, and supports multiple units for pressure and temperature. The robust design with anti-slip silicone grip and durable valves makes the device suitable for intensive use. With features such as vacuum measurement, leak detection, and automatic unit conversion, the LM120+ offers an all-in-one solution for HVAC diagnostics.
Features:
- Dual pressure and temperature measurement: Enables simultaneous measurement of high and low pressure, as well as temperature measurements using optional probes.
- Built-in refrigerant database: Contains data of 89 refrigerants for quick and accurate reference.
- Subcooling and superheating calculation: Automatic calculation of crucial parameters for system optimization.
- Vacuum measurement and leak detection: Detects system leaks and measures vacuum levels for effective diagnosis.
- Multi-unit display: Supports KPa, MPa, bar, PSI and inHg for pressure; °C and °F for temperature.
Package contents:
- Autool LM120+ AC Manifold Gauge
- Air hoses (3 pieces)
- Temperature clamps (2 pieces)
- Manual
- Storage bag
Technical specifications
| Specification | Value |
|---|---|
| Pressure measurement range | 0 – 6000 KPa (0 – 60 bar) |
| Pressure resolution | 1 KPa |
| Pressure accuracy | ±0.5% (FS) + 5 digits |
| Pressure overload | 10 MPa (100 bar) |
| Vacuum measurement range | -101 – 0 KPa |
| Temperature measurement range | -40°C – 150°C (-40°F – 302°F) |
| Temperature resolution | 0.1°C / 1°C (depending on range) |
| Temperature accuracy | ±0.5°C + 2 digits |
| Power supply | 4 x 1.5V AA batteries (not included) |
| Dimensions | 170 x 110 x 50 mm |
| Weight | 950 g |
| Display | LCD with backlight |
| Refrigerant database | 89 types according to NIST standard |
