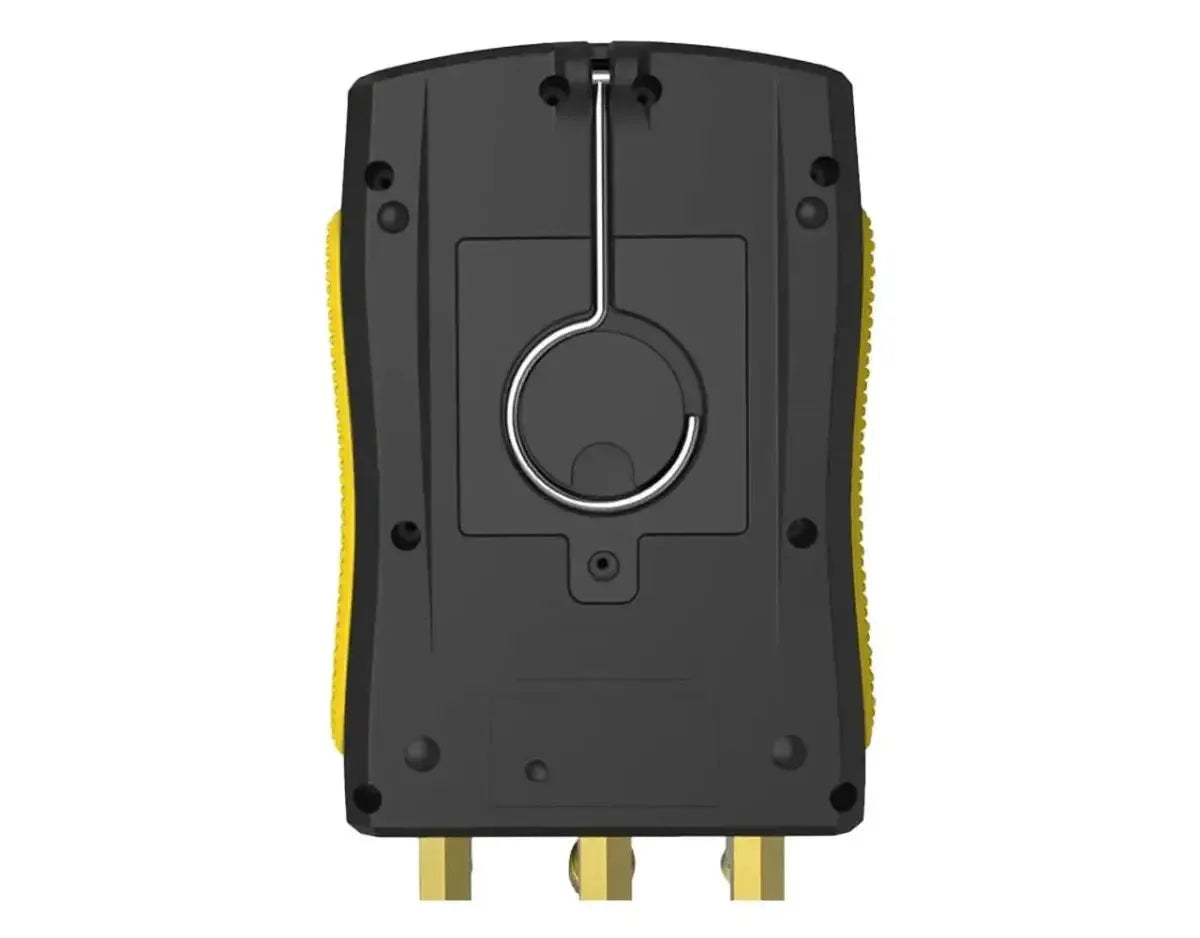

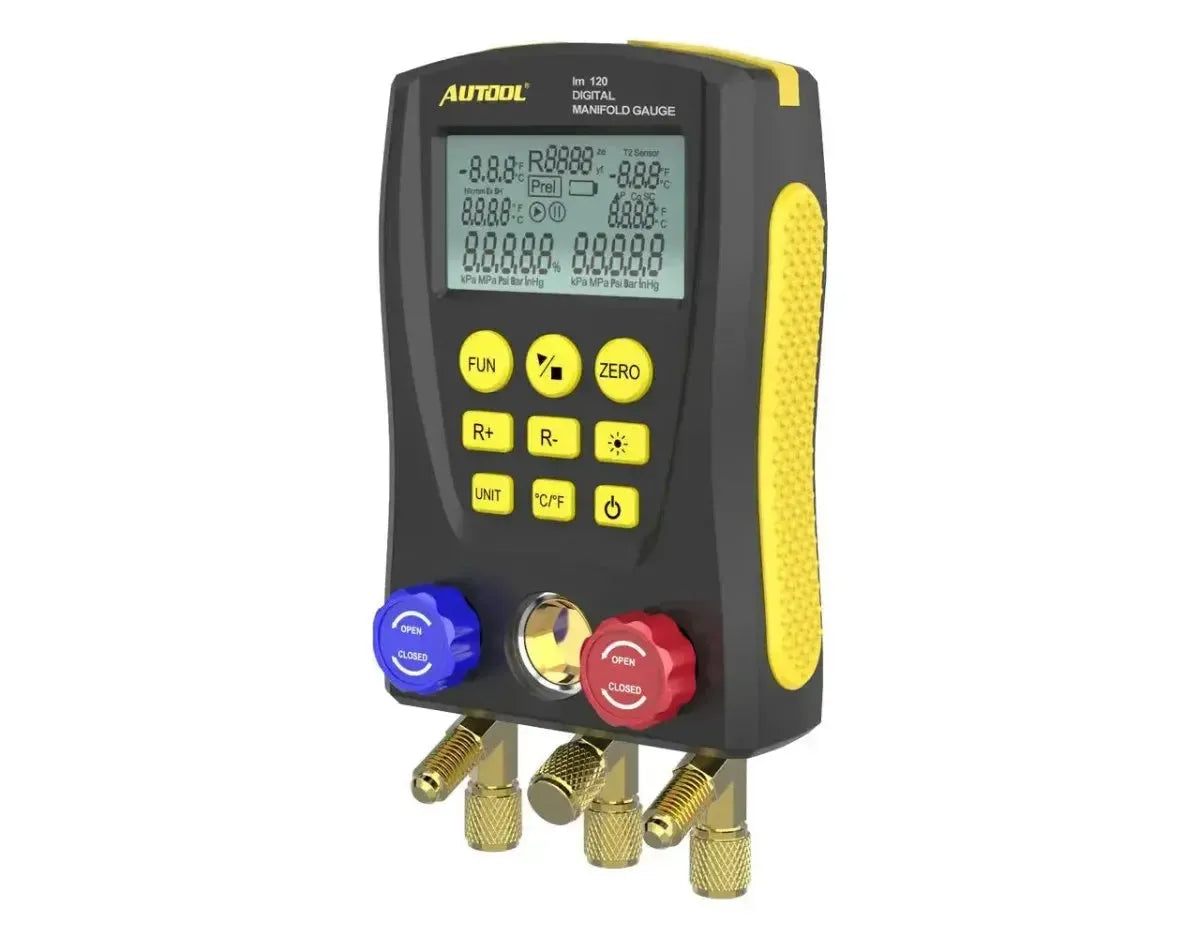

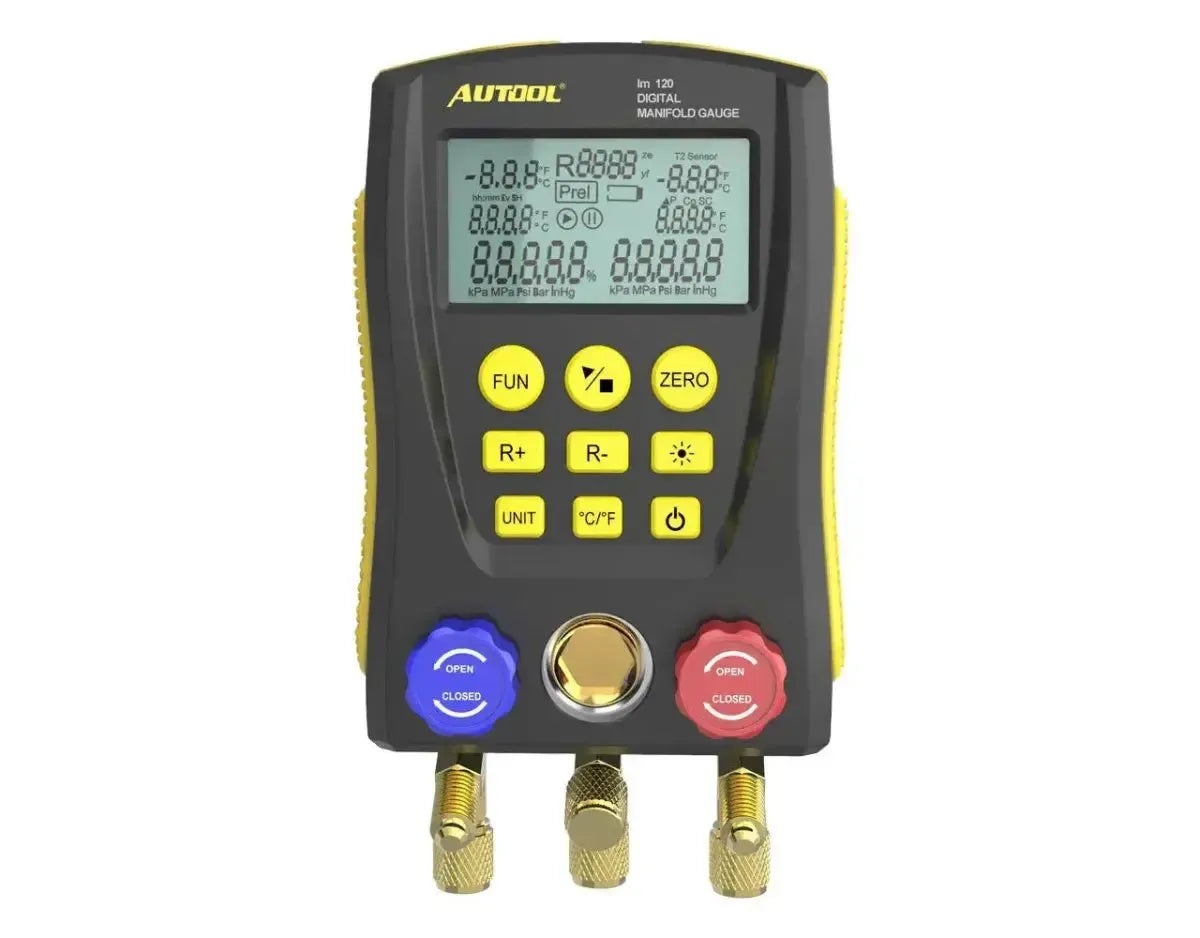

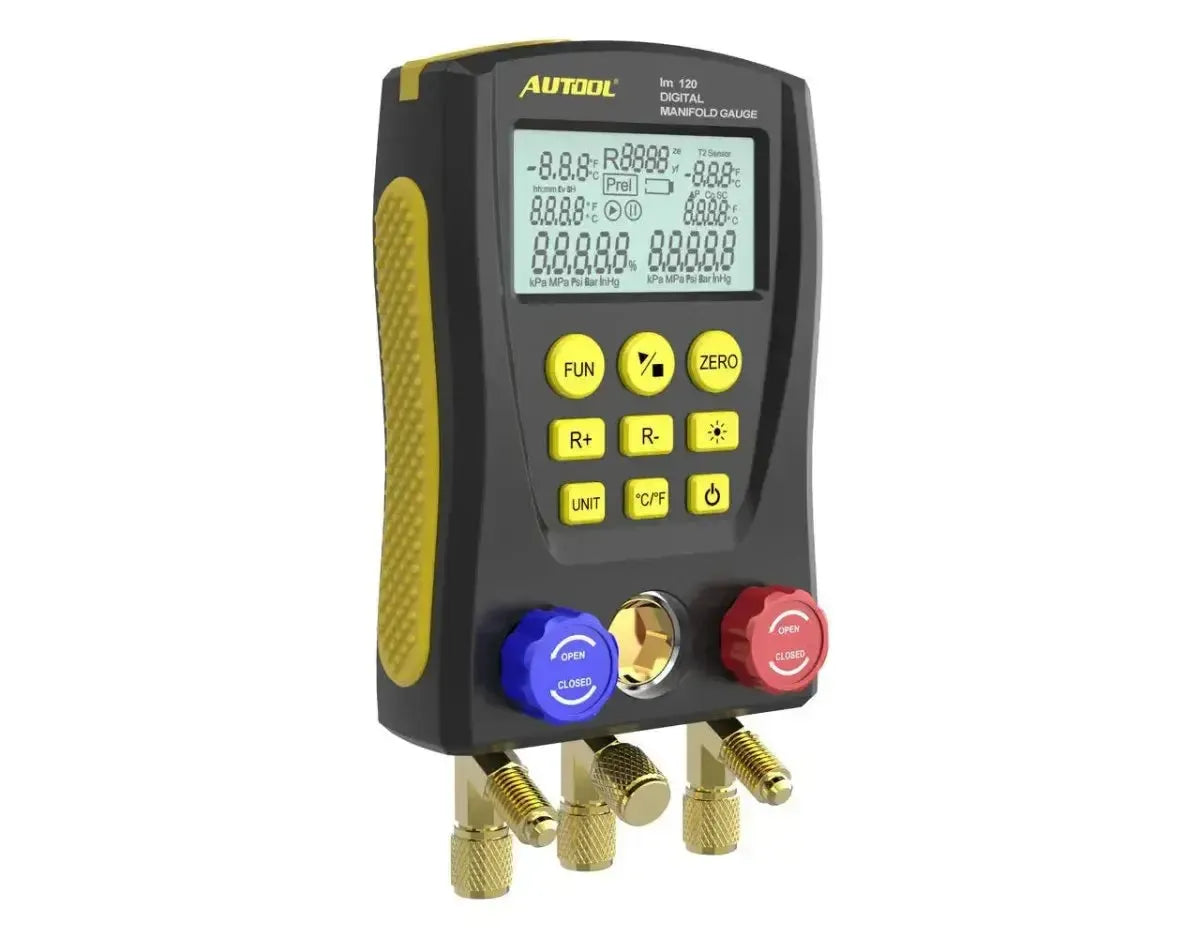

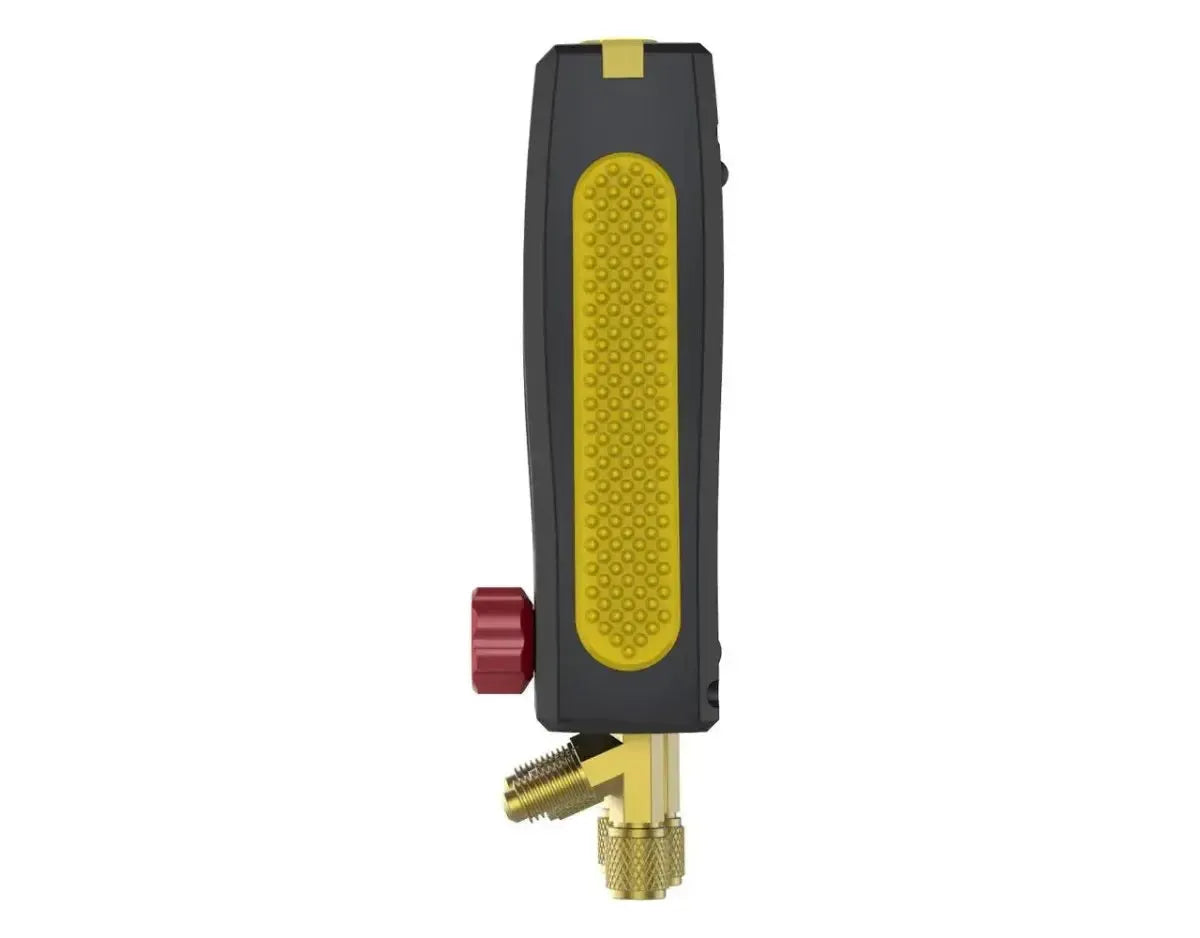

The Autool LM120 AC Manifold Gauge is a digital measuring instrument specially designed for installing, testing, and maintaining cooling systems such as air conditioners and cold storage. With the ability to simultaneously perform dual pressure and temperature measurements, this device offers accurate and efficient diagnostics for HVAC professionals. The LM120 is equipped with a clear digital display, automatic unit conversion, and a built-in database with 89 types of refrigerants, making it a versatile tool for various applications.
Features:
- Dual pressure and temperature measurements: Simultaneously measures high and low pressure, as well as associated temperatures in the system.
- Vacuum test: Provides the ability to test the system under vacuum for accurate diagnosis.
- Leak detection: Detects pressure loss to identify possible leaks in the system.
- Automatic unit conversion: Easily switches between different pressure and temperature units.
- Built-in refrigerant database: Contains data of 89 different refrigerants for quick reference.
- Bright digital display: Displays real-time measurements clearly and neatly.
- Compact and portable design: Easy to carry and store.
Special features:
- Intelligent digital display: Provides an accurate and user-friendly interface for reading measurement results.
- Robust construction: Made from high-quality materials for long-lasting use in various working conditions.
- Easy operation: Designed with ease of use in mind, allowing both experienced technicians and beginners to work efficiently.
Package contents:
- Autool LM120 AC Manifold Gauge
- Manual
- Carrying case
Technical specifications
| Specification | Details |
|---|---|
| Model | AUTOOL LM120 |
| Pressure measurement range | -101 kPa to 6 MPa |
| Pressure resolution | 1 kPa |
| Pressure accuracy | ±0.5% FS + 5 digits |
| Temperature measurement range | -40°C to 150°C |
| Temperature resolution | 0.1°C (-40°C–99.9°C), 1°C (100°C–150°C) |
| Temperature accuracy | ±0.5°C + 2 digits |
| Refrigerant database | 89 types of refrigerants |
| Power supply | 4 x 1.5V AA batteries (not included) |
| Dimensions | 170 x 110 x 50 mm |
| Weight | 1950 g |
