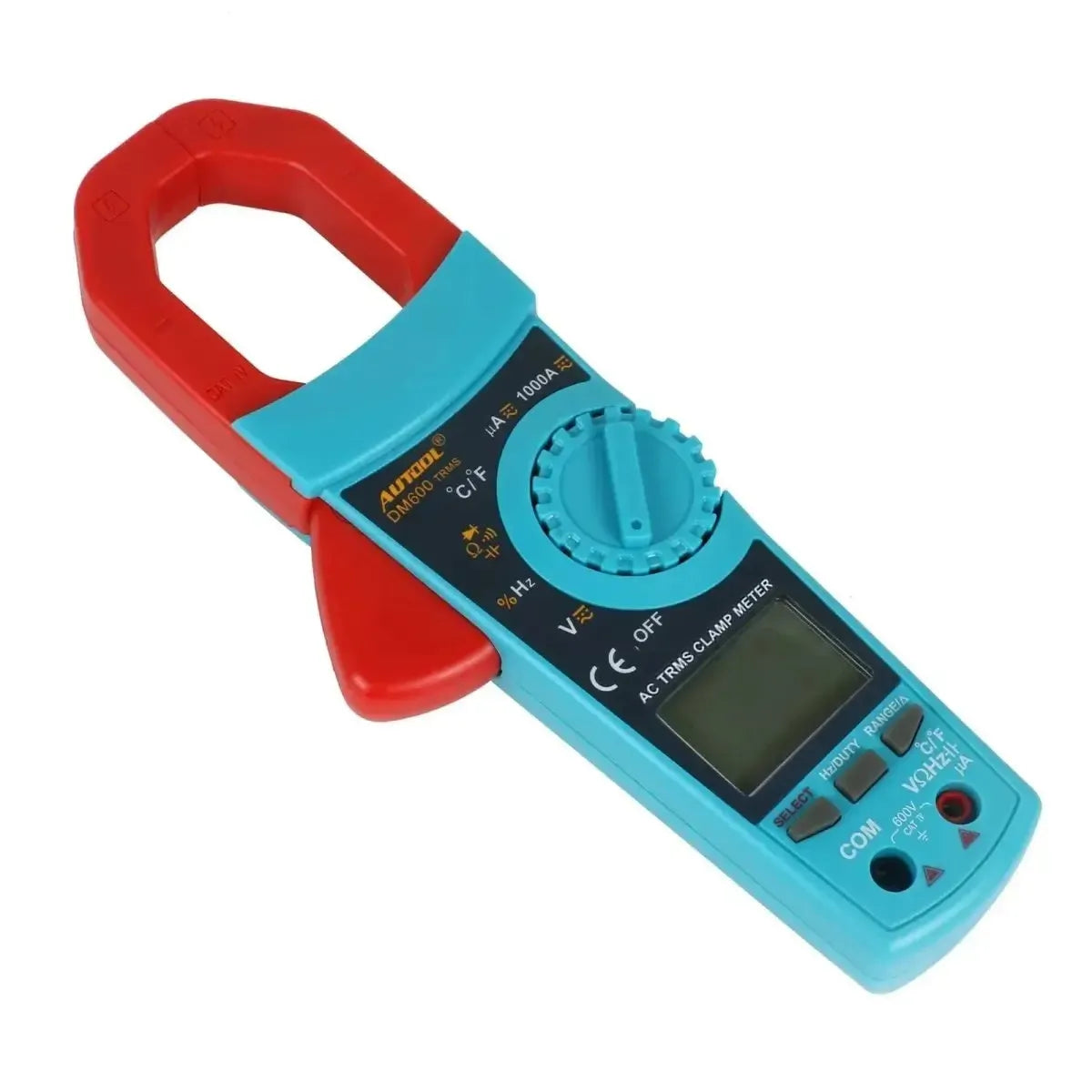

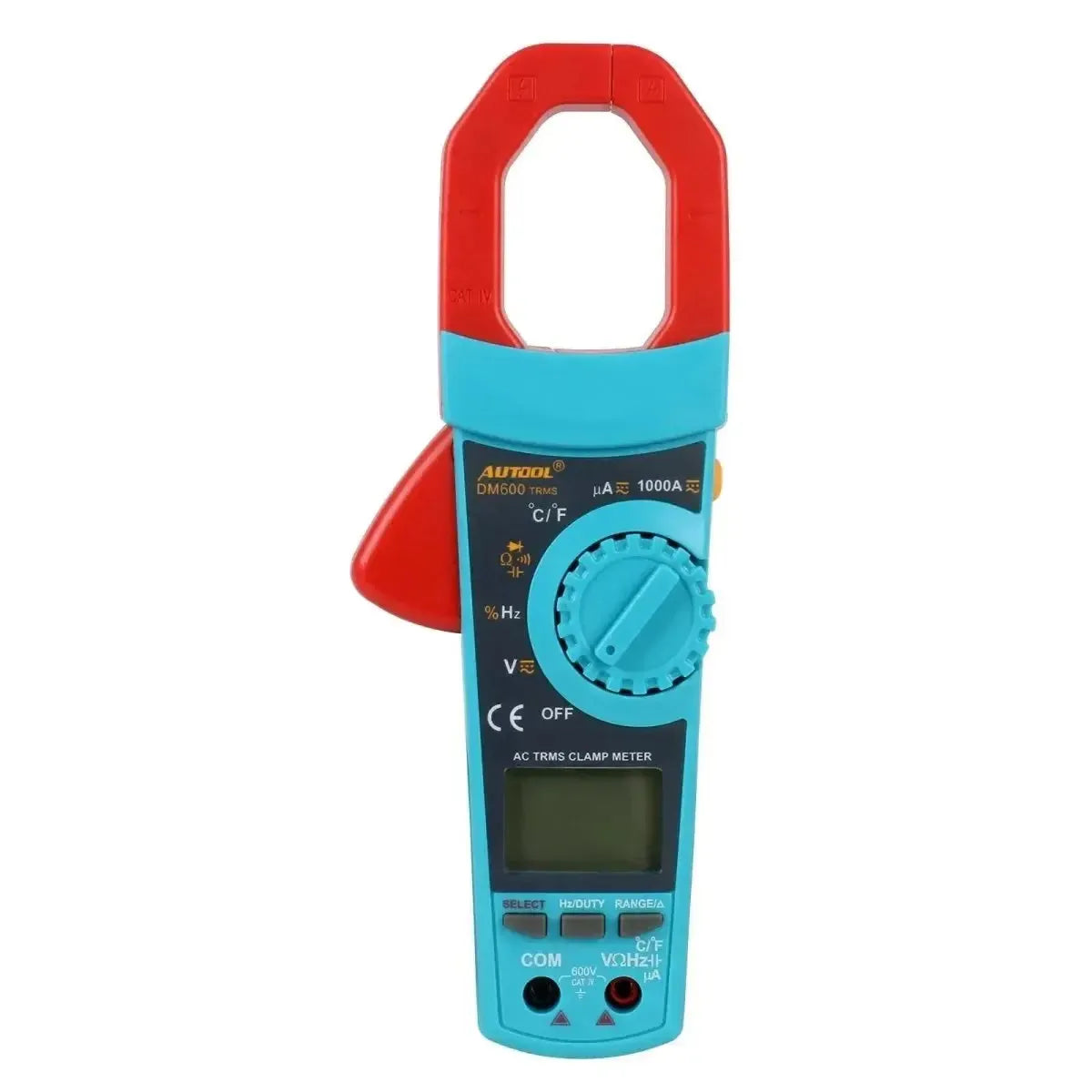

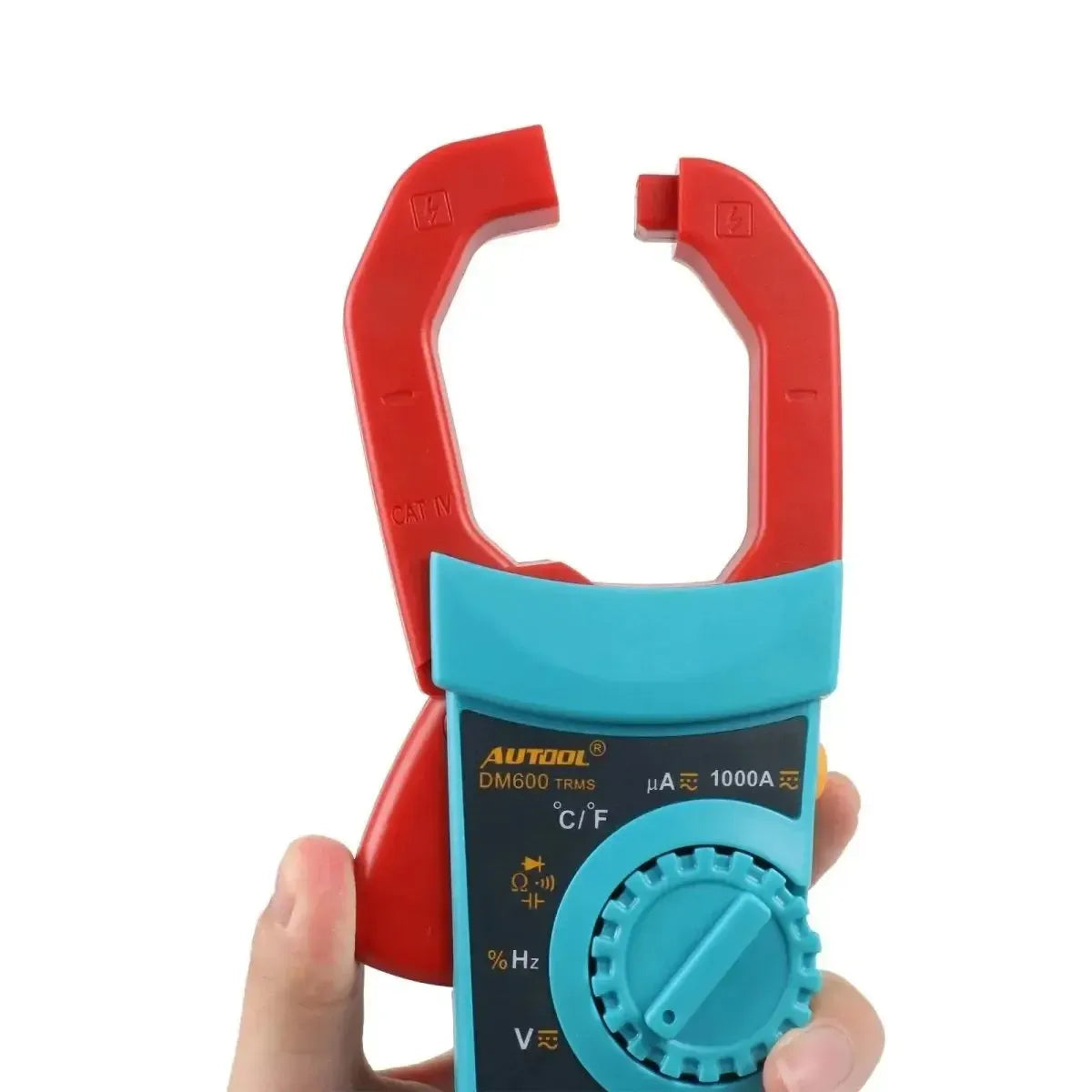

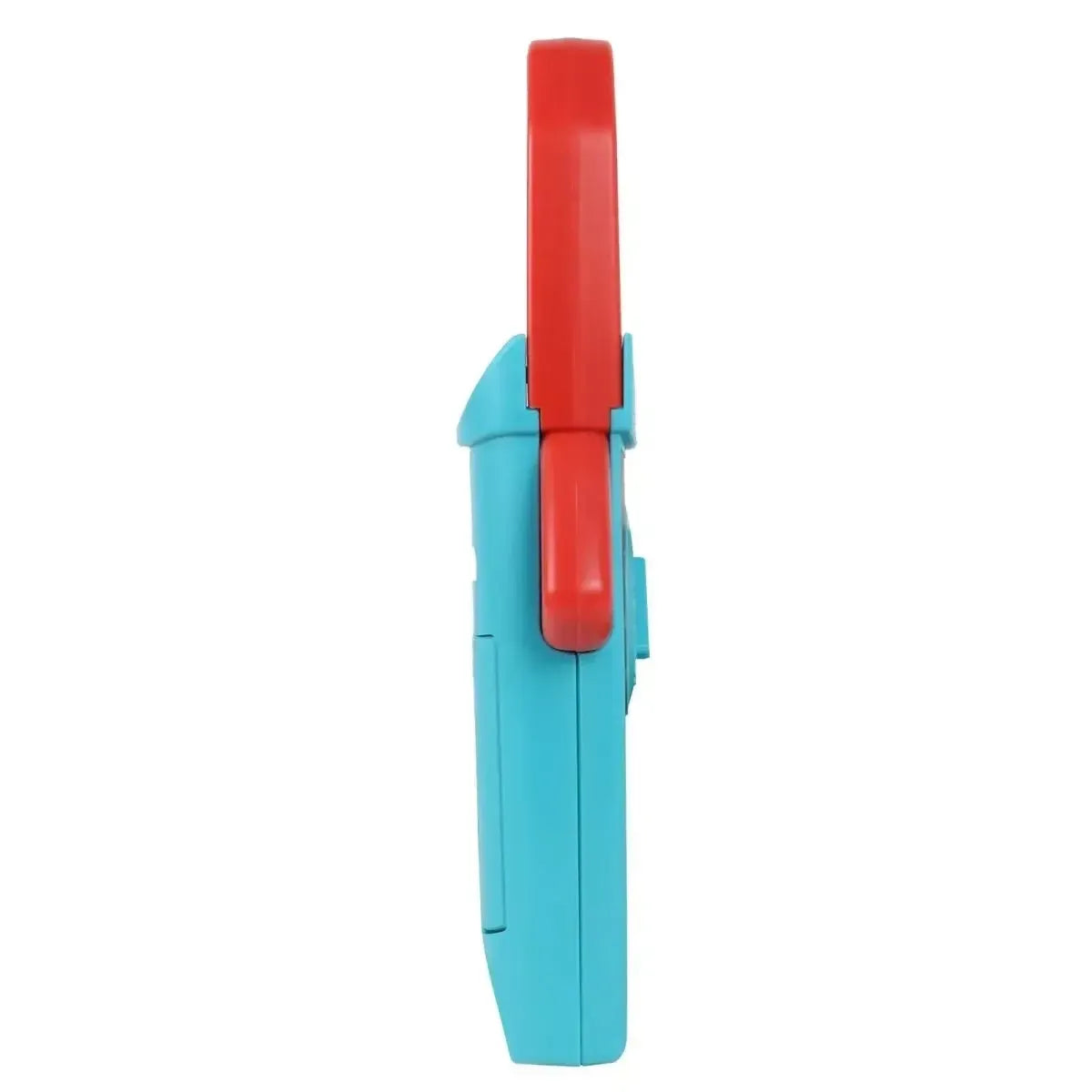

Autool DM600 Clamp Meter
The Autool DM600 is a digital clamp meter designed for measuring high currents up to 1000A and voltages up to 600V. The device offers a range of functions, including measurements of resistance, capacitance, frequency, and duty cycle. With a large LCD screen with backlight and a robust design, the DM600 is suitable for both professional use and DIY enthusiasts.
Functions:
- AC/DC voltage measurement: Measures AC voltage up to 600V and DC voltage up to 600V.
- AC current measurement: Measures AC current up to 1000A.
- DC current measurement: Measures DC current up to 6000μA.
- Resistance measurement: Measures resistances up to 60MΩ.
- Capacitance measurement: Measures capacitance up to 10mF.
- Frequency measurement: Measures frequencies from 1Hz to 10MHz.
- Duty cycle measurement: Measures duty cycles from 1% to 99%.
- Diode and continuity test: Tests diodes and checks circuit continuity with an acoustic signal.
Special functions:
- True RMS measurements: For accurate results with complex signals.
- Automatic range selection: For convenience and efficiency.
- Large LCD screen with backlight: For better readability under different lighting conditions.
- Data logging (MAX/MIN): For tracking measurement values.
- Automatic shutdown: To save battery after a period of inactivity.
- Polarization indication and low battery indicator: For extra convenience and safety.
- Protection up to 550V: In the resistance and capacitance ranges.

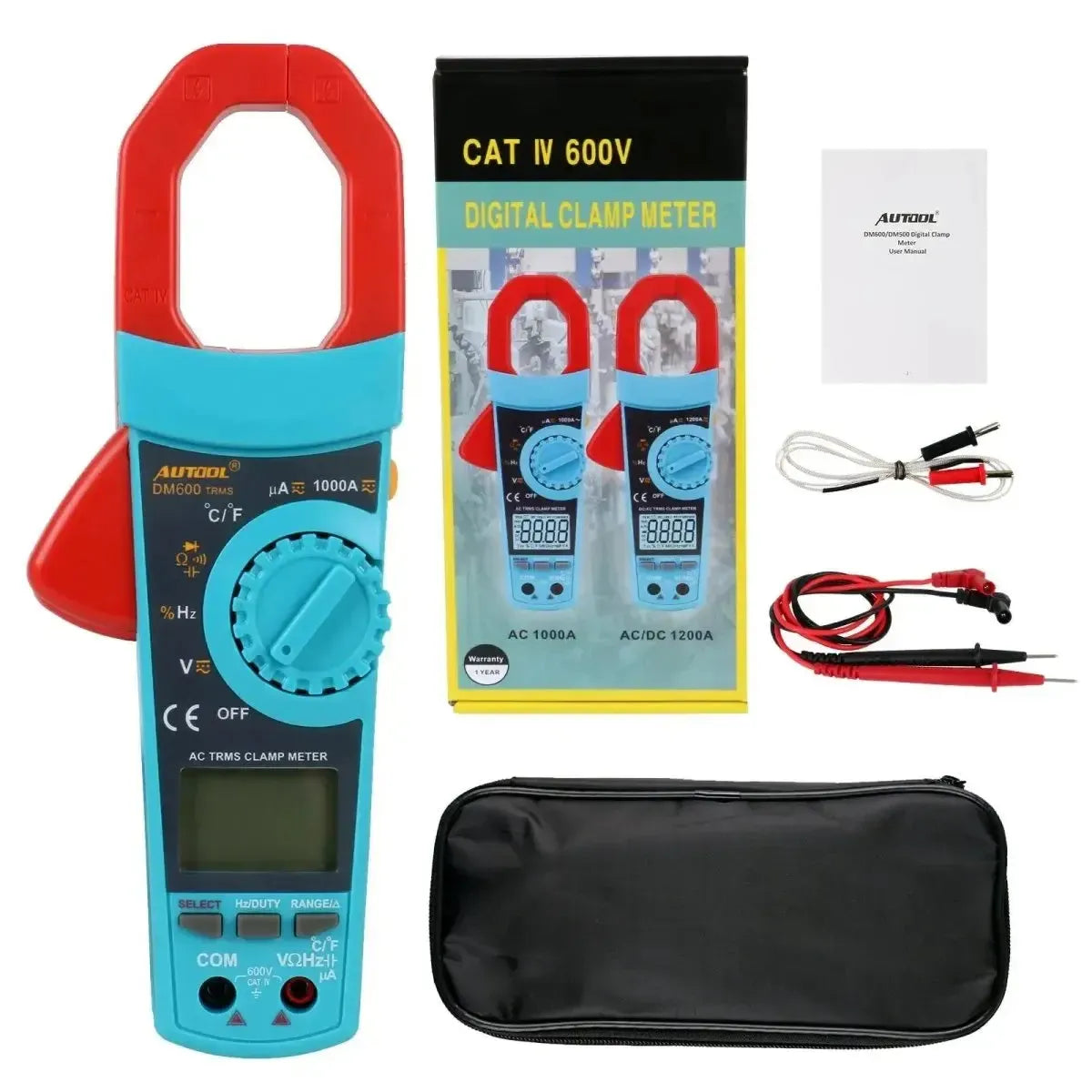

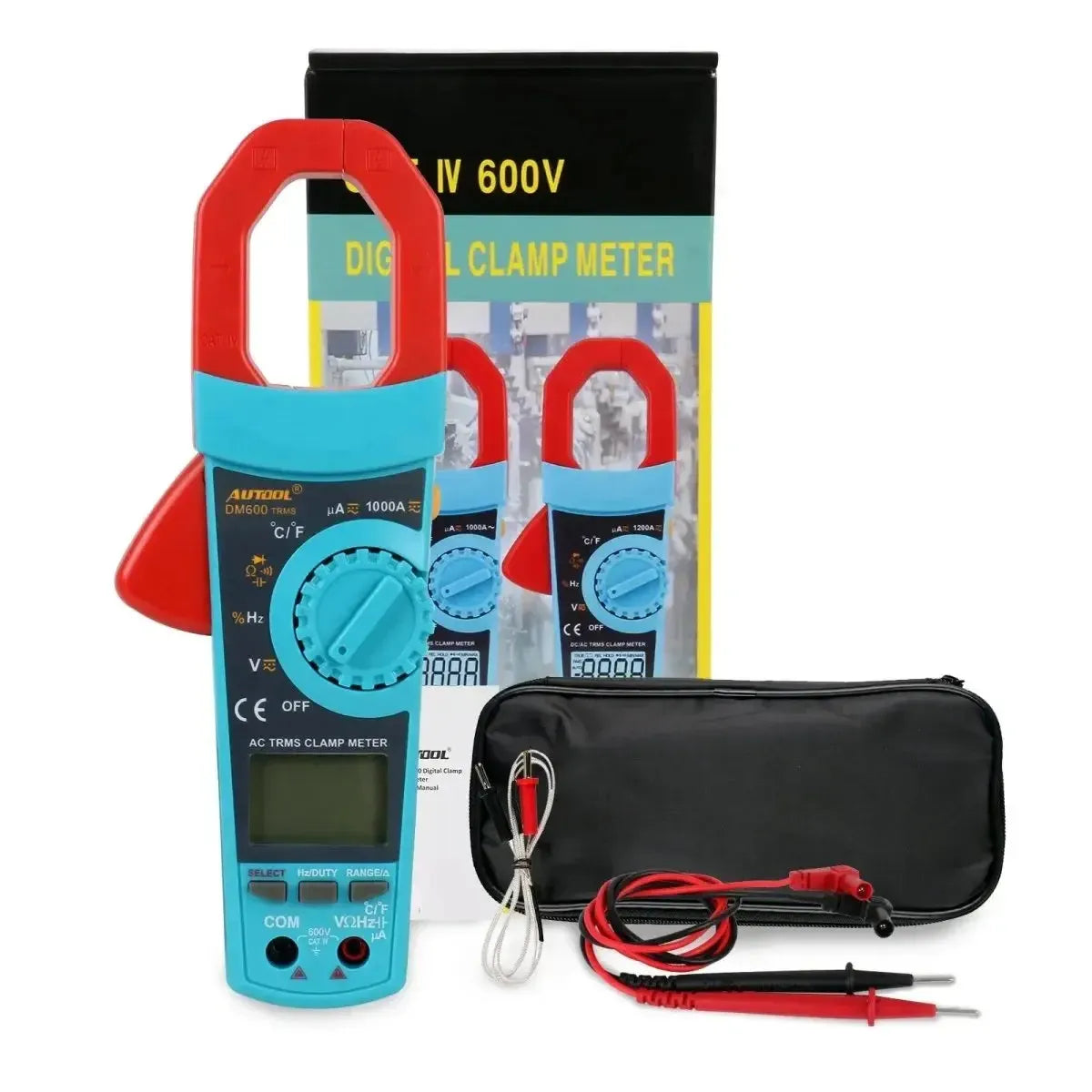

Package contents:

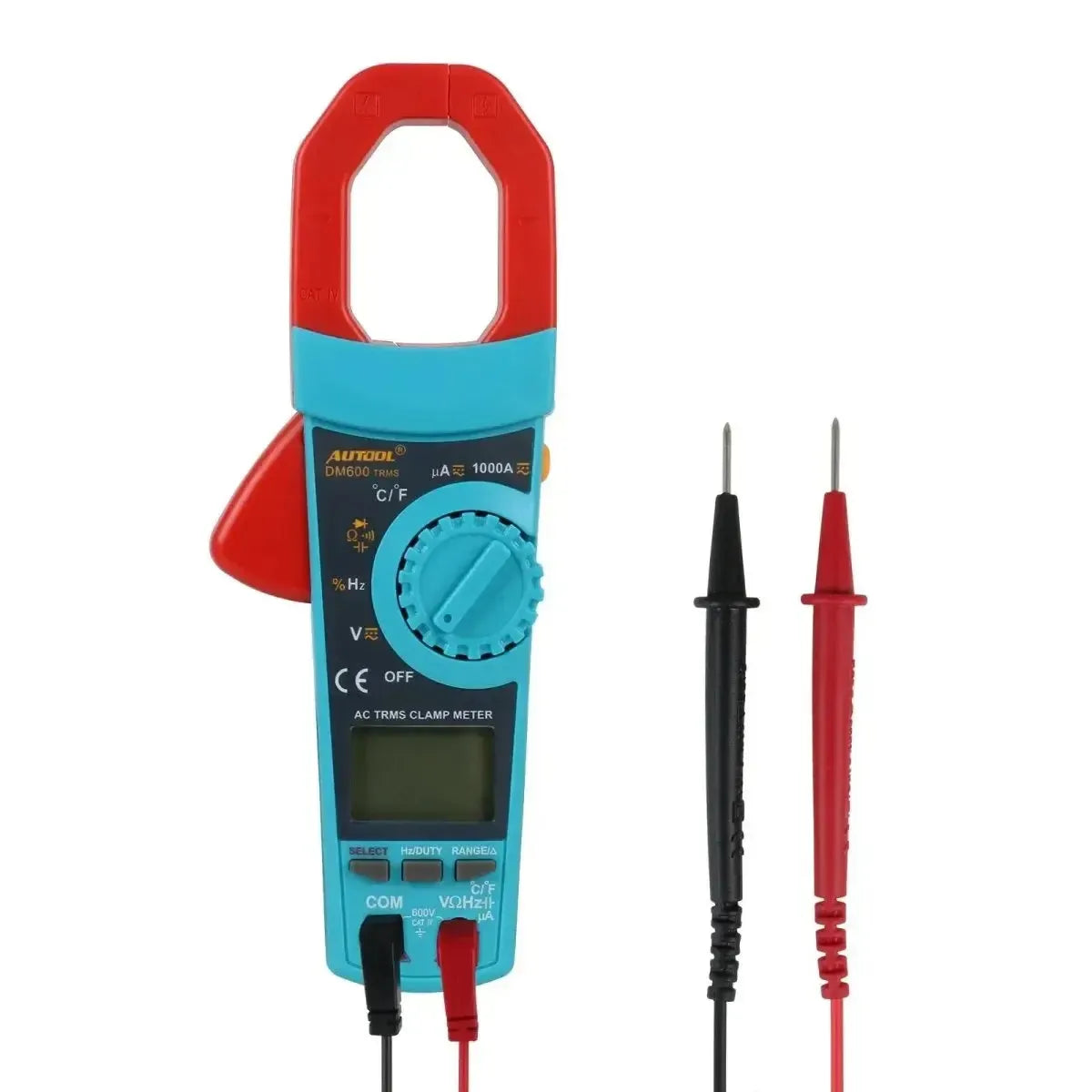

- Autool DM600 Clamp Meter

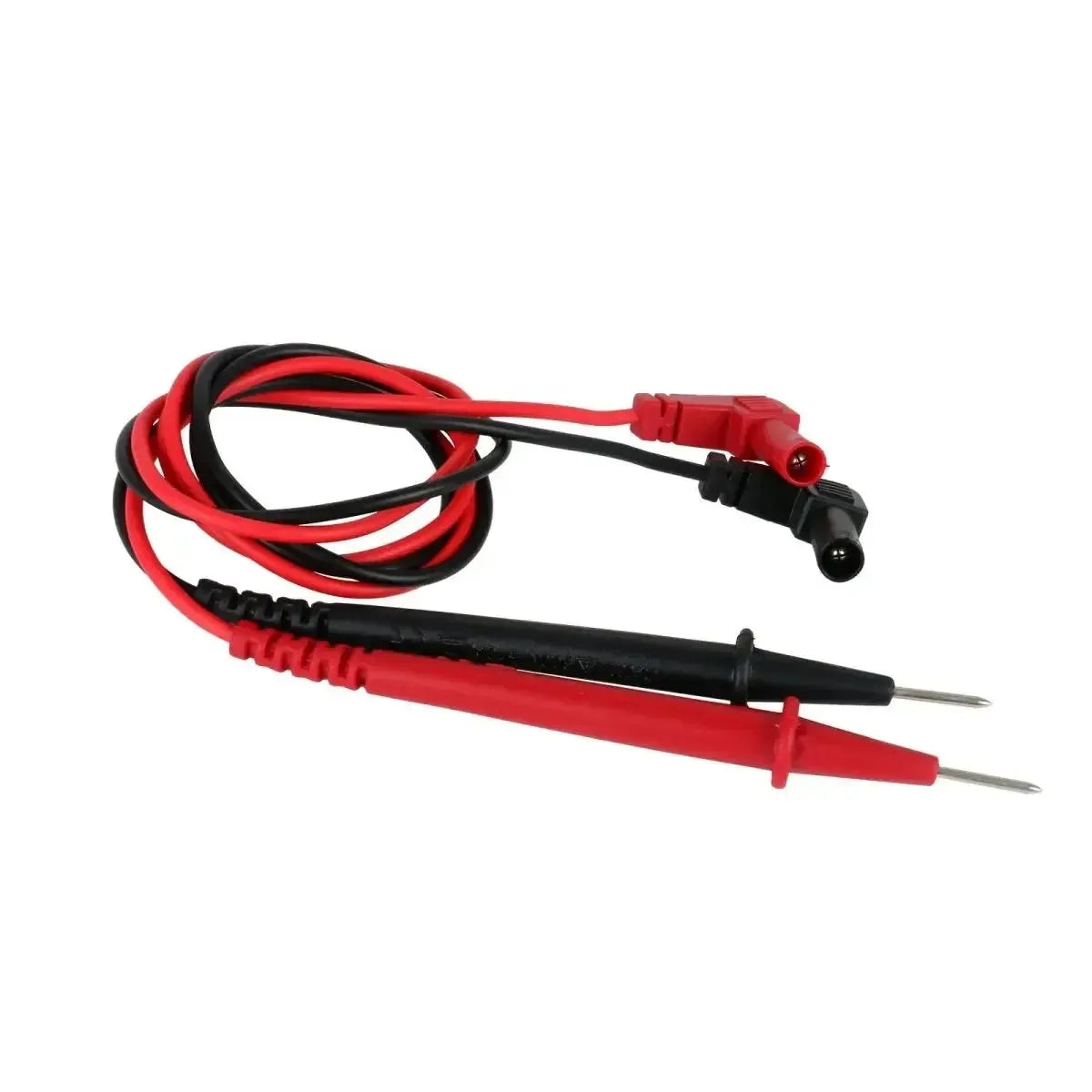

- Test lead (Red)
- Test lead (Black)
- Manual
- Carrying case
Technical specifications
| Specification | Range | Accuracy |
|---|---|---|
| DC voltage | 0.1mV – 600V | ±(0.5% + 3 digits) |
| AC voltage | 0.1mV – 600V | ±(1.0% + 3 digits) |
| DC current | 0.1μA – 6000μA | ±(1.0% + 3 digits) |
| AC current | 0.1μA – 1000A | ±(1.5% + 3 digits) |
| Resistance | 0.1Ω – 60MΩ | ±(0.5% + 2 digits) |
| Capacitance | 10pF – 10mF | ±(2.0% + 5 digits) |
| Frequency | 1Hz – 10MHz | ±(0.1% + 3 digits) |
| Duty cycle | 1% – 99% | ±(1.0% + 2 digits) |
| Display | 6000 counts LCD with backlight | |
| Power supply | 2 x 1.5V AA batteries | (not included) |
| Dimensions | 240 x 90 x 45 mm | |
| Weight | 352 g |
