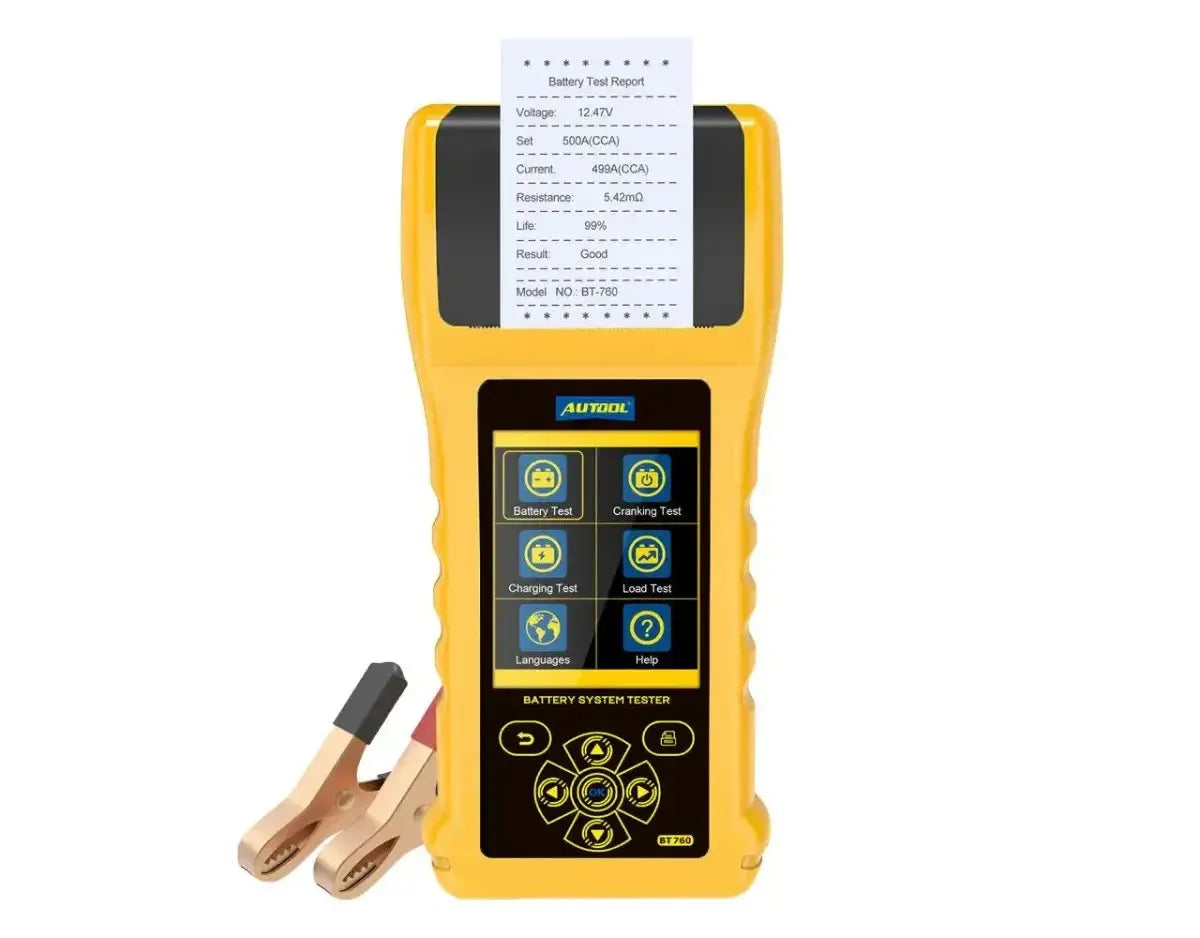

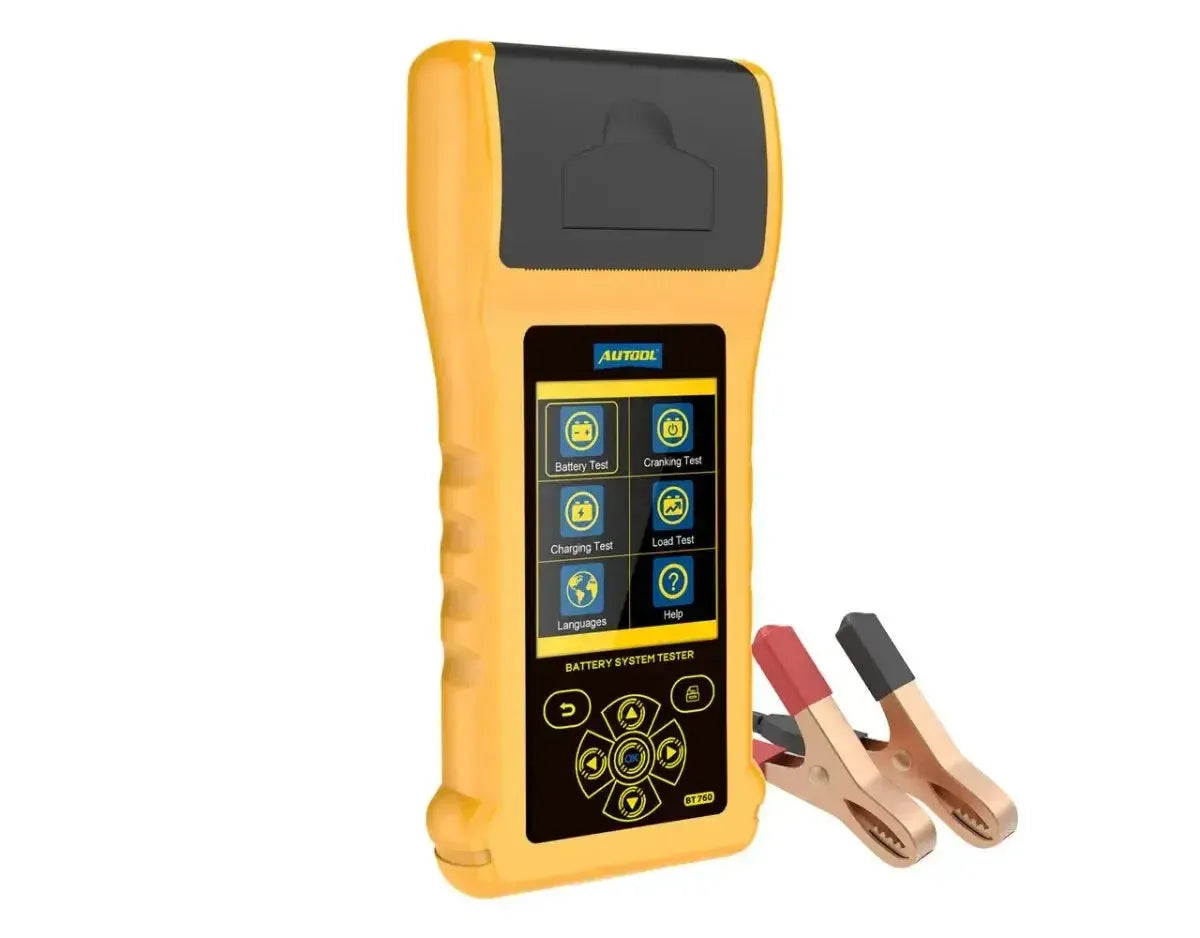

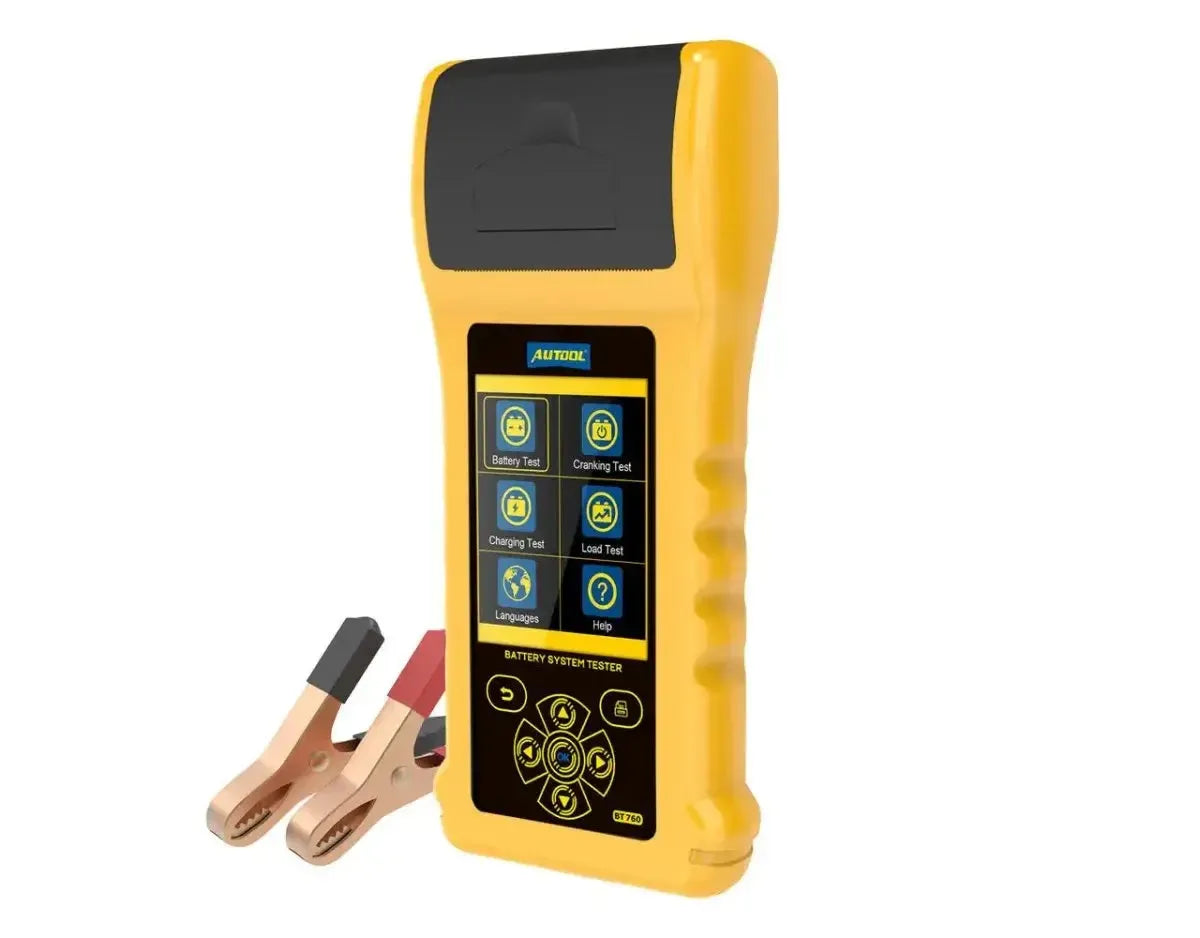

Autool BT760 Battery Tester

The Autool BT760 is a professional Battery Tester with a built-in thermal printer, designed for accurately analyzing 12V and 24V batteries in passenger cars, commercial vehicles, and industrial applications. Thanks to conductivity test technology, the device provides reliable information about battery health, charge status, internal resistance, and starting capacity. With a test range of 100 to 3000 CCA and support for various battery types, this tester is widely applicable in both workshops and mobile services.

The BT760 is equipped with a bright 3.2-inch color screen and an intuitive interface, making it easy to operate, even for less experienced users. The tester operates without an internal battery and starts automatically when connected to a battery. The built-in thermal printer allows test results to be printed immediately for documentation and customer communication. The robust design and fast analysis time make this device a practical and durable choice.

Functions:

• Battery Tester: Measures CCA value, internal resistance, state of charge (SOC), and overall condition (SOH) of the battery.

• Start test: Analyzes the battery's starting capacity by measuring voltage and current behavior during starting.

• Charge test: Checks if the charging system (alternator and voltage regulator) functions properly and if the vehicle charges the battery correctly.

• Load test: Simulates high load on the battery to evaluate performance under load.

• Result printout: Enables direct printing of test results with the integrated thermal printer.


Special features:

• Direct use without power supply: The Battery Tester activates when connected to a battery – no separate power supply needed.

• Real-time test results: Displays results within seconds with clear graphs and parameters.

• Reverse polarity protection: Internal protection prevents damage when clamps are connected incorrectly.

• Suitable for 12V and 24V systems: Applicable to passenger cars, trucks, agricultural and industrial vehicles.


Supported batteries:

• Battery types: Lead acid, AGM (flat plate and spiral), GEL, EFB

• Battery Tester standards: CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB

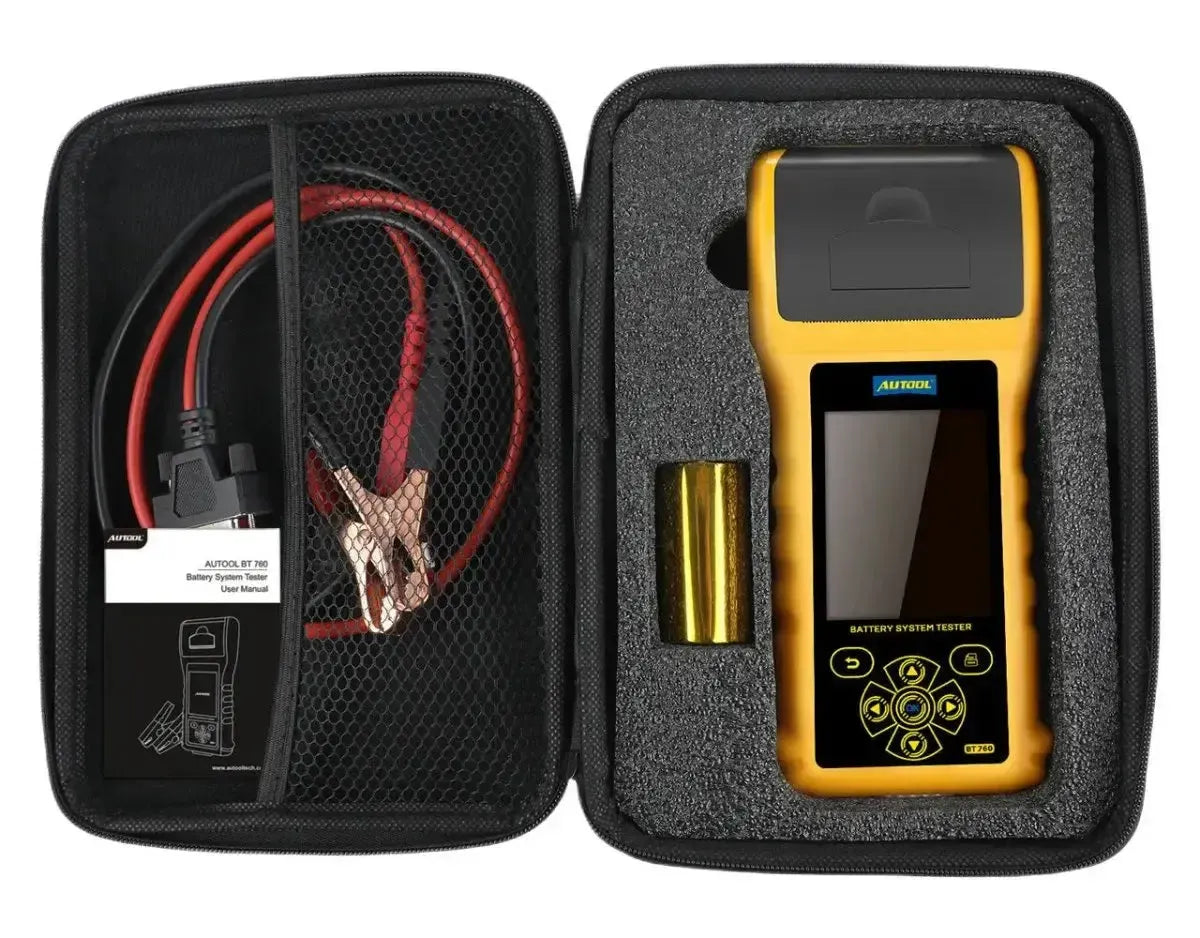

Package contents:

• Autool BT760 Battery Tester

• Battery clamps

• Printing paper (2 pieces)

• Manual

• Storage bag

Technical specifications
