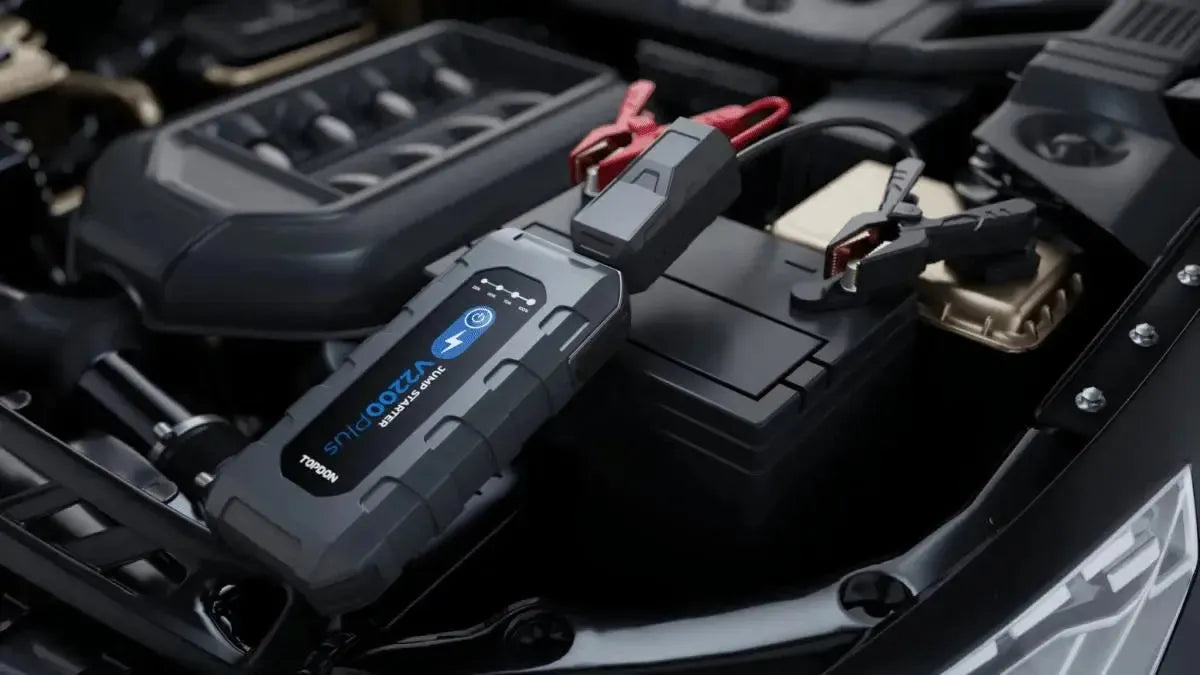

The Topdon V2200Plus is a professional battery booster and battery tester in one, designed for mechanics and diagnostic technicians. This device delivers a peak current of 2200A and is suitable for starting 12V vehicles with gasoline engines up to 8.0 liters and diesel engines up to 6.0 liters. Thanks to the internal battery capacity of 16000mAh (59.2Wh), the device can perform up to 35 start attempts on a full charge. The booster is optimized for starting and testing virtually all standard 12V lead-acid batteries used in vehicle technology and roadside assistance.
In addition to the regular starting function, this battery booster also serves as a diagnostic system thanks to the Bluetooth-equipped starting clamps, which allow charging tests, starting tests, and CCA measurements to be performed via an app. The system is protected by six safety systems, including protection against reverse polarity, short circuit, overload, and extreme temperatures. Power supply runs through a bidirectional USB-C PD60W port, and the device features multiple connections, including two USB-A QC18W ports and a 16.8V DC output. Additionally, the unit is equipped with indicators on the housing and an integrated LED work light.
ADVANTAGES
ATTENTION POINTS
Applications and functionalities
The battery booster is equipped with specific functions for safely starting and technically analyzing 12V vehicle systems.
- Jumpstart function: Provides a controlled starting current to start engines with a dead battery, with sufficient reserve capacity for multiple consecutive start attempts on a single charge.
- Bluetooth Battery Test: The smart starting clamps are equipped with a Bluetooth module that wirelessly communicates with a smartphone to measure the internal resistance, charging voltage, and cold cranking amperage (CCA) of the battery.
- Boost mode: A manual override function that, after pressing the button for one second, delivers a direct power boost for 30 seconds. This is required to successfully start batteries with an almost 0V voltage.
- Power bank functionality: Enables powering or charging external diagnostic equipment or electronics via the integrated USB-A, USB-C, and DC ports.
Special functions and capabilities
The device is equipped with additional features that increase usability in workshops and mobile roadside assistance.
- Comprehensive test report: The application records the test data of the 12V system in real-time in graphs. This data can then be exported as a digital report for workshop documentation or handover to the customer.
- Bidirectional 60W fast charging: The USB-C port functions as both input and output, allowing the internal battery pack to be quickly charged (with a suitable charger) while simultaneously providing fast power to external devices.
- Integrated LED work light: A built-in flashlight with a light output of 300 lumens, featuring three different light modes (continuous, strobe, and SOS) for safely connecting clamps in poorly lit engine compartments.
Compatible vehicles and applications
This product is designed for use on regular passenger cars, light commercial vehicles, and other 12V applications.
- Vehicle category: Passenger cars, light vans, motorcycles, ATVs, and boats.
- Engine capacity: Gasoline engines up to 8.0 liters and diesel engines up to 6.0 liters.
- Battery voltage: Only 12V systems.
- Battery type: 12V lead-acid batteries.
Package Contents
- 1x Topdon V2200Plus
- 1x Jump/Tester clamps (with Bluetooth)
- 1x USB cable
- 1x Storage case
- 1x User manual
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Topdon |
| Product model | V2200Plus |
| Peak current | 2200A (500A 2S) |
| Supported battery voltage | 12V |
| Maximum cylinder capacity (Gasoline) | Up to 8.0 liters |
| Maximum cylinder capacity (Diesel) | Up to 6.0 liters |
| Battery capacity | 16000mAh (3.7V, 59.2Wh) |
| Starts per charge | Up to 35 times |
| USB-C input | PD 60W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A) |
| USB-C output | PD 60W (5V/3A up to 20V/3A) |
| USB-A output (Output 1 & 2) | QC 18W (5V/3A, 9V/2A, 12V/1.5A) |
| DC output | Maximum 16.8V / 10A |
| Connectivity | Bluetooth (for app integration) |
| Protection rating | IP54 |
| Operating temperature | -10°C to +40°C |
| Dimensions | 267 x 157 x 106 mm |
| Weight | 1460 grams |
| Cable length clamps | Positive (Red): 250mm / Negative (Black): 150mm (AWG8) |
