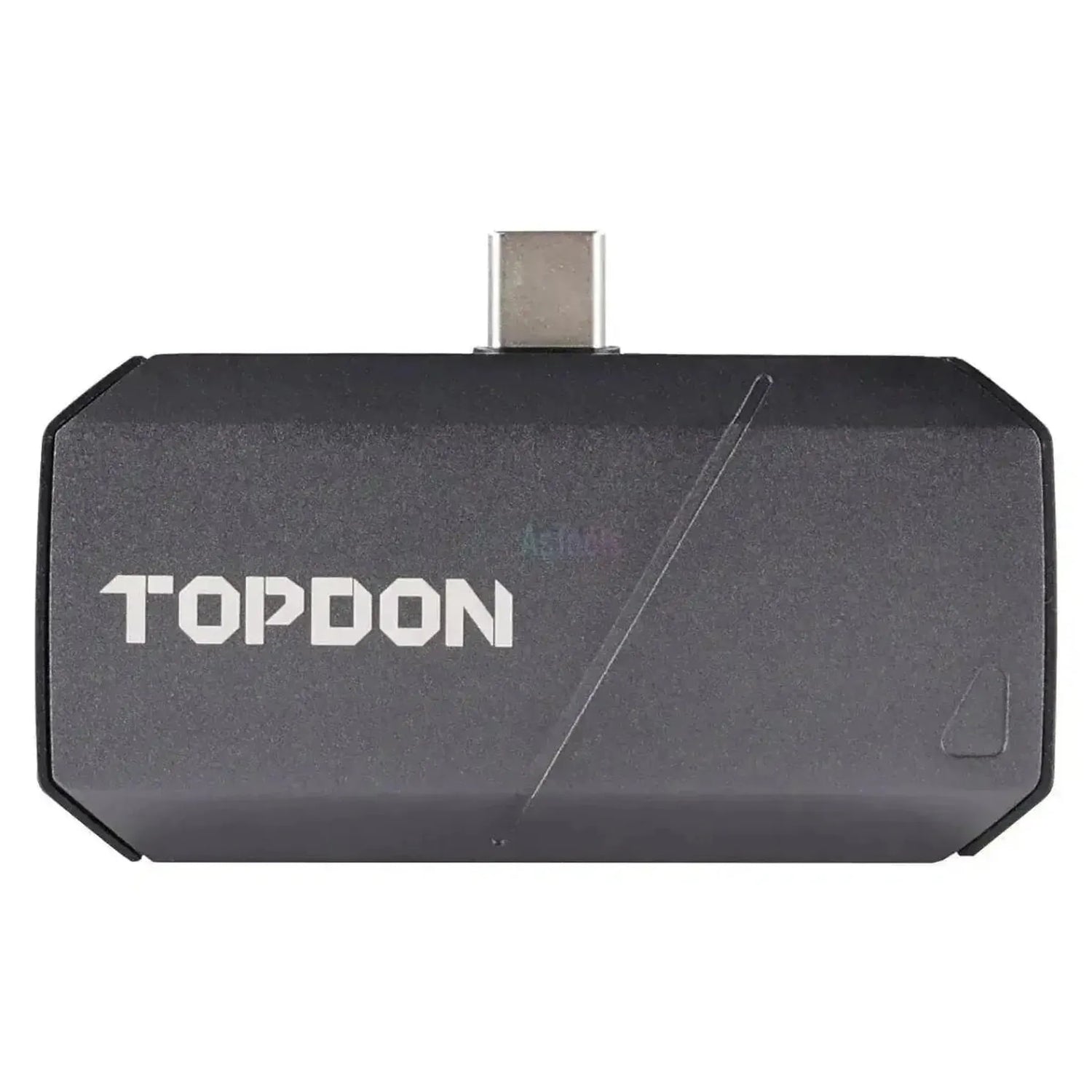

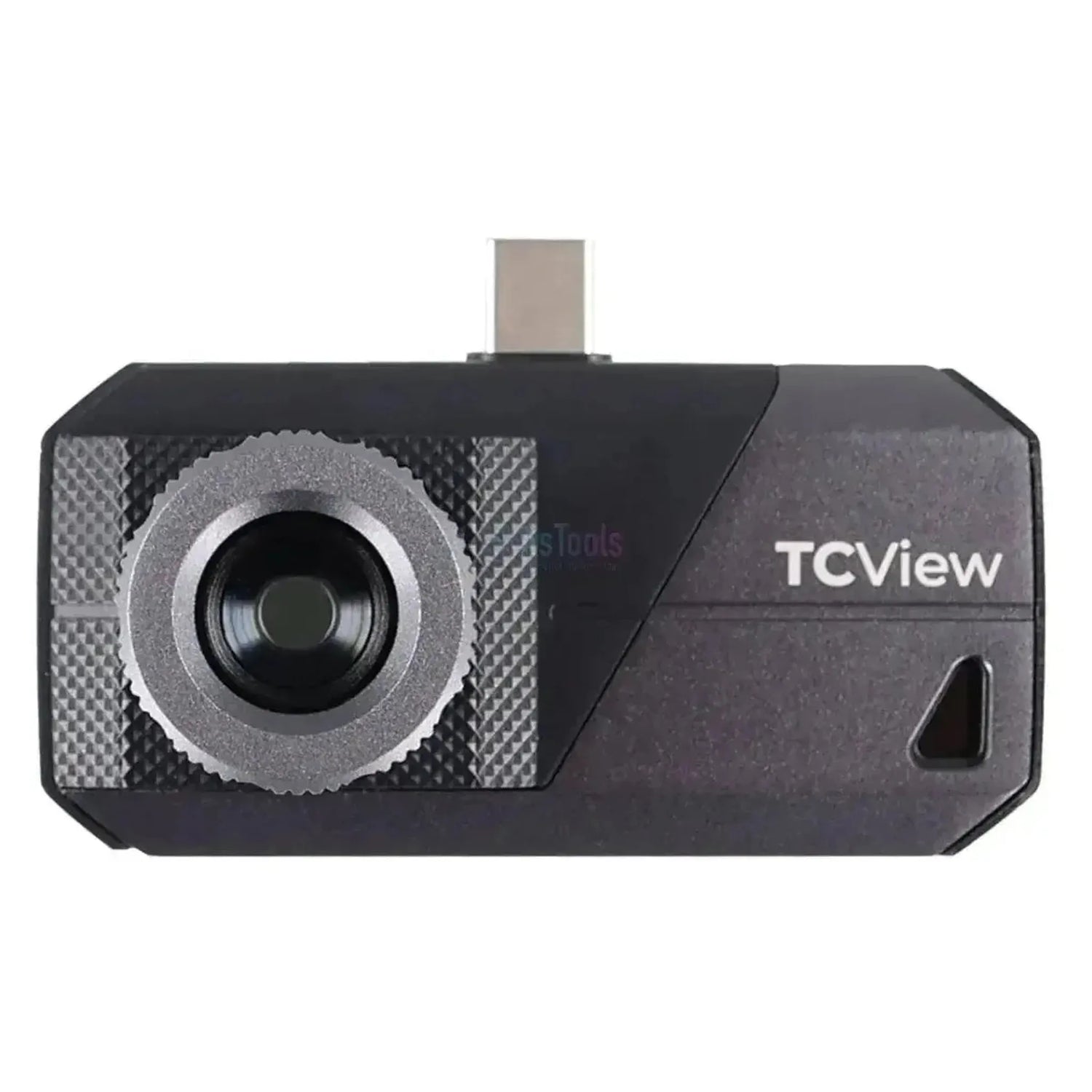

The Topdon TCView TS001 is a high-quality thermal camera designed to transform a smartphone or PC into a powerful thermal inspection tool. The device is equipped with an infrared sensor with a resolution of 256x192 pixels and offers smooth display thanks to the frame rate of 25 Hz. A distinctive feature is the adjustable 9mm lens, which ensures sharp focus over a distance ranging from 0.1 meters to 500 meters, with a field of view (FOV) of 13° by 10°.

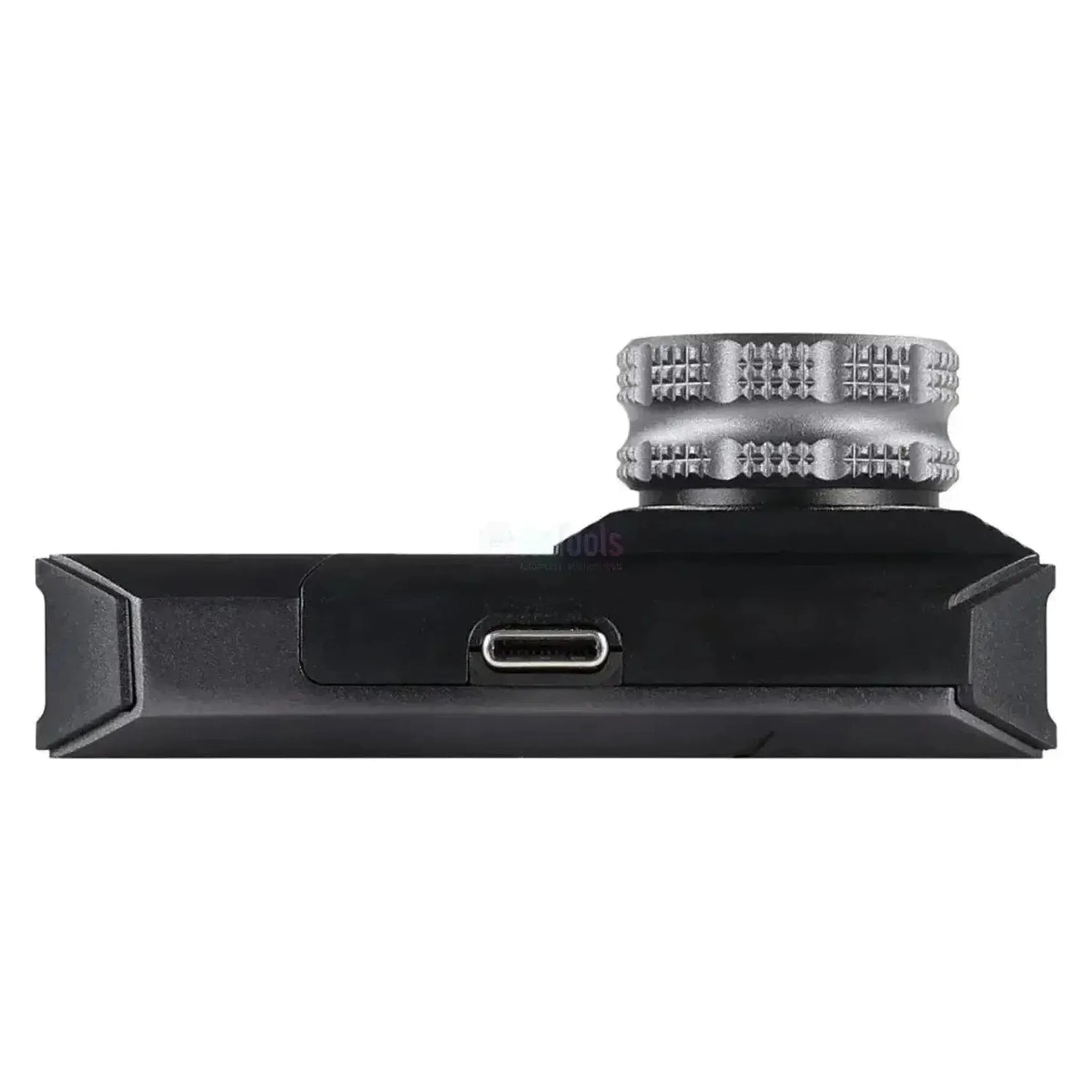

This thermal camera offers extensive capabilities for thermal imaging and data analysis, including a measurement mode and an observation mode. The camera supports a temperature range of -20°C to 550°C with an accuracy of ±3°C or 3%. Features such as temperature alarms, secondary image analysis, and waveform graphs allow the user to diagnose complex thermal issues. Power supply and data transfer are handled directly via the USB connection of the connected device.
ADVANTAGES
KEY POINTS
Applications and functionalities
The TCView TS001 is designed to enable both quick observations and precise measurements. The software offers various modes to interpret thermal data.
- Measurement mode: Provides accurate temperature measurements for specific points or areas.
- Observation mode: Enables quick target capture and monitoring.
- Dual Light Mode: Combines the visual image with the infrared image for better orientation.
- Waveform graph: Visualizes temperature changes over time on the screen.
Special features and capabilities
In addition to standard thermography, the TS001 offers features that simplify diagnosing complex faults.

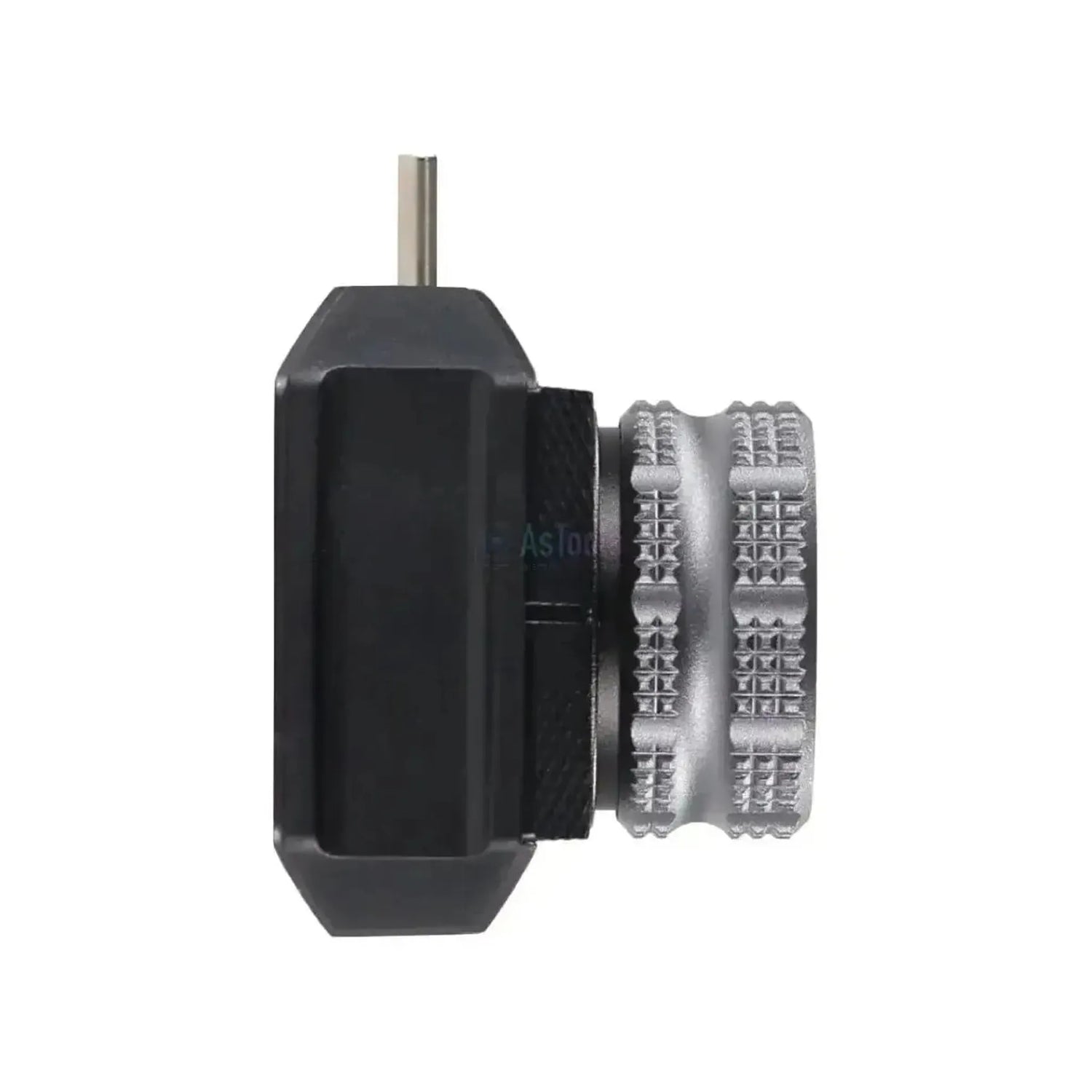

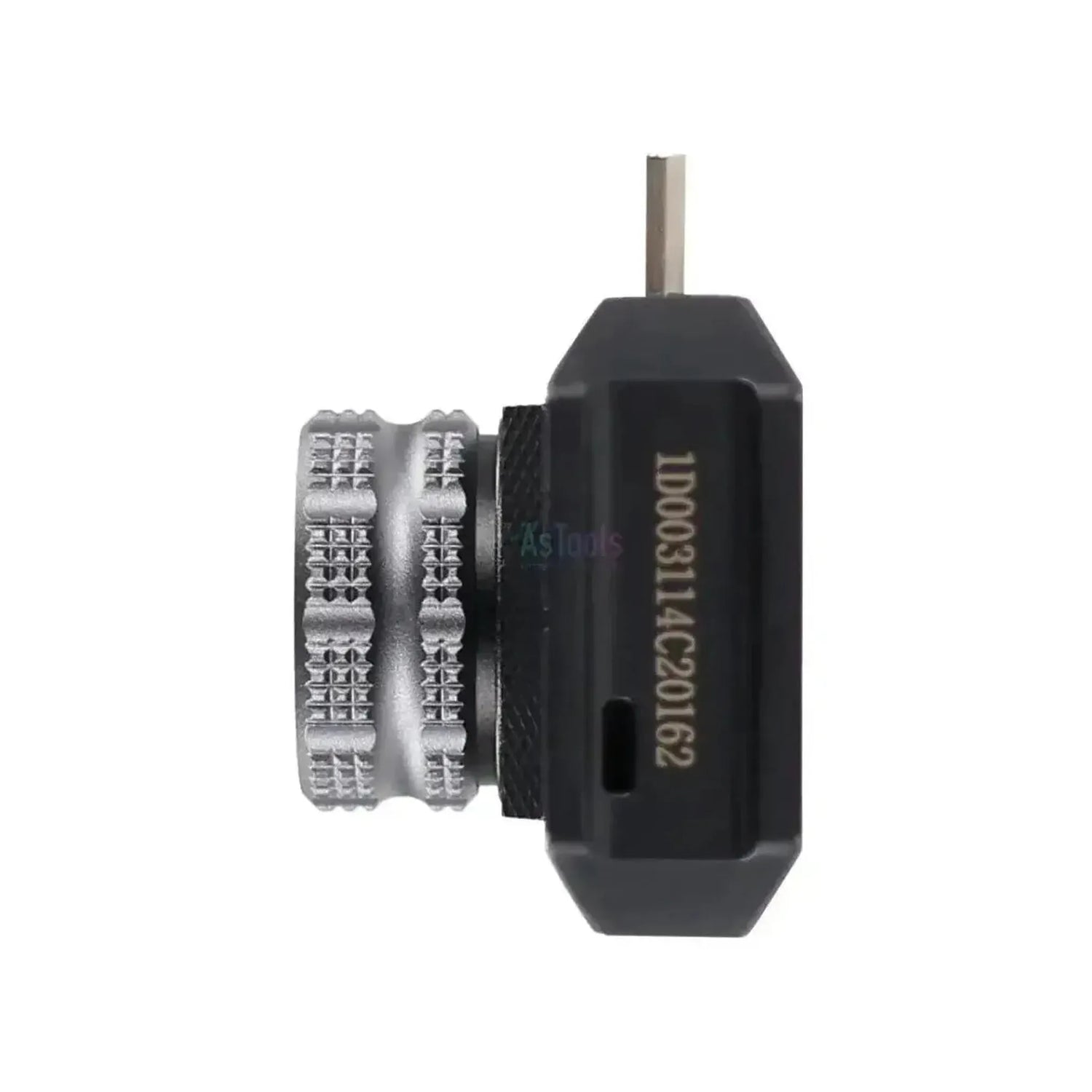

- Adjustable lens: Allows focusing from 0.1 meter for macro inspection to 500 meters for long-distance detection.
- Smart Temperature Alert: Automatically alerts the user when preset temperature limits are exceeded.
- Secondary Image Analysis: Enables post-processing and in-depth analysis of stored infrared images.
- Custom Reporting: Generates professional infrared reports directly from the software.
Application areas and inspection uses
Thanks to the combination of high resolution and long-distance focus, this camera is suitable for various technical inspections.
- Inspection application: Detection of overheated fuses or connectors in electrical switch cabinets.
- Technical analysis: Locating friction heat in bearings or mechanical transmissions remotely.
- Diagnostic application: Identification of insulation leaks or cooling issues in vehicle systems.

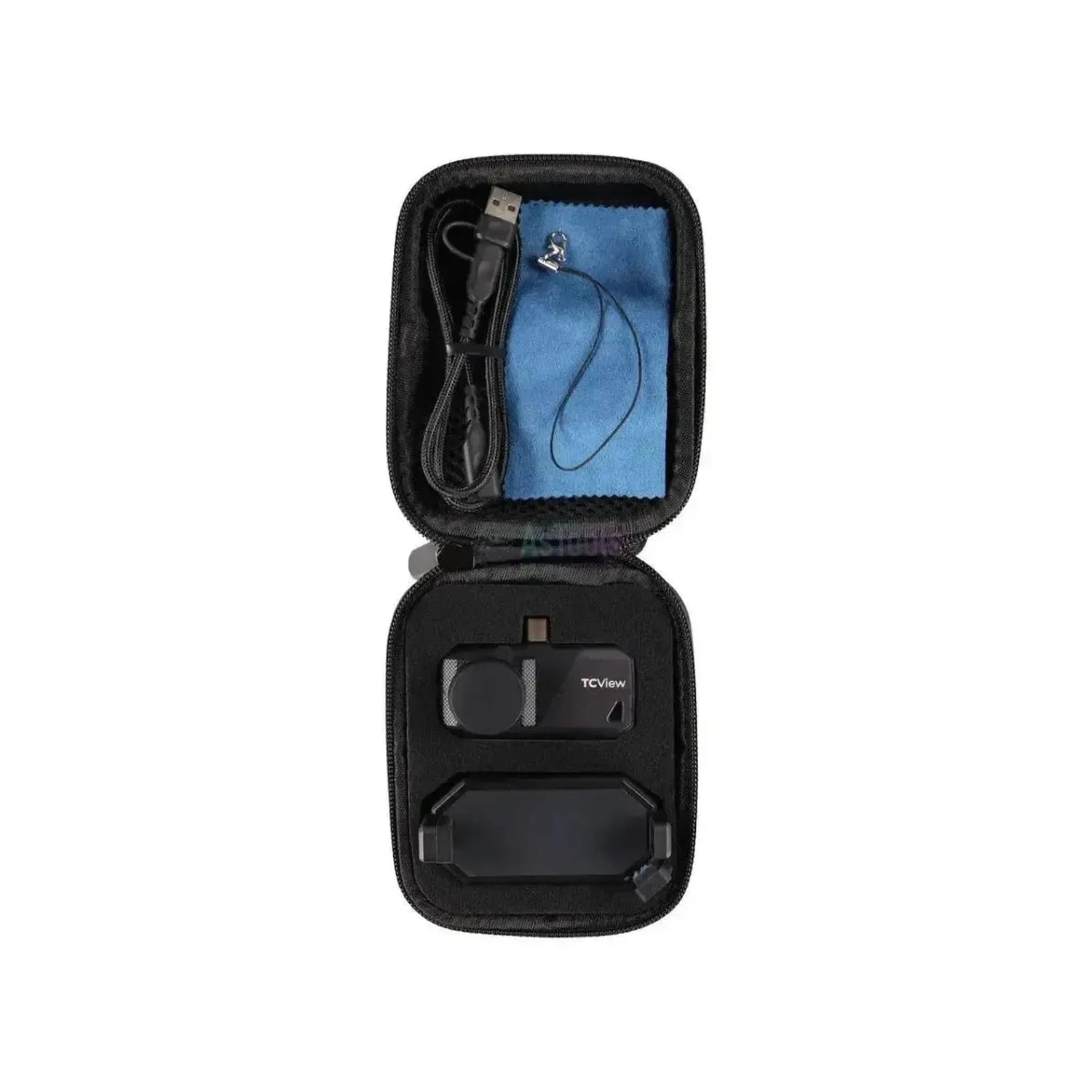

Package Contents
- 1x Topdon TCView TS001 Thermal Imaging Camera
- 1x Phone holder
- 1x Extension cable (50 cm)

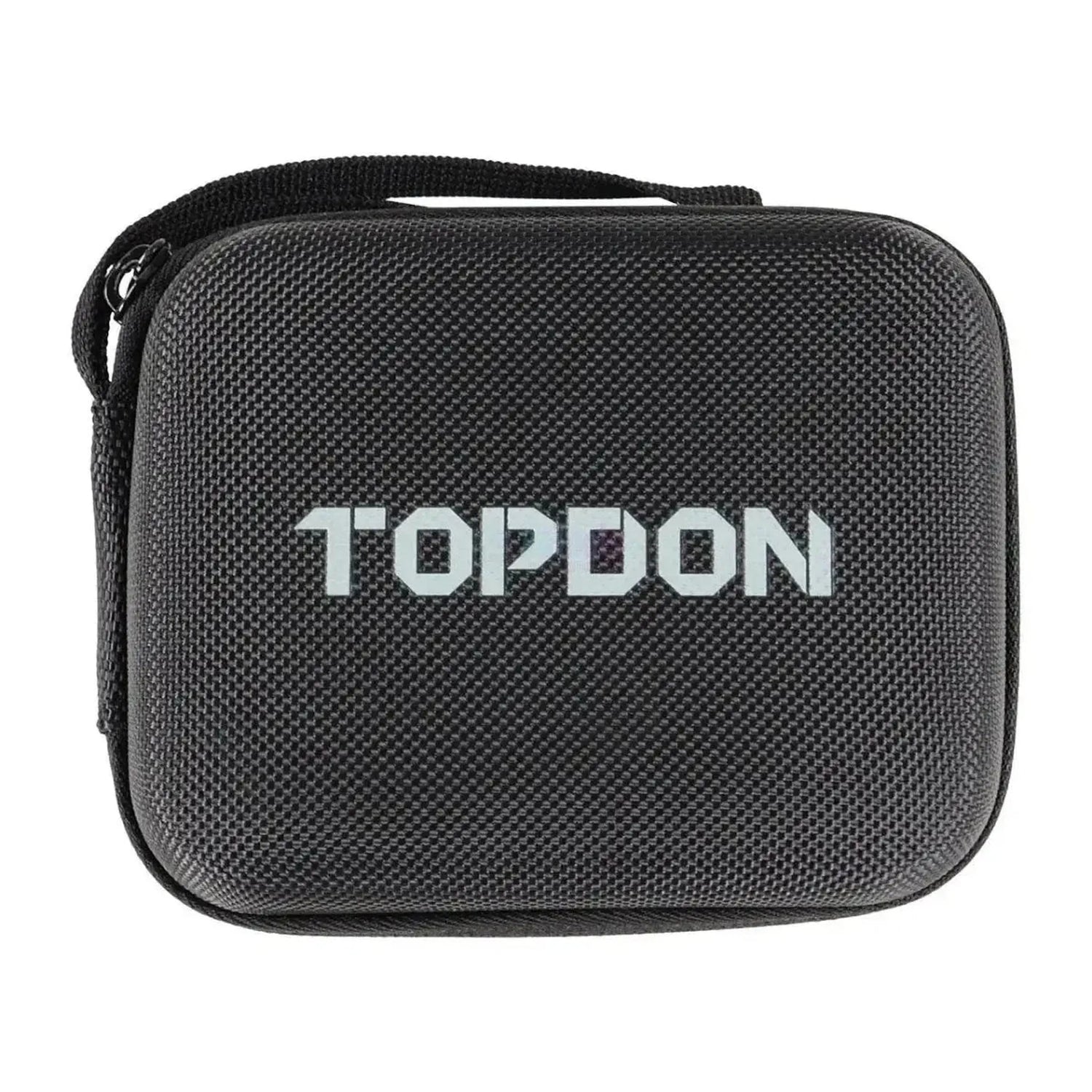

- 1x EVA carrying case
- 1x Cleaning cloth
- 1x Quick start guide
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Topdon |
| Product model | TCView TS001 |
| IR resolution | 256 x 192 pixels |
| Focal length | 9 mm (Adjustable) |
| Image frequency | 25 Hz |
| Temperature range | -20°C to 550°C |
| Thermal sensitivity (NETD) | <40 mK |
| Accuracy | ±3°C or ±3% |
| Field of view (FOV) | 13° x 10° |
| Measuring distance | 0.1 m to 500 m |
| Color palettes | 10 modes |
| Software compatibility | Android App, PC analysis software |
