OBDSTAR  |  SKU: TCM-023 / 7.53.1

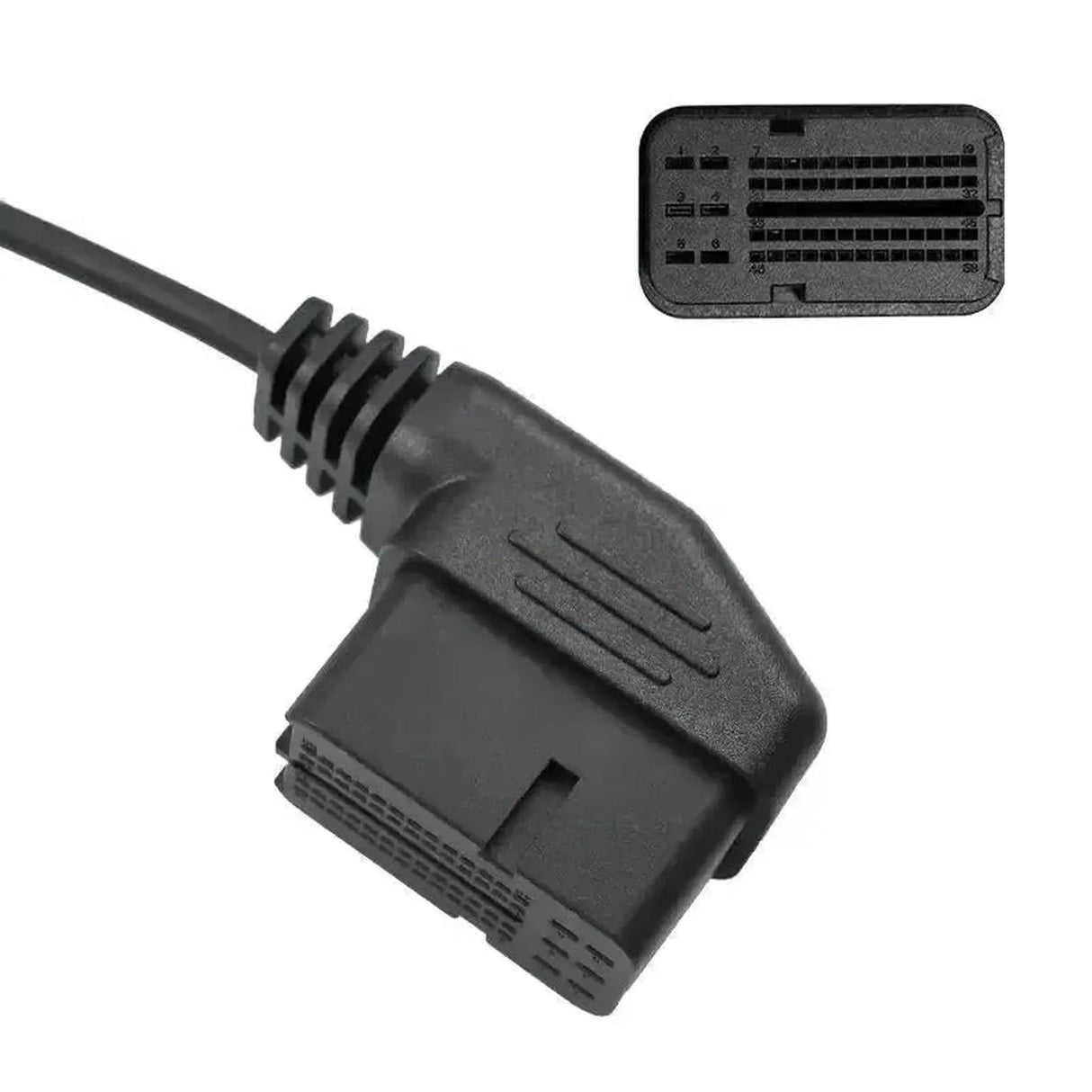

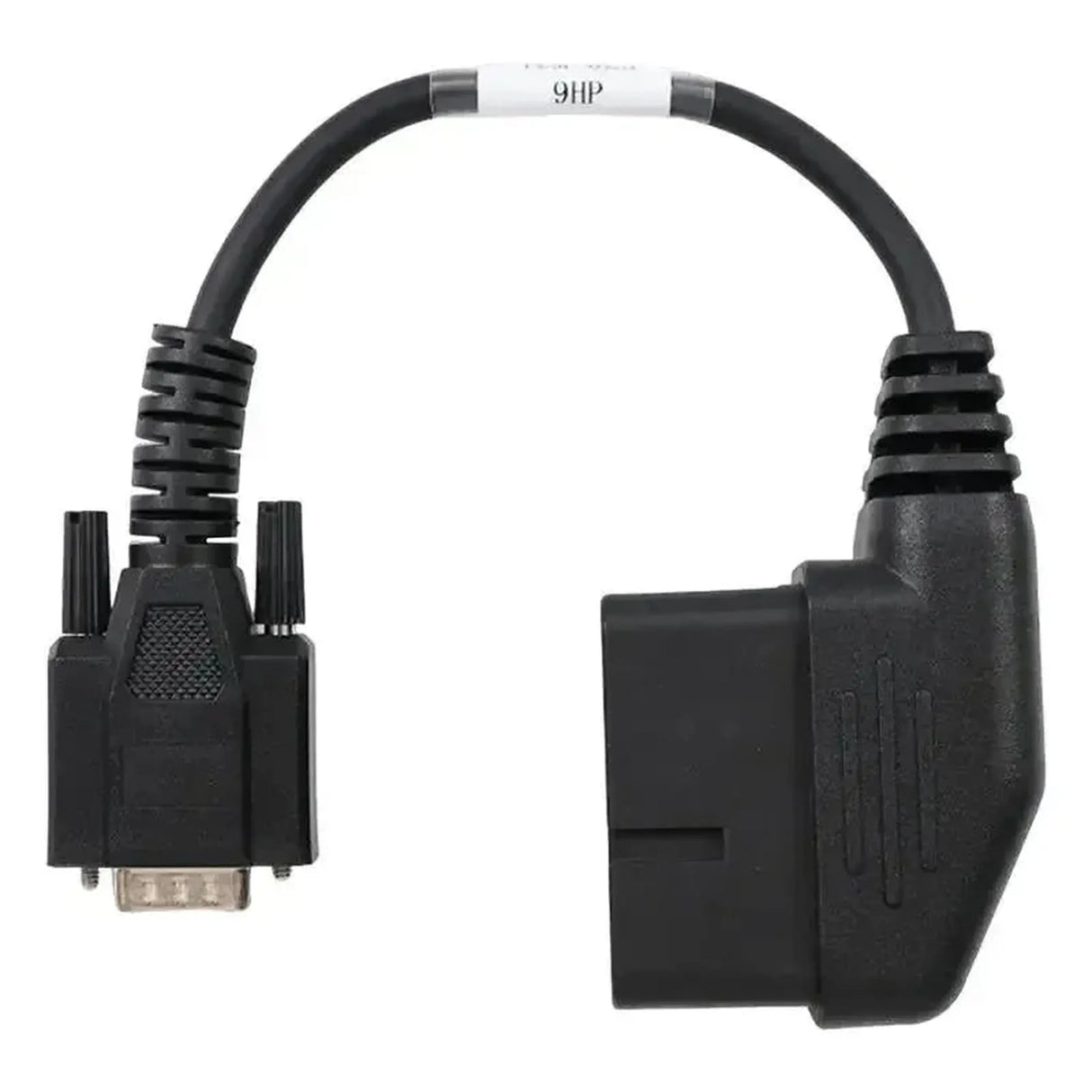

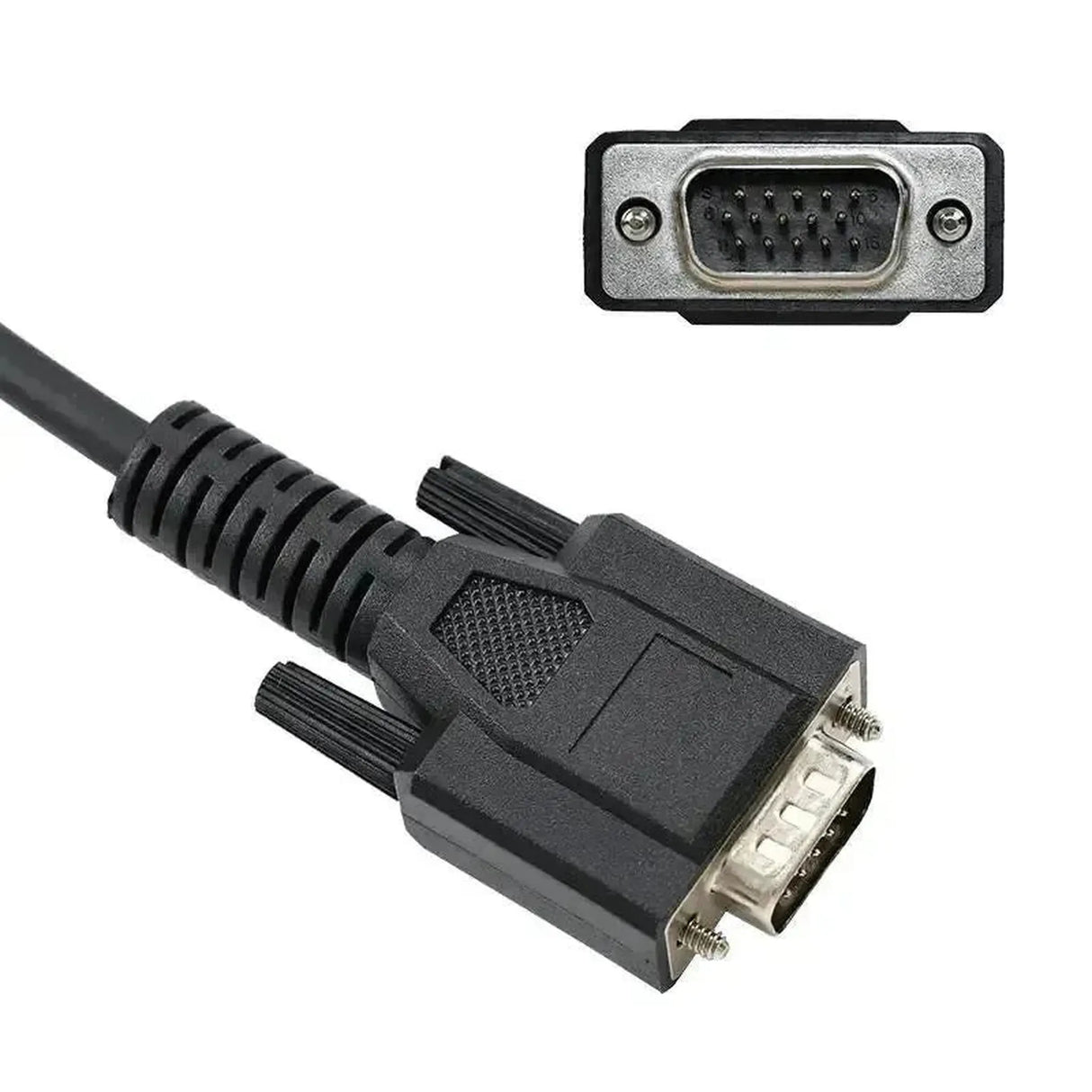

OBDSTAR (TCM-023) | ZF (9HP) 58-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

€2475

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The OBDSTAR TCM-023 adapter cable is specifically designed to connect a 15-pin DB15 interface with the 58-pin TCM connector of ZF 9HP automatic transmissions. This adapter enables direct communication between the transmission control unit (TCM) and diagnostic or programming equipment for passenger cars equipped with this specific gearbox.

Within a diagnostic and programming environment, this cable facilitates a secure and stable signal transfer through a direct bench connection. This allows technicians to read, write, or clone data without needing to connect the transmission in the vehicle. This adapter cable is exclusively compatible with OBDSTAR diagnostic tools and programmers, ensuring protocols are seamlessly translated to the required pin-out of the ZF module.

ADVANTAGES

✔ Enables direct communication via a bench connection for transmission diagnostics.
✔ Equipped with a robust 58-pin ZF connector for secure connection to the TCM.
✔ Supports data transfer for the ZF 9HP transmission control unit.

ATTENTION POINTS

✕ Exclusively compatible with OBDSTAR diagnostic tools and programmers.
✕ Only suitable for vehicles equipped with a ZF 9HP transmission.

Applications and Features

This adapter cable is designed for specific transmission tasks and supports the following technical functions in combination with OBDSTAR equipment:

  • TCM communication: Enables direct access to the transmission control unit for reading module information and fault codes.
  • Data reading and writing: Facilitates transferring calibration files and EEPROM/Flash data via a bench setup.
  • TCM cloning: Supports duplicating the original transmission data to a replacement control unit.

Compatible vehicles and applications

This adapter cable is applicable to various passenger cars factory-equipped with the ZF 9HP automatic transmission. Compatibility depends on the existing TCM hardware.

Acura:

  • MDX / TLX: (2015 - present)

Chrysler:

  • 200 / Pacifica: (2015 - present)

Dodge:

  • ProMaster City: (2015 - present)

Fiat:

  • 500X: (2015 - present)

Honda:

  • Pilot / Passport: (2016 - present)

Jaguar:

  • E-Pace: (2018 - present)

Jeep:

  • Cherokee / Compass / Renegade: (2014 - present)

Land Rover:

  • Discovery Sport / Range Rover Evoque: (2014 - present)
💡
Good to know: Always ensure that the external power supply of the programmer is stable during a bench connection. Voltage fluctuations while reading or writing the TCM can lead to irreversible data corruption.

Package Contents

  • 1x OBDSTAR (TCM-023) | ZF (9HP) 58-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
